Page 151 of 406

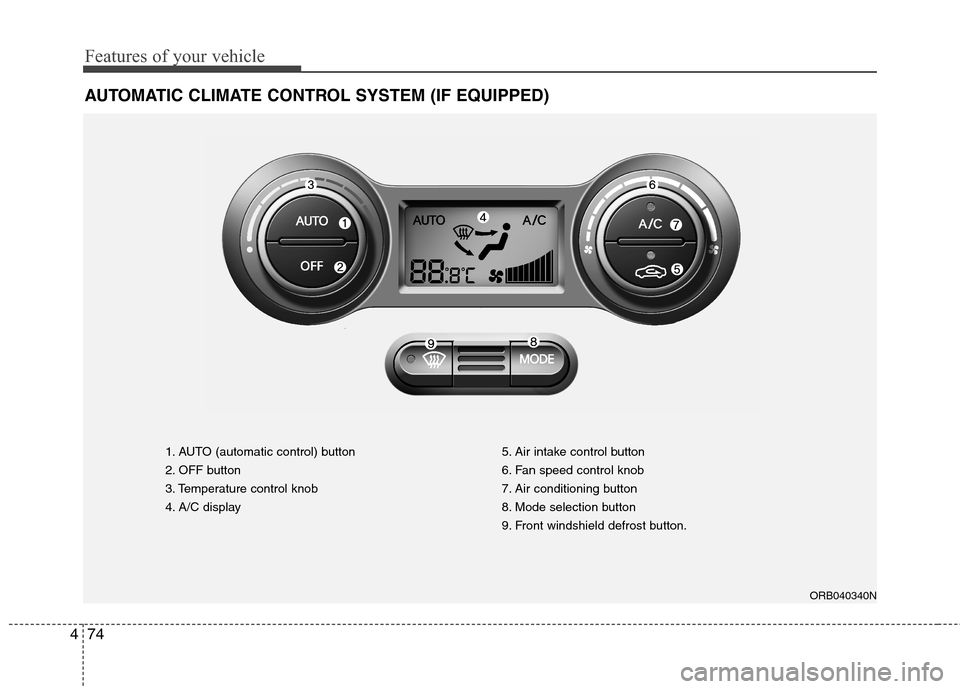

Hyundai Accent 2015  Owners Manual Features of your vehicle
74 4
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. AUTO (automatic control) button
2. OFF button
3. Temperature control knob
4. A/C display5. Air intake control button
6.

Page 152 of 406

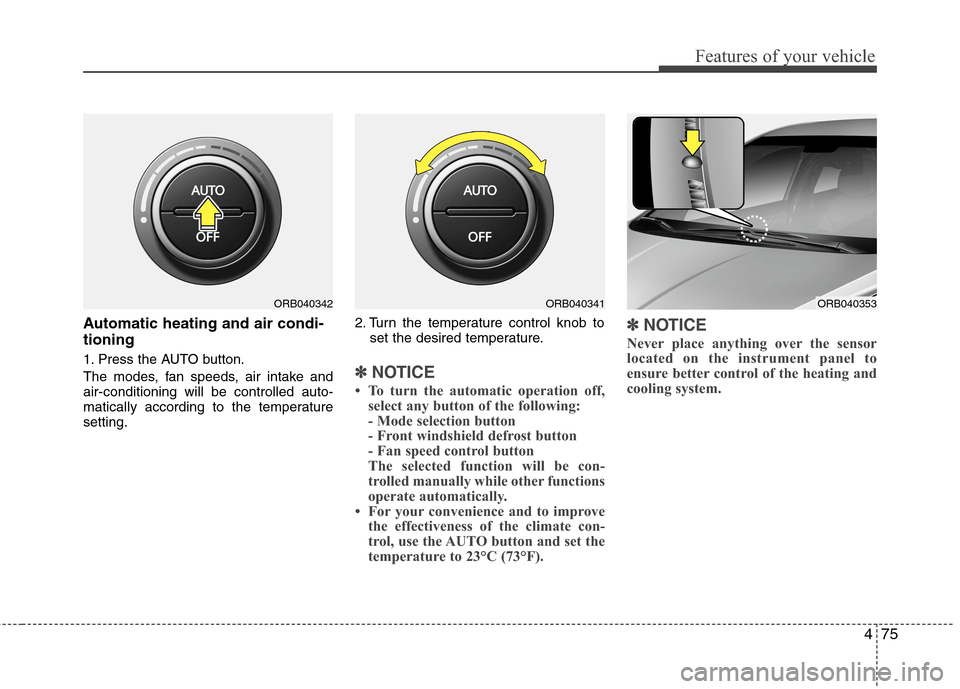

Hyundai Accent 2015  Owners Manual 475
Features of your vehicle
Automatic heating and air condi-
tioning
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled auto-
matically according to t

Page 153 of 406

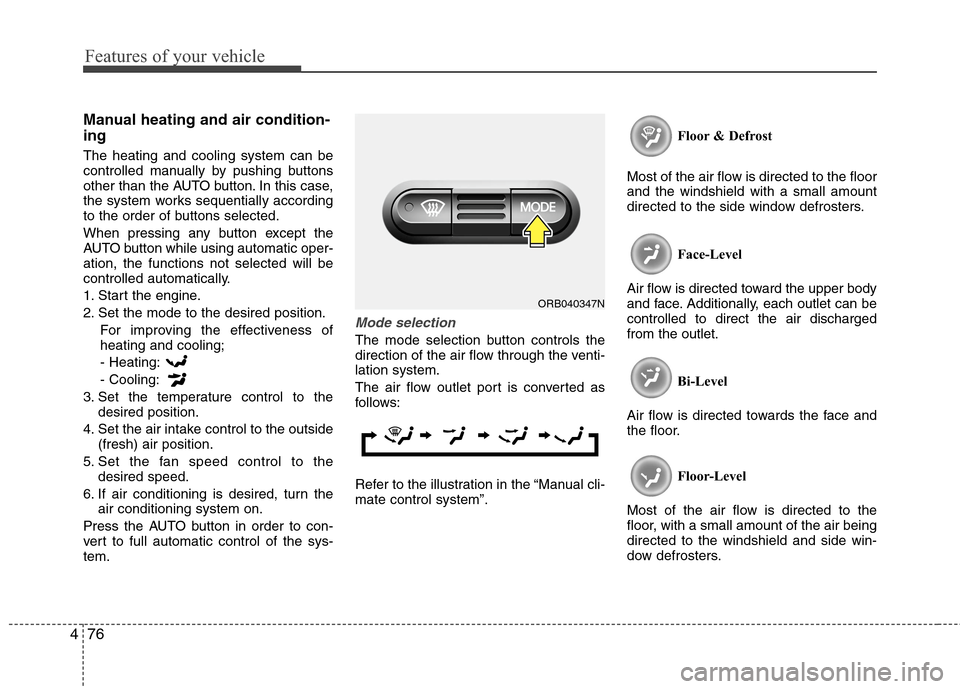

Hyundai Accent 2015  Owners Manual Features of your vehicle
76 4
Manual heating and air condition-
ing
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system wo

Page 154 of 406

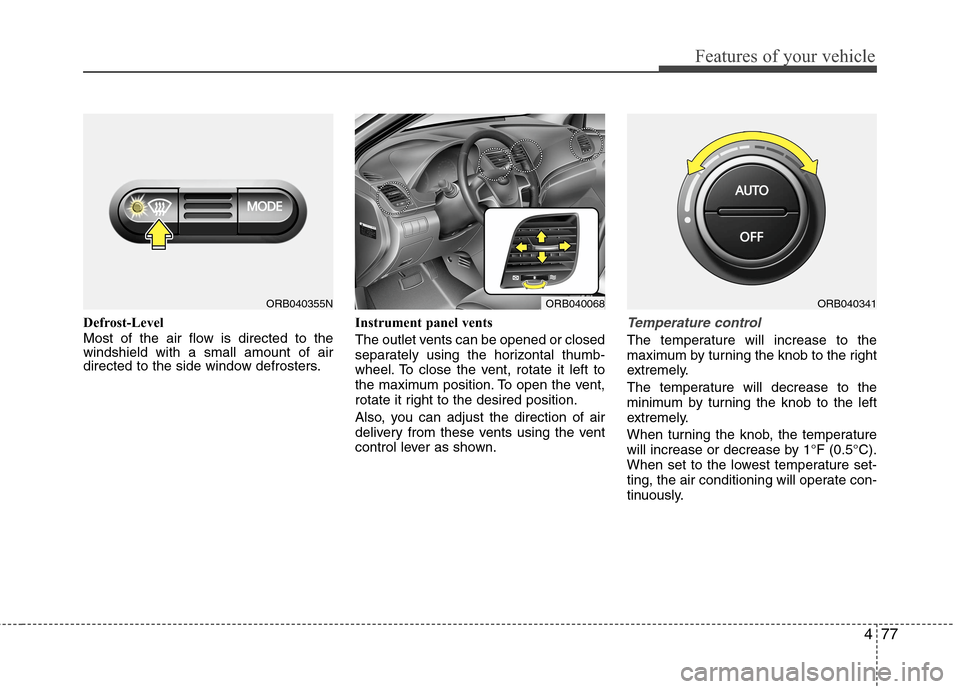

Hyundai Accent 2015  Owners Manual 477
Features of your vehicle
Defrost-Level
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.Instrument panel vents
The outlet vents

Page 155 of 406

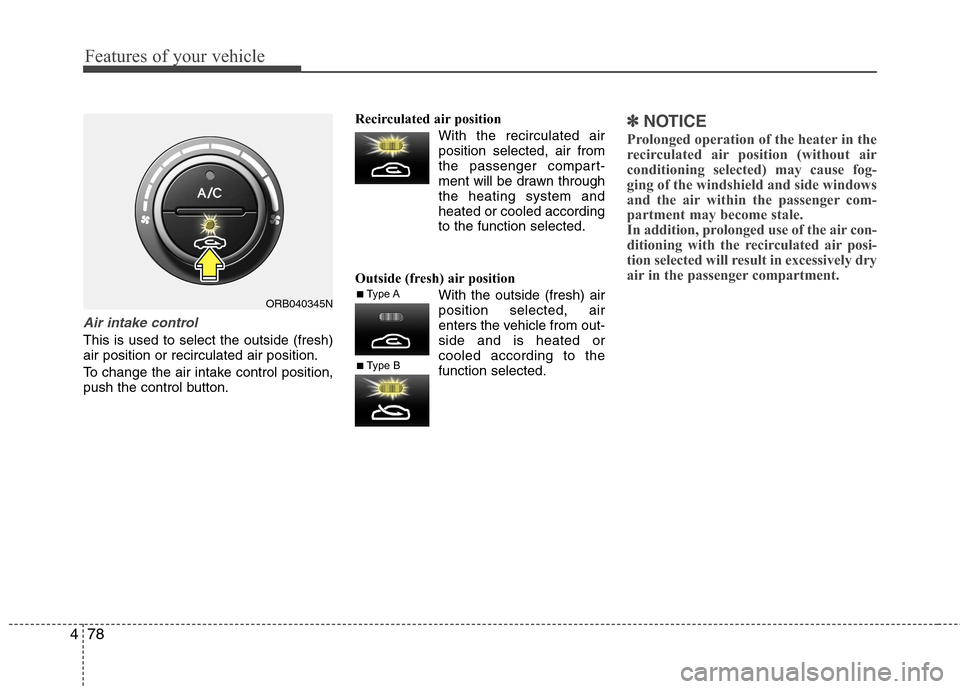

Hyundai Accent 2015  Owners Manual Features of your vehicle
78 4
Air intake control
This is used to select the outside (fresh)
air position or recirculated air position.
To change the air intake control position,
push the control butto

Page 156 of 406

Hyundai Accent 2015  Owners Manual 479
Features of your vehicle
Fan speed control
The fan speed can be set to the desired
speed by turning the fan speed control
knob.
The higher the fan speed is, the more air
is delivered.
Pressing the

Page 157 of 406

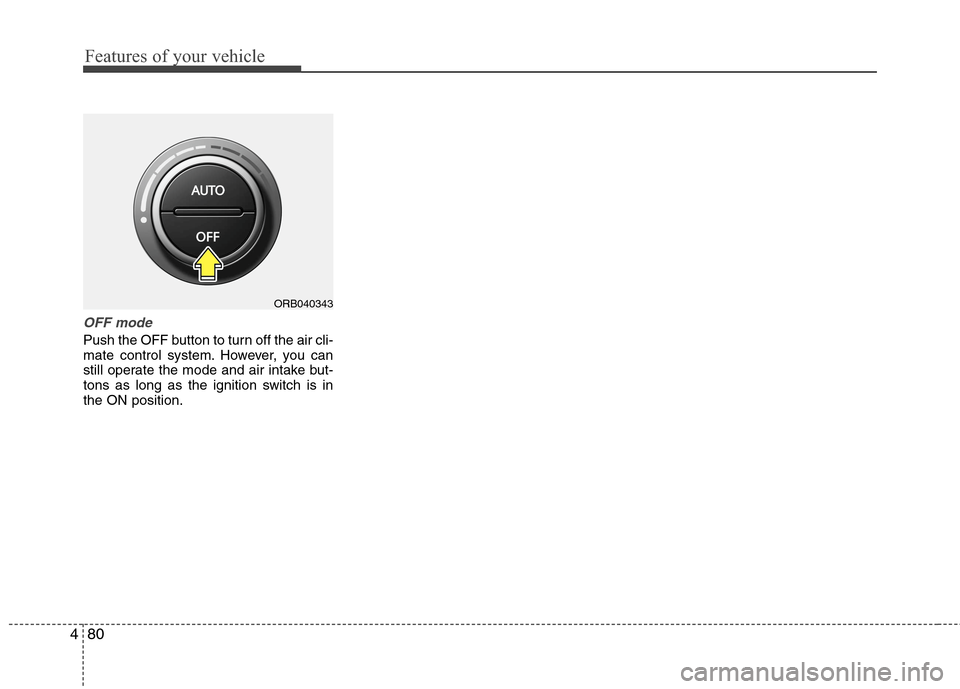

Hyundai Accent 2015  Owners Manual Features of your vehicle
80 4
OFF mode
Push the OFF button to turn off the air cli-
mate control system. However, you can
still operate the mode and air intake but-
tons as long as the ignition switch

Page 158 of 406

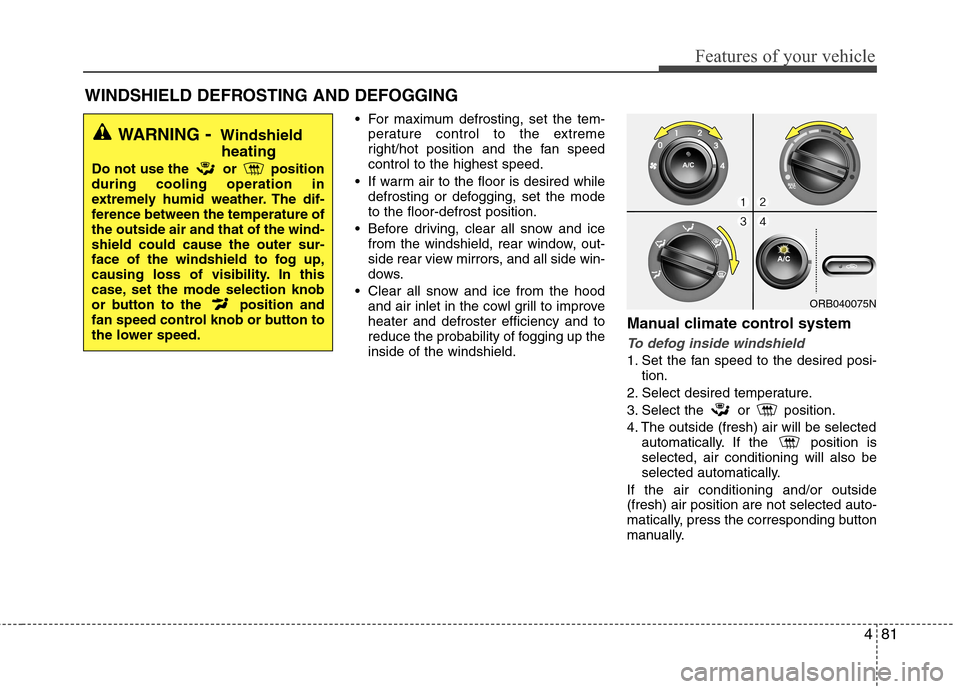

Hyundai Accent 2015  Owners Manual 481
Features of your vehicle
 For maximum defrosting, set the tem-
perature control to the extreme
right/hot position and the fan speed
control to the highest speed.
 If warm air to the floor is desir

Page 159 of 406

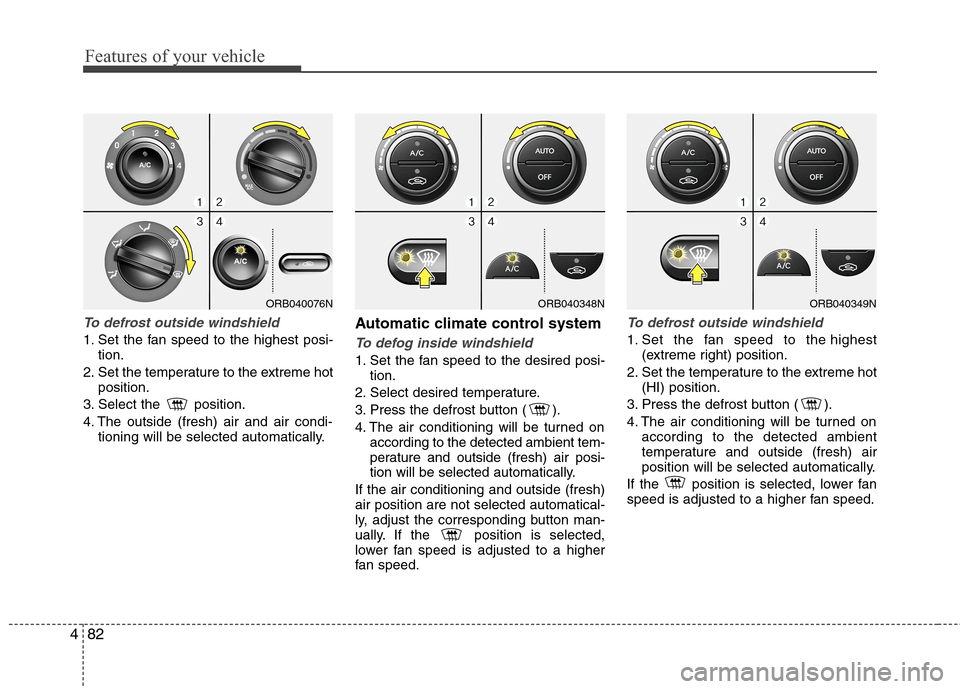

Hyundai Accent 2015  Owners Manual Features of your vehicle
82 4
To defrost outside windshield
1. Set the fan speed to the highest posi-
tion.
2. Set the temperature to the extreme hot
position.
3. Select the  position.
4. The outsid

Page 160 of 406

Hyundai Accent 2015  Owners Manual 483
Features of your vehicle
Defogging logic
To reduce the probability of fogging up
the inside of the windshield, the air intake
or air conditioning are controlled auto-
matically according to certai
