Hyundai Accent 2018 Owner's Manual

7-82
Maintenance

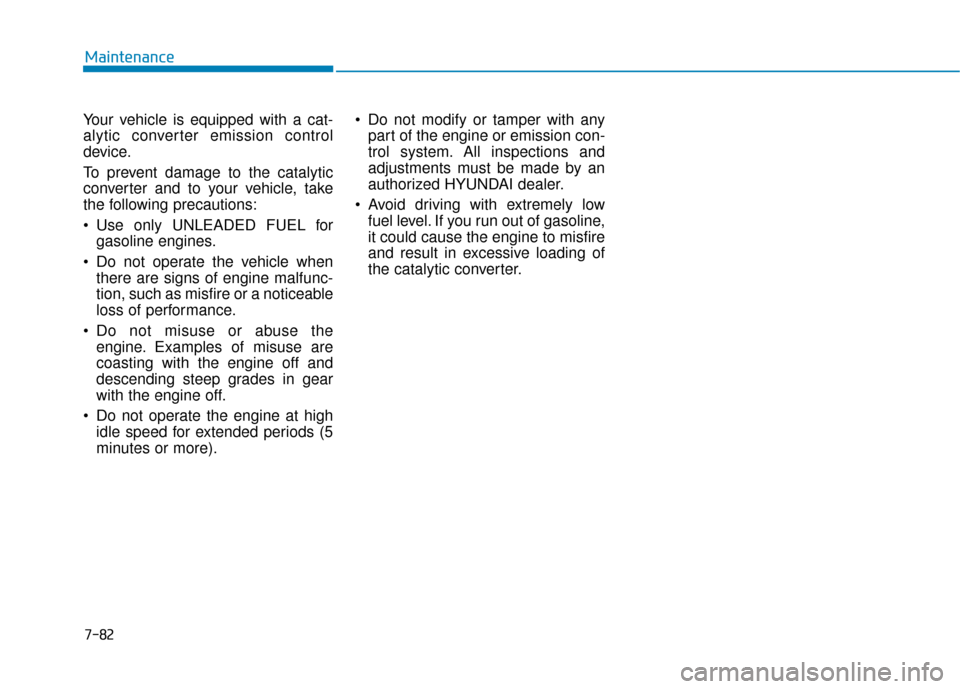

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL for gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

7-83
7
Maintenance
C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

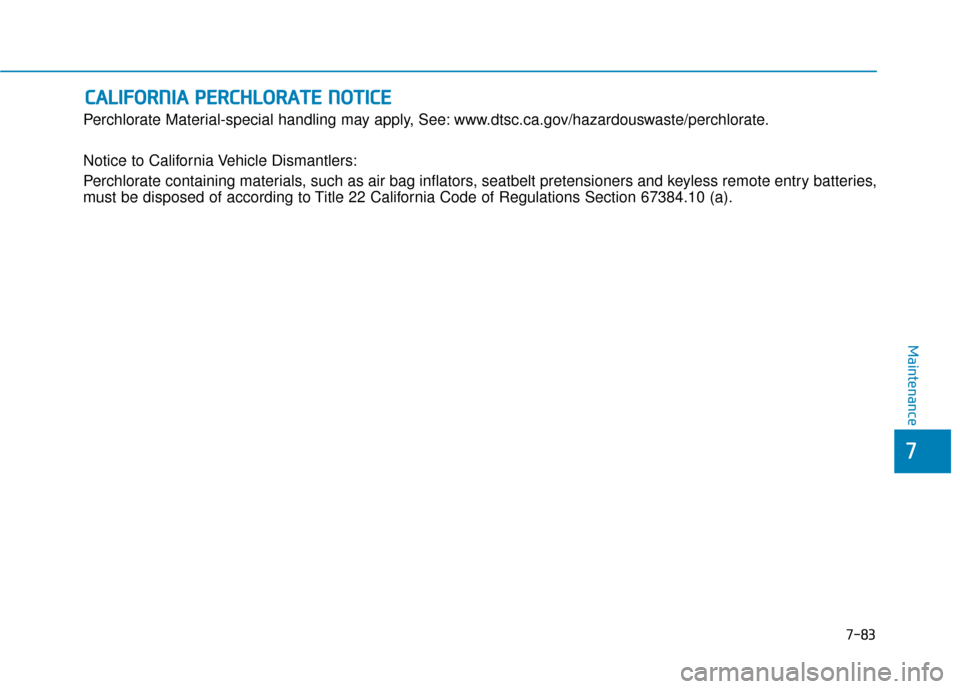

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

888
Specifications & Consumer information
8

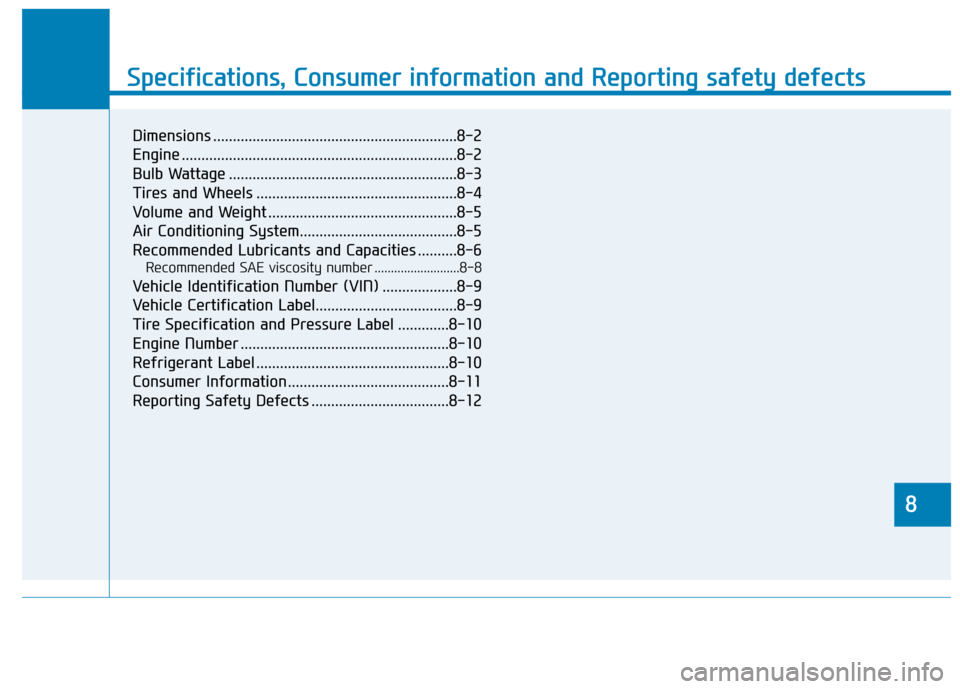

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-5
Air Conditioning System........................................8-5
Recommended Lubricants and Capacities ..........8-6
Recommended SAE viscosity number ..........................8-8
Vehicle Identification Number (VIN) ...................8-9
Vehicle Certification Label....................................8-9
Tire Specification and Pressure Label .............8-10
Engine Number .....................................................8-10
Refrigerant Label .................................................8-10
Consumer Information .........................................8-11
Reporting Safety Defects ...................................8-12

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E

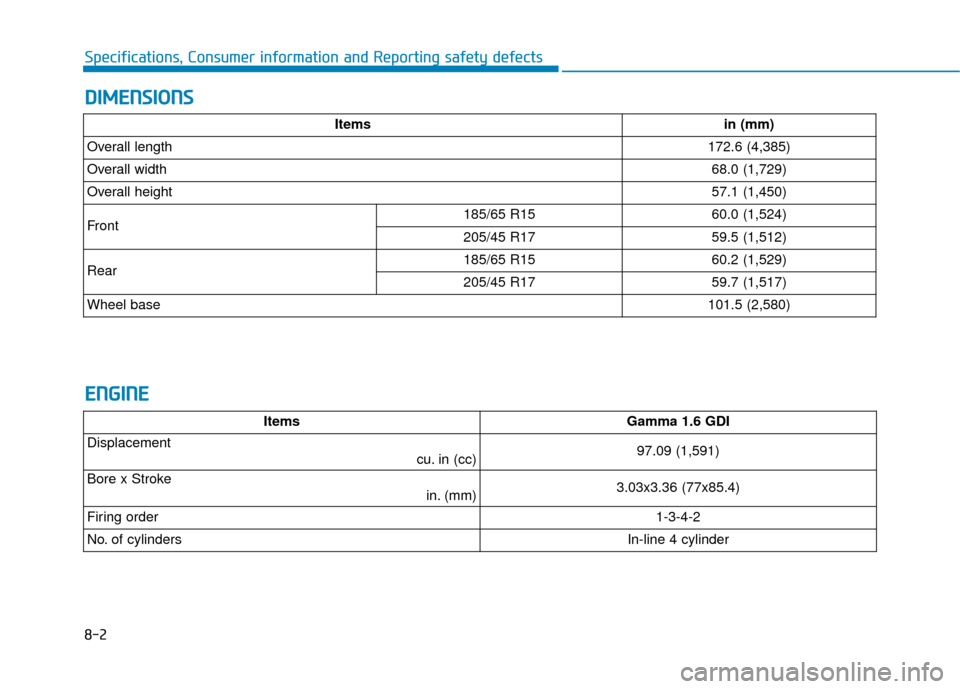

Itemsin (mm)
Overall length172.6 (4,385)
Overall width68.0 (1,729)
Overall height57.1 (1,450)
Front185/65 R1560.0 (1,524)
205/45 R1759.5 (1,512)
Rear185/65 R1560.2 (1,529)
205/45 R1759.7 (1,517)
Wheel base101.5 (2,580)
Items Gamma 1.6 GDI
Displacement
cu. in (cc)97.09 (1,591)
Bore x Stroke in. (mm)3.03x3.36 (77x85.4)
Firing order1-3-4-2
No. of cylindersIn-line 4 cylinder

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects

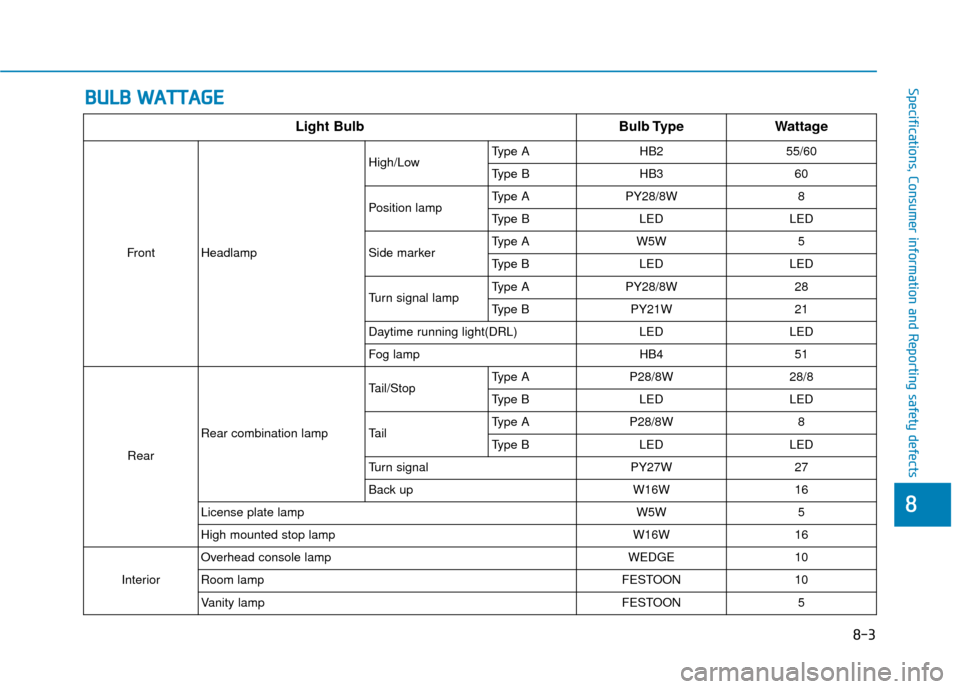

Light Bulb Bulb TypeWattage
Front Headlamp High/Low
Type A HB2 55/60
Type B
HB3 60
Position lamp Type A
PY28/8W 8
Type B LED LED
Side marker Type A
W5W 5
Type B LED LED
Turn signal lamp Type A
PY28/8W 28
Type B PY21W 21
Daytime running light(DRL) LEDLED
Fog lamp HB451
Rear Rear combination lamp Tail/Stop
Type A
P28/8W 28/8
Type B LED LED
Tail Type A
P28/8W 8
Type B LED LED
Turn signal PY27W27
Back upW16W16
License plate lamp W5W5
High mounted stop lamp W16W16
Interior Overhead console lamp
WEDGE10
Room lamp FESTOON10
Vanity lamp FESTOON5
8-3

8-4
Specifications, Consumer information and Reporting safety defects
T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S

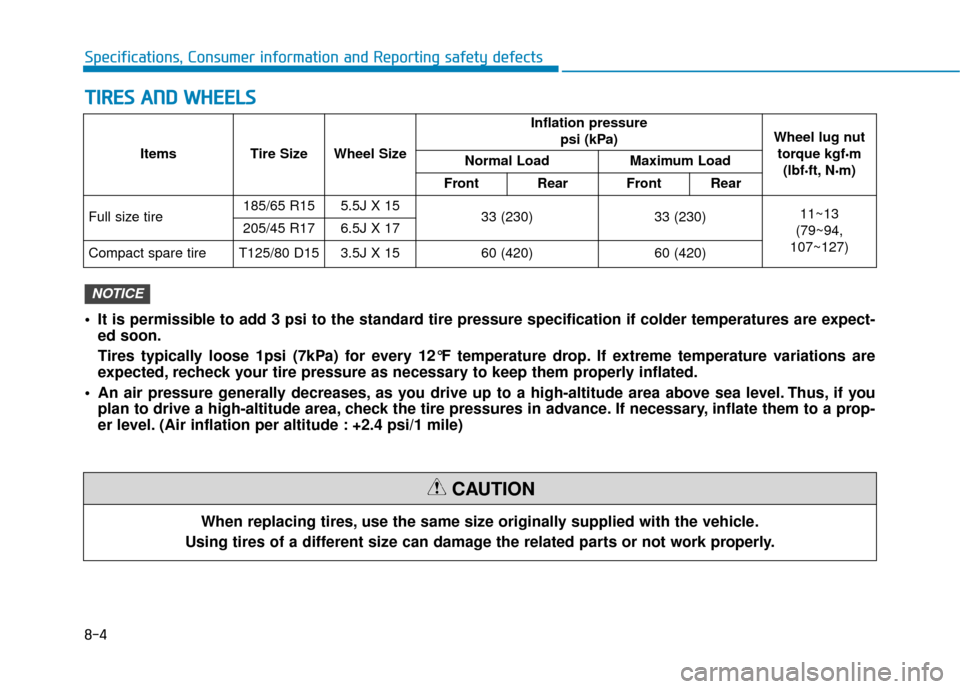

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure psi (kPa)Wheel lug nuttorque kgf
•m
(lbf
ft, Nm)Normal LoadMaximum Load
FrontRearFrontRear
Full size tire185/65 R155.5J X 1533 (230)33 (230)11~13
(79~94,
107~127)205/45 R176.5J X 17
Compact spare tireT125/80 D15 3.5J X 1560 (420)60 (420)
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE

8-5
88
Specifications, Consumer information and Reporting safety defectsV
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.

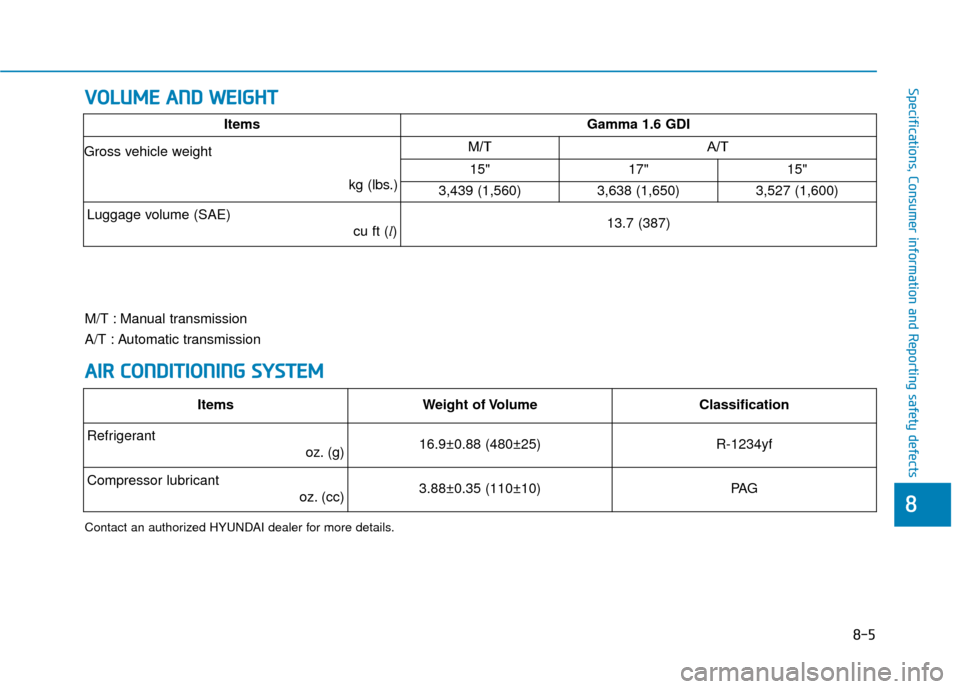

ItemsGamma 1.6 GDI
Gross vehicle weight
kg (lbs.)M/TA/T
15"17"15"
3,439 (1,560)3,638 (1,650)3,527 (1,600)
Luggage volume (SAE) cu ft (l)13.7 (387)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 16.9±0.88 (480±25)R-1234yf
Compressor lubricantoz. (cc) 3.88±0.35 (110±10)PA G
M/T : Manual transmission
A/T : Automatic transmission

8-6
Specifications, Consumer information and Reporting safety defects

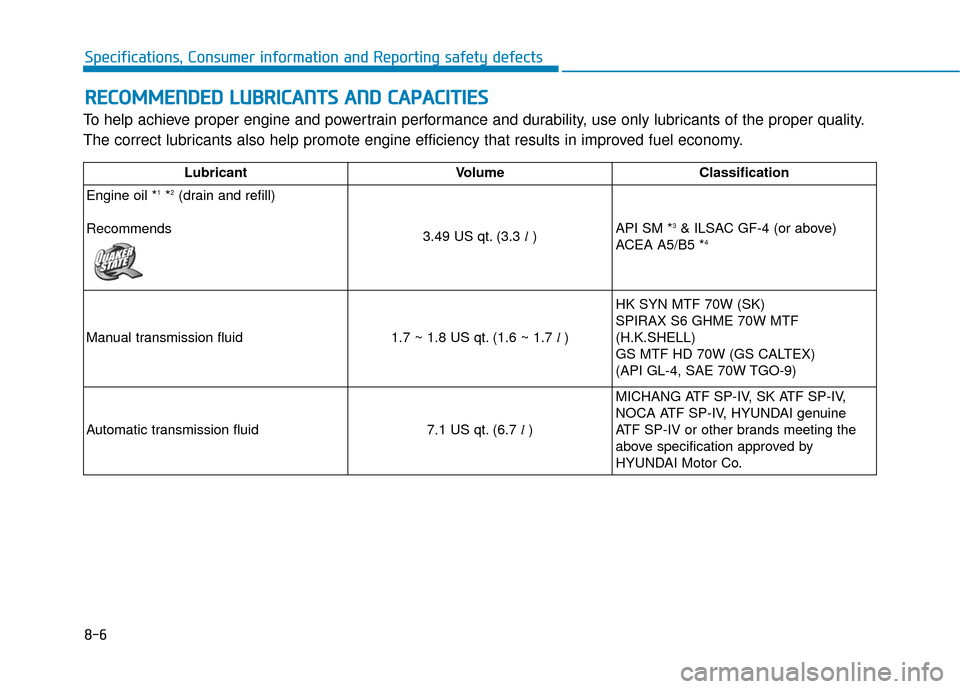

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R R E
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends
3.49 US qt. (3.3 l) API SM *3& ILSAC GF-4 (or above)
ACEA A5/B5 *4
Manual transmission fluid1.7 ~ 1.8 US qt. (1.6 ~ 1.7 l )HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Automatic transmission fluid7.1 US qt. (6.7
l )
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine
ATF SP-IV or other brands meeting the
above specification approved by
HYUNDAI Motor Co.

8-7
88
Specifications, Consumer information and Reporting safety defects
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.
*4: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above). Lubricant
Volume
Classification
Coolant
5.3 l(5.60 US qt.) Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Brake/Clutch fluid
0.7~0.8 US qt. (0.7~0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel11.9 US gal. (45 l
)Refer to "Fuel requirements" in the
Foreword chapter.

8-8
Specifications, Consumer information and Reporting safety defects

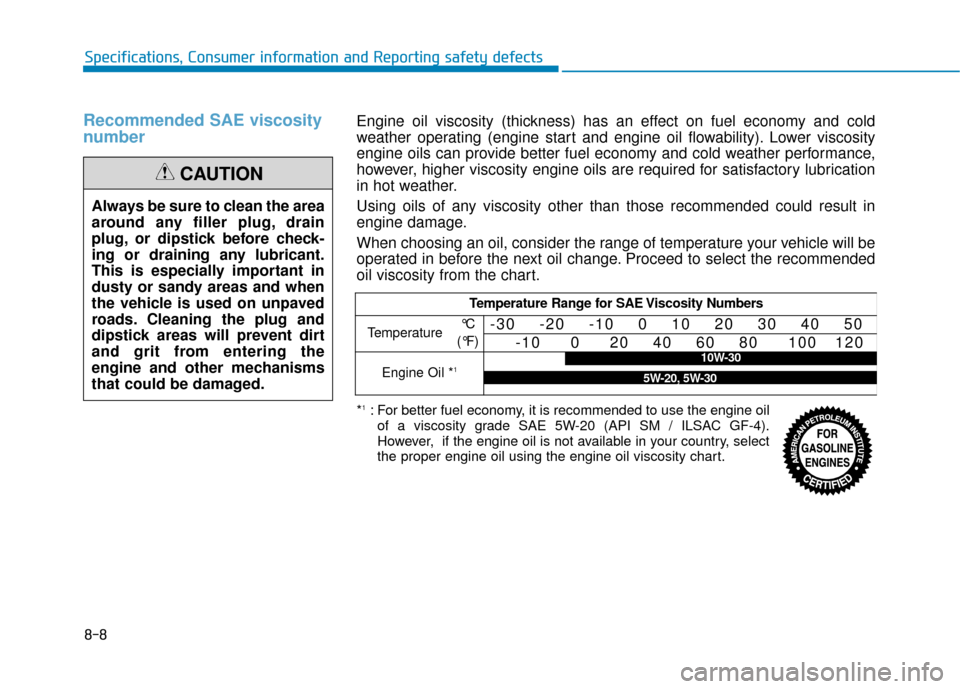

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
*1: For better fuel economy, it is recommended to use the engine oilof a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)
