Hyundai Accent 2019 Owner's Manual

7-52
Maintenance

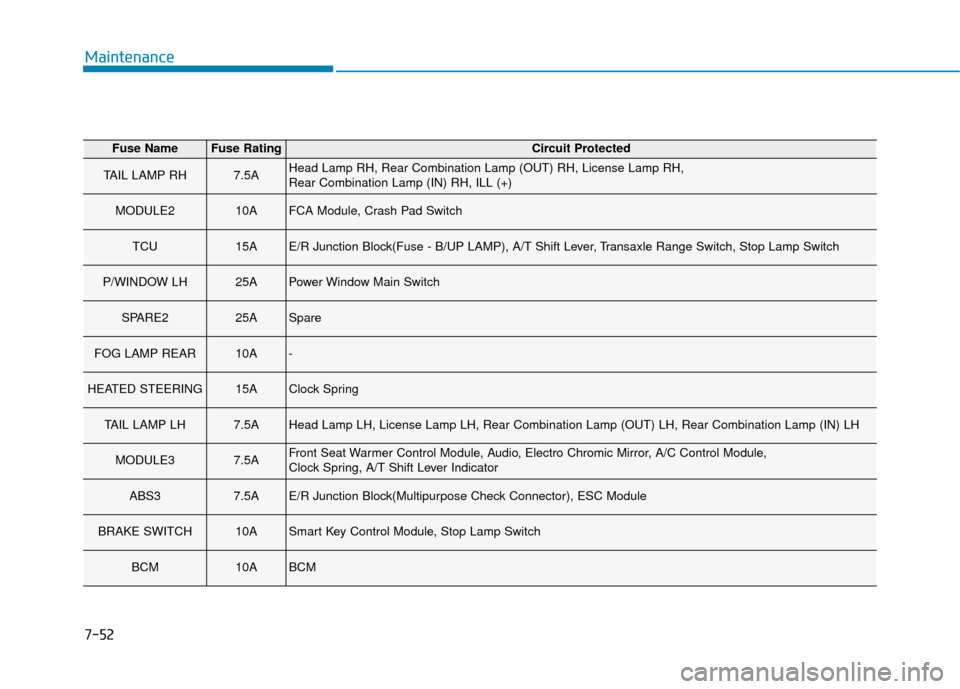

Fuse NameFuse RatingCircuit Protected
TAIL LAMP RH7.5AHead Lamp RH, Rear Combination Lamp (OUT) RH, License Lamp RH,
Rear Combination Lamp (IN) RH, ILL (+)
MODULE210AFCA Module, Crash Pad Switch
TCU15AE/R Junction Block(Fuse - B/UP LAMP), A/T Shift Lever, Transaxle Range Switch, Stop Lamp Switch
P/WINDOW LH25APower Window Main Switch
SPARE225ASpare
FOG LAMP REAR10A-
HEATED STEERING15AClock Spring
TAIL LAMP LH7.5AHead Lamp LH, License Lamp LH, Rear Combination Lamp (OUT) LH, Rear Co\
mbination Lamp (IN) LH
MODULE37.5AFront Seat Warmer Control Module, Audio, Electro Chromic Mirror, A/C Control Module,
Clock Spring, A/T Shift Lever Indicator
ABS37.5AE/R Junction Block(Multipurpose Check Connector), ESC Module
BRAKE SWITCH10ASmart Key Control Module, Stop Lamp Switch
BCM10ABCM

7-53
7
Maintenance
Fuse NameFuse RatingCircuit Protected
FOG LAMP FRONT15AI/P Junction Block(Front Fog Lamp Relay)
A/C17.5AE/R Junction Block(Blower Relay), A/C Control Module
MODULE510ASunroof Motor, Front Seat Warmer Control Module
MODULE710ATPMS Unit
ECU10AECM/PCM, Immobilizer Module, Smart Key Control Module
SUNROOF15ASunroof Motor
IMMO.10AImmobilizer Module
MODULE610AKey Solenoid
SPARE410ASpare
MODULE47.5ASLM, BCM, Smart Key Control Module
SPARE510ASpare
AIR BAG10ASRS Control Module, Occupant Detection Sensor

7-54
Maintenance
Fuse NameFuse RatingCircuit Protected
MODULE17.5ABCM, SLM, Key Interlock
SMART KEY25ASmart Key Control Module
A/C27.5A-
WIPER RR15AMultifunction Switch, Rear Wiper Motor, Rear Wiper Relay
WIPER FRT25AMultifunction Switch, Front Wiper Motor, E/R Junction Block(Wiper Lo Relay)
ACC10AI/P Junction Block(Power Outlet Relay), BCM, SLM, Audio,
Key Interlock Power Outside Mirror Switch, Smart Key Control Module, USB Charging Connecto
SPARE320ASpare
A/BAG IND7.5AInstrument Cluster, A/C Control Module
CLUSTER7.5AInstrument Cluster
MDPS27.5AMDPS Unit
AUDIO20AAudio
ROOM LP10AI/P Junction Block(Room Lamp Relay), Overhead Console Lamp , A/C Control Module, SLM, BCM,
Auto Light & Photo Sensor, TPMS Unit ,Instrument Cluster, Data Link Connector, Room Lamp,
Trunk Room Lamp, Electro Chromic Mirror

7-55
7
Maintenance

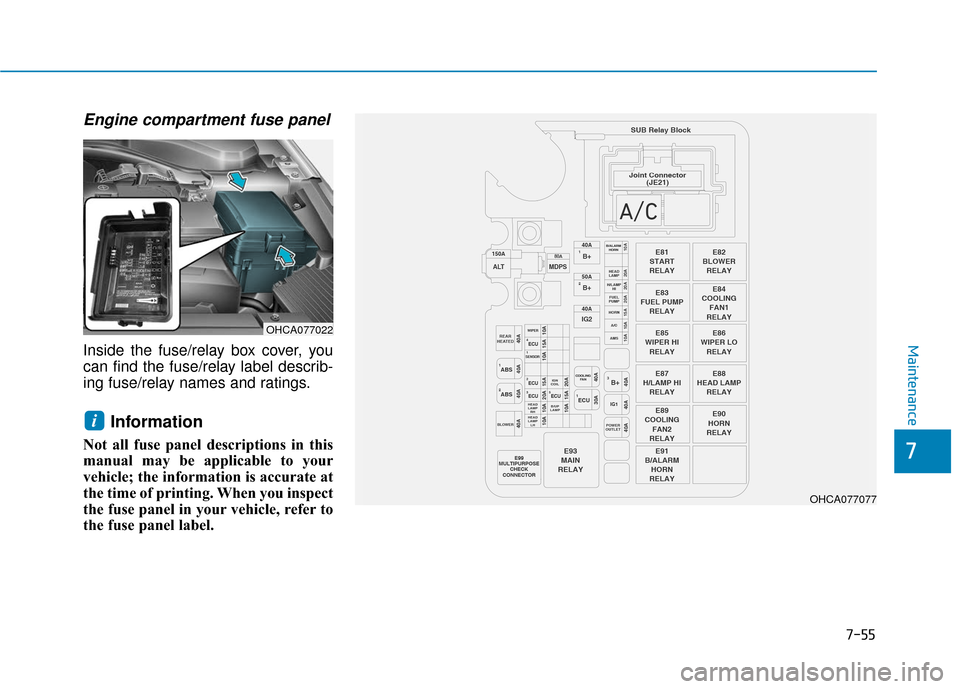

Engine compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OHCA077022
OHCA077077

7-56
Maintenance

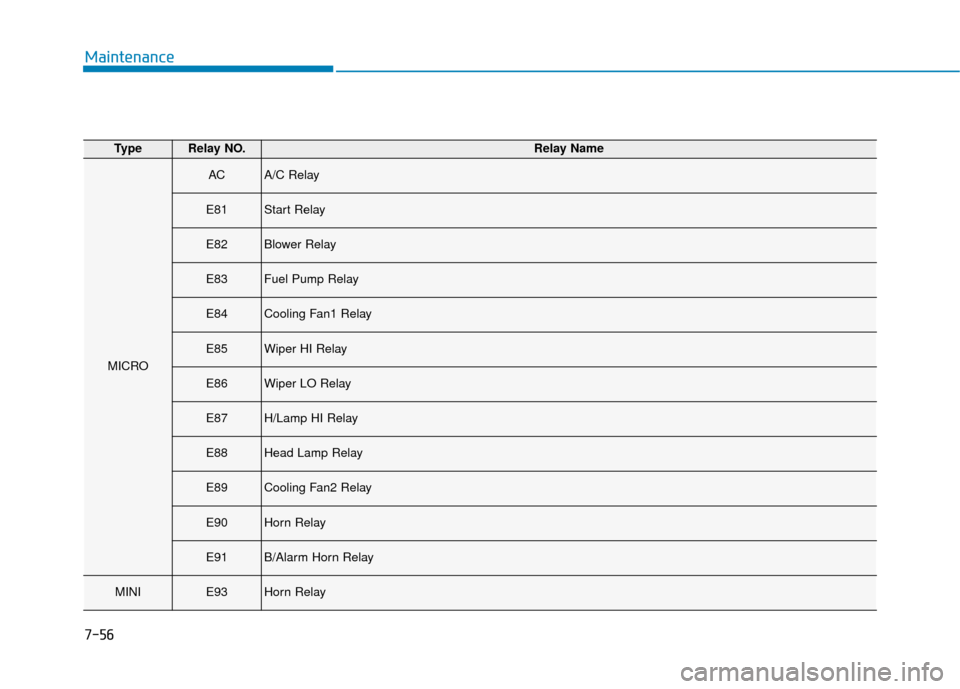

TypeRelay NO.Relay Name
MICRO
ACA/C Relay
E81Start Relay
E82Blower Relay
E83Fuel Pump Relay
E84Cooling Fan1 Relay
E85Wiper HI Relay
E86Wiper LO Relay
E87H/Lamp HI Relay
E88Head Lamp Relay
E89Cooling Fan2 Relay
E90Horn Relay
E91B/Alarm Horn Relay
MINIE93Horn Relay

7-57
7
Maintenance
Fuse NameFuse RatingCircuit Protected
MDPS80AMDPS Unit
ALT150AE/R Junction Block (Fuse - ABS1, ABS2, BLOWER, REAR HEATED)
REAR HEATED40AI/P Junction Block (Rear Defogger Relay)
ABS140AESC Module, Multipurpose Check Connector
ABS240AESC Module
BLOWER40AE/R Junction Block (Blower Relay)
WIPER10AFront Wiper Motor, Multifunction Switch, E/R Junction Block (Wiper LO Relay)
ECU415AECM/PCM
SENSOR110AOil Control Valve #1/#2, E/R Junction Block (Cooling Fan1/2 Relay),
Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve,
Sub Relay Block (A/C Relay) Purge Control Solenoid Valve, Canister Close Valve
ECU215AECM/PCM
ECU320AECM/PCM
HEAD LAMP RH10AHead Lamp RH

7-58
Maintenance

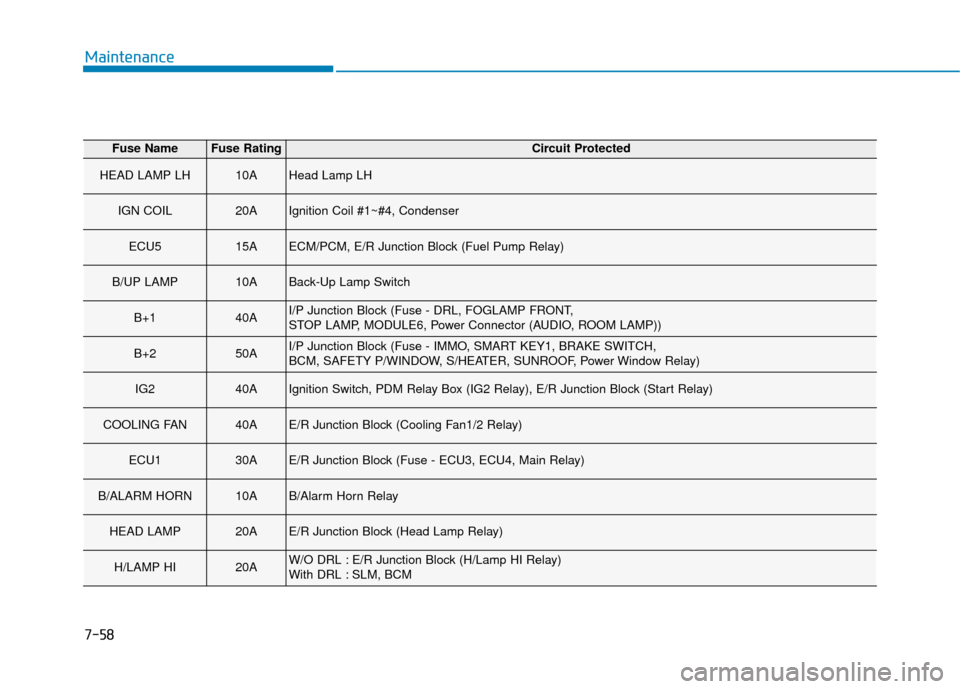

Fuse NameFuse RatingCircuit Protected
HEAD LAMP LH10AHead Lamp LH
IGN COIL20AIgnition Coil #1~#4, Condenser
ECU515AECM/PCM, E/R Junction Block (Fuel Pump Relay)
B/UP LAMP10ABack-Up Lamp Switch
B+140AI/P Junction Block (Fuse - DRL, FOGLAMP FRONT,
STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP))
B+250AI/P Junction Block (Fuse - IMMO, SMART KEY1, BRAKE SWITCH,
BCM, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay)
IG240AIgnition Switch, PDM Relay Box (IG2 Relay), E/R Junction Block (Start Relay)
COOLING FAN40AE/R Junction Block (Cooling Fan1/2 Relay)
ECU130AE/R Junction Block (Fuse - ECU3, ECU4, Main Relay)
B/ALARM HORN10AB/Alarm Horn Relay
HEAD LAMP20AE/R Junction Block (Head Lamp Relay)
H/LAMP HI20AW/O DRL : E/R Junction Block (H/Lamp HI Relay)
With DRL : SLM, BCM

7-59
7
Maintenance
Fuse NameFuse RatingCircuit Protected
FUEL PUMP20AE/R Junction Block (Fuel Pump Relay)
HORN10AE/R Junction Block (Horn Relay)
A/C10ASub Relay Block (A/C Relay)
AMS10ABattery Sensor
B+340AI/P Junction Block (Fuse - T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay)
IG140AIgnition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER OUTLET40AI/P Junction Block (Power Outlet Relay)

7-60
Maintenance

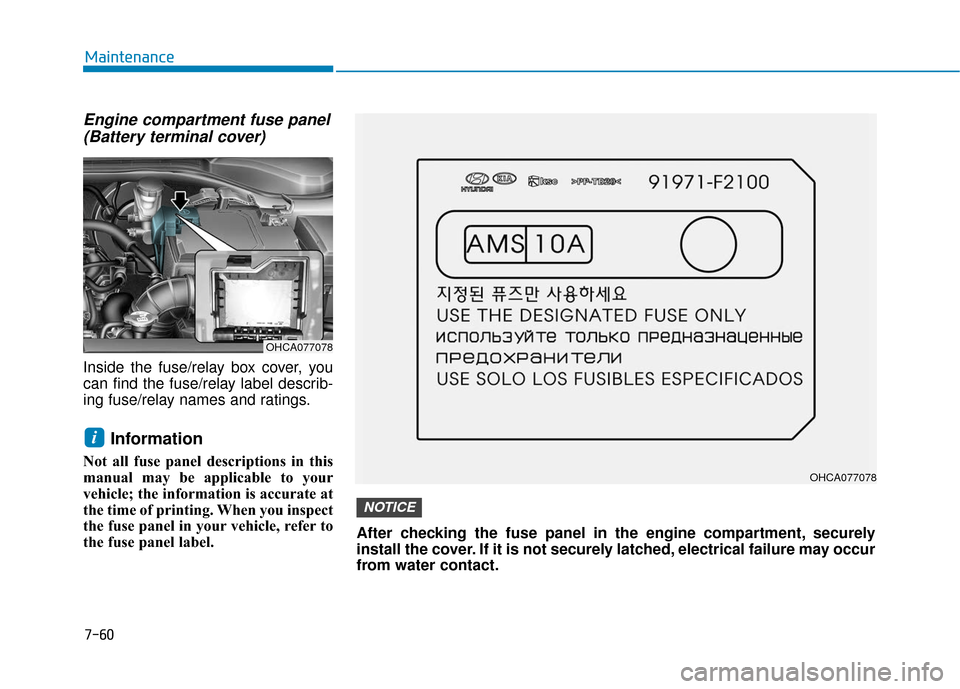

Engine compartment fuse panel(Battery terminal cover)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OHCA077078
OHCA077078
After checking the fuse panel in the engine compartment, securely
install the cover. If it is not securely latched, electrical failure may occur
from water contact.
NOTICE

7-61
7
Maintenance
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
Information
After heavy driving, rain or washing,
headlamp and trunk lenses could
appear frosty. This condition is caused
by the temperature difference
between the lamp inside and the out-
side temperature. This is similar to the
condensation on your windows inside
your vehicle during the rain and does-
n’t indicate a problem with your vehi-
cle. If the water leaks into the lamp
bulb circuitry, have your vehicle
checked by an authorized HYUNDAI
dealer.
Headlamp, Position lamp, Fog
lamp, Daytime Running Light,
Turn Signal Lamp and Side
Marker
Ty p e A
(1) Headlamp (High/Low)
(2) Front turn signal lamp/
Position lamp
(3) Side marker
(4) Front fog lamp*
* : if equipped
i
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, place
the ignition switch to the
LOCK/OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
OHCA077030
