7-82
Maintenance

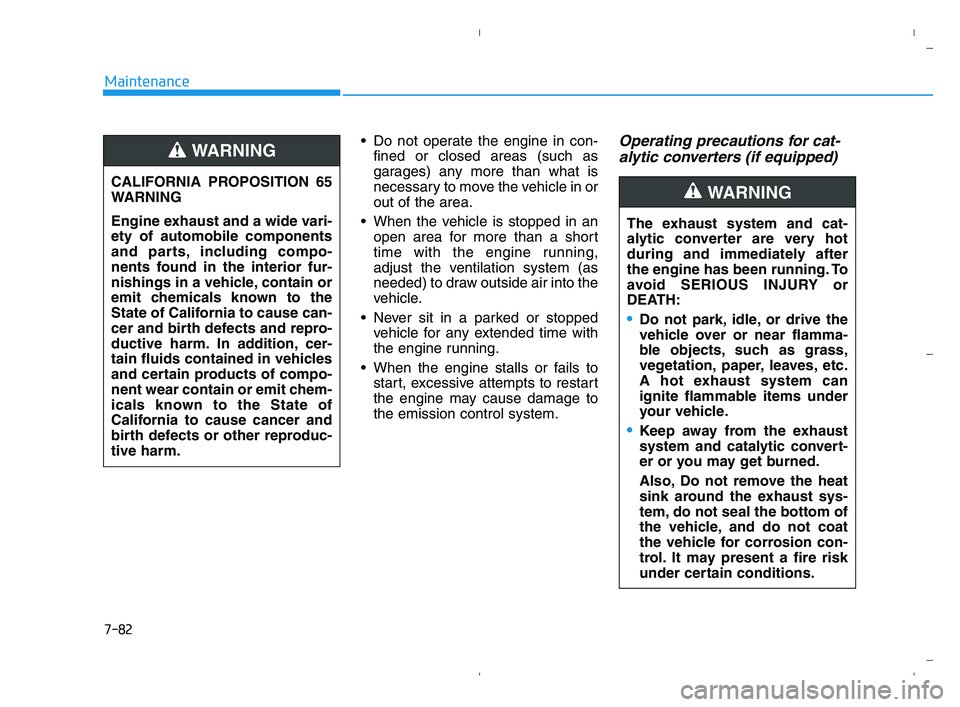

Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system.
Operating precautions for cat-
alytic converters (if equipped)
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING
HCa HMA 7.qxp 5/25/2020 11:11 AM Page 82

7-83
7
Maintenance

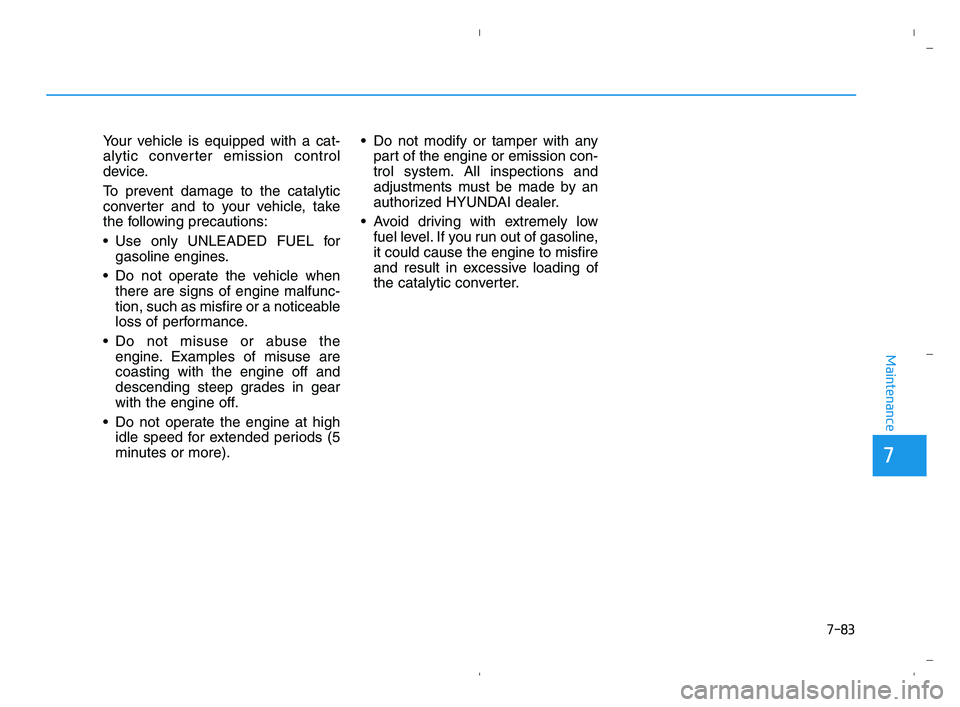

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the
engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high
idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low
fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.
HCa HMA 7.qxp 5/25/2020 11:11 AM Page 83

C CA
AL
LI
IF
FO
OR
RN
NI
IA
A
P
PE
ER
RC
CH
HL
LO
OR
RA
AT
TE
E
N
NO
OT
TI
IC
CE
E

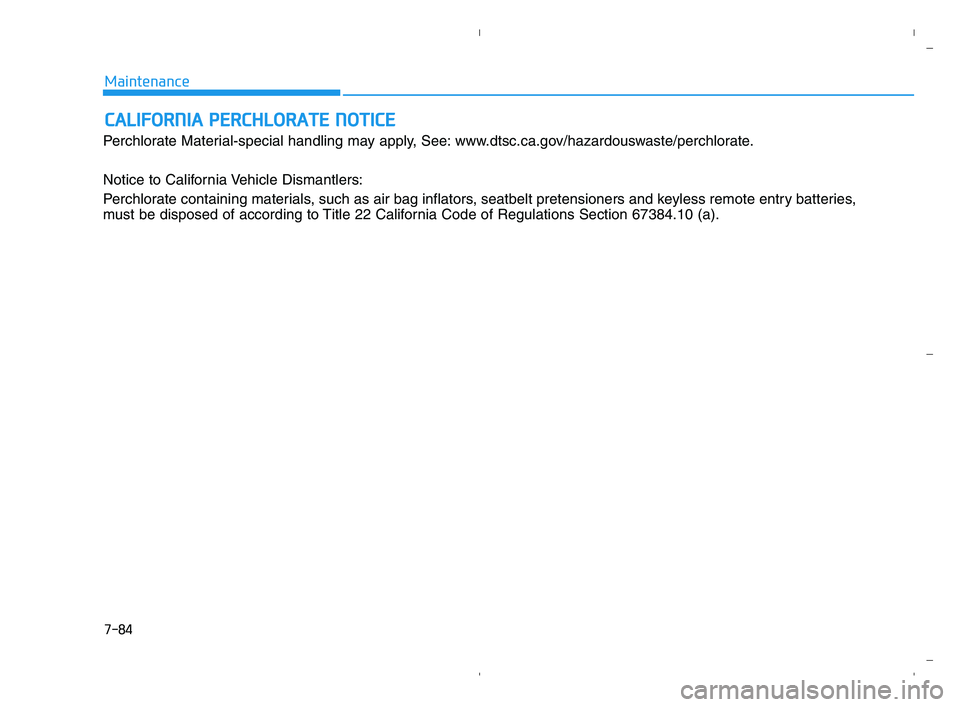

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).Maintenance
7-84
HCa HMA 7.qxp 5/25/2020 11:11 AM Page 84

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-5
Air Conditioning System........................................8-5
Recommended Lubricants and Capacities ..........8-6
Recommended SAE viscosity number ...........................8-8
Vehicle Identification Number (VIN) ...................8-9
Vehicle Certification Label....................................8-9
Tire Specification and Pressure Label .............8-10
Engine Number .....................................................8-10
Consumer Information .........................................8-11
Reporting Safety Defects ...................................8-12
HCa HMA 8.qxp 5/25/2020 11:38 AM Page 1

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
NG
GI
IN
NE
E

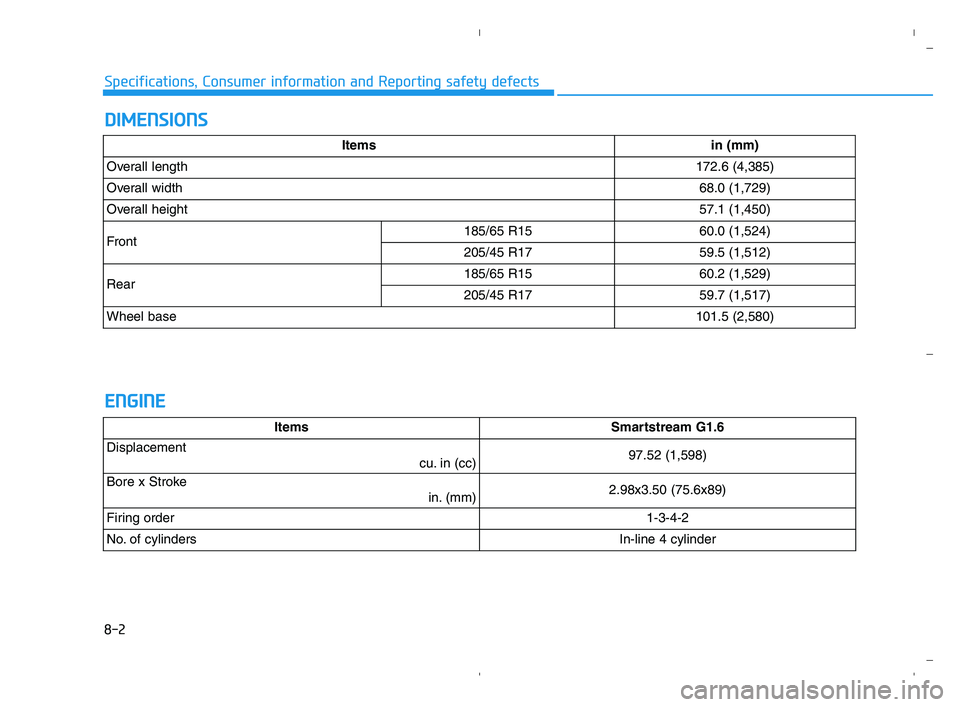

Itemsin (mm)
Overall length172.6 (4,385)
Overall width68.0 (1,729)
Overall height57.1 (1,450)
Front185/65 R1560.0 (1,524)
205/45 R1759.5 (1,512)
Rear185/65 R1560.2 (1,529)
205/45 R1759.7 (1,517)
Wheel base101.5 (2,580)
Items Smartstream G1.6
Displacement
cu. in (cc)97.52 (1,598)
Bore x Stroke
in. (mm)2.98x3.50 (75.6x89)
Firing order1-3-4-2
No. of cylindersIn-line 4 cylinder
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 2

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontHeadlampHigh/LowType A HB2 60/55
Type BHB3 60
LED LED
Position lampType A PY28/8W 8
Type B LED LED
Side markerType A W5W 5
Type B LED LED
Turn signal lampType A PY28/8W 28
Type B PY21W 21
Daytime running light(DRL) LED LED
Fog lamp HB4 51
Side repeater N/A N/A
RearRear combination lampTail/StopType A P28/8W 28/8
Type B LED LED
TailType A P28/8W 8
Type B LED LED
Turn signal PY27W 27
Back upW16W16
License plate lamp W5W 5
High mounted stop lamp W16W 16
InteriorOverhead console lamp WEDGE 10
Room lamp FESTOON 10
Vanity lamp FESTOON 5
8-3
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 3

8-4
Specifications, Consumer information and Reporting safety defects
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S

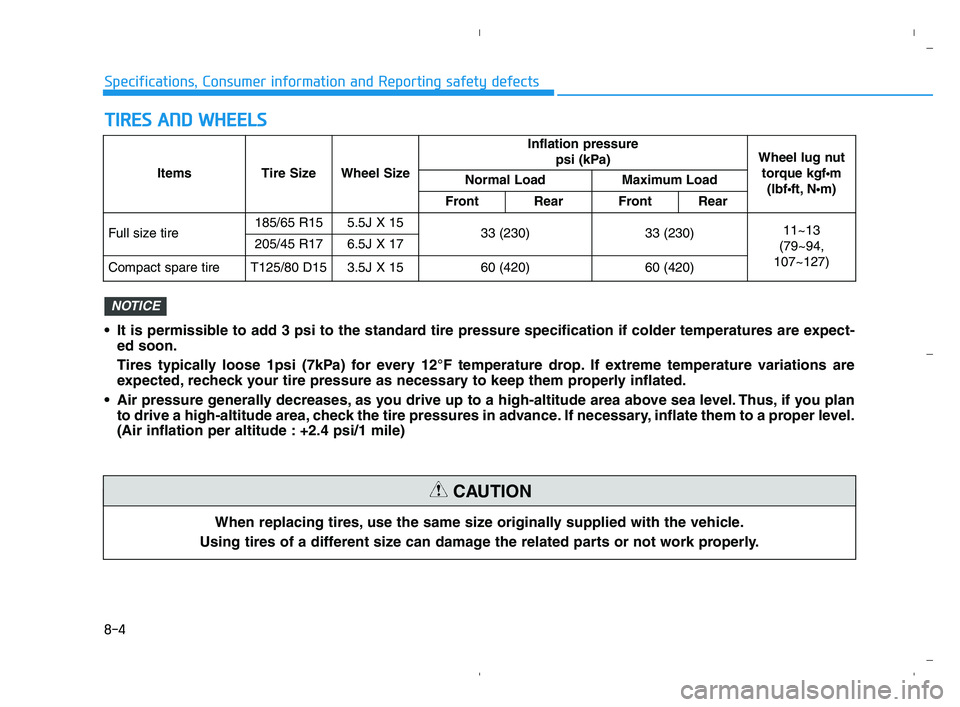

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure
psi (kPa)Wheel lug nut
torque kgf
•m
(lbf
ft, Nm)Normal LoadMaximum Load
FrontRearFrontRear
Full size tire185/65 R155.5J X 1533 (230)33 (230)11~13
(79~94,
107~127)205/45 R176.5J X 17
Compact spare tireT125/80 D15 3.5J X 1560 (420)60 (420)
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
Air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan
to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level.
(Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 4

8-5
88
Specifications, Consumer information and Reporting safety defectsV VO
OL
LU
UM
ME
E
A
AN
ND
D
W
WE
EI
IG
GH
HT
T
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M

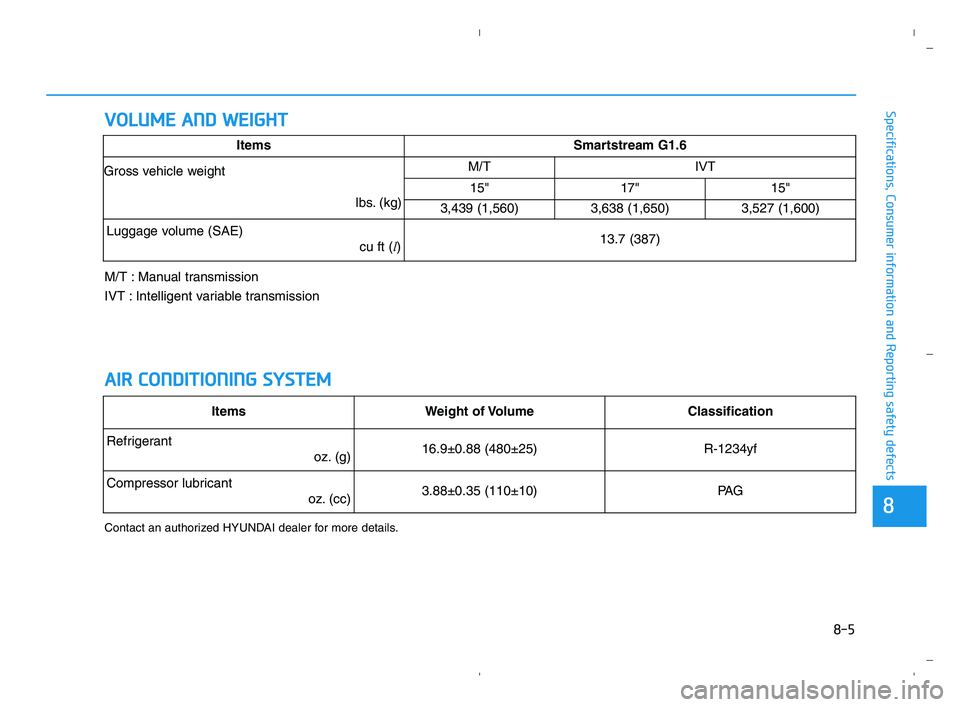

Contact an authorized HYUNDAI dealer for more details.
ItemsSmartstream G1.6
Gross vehicle weight
lbs. (kg)M/TIVT
15"17"15"
3,439 (1,560)3,638 (1,650)3,527 (1,600)
Luggage volume (SAE)
cu ft (l)13.7 (387)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 16.9±0.88 (480±25)R-1234yf
Compressor lubricant
oz. (cc) 3.88±0.35 (110±10)PA G
M/T : Manual transmission
IVT : Intelligent variable transmission
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 5

8-6
Specifications, Consumer information and Reporting safety defects

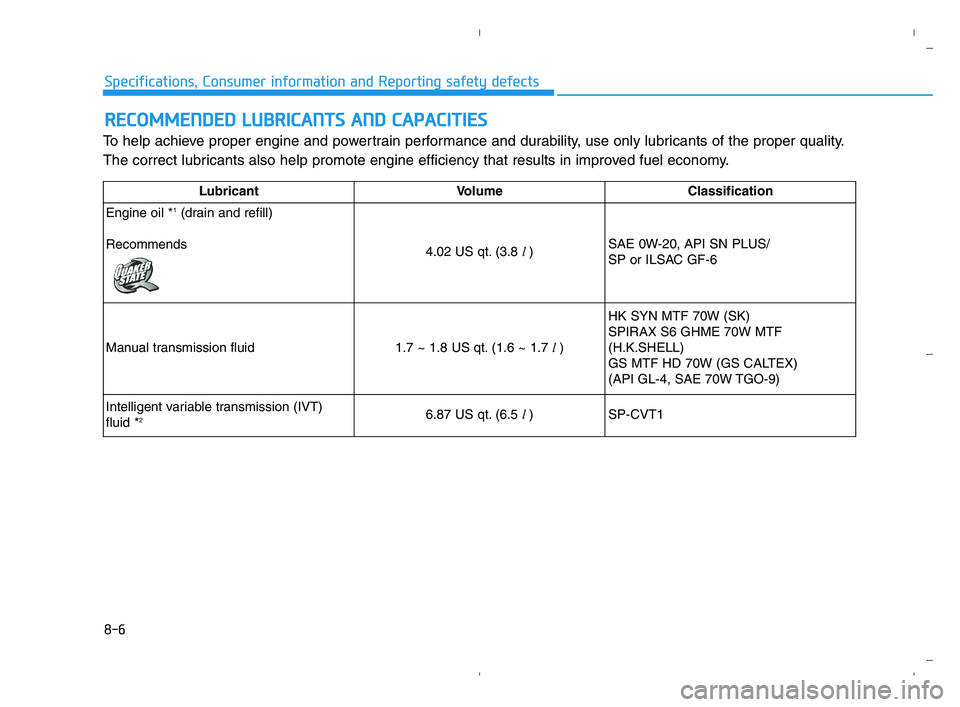

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S
LubricantVolume Classification
Engine oil *
1(drain and refill)
Recommends
4.02 US qt. (3.8 l )SAE 0W-20, API SN PLUS/
SP or ILSAC GF-6
Manual transmission fluid
1.7 ~ 1.8 US qt. (1.6 ~ 1.7 l )HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Intelligent variable transmission (IVT)
fluid *26.87 US qt. (6.5 l )SP-CVT1
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 6

8-7
88
Specifications, Consumer information and Reporting safety defects

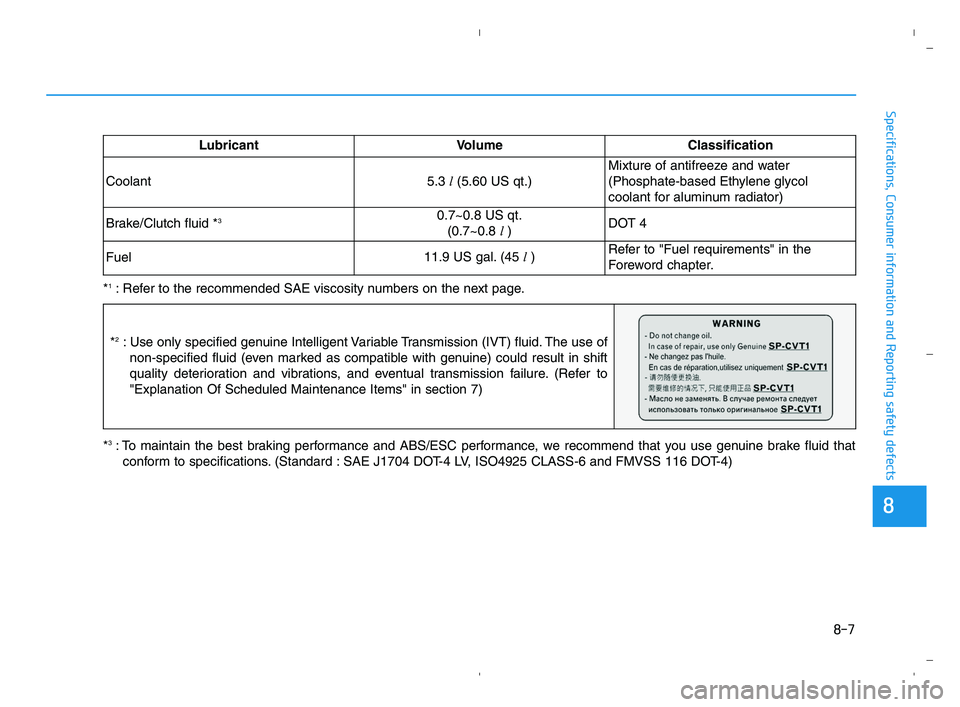

*1: Refer to the recommended SAE viscosity numbers on the next page.Lubricant
Volume Classification
Coolant
5.3 l(5.60 US qt.)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Brake/Clutch fluid *
30.7~0.8 US qt.
(0.7~0.8 l)DOT 4
Fuel11.9 US gal. (45 l)Refer to "Fuel requirements" in the
Foreword chapter.
*2: Use only specified genuine Intelligent Variable Transmission (IVT) fluid. The use of
non-specified fluid (even marked as compatible with genuine) could result in shift
quality deterioration and vibrations, and eventual transmission failure. (Refer to
"Explanation Of Scheduled Maintenance Items" in section 7)
*3: To maintain the best braking performance and ABS/ESC performance, we recommend that you use genuine brake fluid that
conform to specifications. (Standard : SAE J1704 DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)
HCa HMA 8.qxp 5/25/2020 11:14 AM Page 7
