Hyundai Azera 2013 Owner's Manual

87
Specifications & Consumer information

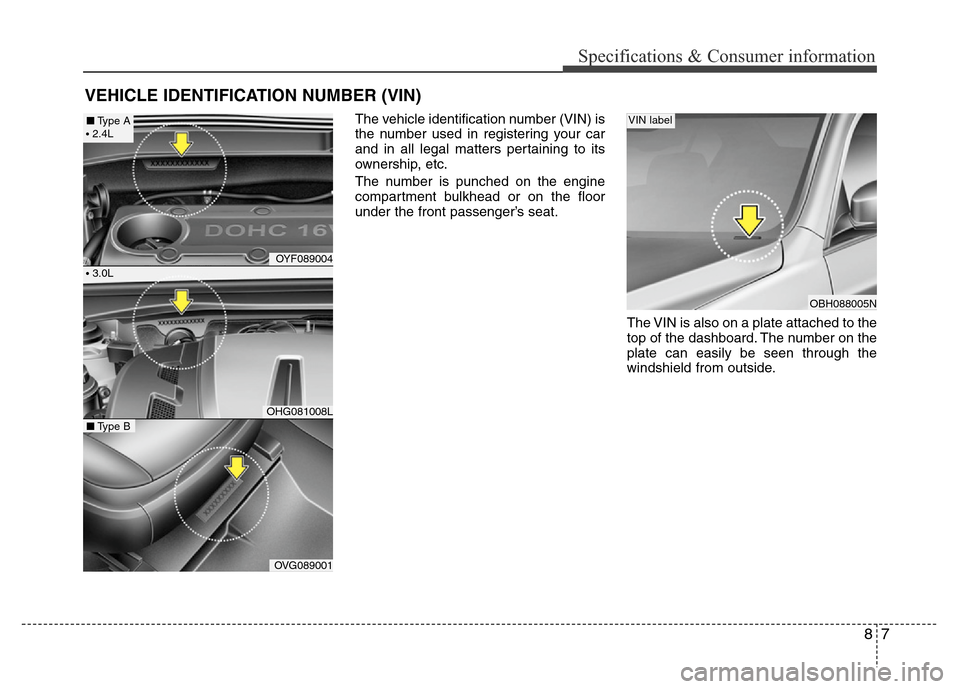

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the engine
compartment bulkhead or on the floor
under the front passenger’s seat.
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
OBH088005N
VIN label
OYF089004
OHG081008L
OVG089001
•3.0L
■Type A•2.4L
■Type B

Specifications & Consumer information
8 8

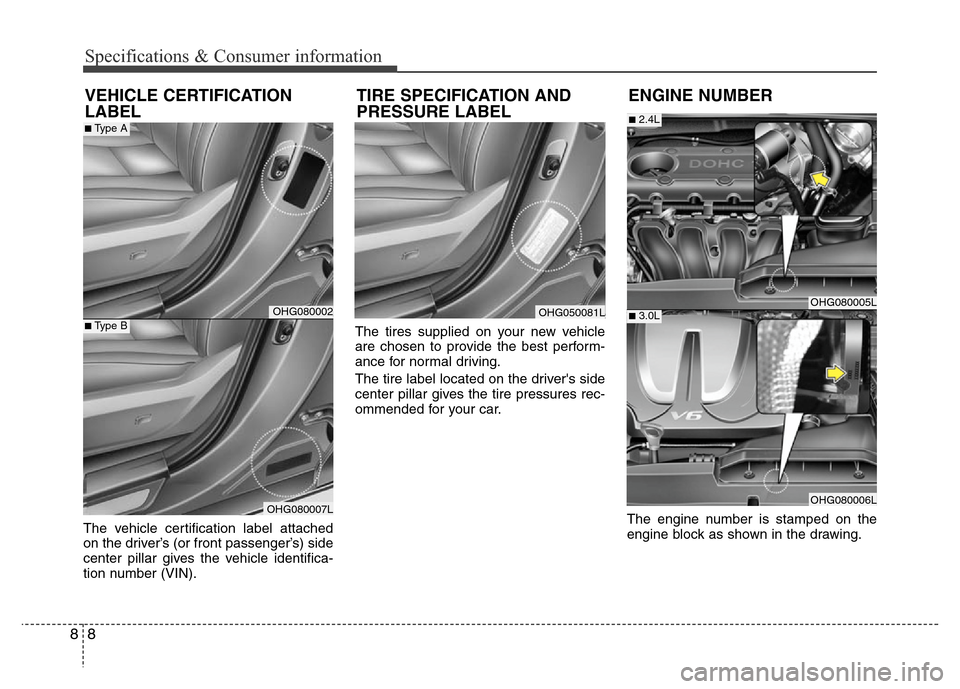

The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
The engine number is stamped on the
engine block as shown in the drawing.
OHG050081L
ENGINE NUMBER
OHG080005L
■2.4L
OHG080006L
■3.0LOHG080002
OHG080007L
VEHICLE CERTIFICATION
LABEL
■Type A
■Type B
TIRE SPECIFICATION AND
PRESSURE LABEL

89
Specifications & Consumer information

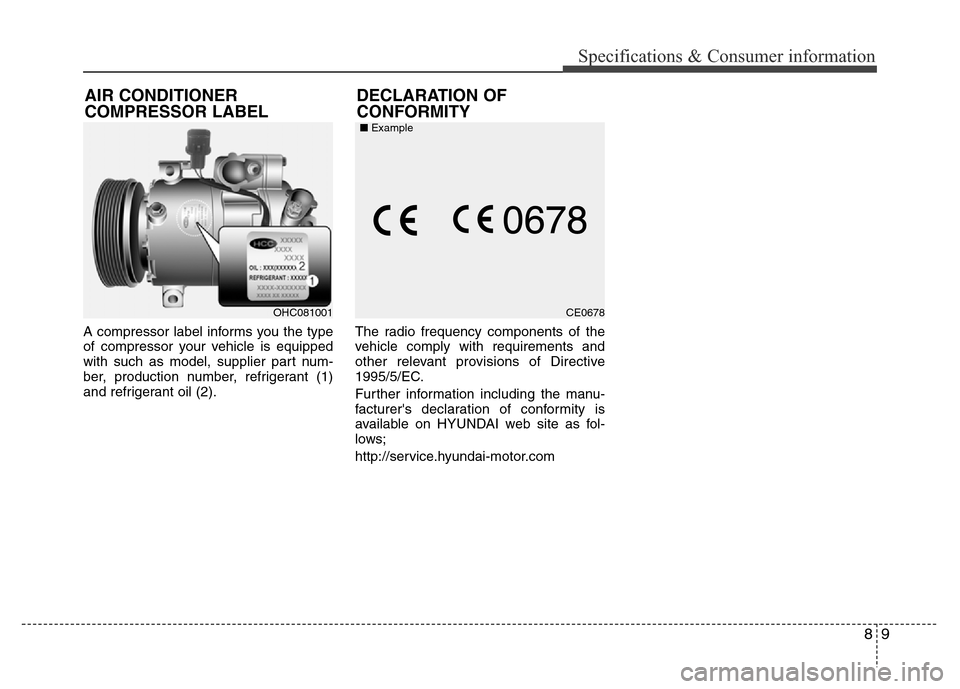

A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.com
DECLARATION OF
CONFORMITY AIR CONDITIONER
COMPRESSOR LABEL
OHC081001CE0678 ■Example
