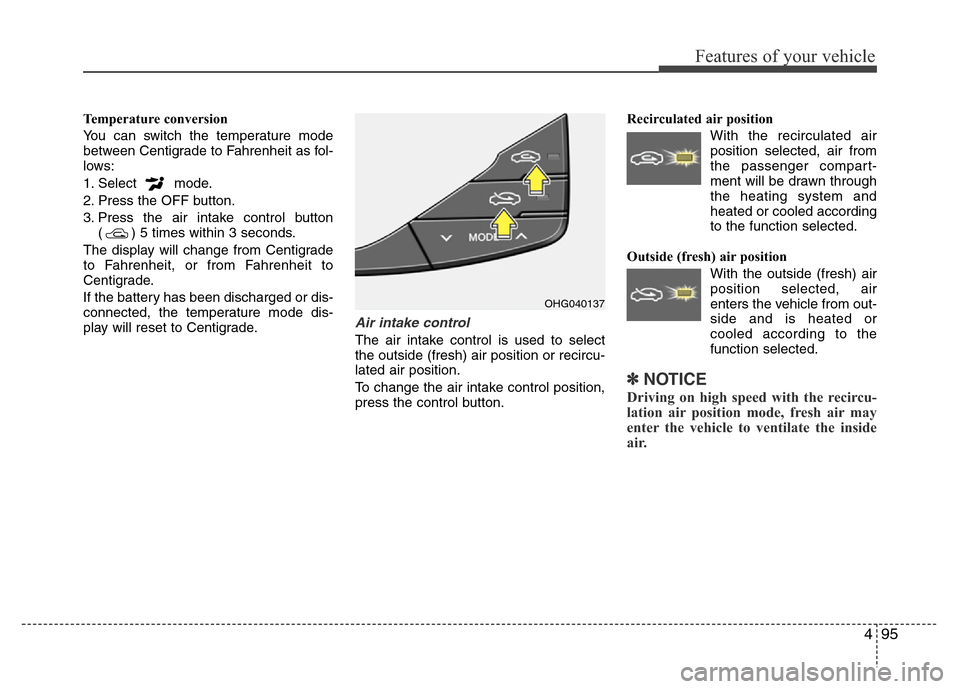

Page 171 of 403

Hyundai Azera 2014  Owners Manual 495
Features of your vehicle
Temperature conversion
You can switch the temperature mode
between Centigrade to Fahrenheit as fol-
lows:
1. Select mode.
2. Press the OFF button.
3. Press the air intake

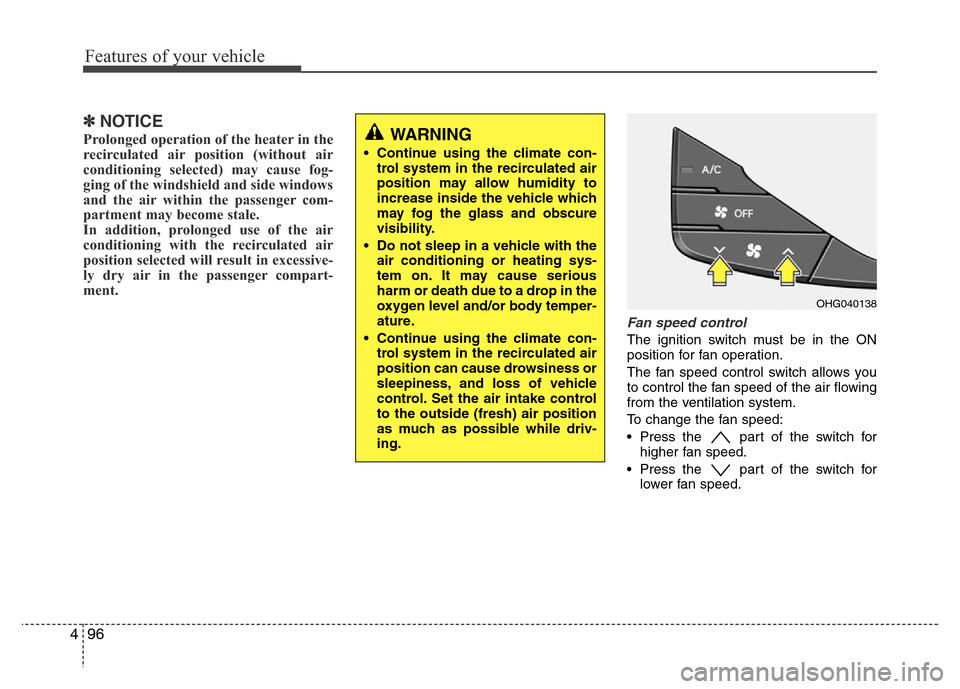

Page 172 of 403

Hyundai Azera 2014  Owners Manual Features of your vehicle
96 4
✽NOTICE
Prolonged operation of the heater in the
recirculated air position (without air
conditioning selected) may cause fog-
ging of the windshield and side windows
an

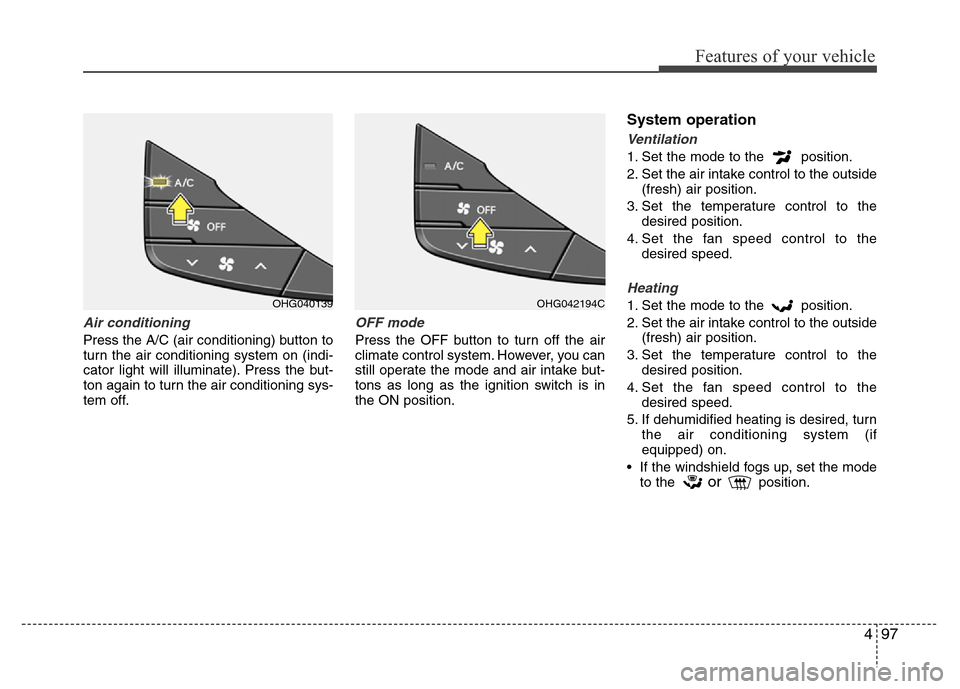

Page 173 of 403

Hyundai Azera 2014  Owners Manual 497
Features of your vehicle
Air conditioning
Press the A/C (air conditioning) button to
turn the air conditioning system on (indi-
cator light will illuminate). Press the but-
ton again to turn the

Page 174 of 403

Hyundai Azera 2014  Owners Manual Features of your vehicle
98 4
Operation Tips
• To keep dust or unpleasant fumes from
entering the vehicle through the venti-
lation system, temporarily set the air
intake control to the recirculated

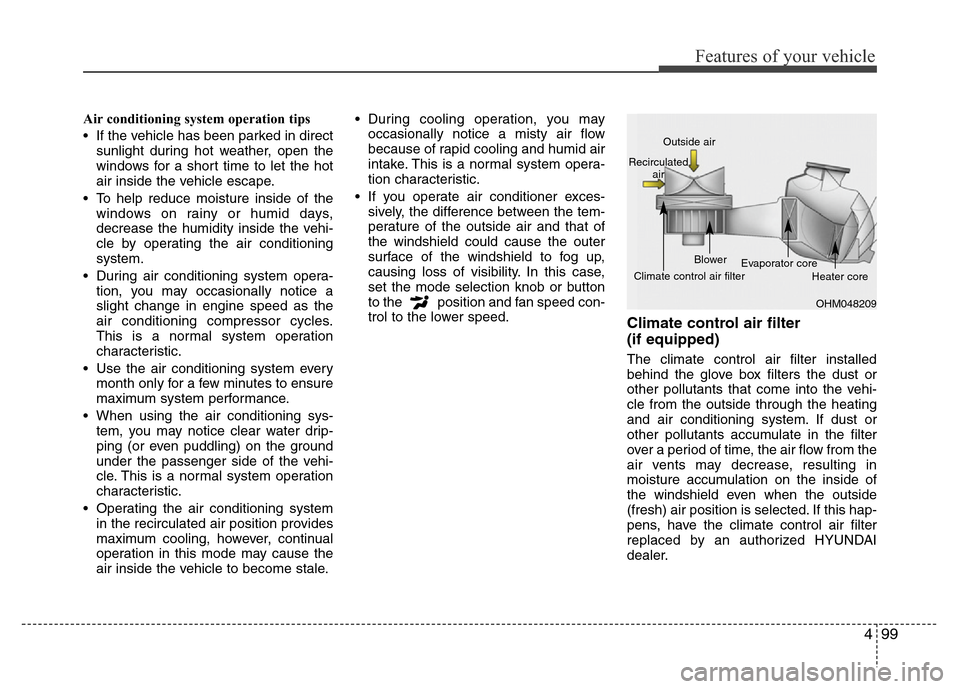

Page 175 of 403

Hyundai Azera 2014  Owners Manual 499
Features of your vehicle
Air conditioning system operation tips
• If the vehicle has been parked in direct
sunlight during hot weather, open the
windows for a short time to let the hot
air insi

Page 176 of 403

Hyundai Azera 2014  Owners Manual Features of your vehicle
100 4
✽NOTICE
• Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in severe
conditions such as dusty or rough
roads, more frequent a

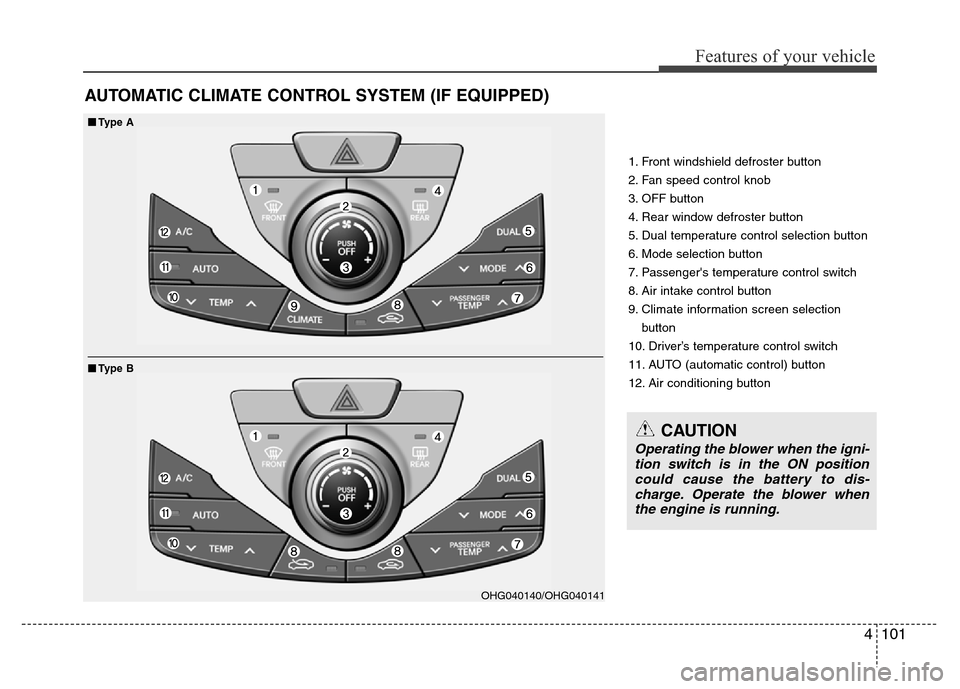

Page 177 of 403

Hyundai Azera 2014  Owners Manual 4101
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Front windshield defroster button
2. Fan speed control knob
3. OFF button
4. Rear window defroster button
5. Dual temper

Page 178 of 403

Hyundai Azera 2014  Owners Manual Features of your vehicle
102 4
Automatic heating and air condi-
tioning
1. Push the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled auto-
matically by setting th

Page 179 of 403

Hyundai Azera 2014  Owners Manual 4103
Features of your vehicle
Manual heating and air condition-
ing
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system wo

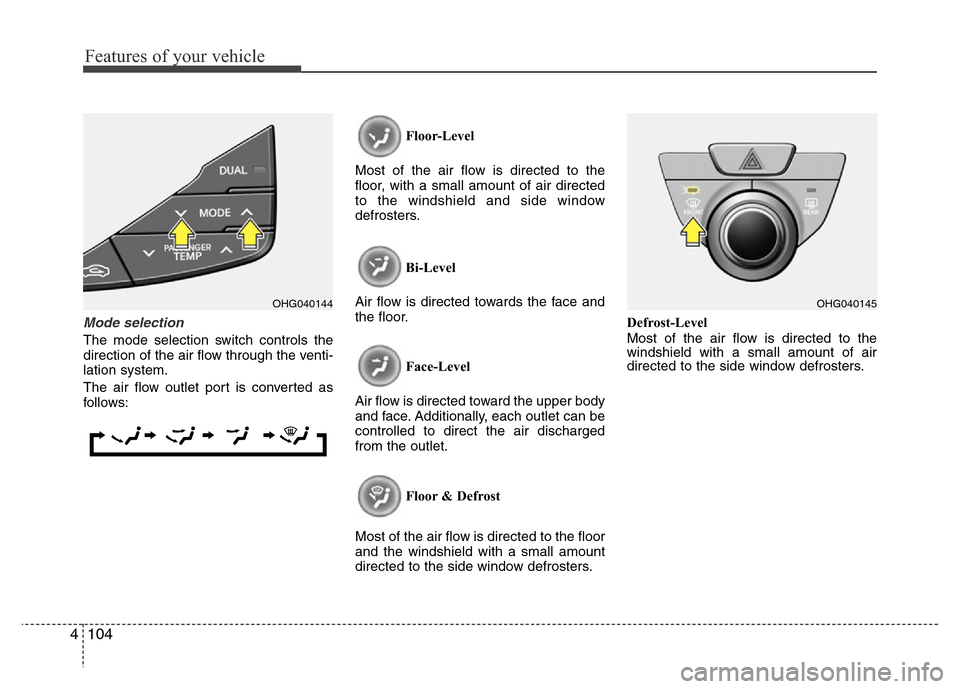

Page 180 of 403

Hyundai Azera 2014  Owners Manual Features of your vehicle
104 4
Mode selection
The mode selection switch controls the
direction of the air flow through the venti-
lation system.
The air flow outlet port is converted as
follows:Floor-
