Hyundai Azera 2017 Owners Manual

Features of your vehicle
12
4

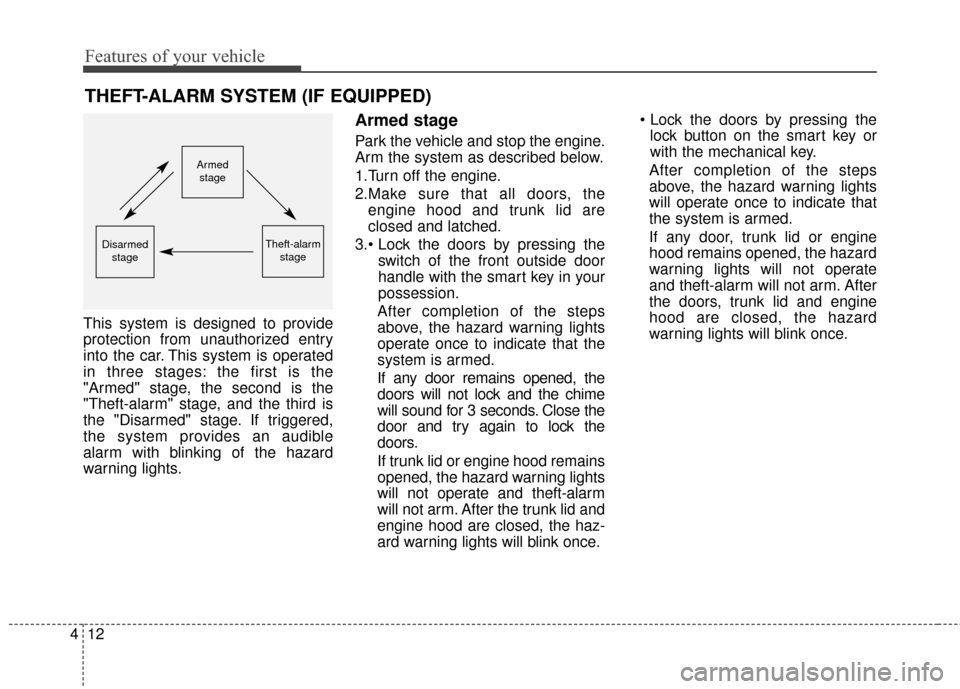

THEFT-ALARM SYSTEM (IF EQUIPPED)
This system is designed to provide
protection from unauthorized entry
into the car. This system is operated
in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.
Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1.Turn off the engine.
2.Make sure that all doors, the
engine hood and trunk lid are
closed and latched.
3. switch of the front outside door
handle with the smart key in your
possession.
After completion of the steps
above, the hazard warning lights
operate once to indicate that the
system is armed.
If any door remains opened, the
doors will not lock and the chime
will sound for 3 seconds. Close the
door and try again to lock the
doors.
If trunk lid or engine hood remains
opened, the hazard warning lights
will not operate and theft-alarm
will not arm. After the trunk lid and
engine hood are closed, the haz-
ard warning lights will blink once.
lock button on the smart key or
with the mechanical key.
After completion of the steps
above, the hazard warning lights
will operate once to indicate that
the system is armed.
If any door, trunk lid or engine
hood remains opened, the hazard
warning lights will not operate
and theft-alarm will not arm. After
the doors, trunk lid and engine
hood are closed, the hazard
warning lights will blink once.
Armed
stage
Theft-alarm stageDisarmedstage

413
Features of your vehicle

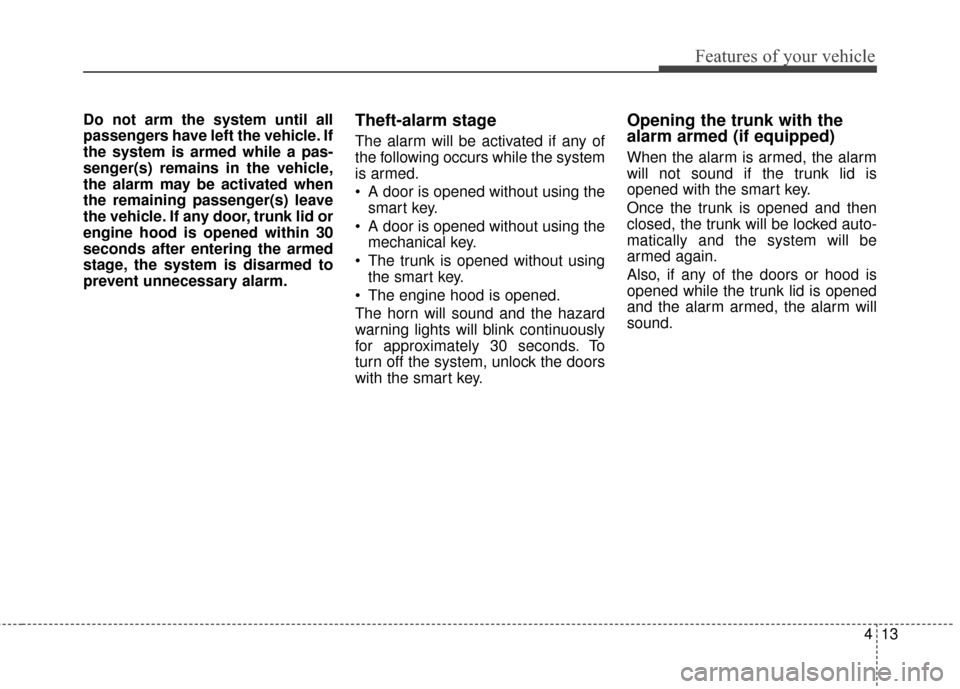

Do not arm the system until all
passengers have left the vehicle. If
the system is armed while a pas-
senger(s) remains in the vehicle,
the alarm may be activated when
the remaining passenger(s) leave
the vehicle. If any door, trunk lid or
engine hood is opened within 30
seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.Theft-alarm stage
The alarm will be activated if any of
the following occurs while the system
is armed.
A door is opened without using thesmart key.
A door is opened without using the mechanical key.
The trunk is opened without using the smart key.
The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously
for approximately 30 seconds. To
turn off the system, unlock the doors
with the smart key.
Opening the trunk with the
alarm armed (if equipped)
When the alarm is armed, the alarm
will not sound if the trunk lid is
opened with the smart key.
Once the trunk is opened and then
closed, the trunk will be locked auto-
matically and the system will be
armed again.
Also, if any of the doors or hood is
opened while the trunk lid is opened
and the alarm armed, the alarm will
sound.

Features of your vehicle
14
4

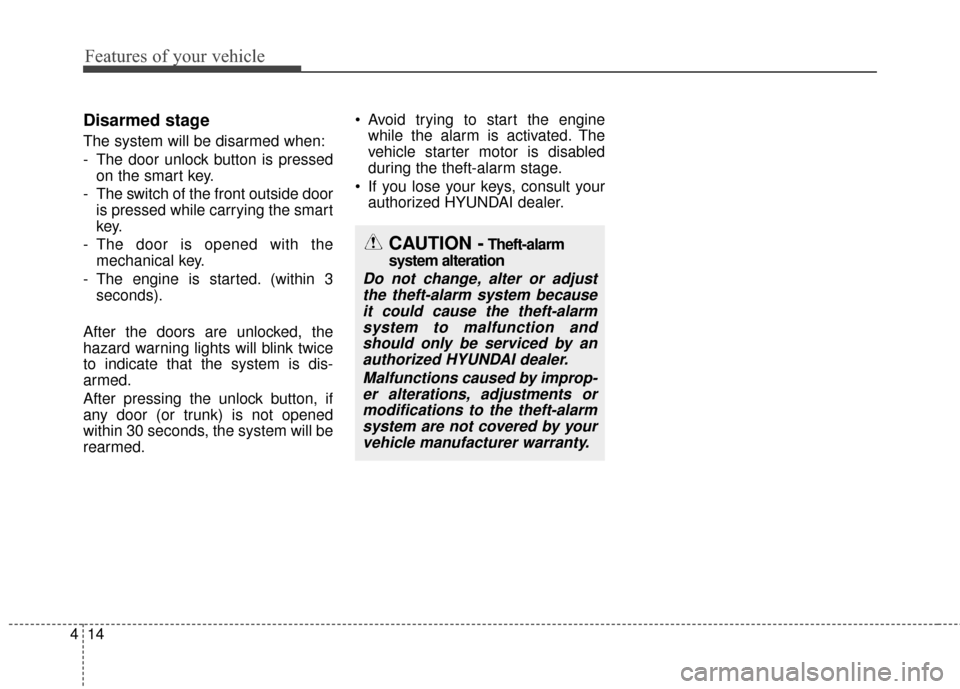

Disarmed stage
The system will be disarmed when:
- The door unlock button is pressed
on the smart key.
- The switch of the front outside door is pressed while carrying the smart
key.
- The door is opened with the mechanical key.
- The engine is started. (within 3 seconds).
After the doors are unlocked, the
hazard warning lights will blink twice
to indicate that the system is dis-
armed.
After pressing the unlock button, if
any door (or trunk) is not opened
within 30 seconds, the system will be
rearmed. Avoid trying to start the engine
while the alarm is activated. The
vehicle starter motor is disabled
during the theft-alarm stage.
If you lose your keys, consult your authorized HYUNDAI dealer.
CAUTION - Theft-alarm
system alteration
Do not change, alter or adjust the theft-alarm system becauseit could cause the theft-alarmsystem to malfunction andshould only be serviced by anauthorized HYUNDAI dealer.
Malfunctions caused by improp-er alterations, adjustments ormodifications to the theft-alarmsystem are not covered by yourvehicle manufacturer warranty.

415
Features of your vehicle

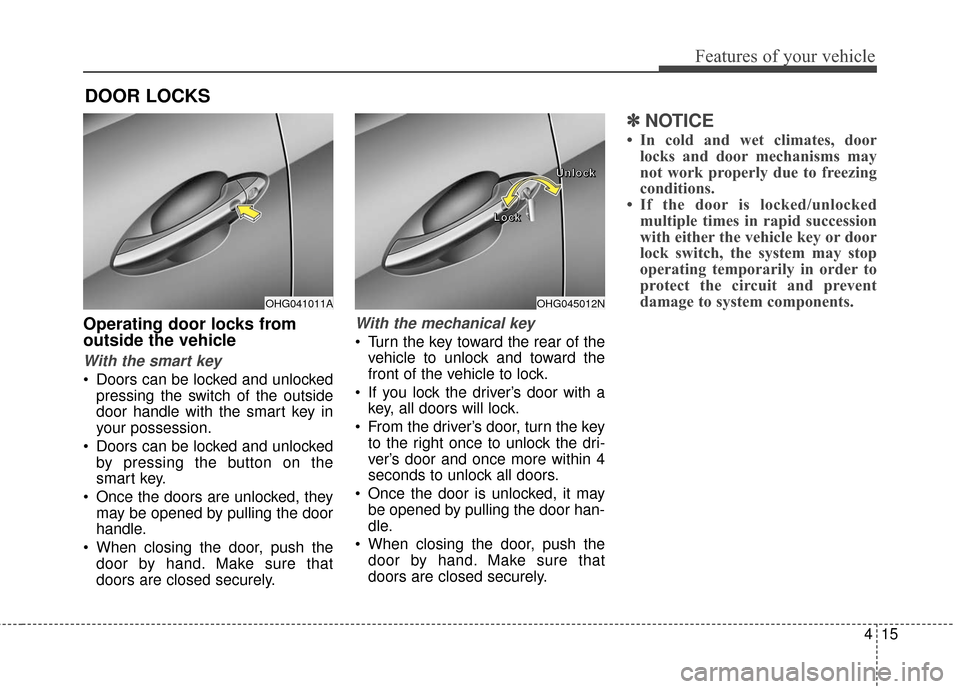

Operating door locks from
outside the vehicle
With the smart key
Doors can be locked and unlockedpressing the switch of the outside
door handle with the smart key in
your possession.
Doors can be locked and unlocked by pressing the button on the
smart key.
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
With the mechanical key
Turn the key toward the rear of thevehicle to unlock and toward the
front of the vehicle to lock.
If you lock the driver’s door with a key, all doors will lock.
From the driver’s door, turn the key to the right once to unlock the dri-
ver’s door and once more within 4
seconds to unlock all doors.
Once the door is unlocked, it may be opened by pulling the door han-
dle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
✽ ✽ NOTICE
• In cold and wet climates, door
locks and door mechanisms may
not work properly due to freezing
conditions.
• If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
DOOR LOCKS
OHG045012N
L
L
L
L
o
o
o
o
c
c
c
c
k
k
k
k U
U
U
U
n
n
n
n
l
l
l
l
o
o
o
o
c
c
c
c
k
k
k
kOHG041011A

Features of your vehicle
16
4

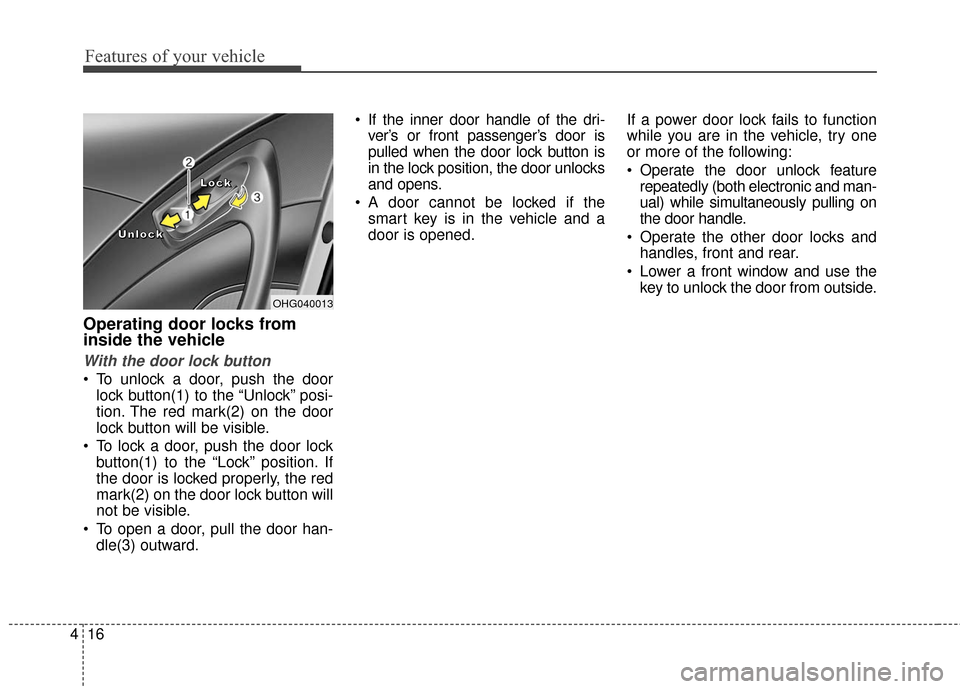

Operating door locks from
inside the vehicle
With the door lock button
To unlock a door, push the door
lock button(1) to the “Unlock” posi-
tion. The red mark(2) on the door
lock button will be visible.
To lock a door, push the door lock button(1) to the “Lock” position. If
the door is locked properly, the red
mark(2) on the door lock button will
not be visible.
To open a door, pull the door han- dle(3) outward. If the inner door handle of the dri-
ver’s or front passenger’s door is
pulled when the door lock button is
in the lock position, the door unlocks
and opens.
A door cannot be locked if the smart key is in the vehicle and a
door is opened. If a power door lock fails to function
while you are in the vehicle, try one
or more of the following:
Operate the door unlock feature
repeatedly (both electronic and man-
ual) while simultaneously pulling on
the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door from outside.
OHG040013
L
L
L
L
o
o
o
o
c
c
c
c
k
k
k
k




U
U
U
U
n
n
n
n
l
l
l
l
o
o
o
o
c
c
c
c
k
k
k
k

417
Features of your vehicle

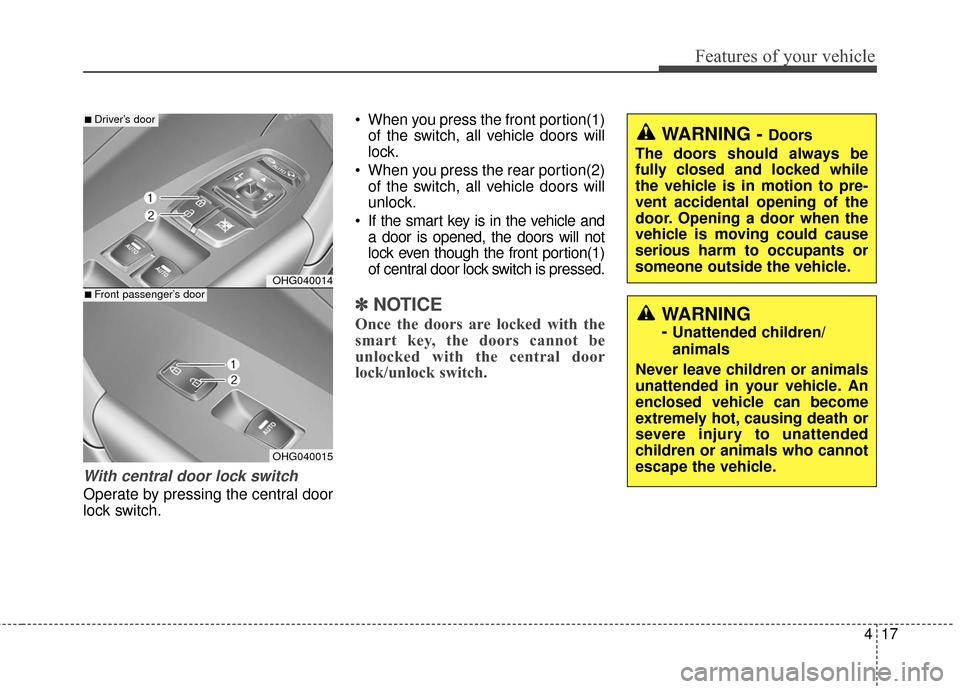

With central door lock switch
Operate by pressing the central door
lock switch. When you press the front portion(1)
of the switch, all vehicle doors will
lock.
When you press the rear portion(2) of the switch, all vehicle doors will
unlock.
If the smart key is in the vehicle and a door is opened, the doors will not
lock even though the front portion(1)
of central door lock switch is pressed.
✽ ✽ NOTICE
Once the doors are locked with the
smart key, the doors cannot be
unlocked with the central door
lock/unlock switch.
WARNING - Doors
The doors should always be
fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Opening a door when the
vehicle is moving could cause
serious harm to occupants or
someone outside the vehicle.
WARNING
- Unattended children/
animals
Never leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended
children or animals who cannot
escape the vehicle.
OHG040014
OHG040015
■ Driver’s door
■ Front passenger’s door

Features of your vehicle
18
4

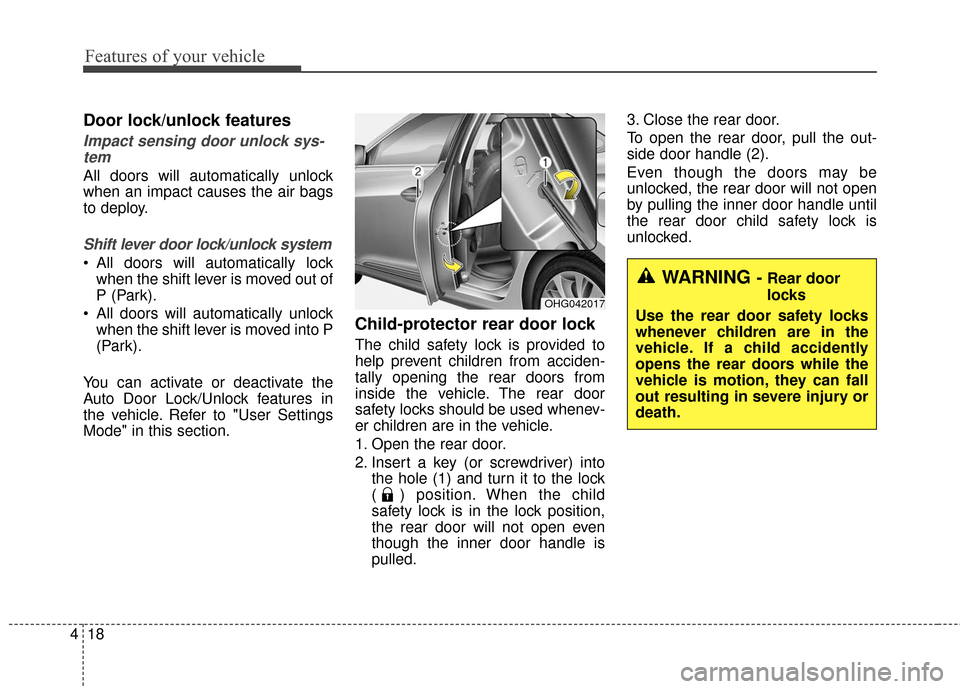

Door lock/unlock features
Impact sensing door unlock sys-
tem
All doors will automatically unlock
when an impact causes the air bags
to deploy.
Shift lever door lock/unlock system
All doors will automatically lock when the shift lever is moved out of
P (Park).
All doors will automatically unlock when the shift lever is moved into P
(Park).
You can activate or deactivate the
Auto Door Lock/Unlock features in
the vehicle. Refer to "User Settings
Mode" in this section.
Child-protector rear door lock
The child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1. Open the rear door.
2. Insert a key (or screwdriver) into the hole (1) and turn it to the lock
( ) position. When the child
safety lock is in the lock position,
the rear door will not open even
though the inner door handle is
pulled. 3. Close the rear door.
To open the rear door, pull the out-
side door handle (2).
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle until
the rear door child safety lock is
unlocked.
OHG042017
WARNING - Rear door
locks
Use the rear door safety locks
whenever children are in the
vehicle. If a child accidently
opens the rear doors while the
vehicle is motion, they can fall
out resulting in severe injury or
death.

419
Features of your vehicle

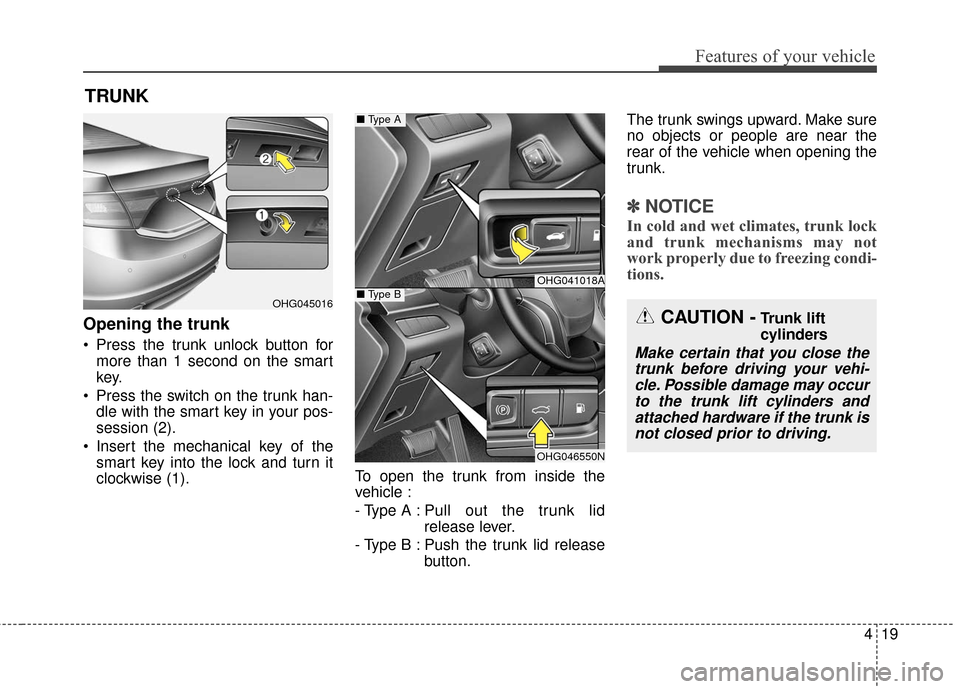

Opening the trunk
Press the trunk unlock button formore than 1 second on the smart
key.
Press the switch on the trunk han- dle with the smart key in your pos-
session (2).
Insert the mechanical key of the smart key into the lock and turn it
clockwise (1). To open the trunk from inside the
vehicle :
- Type A :
Pull out the trunk lid
release lever.
- Type B : Push the trunk lid release button. The trunk swings upward. Make sure
no objects or people are near the
rear of the vehicle when opening the
trunk.
✽ ✽
NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not
work properly due to freezing condi-
tions.
TRUNK
OHG045016
CAUTION -Trunk lift
cylinders
Make certain that you close the
trunk before driving your vehi-cle. Possible damage may occurto the trunk lift cylinders andattached hardware if the trunk isnot closed prior to driving.
OHG041018A
OHG046550N
■ Type A
■ Type B

Features of your vehicle
20
4

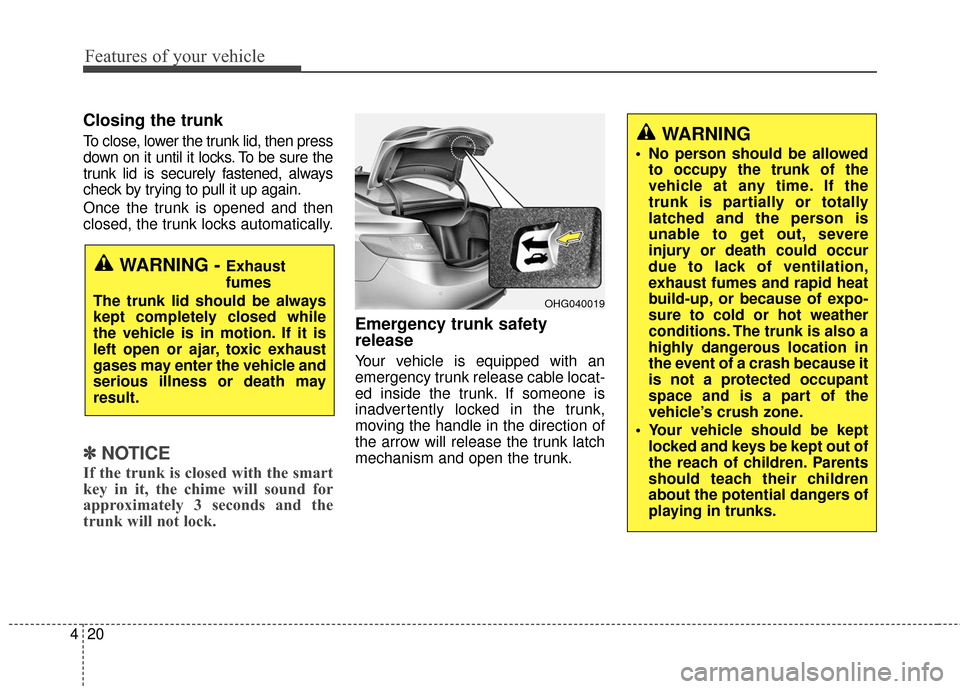

Closing the trunk
To close, lower the trunk lid, then press
down on it until it locks. To be sure the
trunk lid is securely fastened, always
check by trying to pull it up again.
Once the trunk is opened and then
closed, the trunk locks automatically.
✽ ✽
NOTICE
If the trunk is closed with the smart
key in it, the chime will sound for
approximately 3 seconds and the
trunk will not lock.
Emergency trunk safety
release
Your vehicle is equipped with an
emergency trunk release cable locat-
ed inside the trunk. If someone is
inadvertently locked in the trunk,
moving the handle in the direction of
the arrow will release the trunk latch
mechanism and open the trunk.
WARNING - Exhaust
fumes
The trunk lid should be always
kept completely closed while
the vehicle is in motion. If it is
left open or ajar, toxic exhaust
gases may enter the vehicle and
serious illness or death may
result.
OHG040019
WARNING
No person should be allowed to occupy the trunk of the
vehicle at any time. If the
trunk is partially or totally
latched and the person is
unable to get out, severe
injury or death could occur
due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold or hot weather
conditions. The trunk is also a
highly dangerous location in
the event of a crash because it
is not a protected occupant
space and is a part of the
vehicle’s crush zone.
Your vehicle should be kept locked and keys be kept out of
the reach of children. Parents
should teach their children
about the potential dangers of
playing in trunks.

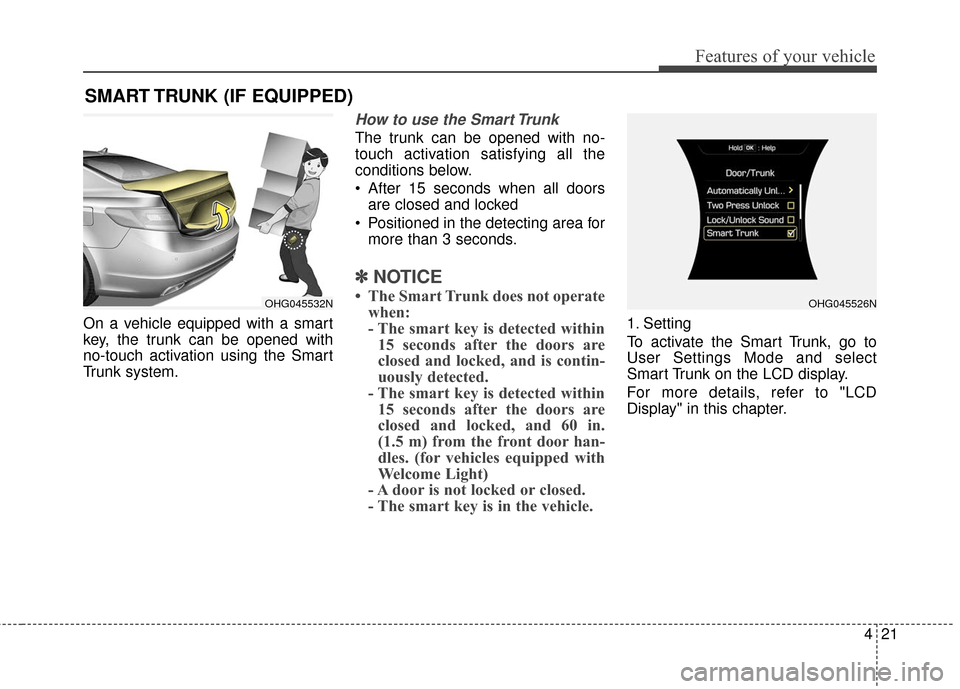

421
Features of your vehicle
On a vehicle equipped with a smart
key, the trunk can be opened with
no-touch activation using the Smart
Trunk system.
How to use the Smart Trunk
The trunk can be opened with no-
touch activation satisfying all the
conditions below.
After 15 seconds when all doorsare closed and locked
Positioned in the detecting area for more than 3 seconds.
✽ ✽ NOTICE
• The Smart Trunk does not operate
when:
- The smart key is detected within15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and 60 in.
(1.5 m) from the front door han-
dles. (for vehicles equipped with
Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
1. Setting
To activate the Smart Trunk, go to
User Settings Mode and select
Smart Trunk on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
SMART TRUNK (IF EQUIPPED)
OHG045532NOHG045526N
