Hyundai Coupe 2004 Owner's Manual

1
CONTROLS AND EQUIPMENT
11
Auto-Down Window (Driver's Side) (Not all models) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired position push in on the switch again. B050A02GK-E
POWER WINDOW
!
B050A02GK-AAT The power windows operate only when the ignition key is in the "ON" position. The main switches are located on thedriver's arm rest and control the front windows on the respective sides of the vehicle. The windows may be openedby depressing the front portion of the switch. To stop at the desired opening, release the switch. The window maybe closed by pulling the front portion of the switch. In order to prevent opera- tion of the passenger front window bythe passenger, a window lock switch (1) is provided on the arm rest of the driver's door. To disable the passenger's power window, push thewindow lock switch. To revert to nor-mal operation, push in on the window lock switch again.
CAUTION:
Never try to operate the main switchand sub-switch in opposing direc- tions at the same time. If this isdone, the window will stop and cannot be opened or closed.
HGK2015-E
(1)
HGK2016-E

1CONTROLS AND EQUIPMENT
12
!
!WARNING:
To ensure the seat is locked se- curely, attempt to move the seatforward or rearward without using the lock release lever.

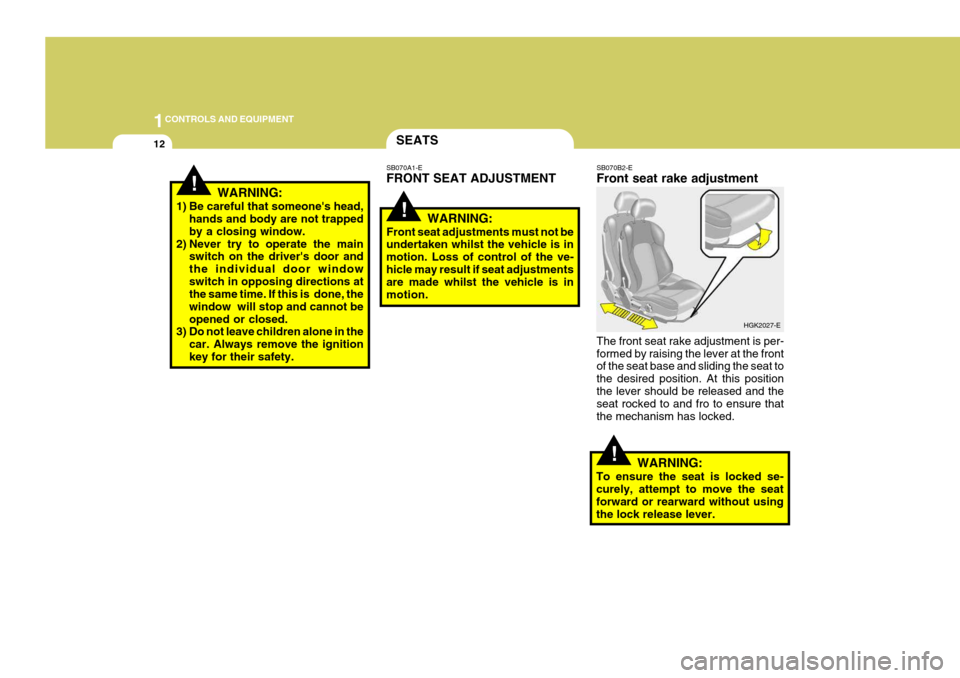

SEATS
!
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door windowswitch in opposing directions at the same time. If this is done, the window will stop and cannot beopened or closed.
3) Do not leave children alone in the
car. Always remove the ignitionkey for their safety. SB070A1-E FRONT SEAT ADJUSTMENT
WARNING:
Front seat adjustments must not be undertaken whilst the vehicle is in motion. Loss of control of the ve-hicle may result if seat adjustments are made whilst the vehicle is in motion. SB070B2-E Front seat rake adjustment The front seat rake adjustment is per- formed by raising the lever at the front of the seat base and sliding the seat to the desired position. At this positionthe lever should be released and the seat rocked to and fro to ensure that the mechanism has locked.
HGK2027-E

1
CONTROLS AND EQUIPMENT
13
!
B080D02JM-EAT Adjustable Head restraints Head restraints are designed to help reduce the risk of neck injuries. To raise the head restraint, pull it up.To lower it, push it down whilst press- ing the lock knob. To remove the head restraint, raise it as far as it can go thenpress the lock knob whilst pulling up- ward. Lock Knob
HGK2032-E
SB070C1-E Front seat recline adjustment
HGK2028-E
The front seat back recline angle may be adjusted by leaning forward slightlyand raising the recline adjustment le- ver at the side of the seat. When the seatback is at the desired angle, thelever should be released. Ensure that the seatback is locked before driving the vehicle. WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver's andpassenger's seatbacks should al- ways be in an upright position while the vehicle is in motion. The protec-tion provided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seat back is reclined.

1CONTROLS AND EQUIPMENT
14
SB070E1-E Lumbar support adjustment (Driver's seat only)(Not all models) Some models are fitted with adjust- able driver seat lumbar support whichmay be used to increase the amount of lumbar support offered by the seat back. Adjustment is performed bymoving the handle at the side of the backrest in a forward direction to in- crease the support. SOFT
!WARNING:
o For maximum effectiveness in case of an accident the head re- straint should be adjusted so the middle of the head restraint is at the same height as the top of theoccupant's eyes. For this rea- son, the use of a cushion that holds the body away from theseatback should not be recom- mended. o Do not operate vehicle with the
head restraints removed as in- jury to the occupants may occur in the event of an accident. Head restraints may provide protec-tion against neck injuries when properly adjusted.
o Do not adjust the head restraint
height whilst the vehicle is inmotion.
B080D01JM HGK2030-E
FIRM

1
CONTROLS AND EQUIPMENT
15
FB070F1-F Seat Cushion Height Adjustment (Driver's seat only)(Not all models) To raise or lower the front part of the seat cushion, turn the knob forward orrearward. B100A02HP-EAT SEAT WARMER (If Installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi-tion, push either of the switches to warm the driver's seat or the passenger's seat.During mild weather or under condi- tions where the operation of the seat warmer is not needed, keep theswitches in the "OFF" position.
HGK2029-E
HGK2033
!
CAUTION:
o The seat warmer will not operate if ambient temperature is higher than 88.7°F (31.5°C).
o If the seat warmer doesn't works when ambient temperature islower than 76.1°F (24.5°C), it mustbe checked by authorized dealer.

1CONTROLS AND EQUIPMENT
16
By pulling up the walk in device lever (1) at the left-up side of the passengerside seatback, the seatback will tilt forward. And then push the seat for- ward to enter the occupants. Recliner Memory By pulling up the walk in device lever (1) seatback is reclined and return to the memorized original position. (1)
B129A01F-AAT REAR SEAT POSITIONS
!WARNING:
This vehicle contains two rear seat- ing positions only and a seat belt for each seating position. Thus, never permit more than two occu-pants to ride in the rear seat be- cause an unrestrained occupant could be seriously injured or killedin the event of a vehicle crash. B130A01GK-DAT REAR SEAT ENTRY (Walk in device) The driver and front passenger's seatback should be tilted to enter therear seat. By pulling up the walk in device lever (1) at the right-up side of the driver side seatback, the seatback will tilt forward.And then pull the lock release lever (2) up with moving the seat forward.
B129A01GK
HGK2036-E
(1)
(2) HGK2036-D

1
CONTROLS AND EQUIPMENT
17
!WARNING:
Don't drive with reclining of the passenger side seatback. It is dan-gerous to move it. Be sure the seatback is fix firmly or not before driving. SB480A1-E FOLDING REAR SEAT The rear seatbacks may be folded to facilitate the carriage of long items or to increase the luggage capacity of thevehicle.
o To unlock the seatback, release the
catch by operating the lock knob, pull the seatback forward and lower to the folded position.
o When the seatback is returned to the upright position, ensure that thelatching mechanism has engagedand that the seat may not move unintentionally.
B099A01F-AAT BEFORE FOLDING THE REAR SEATS In order to prevent the shoulder belt from being damaged while folding therear seat, the shoulder belt must be passed through the hanger to keep it out of the way.
HGK2034
HGK2035
CAUTION:
Seat belts must be removed from the hanger when in use.
!

1CONTROLS AND EQUIPMENT
18
SB090B1-E Babies/Small Children Babies and small children must be restrained using a restraint system specifically designed for this purpose. Under no circumstances should a childbe carried in the vehicle without the use of a suitable restraint which meets the regulations in force in the countrywhere the vehicle is in operation.
SEAT BELTS
!WARNING:
The folding rear seats are intended to allow the carriage of longer ob- jects than could otherwise be ac-commodated. Do not allow passen- gers to sit on top of the folded- down seatback whilst the car is inmotion since the folded seat does not provide a suitable sitting facil- ity and no seat belts are availablefor use. Objects carried on the folded seatback should not extend higher than the top of the frontseats and must be securely re- strained to prevent injury or dam- age during sudden deceleration. SB500A1-E REAR PARCEL SHELF Large or heavy items must not be placed upon the rear parcel shelf to prevent the possibility of injury arisingfrom such items in the event of impact.
SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all occupants front and rear. Thepossibility of injury or the severity of injuries suffered in the event of an accident will be greatly reduced by thewearing of seat belts. In addition the following recommenda- tions should be observed.
B140A01GK
o Luggage which is carried within the
passenger compartment must besecurely restrained in order to pre- vent injury in the event of sudden deceleration.

1
CONTROLS AND EQUIPMENT
19
WARNING:
Sitting in a reclined position or ly- ing down when your vehicle is in motion can be dangerous. Even if you buckle up, your seat belts can'tdo their job when you're reclined. The shoulder belt can't do its job because it won't be against yourbody. Instead, it will be in front of you. In a crash you could go into it with great force, receiving seriousneck or other injuries. The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forces would be applied there, not at yourstrong pelvic bones. This could cause serious internal injuries. For proper protection when the ve-hicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly.See page 1-21.
SB090C1-E Larger Children Larger children should occupy the rear seat and be restrained at all times. Therestraint may take the form of a special safety belt or the original factory fitted seat belt used in conjunction with anapproved booster cushion depending upon the size and weight of the child. Under no circumstances should chil-dren be allowed to travel standing, kneeling or lying on the seat. Never allow children to ride in the frontpassenger seat. SB090O1-E Pregnant Women The use of a seat belt is recommended for pregnant women. The seat belt should be worn as low and snugly as possible across the hips, not acrossthe abdomen. A qualified Medical Prac- titioner should be consulted for further information. SB090E1-E Injured Persons A seat belt should be used when an injured person is being transported.For specific recommendations, the advice of a qualified Medical Practioner should be sought. SB090F1-E Seat Belt Occupancy The seat belts are designed to be used by one seat occupant only. The use of a seat belt by more than one person increases the levels of injury which may be sustained in the event of anaccident.!
SE090G1-E Do Not Lie Down To ensure that the maximum level of protection may be afforded by the seat belt system, all passengers should besitting in an upright position throughout the journey. The seat belt will be un- able to afford maximum protection ifthe front seats are at or near the fully reclined position.

1CONTROLS AND EQUIPMENT
20
B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT (Not allmodels)
HGK2038
You can adjust the height of the shoul- der belt anchor to one of the 4 posi-tions. If the height of the adjusting seat belt is too near your neck, you will not begetting the most effective protection. The shoulder portion should be ad- justed so that it lies across your chestand midway over your shoulder near- est the door and not your neck.
SB090H1-E CARE OF SEAT BELTS Seat belt assemblies must never be disassembled or modified in any way.In addition, care should be exercised to ensure that the belt assemblies do not become damaged by being trappedin seat mechanisms, door shuts etc. SB090I-E Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys- tem that are damaged should be re- placed as soon as possible. Under nocircumstances must any part of the seat belt assemblies be dismantled or repaired.
SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned using a mild soap solution and warm water. Bleach, dye, strong de- tergents or abrasives should not beused since the fabric may become damaged and weakened. SB090K1-E Replacement of Seat Belts The entire seat belt assembly or as- semblies should be replaced if the vehicle has been involved in an acci-dent even if no damage is evident. Additional questions concerning seat belt operation should be directed to aHyundai Dealer.
