Hyundai Coupe 2004 Owner's Manual

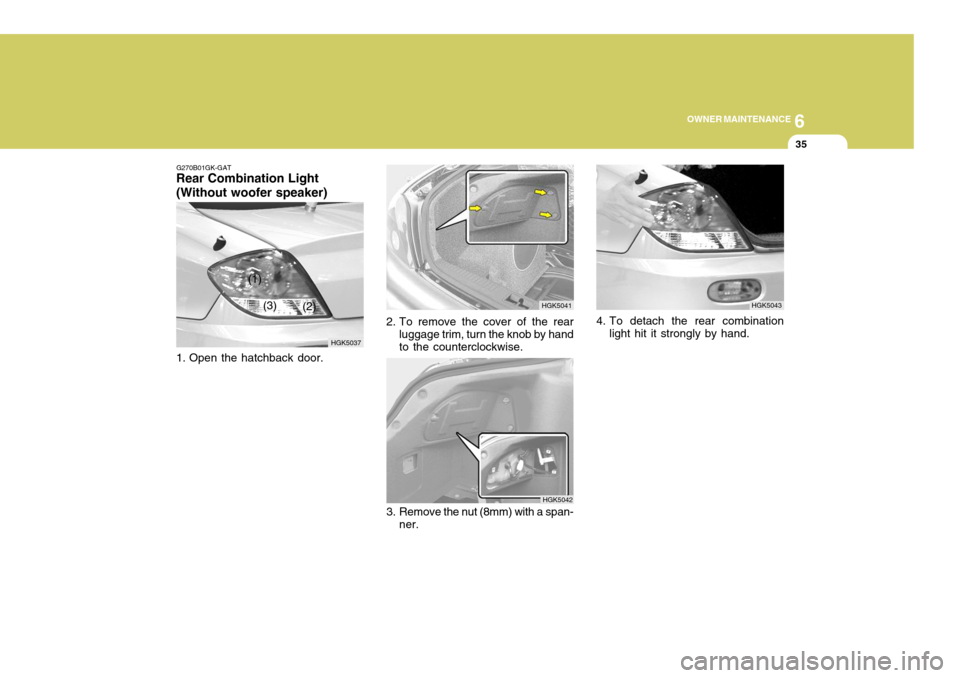

6
OWNER MAINTENANCE
35
G270B01GK-GAT
Rear Combination Light (Without woofer speaker)
1. Open the hatchback door. HGK5037
(1)
(2)
(3)
3. Remove the nut (8mm) with a span-
ner. HGK50424. To detach the rear combination
light hit it strongly by hand. HGK5043
HGK5041
2. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.

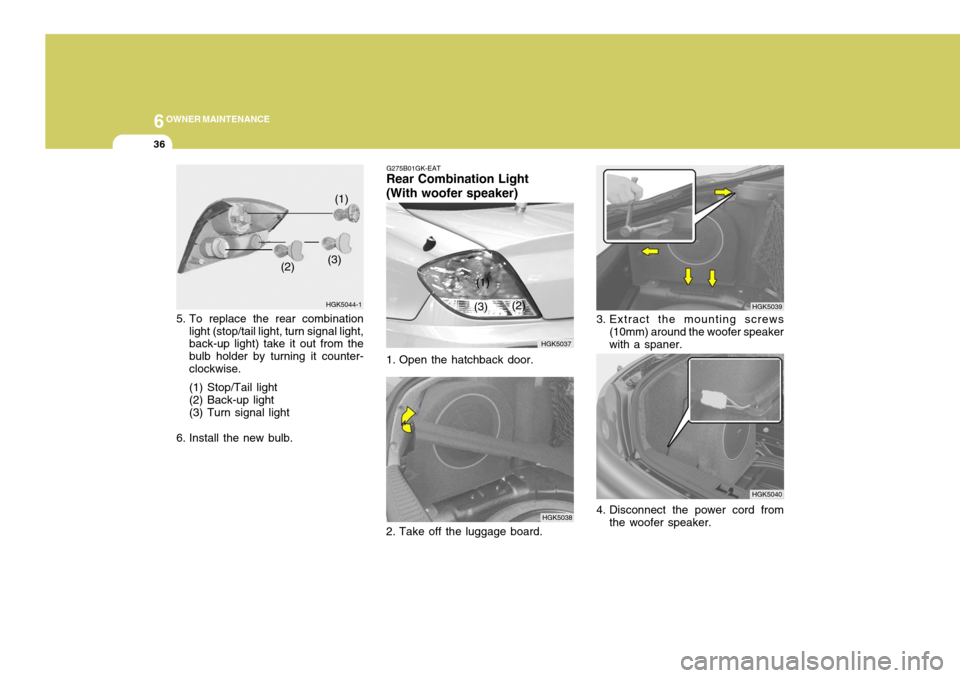

6OWNER MAINTENANCE
36
1. Open the hatchback door. HGK5039
HGK5040
3. Extract the mounting screws
(10mm) around the woofer speaker with a spaner.
4. Disconnect the power cord from the woofer speaker.
HGK5038
G275B01GK-EAT
Rear Combination Light (With woofer speaker)
HGK5037
(1)
(2)
(3)
2. Take off the luggage board.
5. To replace the rear combination light (stop/tail light, turn signal light, back-up light) take it out from the bulb holder by turning it counter-clockwise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
6. Install the new bulb. HGK5044-1
(1)
(2) (3)

6
OWNER MAINTENANCE
37
HGK5041
5. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
HGK5042
6. Remove the nut (8mm) with a wrench.G270C01GK-EAT Luggage Compartment Light
1. Open the hatchback door.
HGK5045HGK5044-1 (1)
(2) (3) back-up light, side mark light), take it out from the bulb holder by turn-ing it counterclockwise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
9. Install the new bulb.
HGK5043
7. To detach the rear combination light hit it strongly by hand.
8. To replace the rear combination light (stop/tail light, turn signal light,

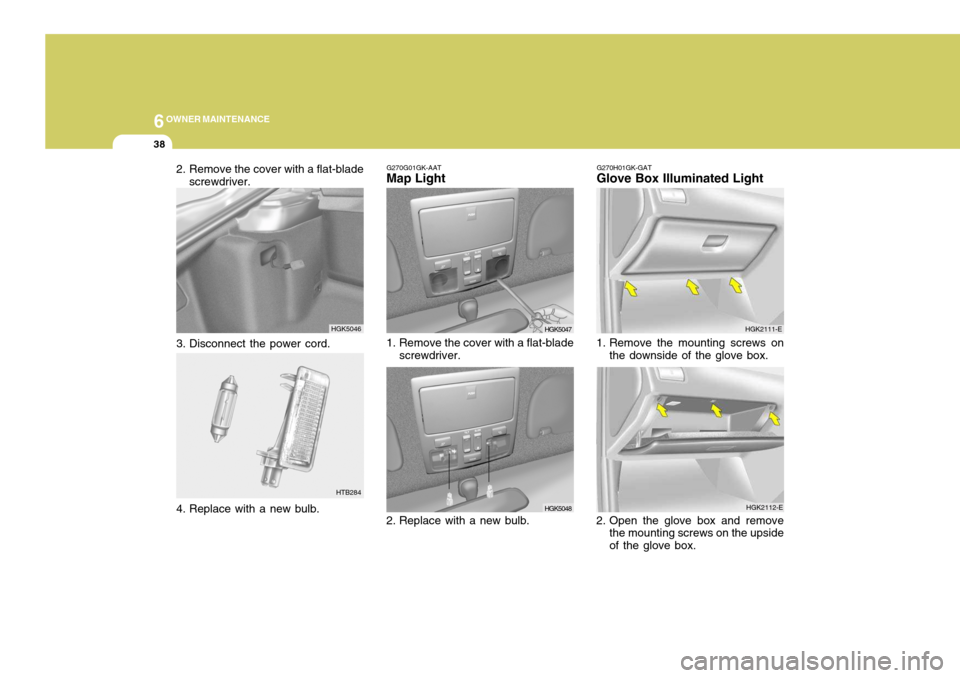

6OWNER MAINTENANCE
38
G270G01GK-AAT
Map Light
1. Remove the cover with a flat-blade
screwdriver.
2. Replace with a new bulb.
HGK5047
HGK5048 HGK2112-E
2. Open the glove box and remove the mounting screws on the upside of the glove box.
G270H01GK-GAT
Glove Box Illuminated Light
1. Remove the mounting screws on the downside of the glove box. HGK2111-E
HTB284
2. Remove the cover with a flat-blade
screwdriver.
3. Disconnect the power cord. HGK5046
4. Replace with a new bulb.

6
OWNER MAINTENANCE
39
3. Remove the glove box by pulling
strongly.
CAUTION:
Be careful not to damage the glove
box when pulling the glove box.
!
HGK5052-E
HTB284
HGK5053-E
Clip
Power Cord
4. Disconnect the power cord.
5. Remove the glove box illuminated light by pushing the clip.
6. Replace with a new bulb.

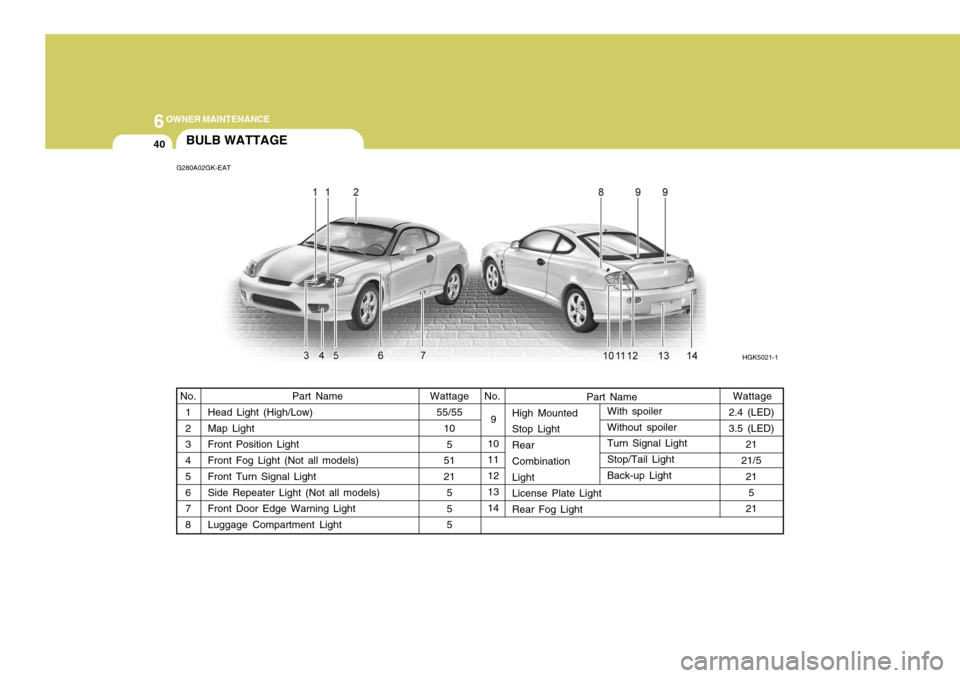

6OWNER MAINTENANCE
40
9
10 11 12 13 14
Part Name
Head Light (High/Low) Map Light Front Position Light Front Fog Light (Not all models) Front Turn Signal Light Side Repeater Light (Not all models) Front Door Edge Warning Light Luggage Compartment Light
BULB WATTAGE
Wattage55/55 10
5
5121 55 5
G280A02GK-EAT
Wattage
No.No.
1 2 3 4 5 6 7 8
HGK5021-1
2.4 (LED) 3.5 (LED) 21
21/5 21
5
21With spoiler Without spoiler Turn Signal Light Stop/Tail Light Back-up Light
Part Name
High MountedStop Light Rear Combination Light License Plate Light Rear Fog Light

6
OWNER MAINTENANCE
41FUSE PANEL DESCRIPTION
G200C02GK-GAT
Engine Compartment NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. HGK4005

6OWNER MAINTENANCE
42
PROTECTED COMPONENTS
Generator(1.6L/2.0L) BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24))Condenser fan relayRadiator fan relayEngine control relay, Fuel pump relay, A/T control relay, Generator,ECM(1.6L/2.7L),PCM(2.0L) Ignition switch,Start relayABS/ESP control module,ESP Air bleeding connectorABS/ESP control module,ESP Air bleeding connectorBlower relayInjector Oxygen sensor,Camshaft position sensor, Idle speed control actuator DRL control moduleFront fog lamp relayTCM(2.7L),ECM(2.7L/1.6L)Horn relay,A/C relay Head lamp relay(High) Head lamp relay(Low)
FUSERATING 120A50A 30A30A 30A 30A 40A40A30A 15A 10A15A15A10A15A 15A 15A
DESCRIPTION
BATTBATT
COND RAD ECU
IGN
ABS 1 ABS 2
BLOWER INJ
SNSR DRL
F/FOG ECU
HORN,A/CON H/LP (HI)
H/LP (LO)

6
OWNER MAINTENANCE
43
G200D02GK-GAT
Inner Panel
HGK204-E

6OWNER MAINTENANCE
44
DESCRIPTIONIG COIL
AMP
B/UP LAMP
A/BAG IND A/BAG
HTD MIR HAZARD
R/WIPER TAIL-RH
F/WIPER A/C SW
RR DEFOG STOP
TAIL-LH A/CON
ECU
CLUSTER
ROOM LP
P/WINDOW
T/GATE IGN
RR FOG C/LIGHT
S/ROOF S/HTR
ABS
AUDIO
PROTECTED COMPONENTS
Ignition coil(1.6L/2.7L), Electronic chrome mirror AMP Back-up lamp switch,Transaxle range switch,Cruise control module,Stop lamp switch Instrument cluster (A/BAG IND.) SRS control module Mirror defogger Hazard relay Rear wiper motor,Rear intermittent wiper relay Right tail lamps,Glove box lamp Front wiper motor,Front wiper relay Blower relay,Blower motor Defogger relay Stop lamp switch,Burglar alarm horn relay,Folding/Unfolding relay Left tail lamps A/C control module, Blower relay ECM, Multi gauge unit, TCM, Vehicle speed sensor Instrument cluster (Power), Per-excitation resister, DRL Control module,Generator Room lamp,Clock,Audio,Data link connector,Multi gauge unit Power window relay Trunk lid switch AQS sensor,Head lamp relay,DRL Control module Rear fog lamp Cigarette lighter,Outside mirror switch Sunroof,Power door lock/Unlock relay Seat warmer ESP/ABS control module Audio,Digital clock
FUSERATING
20A20A 10A 10A 15A 10A 10A 15A 10A 20A 10A 30A 15A 10A 10A 10A 10A 10A 30A 15A 10A 10A 15A 15A 20A 10A 10A
