Hyundai Coupe 2007 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
109
10. Information Display Screen (LCD)
Various status of cassette tape will be displayed on the screen while listening to the tape such as "PLAY" while play-ing the tape, the direction of play "
or
", "FF" and "REW" for fast forward
and rewind, "METAL" for playing metal tapes as well as "DOLBY" and "RPT."
CAUTION:
o Do not insert anything like coins into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged ifyou spill them.
o Do not strike or allow anything to
impact the audio system, damageto the system mechanisms could occur.
!

1FEATURES OF YOUR HYUNDAI
110
H280E01GK-GAT COMPACT DISC PLAYER OPERATION (H280) (If installed)
GK_280_UR
8
4
7 1
6 1. CD Deck 2. CD Indicator 3. CD EJECT 4. CD Selection Button5. Fast Backward
6. Fast Forward 7. Automatic Previous Track Selec-
tion Button
8. Automatic Next Track Selection
Button
9. Section Repeat Button 10. Information Display Screen (LCD) 11. BOOKMAKR Button12. RDM (Random) Button 13. SCROLL Button 14. FILE Search Knob15. Directory Search Button 16. SCAN Button
10
59 13
16
14
15
1112
2
3

1
FEATURES OF YOUR HYUNDAI
111
H280F01GK-GAT
1. CD Deck Make sure the printed side of the disk faces upward when you insert the disk.If you insert the disk when the ignition switch of the automobile is set to ACC (1st notch) or ON (2nd notch), the CDDeck will automatically play CD even if the power was off. This CD Deck can play both 12cm and 8cm audio disks. Ifyou insert video CD, then the screen will display "ERROR DISC" and eject the disk.
2. CD Indicator This indicator light will be on if the CD is inside the CDP deck whether the audio system is on or not. This light will go off when the CD is ejected.
3. CD Eject Button Press [
] button to eject the disk while
playing the disk. This will eject the CD whether or not the ignition switch is on or off. 4. CD Selection Button Press this button while the disk is inside the CDP deck to listen to the CDeven if the radio or tape was on or if CD changer was in action. If you press [CD/ MP3] button when the disk is ejectedand hanging in the opening, the system will automatically insert the disk and play the CD.
5. Fast Backward (REW) Press and hold [REW] button while playing CD then the player will play the disk backwards 5 times the regular speed for first 5 seconds and 15 timesfaster after that. The sound will be reduced by 12dB while you are holding the button.
6. Fast Forward (FF) Press and hold [FF] button while play- ing CD then the player will play the diskforward 5 times the regular speed for first 5 seconds and 15 times faster after that. The sound will be reduced by 12dBwhile you are holding the button.NOTE: If you press this button when the power is off and CD is inside the deck, the power will be automati-cally turned on. 7. Automatic Previous Track Se-
lection Button
Press [TRACK
] button to go to the
beginning of the song you are listening to while playing the CD. Press the button again to go to the beginning ofthe song before the song you were listening to. When you press this button while listening to the first track of theCD then the system will move to the beginning of the last track of the CD. 8. Automatic Next Track Selec-
tion Button
Press [SEEK
] button to go to the
beginning of the song next to the song you are listening to while playing theCD. 9. Section Repeat Button (RPT) Press [RPT] button to repeat the song you are listening to. Press this button again to cancel repetition.

1FEATURES OF YOUR HYUNDAI
112
!
10. Information Display Screen
(LCD)
Various status of the CD will be dis- played on the screen while listening to the CD such as "CD" while playing theCD, the track title and number, RPT, RDM and MARK. 11. BOOKMARK Button This button lets you select the songs you want to listen to in the CD. Move to the track and press [MARK] for more than 1 second then the screen willdisplay "M" and select the track. Press the button less than 1 second to play the songs you selected and the systemwill display "M" 12. RDM (Random) Button Press [RDM] button to play the songs in random order. 13. SCROLL Button If the title of MP3 or WMA file is too long, press this button to scroll theentire song title on the LCD screen. 14. FILE Search Knob Turn this knob to the left and right while listening to CD to change track number. If you press the button within 5 secondsthen the selected track will be played. If you do not press the button within 5 seconds then it will display the cur-rently played track. 15. Directory Search Button In case the MP3/WMA CD contains more than 2 folders, press this button up and down to search each directory. You can move to the directory and turnthe search knob to search through the tracks. If you do not press the knob within 5 seconds after you select atrack then the system will automati- cally return to the current track. 16. SCAN Button If you press this button, the player will play 10 seconds of each track. Press it again to cancel scanning.
CAUTION:
o Do not insert warped or poor qual- ity discs into the CD player as damage to the unit may occur.
o Do not insert anything like coins
into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged ifyou spill them.
o Do not strike or allow anything to impact the audio system, damageto the system mechanisms couldoccur.
o Off-road or rough surface driving may cause the compact disc toskip. Do not use the compact disc when driving in such conditions as damage to the compact discface could occur.
o Do not attempt to grab or pull the
compact disc out while the disc isbeing pulled into the audio unit by the self-loading mechanism. Dam- age to the audio unit and compactdisc could occur.
o Avoid using recorded compact
discs in your audio unit. Originalcompact discs are recommended.

1
FEATURES OF YOUR HYUNDAI
113
H265A01GK-GAT STEREO RADIO OPERATION (H265) (If installed)
GK_265_UR
8
7
2
1
4
35
6 1. Power Button and Volume Control
(Power On / Volume)
2. Radio Band Selection Button
3. Automatic Channel Selection Button(SEEK)
4. Manual Channel Selection Control (TUNE)
5. Preset Button 6. Information Display Screen (LCD) 7. BSM Button (Best Station Memory)
8. AUDIO Select Button

1FEATURES OF YOUR HYUNDAI
114
H265B01GK-GAT
1. Power Button and VolumeControl (POWER ON/ VOL- UME)
Press this button when the ignition switch of the automobile is set to ACC (1st notch) or ON (2nd notch) to turn onthe power of the audio system. When the power is turned on, turn the volume control clockwise to increase volumeand counterclockwise to reduce. Press once again when the audio system is on to turn off the power.
2. Radio Band Selection Button (FM/AM)
North American Standard
o Press this button to listen to either FM or AM.
o The radio will be set to each mode
each time you press the button in aloop; FM1 ➟FM2 ➟AM ➟FM1 and
soon.
European Standard
o Press this button to listen to either FM or AM.
o The radio will be set to each mode each time you press the button in a loop; FM1 ➟FM2 ➟MW ➟LW ➟FM1
and soon. 5. Preset Button (1~6) Press this button but do not hold for no more than 2 seconds to listen to thechannels memorized to each button. If you want to memorize the current chan- nel to the preset button when you arelistening to channel not memorized to any of the preset buttons, press the button and hold for more than 2 sec-onds then the channel will be memo- rized to the button with the beep.
6. Information Display Screen
(LCD)
A variety of information will be dis- played on the screen including the radio bands (FM1/FM2/AM) while listening tothe radio, frequency of each channel, the number of preset channel and "ST" for FM stereo broadcasting.
3. Automatic Channel Selection
Button (SEEK)
Press and hold the [
] button for more
than 0.5 seconds until you hear the beep to automatically increase frequency and press and hold the [
] button for more
than 0.5 seconds until you hear the beep to automatically decrease frequency to select and play the next available chan- nel. If the received channel is memo-rized in the preset buttons then the screen will display the memorized chan- nel.
4. Manual Channel Selection
Control (TUNE)
Press and hold [
] button for less than
0.5 seconds to increase frequency by 1 step and [
] to decrease.
Press and hold [
] or [ ] button for
more than 0.5 seconds even after you hear the beep then the frequency will increase or decrease quickly. When you release the button, the system willturn to the automatic selection mode.

1
FEATURES OF YOUR HYUNDAI
115
7. BSM Button(Best Station Memory)
Press this button once to automatically select well-received channels andmemorize them into the preset buttons (1~6) in the selected order and turn to the channel memorized in preset button1. If no channel is received after acti- vating BSM and no channel is memo- rized, the system will turn to the previ-ously received channel. 8. AUDIO Select Button
o Press this button to change AUDIO function control mode.
Current State ➟BASS ➟MID ➟TRE ➟
FAD ➟BAL
o Select the audio control mode you want and increase or decrease the setting by ±10 from currently audiocontrol mode. If no actions are taken, the screen will return to the previous display after 3 seconds.
! CAUTION:
o Do not place beverages close to the audio system. The audio sys- tem mechanism may be damagedif you spill them.
o Do not strike or allow anything to
impact the audio system, damageto the system mechanisms could occur.

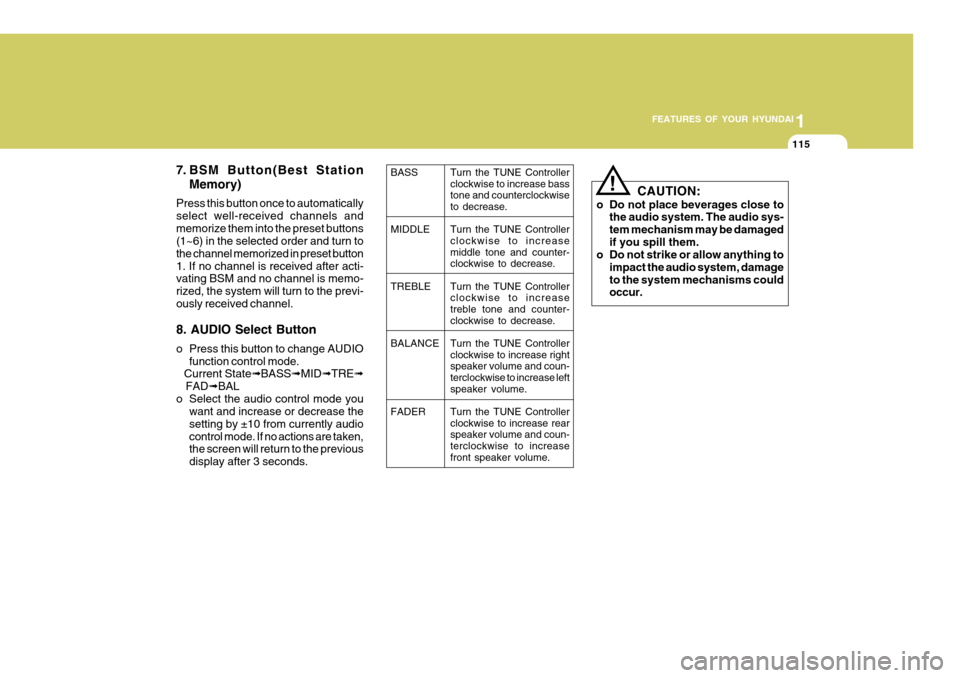

BASS MIDDLETREBLE BALANCE FADER Turn the TUNE Controller clockwise to increase bass tone and counterclockwiseto decrease. Turn the TUNE Controller clockwise to increase middle tone and counter- clockwise to decrease. Turn the TUNE Controller clockwise to increasetreble tone and counter- clockwise to decrease. Turn the TUNE Controller clockwise to increase right speaker volume and coun-terclockwise to increase left speaker volume. Turn the TUNE Controller clockwise to increase rear speaker volume and coun-terclockwise to increase front speaker volume.

1FEATURES OF YOUR HYUNDAI
116
H265C01GK-GAT COMPACT DISC PLAYER OPERATION (H265) (If installed)
GK_265_UR
11
4
2
9
10 1. CD DECK 2. CD INDICATOR3. CD Disc EJECT Button 4. CD Selection Button 5. Fast Backward
6. Fast Forward 7. Automatic Previous Track Selec-
tion Button
8. Automatic Next Track Selection Button
9. Section Repeat Button 10. Information Display Screen (LCD) 11. SCAN Button
7568
3
1

1
FEATURES OF YOUR HYUNDAI
117
H265D01GK-GAT 1. CD Deck Make sure the printed side of the disk faces upward when you insert the disk.If you insert the disk when the ignition switch of the automobile is set to ACC (1st notch) or ON (2nd notch), the CDDECK will automatically play CD even if the power was off. This CD DECK can play both 12cm and8cm audio disks. If you insert video CD, then the screen will display the status of the CD but it will not play the video fileand therefore there will be no sound.
2. CD Indicator This indicator light will be on if the CD is inside the CD DECK if the ignition switch of the automobile is set to ACC(1st notch) or ON (2nd notch) regard- less of whether the audio system is on or off. This light will go off when the CDis ejected.
3. CD Eject Button Press [
] button to eject the disk while
playing the disk. This will eject the CD whether or not the ignition switch is on or off. 4. CD Selection Button Press this button while the disk is inside the CD DECK to listen to the CD.If the radio was on previously then it will be turned off and CD player will be activated. If you press [CD] buttonwhen the disk is ejected and hanging in the opening the system will automati- cally insert the disk and play the CD. 5. Fast Backward (REW) Press and hold [REW] button while playing CD then the player will play the disk backwards 5 times the regularspeed for first 5 seconds and 15 times faster after that. The sound will be reduced by 12dB while you are holdingthe button.
6. Fast Forward (FF) Press and hold [FF] button while play- ing CD then the player will play the diskforward 5 times the regular speed for first 5 seconds and 15 times faster after that. The sound will be reduced by 12dBwhile you are holding the button.
7. Automatic Previous Track Se-
lection Button
Press [
] button to go to the beginning
of the song you are listening to while playing the CD. Press the button again to go to the beginning of the song beforethe song you were listening to. When you press this button while listening to the first track of the CD then the systemwill move to the beginning of the last track of the CD.
8. Automatic Next Track Selec-
tion Button
Press [
] button to go to the beginning
of the song next to the song you are listening to while playing the CD. When you press this button while listening to the last track of the CD then the systemwill move to the beginning of the first track of the CD.
9. Section Repeat Button (RPT) Press [RPT] button to repeat the song you are listening to. Press this button again to cancel repetition.

1FEATURES OF YOUR HYUNDAI
118
10. Information Display Screen(LCD)
Various status of the CD will be dis- played on the screen while listening tothe CD such as "CD" while playing the CD, the track title and number and RPT. 11. SCAN Button If you press this button, the player will play 10 seconds of each track. Press it again to cancel scanning. CAUTION:
o Do not insert warped or poor qual- ity discs into the CD player asdamage to the unit may occur.
o Do not insert anything like coins
into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged if you spill them.
o Do not strike or allow anything to impact the audio system, damageto the system mechanisms couldoccur.
o Off-road or rough surface driving
may cause the compact disc toskip. Do not use the compact disc when driving in such conditions as damage to the compact discface could occur.
o Do not attempt to grab or pull the
compact disc out while the disc isbeing pulled into the audio unit by the self-loading mechanism. Dam- age to the audio unit and compactdisc could occur.
!
o Avoid using recorded compactdiscs in your audio unit. Original compact discs are recommended.
