Hyundai Coupe 2007 Owner's Guide

1
FEATURES OF YOUR HYUNDAI
9THEFT-ALARM SYSTEM
NOTE:
o When pushing the switch toward the rear, all doors will unlock. When pushing the switch towardthe front, all doors will lock.
o When the door is unlocked, the
red mark on the switch is visible.
o The central door locking is oper- ated by turning the key (driver'sdoor only) toward the front orrear of the vehicle.
o If the door is locked/unlocked mul-
tiple times in rapid successionwith either the vehicle key or door lock switch, the system may stop operating temporarily in order toprotect the circuit and prevent damage to system components. B070A01A-AAT (If Installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turnsignal light.
B070B02GK-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and
tail gate are closed and latched.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal light will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
3) Once the system is armed, only the tail gate may be unlocked using the key without disarming the system.
! CAUTION:
Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car,the alarm may be activated when the remaining passenger(s) leaves the car.

1FEATURES OF YOUR HYUNDAI
10
! B070D04GK-AAT Disarmed Stage
UNLOCK
The system will be disarmed when either of the following steps are taken:
1) The driver's or passenger's door is unlocked by depressing the "UN- LOCK" button on the transmitter.
2) In the middle of alarming or after
alarming, it disarms after 30 sec-onds if the key is turned to and kept in the "ON" position.
After completing one of steps above,the turn signal light will blink twice toindicate that the system is disarmed.
CAUTION:
Avoid trying to start the engine whilethe system is armed. OGK016102
LOCK
B070C02GK-GAT Alarm Stage The alarm will be activated if any of the following occur while the car is parkedand the system is armed.
1) A front door is unlocked and opened
without using the transmitter.
2) The tail gate is opened without us-
ing the key.
3) The engine hood is opened.The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds (E.C, Mideast only/ Except E.C : This happens 3 times). Toturn off the system, unlock the door with the transmitter.
B075E02O-AAT Alarm Warning
1. Push the "Alarm" button on the trans-
mitter.
2. At the same time, the siren will sound and the turn signal lights will blink for 30 seconds.
3. To turn off the system, push any button on the transmitter. OGK016102
Alarm
NOTE: If any door, tail gate or engine hood is not opened within 30 seconds, the system will be rearmed.

1
FEATURES OF YOUR HYUNDAI
11
B070F02A-GAT Keyless Entry System (If installed)Locking doors
1. Close all doors.
2. Push the "LOCK" button on the trans- mitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock,
the turn signal lights will blink twice to indicate that the system is dis- armed.
NOTE: The transmitter will not work if any of following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance limit (10 m).
- The battery in the transmitter is weak. - Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the trans- mitter.
When the transmitter does not workcorrectly, open and close the doorwith the ignition key. If you have a problem with the transmitter, con- tact an authorized Hyundai Dealer. NOTE: Keep the transmitter away from wa- ter or any liquid. If the keyless entry system is inoperative due to expo-sure to water or liquids, it will not be covered by your manufacturer ve- hicle warranty.
B070E03GK-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2016 Replacement instructions:
Screwdriver
1. Carefully separate the case with a blade screwdriver as shown in the illustration. OGK016122

1FEATURES OF YOUR HYUNDAI
12POWER WINDOW
B050A03GK-AAT The power windows operate only when the ignition key is in the "ON" position. The main switches are located on thedriver's arm rest and control the front windows on the respective sides of the vehicle. The windows may be openedby depressing the front portion of the switch. To stop at the desired opening, release the switch. The window may beclosed by pulling the front portion of the
switch. To open the window on the driver's side, press the switch(1) half-way down. The window moves as long as the switch is operated. To fully open the driver's window automatically, pressthe switch fully down. In automatic operation, the window will fully open even if you let go of the switch. HGK2015
(2)
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), then insert it in the transmitter.
3. Installation is the reverse order of disassembly. Battery
OGK016121
NOTE: Install a new battery within 30 sec- onds after removing the old one. If installing a new battery takes morethan 30 seconds, take the following steps.
1) Turn the ignition key to the "ACC"position.
2) Make sure that the turn signal lights blink once by pushing the "LOCK" or "UNLOCK" button on the transmitter.
(1)

1
FEATURES OF YOUR HYUNDAI
13
To stop at the desired opening, pull up and release the switch. In order toprevent operation of the passenger front window by the passenger, a window lock switch (2) is provided on the armrest of the driver's door. To disable the passenger's power window, push the window lock switch. To revert to normaloperation, push in on the window lock switch again.
HGK2016
!WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door and theindividual door window switch inopposing directions at the same time. If this is done, the window will stop and cannot be opened orclosed.
3) Do not leave children alone in the
car. Always remove the ignitionkey for their safety.
NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK"positions, or removed from the igni- tion switch. If the front doors are opened during this 30 second pe-riod, the power windows can no longer be operated without the igni- tion key turned to the "ON" position.
SEATS
!
B080A01FC-GAT Adjustable Seats
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an acci-dent which may cause death, seri- ous injury, or property damage.

1FEATURES OF YOUR HYUNDAI
14
!!WARNING:
To ensure the seat is locked se- curely, attempt to move the seat for-ward or rearward without using the lock release lever. B080C01A-AAT Adjusting Seatback Angle
OGK036003
To recline the seatback, lean forward to take your weight off it, then pull up onthe recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved.To lock the seatback into position, release the recliner control lever. WARNING:
To minimize risk of severe injury inthe event of a collision or a sudden stop, both the driver's andpassenger's seatbacks should al- ways be in an upright position while the vehicle is in motion. The protec-tion provided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seat back is reclined.
B080B02FC-GAT FRONT SEATS Adjusting Seat Forward andRearward To move the seat toward the front or rear, pull the lock release lever upward.This will release the seat on its track so you can move it forward or rearward to the desired position. When you find theposition you want, release the lever and slide the seat forward or rearward on its track until it locks into the desiredposition and cannot be moved further. OGK036002

1
FEATURES OF YOUR HYUNDAI
15

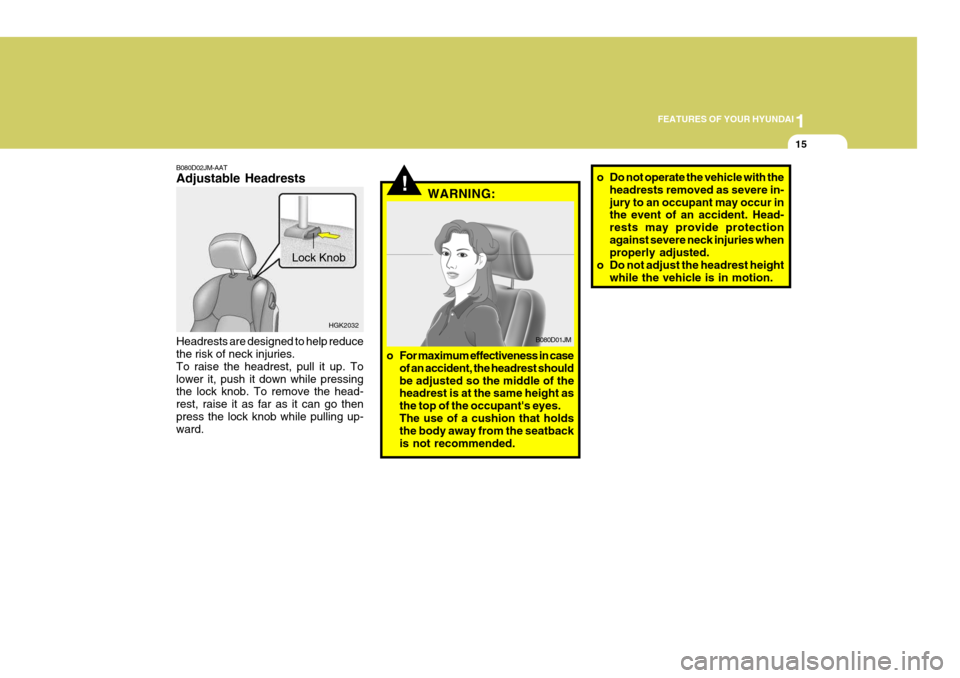

B080D02JM-AAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob. To remove the head- rest, raise it as far as it can go thenpress the lock knob while pulling up- ward. Lock Knob
HGK2032
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes.The use of a cushion that holds the body away from the seatback is not recommended.
o Do not operate the vehicle with theheadrests removed as severe in- jury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted.
o Do not adjust the headrest height
while the vehicle is in motion.
B080D01JM

1FEATURES OF YOUR HYUNDAI
16
B080F01F-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed) To raise or lower the front part of the seat cushion, turn the knob forward orrearward. B100A01GK-GAT Seat Warmer (If Installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi-tion, push either of the switches to warm the driver's seat or the passenger's seat.During mild weather or under condi- tions where the operation of the seat warmer is not needed, keep theswitches in the "OFF" position.
OGK036004
OGK016033B080E01F-AAT Lumbar Support Control (Driver's seat only) (If Installed) The driver's seat is equipped with ad- justable lumbar support.To increase the amount of lumbar sup- port, pull the lever forward. To decrease it, push the lever towardthe rear.SOFT
OGK036005
FIRM

1
FEATURES OF YOUR HYUNDAI
17
NOTE:
o The seat warmer may not operate if ambient temperature is warm enough.
o If the seat warmer doesn't work when the ambient temperature islower than 24.5°C (76.1°F), it mustbe checked at an authorized dealer.
!
B130A01GK-AAT Rear Seat Entry (Walk in device) The driver and front passenger's seatbacks should be tilted to enter therear seat. By pulling up the walk in device lever (1) at the left-upper side of the driver sideseatback, the seatback will tilt forward. Then pull the lock release lever (2) up to move the seat forward. OGK036007
WARNING:
Be very careful not to injure by lowtemperature burn or an attack of fe- ver as following occupants; infants, children, old man, drunken man,people who is taken sleeping drug or cold remedy.
By pulling up the walk in device lever (1) at the right-upper side of the passengerside seatback, the seatback will tilt forward. Then push the seat forward to allow the occupants to enter. Recliner Memory By pulling up the walk in device lever (1), the seatback is reclined and re- turned to the original position. OGK036008

1FEATURES OF YOUR HYUNDAI
18
!WARNING:
Don't drive with the passenger side seatback reclined. It is dangerous tomove it while driving. Be sure the seatback is caterred firmly before driving. B099A01GK-AAT Before Folding the Rear Seats In order to prevent the shoulder belt from being damaged while folding the rear seat, the shoulder belt must be passed through the hanger to keep itout of the way.
HGK2034
B129A01F-AAT Rear Seat Positions
WARNING:
This vehicle contains two rear seat- ing positions only and a seat belt for each seating position. Thus, never permit more than two occu-pants to ride in the rear seat be- cause an unrestrained occupant could be seriously injured or killedin the event of a vehicle crash. B129A01GK
!
