seat adjustment HYUNDAI COUPE 2012 Owners Manual

Safety features of your vehicle
43

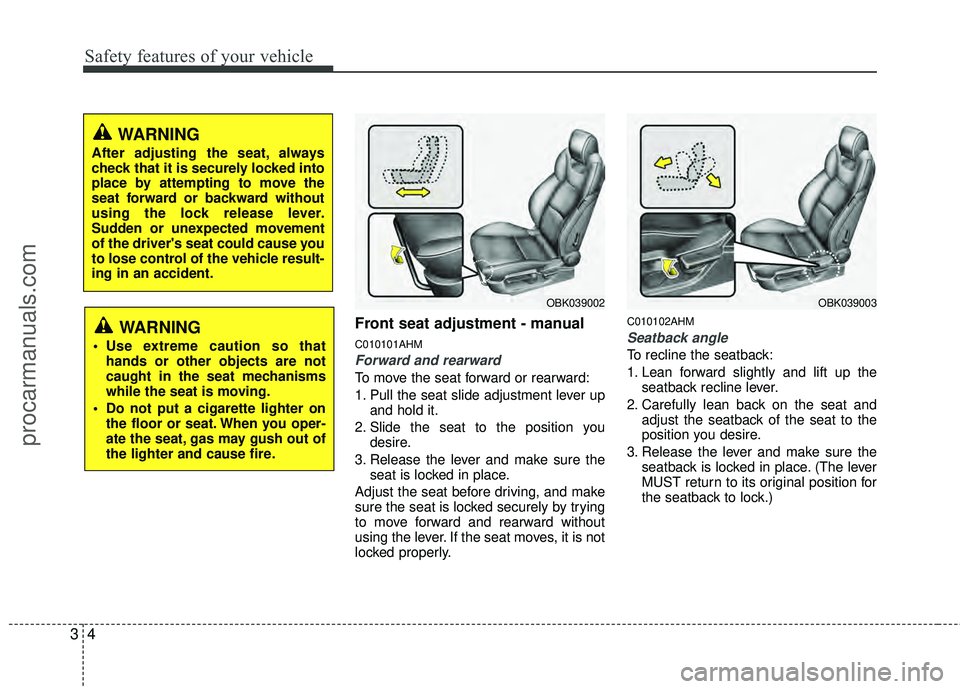

Front seat adjustment - manual
C010101AHM
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and rearward without
using the lever. If the seat moves, it is not
locked properly.
C010102AHM
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-
ing in an accident.
OBK039002OBK039003
WARNING
Use extreme caution so thathands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
procarmanuals.com

39
Safety features of your vehicle

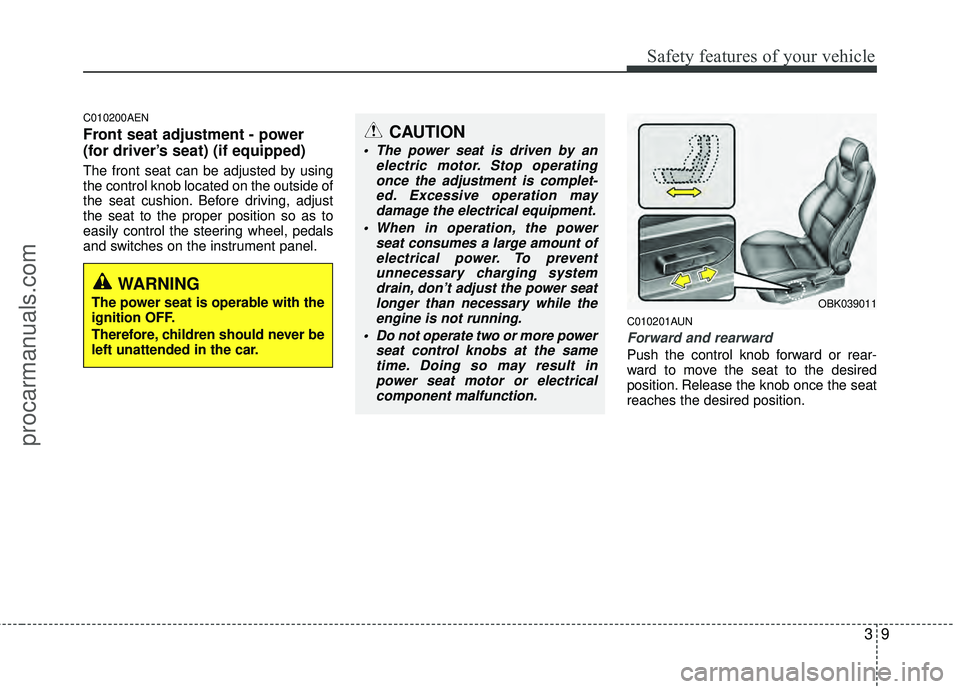

C010200AEN
Front seat adjustment - power
(for driver’s seat) (if equipped)
The front seat can be adjusted by using
the control knob located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so as to
easily control the steering wheel, pedals
and switches on the instrument panel.
C010201AUN
Forward and rearward
Push the control knob forward or rear-
ward to move the seat to the desired
position. Release the knob once the seat
reaches the desired position.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the car.
CAUTION
The power seat is driven by anelectric motor. Stop operatingonce the adjustment is complet-ed. Excessive operation maydamage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging systemdrain, don’t adjust the power seatlonger than necessary while theengine is not running.
Do not operate two or more power seat control knobs at the sametime. Doing so may result inpower seat motor or electricalcomponent malfunction.
OBK039011
procarmanuals.com

Safety features of your vehicle
10
3

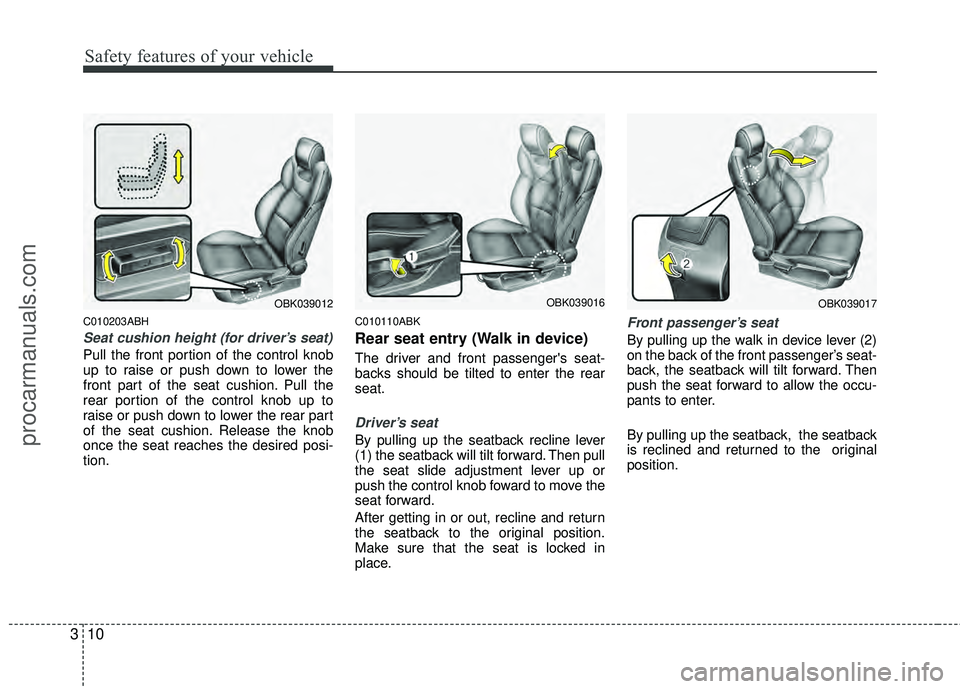

C010203ABH
Seat cushion height (for driver’s seat)
Pull the front portion of the control knob
up to raise or push down to lower the
front part of the seat cushion. Pull the
rear portion of the control knob up to
raise or push down to lower the rear part
of the seat cushion. Release the knob
once the seat reaches the desired posi-
tion.
C010110ABK
Rear seat entry (Walk in device)
The driver and front passenger's seat-
backs should be tilted to enter the rear
seat.
Driver’s seat
By pulling up the seatback recline lever
(1) the seatback will tilt forward. Then pull
the seat slide adjustment lever up or
push the control knob foward to move the
seat forward.
After getting in or out, recline and return
the seatback to the original position.
Make sure that the seat is locked in
place.
Front passenger’s seat
By pulling up the walk in device lever (2)
on the back of the front passenger’s seat-
back, the seatback will tilt forward. Then
push the seat forward to allow the occu-
pants to enter.
By pulling up the seatback, the seatback
is reclined and returned to the original
position.
OBK039012OBK039016OBK039017
procarmanuals.com

433
Features of your vehicle
MIRRORS
D140100AUN
Inside rearview mirror
Adjust the rearview mirror to center on
the view through the rear window. Make
this adjustment before you start driving.
D140101AUN
Day/night rearview mirror
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearviewclarity in the night position.
D140105AEN
Electric chromic mirror (ECM) withHomeLink®system and compass
(if equipped)
Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror with a
Z-Navâ„¢ Electronic Compass Display
and an Integrated HomeLink
®Wireless
Control System. During nighttime driving,
this feature will automatically detect and
reduce rearview mirror glare while the
compass indicates the direction the vehi-
cle is pointed. The HomeLink
®Universal
Transceiver allows you to activate your
garage door(s), electric gate, home light-
ing, etc.
WARNING - Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision through
the rear window.
OBK049115N
Day
Night
WARNING
Do not modify the inside mirror and
do not install a wide mirror. It could
result in injury, during an accident
or deployment of the air bag.
procarmanuals.com

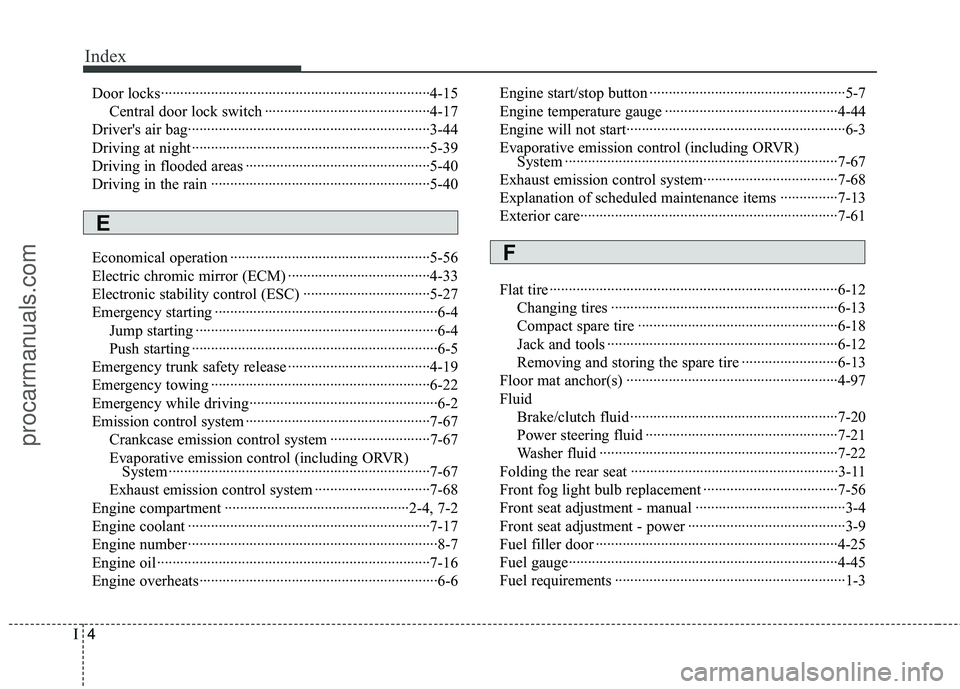

Index
4I
Door locks··················\
··················\
··················\
················4-15Central door lock switch ··················\
··················\
·······4-17
Driver's air bag··············\
··················\
··················\
·············3-44
Driving at night··················\
··················\
··················\
········5-39
Driving in flooded areas ··················\
··················\
············5-40
Driving in the rain ··················\
··················\
··················\
···5-40
Economical operation ··················\
··················\
················5-56
Electric chromic mirror (ECM) ··················\
··················\
·4-33
Electronic stability control (ESC) ··················\
···············5-27
Emergency starting ··················\
··················\
··················\
····6-4 Jump starting ··················\
··················\
··················\
·········6-4
Push starting ··················\
··················\
··················\
··········6-5
Emergency trunk safety release ··················\
··················\
·4-19
Emergency towing ··················\
··················\
··················\
···6-22
Emergency while driving··················\
··················\
·············6-2
Emission control system ··················\
··················\
············7-67 Crankcase emission control system ··················\
········7-67
Evaporative emission control (including ORVR) System ··················\
··················\
··················\
··············7-67
Exhaust emission control system ··················\
············7-68
Engine compartment ··················\
··················\
············2-4, 7-2
Engine coolant ··················\
··················\
··················\
·········7-17
Engine number ··················\
··················\
··················\
···········8-7
Engine oil ··················\
··················\
··················\
·················7-16\
Engine overheats··················\
··················\
··················\
········6-6 Engine start/stop button ··················\
··················\
···············5-7
Engine temperature gauge ··················\
··················\
·········4-44
Engine will not start··················\
··················\
··················\
···6-3
Evaporative emission control (including ORVR)
System ··················\
··················\
··················\
·················7-67\
Exhaust emission control system··················\
·················7-68\
Explanation of scheduled maintenance items ···············7-13
Exterior care··················\
··················\
··················\
·············7-61
Flat tire ··················\
··················\
··················\
··················\
···6-12 Changing tires ··················\
··················\
··················\
·····6-13
Compact spare tire ··················\
··················\
················6-18
Jack and tools ··················\
··················\
··················\
······6-12
Removing and storing the spare tire ··················\
·······6-13
Floor mat anchor(s) ··················\
··················\
··················\
·4-97
Fluid Brake/clutch fluid ··················\
··················\
··················\
7-20
Power steering fluid ··················\
··················\
··············7-21
Washer fluid ··················\
··················\
··················\
········7-22
Folding the rear seat ··················\
··················\
··················\
3-11
Front fog light bulb replacement ··················\
·················7-56\
Front seat adjustment - manual ··················\
··················\
···3-4
Front seat adjustment - power ··················\
··················\
·····3-9
Fuel filler door ··················\
··················\
··················\
·········4-25
Fuel gauge··················\
··················\
··················\
················4-45
Fuel requirements ··················\
··················\
··················\
······1-3
E
F
procarmanuals.com

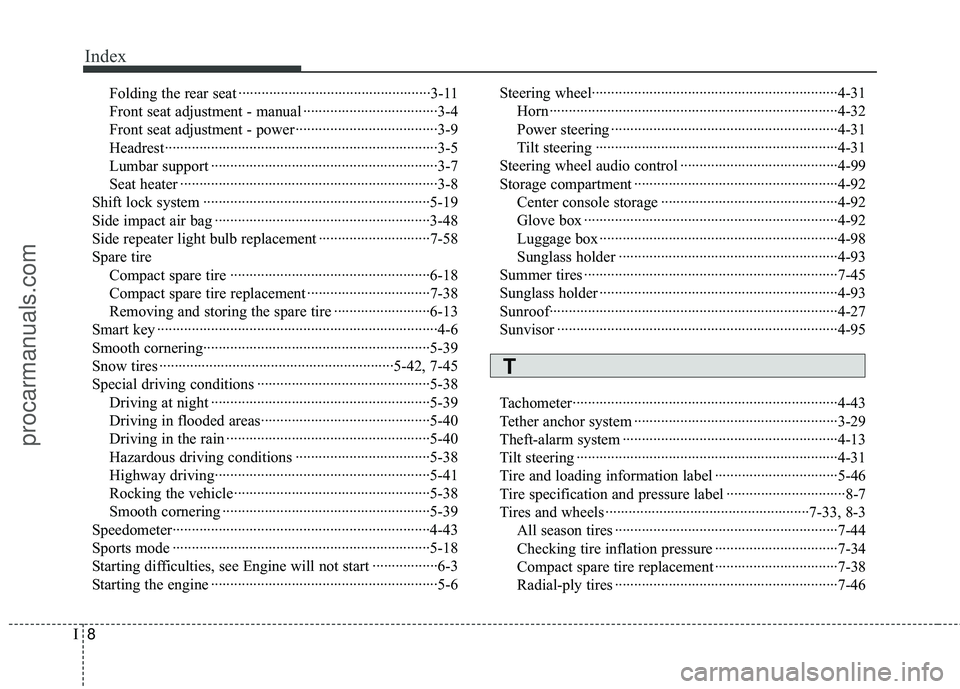

Index
8I
Folding the rear seat ··················\
··················\
··············3-11
Front seat adjustment - manual ··················\
·················3-4
Front seat adjustment - power ··················\
··················\
·3-9
Headrest··················\
··················\
··················\
·················3-5
Lumbar support ··················\
··················\
··················\
·····3-7
Seat heater ··················\
··················\
··················\
·············3-8
Shift lock system ··················\
··················\
··················\
·····5-19
Side impact air bag ··················\
··················\
··················\
··3-48
Side repeater light bulb replacement ··················\
···········7-58
Spare tire Compact spare tire ··················\
··················\
················6-18
Compact spare tire replacement ··················\
··············7-38
Removing and storing the spare tire ··················\
·······6-13
Smart key ··················\
··················\
··················\
··················\
·4-6
Smooth cornering··················\
··················\
··················\
·····5-39
Snow tires ··················\
··················\
··················\
·······5-42, 7-45
Special driving conditions ··················\
··················\
·········5-38 Driving at night ··················\
··················\
··················\
···5-39
Driving in flooded areas··················\
··················\
········5-40
Driving in the rain ··················\
··················\
·················5-40\
Hazardous driving conditions ··················\
·················5-38\
Highway driving··················\
··················\
··················\
··5-41
Rocking the vehicle··················\
··················\
···············5-38
Smooth cornering ··················\
··················\
··················\
5-39
Speedometer··················\
··················\
··················\
·············4-43
Sports mode ··················\
··················\
··················\
·············5-18
Starting difficulties, see Engine will not start ·················6-3
Starting the engine ··················\
··················\
··················\
·····5-6 Steering wheel···············\
··················\
··················\
·············4-31
Horn··················\
··················\
··················\
··················\
···4-32
Power steering ··················\
··················\
··················\
·····4-31
Tilt steering ··················\
··················\
··················\
·········4-31
Steering wheel audio control ··················\
··················\
·····4-99
Storage compartment ··················\
··················\
·················4-92\
Center console storage ··················\
··················\
··········4-92
Glove box ··················\
··················\
··················\
············4-92
Luggage box ··················\
··················\
··················\
········4-98
Sunglass holder ··················\
··················\
··················\
···4-93
Summer tires ··················\
··················\
··················\
············7-45
Sunglass holder ··················\
··················\
··················\
········4-93
Sunroof··················\
··················\
··················\
··················\
···4-27
Sunvisor ··················\
··················\
··················\
··················\
·4-95
Tachometer··················\
··················\
··················\
···············4-43
Tether anchor system ··················\
··················\
·················3-29\
Theft-alarm system ··················\
··················\
··················\
··4-13
Tilt steering ··················\
··················\
··················\
··············4-31
Tire and loading information label ··················\
··············5-46
Tire specification and pressure label ··················\
·············8-7
Tires and wheels ··················\
··················\
·················7-33\
, 8-3 All season tires ··················\
··················\
··················\
····7-44
Checking tire inflation pressure ··················\
··············7-34
Compact spare tire replacement ··················\
··············7-38
Radial-ply tires ··················\
··················\
··················\
····7-46
T
