language Hyundai Creta 2019 Owner's Manual

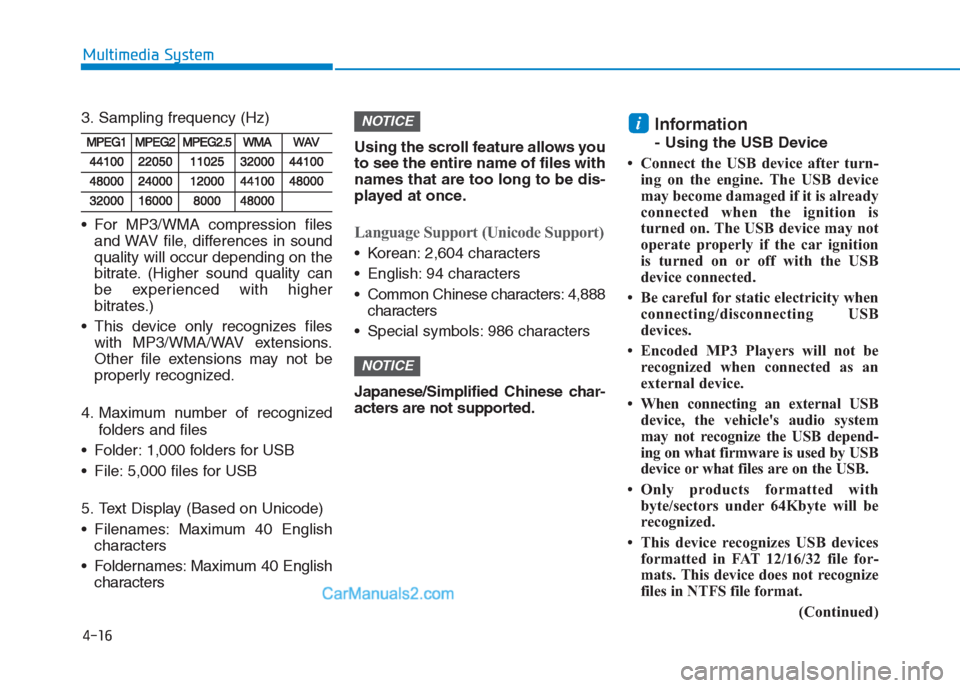

4-16
Multimedia System
3. Sampling frequency (Hz)
For MP3/WMA compression files
and WAV file, differences in sound
quality will occur depending on the
bitrate. (Higher sound quality can
be experienced with higher
bitrates.)
This device only recognizes files
with MP3/WMA/WAV extensions.
Other file extensions may not be
properly recognized.
4. Maximum number of recognized
folders and files
Folder: 1,000 folders for USB
File: 5,000 files for USB
5. Text Display (Based on Unicode)
Filenames: Maximum 40 English
characters
Foldernames: Maximum 40 English
charactersUsing the scroll feature allows you
to see the entire name of files with
names that are too long to be dis-
played at once.
Language Support (Unicode Support)
Korean: 2,604 characters
English: 94 characters
Common Chinese characters: 4,888
characters
Special symbols: 986 characters
Japanese/Simplified Chinese char-
acters are not supported.
Information
- Using the USB Device
• Connect the USB device after turn-
ing on the engine. The USB device
may become damaged if it is already
connected when the ignition is
turned on. The USB device may not
operate properly if the car ignition
is turned on or off with the USB
device connected.
• Be careful for static electricity when
connecting/disconnecting USB
devices.
• Encoded MP3 Players will not be
recognized when connected as an
external device.
• When connecting an external USB
device, the vehicle's audio system
may not recognize the USB depend-
ing on what firmware is used by USB
device or what files are on the USB.
• Only products formatted with
byte/sectors under 64Kbyte will be
recognized.
• This device recognizes USB devices
formatted in FAT 12/16/32 file for-
mats. This device does not recognize
files in NTFS file format.
(Continued)
i
NOTICE
NOTICE

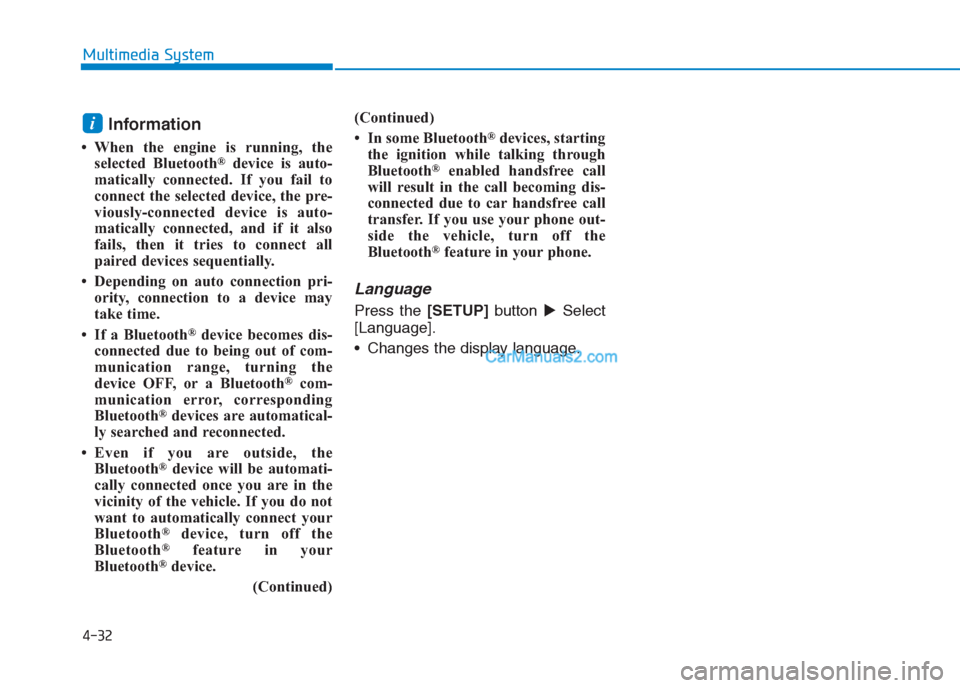

4-32
Multimedia System
Information
• When the engine is running, the
selected Bluetooth®device is auto-
matically connected. If you fail to
connect the selected device, the pre-
viously-connected device is auto-
matically connected, and if it also
fails, then it tries to connect all
paired devices sequentially.
• Depending on auto connection pri-
ority, connection to a device may
take time.
• If a Bluetooth
®device becomes dis-
connected due to being out of com-
munication range, turning the
device OFF, or a Bluetooth
®com-
munication error, corresponding
Bluetooth
®devices are automatical-
ly searched and reconnected.
• Even if you are outside, the
Bluetooth
®device will be automati-
cally connected once you are in the
vicinity of the vehicle. If you do not
want to automatically connect your
Bluetooth
®device, turn off the
Bluetooth®feature in your
Bluetooth®device.
(Continued)(Continued)
• In some Bluetooth
®devices, starting
the ignition while talking through
Bluetooth
®enabled handsfree call
will result in the call becoming dis-
connected due to car handsfree call
transfer. If you use your phone out-
side the vehicle, turn off the
Bluetooth
®feature in your phone.
Language
Press the[SETUP]button Select
[Language].
Changes the display language.
i

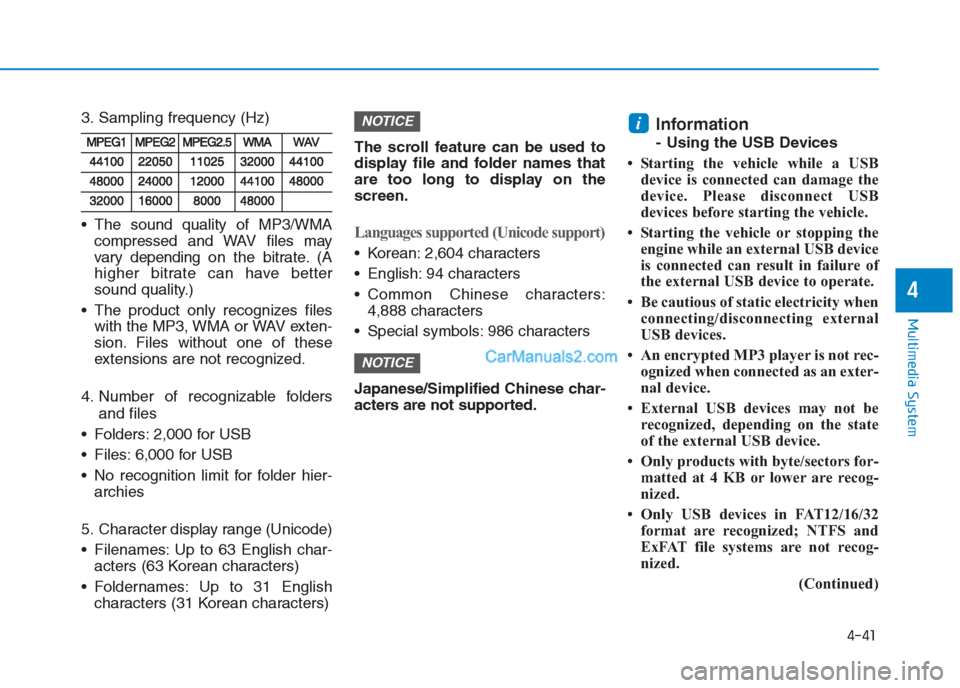

4-41
Multimedia System
4
3. Sampling frequency (Hz)
The sound quality of MP3/WMA
compressed and WAV files may
vary depending on the bitrate. (A
higher bitrate can have better
sound quality.)
The product only recognizes files
with the MP3, WMA or WAV exten-
sion. Files without one of these
extensions are not recognized.
4. Number of recognizable folders
and files
Folders: 2,000 for USB
Files: 6,000 for USB
No recognition limit for folder hier-
archies
5. Character display range (Unicode)
Filenames: Up to 63 English char-
acters (63 Korean characters)
Foldernames: Up to 31 English
characters (31 Korean characters)The scroll feature can be used to
display file and folder names that
are too long to display on the
screen.
Languages supported (Unicode support)
Korean: 2,604 characters
English: 94 characters
Common Chinese characters:
4,888 characters
Special symbols: 986 characters
Japanese/Simplified Chinese char-
acters are not supported.
Information
- Using the USB Devices
• Starting the vehicle while a USB
device is connected can damage the
device. Please disconnect USB
devices before starting the vehicle.
• Starting the vehicle or stopping the
engine while an external USB device
is connected can result in failure of
the external USB device to operate.
• Be cautious of static electricity when
connecting/disconnecting external
USB devices.
• An encrypted MP3 player is not rec-
ognized when connected as an exter-
nal device.
• External USB devices may not be
recognized, depending on the state
of the external USB device.
• Only products with byte/sectors for-
matted at 4 KB or lower are recog-
nized.
• Only USB devices in FAT12/16/32
format are recognized; NTFS and
ExFAT file systems are not recog-
nized.
(Continued)
i
NOTICE
NOTICE

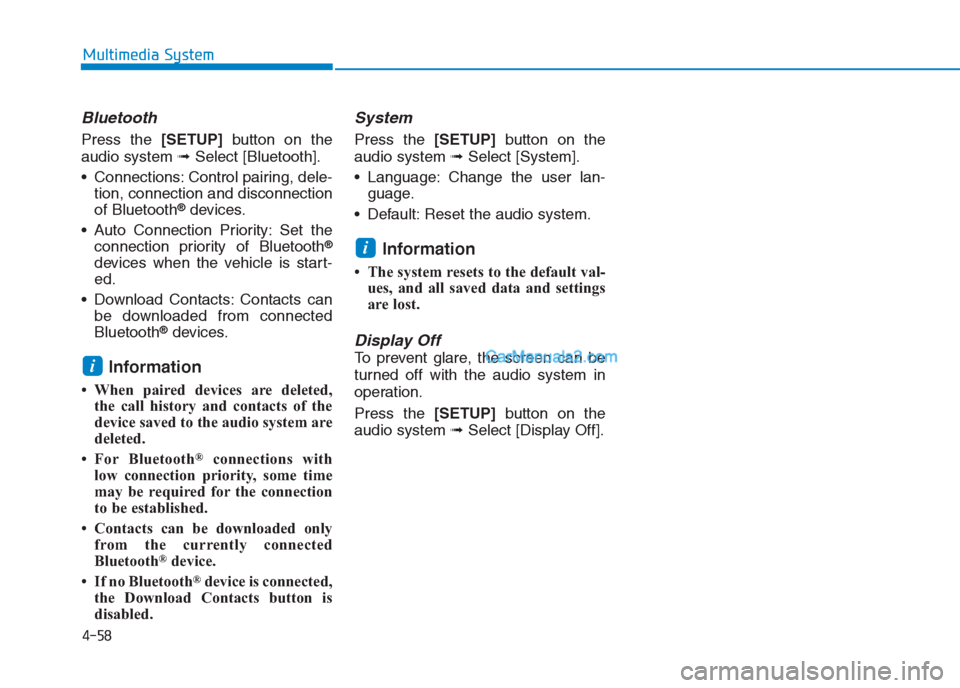

4-58
Multimedia System
Bluetooth
Press the [SETUP]button on the
audio system ➟Select [Bluetooth].
Connections: Control pairing, dele-
tion, connection and disconnection
of Bluetooth
®devices.
Auto Connection Priority: Set the
connection priority of Bluetooth
®
devices when the vehicle is start-
ed.
Download Contacts: Contacts can
be downloaded from connected
Bluetooth
®devices.
Information
• When paired devices are deleted,
the call history and contacts of the
device saved to the audio system are
deleted.
• For Bluetooth
®connections with
low connection priority, some time
may be required for the connection
to be established.
• Contacts can be downloaded only
from the currently connected
Bluetooth
®device.
• If no Bluetooth
®device is connected,
the Download Contacts button is
disabled.
System
Press the [SETUP]button on the
audio system ➟Select [System].
Language: Change the user lan-
guage.
Default: Reset the audio system.
Information
• The system resets to the default val-
ues, and all saved data and settings
are lost.
Display Off
To prevent glare, the screen can be
turned off with the audio system in
operation.
Press the [SETUP]button on the
audio system ➟Select [Display Off].
i
i
