Features of your vehicle
Flashing headlights
To flash the headlights, pull the lever
towards you. It will return to the normal
(low-beam) position when released. The
headlight switch does not need to be on
to use this flashing feature.
Turn signals and lane change
signals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed. If the indicator contin-
ues to flash after a turn, manually return
the lever to the OFF position.To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-
tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out and
will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally quick
or slow, bulb may be burned out or have
a poor electrical connection in the cir-
cuit.

OUN028224

OHDR049414
■Type A
■Type B
OUN028226

OHD040416
■Type A
■Type B

Maintenance
54
7

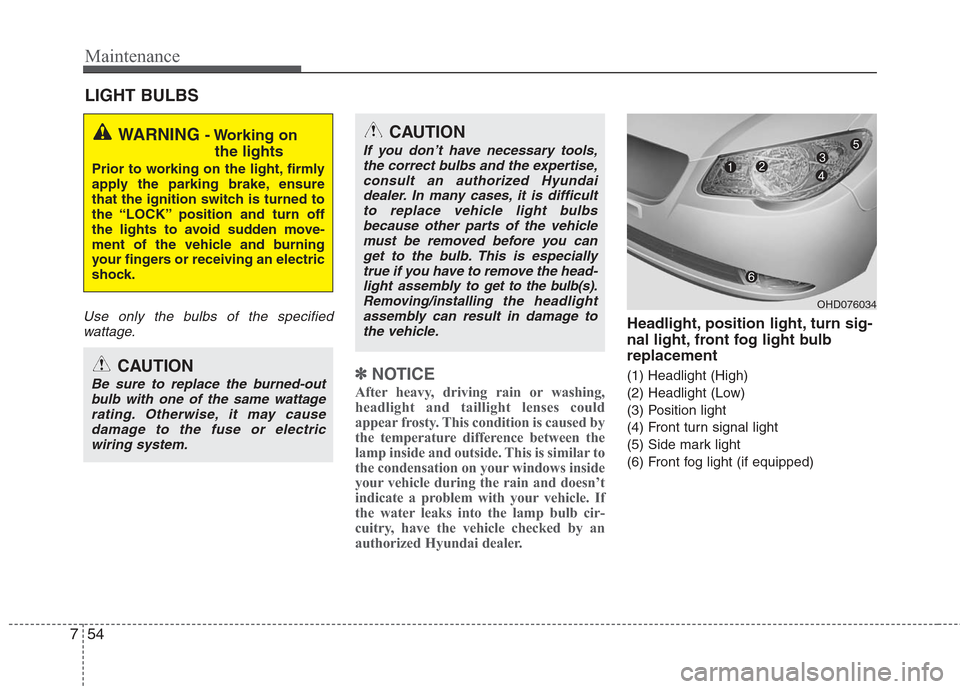

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽
✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar to
the condensation on your windows inside
your vehicle during the rain and doesn’t
indicate a problem with your vehicle. If
the water leaks into the lamp bulb cir-
cuitry, have the vehicle checked by an
authorized Hyundai dealer.
Headlight, position light, turn sig-
nal light, front fog light bulb
replacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Position light
(4) Front turn signal light
(5) Side mark light
(6) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position and turn off
the lights to avoid sudden move-
ment of the vehicle and burning
your fingers or receiving an electric
shock.
CAUTION
Be sure to replace the burned-out
bulb with one of the same wattagerating. Otherwise, it may causedamage to the fuse or electric wiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,consult an authorized Hyundaidealer. In many cases, it is difficultto replace vehicle light bulbsbecause other parts of the vehicle must be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.
OHD076034

755
Maintenance

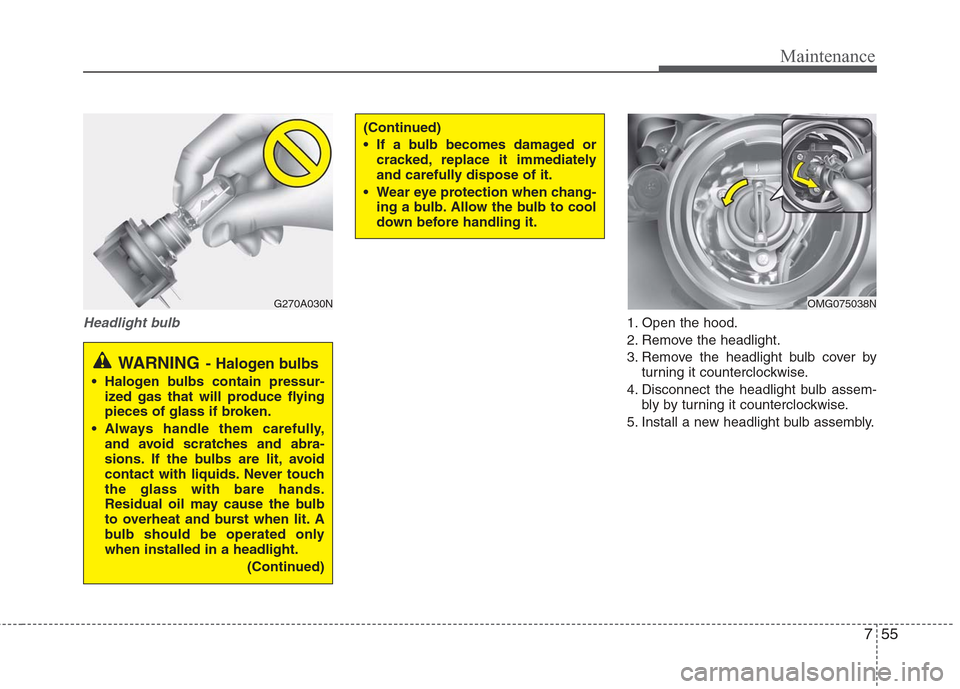

Headlight bulb1. Open the hood.
2. Remove the headlight.
3. Remove the headlight bulb cover byturning it counterclockwise.
4. Disconnect the headlight bulb assem- bly by turning it counterclockwise.
5. Install a new headlight bulb assembly.

G270A030N
WARNING- Halogen bulbs
Halogen bulbs contain pressur- ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touch
the glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated only
when installed in a headlight.
(Continued)
(Continued)
If a bulb becomes damaged orcracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.

OMG075038N

Maintenance
56
7
6. Install the headlight bulb cover by turn-
ing it clockwise.
7. Install the headlight.
Turn signal light/position light, side mark light, fog light bulb (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
Hyundai dealer.

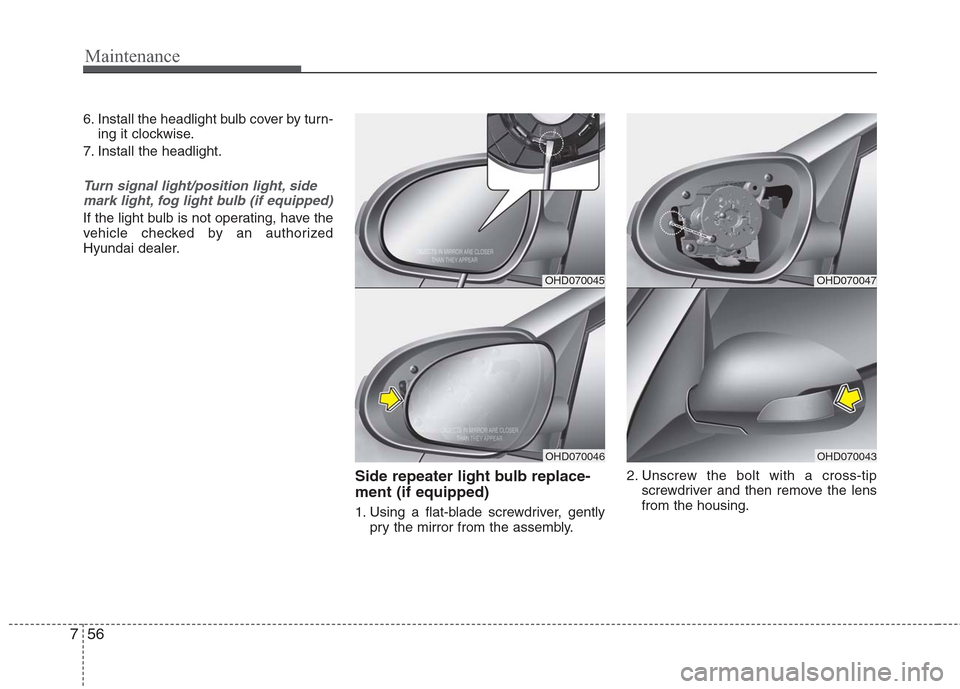

Side repeater light bulb replace-
ment (if equipped)
1. Using a flat-blade screwdriver, gently pry the mirror from the assembly. 2. Unscrew the bolt with a cross-tip
screwdriver and then remove the lens
from the housing.

OHD070045

OHD070046

OHD070047

OHD070043

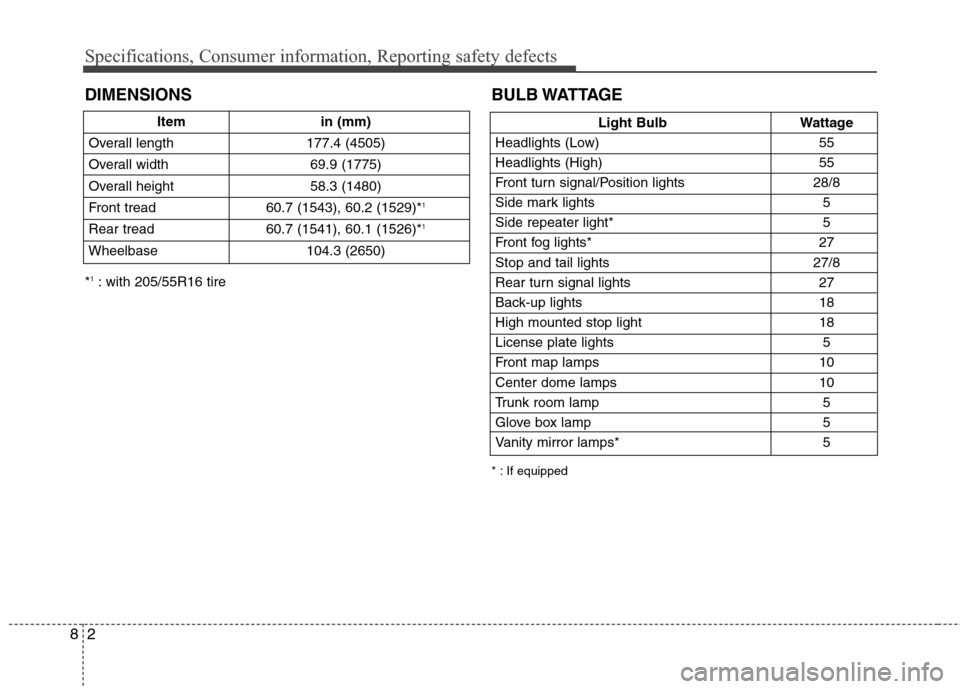

Specifications, Consumer information, Reporting safety defects
2
8
Item in (mm)
Overall length 177.4 (4505)
Overall width 69.9 (1775)
Overall height 58.3 (1480)
Front tread 60.7 (1543), 60.2 (1529)*
1
Rear tread 60.7 (1541), 60.1 (1526)*1
Wheelbase 104.3 (2650)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal/Position lights 28/8
Side mark lights 5
Side repeater light* 5
Front fog lights* 27
Stop and tail lights 27/8
Rear turn signal lights 27
Back-up lights 18
High mounted stop light 18
License plate lights 5
Front map lamps 10
Center dome lamps 10
Trunk room lamp 5
Glove box lamp 5
Vanity mirror lamps* 5
BULB WATTAGE
* : If equipped
*1: with 205/55R16 tire
