Hyundai Elantra 2014 Owner's Manual

515
Driving your vehicle

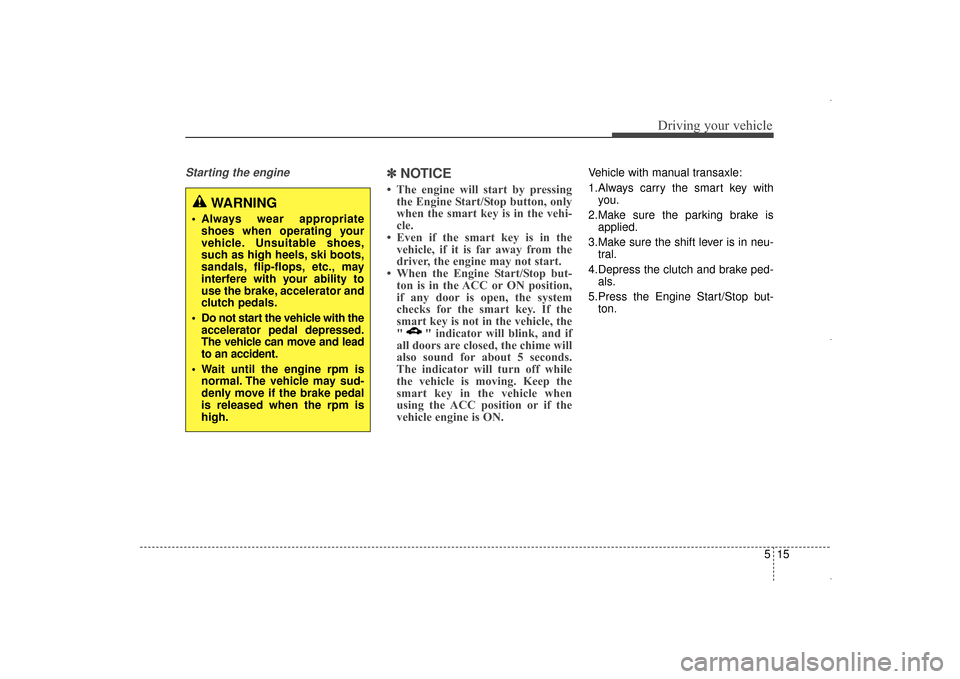

Starting the engine ✽
✽NOTICE
• The engine will start by pressing
the Engine Start/Stop button, only
when the smart key is in the vehi-
cle.
• Even if the smart key is in the vehicle, if it is far away from the
driver, the engine may not start.
• When the Engine Start/Stop but- ton is in the ACC or ON position,
if any door is open, the system
checks for the smart key. If the
smart key is not in the vehicle, the
" " indicator will blink, and if
all doors are closed, the chime will
also sound for about 5 seconds.
The indicator will turn off while
the vehicle is moving. Keep the
smart key in the vehicle when
using the ACC position or if the
vehicle engine is ON.
Vehicle with manual transaxle:
1.Always carry the smart key with
you.
2.Make sure the parking brake is applied.
3.Make sure the shift lever is in neu- tral.
4.Depress the clutch and brake ped- als.
5.Press the Engine Start/Stop but- ton.
WARNING
Always wear appropriateshoes when operating your
vehicle. Unsuitable shoes,
such as high heels, ski boots,
sandals, flip-flops, etc., may
interfere with your ability to
use the brake, accelerator and
clutch pedals.
Do not start the vehicle with the accelerator pedal depressed.
The vehicle can move and lead
to an accident.
Wait until the engine rpm is normal. The vehicle may sud-
denly move if the brake pedal
is released when the rpm is
high.
UD(FL) HMA 5.qxp 6/26/2014 3:21 PM Page 15

Driving your vehicle
16
5

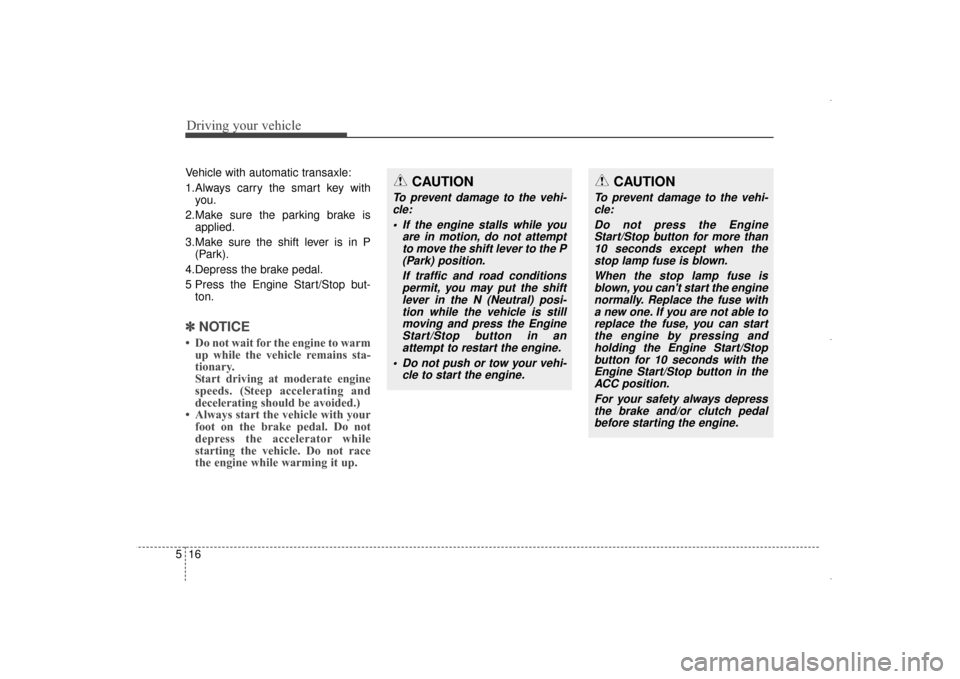

Vehicle with automatic transaxle:
1.Always carry the smart key with
you.
2.Make sure the parking brake is applied.
3.Make sure the shift lever is in P (Park).
4.Depress the brake pedal.
5 Press the Engine Start/Stop but- ton.
✽ ✽ NOTICE
• Do not wait for the engine to warm
up while the vehicle remains sta-
tionary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.)
• Always start the vehicle with your foot on the brake pedal. Do not
depress the accelerator while
starting the vehicle. Do not race
the engine while warming it up.
CAUTION
To prevent damage to the vehi-
cle:
If the engine stalls while you are in motion, do not attemptto move the shift lever to the P(Park) position.
If traffic and road conditionspermit, you may put the shiftlever in the N (Neutral) posi-tion while the vehicle is stillmoving and press the EngineStart/Stop button in anattempt to restart the engine.
Do not push or tow your vehi- cle to start the engine.
CAUTION
To prevent damage to the vehi-cle:
Do not press the EngineStart/Stop button for more than10 seconds except when thestop lamp fuse is blown.
When the stop lamp fuse isblown, you can't start the enginenormally. Replace the fuse witha new one. If you are not able toreplace the fuse, you can startthe engine by pressing andholding the Engine Start/Stopbutton for 10 seconds with theEngine Start/Stop button in theACC position.
For your safety always depressthe brake and/or clutch pedalbefore starting the engine.
UD(FL) HMA 5.qxp 6/26/2014 3:21 PM Page 16

517
Driving your vehicle
✽

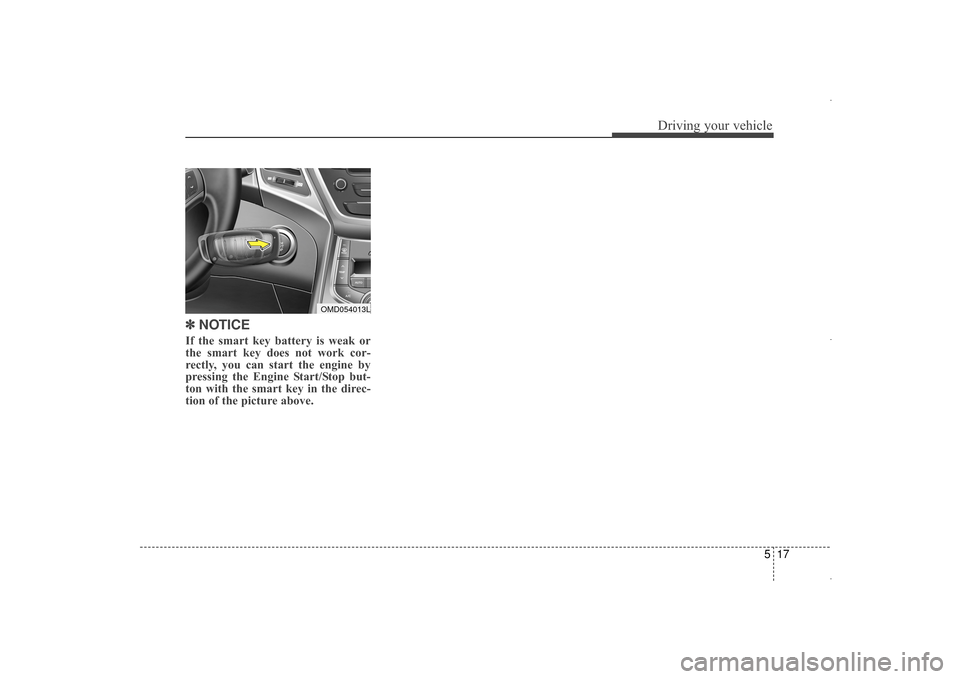

✽NOTICE
If the smart key battery is weak or
the smart key does not work cor-
rectly, you can start the engine by
pressing the Engine Start/Stop but-
ton with the smart key in the direc-
tion of the picture above.
OMD054013L
UD(FL) HMA 5.qxp 6/26/2014 3:22 PM Page 17

Driving your vehicle
18
5

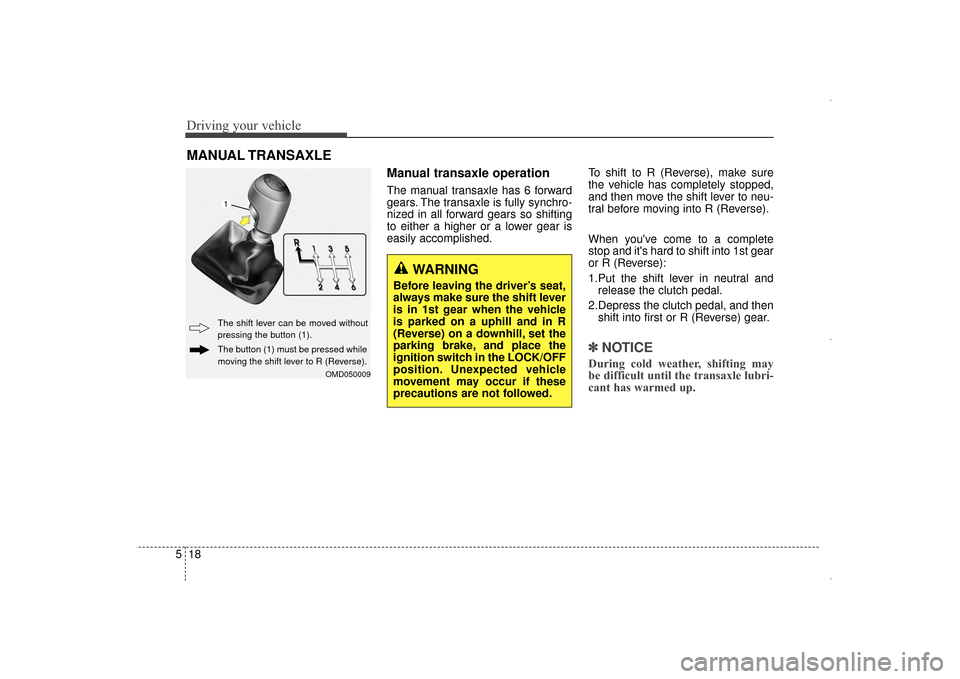

Manual transaxle operation
The manual transaxle has 6 forward
gears. The transaxle is fully synchro-
nized in all forward gears so shifting
to either a higher or a lower gear is
easily accomplished. To shift to R (Reverse), make sure
the vehicle has completely stopped,
and then move the shift lever to neu-
tral before moving into R (Reverse).
When you've come to a complete
stop and it's hard to shift into 1st gear
or R (Reverse):
1.Put the shift lever in neutral and
release the clutch pedal.
2.Depress the clutch pedal, and then shift into first or R (Reverse) gear.
✽ ✽ NOTICE
During cold weather, shifting may
be difficult until the transaxle lubri-
cant has warmed up.
MANUAL TRANSAXLE
OMD050009
The shift lever can be moved without
pressing the button (1).
The button (1) must be pressed while
moving the shift lever to R (Reverse).
WARNING
Before leaving the driver’s seat,
always make sure the shift lever
is in 1st gear when the vehicle
is parked on a uphill and in R
(Reverse) on a downhill, set the
parking brake, and place the
ignition switch in the LOCK/OFF
position. Unexpected vehicle
movement may occur if these
precautions are not followed.
UD(FL) HMA 5.qxp 6/26/2014 3:22 PM Page 18

519
Driving your vehicle

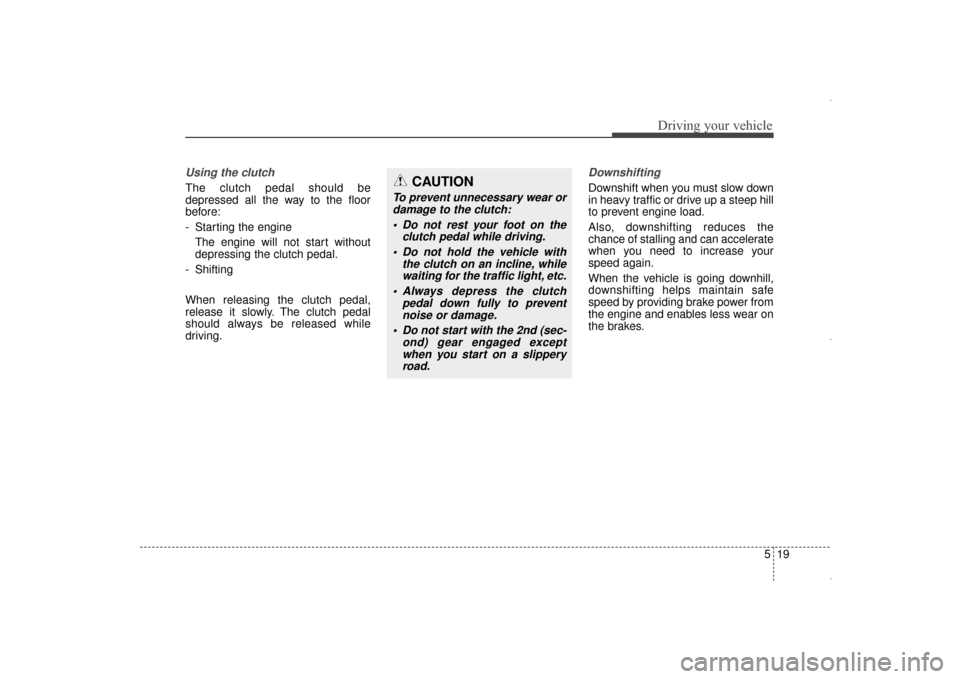

Using the clutch
The clutch pedal should be
depressed all the way to the floor
before:
- Starting the engine The engine will not start without
depressing the clutch pedal.
- Shifting
When releasing the clutch pedal,
release it slowly. The clutch pedal
should always be released while
driving.
Downshifting
Downshift when you must slow down
in heavy traffic or drive up a steep hill
to prevent engine load.
Also, downshifting reduces the
chance of stalling and can accelerate
when you need to increase your
speed again.
When the vehicle is going downhill,
downshifting helps maintain safe
speed by providing brake power from
the engine and enables less wear on
the brakes.CAUTION
To prevent unnecessary wear or damage to the clutch:
Do not rest your foot on the clutch pedal while driving.
Do not hold the vehicle with the clutch on an incline, whilewaiting for the traffic light, etc.
Always depress the clutch pedal down fully to preventnoise or damage.
Do not start with the 2nd (sec- ond) gear engaged exceptwhen you start on a slipperyroad.
UD(FL) HMA 5.qxp 6/26/2014 3:22 PM Page 19

Driving your vehicle
20
5

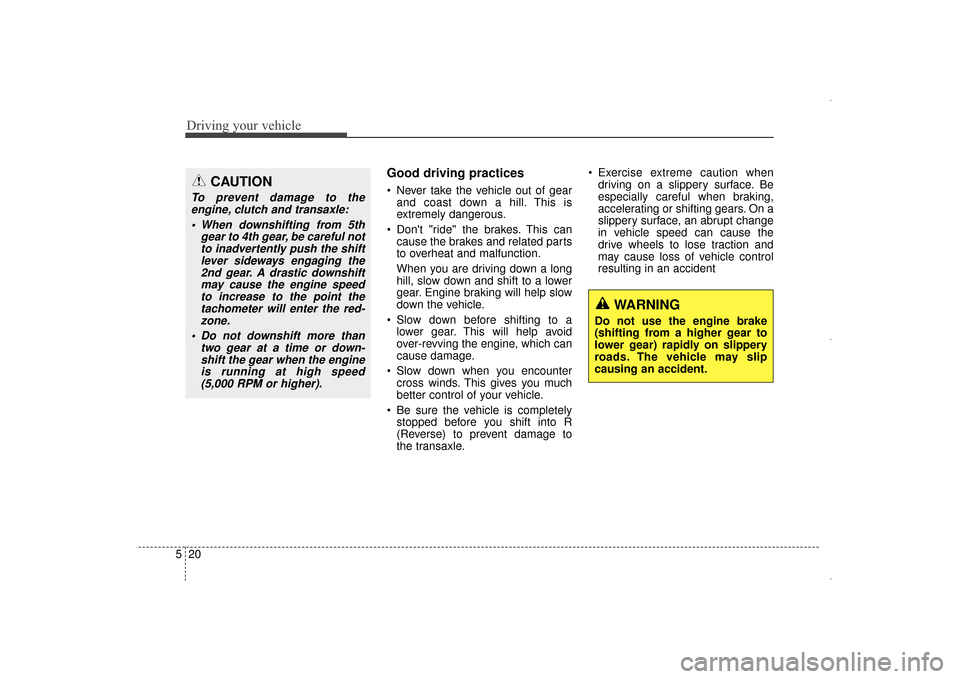

Good driving practices
Never take the vehicle out of gear
and coast down a hill. This is
extremely dangerous.
Don't "ride" the brakes. This can cause the brakes and related parts
to overheat and malfunction.
When you are driving down a long
hill, slow down and shift to a lower
gear. Engine braking will help slow
down the vehicle.
Slow down before shifting to a lower gear. This will help avoid
over-revving the engine, which can
cause damage.
Slow down when you encounter cross winds. This gives you much
better control of your vehicle.
Be sure the vehicle is completely stopped before you shift into R
(Reverse) to prevent damage to
the transaxle. Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the
drive wheels to lose traction and
may cause loss of vehicle control
resulting in an accidentCAUTION
To prevent damage to theengine, clutch and transaxle:
When downshifting from 5th gear to 4th gear, be careful notto inadvertently push the shiftlever sideways engaging the2nd gear. A drastic downshiftmay cause the engine speedto increase to the point thetachometer will enter the red-zone.
Do not downshift more than two gear at a time or down-shift the gear when the engineis running at high speed(5,000 RPM or higher).
WARNING
Do not use the engine brake
(shifting from a higher gear to
lower gear) rapidly on slippery
roads. The vehicle may slip
causing an accident.
UD(FL) HMA 5.qxp 6/26/2014 3:22 PM Page 20

521
Driving your vehicle

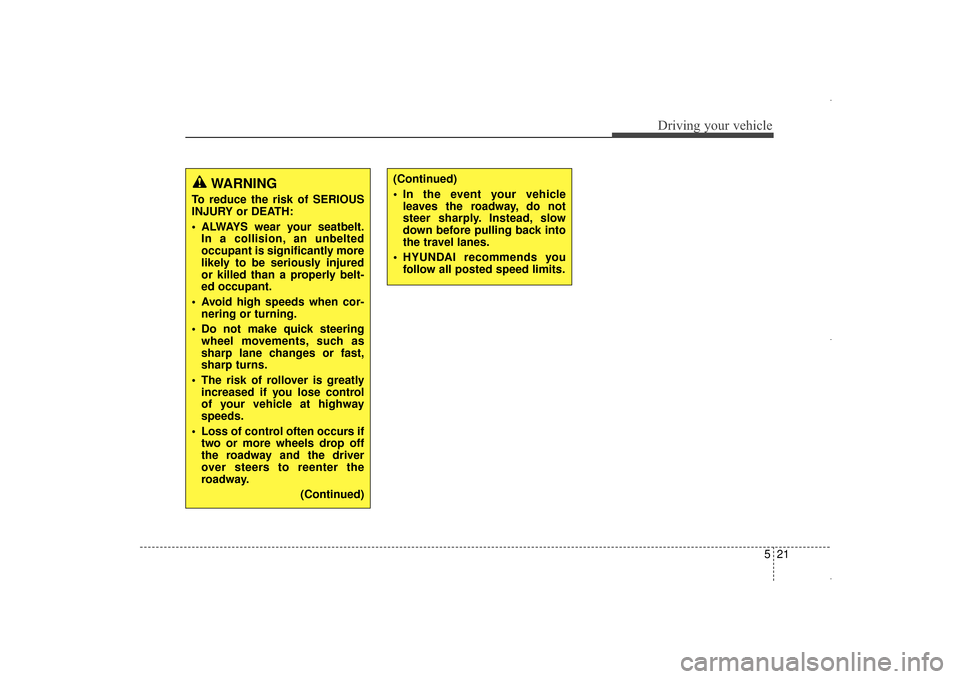

WARNING
To reduce the risk of SERIOUS
INJURY or DEATH:
ALWAYS wear your seatbelt.In a collision, an unbelted
occupant is significantly more
likely to be seriously injured
or killed than a properly belt-
ed occupant.
Avoid high speeds when cor- nering or turning.
Do not make quick steering wheel movements, such as
sharp lane changes or fast,
sharp turns.
The risk of rollover is greatly increased if you lose control
of your vehicle at highway
speeds.
Loss of control often occurs if two or more wheels drop off
the roadway and the driver
over steers to reenter the
roadway.
(Continued)
(Continued)
In the event your vehicleleaves the roadway, do not
steer sharply. Instead, slow
down before pulling back into
the travel lanes.
HYUNDAI recommends you follow all posted speed limits.
UD(FL) HMA 5.qxp 6/26/2014 3:22 PM Page 21

Driving your vehicle
22
5

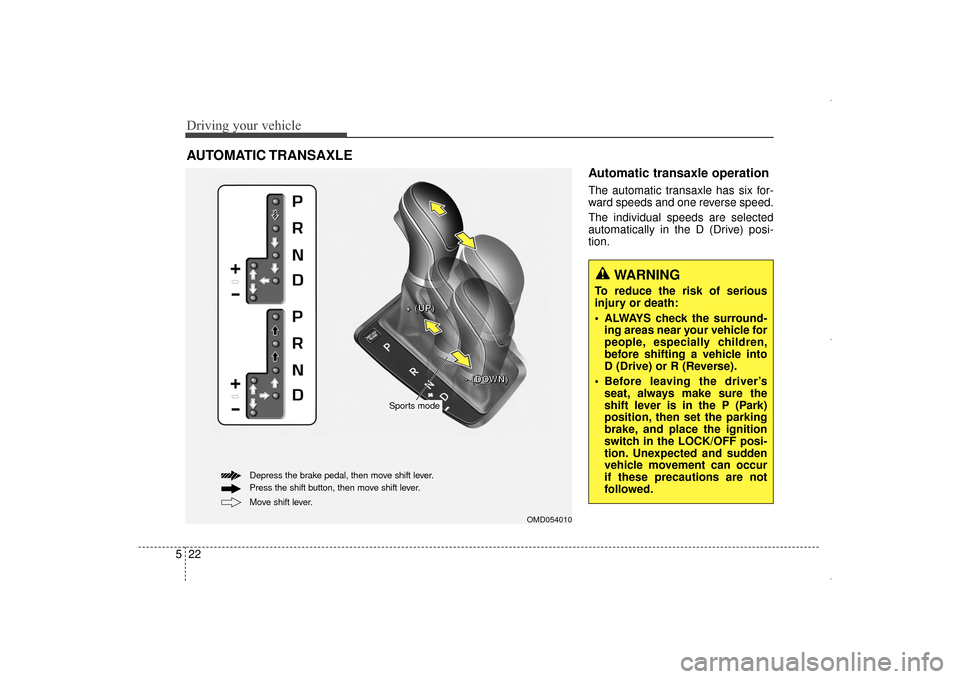

Automatic transaxle operation
The automatic transaxle has six for-
ward speeds and one reverse speed.
The individual speeds are selected
automatically in the D (Drive) posi-
tion.
AUTOMATIC TRANSAXLE
OMD054010
+ +
+
+




(
(
(
(
U
U
U
U
P
P
P
P
)
)
)
)
-
-
-
-




(
(
(
(
D
D
D
D
O
O
O
O
W
W
W
W
N
N
N
N
)
)
)
)
Sports mode
Move shift lever. Depress the brake pedal, then move shift lever.
Press the shift button, then move shift lever.
WARNING
To reduce the risk of serious
injury or death:
• ALWAYS check the surround- ing areas near your vehicle for
people, especially children,
before shifting a vehicle into
D (Drive) or R (Reverse).
Before leaving the driver’s seat, always make sure the
shift lever is in the P (Park)
position, then set the parking
brake, and place the ignition
switch in the LOCK/OFF posi-
tion. Unexpected and sudden
vehicle movement can occur
if these precautions are not
followed.
UD(FL) HMA 5.qxp 8/29/2014 2:39 PM Page 22

523
Driving your vehicle

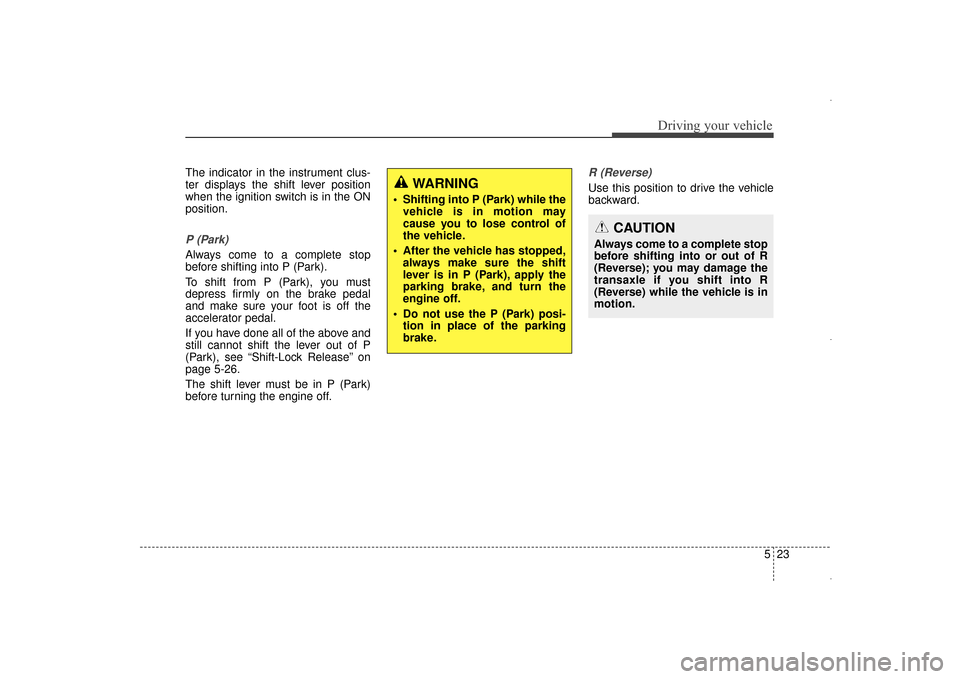

The indicator in the instrument clus-
ter displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
To shift from P (Park), you must
depress firmly on the brake pedal
and make sure your foot is off the
accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” on
page 5-26.
The shift lever must be in P (Park)
before turning the engine off.
R (Reverse)
Use this position to drive the vehicle
backward.WARNING
Shifting into P (Park) while thevehicle is in motion may
cause you to lose control of
the vehicle.
After the vehicle has stopped, always make sure the shift
lever is in P (Park), apply the
parking brake, and turn the
engine off.
Do not use the P (Park) posi- tion in place of the parking
brake.
CAUTION
Always come to a complete stop
before shifting into or out of R
(Reverse); you may damage the
transaxle if you shift into R
(Reverse) while the vehicle is in
motion.
UD(FL) HMA 5.qxp 8/29/2014 2:39 PM Page 23

Driving your vehicle
24
5

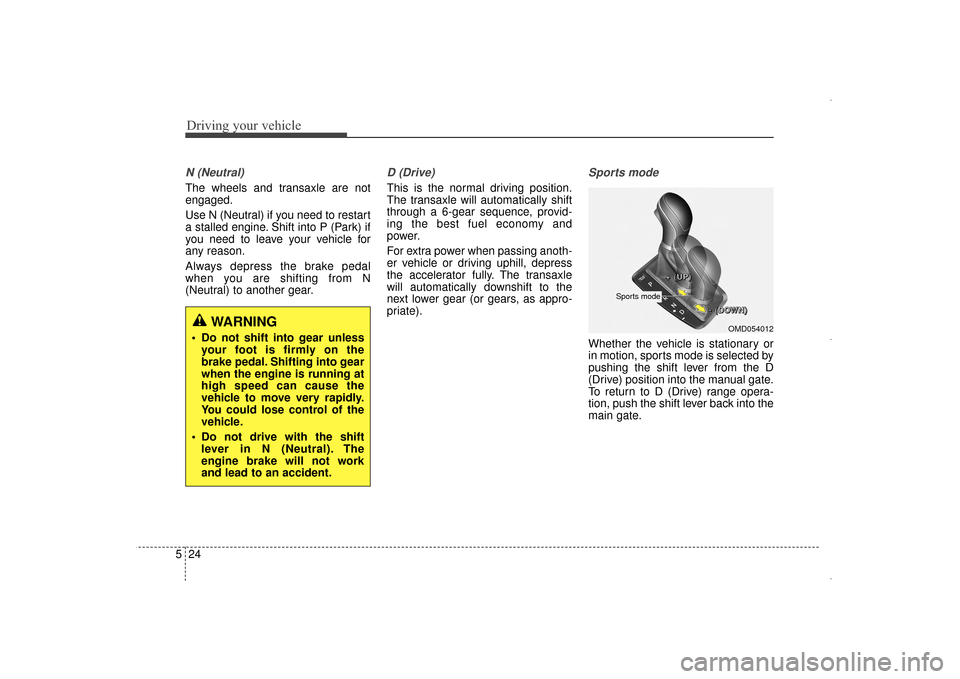

N (Neutral)
The wheels and transaxle are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine. Shift into P (Park) if
you need to leave your vehicle for
any reason.
Always depress the brake pedal
when you are shifting from N
(Neutral) to another gear.
D (Drive)
This is the normal driving position.
The transaxle will automatically shift
through a 6-gear sequence, provid-
ing the best fuel economy and
power.
For extra power when passing anoth-
er vehicle or driving uphill, depress
the accelerator fully. The transaxle
will automatically downshift to the
next lower gear (or gears, as appro-
priate).
Sports mode
Whether the vehicle is stationary or
in motion, sports mode is selected by
pushing the shift lever from the D
(Drive) position into the manual gate.
To return to D (Drive) range opera-
tion, push the shift lever back into the
main gate.
WARNING
Do not shift into gear unless
your foot is firmly on the
brake pedal. Shifting into gear
when the engine is running at
high speed can cause the
vehicle to move very rapidly.
You could lose control of the
vehicle.
Do not drive with the shift lever in N (Neutral). The
engine brake will not work
and lead to an accident.OMD054012
+
+
+
+




(
(
(
(
U
U
U
U
P
P
P
P
)
)
)
)
-
-
-
-




(
(
(
(
D
D
D
D
O
O
O
O
W
W
W
W
N
N
N
N
)
)
)
)
Sports mode
UD(FL) HMA 5.qxp 8/29/2014 2:39 PM Page 24
