Page 101 of 637

Hyundai Elantra 2017  Owners Manual 3-6
Remote key precautions
The remote key will not work if any of
the following occur:
• The key is in the ignition switch.
• You exceed the operating distance
limit (about 30 m [90 feet]).
• Th

Page 102 of 637

Hyundai Elantra 2017  Owners Manual 3-7
Convenient features of your vehicle
Battery replacement
If the remote key is not working prop-
erly, try replacing the battery with a
new one.
Battery Type: CR2032
To replace the battery:
1. Inse

Page 103 of 637

Hyundai Elantra 2017  Owners Manual 3-8
Smart key
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and trunk) and even start the
engine.
1. Door Lock
2. Door Unlock
3. Trunk Unlock
Locking To lock :
1. Close

Page 104 of 637

Hyundai Elantra 2017  Owners Manual 3-9
Convenient features of your vehicle
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for
three seconds if any of the following
occur:
• The

Page 105 of 637

Hyundai Elantra 2017  Owners Manual 3-10
Convenient features of your vehicle
Trunk unlocking
To unlock:
1. Carry the smart key.
2. Either press the trunk handle but-
ton or press the Trunk Unlock but-
ton (3) on the smart key for more

Page 106 of 637

Hyundai Elantra 2017  Owners Manual 3-11
Convenient features of your vehicle
3
Loss of a smart key
A maximum of two smart keys can
be registered to a single vehicle. If
you happen to lose your smart key, it
is recommended that you shou

Page 107 of 637

Hyundai Elantra 2017  Owners Manual 3-12
Convenient features of your vehicle
Information
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipme

Page 108 of 637

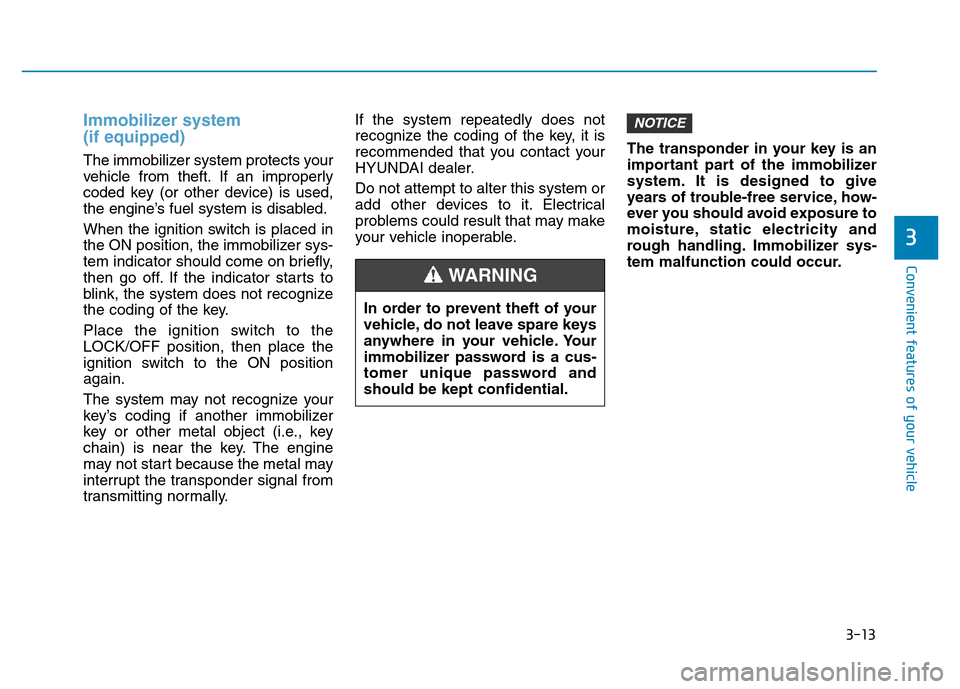

Hyundai Elantra 2017  Owners Manual 3-13
Convenient features of your vehicle
3
Immobilizer system
(if equipped)
The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used,
the engine

Page 109 of 637

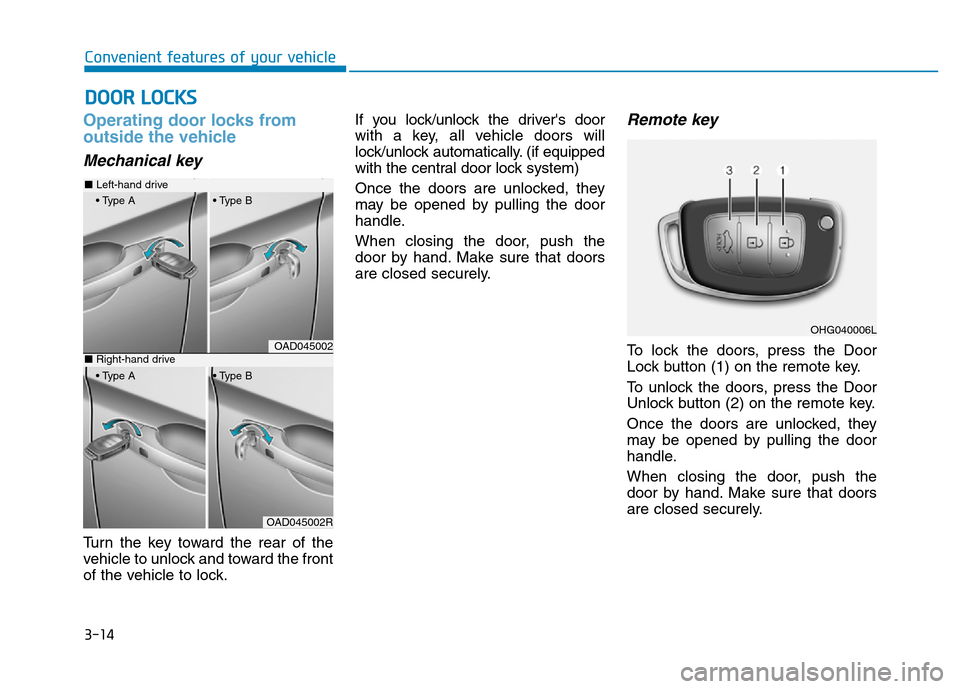

Hyundai Elantra 2017  Owners Manual 3-14
Convenient features of your vehicle
Operating door locks from
outside the vehicle
Mechanical key
Turn the key toward the rear of the
vehicle to unlock and toward the front
of the vehicle to lock

Page 110 of 637

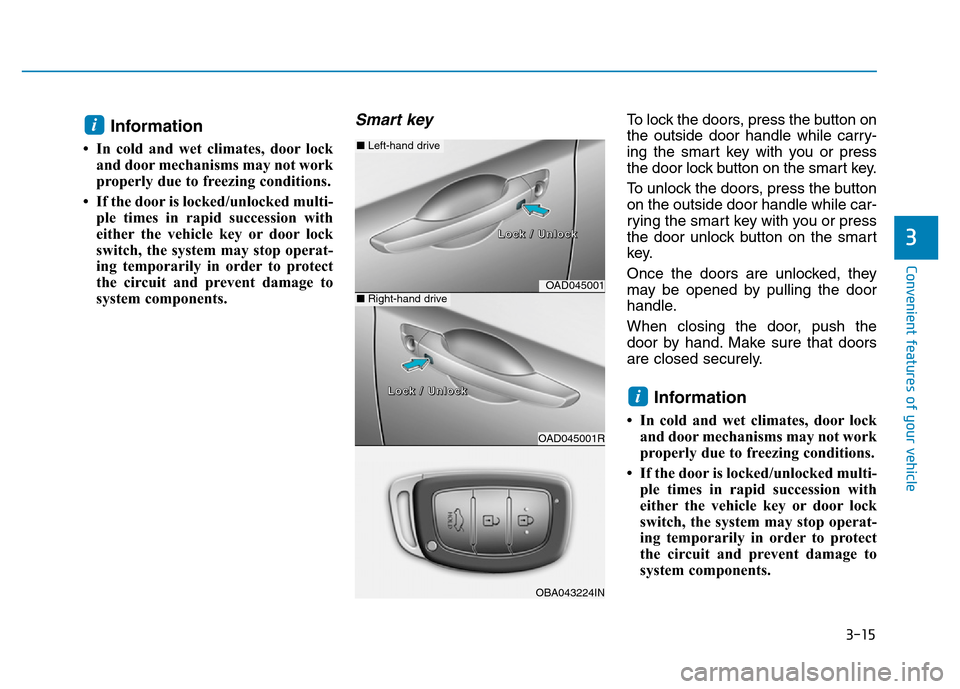

Hyundai Elantra 2017  Owners Manual 3-15
Convenient features of your vehicle
3
Information
• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked
