Page 581 of 637

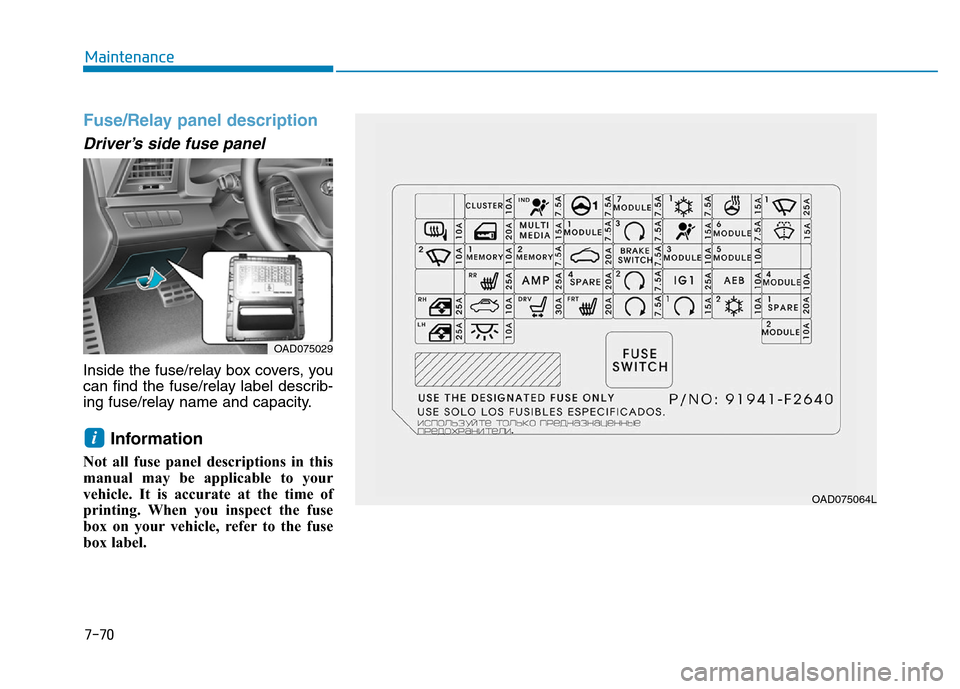

Hyundai Elantra 2017  Owners Manual 7-70
Maintenance
Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not

Page 582 of 637

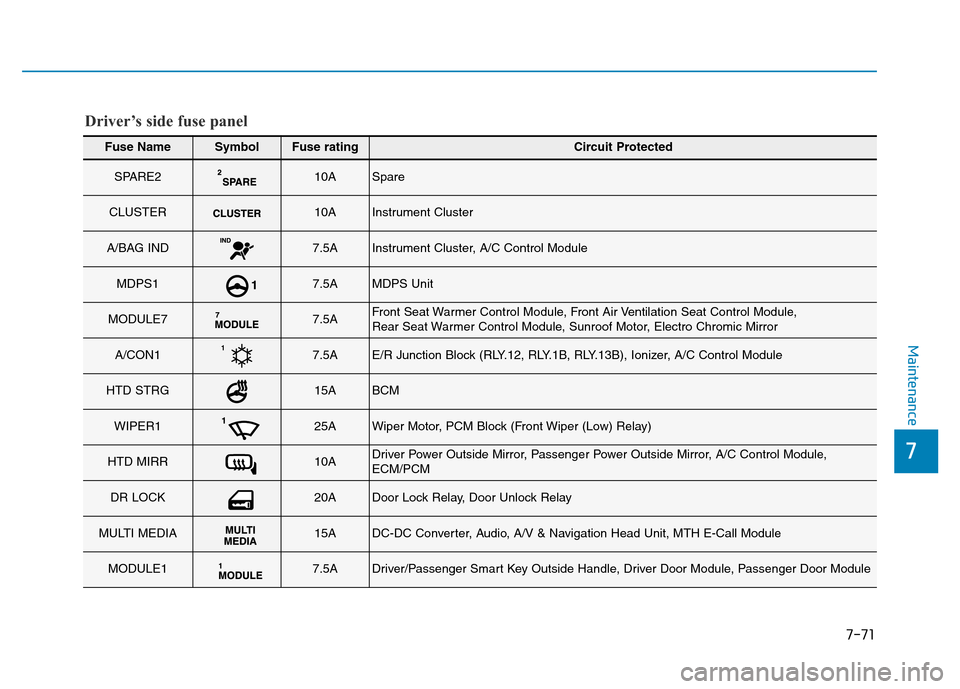

Hyundai Elantra 2017  Owners Manual 7-71
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
SPARE210ASpare
CLUSTER10AInstrument Cluster
A/BAG IND7.5AInstrument Cluster, A/C Control Module
MDPS17.5AMDPS Unit
MODULE77.5AFront Seat

Page 583 of 637

Hyundai Elantra 2017  Owners Manual Maintenance
7-72
Fuse NameSymbolFuse ratingCircuit Protected
BUTTON START37.5AImmobilizer Module, Smart Key Control Module
A/BAG15ASRS Control Module
MODULE67.5ASmart Key Control Module, BCM
WASHER15A

Page 584 of 637

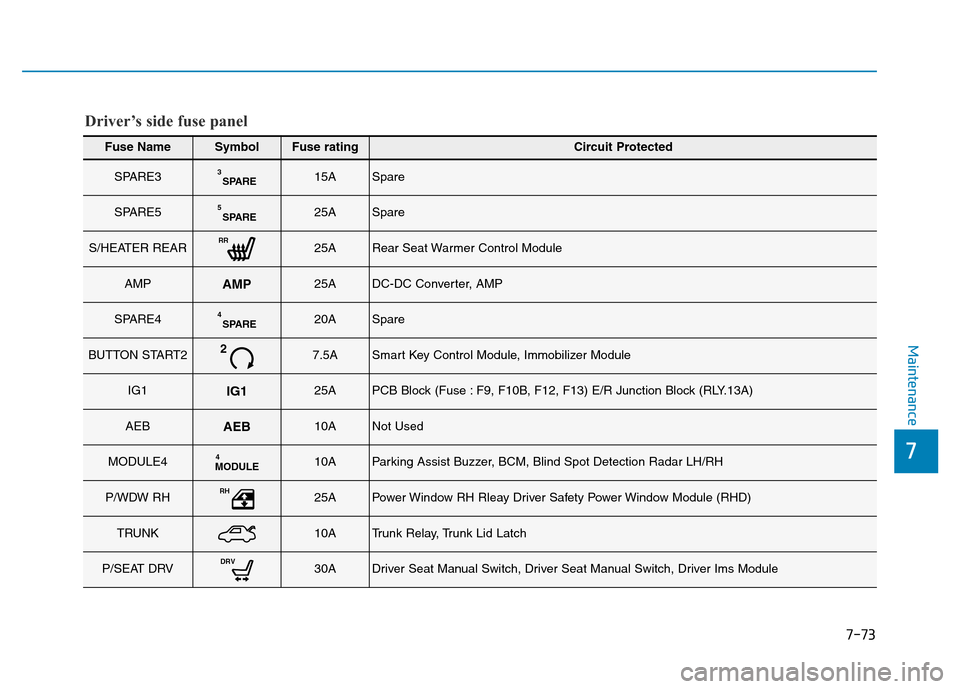

Hyundai Elantra 2017  Owners Manual 7-73
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
SPARE3SPARE315ASpare
SPARE5SPARE525ASpare
S/HEATER REARRR25ARear Seat Warmer Control Module
AMPAMP25ADC-DC Converter, AMP
SPARE4SPARE420A

Page 585 of 637

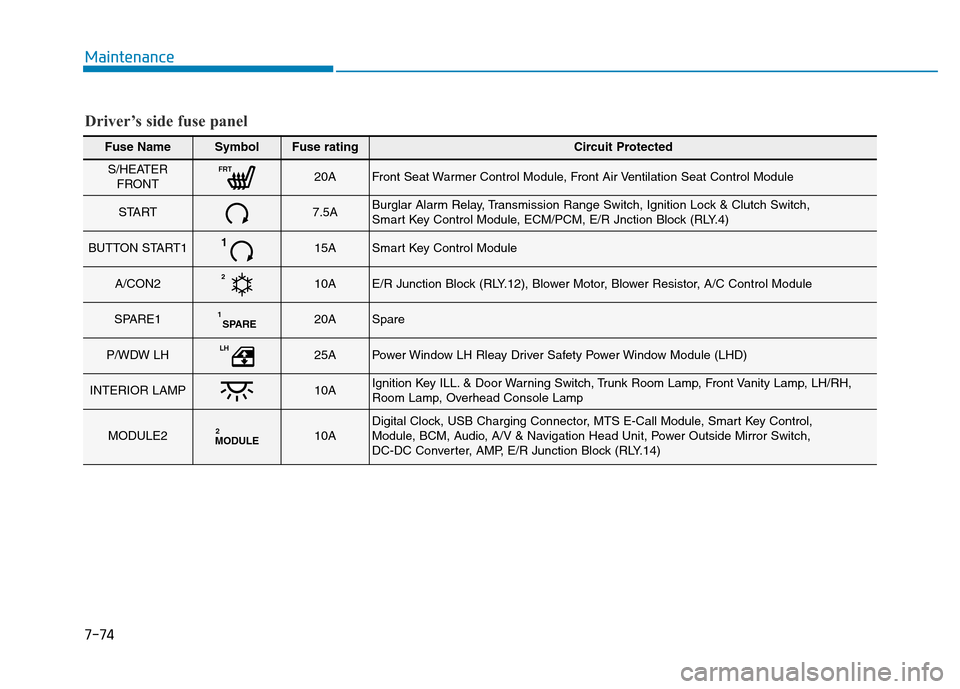

Hyundai Elantra 2017  Owners Manual Maintenance
7-74
Fuse NameSymbolFuse ratingCircuit Protected
S/HEATER
FRONTFRT20AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
START7.5ABurglar Alarm Relay, Transmission

Page 586 of 637

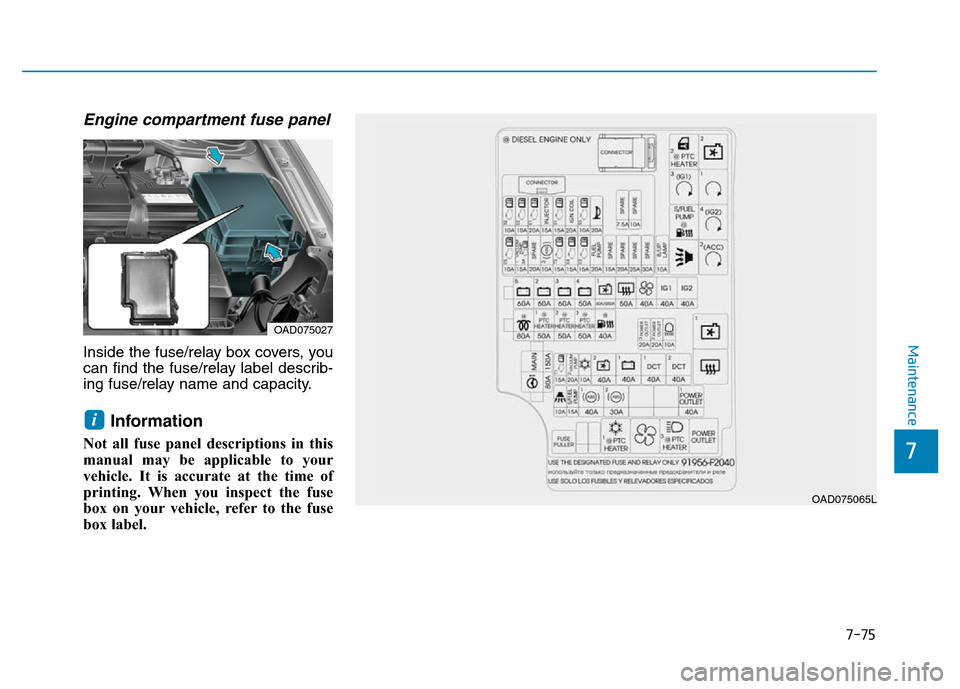

Hyundai Elantra 2017  Owners Manual Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual

Page 587 of 637

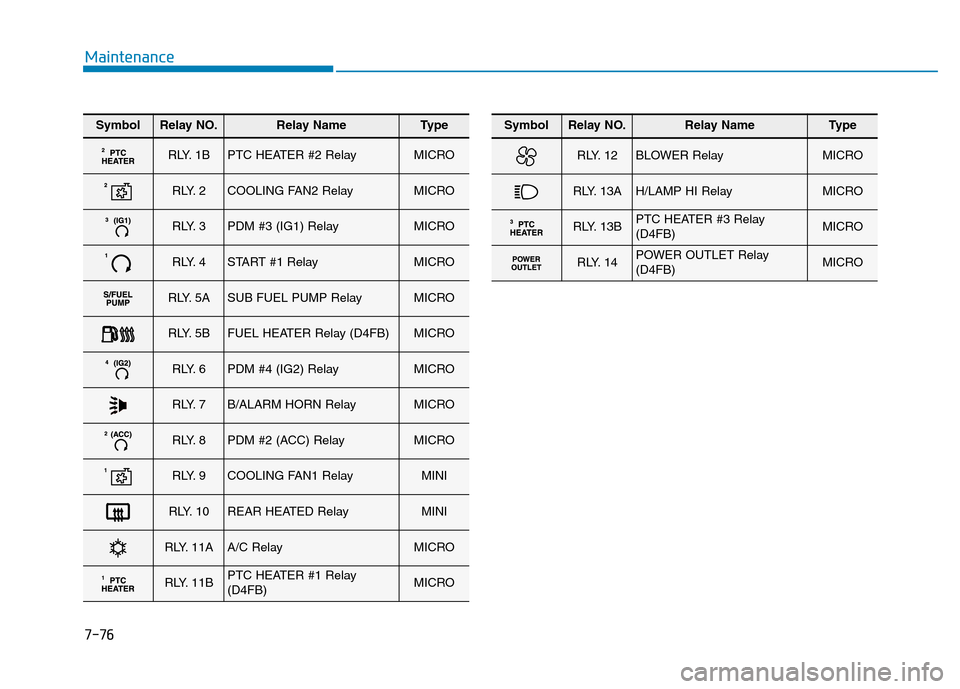

Hyundai Elantra 2017  Owners Manual Maintenance
7-76
SymbolRelay NO.Relay NameType
R LY. 1 BPTC HEATER #2 RelayMICRO
R LY. 2COOLING FAN2 RelayMICRO
R LY. 3PDM #3 (IG1) RelayMICRO
R LY. 4START #1 RelayMICRO
R LY. 5 ASUB FUEL PUMP RelayMI

Page 588 of 637

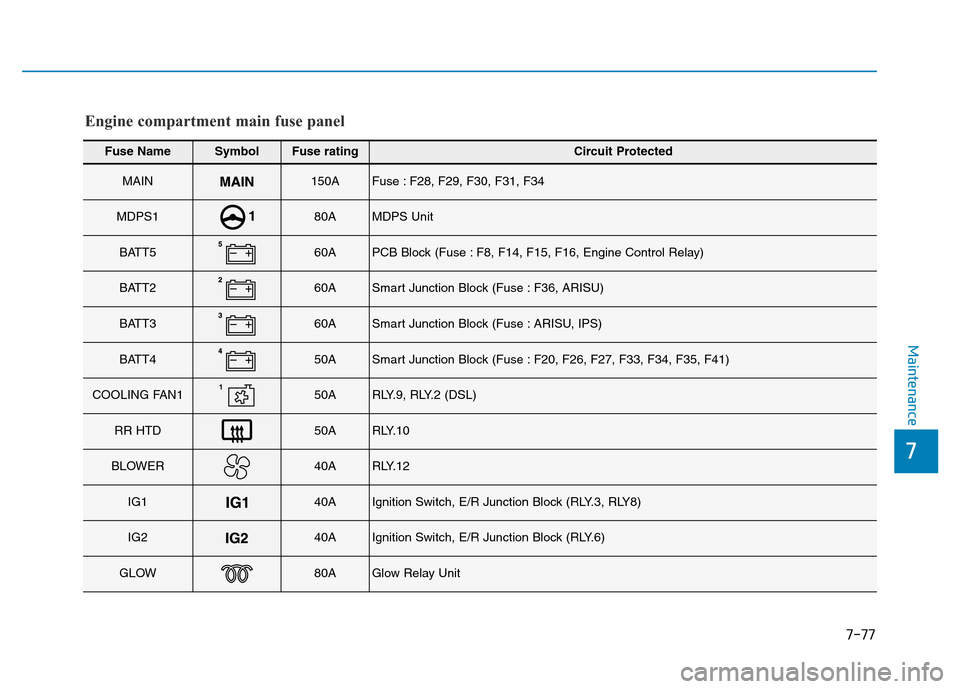

Hyundai Elantra 2017  Owners Manual 7-77
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
MAIN150AFuse : F28, F29, F30, F31, F34
MDPS180AMDPS Unit
BATT560APCB Block (Fuse : F8, F14, F15, F16, Engine Control Relay)
BATT260ASmart

Page 589 of 637

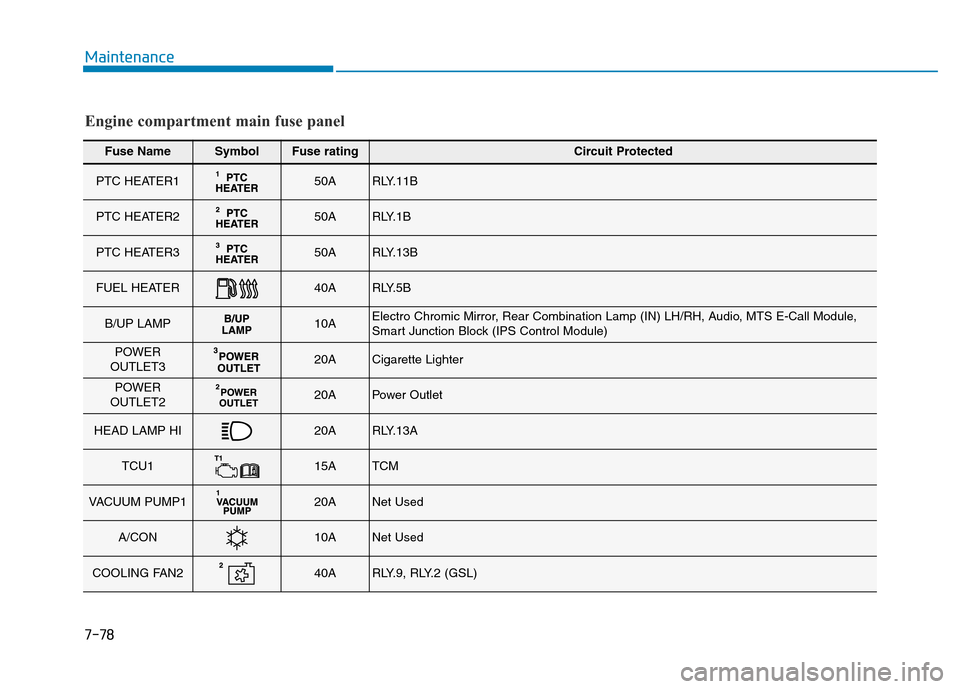

Hyundai Elantra 2017  Owners Manual Maintenance
7-78
Fuse NameSymbolFuse ratingCircuit Protected
PTC HEATER150ARLY.11B
PTC HEATER250ARLY.1B
PTC HEATER350ARLY.13B
FUEL HEATER40ARLY.5B
B/UP LAMP10AElectro Chromic Mirror, Rear Combination

Page 590 of 637

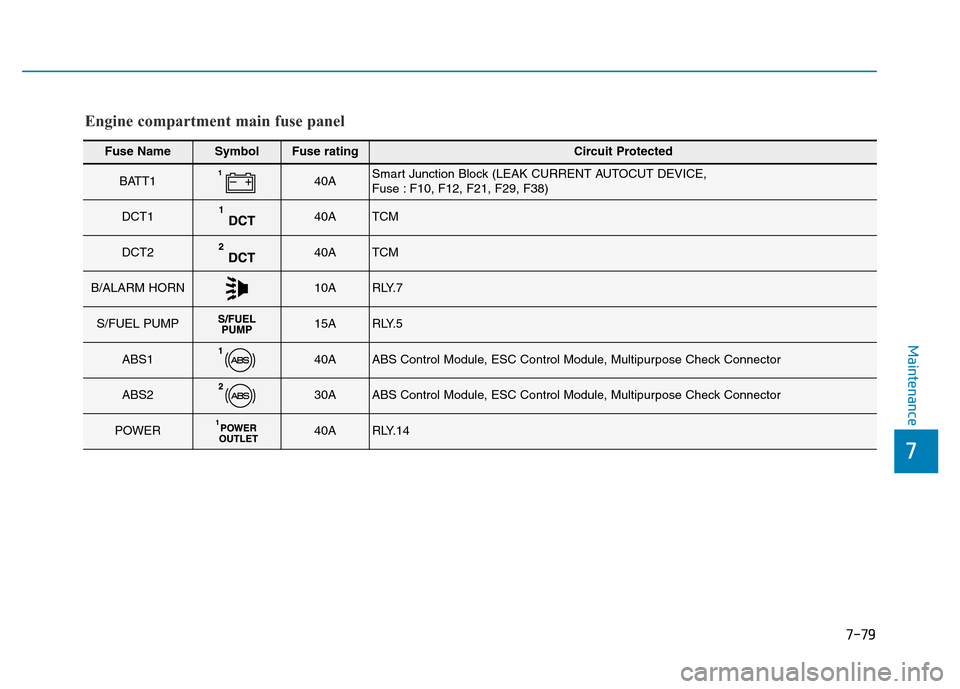

Hyundai Elantra 2017  Owners Manual 7-79
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
BATT140ASmart Junction Block (LEAK CURRENT AUTOCUT DEVICE,
Fuse : F10, F12, F21, F29, F38)
DCT140ATCM
DCT240ATCM
B/ALARM HORN10AR LY. 7
