Items
Suspension Type
CTBA Multi link
in (mm)in (mm)
Overall length181.89 (4,620)181.89 (4,620)
Overall width70.87 (1,800)70.87 (1,800)
Overall height56.5 (1,435)56.5 (1,435)
Front tread
195/65 R1561.5 (1,563)-
205/55 R1661.2 (1,555)-
225/45 R1760.0 (1,549)60.0 (1,549)
225/40 R18-60.8 (1,545)
Rear tread
195/65 R1561.9 (1,572)-
205/55 R1661.6 (1,564)-
225/45 R1761.3 (1,558)61.5 (1,563)
225/40 R18-61.4 (1,559)
Wheelbase106.3 (2,700)106.3 (2,700)
Items 1.6 T-GDI2.0 MPI
Displacement
cu. in (cc)97.09 (1,591)121.98 (1,999)
Bore x Stroke in. (mm)3.03x3.36 (77x85.4)3.18x3.82 (81x97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
CTBA : coupled torsion beam axle

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects

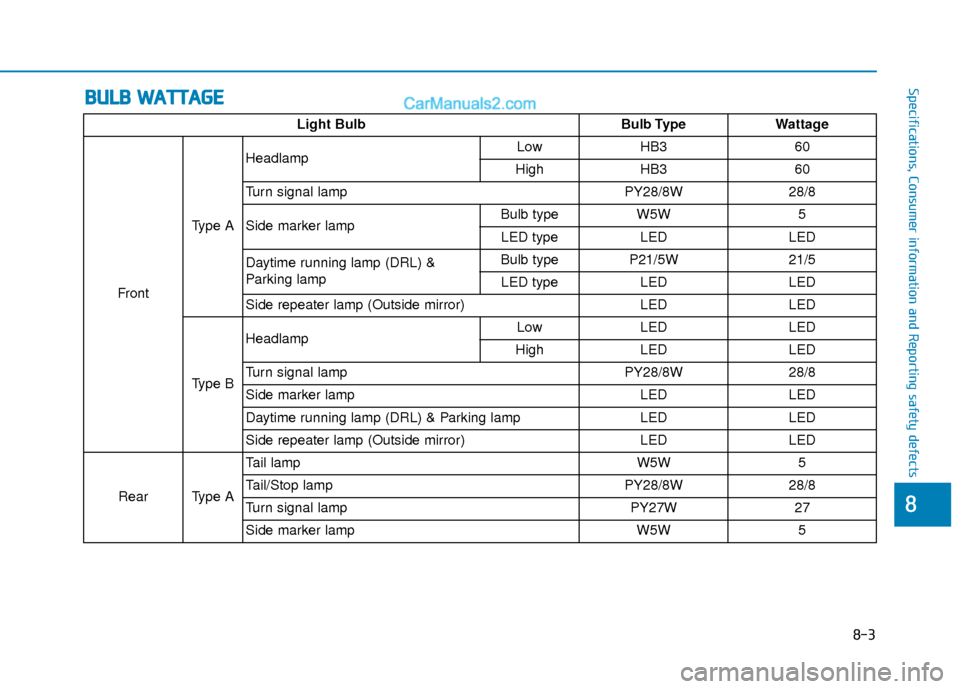

Light Bulb Bulb TypeWattage
Front Type AHeadlamp
Low
HB3 60
High HB3 60
Turn signal lamp PY28/8W28/8
Side marker lamp Bulb type
W5W 5
LED type LED LED
Daytime running lamp (DRL) &
Parking lamp Bulb type
P21/5W 21/5
LED type LED LED
Side repeater lamp (Outside mirror) LEDLED
Type B Headlamp
Low
LED LED
High LED LED
Turn signal lamp PY28/8W28/8
Side marker lamp LEDLED
Daytime running lamp (DRL) & Parking lamp LEDLED
Side repeater lamp (Outside mirror) LEDLED
Rear Type A Tail lamp
W5W5
Tail/Stop lamp PY28/8W28/8
Turn signal lamp PY27W27
Side marker lamp W5W5

8-4
Specifications, Consumer information and Reporting safety defects

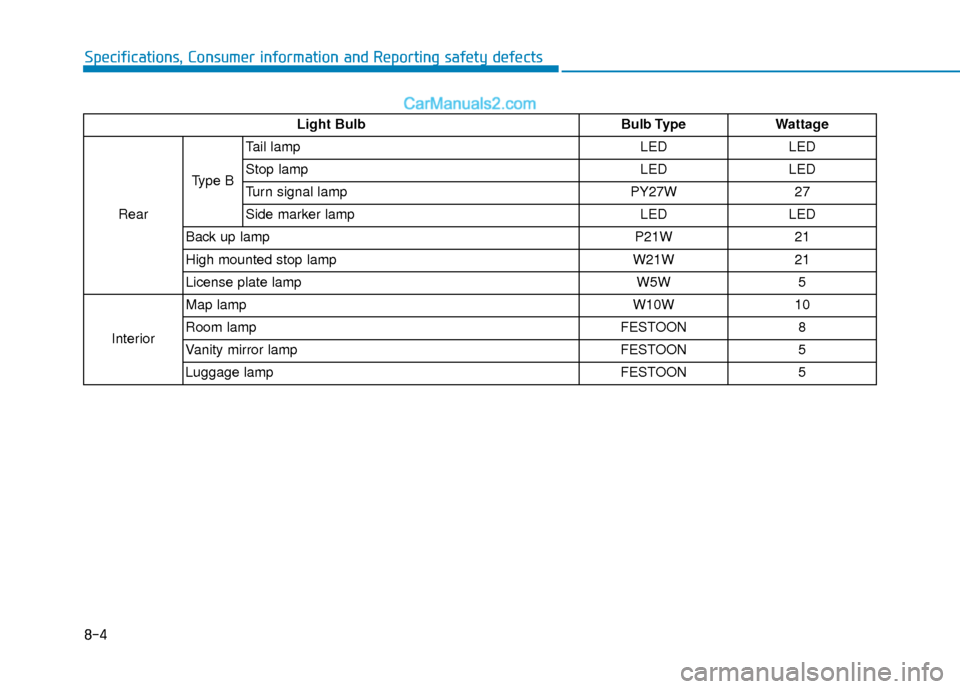

Light BulbBulb TypeWattage
Rear Type BTail lamp
LEDLED
Stop lamp LEDLED
Turn signal lamp PY27W27
Side marker lamp LEDLED
Back up lamp P21W21
High mounted stop lamp W21W21
License plate lamp W5W5
Interior Map lamp
W10W10
Room lamp FESTOON8
Vanity mirror lamp FESTOON5
Luggage lamp FESTOON5

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects

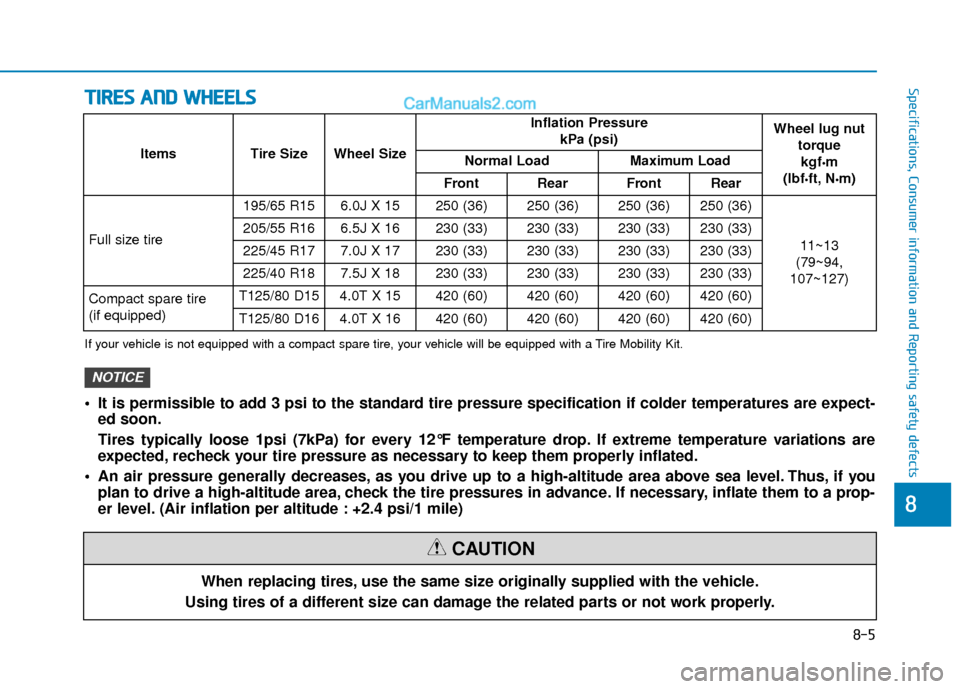

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
Items Tire SizeWheel Size
Inflation Pressure kPa (psi)Wheel lug nuttorque kgf
•m
(lbf
ft, Nm)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
195/65 R156.0J X 15250 (36)250 (36)250 (36)250 (36)
11~13
(79~94,
107~127)
205/55 R166.5J X 16230 (33)230 (33)230 (33)230 (33)
225/45 R177.0J X 17230 (33)230 (33)230 (33)230 (33)
225/40 R187.5J X 18230 (33)230 (33)230 (33)230 (33)
Compact spare tire
(if equipped)T125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
T125/80 D164.0T X 16420 (60)420 (60)420 (60)420 (60)
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details. M/T : Manual transmission
IVT : Intelligent Variable Transmission
DCT : Dual clutch transmission
Items1.6 T-GDI2.0 MPI
M/TDCTM/TIVT

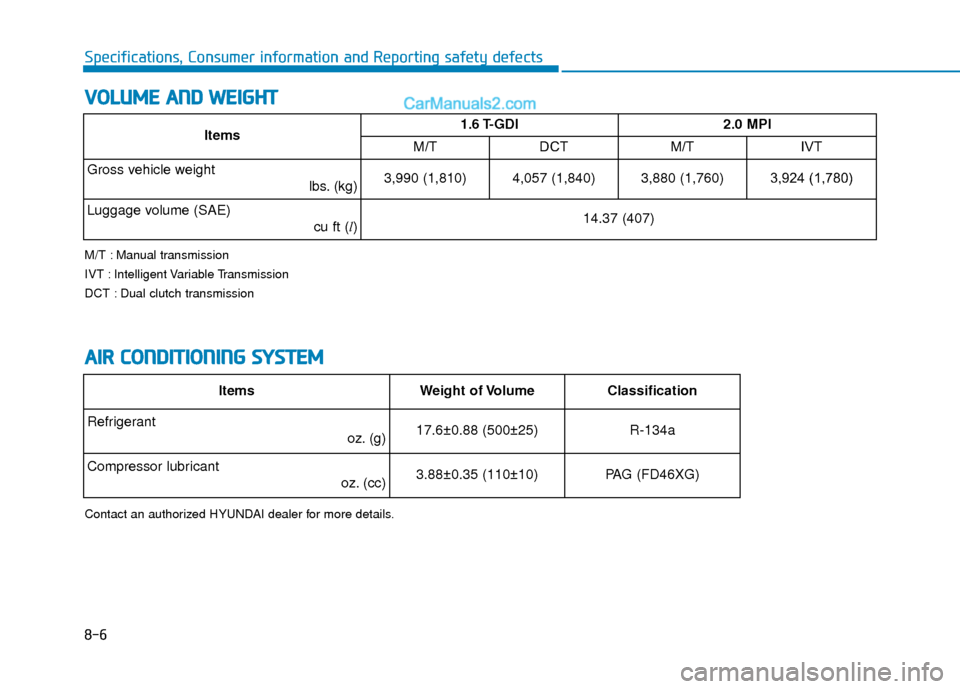

Gross vehicle weight
lbs. (kg)3,990 (1,810)4,057 (1,840)3,880 (1,760)3,924 (1,780)
Luggage volume (SAE) cu ft (l)14.37 (407)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 17.6±0.88 (500±25)R-134a
Compressor lubricantoz. (cc) 3.88±0.35 (110±10)PAG (FD46XG)

8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.These lubricants and
fluids are recommended for use in your vehicle.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S

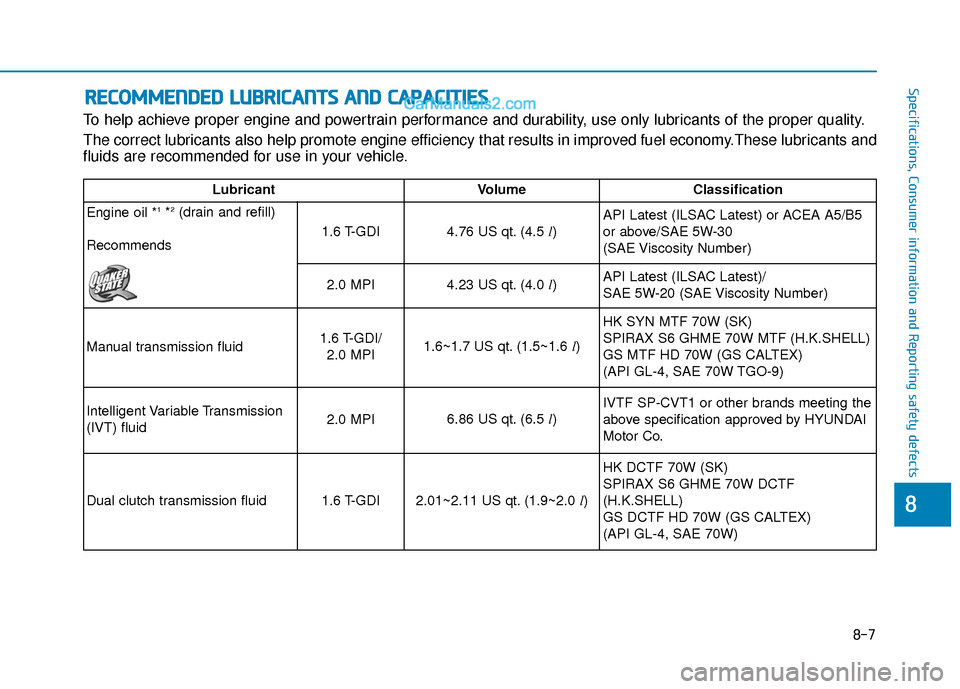

LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends
1.6 T-GDI4.76 US qt. (4.5 l)API Latest (ILSAC Latest) or ACEA A5/B5
or above/SAE 5W-30
(SAE Viscosity Number)
2.0 MPI4.23 US qt. (4.0
l)API Latest (ILSAC Latest)/
SAE 5W-20 (SAE Viscosity Number)
Manual transmission fluid
1.6 T-GDI/ 2.0 MPI1.6~1.7 US qt. (1.5~1.6 l) HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Intelligent Variable Transmission
(IVT) fluid2.0 MPI6.86 US qt. (6.5 l)
IVTF SP-CVT1 or other brands meeting the
above specification approved by HYUNDAI
Motor Co.
Dual clutch transmission fluid1.6 T-GDI2.01~2.11 US qt. (1.9~2.0 l)
HK DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF
(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)

8-8
Specifications, Consumer information and Reporting safety defects
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year's
time, they can offer significant cost and energy savings.
M/T : Manual transmission
IVT : Intelligent Variable Transmission
DCT : Dual clutch transmission

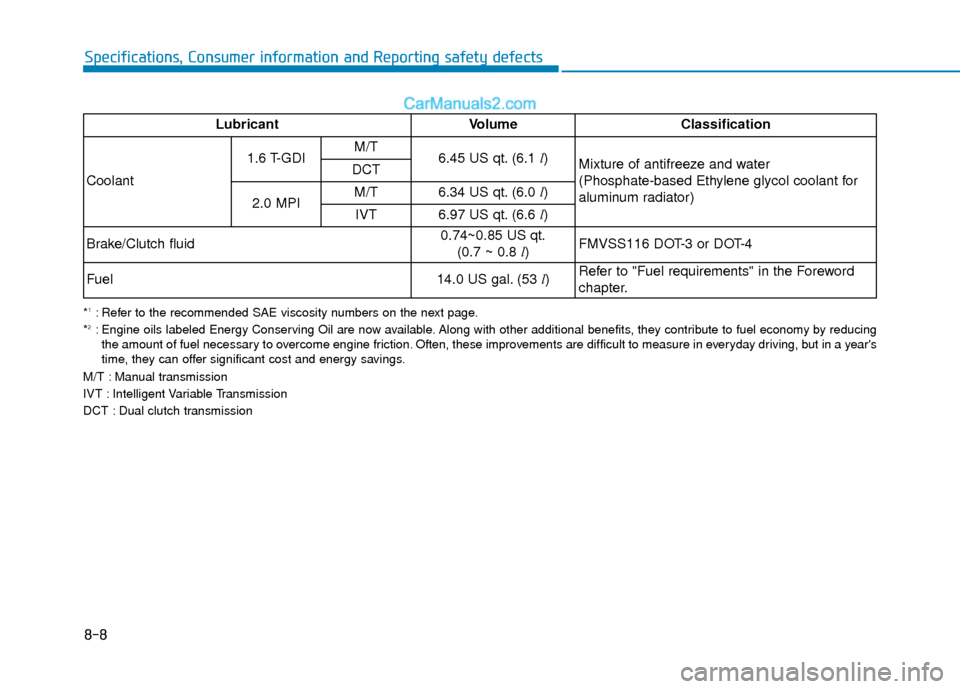

LubricantVolume Classification
Coolant 1.6 T-GDI
M/T
6.45 US qt. (6.1
l)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for
aluminum radiator)
DCT
2.0 MPI M/T
6.34 US qt. (6.0
l)
IVT
6.97 US qt. (6.6 l)
Brake/Clutch fluid
0.74~0.85 US qt. (0.7 ~ 0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel14.0 US gal. (53 l)Refer to "Fuel requirements" in the Foreword
chapter.

8-9
88
Specifications, Consumer information and Reporting safety defects
Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine
Oil
1.6 T-GDI *1
2.0 MPI *2
°C
(°F)
*1: For better fuel economy, it is recommended to use the engine oil of a vis-
cosity grade SAE 5W-30 (API Latest (ILSAC Latest) or ACEA A5/B5 or
above). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a vis- cosity grade SAE 5W-20 (API Latest (ILSAC Latest)). However, if the
engine oil is not available in your country, select the proper engine oil
using the engine oil viscosity chart.
5W-30, 5W-40
10W-30
15W-40
20W-50
10W-30
5W-20, 5W-30

8-10
Specifications, Consumer information and Reporting safety defects
V
VE
EH
H I
IC
C L
LE
E
I
ID
D E
EN
N T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
N
N U
U M
M B
BE
ER
R
(
( V
V I
IN
N )
)

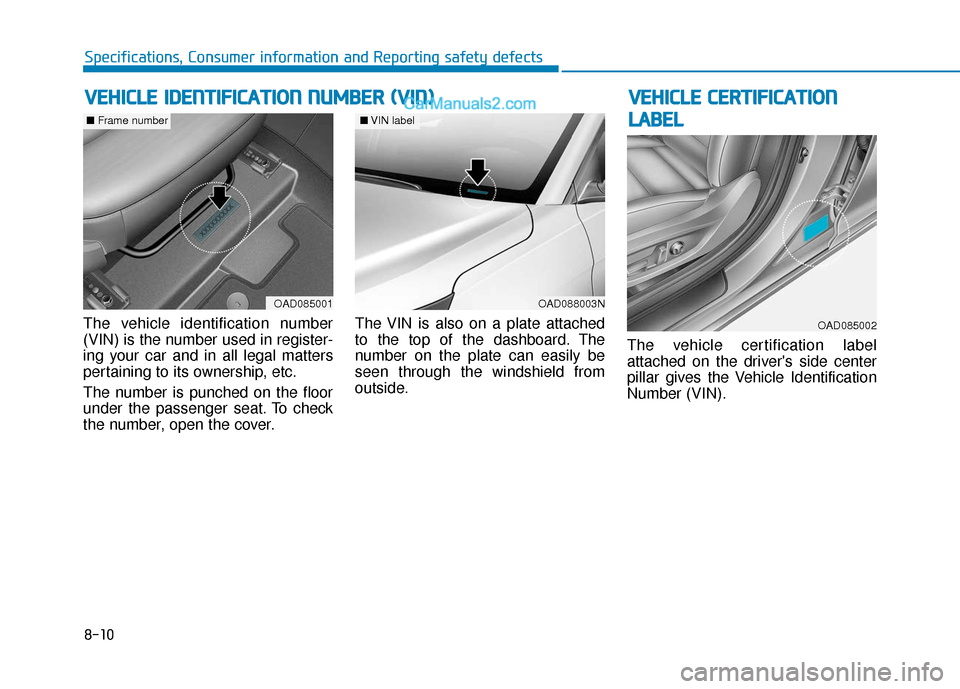

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver's side center
pillar gives the Vehicle Identification
Number (VIN).
OAD088003N
■
VIN label
OAD085001
■ Frame number
OAD085002
V
VE
EH
H I
IC
C L
LE
E
C
C E
E R
R T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
L
L A
A B
BE
EL
L

8-11
88
Specifications, Consumer information and Reporting safety defects
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label provides infor-
mation such as refrigerant type and
amount.
The label is located on the underside
of the hood.
E E
N
N G
GI
IN
N E
E
N
N U
U M
M B
BE
ER
R R
RE
EF
FR
R I
IG
G E
ER
R A
A N
N T
T
L
L A
A B
BE
EL
L
(
( I
IF
F
E
E Q
Q U
UI
IP
P P
PE
ED
D )
)
T
T
I
IR
R E
E
S
S P
P E
EC
CI
IF
F I
IC
C A
A T
TI
IO
O N
N
A
A N
N D
D
P
P R
R E
ES
SS
SU
U R
RE
E
L
L A
A B
BE
EL
L
OAD085011NOAD078106N
OAD086012
■ 1.6 T-GDI
OAD085009L
■2.0 MPI
