Tires and Wheels ........................................................................\
..................9-27Tire Care ........................................................................\
.......................................... 9-27
R ecommended Cold Tire Inflation Pressures ....................................................... 9-
27
Check Tire Inflation Pressure
........................................................................\
......... 9-

28
Tire Rotation
........................................................................\
................................... 9-

29
Wheel Alignment and Tire Balance
....................................................................... 9-30
Tir

e Replacement
........................................................................\
........................... 9-

30
Wheel Replacement
........................................................................\
....................... 9-

32
Tire Traction
........................................................................\
.................................... 9-

32
Tire Maintenance........................................................................\
............................ 9-32
Tire Sidewall Labeling
........................................................................\
.................... 9-

32
Tire Terminology and Definitions
........................................................................\
.. 9-35
All Season Tir

es
........................................................................\
............................... 9-

38
Summer Tires
........................................................................\
................................. 9-

38
Snow Tires........................................................................\
....................................... 9-38
Radial-Ply Tires
........................................................................\
............................... 9-

38
Low Aspect Ratio Tires
........................................................................\
................... 9-

39
Fuses ........................................................................\
....................................9-40Instrument Panel Fuse Replacement .....................................................................9-41
E ngine Compartment Panel Fuse Replacement .................................................. 9-42
F
use/Relay Panel Description........................................................................\
........ 9-43
Light Bulbs ........................................................................\
............................ 9-50Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
.....................................
.9-51
Side repeater lamp replacement
........................................................................\
.. 9-54
Rear combina

tion lamp bulb replacement
.......................................................... 9-54
High moun

ted stop lamp replacement
................................................................ 9-57
License Pla

te Light Bulb Replacement
................................................................. 9-57
Int

erior Light Bulb Replacement
........................................................................\
... 9-58
Appearance Care ........................................................................\
................. 9-59Exterior Care ........................................................................\
................................... 9-59
Int erior Care ........................................................................\
.................................... 9-65
Emission Control System ........................................................................\
....9-68
California per chlorate notice
....................................................................... 9-719

9-3
09

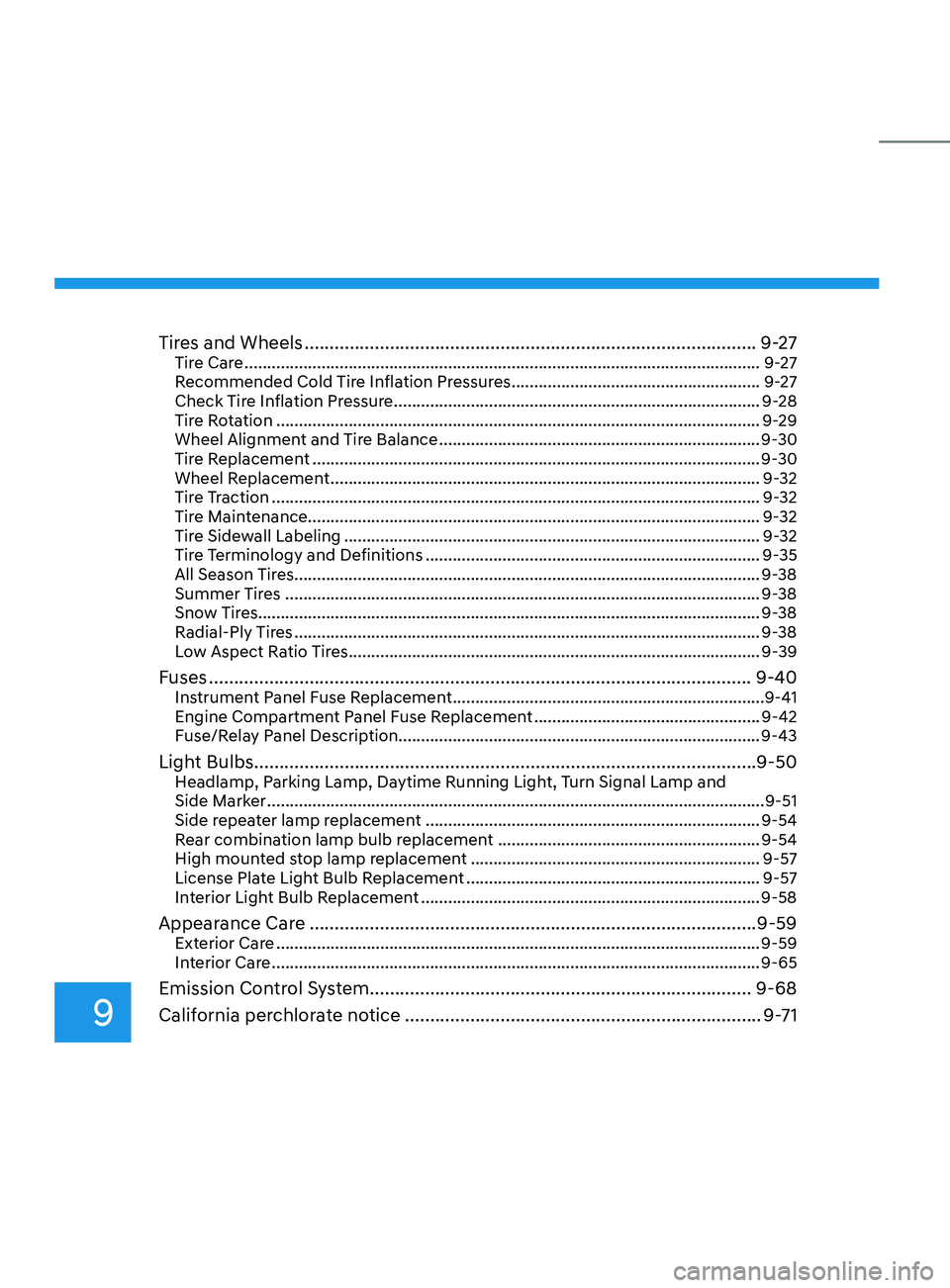

Tires and Wheels ........................................................................\
..................9-27Tire Care ........................................................................\
.......................................... 9-27
Recommended Cold Tire Inflation Pressures ....................................................... 9-27
Check Tire Inflation Pressure ........................................................................\
......... 9-28
Tire Rotation ........................................................................\
................................... 9-29
Wheel Alignment and Tire Balance ....................................................................... 9-30
Tire Replacement ........................................................................\
........................... 9-30
Wheel Replacement ........................................................................\
....................... 9-32
Tire Traction ........................................................................\
.................................... 9-32
Tire Maintenance........................................................................\
............................ 9-32
Tire Sidewall Labeling ........................................................................\
.................... 9-32
Tire Terminology and Definitions ........................................................................\
.. 9-35
All Season Tires ........................................................................\
............................... 9-38
Summer Tires ........................................................................\
................................. 9-38
Snow Tires........................................................................\
....................................... 9-38
Radial-Ply Tires ........................................................................\
............................... 9-38
Low Aspect Ratio Tires ........................................................................\
................... 9-39
Fuses ........................................................................\
....................................9-40Instrument Panel Fuse Replacement ..................................................................... 9-41
Engine Compartment Panel Fuse Replacement .................................................. 9-42
Fuse/Relay Panel Description........................................................................\
........ 9-43
Light Bulbs ........................................................................\
............................ 9-50Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
...................................... 9-51
Side repeater lamp replacement ........................................................................\
.. 9-54
Rear combination lamp bulb replacement .......................................................... 9-54
High mounted stop lamp replacement ................................................................ 9-57
License Plate Light Bulb Replacement ................................................................. 9-57
Interior Light Bulb Replacement ........................................................................\
... 9-58
Appearance Care ........................................................................\
................. 9-59Exterior Care ........................................................................\
................................... 9-59
Interior Care ........................................................................\
.................................... 9-65
Emission Control System ........................................................................\
.... 9-68
California perchlorate notice ....................................................................... 9-71

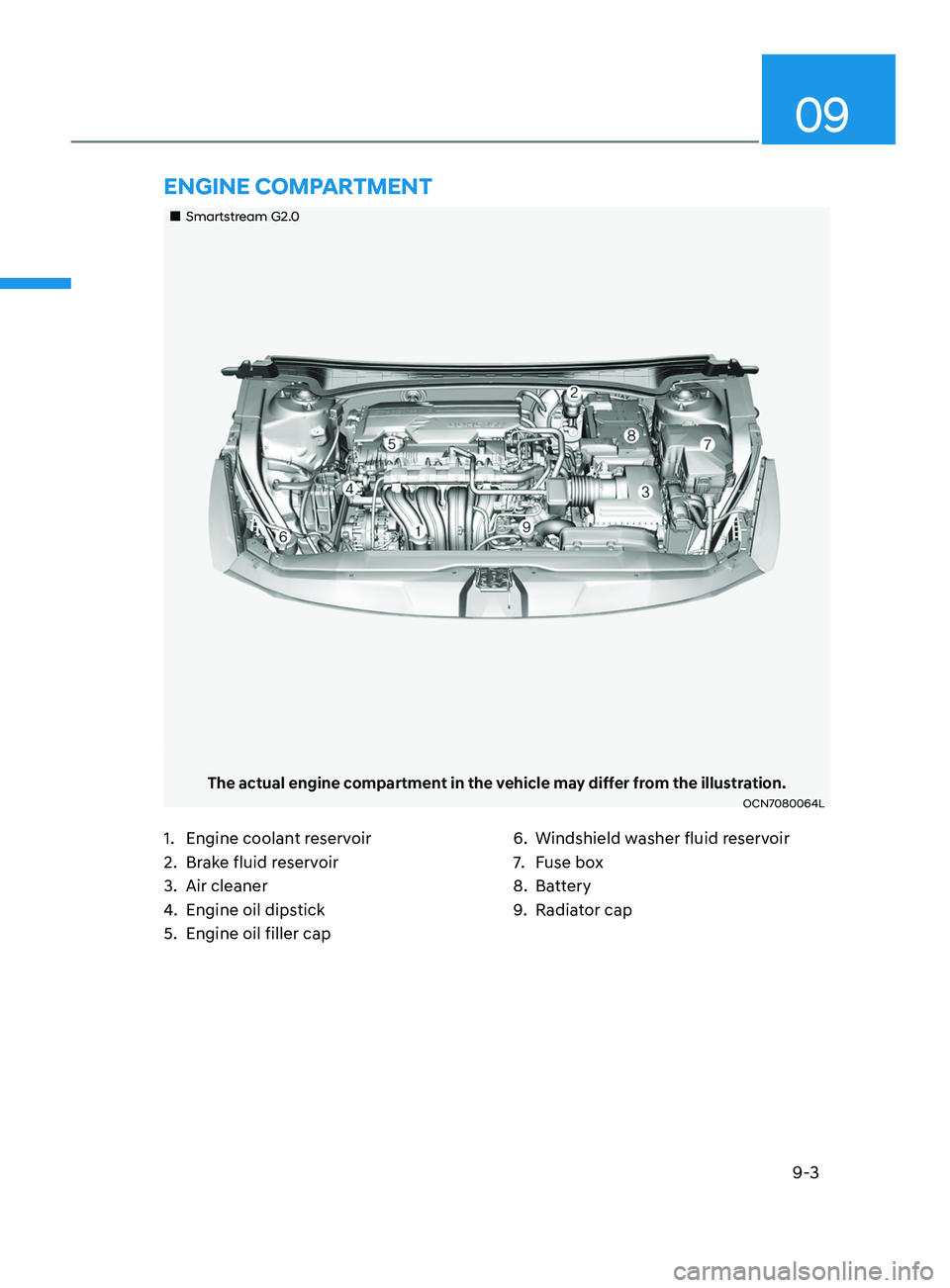

1. Engine coolant reservoir
2.
Brak
e fluid reservoir
3.
Air cleaner
4.
Engine oil dips

tick
5.
Engine oil filler cap 6.
Windshield washer fluid r
eservoir
7.
Fuse bo

x
8.
Batt

ery
9.
Radiat

or cap
EnginE CompartmEnt
„„Smartstream G2.0
The actual engine compartment in the vehicle may differ from the illustration.OCN7080064L

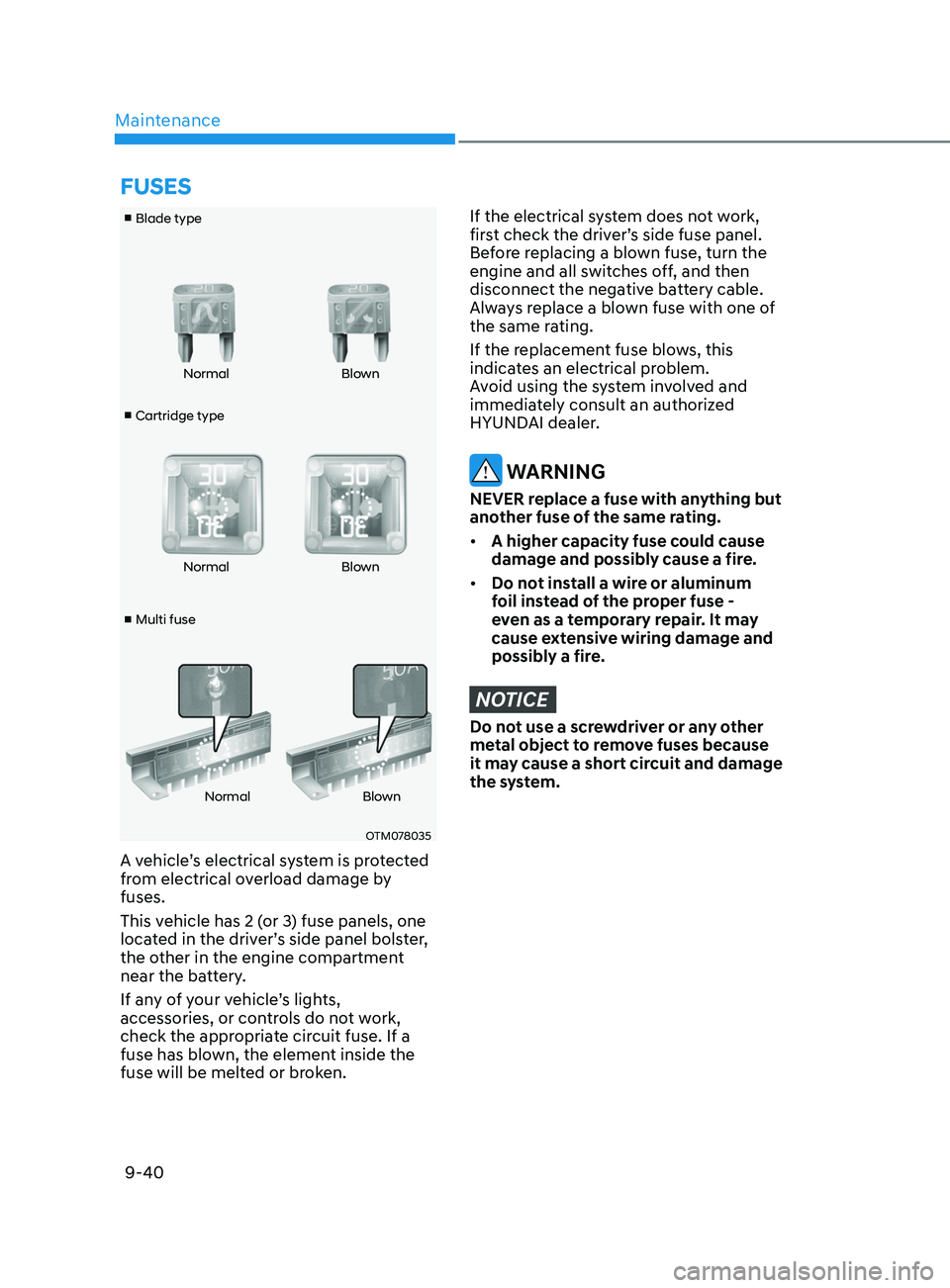

Maintenance9-40
■ Cartridge type
■ Blade type
■ Multi fuse Normal
Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment
near the battery.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved and
immediately consult an authorized
HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse could cause
damage and possibly cause a fire.
• Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
fuSES

09
9-41

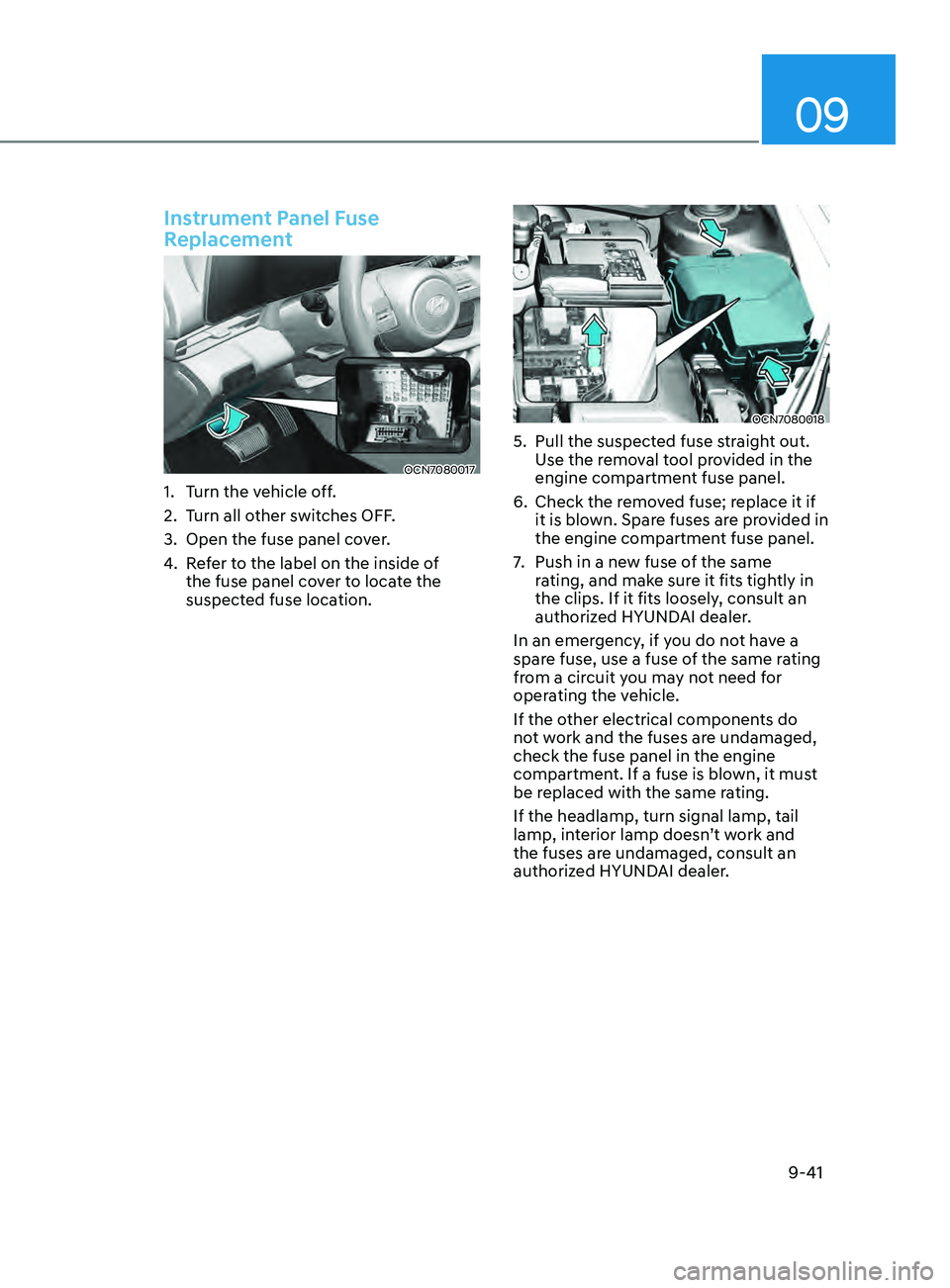

Instrument Panel Fuse
Replacement
OCN7080017
1. Turn the vehicle off.
2.
Turn all o
ther switches OFF.
3.
Open the fuse panel cov

er.
4.
Re

fer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OCN7080018
5. Pull the suspected fuse s traight out.
Use the removal tool provided in the
engine compartment fuse panel.
6.
Check the remo

ved fuse; replace it if
it is blown. Spare fuses are provided in
the engine compartment fuse panel.
7.
Push in a new fuse o

f the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the other electrical components do
not work and the fuses are undamaged,
check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced with the same rating.
If the headlamp, turn signal lamp, tail
lamp, interior lamp doesn’t work and
the fuses are undamaged, consult an
authorized HYUNDAI dealer.
