HYUNDAI ELANTRA 2022 Owner's Manual

2-8
Vehicle Information
„Smartstream G 2.0 Atkinson
„Smartstream G1.6 T-GDi
The actual engine room in the vehicle may differ from the illustration.OCN7080064L/OCN7N080001

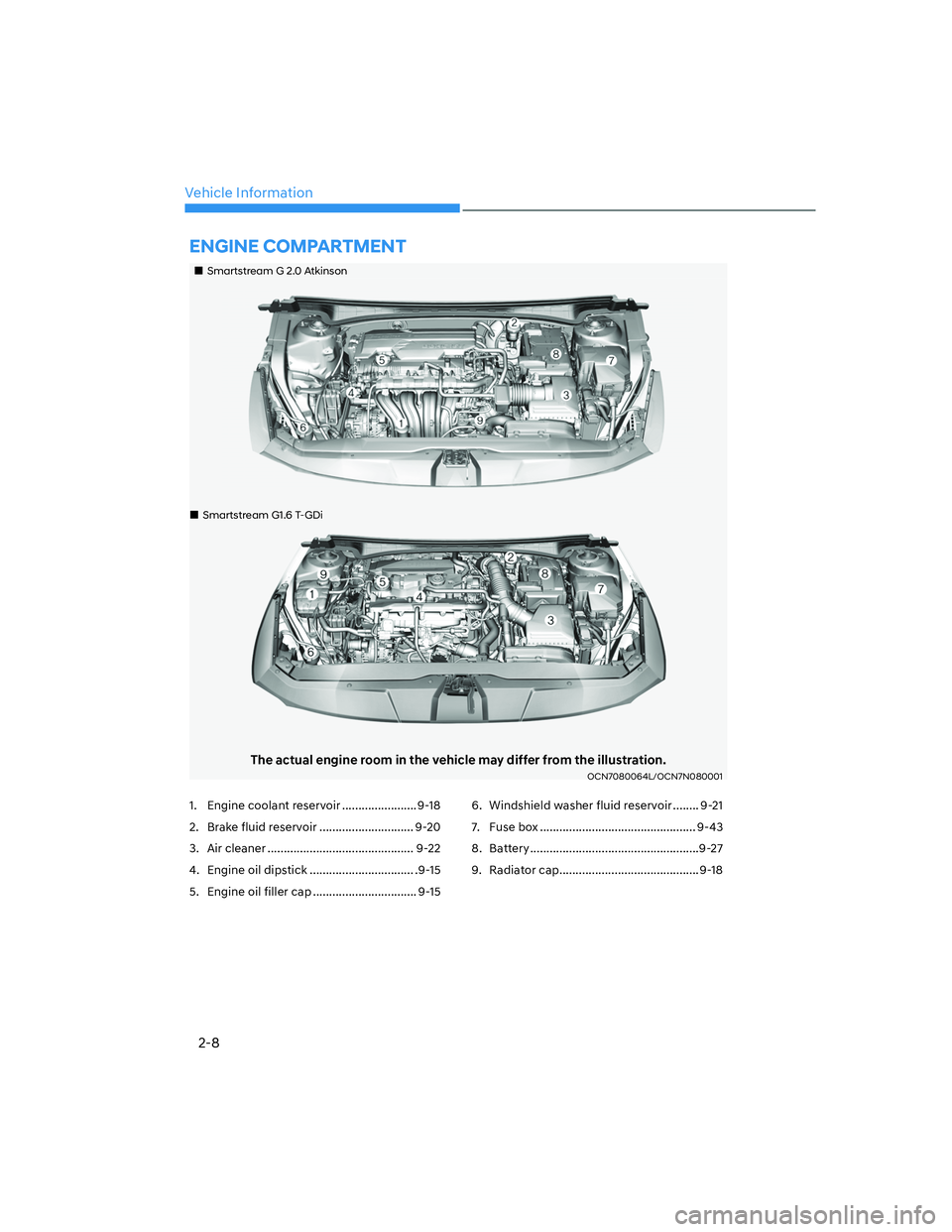

ENGINE COMPARTMENT
1. Engine coolant reservoir .......................9-18
2. Brake fluid reservoir ............................. 9-20
3. Air cleaner ............................................. 9-22
4. Engine oil dipstick ................................ .9-15
5. Engine oil filler cap ................................ 9-156. Windshield washer fluid reservoir ........ 9-21
7. Fuse box ................................................ 9-43
8. Battery ....................................................9-27
9. Radiator cap ...........................................9-18

02
2-9

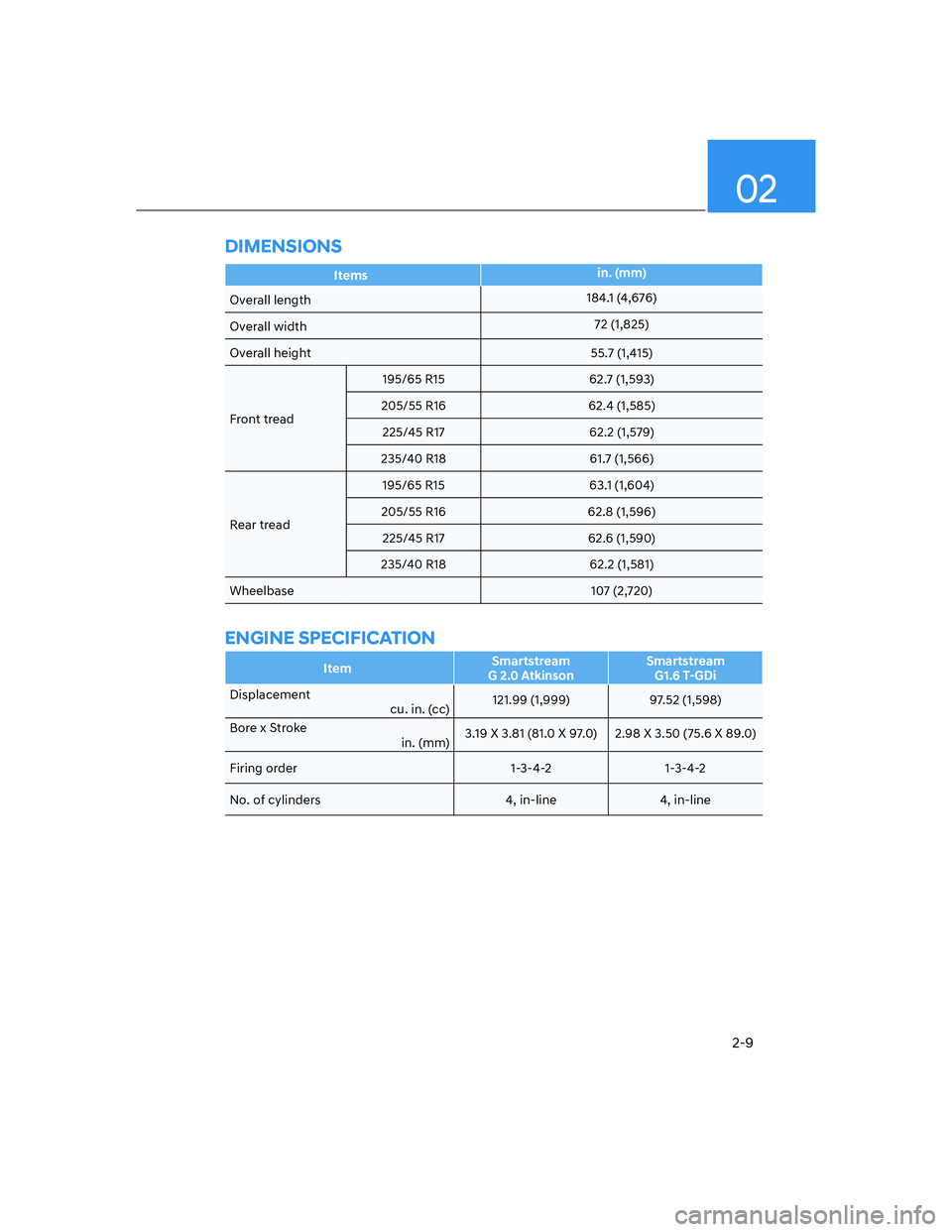

DIMENSIONS
Itemsin. (mm)
Overall length184.1 (4,676)
Overall width72 (1,825)
Overall height 55.7 (1,415)
Front tread195/65 R15 62.7 (1,593)
205/55 R16 62.4 (1,585)
225/45 R17 62.2 (1,579)
235/40 R18 61.7 (1,566)
Rear tread 195/65 R15 63.1 (1,604)
205/55 R16 62.8 (1,596)
225/45 R17 62.6 (1,590)
235/40 R18 62.2 (1,581)
Wheelbase 107 (2,720)
ENGINE SPECIFICATION
ItemSmartstream
G 2.0 AtkinsonSmartstream
G1.6 T-GDi
Displacement
cu. in. (cc) 121.99 (1,999) 97.52 (1,598)
Bore x Stroke
in. (mm)3.19 X 3.81 (81.0 X 97.0) 2.98 X 3.50 (75.6 X 89.0)
Firing order 1-3-4-2 1-3-4-2
No. of cylinders 4, in-line 4, in-line

Vehicle Information
2-10
BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlampHigh HB3 60
Low HB3 60
Daytime running lamp
(DRL)/Parking lampLED LED
Type BHeadlampHigh
LED LED
Low
Daytime running lamp
(DRL)/Parking lampLED LED
Side markerBulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
RearType AStop lamp P21W/5W 21
Tail lampInner W5W 5
Outer P21/5W 5
Type BStop lamp P21W/5W 21
Tail lamp LED LED
Type CStop lamp LED LED
Tail lamp LED LED
Side markerBulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5
Reverse lamp W16W 16
High mounted stop lamp P21W 21
InteriorMap lamp W10W 10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5

02
2-11

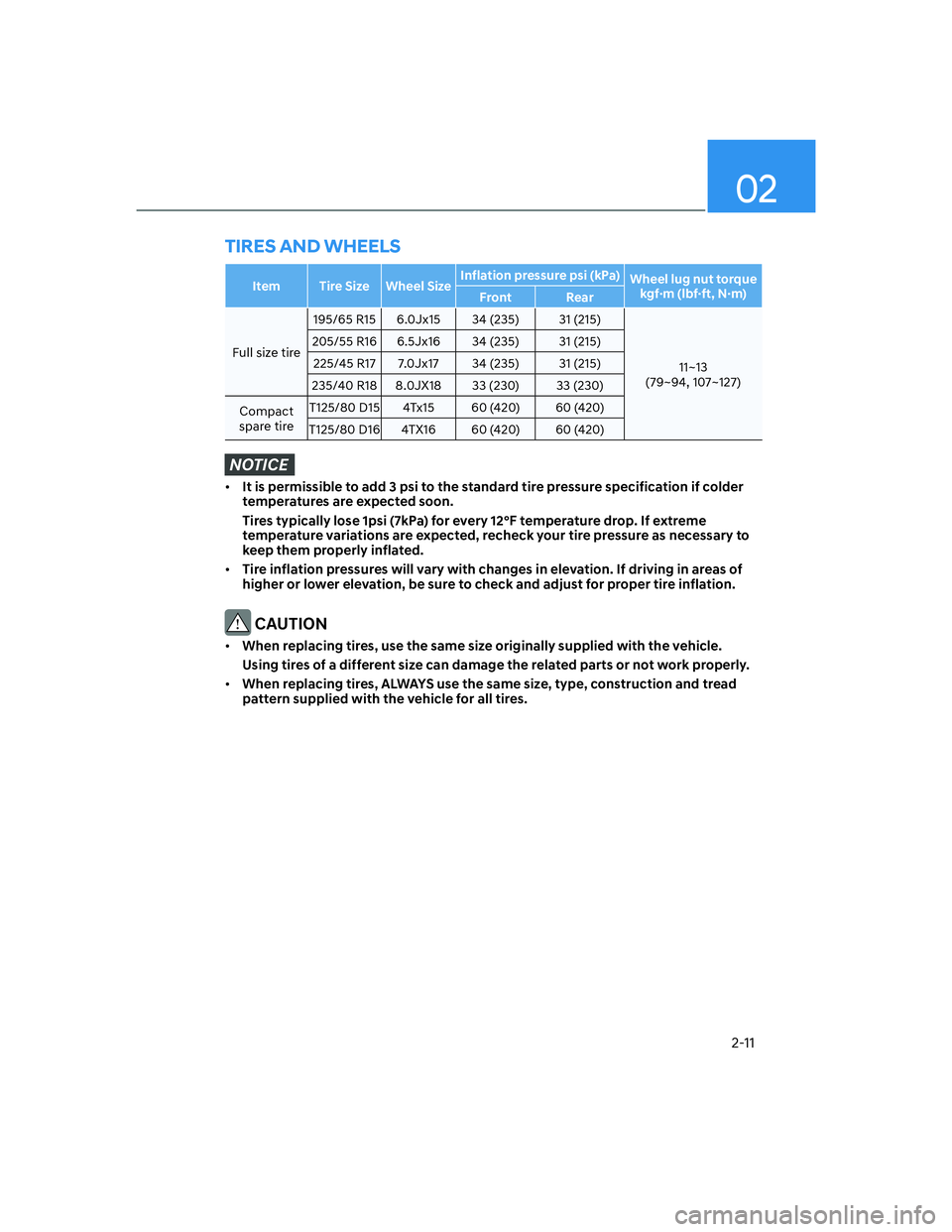

TIRES AND WHEELS
Item Tire Size Wheel SizeInflation pressure psi (kPa)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire195/65 R15 6.0Jx15 34 (235) 31 (215)
11~13
(79~94, 107~127) 205/55 R16 6.5Jx16 34 (235) 31 (215)
225/45 R17 7.0Jx17 34 (235) 31 (215)
235/40 R18 8.0JX18 33 (230) 33 (230)
Compact
spare tire T125/80 D15 4Tx15 60 (420) 60 (420)
T125/80 D16 4TX16 60 (420) 60 (420)
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-12
VOLUME AND WEIGHT
ItemsSmartstream
G2.0 AtkinsonSmartstream
G1.6 T-GDi
M/T IVT M/T DCT
Gross vehicle weight
lbs. (kg)3,814
(1,730)3,858
(1,750)4,012
(1,820)4,078
(1,850)
Luggage volume
cu ft (
b)16.7 (474)
M/T : Manual transmission, IVT : Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item Weight of Volume Classification
Refrigerant
oz. (g)17.6±0.88 (500±25) R-1234yf
Compressor lubricant
oz. (g)3.4 ± 0.3 (100 ± 10g) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-13

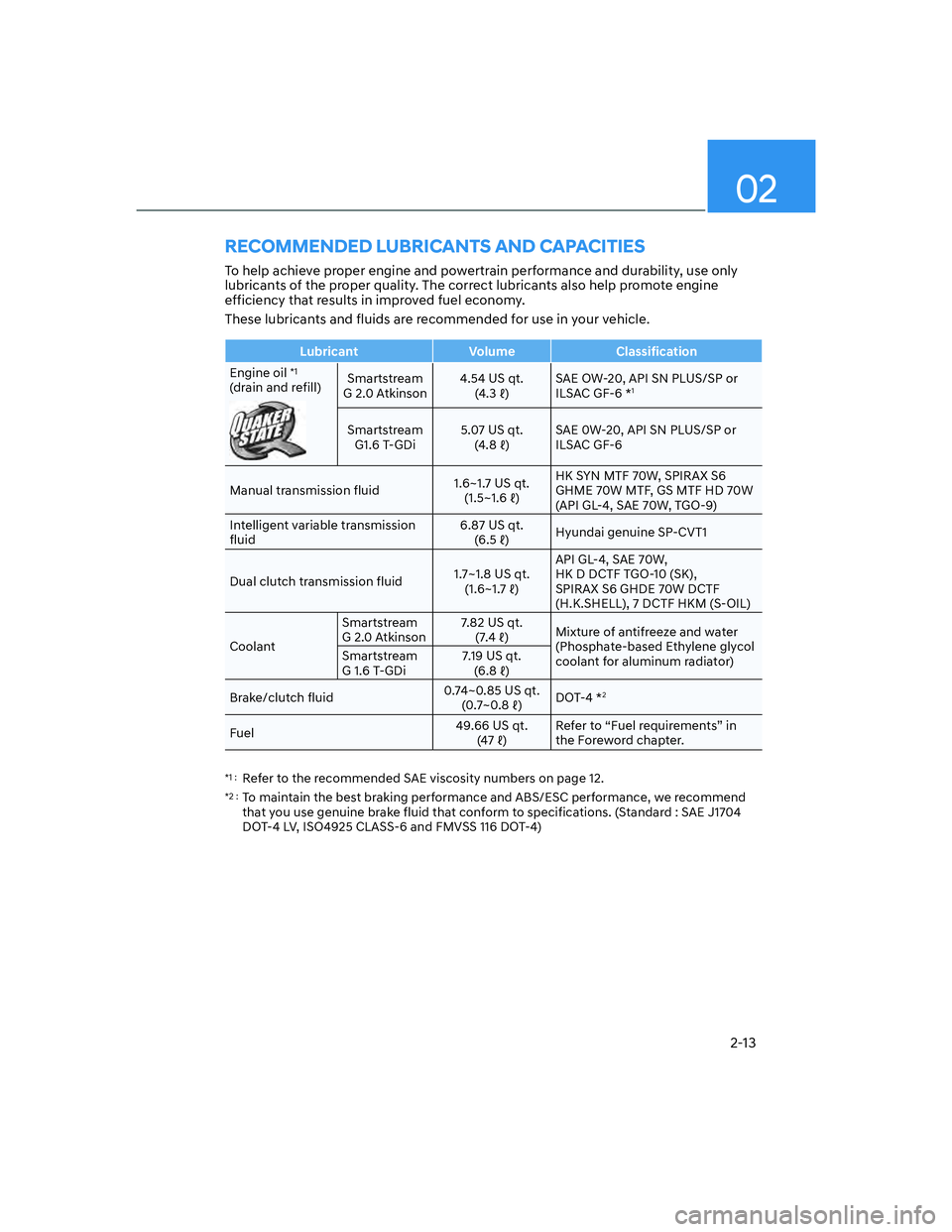

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1
(drain and refill)Smartstream
G 2.0 Atkinson4.54 US qt.

bSAE OW-20, API SN PLUS/SP or
ILSAC GF-6 *
1
Smartstream
G1.6 T-GDi5.07 US qt.

bSAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Manual transmission fluid1.6~1.7 US qt.
a
bHK SYN MTF 70W, SPIRAX S6
GHME 70W MTF, GS MTF HD 70W
(API GL-4, SAE 70W, TGO-9)
Intelligent variable transmission
fluid6.87 US qt.

bHyundai genuine SP-CVT1
Dual clutch transmission fluid1.7~1.8 US qt.
a
bAPI GL-4, SAE 70W,
HK D DCTF TGO-10 (SK),
SPIRAX S6 GHDE 70W DCTF
(H.K.SHELL), 7 DCTF HKM (S-OIL)
CoolantSmartstream
G 2.0 Atkinson7.82 US qt.

bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator) Smartstream
G 1.6 T-GDi 7.19 US qt.

b
Brake/clutch fluid 0.74~0.85 US qt.
a
bDOT-4 *
2
Fuel49.66 US qt.

bRefer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)

Vehicle Information
2-14

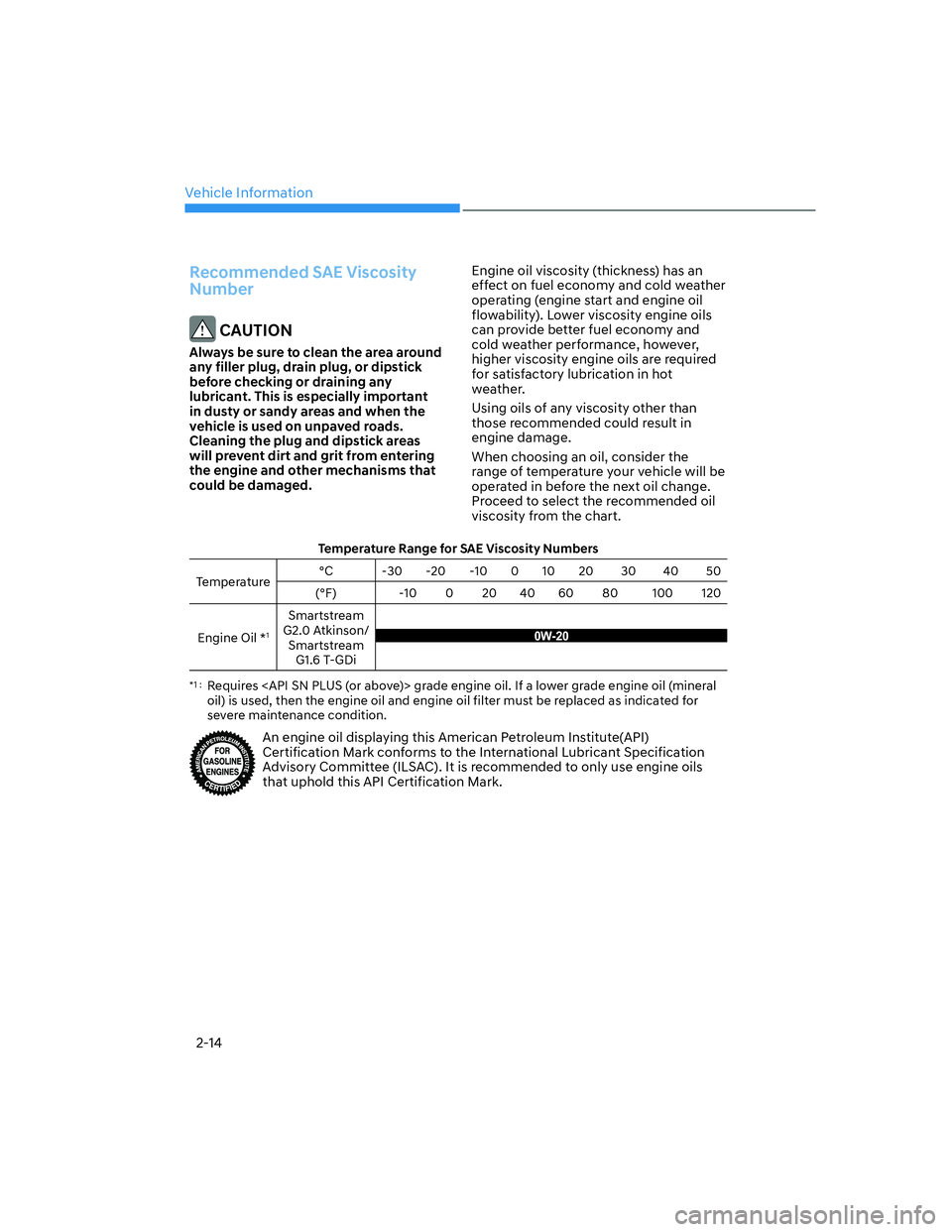

Recommended SAE Viscosity
Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
1
Smartstream
G2.0 Atkinson/
Smartstream
G1.6 T-GDi
0W-20
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

02
2-15

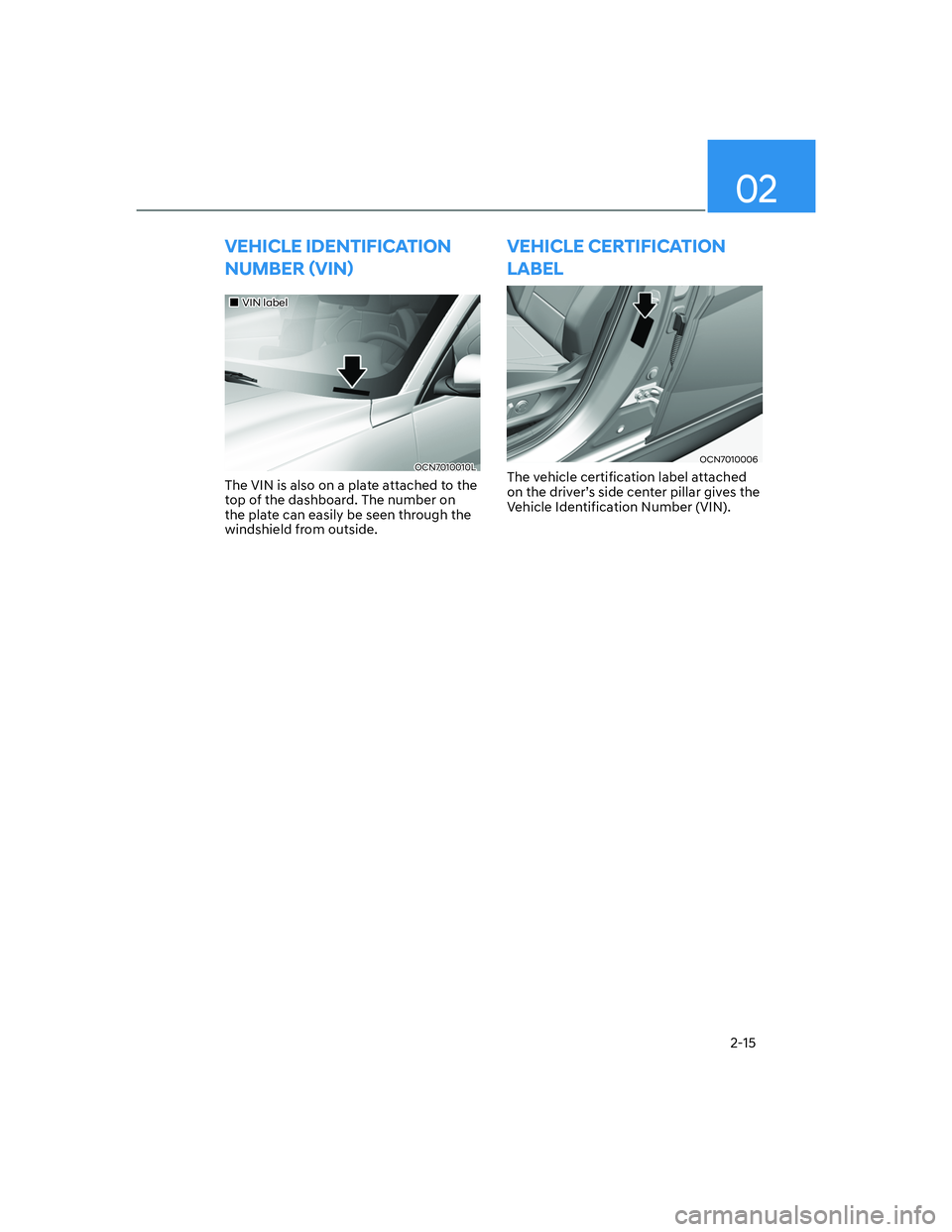

VEHICLE IDENTIFICATION
NUMBER
ãVIN
ä
„VIN label
OCN7010010L
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
OCN7010006
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).

Vehicle Information
2-16

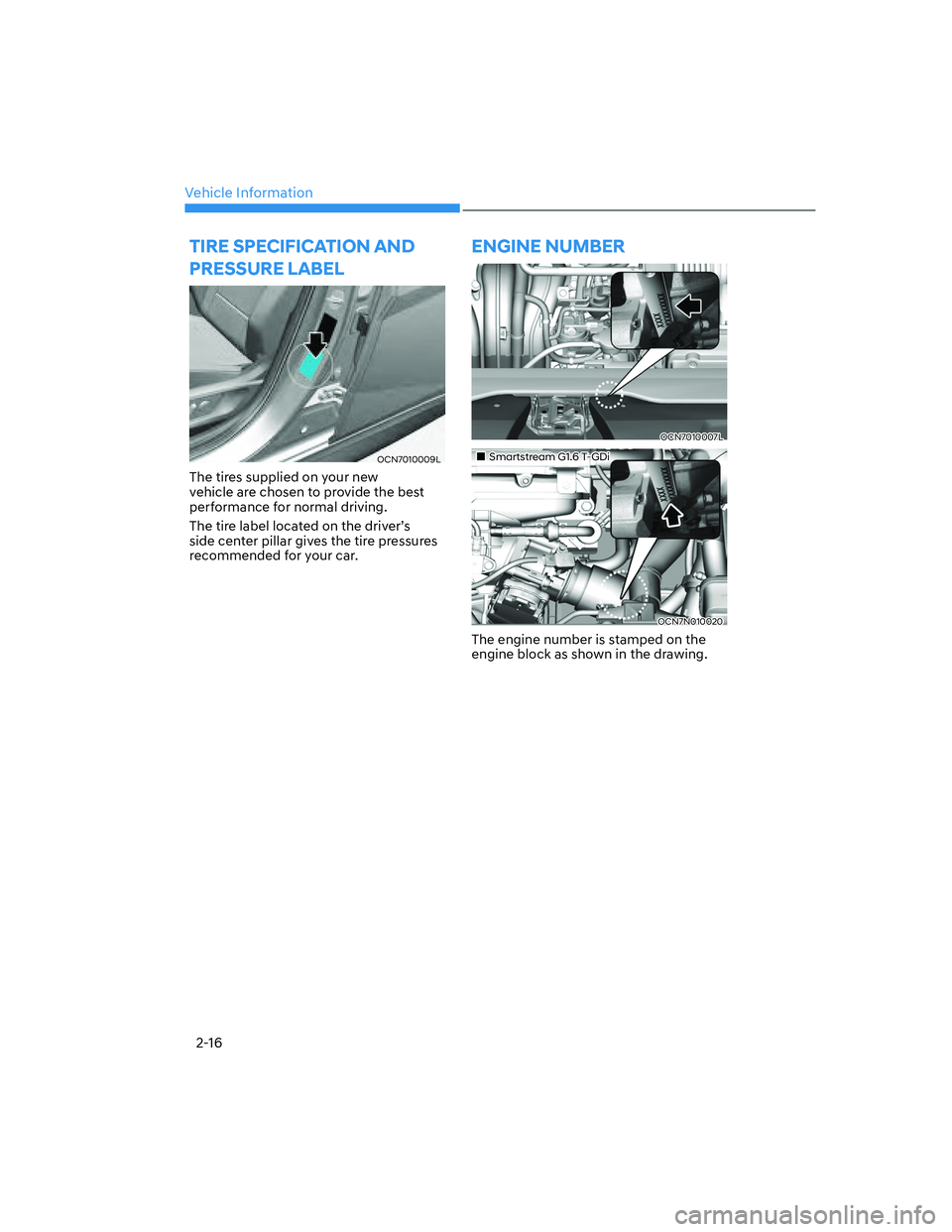

TIRE SPECIFICATION AND
PRESSURE LABEL
OCN7010009L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
ENGINE NUMBER
OCN7010007L
„Smartstream G1.6 T-GDi
OCN7N010020
The engine number is stamped on the
engine block as shown in the drawing.

02
2-17

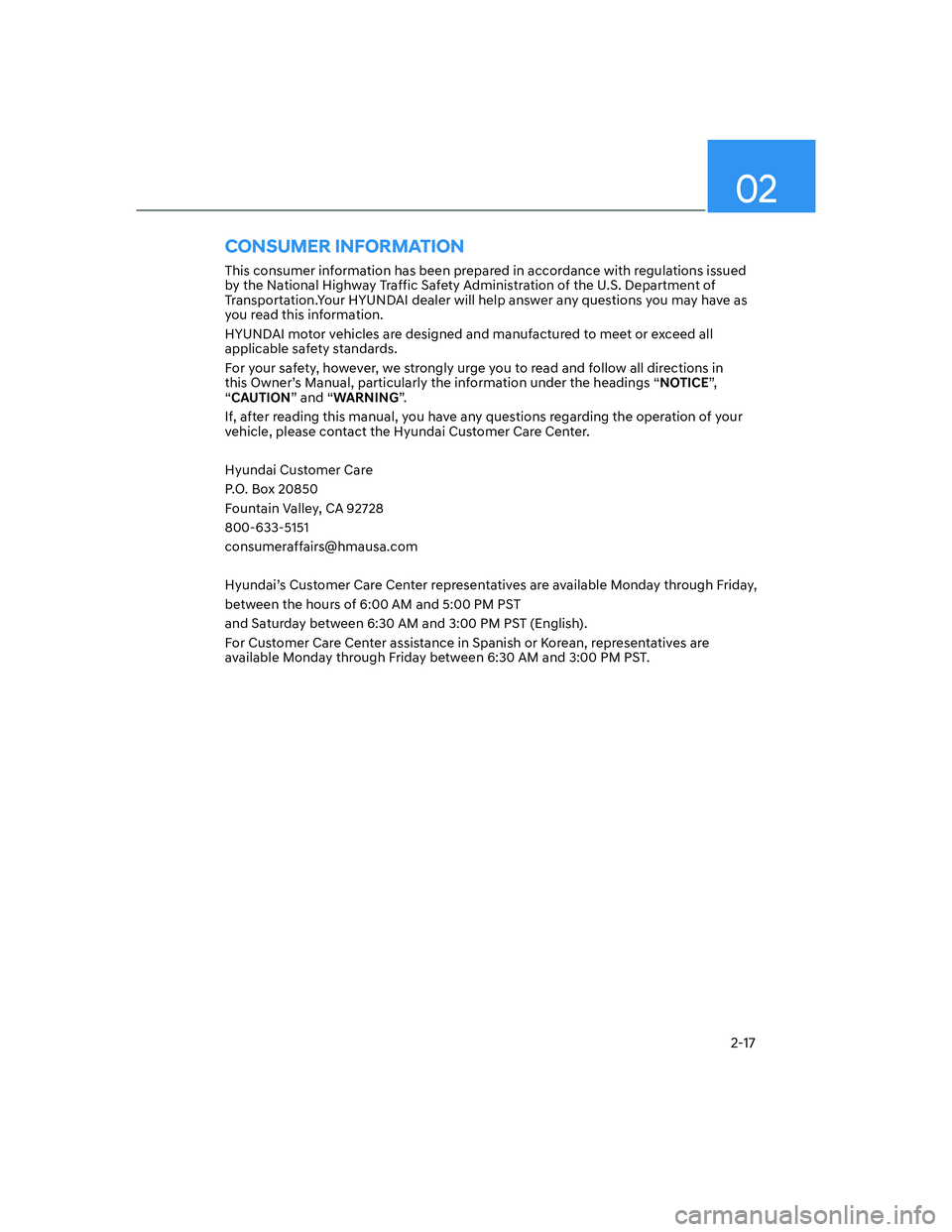

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
