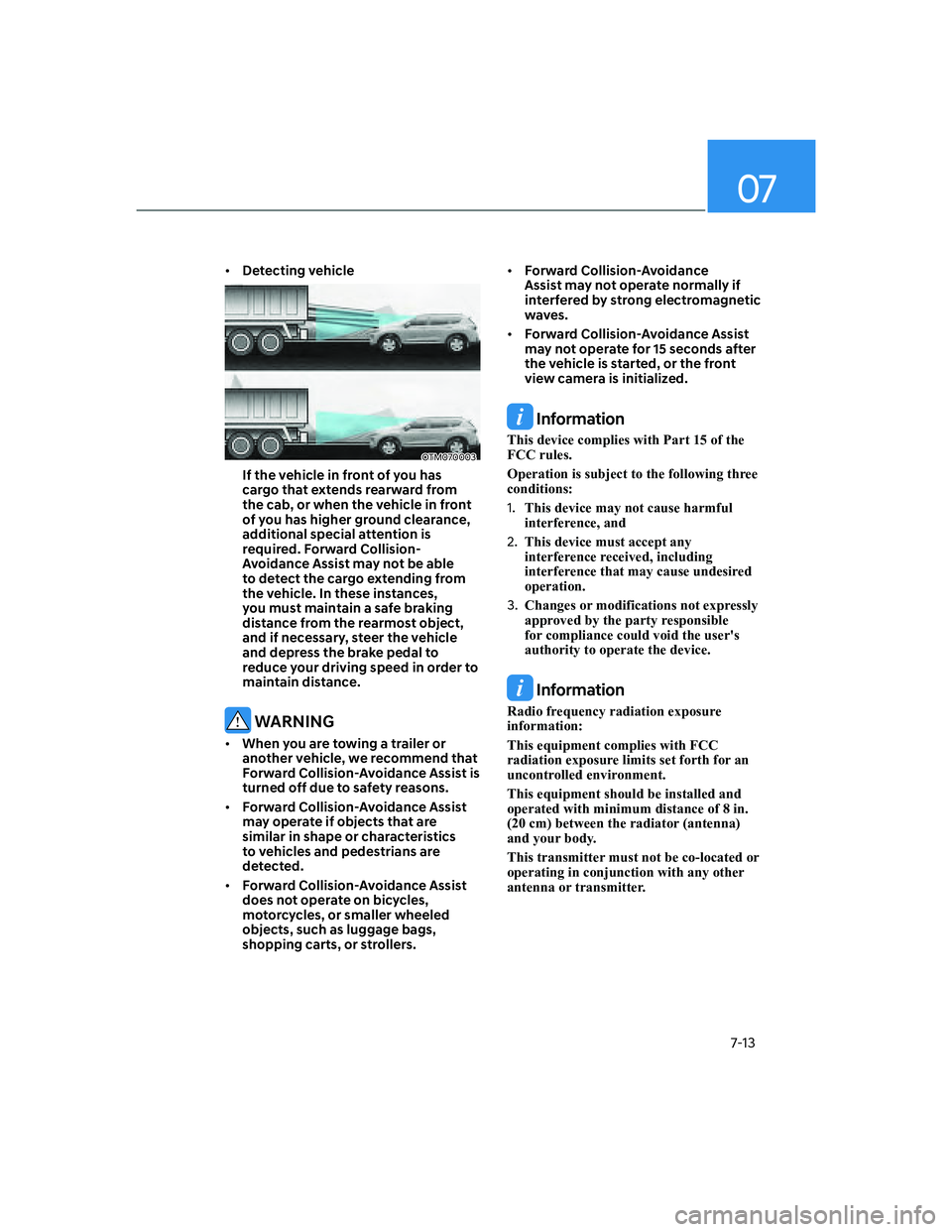

Page 341 of 584
07
7-13
[ Detecting vehicle
OTM070003
If the vehicle in front of you has
cargo that extends rearward from
the cab, or when the vehicle in front
of you has higher ground clearance,
additional special attention is
required. Forward Collision-
Avoidance Assist may not be able
to detect the cargo extending from
the vehicle. In these instances,
you must maintain a safe braking
distance from the rearmost object,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain distance.
WARNING
[ When you are towing a trailer or
another vehicle, we recommend that
Forward Collision-Avoidance Assist is
turned off due to safety reasons.
[ Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics
to vehicles and pedestrians are
detected.
[ Forward Collision-Avoidance Assist
does not operate on bicycles,
motorcycles, or smaller wheeled
objects, such as luggage bags,
shopping carts, or strollers.[ Forward Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.
[ Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

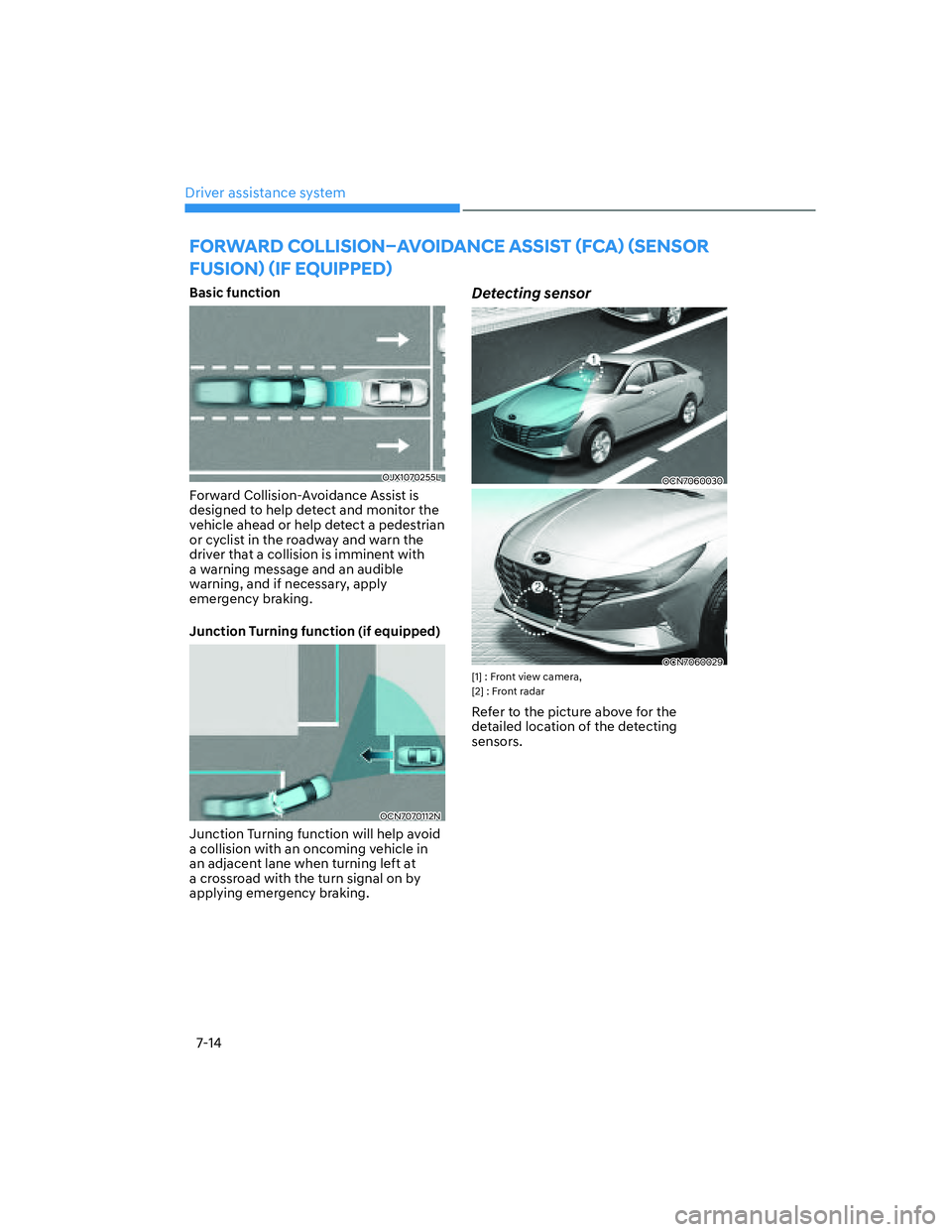

Page 342 of 584
Driver assistance system
7-14
FORWARD COLLISIONÙAVOIDANCE ASSIST ãFCAä ãSENSOR
FUSIONä ãIF EQUIPPEDä
Basic function
OJX1070255L
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message and an audible
warning, and if necessary, apply
emergency braking.
Junction Turning function (if equipped)
OCN7070112N
Junction Turning function will help avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Detecting sensor
OCN7060030
OCN7060029[1] : Front view camera,
[2] : Front radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Page 343 of 584
07
7-15

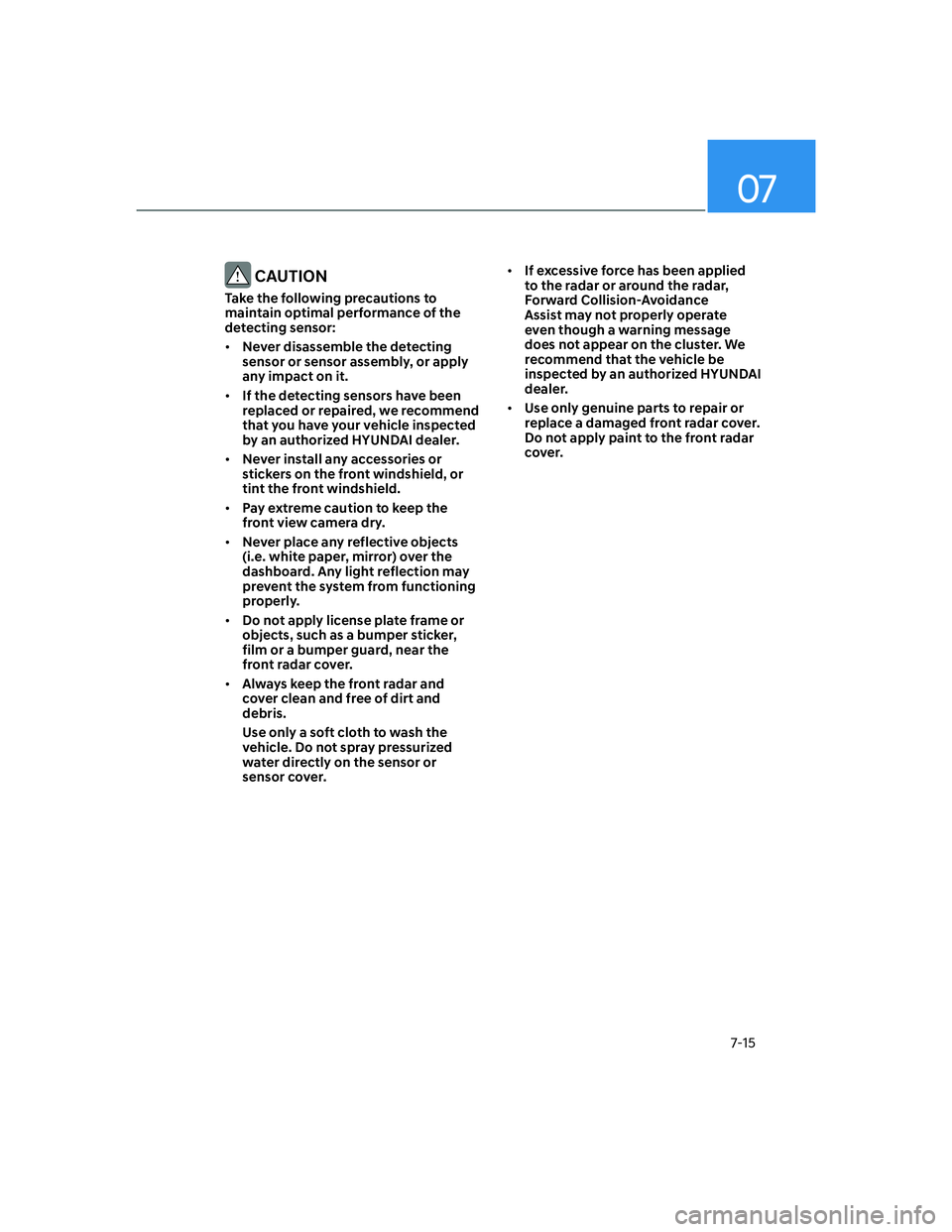

CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.
[ If the detecting sensors have been
replaced or repaired, we recommend
that you have your vehicle inspected
by an authorized HYUNDAI dealer.
[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.
[ Pay extreme caution to keep the
front view camera dry.
[ Never place any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection may
prevent the system from functioning
properly.
[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.
[ Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.[ If excessive force has been applied
to the radar or around the radar,
Forward Collision-Avoidance
Assist may not properly operate
even though a warning message
does not appear on the cluster. We
recommend that the vehicle be
inspected by an authorized HYUNDAI
dealer.
[ Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.

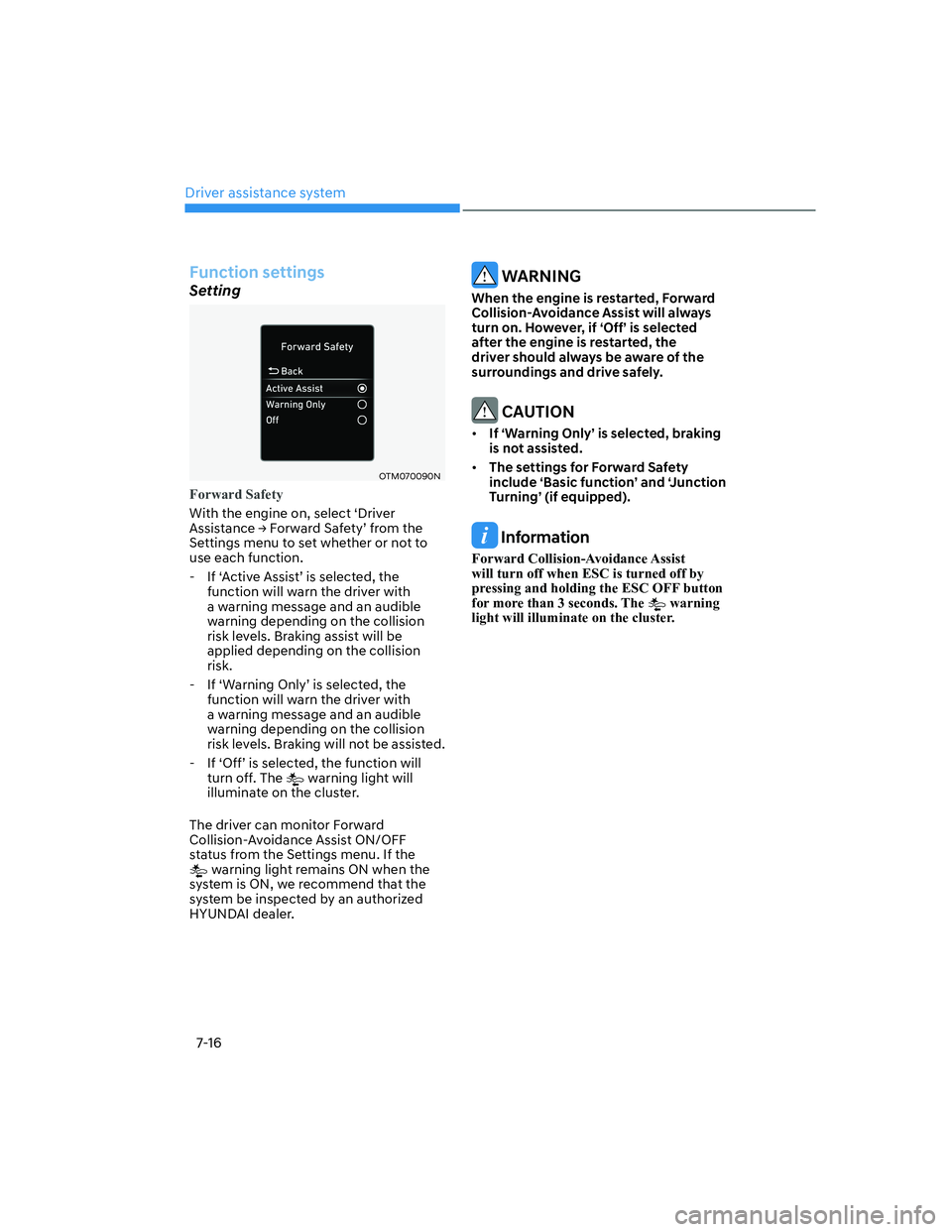

Page 344 of 584
Driver assistance system
7-16
Function settings
Setting
OTM070090N
Forward Safety
With the engine on, select ‘Driver
$ V V L V W D Q F H

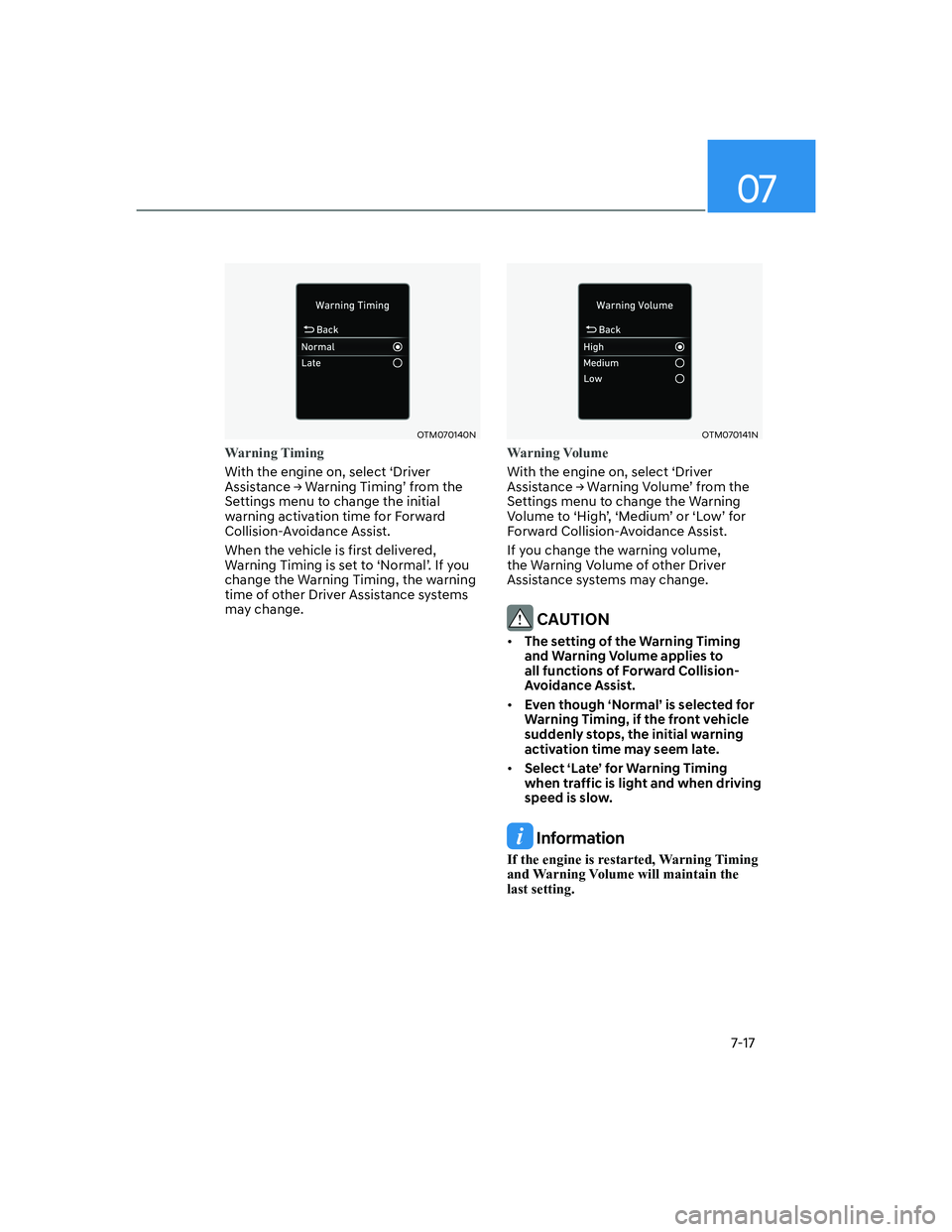

Page 345 of 584
07
7-17
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$ V V L V W D Q F H

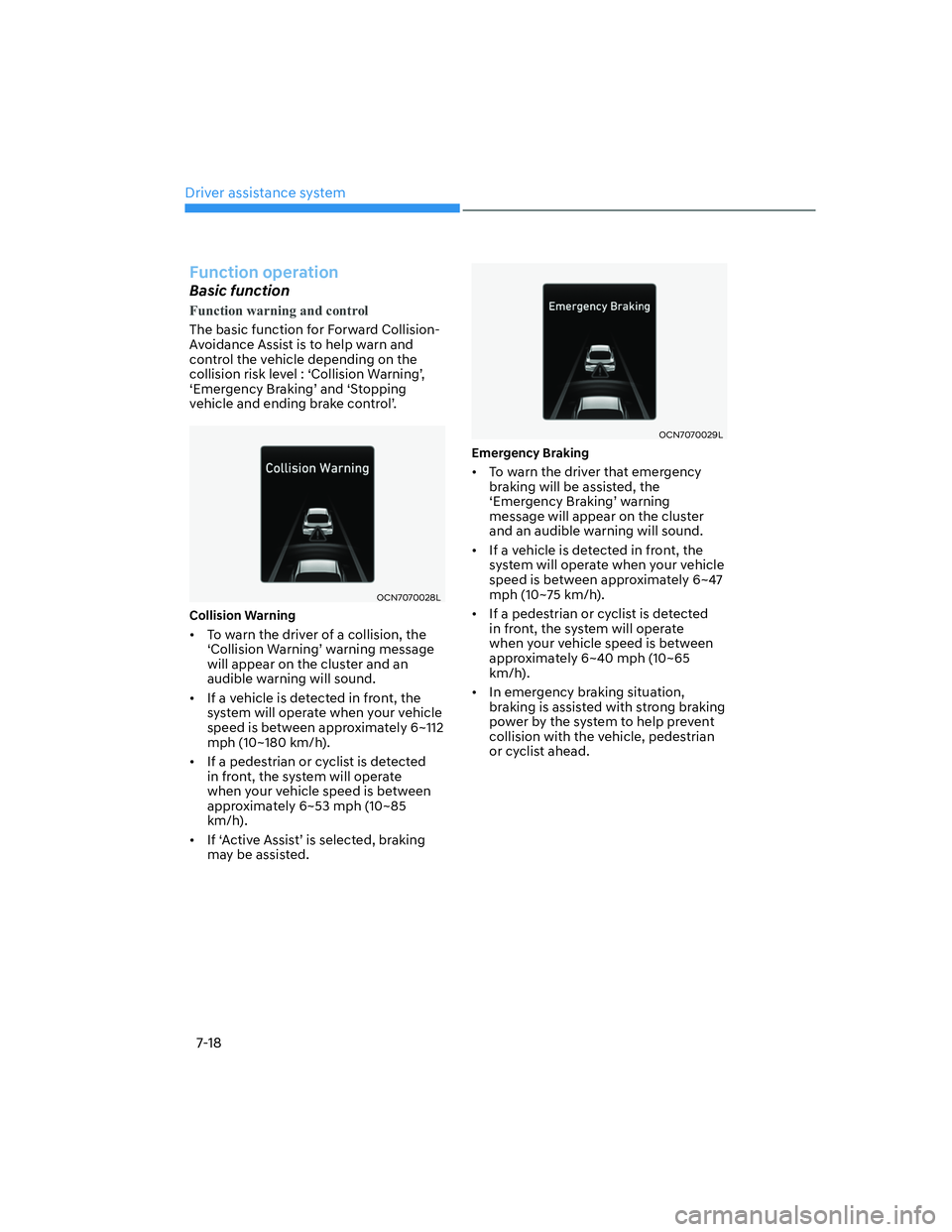

Page 346 of 584
Driver assistance system
7-18
Function operation
Basic function
Function warning and control
The basic function for Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on the
F R O O L V L R Q U L V N O H Y H O S & R O O L V L R Q : D U Q L Q JT
S ( P H U J H Q F \ % U D N L Q JT D Q G S 6 W R S S L Q J
Y H K L F O H D Q G H Q G L Q J E U D N H F R Q W U R OT
OCN7070028L
Collision Warning
[ To warn the driver of a collision, the
S & R O O L V L R Q : D U Q L Q JT Z D U Q L Q J P H V V D J H
will appear on the cluster and an
audible warning will sound.
[ If a vehicle is detected in front, the
system will operate when your vehicle
speed is between approximately 6~112
mph (10~180 km/h).
[ If a pedestrian or cyclist is detected
in front, the system will operate
when your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
[ , I S $ F W L Y H $ V V L V WT L V V H O H F W H G E U D N L Q J
may be assisted.
OCN7070029L
Emergency Braking
[ To warn the driver that emergency
braking will be assisted, the
S ( P H U J H Q F \ % U D N L Q JT Z D U Q L Q J
message will appear on the cluster
and an audible warning will sound.
[ If a vehicle is detected in front, the
system will operate when your vehicle
speed is between approximately 6~47
mph (10~75 km/h).
[ If a pedestrian or cyclist is detected
in front, the system will operate
when your vehicle speed is between
approximately 6~40 mph (10~65
km/h).
[ In emergency braking situation,
braking is assisted with strong braking
power by the system to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.

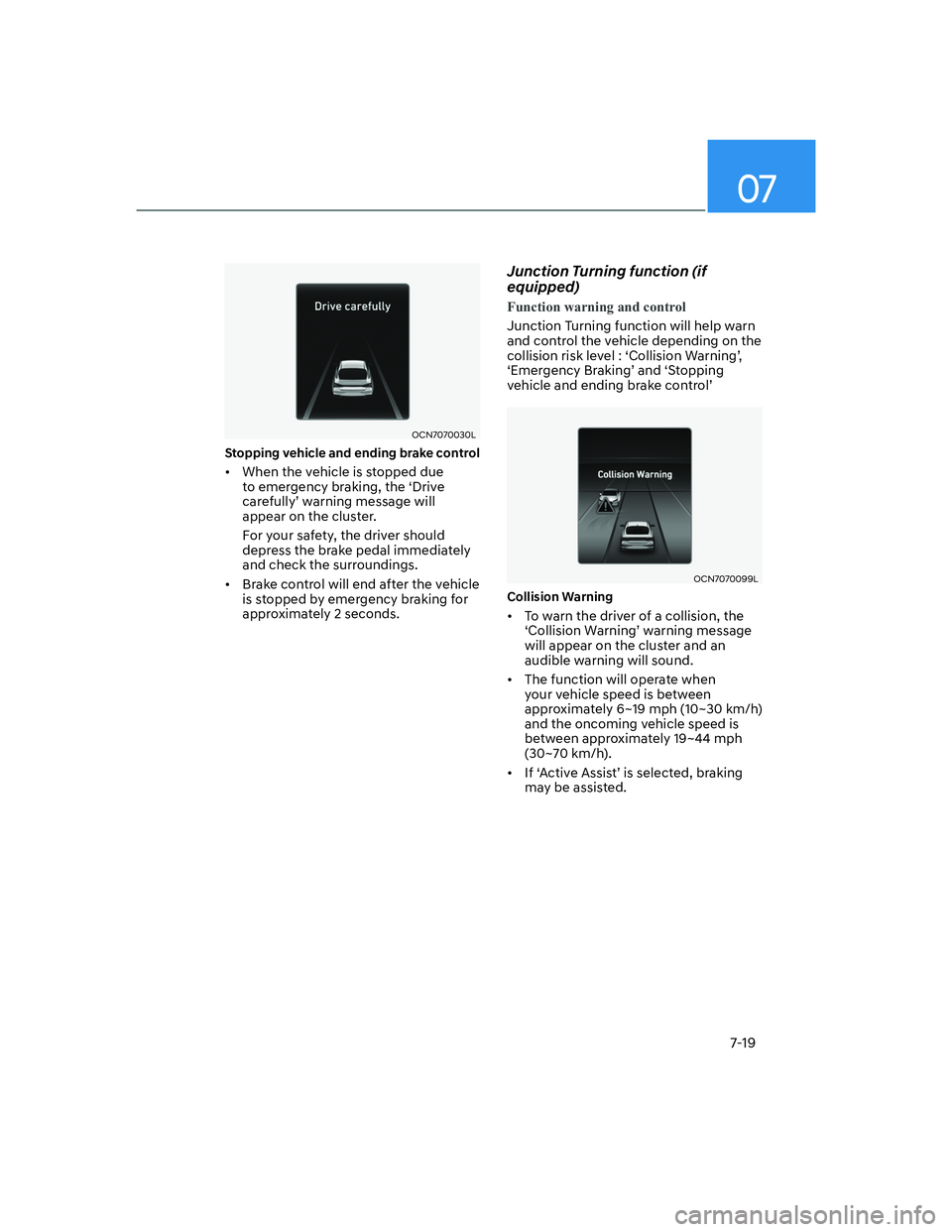

Page 347 of 584
07
7-19
OCN7070030L
Stopping vehicle and ending brake control
[ When the vehicle is stopped due
to emergency braking, the ‘Drive
F D U H I X O O \T Z D U Q L Q J P H V V D J H Z L O O
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
Junction Turning function (if
equipped)
Function warning and control
Junction Turning function will help warn
and control the vehicle depending on the
F R O O L V L R Q U L V N O H Y H O S & R O O L V L R Q : D U Q L Q JT
S ( P H U J H Q F \ % U D N L Q JT D Q G S 6 W R S S L Q J
Y H K L F O H D Q G H Q G L Q J E U D N H F R Q W U R OT
OCN7070099L
Collision Warning
[ To warn the driver of a collision, the
S & R O O L V L R Q : D U Q L Q JT Z D U Q L Q J P H V V D J H
will appear on the cluster and an
audible warning will sound.
[ The function will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming vehicle speed is
between approximately 19~44 mph
(30~70 km/h).
[ , I S $ F W L Y H $ V V L V WT L V V H O H F W H G E U D N L Q J
may be assisted.

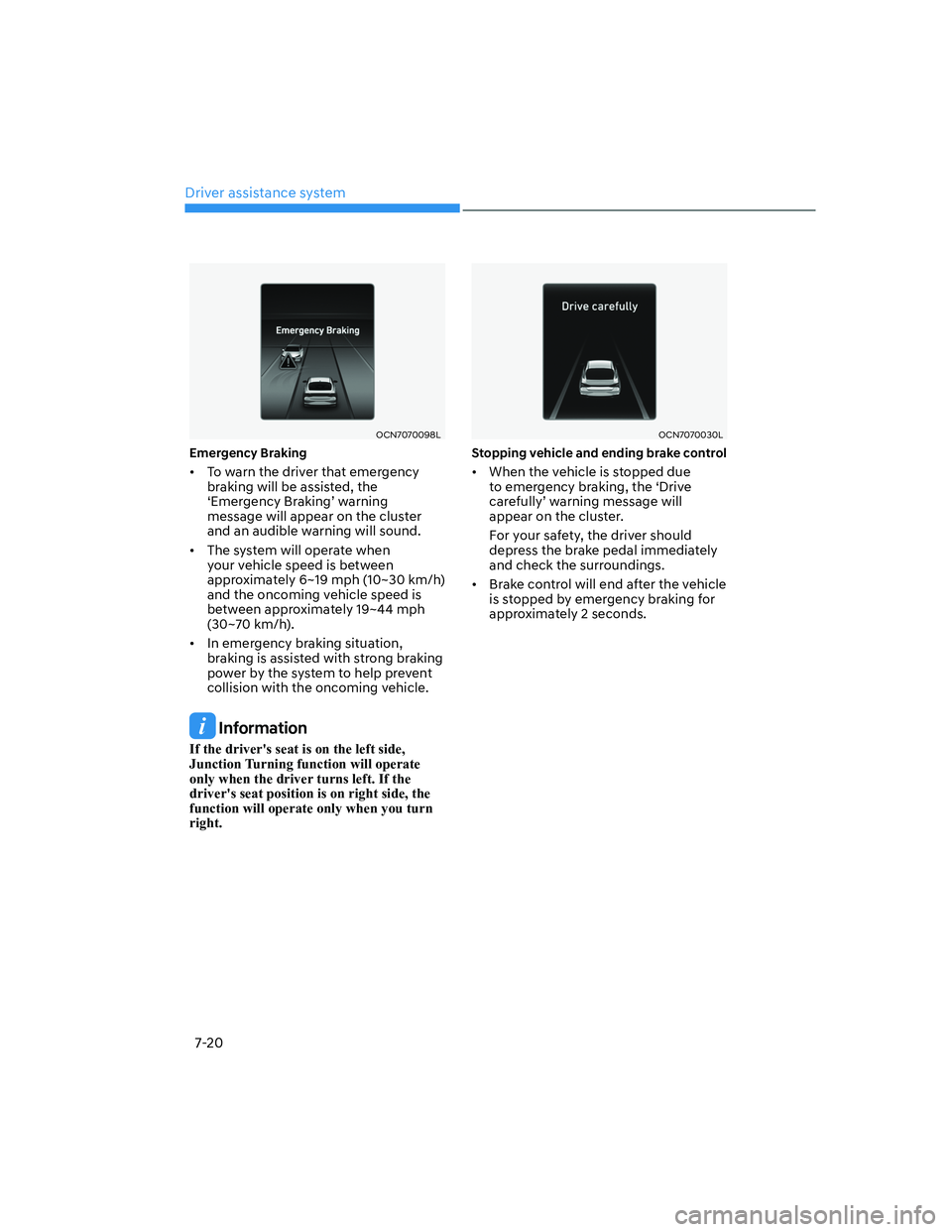

Page 348 of 584
Driver assistance system
7-20
OCN7070098L
Emergency Braking
[ To warn the driver that emergency
braking will be assisted, the
S ( P H U J H Q F \ % U D N L Q JT Z D U Q L Q J
message will appear on the cluster
and an audible warning will sound.
[ The system will operate when
your vehicle speed is between
approximately 6~19 mph (10~30 km/h)
and the oncoming vehicle speed is
between approximately 19~44 mph
(30~70 km/h).
[ In emergency braking situation,
braking is assisted with strong braking
power by the system to help prevent
collision with the oncoming vehicle.
Information
If the driver's seat is on the left side,
Junction Turning function will operate
only when the driver turns left. If the
driver's seat position is on right side, the
function will operate only when you turn
right.
OCN7070030L
Stopping vehicle and ending brake control
[ When the vehicle is stopped due
to emergency braking, the ‘Drive
F D U H I X O O \T Z D U Q L Q J P H V V D J H Z L O O
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
Page 349 of 584
07
7-21
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:
[ For your safety, change the Settings
after parking the vehicle at a safe
location.
[ With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button for more than 3 seconds,
Forward Collision-Avoidance Assist
will turn off automatically. In this
case, the function cannot be set
from the Settings menu and the
warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
[ Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.
[ The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.
[ Never deliberately operate Forward
Collision-Avoidance Assist on people,
animal, objects, etc. It may cause
serious injury or death.
[ Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.[ Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.
[ During Forward Collision-Avoidance
Assist operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.
[ If any other function’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.
[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.
[ Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.
WARNING
[ Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate normally.
[ During emergency braking,
braking control by the function
will automatically cancel when the
driver excessively depresses the
accelerator pedal or sharply steers
the vehicle.
Page 350 of 584

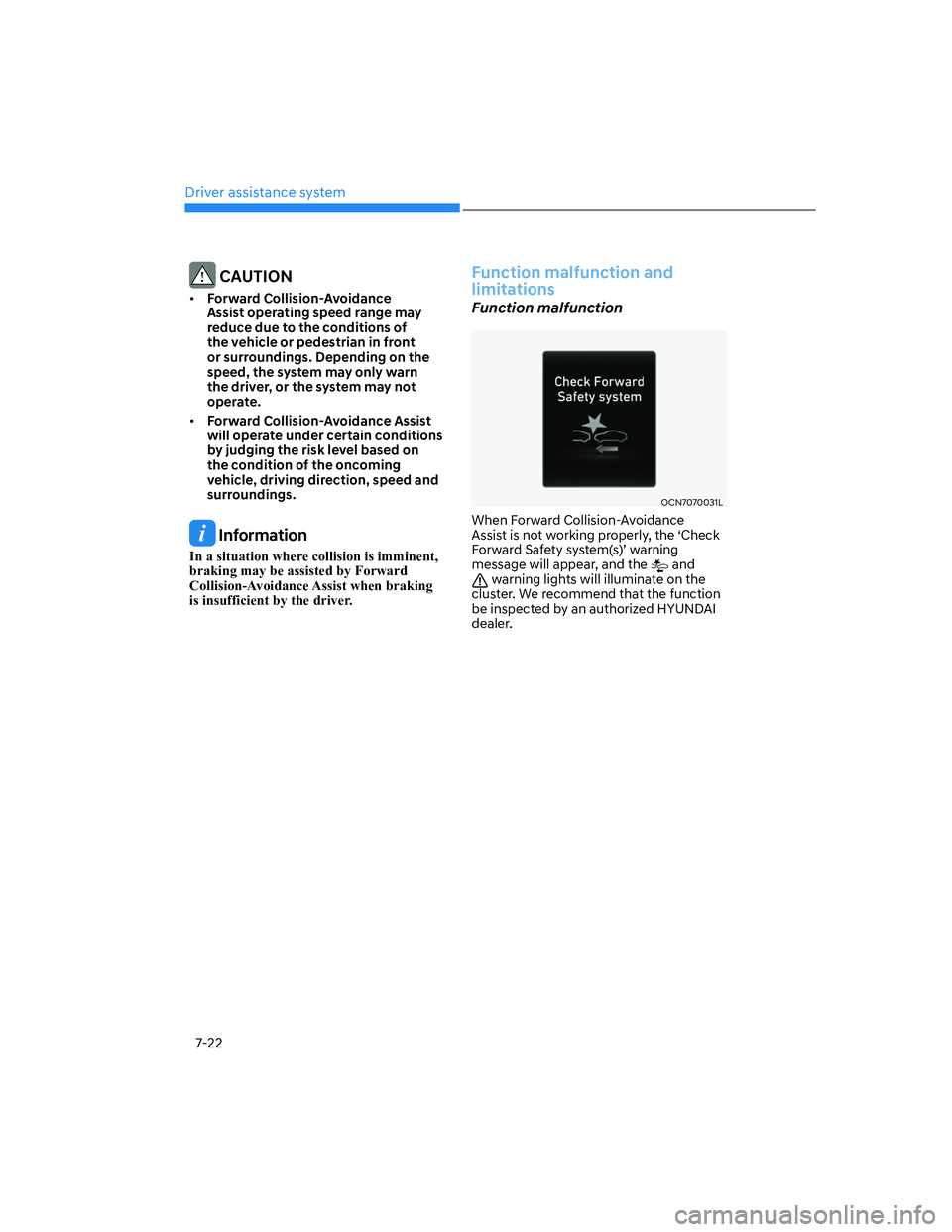

Driver assistance system
7-22
CAUTION
[ Forward Collision-Avoidance
Assist operating speed range may
reduce due to the conditions of
the vehicle or pedestrian in front
or surroundings. Depending on the
speed, the system may only warn
the driver, or the system may not
operate.
[ Forward Collision-Avoidance Assist
will operate under certain conditions
by judging the risk level based on
the condition of the oncoming
vehicle, driving direction, speed and
surroundings.
Information
In a situation where collision is imminent,
braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
Function malfunction and
limitations
Function malfunction
OCN7070031L
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
) R U Z D U G 6 D I H W \ V \ V W H P V T Z D U Q L Q J
message will appear, and the
and warning lights will illuminate on the
cluster. We recommend that the function
be inspected by an authorized HYUNDAI
dealer.
