Maintenance
9-44

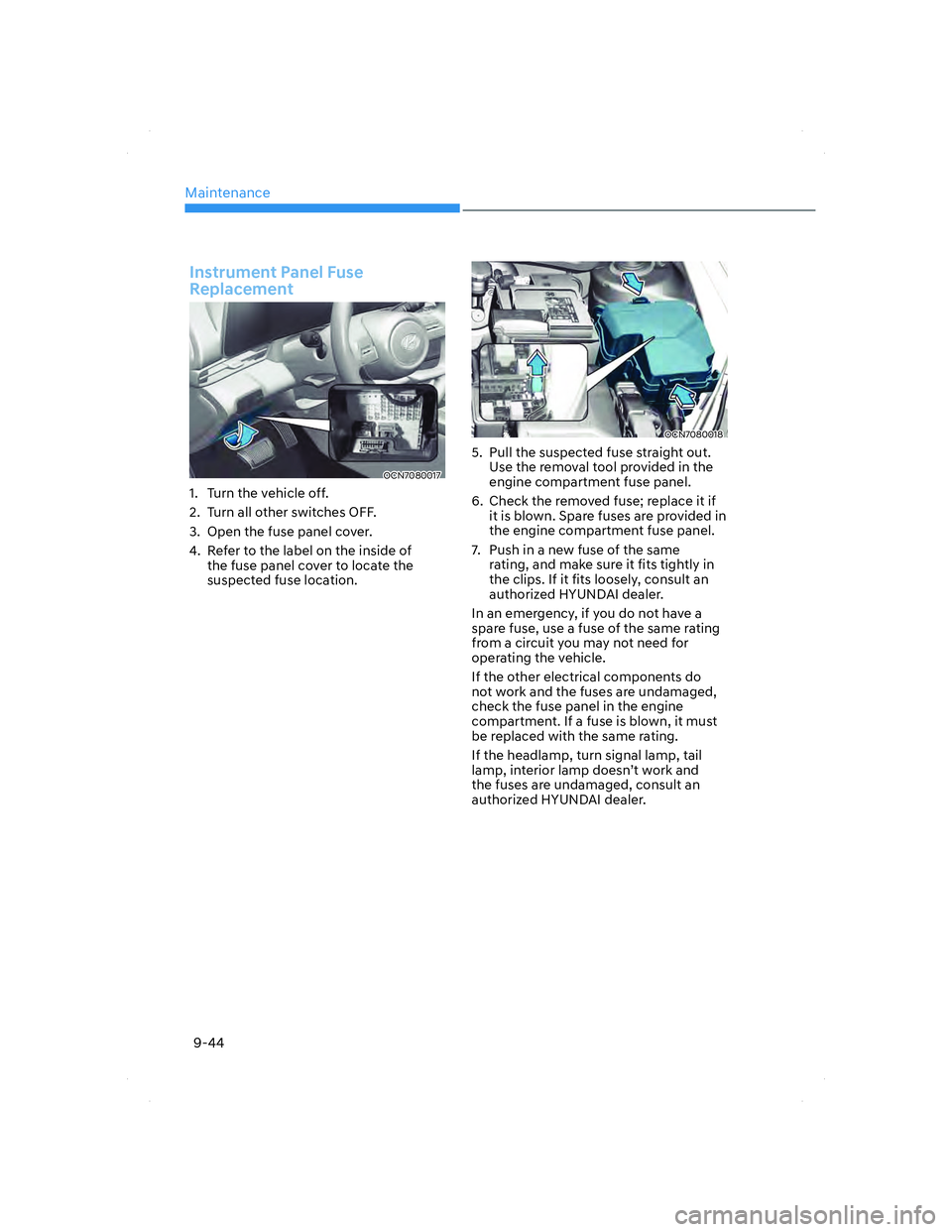

Instrument Panel Fuse
Replacement
OCN7080017OCN7080017
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OCN7080018OCN7080018
5. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the engine compartment fuse panel.
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the other electrical components do
not work and the fuses are undamaged,
check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced with the same rating.
If the headlamp, turn signal lamp, tail
lamp, interior lamp doesn’t work and
the fuses are undamaged, consult an
authorized HYUNDAI dealer.
CN7 HMA 9.indd 9-442020-12-03 9:42:27

09
9-45

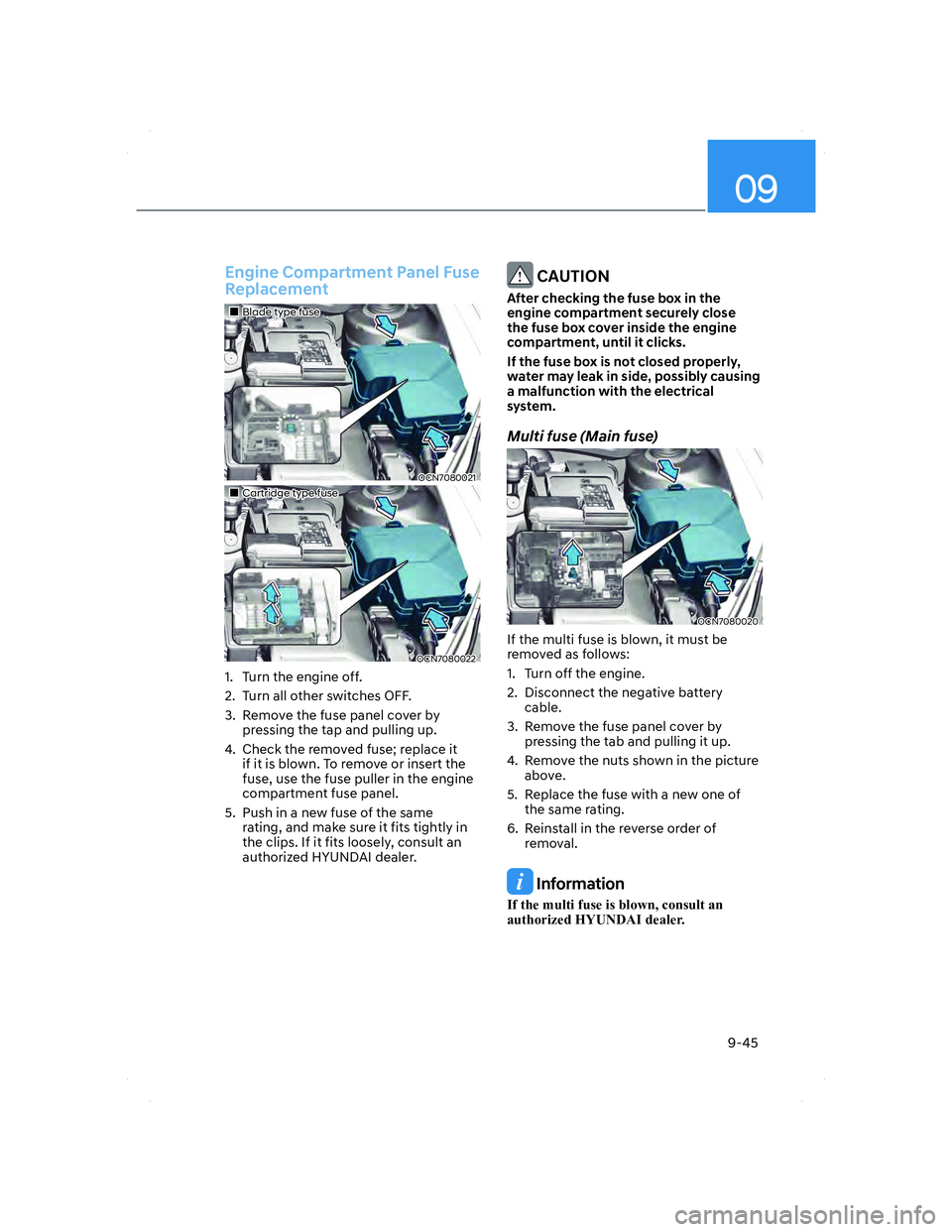

Engine Compartment Panel Fuse
Replacement
„„Blade type fuseBlade type fuse
OCN7080021OCN7080021
„„Cartridge type fuseCartridge type fuse
OCN7080022OCN7080022
1. Turn the engine off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in the
engine compartment securely close
the fuse box cover inside the engine
compartment, until it clicks.
If the fuse box is not closed properly,
water may leak in side, possibly causing
a malfunction with the electrical
system.
Multi fuse (Main fuse)
OCN7080020OCN7080020
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
4. Remove the nuts shown in the picture
above.
5. Replace the fuse with a new one of
the same rating.
6. Reinstall in the reverse order of
removal.
Information
,IWKHPXOWLIXVHLVEORZQFRQVXOWDQ
DXWKRUL]HG+<81'$,GHDOHU
CN7 HMA 9.indd 9-452020-12-03 9:42:28

Maintenance
9-46
OCN7N090001NOCN7N090001N

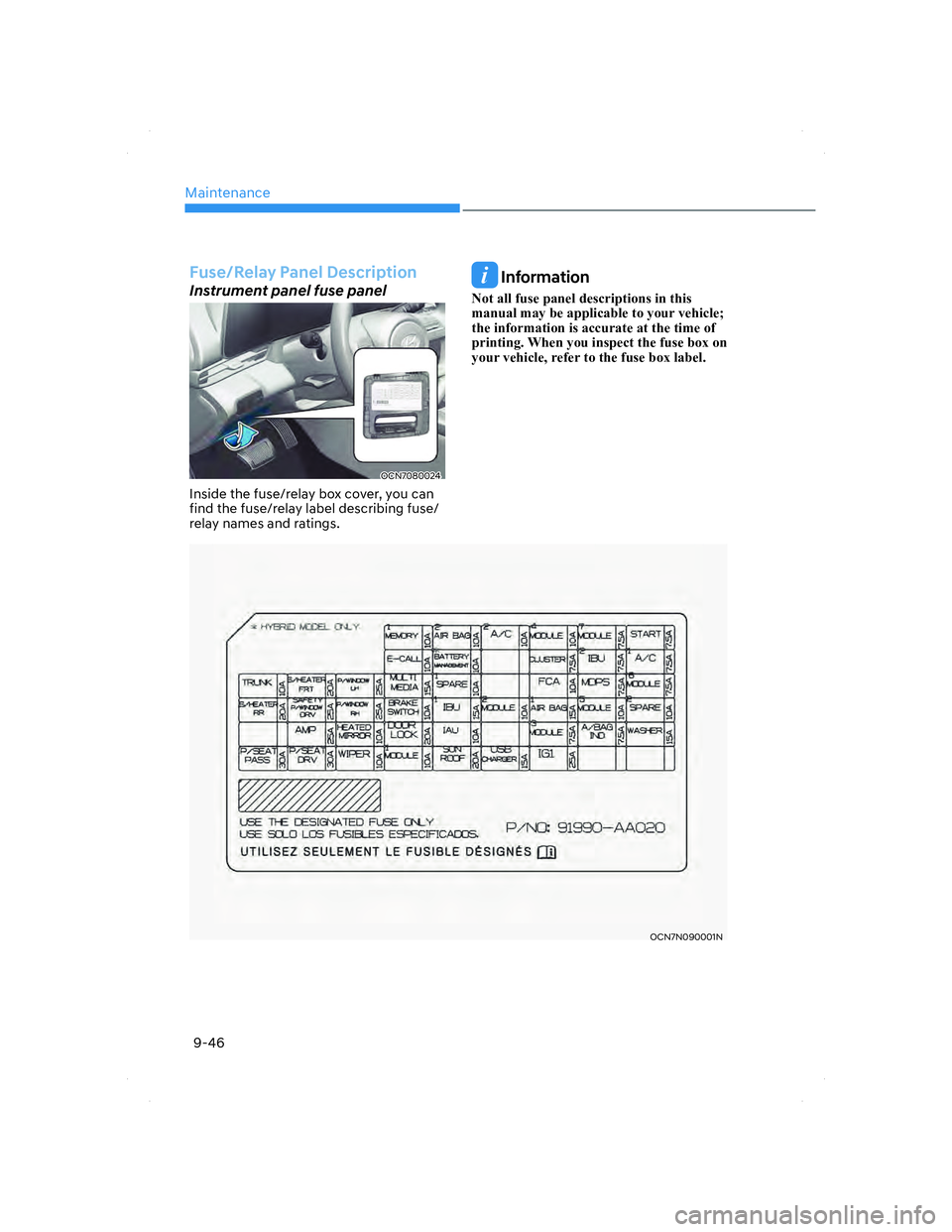

Fuse/Relay Panel Description
Instrument panel fuse panel
OCN7080024OCN7080024
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
1RWDOOIXVHSDQHOGHVFULSWLRQVLQWKLV
PDQXDOPD\EHDSSOLFDEOHWR\RXUYHKLFOH
WKHLQIRUPDWLRQLVDFFXUDWHDWWKHWLPHRI
SULQWLQJ:KHQ\RXLQVSHFWWKHIXVHER[RQ
\RXUYHKLFOHUHIHUWRWKHIXVHER[ODEHO
CN7 HMA 9.indd 9-462020-12-03 9:42:29

09
9-47

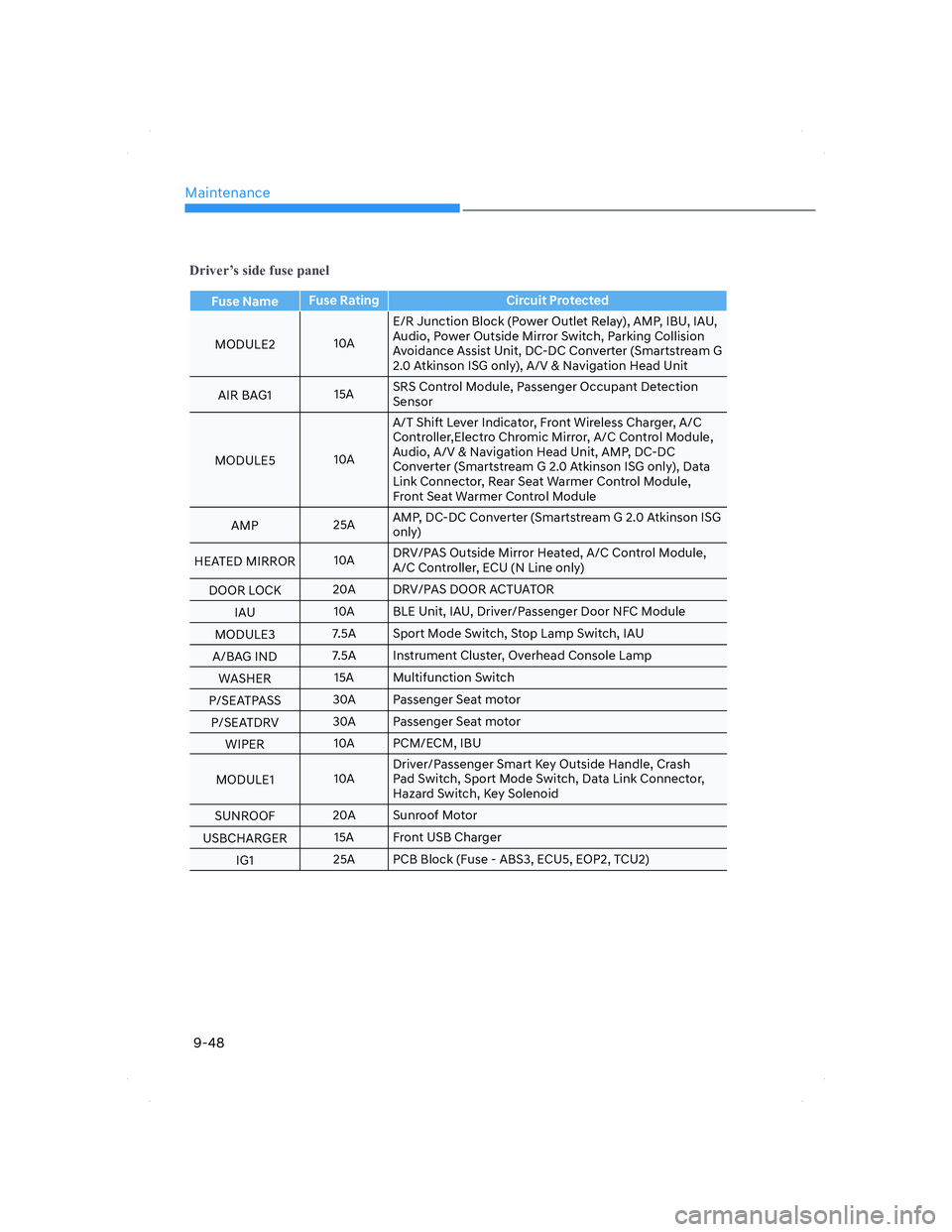

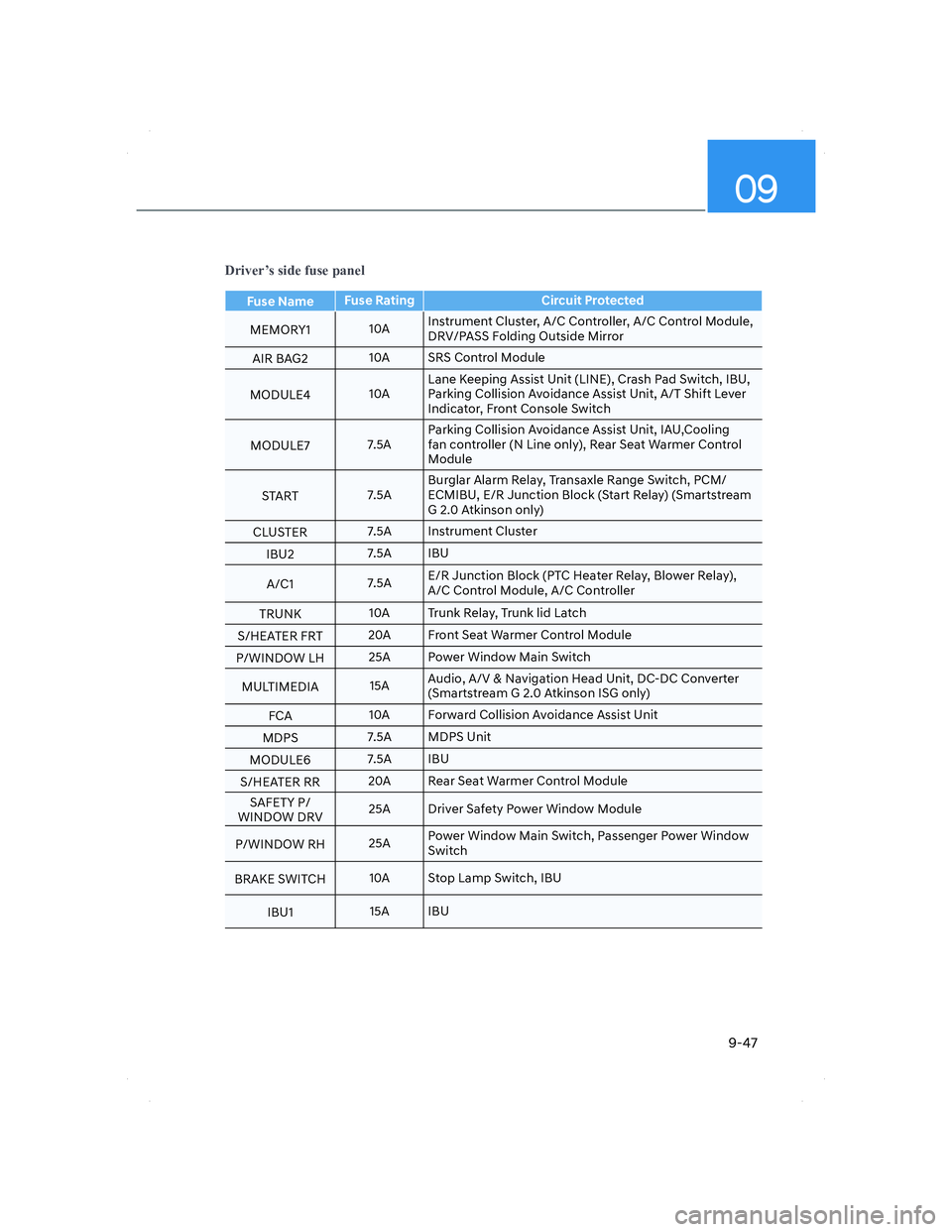

'ULYHU

Maintenance
9-48
'ULYHU

09
9-49
OCN7090014NOCN7090014N

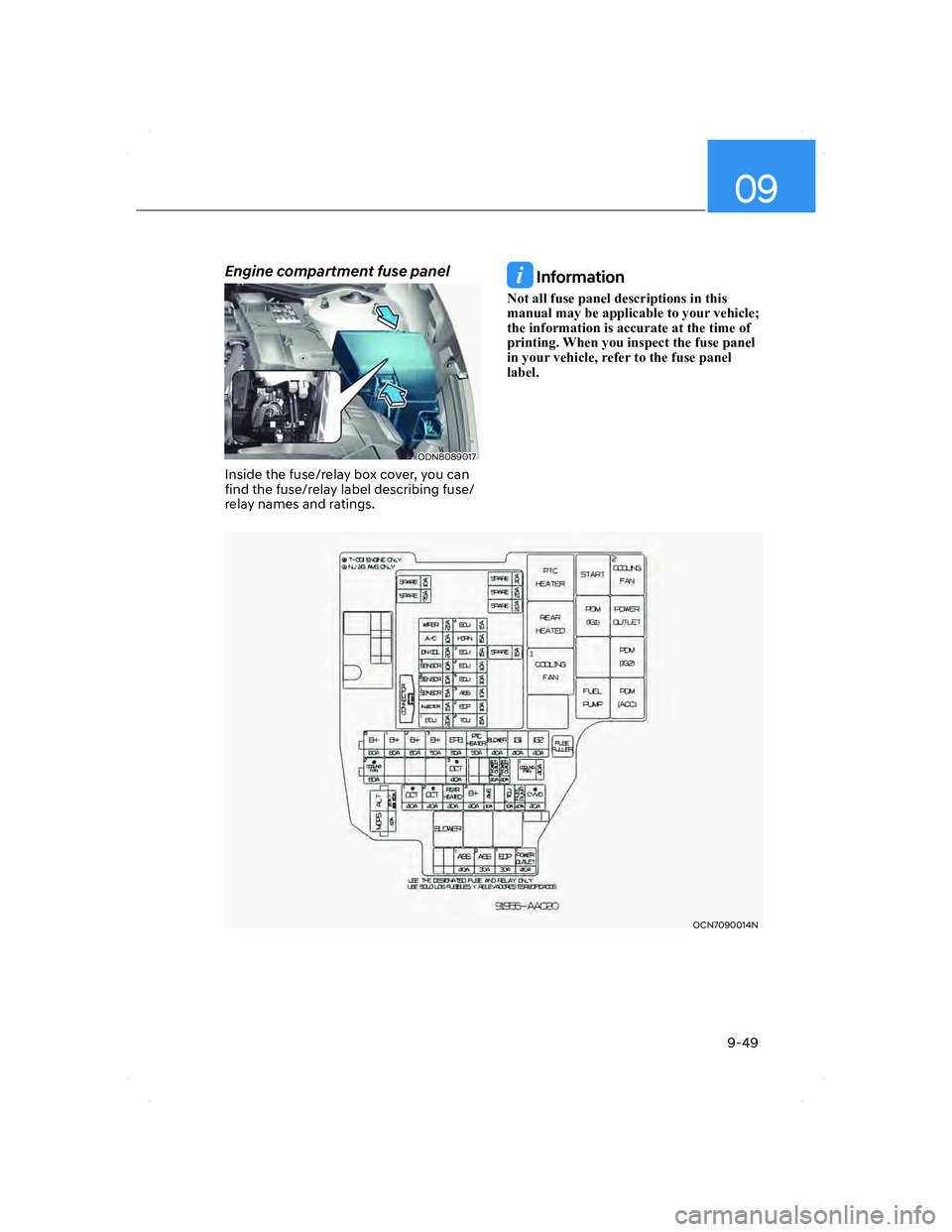

Engine compartment fuse panel
ODN8089017ODN8089017
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
1RWDOOIXVHSDQHOGHVFULSWLRQVLQWKLV
PDQXDOPD\EHDSSOLFDEOHWR\RXUYHKLFOH
WKHLQIRUPDWLRQLVDFFXUDWHDWWKHWLPHRI
SULQWLQJ:KHQ\RXLQVSHFWWKHIXVHSDQHO
LQ\RXUYHKLFOHUHIHUWRWKHIXVHSDQHO
ODEHO
CN7 HMA 9.indd 9-492020-12-03 9:42:31

Maintenance
9-50

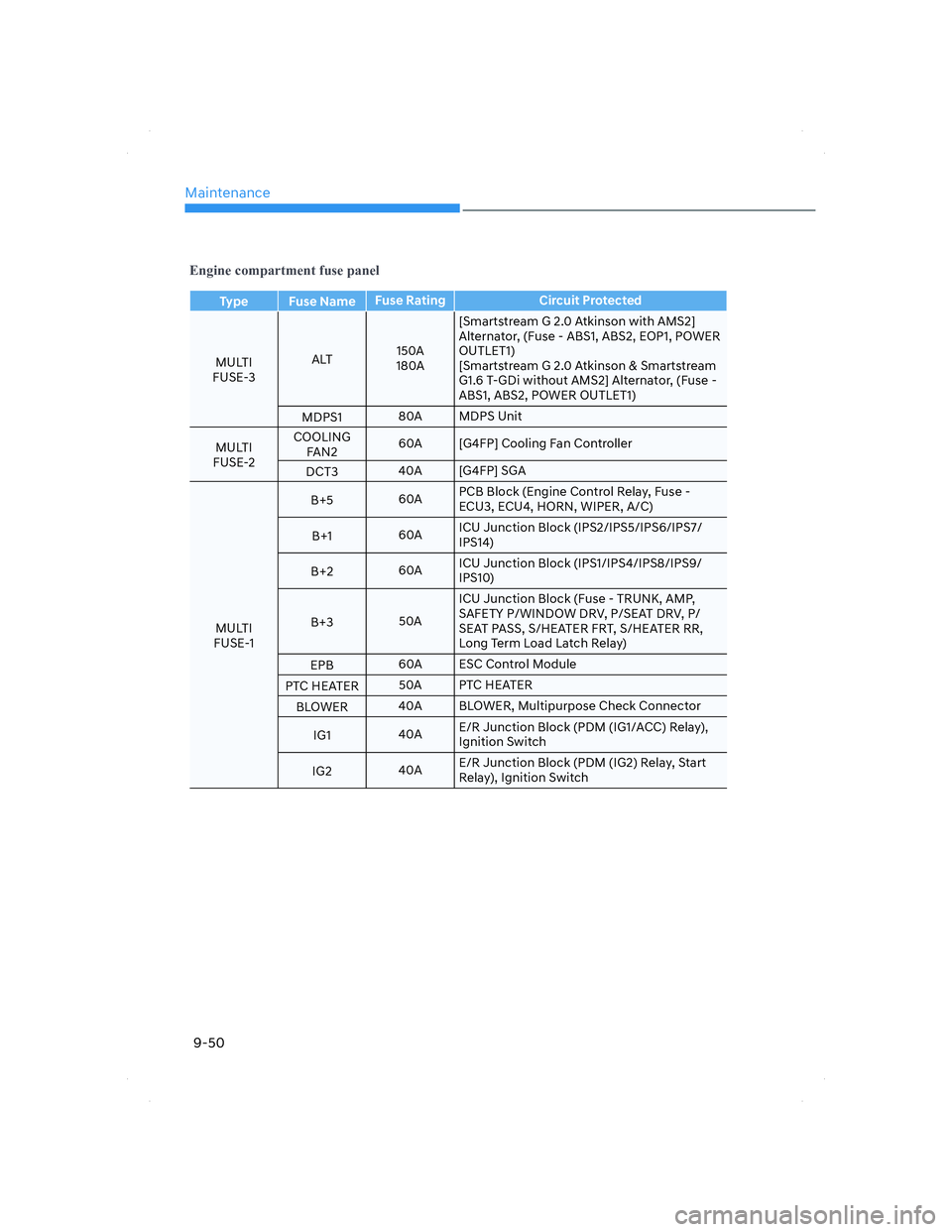

(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-3ALT150A
180A[Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER
OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS180A MDPS Unit
MULTI
FUSE-2COOLING
FAN260A [G4FP] Cooling Fan Controller
DCT340A [G4FP] SGA
MULTI
FUSE-1B+560APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+160AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+260AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+350AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB60A ESC Control Module
PTC HEATER50A PTC HEATER
BLOWER40A BLOWER, Multipurpose Check Connector
IG140AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG240AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch
CN7 HMA 9.indd 9-502020-12-03 9:42:31

09
9-51

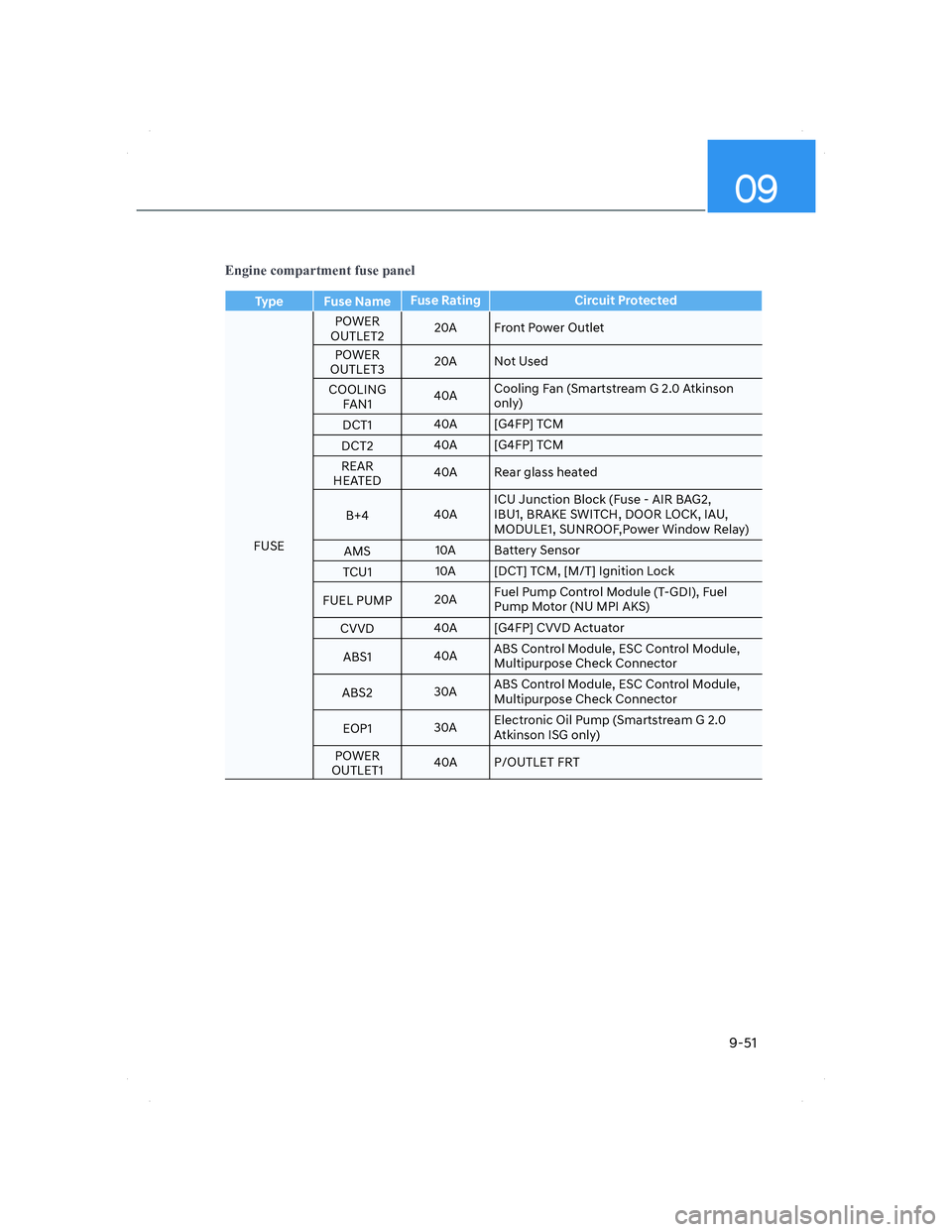

(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
FUSEPOWER
OUTLET220A
Front Power Outlet
POWER
OUTLET320A Not Used
COOLING
FAN140ACooling Fan (Smartstream G 2.0 Atkinson
only)
DCT140A [G4FP] TCM
DCT240A [G4FP] TCM
REAR
HEATED40A Rear glass heated
B+440AICU Junction Block (Fuse - AIR BAG2,
IBU1, BRAKE SWITCH, DOOR LOCK, IAU,
MODULE1, SUNROOF,Power Window Relay)
AMS10A Battery Sensor
TCU110A [DCT] TCM, [M/T] Ignition Lock
FUEL PUMP20AFuel Pump Control Module (T-GDI), Fuel
Pump Motor (NU MPI AKS)
CVVD40A [G4FP] CVVD Actuator
ABS140AABS Control Module, ESC Control Module,
Multipurpose Check Connector
ABS230AABS Control Module, ESC Control Module,
Multipurpose Check Connector
EOP130AElectronic Oil Pump (Smartstream G 2.0
Atkinson ISG only)
POWER
OUTLET140A P/OUTLET FRT
CN7 HMA 9.indd 9-512020-12-03 9:42:31

Maintenance
9-52

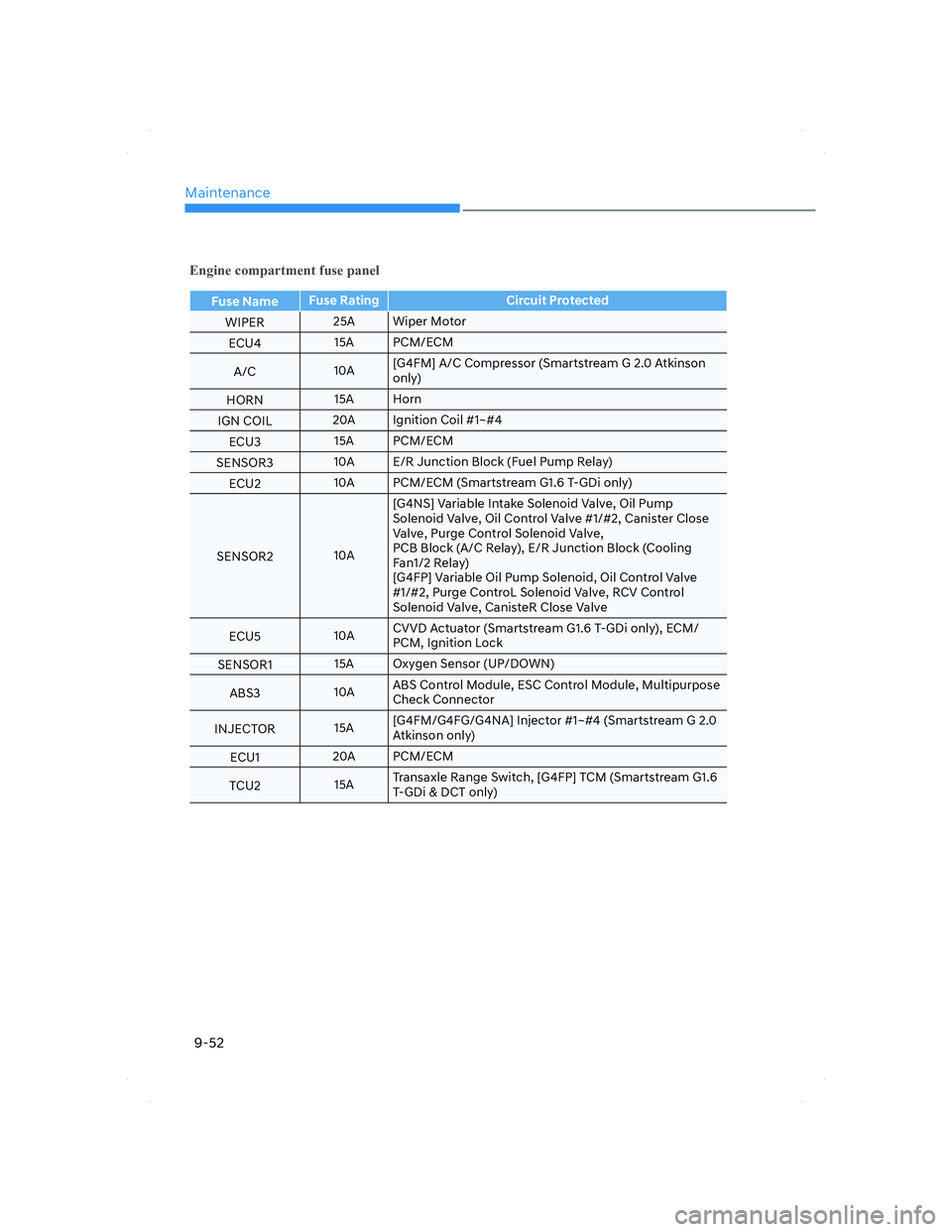

(QJLQHFRPSDUWPHQWIXVHSDQHO
Fuse NameFuse Rating Circuit Protected
WIPER25A Wiper Motor
ECU415A PCM/ECM
A/C10A[G4FM] A/C Compressor (Smartstream G 2.0 Atkinson
only)
HORN15A Horn
IGN COIL20A Ignition Coil #1~#4
ECU315A PCM/ECM
SENSOR310A E/R Junction Block (Fuel Pump Relay)
ECU210A PCM/ECM (Smartstream G1.6 T-GDi only)
SENSOR210A[G4NS] Variable Intake Solenoid Valve, Oil Pump
Solenoid Valve, Oil Control Valve #1/#2, Canister Close
Valve, Purge Control Solenoid Valve,
PCB Block (A/C Relay), E/R Junction Block (Cooling
Fan1/2 Relay)
[G4FP] Variable Oil Pump Solenoid, Oil Control Valve
#1/#2, Purge ControL Solenoid Valve, RCV Control
Solenoid Valve, CanisteR Close Valve
ECU510ACVVD Actuator (Smartstream G1.6 T-GDi only), ECM/
PCM, Ignition Lock
SENSOR115A Oxygen Sensor (UP/DOWN)
ABS310AABS Control Module, ESC Control Module, Multipurpose
Check Connector
INJECTOR15A[G4FM/G4FG/G4NA] Injector #1~#4 (Smartstream G 2.0
Atkinson only)
ECU120A PCM/ECM
TCU215ATransaxle Range Switch, [G4FP] TCM (Smartstream G1.6
T-GDi & DCT only)
CN7 HMA 9.indd 9-522020-12-03 9:42:31

09
9-53
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
7KHKHDGODPSDQGWDLOODPSOHQVHVFRXOG
DSSHDUIURVW\LIWKHYHKLFOHLVZDVKHGDIWHU
GULYLQJRUWKHYHKLFOHLVGULYHQDWQLJKWLQ
ZHWZHDWKHU7KLVFRQGLWLRQLVFDXVHGE\
WHPSHUDWXUHGLIIHUHQFHEHWZHHQWKHODPS
LQVLGHDQGRXWVLGHDQGGRHVQRWLQGLFDWH
DSUREOHPZLWK\RXUYHKLFOH:KHQ
PRLVWXUHFRQGHQVHVLQWKHODPSLWZLOOEH
UHPRYHGDIWHUGULYLQJZLWKWKHKHDGODPS
RQ7KHUHPRYDEOHOHYHOPD\GLIIHU
GHSHQGLQJRQODPSVL]HODPSSRVLWLRQ
DQGHQYLURQPHQWDOFRQGLWLRQ+RZHYHULI
PRLVWXUHLVQRWUHPRYHGKDYHWKHYHKLFOH
LQVSHFWHGE\DQDXWKRUL]HG+<81'$,
GHDOHU
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
• When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.

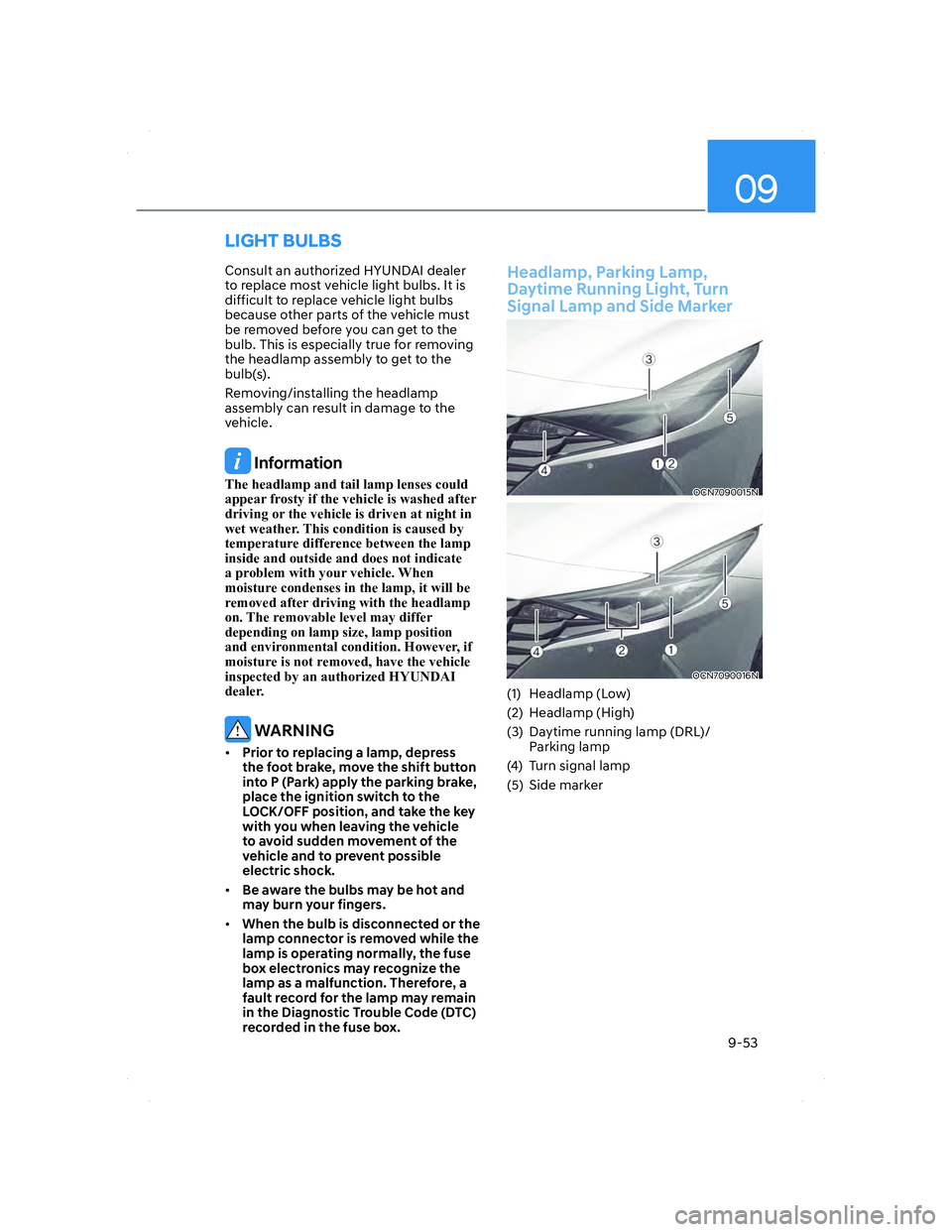

Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015NOCN7090015N
OCN7090016NOCN7090016N
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running lamp (DRL)/
Parking lamp
(4) Turn signal lamp
(5) Side marker
LIGHT BULBS
