Driving Your Vehicle6-52
OIK057086N
The auto start is temporarily deactivated
in the following situations.
When the gear is shifted from N (Neutral)
t
o R (Reverse), D (Drive) or Manual
shift mode without the brake pedal
depressed. A message "Press brake pedal
for Auto Start" will appear on the LCD
display. To activate auto start, depress
the brake pedal.

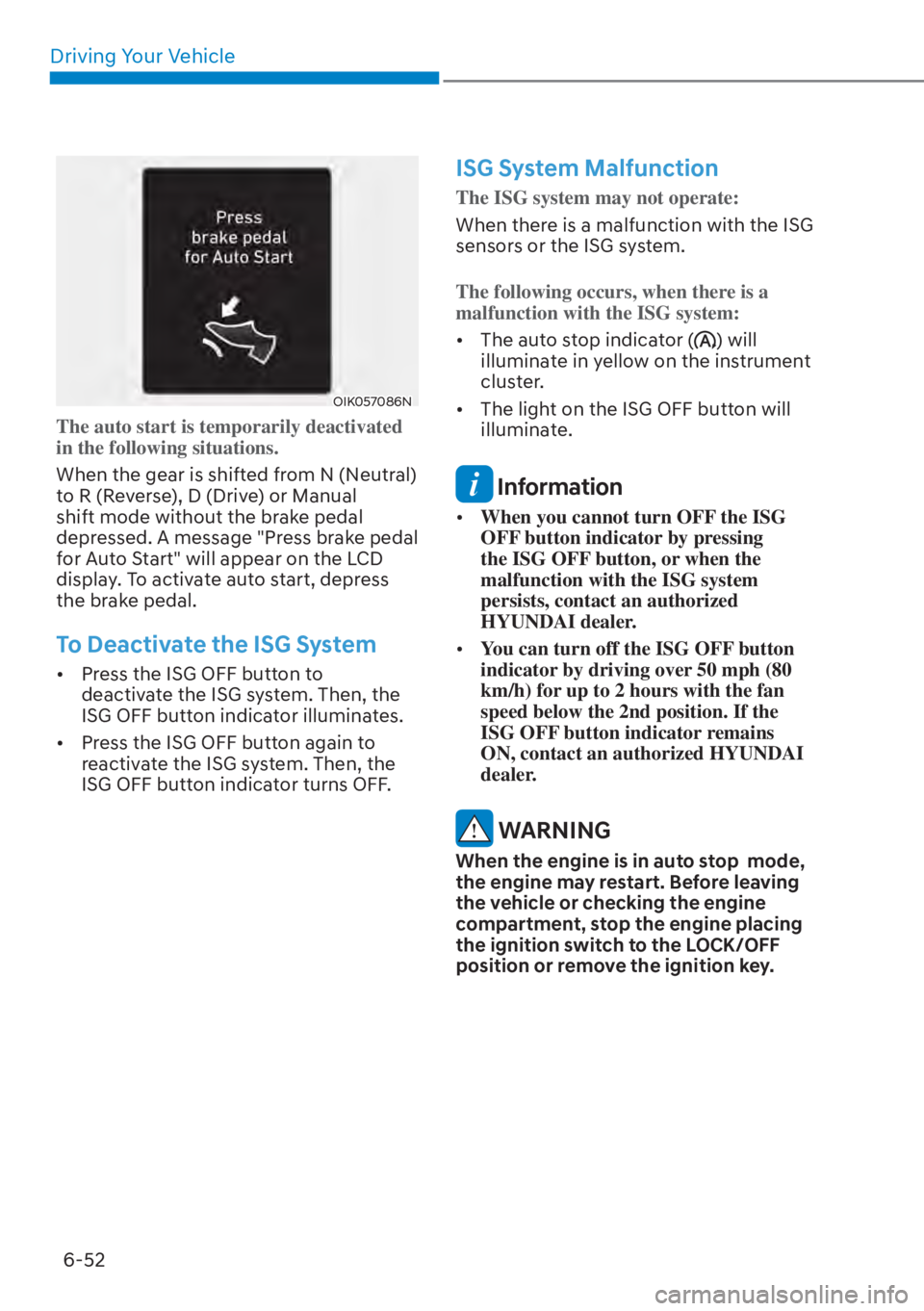

To Deactivate the ISG System

[ Press the ISG OFF button to
deactivate the ISG system. Then, the
ISG OFF button indicator illuminates.

[ Press the ISG OFF button again to
reactivate the ISG system. Then, the
ISG OFF button indicator turns OFF.
ISG System Malfunction
The ISG system may not operate:
When there is a malfunction with the ISG
sensor

s or the ISG system.
The following occurs, when there is a
malfunction with the ISG system:

[ The aut
o stop indicator () will
illuminate in yellow on the instrument
cluster.

[ The light on the ISG OFF button will
illuminate.
Information

[When you cannot turn OFF the ISG
OFF button indicator by pressing
the ISG OFF button, or when the
malfunction with the ISG system
persists, contact an authorized
HYUNDAI dealer.

[ You can turn off the ISG OFF button
indicator by driving over 50 mph (80
km/h) for up to 2 hours with the fan
speed below the 2nd position. If the
ISG OFF button indicator remains
ON, contact an authorized HYUNDAI
dealer.
WARNING
When the engine is in auto stop mode,
the engine may restart. Before leaving
the vehicle or checking the engine
compartment, stop the engine placing
the ignition switch to the LOCK/OFF
position or remove the ignition key.

06
6-53

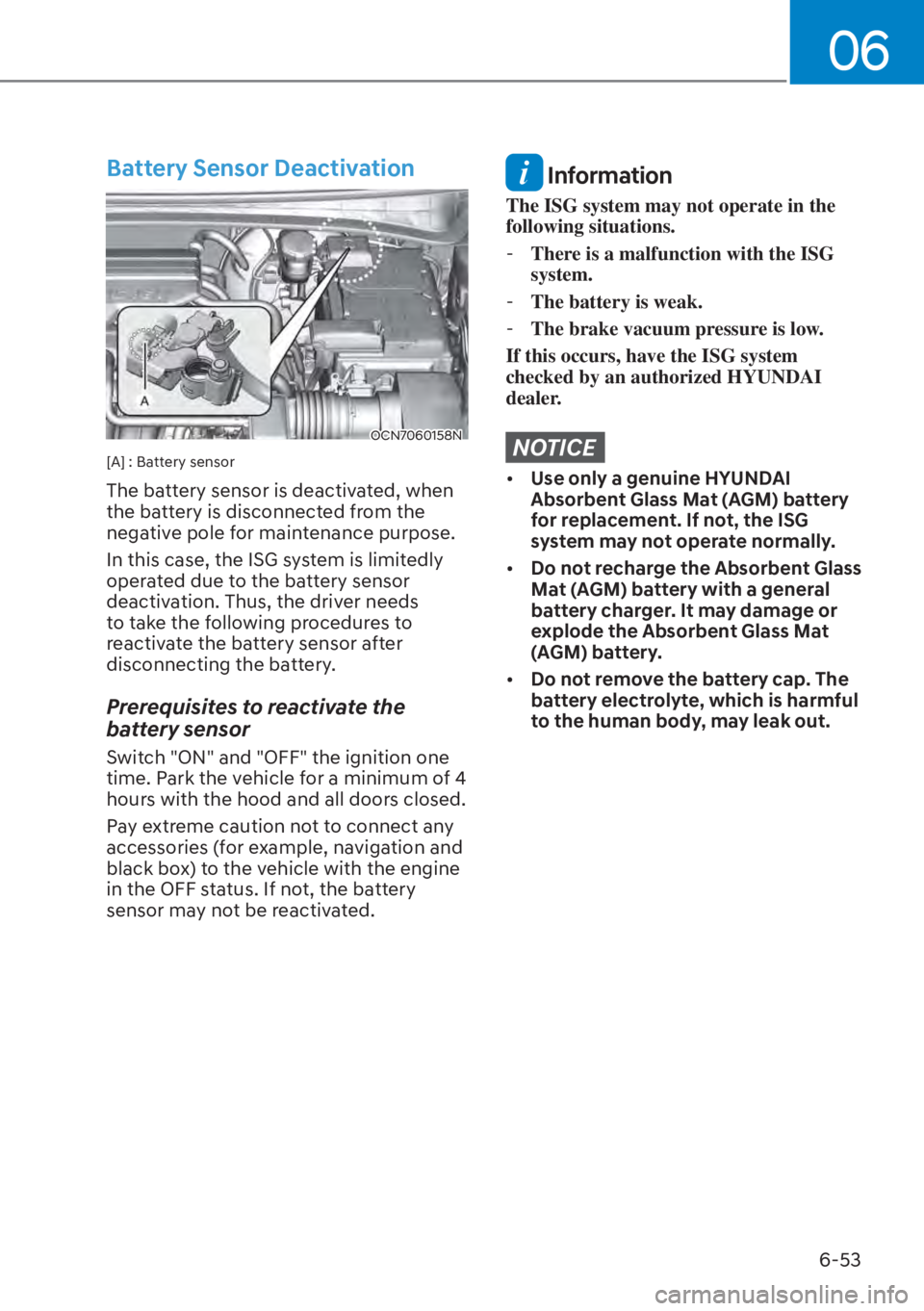

Battery Sensor Deactivation
OCN7060158N
[A] : Battery sensor
The battery sensor is deactivated, when
the battery is disconnected from the
negative pole for maintenance purpose.
In this case, the ISG system is limitedly
operated due to the battery sensor
deactivation. Thus, the driver needs
to take the following procedures to
reactivate the battery sensor after
disconnecting the battery.
Prerequisites to reactivate the
battery sensor
Switch "ON" and "OFF" the ignition one
time. Park the vehicle for a minimum of 4
hours with the hood and all doors closed.
Pay extreme caution not to connect any
accessories (for example, navigation and
black box) to the vehicle with the engine
in the OFF status. If not, the battery
sensor may not be reactivated.
Information
The ISG system may not operate in the
following situations. - There is a malfunction with the ISG
system.
- The battery is weak.
- The brake vacuum pressure is low.
If this occurs, have the ISG system
checked by an authorized HYUNDAI
dealer.
NOTICE

[ Use only a genuine HYUNDAI
Absorbent Glass Mat (AGM) battery
for replacement. If not, the ISG
system may not operate normally.

[ Do not recharge the Absorbent Glass
Mat (AGM) battery with a general
battery charger. It may damage or
explode the Absorbent Glass Mat
(AGM) battery.

[ Do not remove the battery cap. The
battery electrolyte, which is harmful
to the human body, may leak out.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (front view camera only) .................... 7-2
Forward Collision–Avoidance Assist (FCA) (sensor fusion) ................................... 7-14
Lane Keeping Assist (LKA) ........................................................................\
.............. 7-30
Blind-Spot Collision Warning (BCW) ..................................................................... 7-37
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-46
Safe Exit Warning (SEW) ........................................................................\
.................7-60
Manual Speed Limit Assist (MSLA) ........................................................................\
. 7-65
Driver Attention Warning (DAW) ........................................................................\
.....7-68
Driving ConvenienceCruise Control (CC) ........................................................................\
..........................7-74
Smart Cruise Control (SCC) ........................................................................\
........... 7-78
Navigation-based Smart Cruise Control (NSCC) .................................................. 7-95
Lane Following Assist (LFA) ........................................................................\
...........7-102
Highway Driving Assist (HDA) ........................................................................\
...... 7-106
Parking SafetyRear View Monitor (RVM) ........................................................................\
................7-113
Rear Cross-Traffic Collision Warning (RCCW) ....................................................... 7-117
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................ 7-125
Reverse Parking Distance Warning (PDW) ........................................................... 7-135
Reverse Parking Collision-Avoidance Assist (PCA) ..............................................7-138
Declaration of conformity ........................................................................\
..............7-146

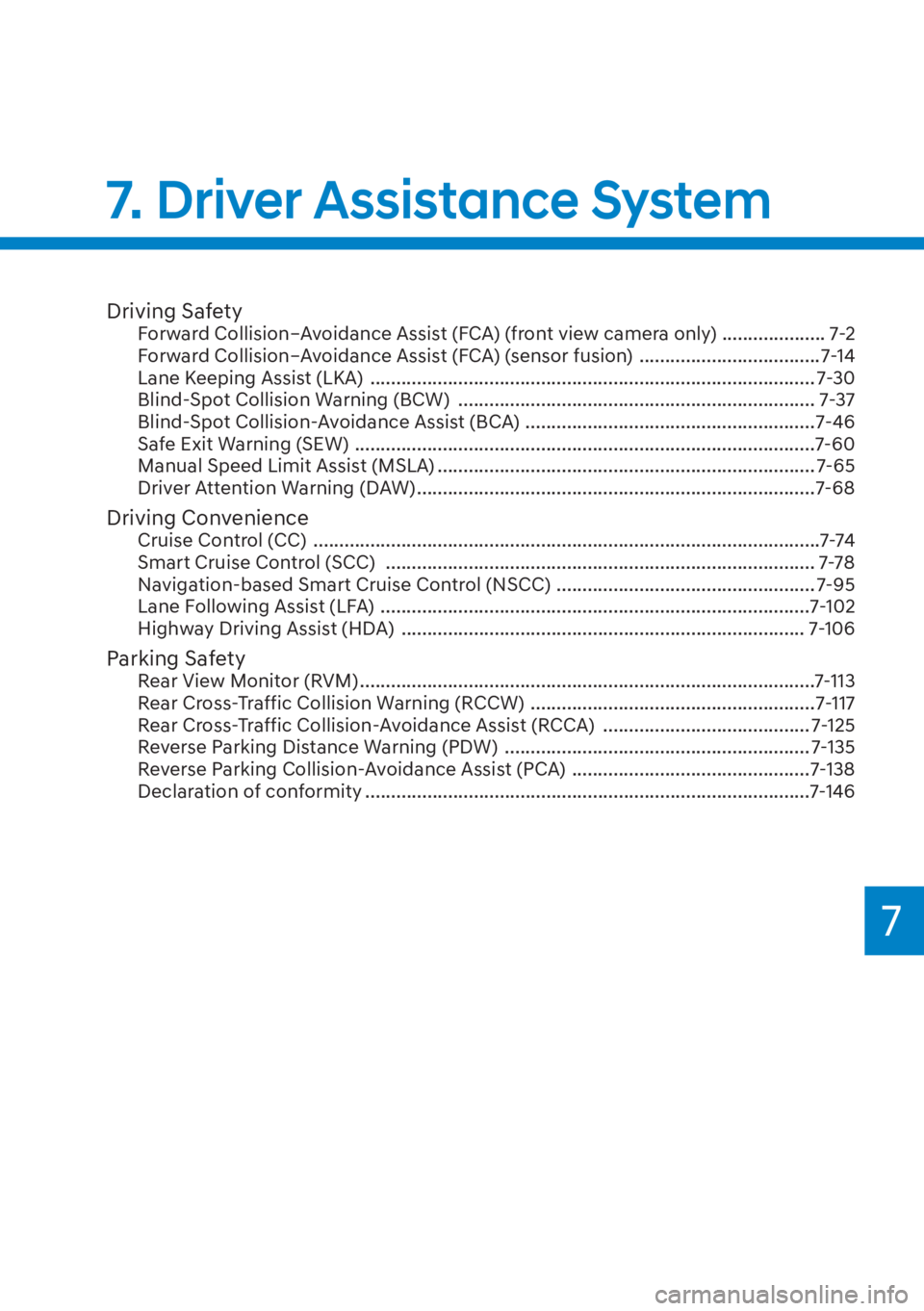

7. Driver Assistance System

Driver Assistance System7-2
Basic function
OCN7C070051

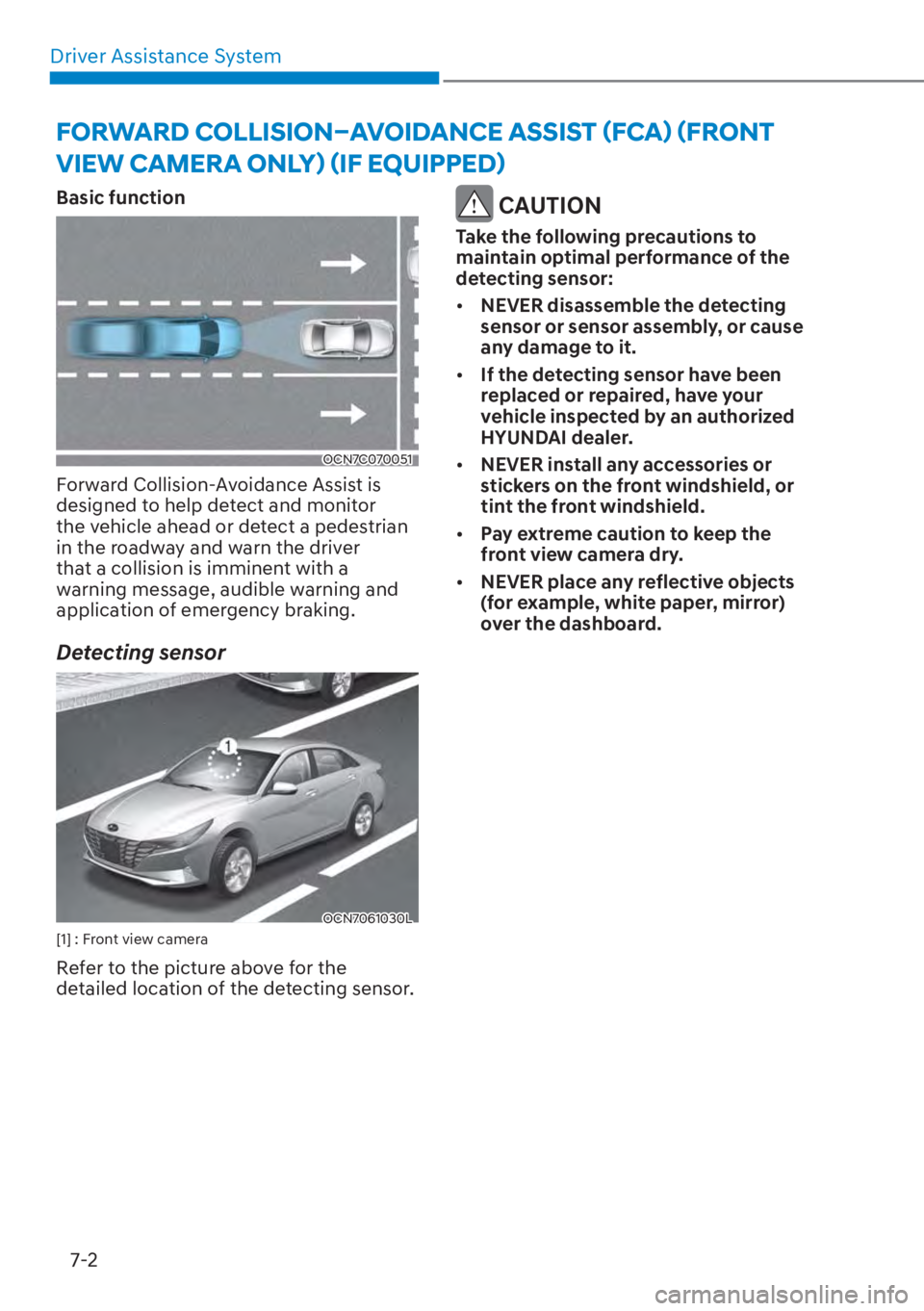

Forward Collision-Avoidance Assist is
designed to help detect and monitor
the vehicle ahead or detect a pedestrian
in the roadway and warn the driver
that a collision is imminent with a
warning message, audible warning and
application of emergency braking.
Detecting sensor
OCN7061030L[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[ NEVER disassemble the detecting
sensor or sensor assembly, or cause
any damage to it.

[ If the detecting sensor have been
replaced or repaired, have your
vehicle inspected by an authorized
HYUNDAI dealer.

[ NEVER install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Pay extreme caution to keep the
front view camera dry.

[ NEVER place any reflective objects
(for example, white paper, mirror)
over the dashboard.
)25:$5'&2//,6,21

Driver Assistance System7-8

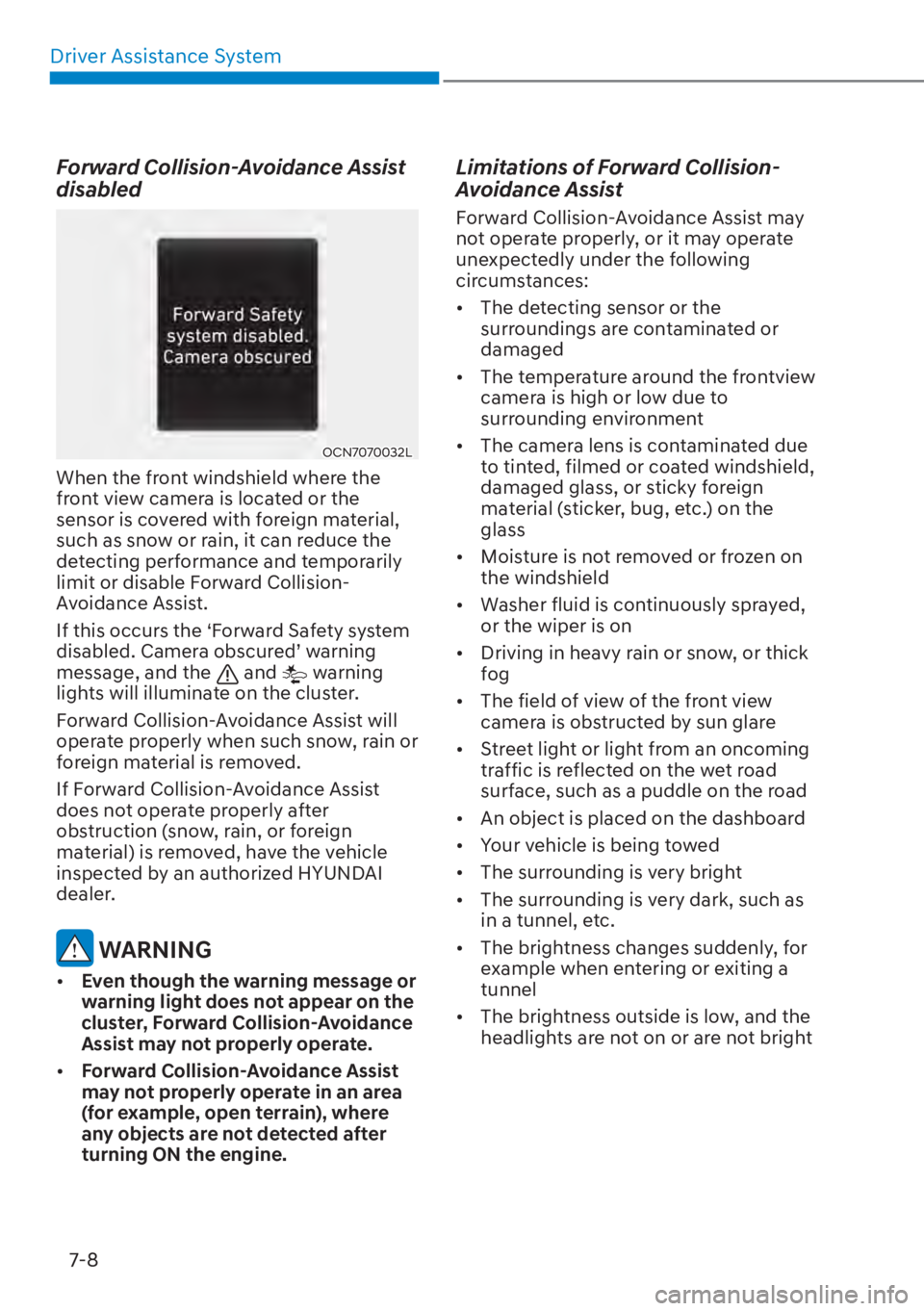

Forward Collision-Avoidance Assist
disabled
OCN7070032L
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TZDUQLQJ
message, and the
and warning
lights will illuminate on the cluster.
Forward Collision-Avoidance Assist will
operate properly when such snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the frontview
camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlights are not on or are not bright

Driver Assistance System7-10

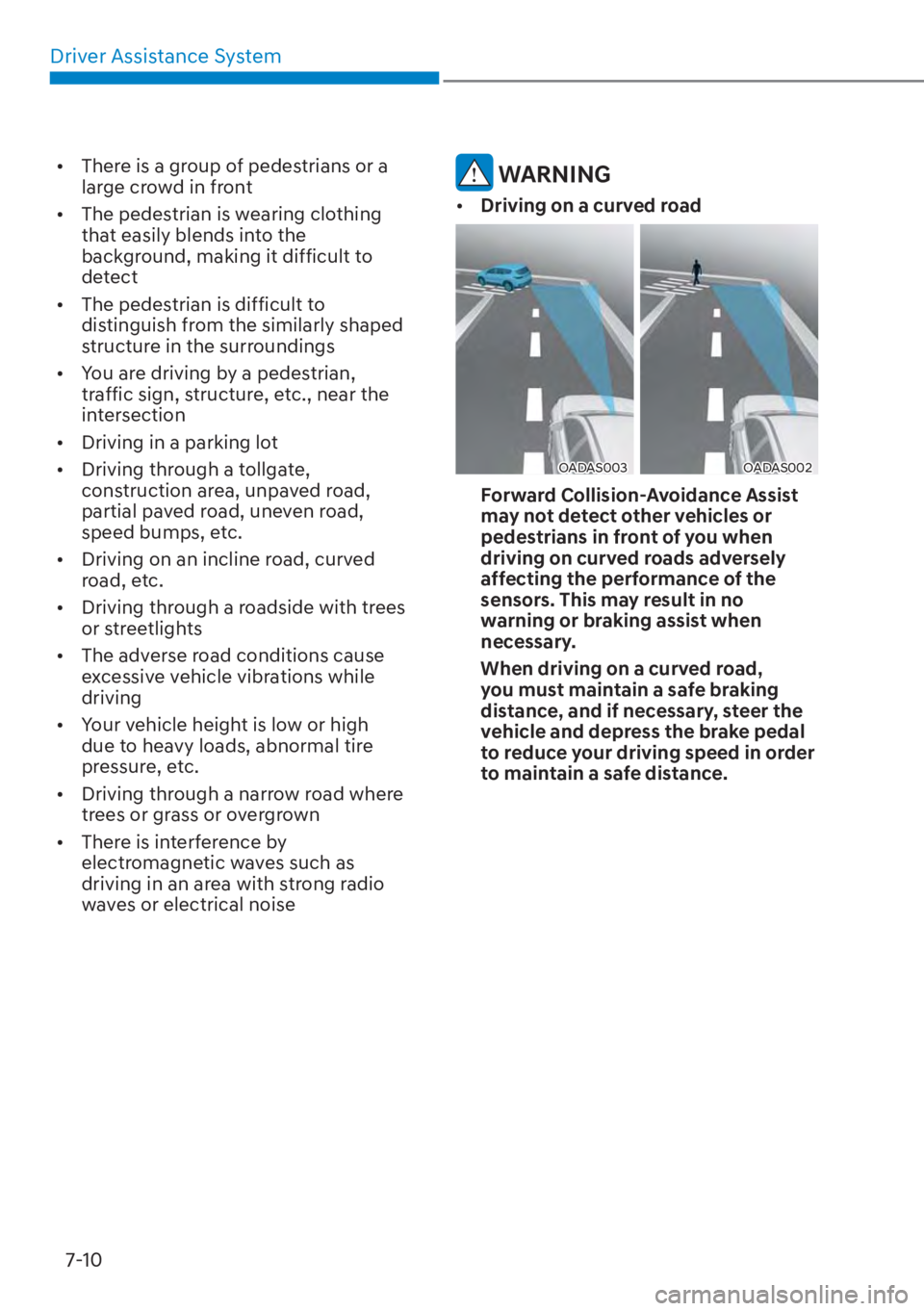

[ There is a group of pedestrians or a
large crowd in front

[ The pedestrian is wearing clothing
that easily blends into the
background, making it difficult to
detect

[ The pedestrian is difficult to
distinguish from the similarly shaped
structure in the surroundings

[ You are driving by a pedestrian,
traffic sign, structure, etc., near the
intersection

[ Driving in a parking lot

[ Driving through a tollgate,
construction area, unpaved road,
partial paved road, uneven road,
speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass or overgrown

[ There is interference by
electromagnetic waves such as
driving in an area with strong radio
waves or electrical noise WARNING

[Driving on a curved road
OADAS003OADAS002
Forward Collision-Avoidance Assist
may not detect other vehicles or
pedestrians in front of you when
driving on curved roads adversely
affecting the performance of the
sensors. This may result in no
warning or braking assist when
necessary.
When driving on a curved road,
you must maintain a safe braking
distance, and if necessary, steer the
vehicle and depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.

07
7-11
OADAS006OADAS005

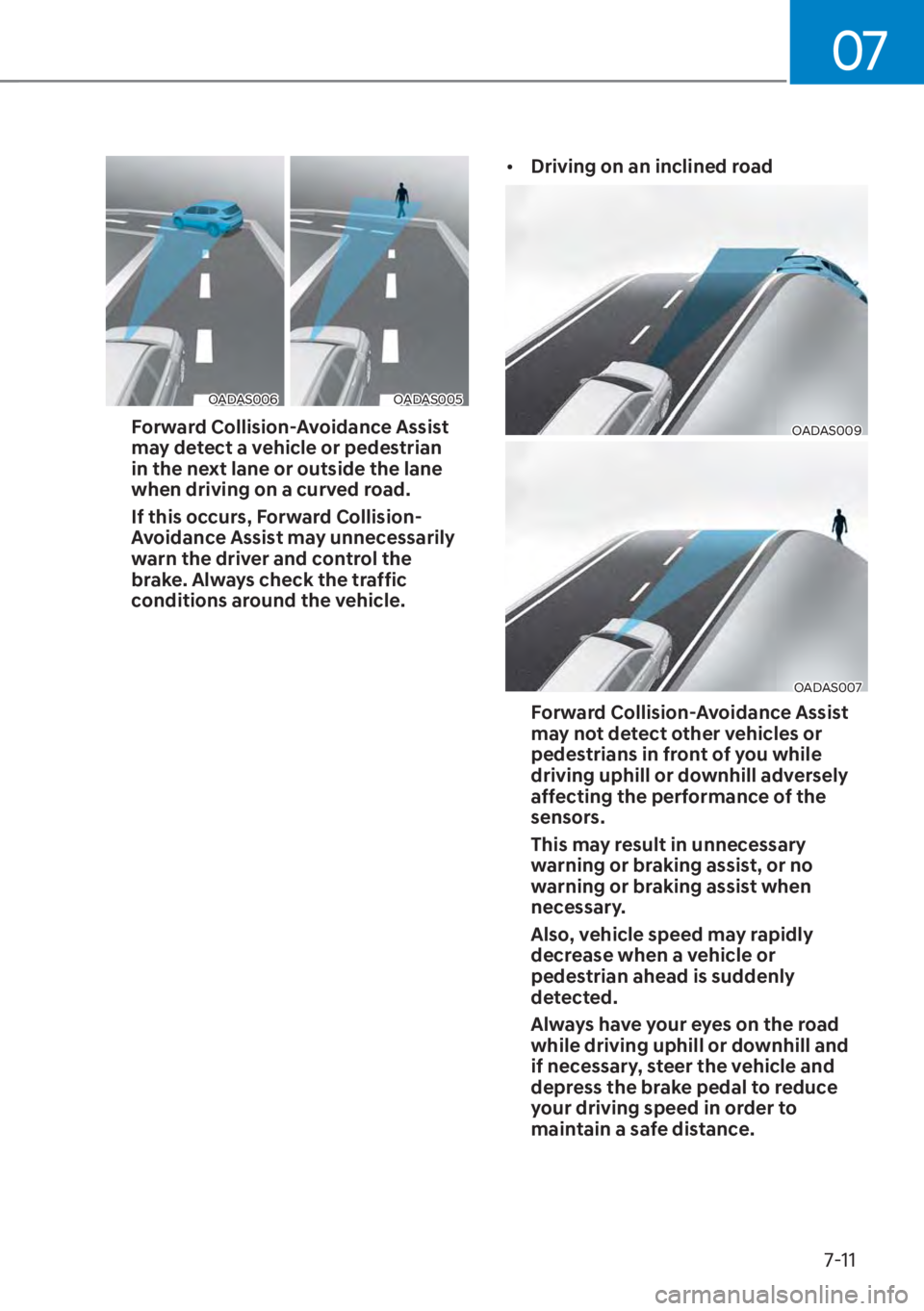

Forward Collision-Avoidance Assist
may detect a vehicle or pedestrian
in the next lane or outside the lane
when driving on a curved road.
If this occurs, Forward Collision-
Avoidance Assist may unnecessarily
warn the driver and control the
brake. Always check the traffic
conditions around the vehicle.
[
Driving on an inclined roadOADAS009
OADAS007
Forward Collision-Avoidance Assist
may not detect other vehicles or
pedestrians in front of you while
driving uphill or downhill adversely
affecting the performance of the
sensors.
This may result in unnecessary
warning or braking assist, or no
warning or braking assist when
necessary.
Also, vehicle speed may rapidly
decrease when a vehicle or
pedestrian ahead is suddenly
detected.
Always have your eyes on the road
while driving uphill or downhill and
if necessary, steer the vehicle and
depress the brake pedal to reduce
your driving speed in order to
maintain a safe distance.

Driver Assistance System7-12

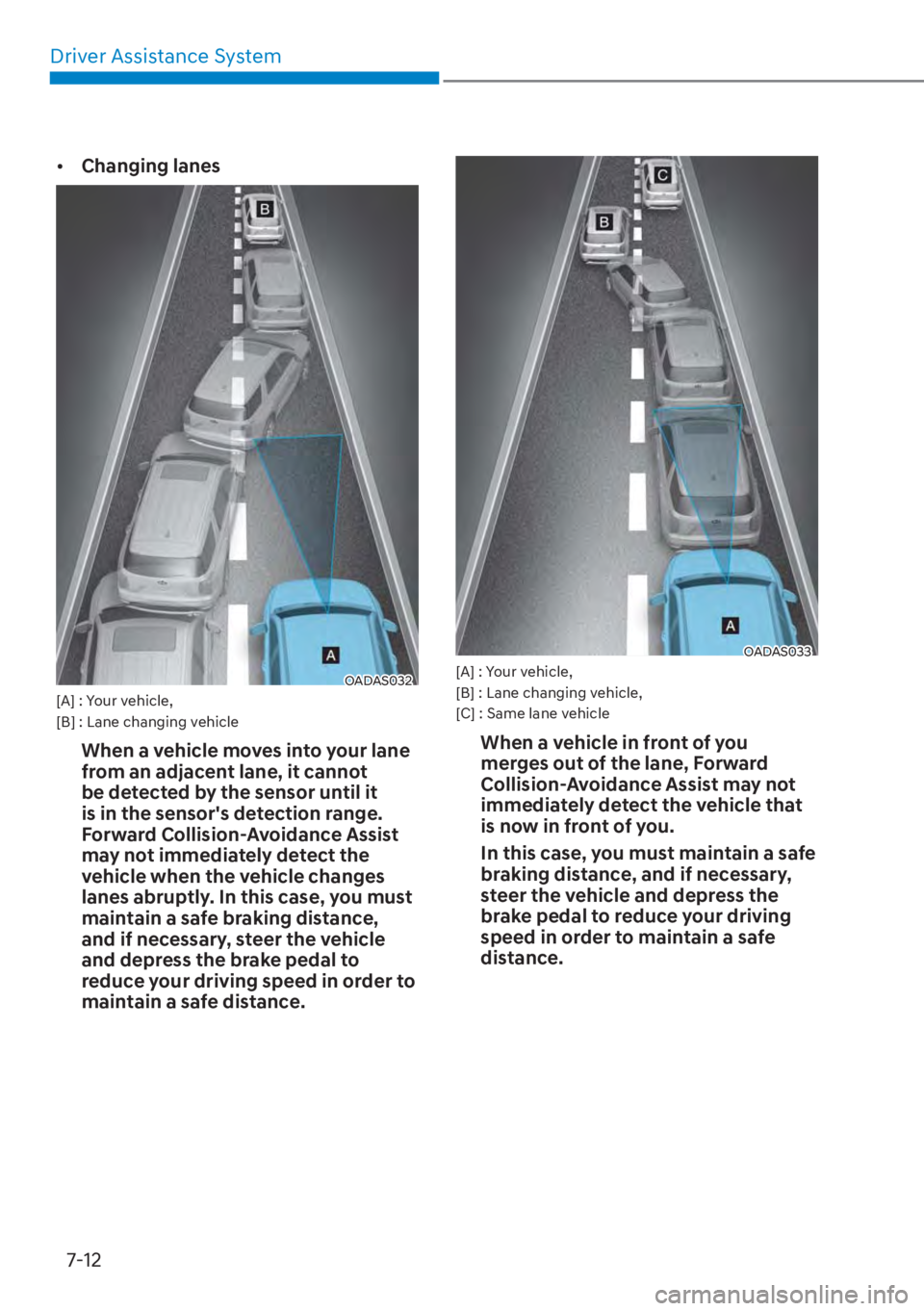

[ Changing lanes
OADAS032[A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
OADAS033[A] : Your vehicle,
[B] : Lane changing vehicle,
[C] : Same lane vehicle
When a vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that
is now in front of you.
In this case, you must maintain a safe
braking distance, and if necessary,
steer the vehicle and depress the
brake pedal to reduce your driving
speed in order to maintain a safe
distance.

07
7-15

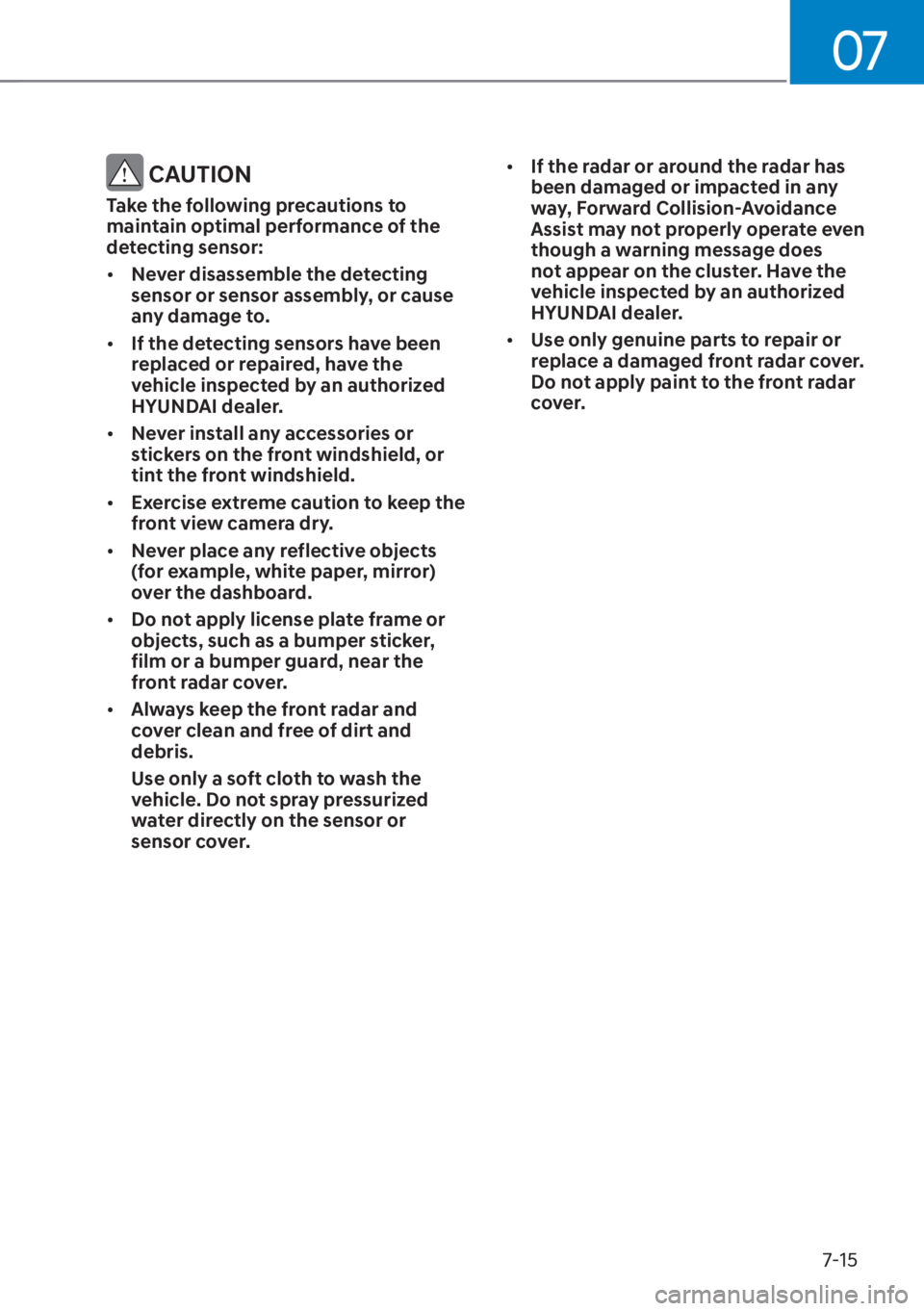

CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or cause
any damage to.

[ If the detecting sensors have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[ Exercise extreme caution to keep the
front view camera dry.

[ Never place any reflective objects
(for example, white paper, mirror)
over the dashboard.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[ Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
[
If the radar or around the radar has
been damaged or impacted in any
way, Forward Collision-Avoidance
Assist may not properly operate even
though a warning message does
not appear on the cluster. Have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.

07
7-23

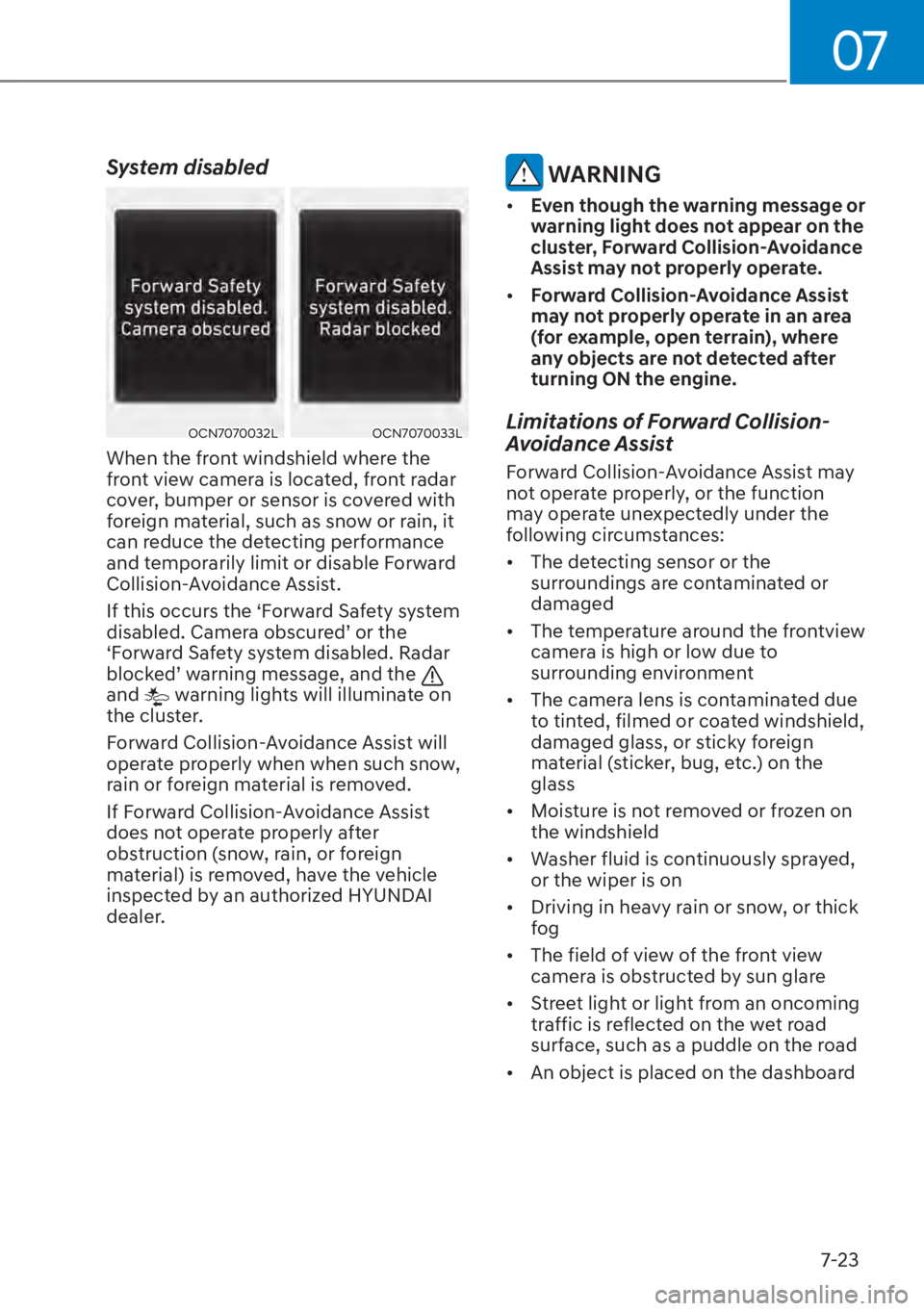

System disabled
OCN7070032LOCN7070033L
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TRUWKH
‘Forward Safety system disabled. Radar
EORFNHG
TZDUQLQJPHVVDJHDQGWKH

and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate properly when when such snow,
rain or foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or the function
may operate unexpectedly under the
following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the frontview
camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard
