HYUNDAI ELANTRA 2023 Owners Manual

09
9-5

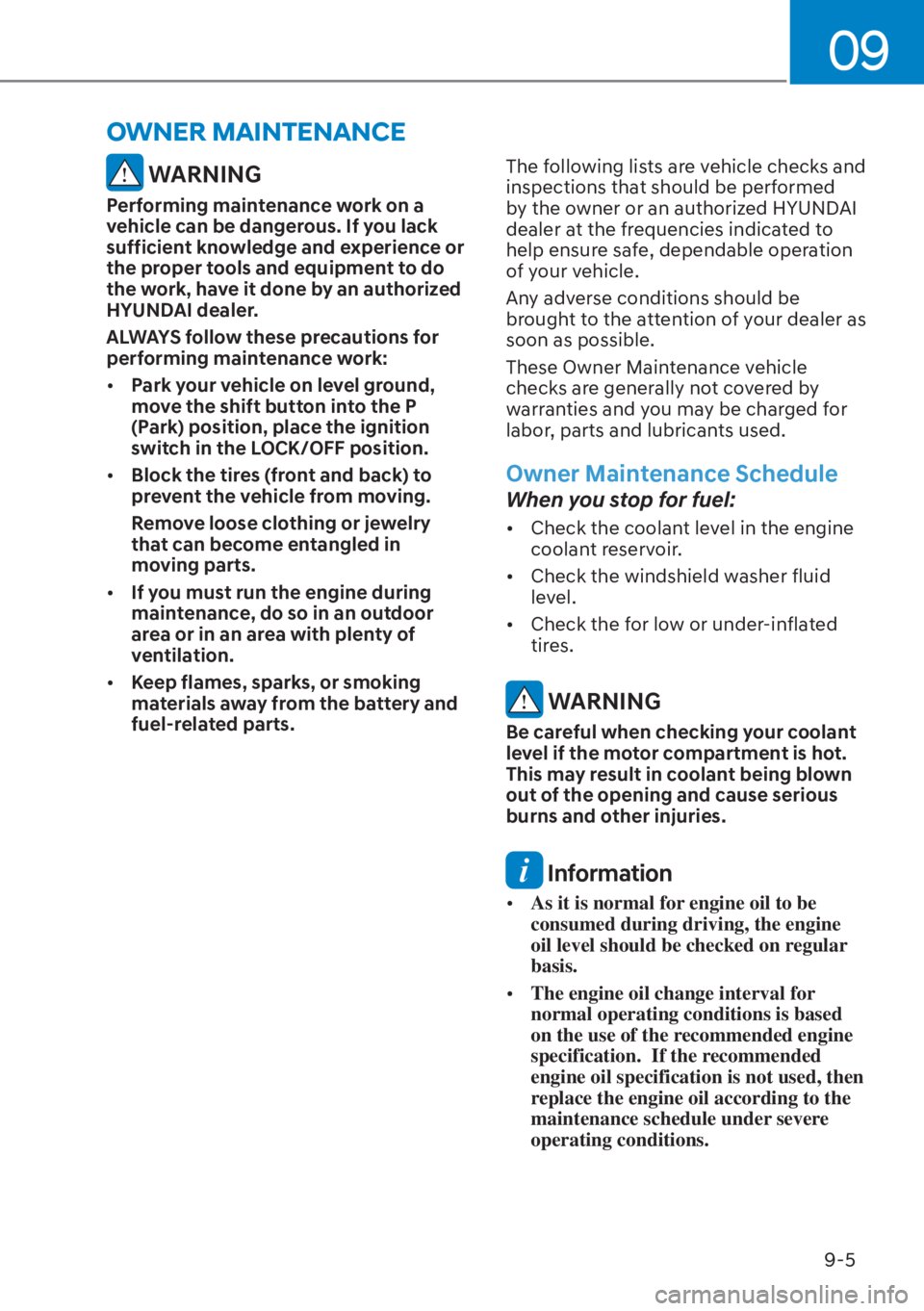

WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground,
move the shift button into the P
(Park) position, place the ignition
switch in the LOCK/OFF position.

[ Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[ If you must run the engine during
maintenance, do so in an outdoor
area or in an area with plenty of
ventilation.

[ Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When you stop for fuel:

[
Check the coolant level in the engine
coolant reservoir.

[ Check the windshield washer fluid
level.

[ Check the for low or under-inflated
tires.
WARNING
Be careful when checking your coolant
level if the motor compartment is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
Information

[As it is normal for engine oil to be
consumed during driving, the engine
oil level should be checked on regular
basis.

[ The engine oil change interval for
normal operating conditions is based
on the use of the recommended engine
specification. If the recommended
engine oil specification is not used, then
replace the engine oil according to the
maintenance schedule under severe
operating conditions.
OWNER MAINTENANCE

Maintenance9-6

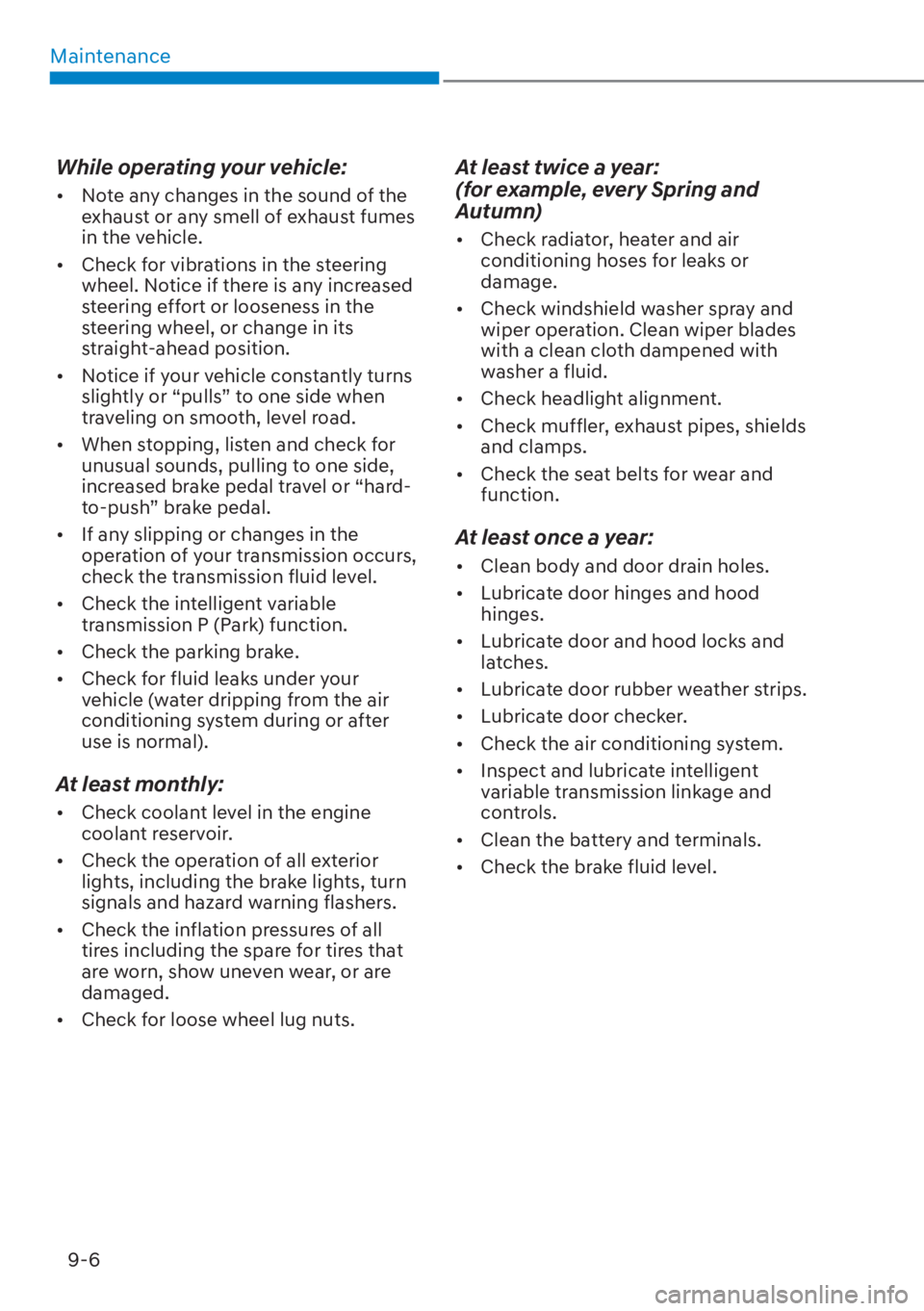

While operating your vehicle:

[ Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[ If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[ Check the intelligent variable
transmission P (Park) function.

[ Check the parking brake.

[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[ Check the operation of all exterior
lights, including the brake lights, turn
signals and hazard warning flashers.

[ Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[ Check for loose wheel lug nuts.
At least twice a year:
(for example, every Spring and
Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.

[ Check headlight alignment.

[ Check muffler, exhaust pipes, shields
and clamps.

[ Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[ Lubricate door hinges and hood
hinges.

[ Lubricate door and hood locks and
latches.

[ Lubricate door rubber weather strips.

[ Lubricate door checker.

[ Check the air conditioning system.

[ Inspect and lubricate intelligent
variable transmission linkage and
controls.

[ Clean the battery and terminals.

[ Check the brake fluid level.

09
9-7

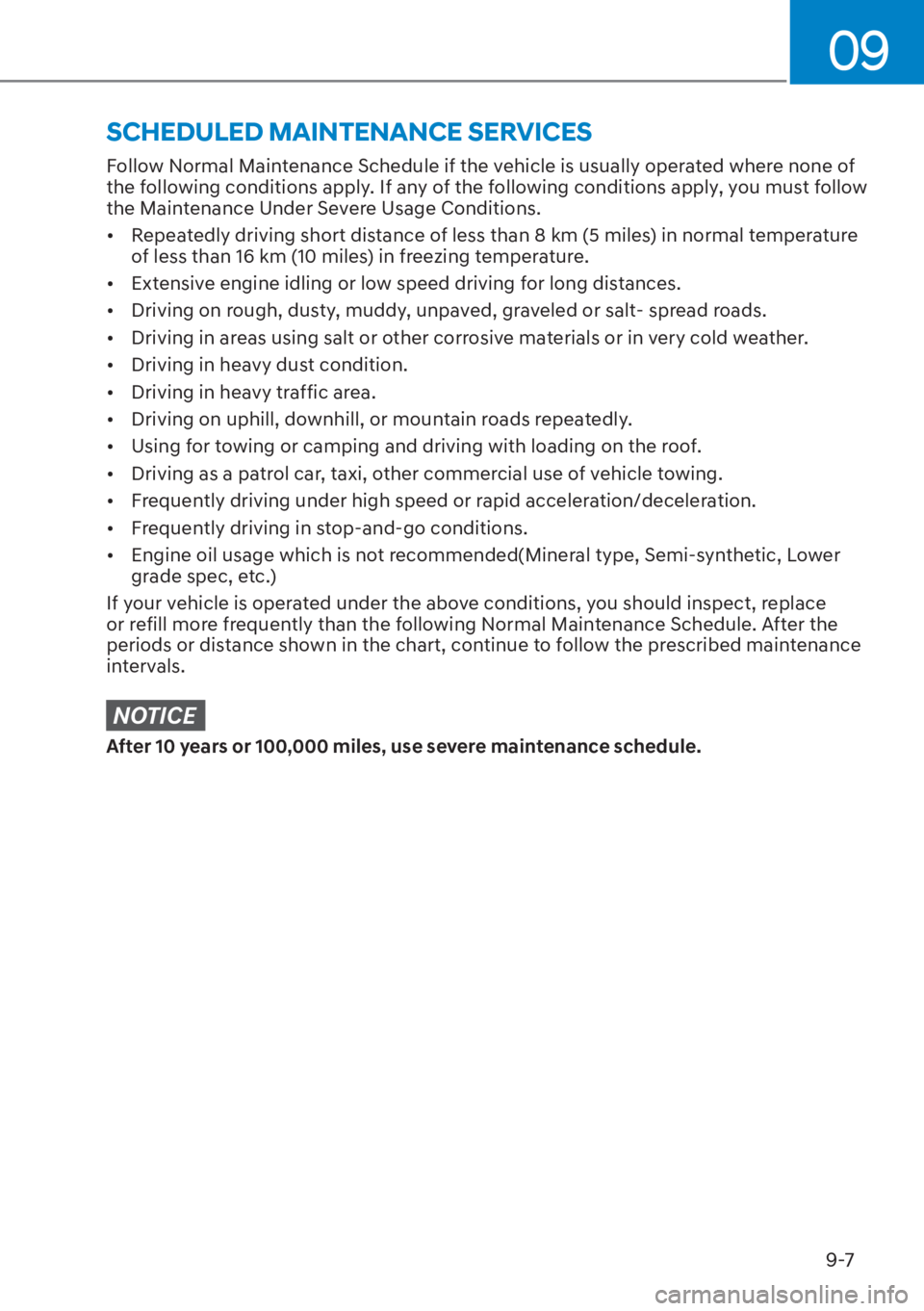

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeatedly driving short distance of less than 8 km (5 miles) in normal temperature
of less than 16 km (10 miles) in freezing temperature.

[ Extensive engine idling or low speed driving for long distances.

[ Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.

[ Driving in areas using salt or other corrosive materials or in very cold weather.

[ Driving in heavy dust condition.

[ Driving in heavy traffic area.

[ Driving on uphill, downhill, or mountain roads repeatedly.

[ Using for towing or camping and driving with loading on the roof.

[ Driving as a patrol car, taxi, other commercial use of vehicle towing.

[ Frequently driving under high speed or rapid acceleration/deceleration.

[ Frequently driving in stop-and-go conditions.

[ Engine oil usage which is not recommended(Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
NOTICE
After 10 years or 100,000 miles, use severe maintenance schedule.
SCHEDULED MAINTENANCE SERVICES

Maintenance9-8
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition.
Also, check the amount of engine oil regularly as this system assumes that the engi
ne oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Engine Oil Change Reminder, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.

09
9-9
Normal Maintenance Schedule
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Engine oil and engine oil filter *
1
Smartstream
G2.0 Atkinson
RRRRRRRRRRRRR
Smartstream
G1.6 T-GDi
RRRRRRRRRRRRR
Fuel additives
*2
Add fuel additives every 8,000 miles (13,000 km) or 12 months
Air cleaner filter I I R I I R I I R I I R I
Air intake hose I I I I I I I I I I I I I
Spark plugs Smartstream
G2.0 Atkinson
Replace every 96,000 miles
Smartstream
G1.6 T-GDi Replace every 48,000 miles
Rotate tires Rotate tires every 8,000 miles (13,000 km) or 12 months
Cabin air filter RRRRRR
Drive belts
*3
At first, inspect at 48,000 miles (78,000 km) or 72 months.
Thereafter, inspect every 8,000 miles (13,000 km) or 12 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter
must be replaced at every 5,000 miles (8,000 km) or 6 months as indicated for severe maintenance condition.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*3 :
The drive belt should be replaced when cracks occur or tension is reduced excessively.
❈ As it is normal for engine oil to be consumed during driving, the amount of engine oil should be checked regularly.
❈ The replacement cycle of engine oil is set by the period which the performance of our recommended engine oil is maintained. So, if recommended engine oil is not used, a replacement is required as indicated severe usage condition.

Maintenance9-10

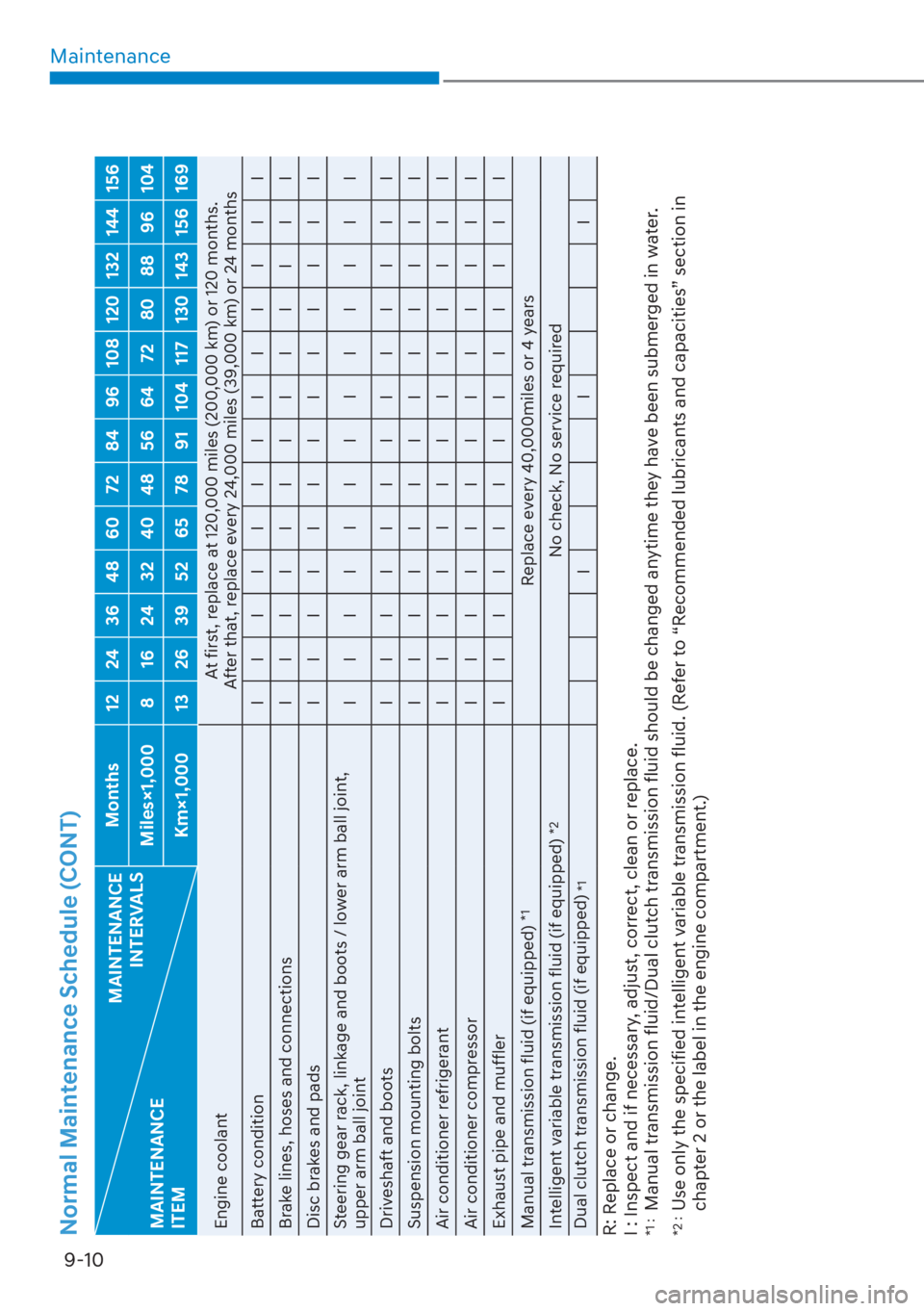

Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Engine coolant At first, replace at 120,000 miles (200,000 km) or 120 months.
After that, replace every 24,000 miles (39,000 km) or 24 months
Battery condition I I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I I
Disc brakes and pads I I I I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm ball joint,
upper arm ball joint IIIIIIIIIIIII
Driveshaft and boots I I I I I I I I I I I I I
Suspension mounting bolts I I I I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I I I I
Manual transmission fluid (if equipped)
*1
Replace every 40,000miles or 4 years
Intelligent variable transmission fluid (if equipped)
*2
No check, No service required
Dual clutch transmission fluid (if equipped)
*1
III
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Manual transmission fluid/Dual clutch transmission fluid should be changed anytime they have been submerged in water.
*2 :
Use only the specified intelligent variable transmission fluid. (Refer to “Recommended lubricants and capacities” section in
chapter 2 or the label in the engine compartment.)

09
9-11

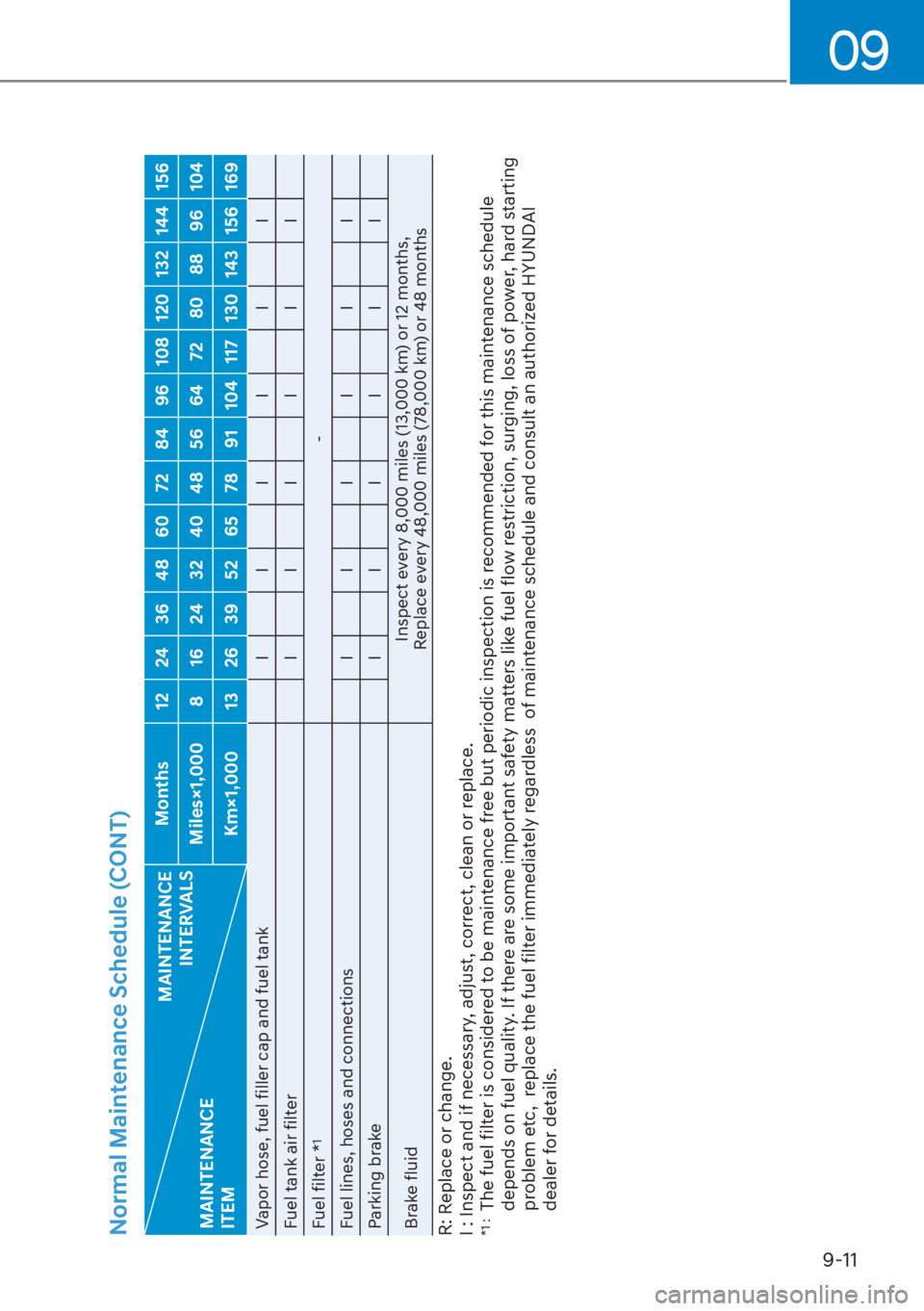

Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104 Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Vapor hose, fuel filler cap and fuel tank IIIIII
Fuel tank air filter IIIIII
Fuel filter *
1
-
Fuel lines, hoses and connections IIIIII
Parking brake IIIIII
Brake fluid Inspect every 8,000 miles (13,000 km) or 12 months,
Replace every 48,000 miles (78,000 km) or 48 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting
problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI
dealer for details.

Maintenance9-12
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance item Maintenance
operation Maintenance intervals Driving
condition
Engine oil and
filt
er *1
Smartstream
G2.0 Atkinson
RReplace every 5,000 miles
(8,000 km) or 6 months A, B, C, D,
E, F, G, H, I, J, K, L
Smartstream
G1.6 T-GDi A, B, C, D,
E, F, G, H, I, J, K, L
Air cleaner filter IInspect more frequently
depending on the condition C, E
Spark plugs RReplace more frequently
depending on the condition A, B, F, G,
H, I, K
Steering gear rack, linkage and
boots IInspect more frequently
depending on the condition C, D, E, F, G
Front suspension ball joints IInspect more frequently
depending on the condition C, D, E, F, G
Disc brakes and pads, calipers
and rotors IInspect more frequently
depending on the condition C, D, E, G, H
Parking brake IInspect more frequently
depending on the condition C, D, G, H
Driveshaft and boots IInspect more frequently
depending on the condition C, D, E, F,
G, H, I, J
Cabin air filter RReplace more frequently
depending on the condition C, E, G
Manual transmission fluid
(if equipped) RReplace every 80,000miles
(120,000 km) C, D, E, F,
G, H, I, J
Intelligent variable transmission
fluid (if equipped) RReplace every 60,000miles
(90,000 km) A, C, D, E, F,
G, H, I, K
Dual clutch transmission fluid
(if equipped) RReplace every 80,000miles
(120,000km) C, D, E, F,
G, H, I, J
Rear differential oil RReplace every 72,000 miles
(120,000 km) C, D, E, G,
H, I, J
Transfer case oil No check, No service required
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.

09
9-13

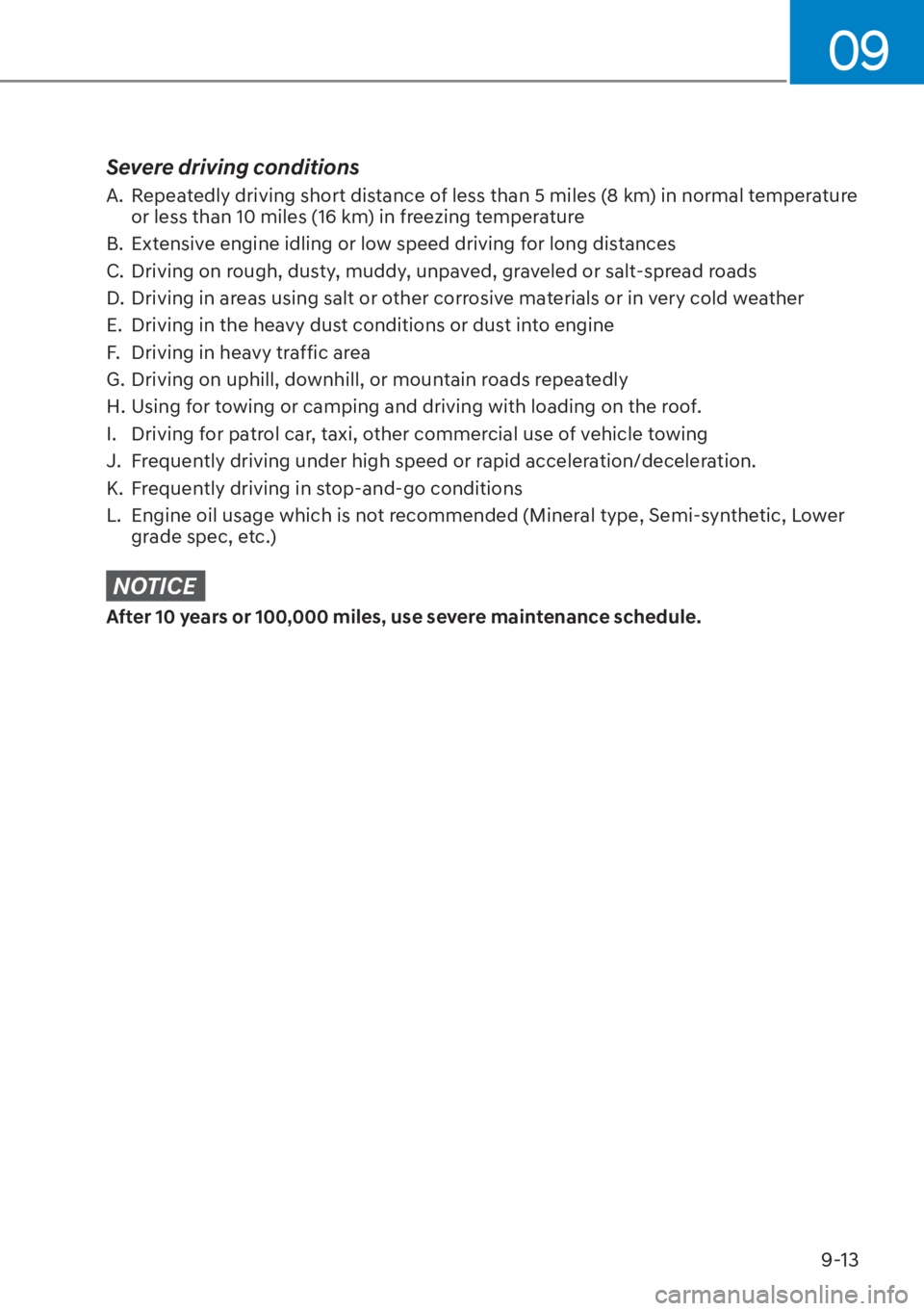

Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature or less than 10 miles (16 km) in freezing temperature
B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in the heavy dust conditions or dust into engine
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain roads repeatedly
H. Using for towing or camping and driving with loading on the roof.
I. Driving for patrol car, taxi, other commercial use of vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration.
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower grade spec, etc.)
NOTICE
After 10 years or 100,000 miles, use severe maintenance schedule.

Maintenance9-14
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary. Drive
belts should be checked periodically
for proper tension and adjusted as
necessary.
Fuel Filter
A clogged-up fuel filter may limit the
vehicle driving speed, damage the
emission system, and cause the hard
starting. When a considerable amount
of foreign substances are accumulated
in the fuel tank, the fuel filter should be
replaced.
Upon installing a new fuel filter, operate
the engine for several minutes, and
check the connections for any leakages.
Fuel filters should be installed by an
authorized HYUNDAI dealer.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
Have an authorized HYUNDAI dealer
replace any damaged or leaking parts
immediately.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Air Cleaner Filter
A genuine HYUNDAI air cleaner filter
is recommended when the filter is
replaced.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
