Specifications & Consumer information
2 8
* : If equipped
Light BulbWattageBulb Type
Headlights
(Low)Standard55H11
Projection609005L+*
Headlights (High)55H7 LL
Front turn signal lights/
Position lights28/8/LEDP28/8W LED
Side repeater lightsLED-
Front fog lights*27GE881
Stop/tail lights (outside)28/8 or LED2357 or LED
Tail light (inside)5W5W
Rear turn signal lights (outside)271156NA
Back-up lights (outside)16W16W
High mounted stop light21W21W
License plate lights5W5W
Map lamps8FESTTON 8W
Room lamps8FESTTON 8W
Trunk lamp5FESTTON 5W
DIMENSIONS BULB WATTACE
*1: with R15 tire
*
2: with R16 tire
*
3: with R17 tireItem mm (in)
Overall length4-door : 4550 (178.3)
2-door : 4540 (178.7)
Overall width 1775 (69.9)
Overall height 1430 (56.5)
Front tread1563 (61.5)*
1/ 1549 (61.0)*2 /
1551 (61.1)*3
Rear tread1576 (62.0)*1/ 1562 (61.5)*2 /
1564 (61.6)*3
Wheelbase 2700 (106.3)
Page 522 of 526
83
Specifications & Consumer information

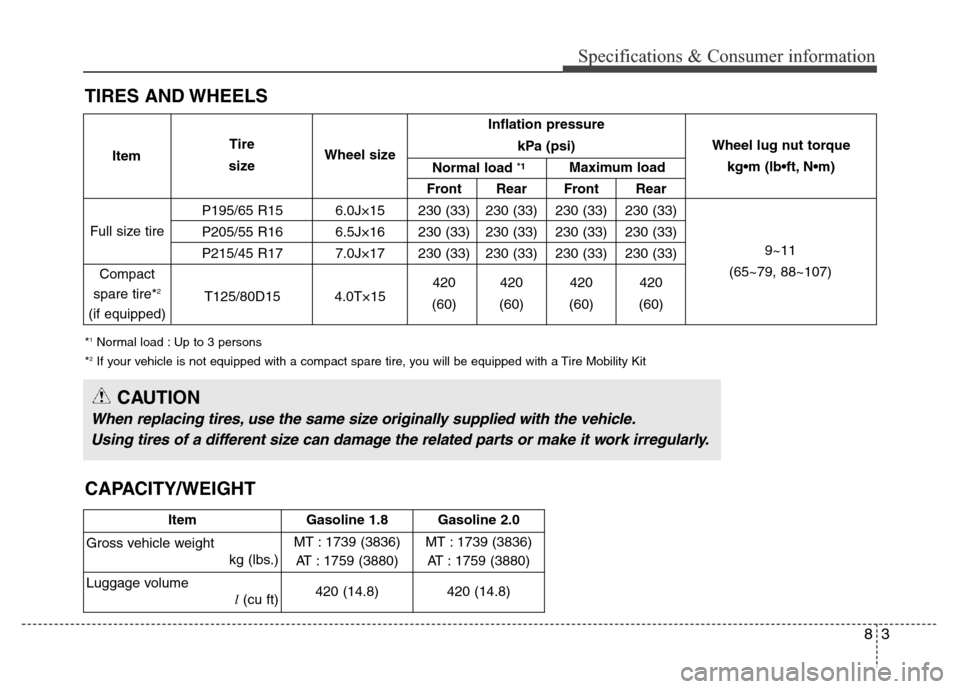

TIRES AND WHEELS
*1Normal load : Up to 3 persons
*2If your vehicle is not equipped with a compact spare tire, you will be equipped with a Tire Mobility Kit
Inflation pressure
kPa (psi)
Front Rear Front Rear
P195/65 R15 6.0J×15 230 (33) 230 (33) 230 (33) 230 (33)
P205/55 R16 6.5J×16 230 (33) 230 (33) 230 (33) 230 (33)
P215/45 R17 7.0J×17 230 (33) 230 (33) 230 (33) 230 (33)
420 420 420 420
T125/80D15 4.0T×15
(60) (60) (60) (60)
Full size tire
Compact
spare tire*
2
(if equipped)Wheel lug nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTire
sizeWheel size
Normal load
*1Maximum load
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
CAPACITY/WEIGHT
Item Gasoline 1.8 Gasoline 2.0
Gross vehicle weight
kg (lbs.)MT : 1739 (3836)
AT : 1759 (3880)MT : 1739 (3836)
AT : 1759 (3880)
Luggage volume
l(cu ft)420 (14.8) 420 (14.8)
Page 523 of 526
Specifications & Consumer information
4 8

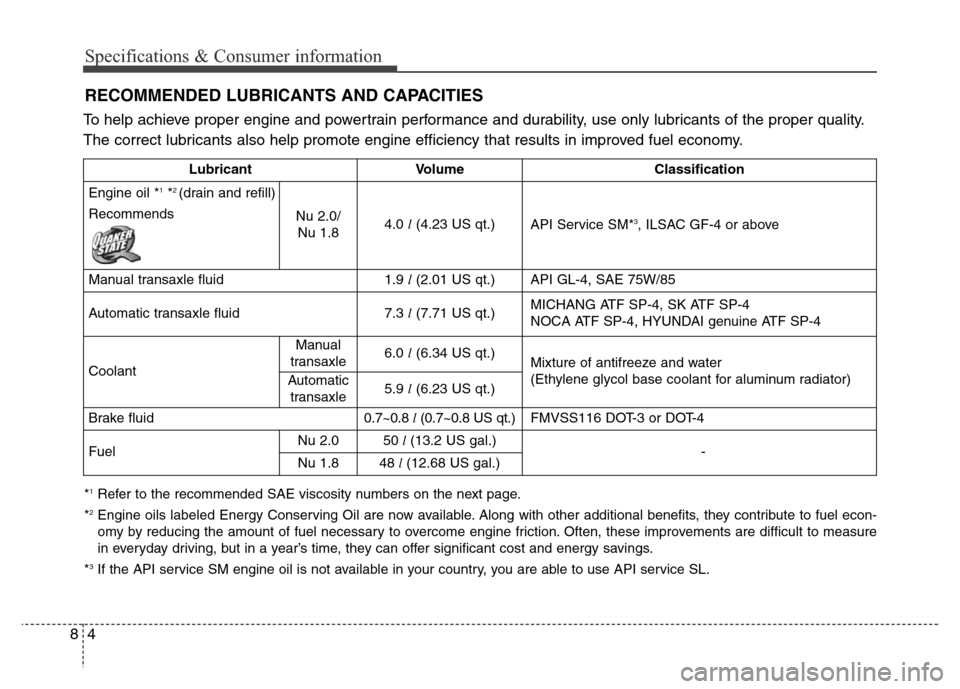

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
LubricantVolumeClassification
Engine oil *1*2 (drain and refill)
Recommends
Nu 2.0/
Nu 1.84.0 l(4.23 US qt.)API Service SM*3, ILSAC GF-4 or above
Manual transaxle fluid1.9 l(2.01 US qt.)API GL-4, SAE 75W/85
Automatic transaxle fluid7.3 l(7.71 US qt.)MICHANG ATF SP-4, SK ATF SP-4
NOCA ATF SP-4, HYUNDAI genuine ATF SP-4
Coolant
Manual
transaxle6.0 l(6.34 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Automatic
transaxle5.9 l(6.23 US qt.)
Brake fluid0.7~0.8l(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
FuelNu 2.050l(13.2 US gal.)-Nu 1.848l(12.68 US gal.)
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Page 524 of 526

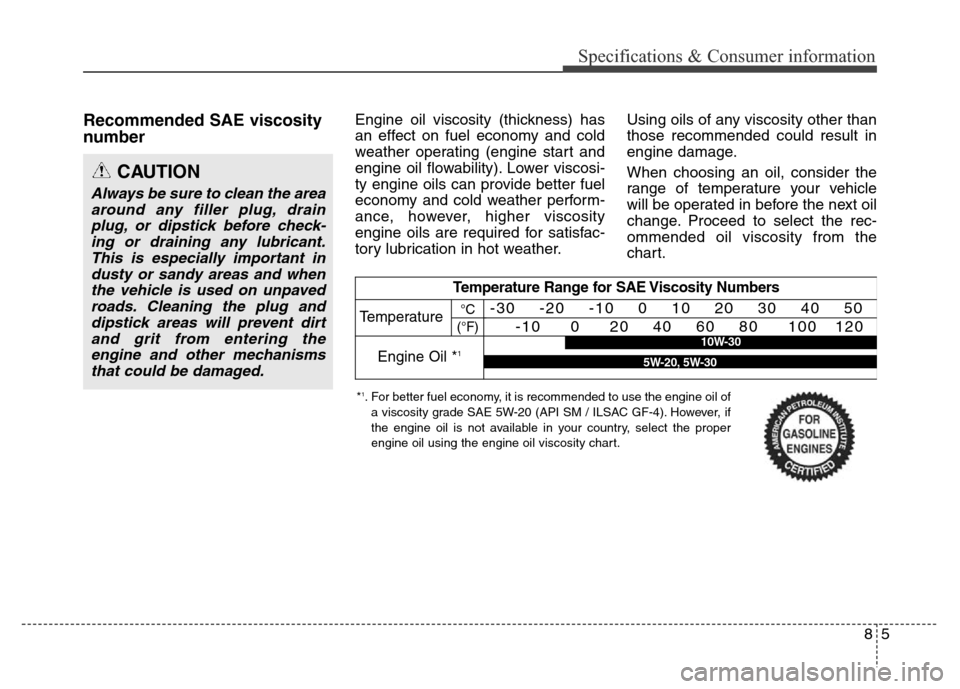

Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
85
Specifications & Consumer information
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)
Page 525 of 526
Specifications & Consumer information
6 8

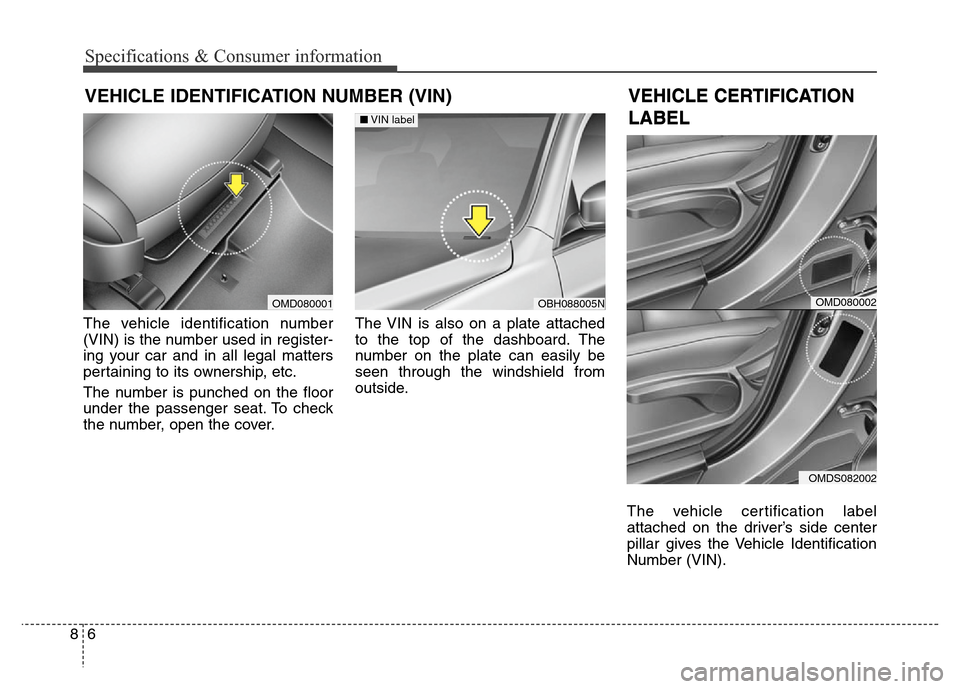

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the Vehicle Identification
Number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)VEHICLE CERTIFICATION
LABEL
OBH088005N
■VIN label
OMD080001
VEHICLE CERTIFICATION
LABEL
OMD080002
OMDS082002
Page 526 of 526
87
Specifications & Consumer information

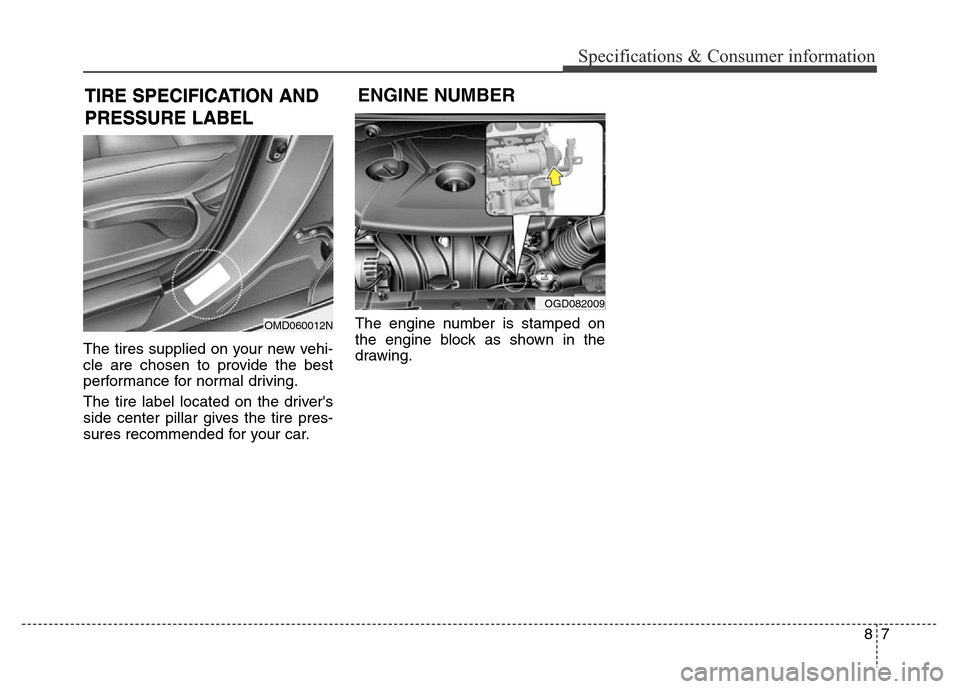

TIRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
OMD060012N
TIRE SPECIFICATION AND
PRESSURE LABEL
OGD082009
