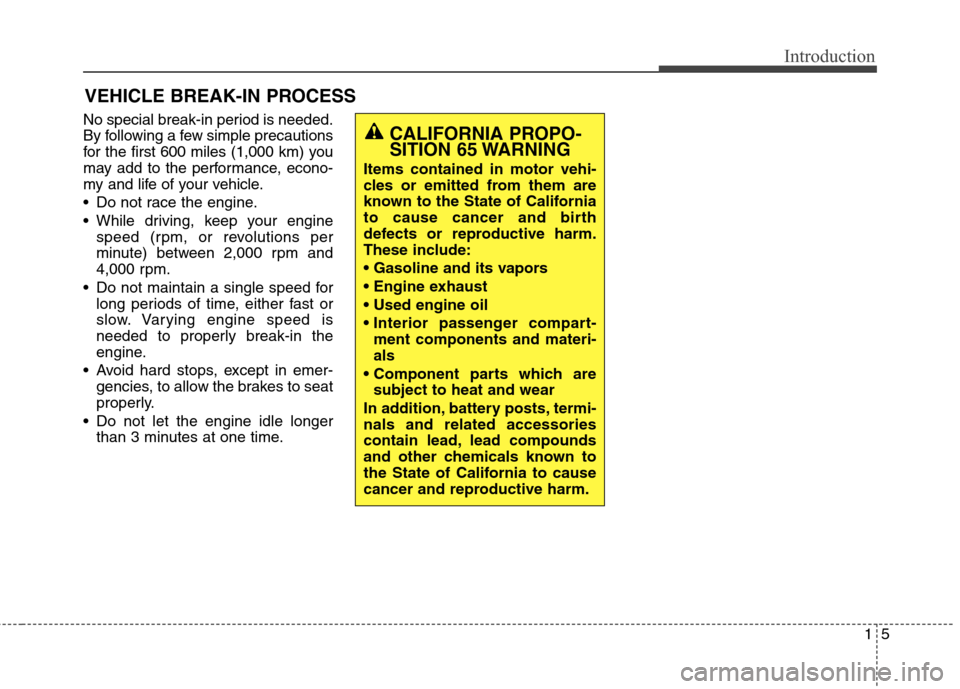

VEHICLE BREAK-IN PROCESS
No special break-in period is needed.
By following a few simple precautions
for the first 600 miles (1,000 km) you
may add to the performance, econo-
my and life of your vehicle.
Do not race the engine.
While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
Do not let the engine idle longer
than 3 minutes at one time.CALIFORNIA PROPO-
SITION 65 WARNING
Items contained in motor vehi-
cles or emitted from them are
known to the State of California
to cause cancer and birth
defects or reproductive harm.
These include:




ment components and materi-
als

subject to heat and wear
In addition, battery posts, termi-
nals and related accessories
contain lead, lead compounds
and other chemicals known to
the State of California to cause
cancer and reproductive harm.

Introduction
6 1
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
How various systems in your
vehicle were operating;
Whether or not the driver and
passenger safety belts were
buckled/fastened;
How far (if at all) the driver was
depressing the accelerator
and/or brake pedal; and,
How fast the vehicle was travel-
ing.These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data are
recorded by your vehicle only if a
nontrivial crash situation occurs;
no data are recorded by the EDR
under normal driving conditions
and no personal data (e.g., name,
gender, age, and crash location)
are recorded. However, other par-
ties, such as law enforcement,
could combine the EDR data with
the type of personally identifying
data routinely acquired during a
crash investigation.To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed.
In addition to the vehicle manufac-
turer, other parties, such as law
enforcement, that have the special
equipment, can read the informa-
tion if they have access to the
vehicle or the EDR.

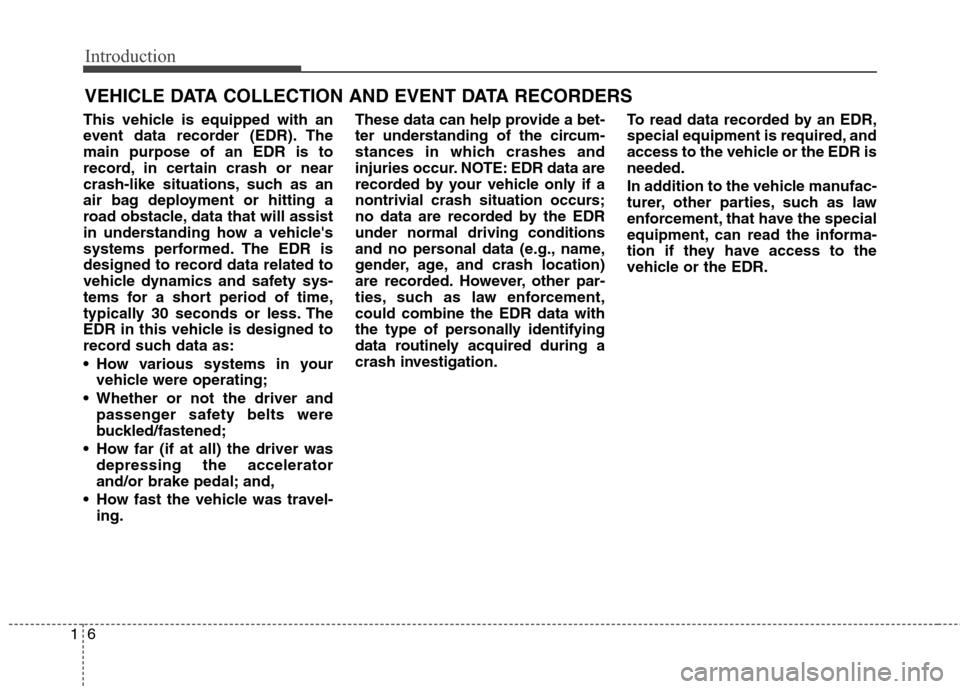

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

17
Introduction

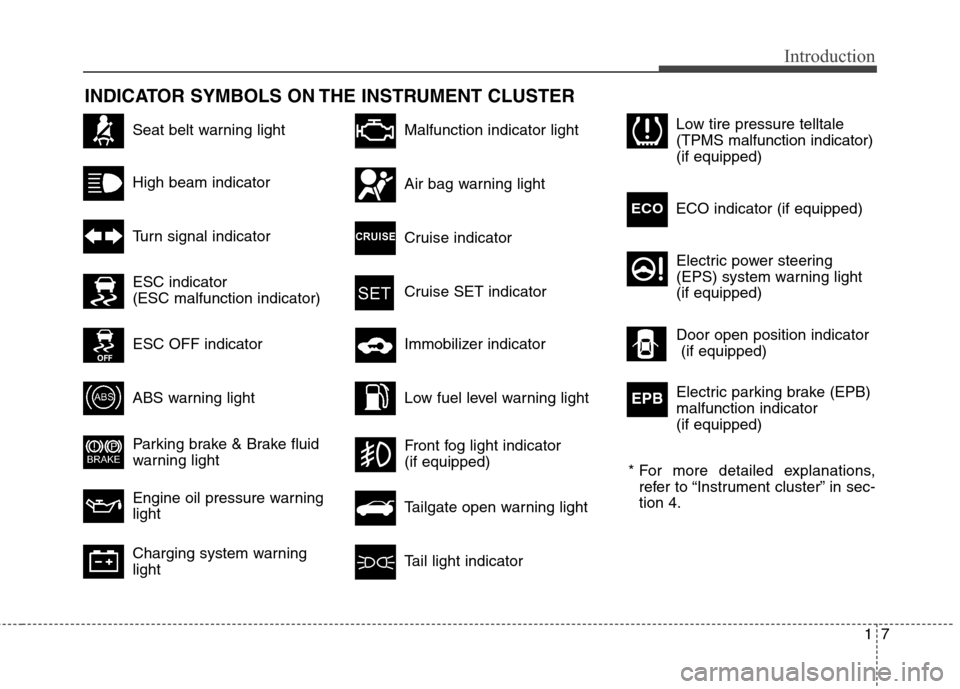

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
High beam indicator
Turn signal indicator
ABS warning light
Parking brake & Brake fluid
warning light
Engine oil pressure warning
light
Malfunction indicator light
Air bag warning light
Cruise indicator
Cruise SET indicator
Immobilizer indicator
Low fuel level warning light
Charging system warning
lightTail light indicator
Tailgate open warning light
Front fog light indicator
(if equipped)Low tire pressure telltale
(TPMS malfunction indicator)
(if equipped)
ECO indicator (if equipped)ECO
ESC indicator
(ESC malfunction indicator)
ESC OFF indicator
Electric power steering
(EPS) system warning light
(if equipped)
Electric parking brake (EPB)
malfunction indicator
(if equipped)
EPB
Door open position indicator
(if equipped)
* For more detailed explanations,
refer to “Instrument cluster” in sec-
tion 4.

Exterior overview I . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview II. . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
Your vehicle at a glance

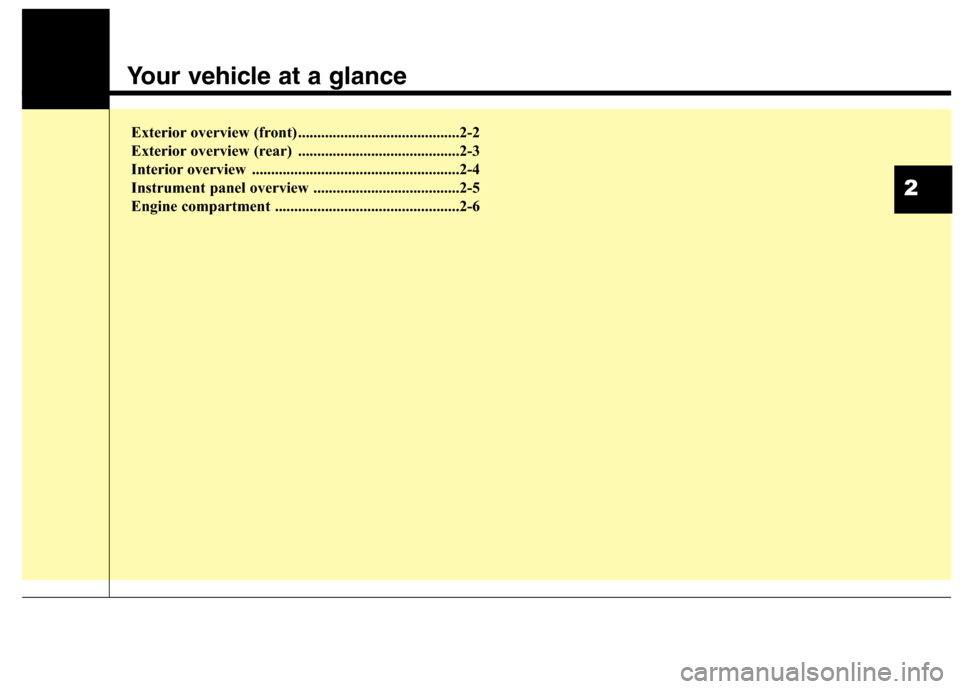

Exterior overview (front) ..........................................2-2
Exterior overview (rear) ..........................................2-3
Interior overview ......................................................2-4
Instrument panel overview ......................................2-5
Engine compartment ................................................2-6
2

Your vehicle at a glance
2 2

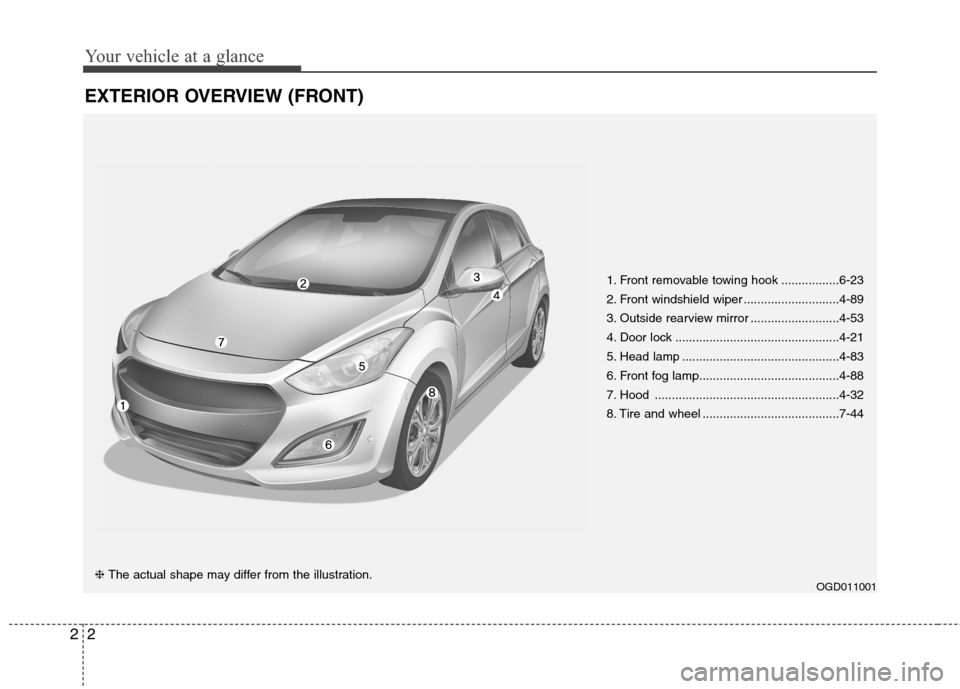

EXTERIOR OVERVIEW (FRONT)
1. Front removable towing hook .................6-23
2. Front windshield wiper ............................4-89
3. Outside rearview mirror ..........................4-53
4. Door lock ................................................4-21
5. Head lamp ..............................................4-83
6. Front fog lamp.........................................4-88
7. Hood ......................................................4-32
8. Tire and wheel ........................................7-44
OGD011001❈ The actual shape may differ from the illustration.

23
Your vehicle at a glance

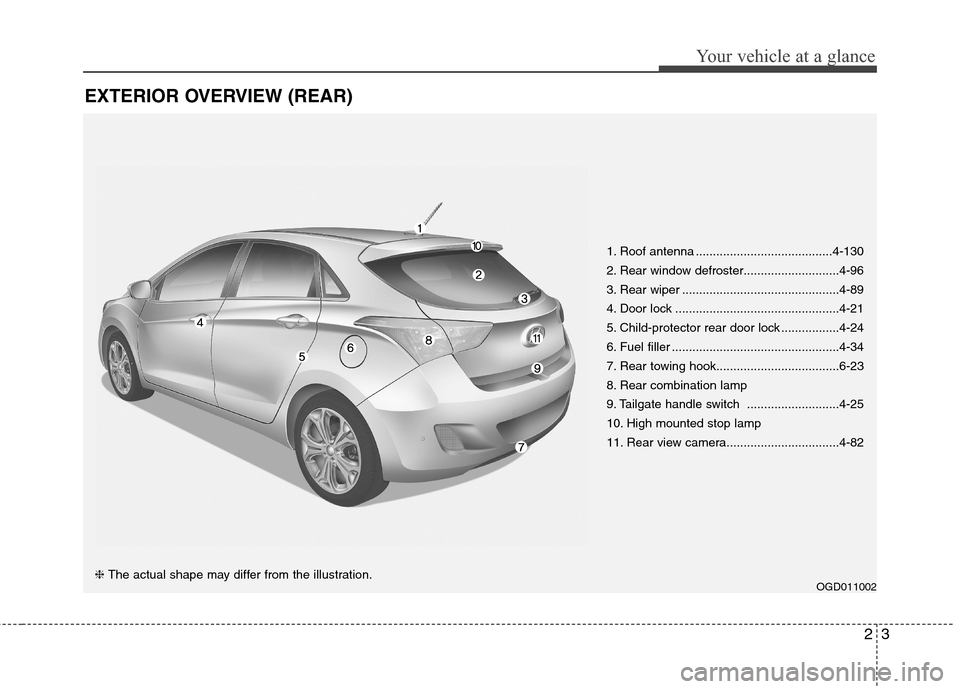

EXTERIOR OVERVIEW (REAR)
1. Roof antenna ........................................4-130
2. Rear window defroster............................4-96
3. Rear wiper ..............................................4-89
4. Door lock ................................................4-21
5. Child-protector rear door lock .................4-24
6. Fuel filler .................................................4-34
7. Rear towing hook....................................6-23
8. Rear combination lamp
9. Tailgate handle switch ...........................4-25
10. High mounted stop lamp
11. Rear view camera.................................4-82
OGD011002❈ The actual shape may differ from the illustration.

Your vehicle at a glance
4 2

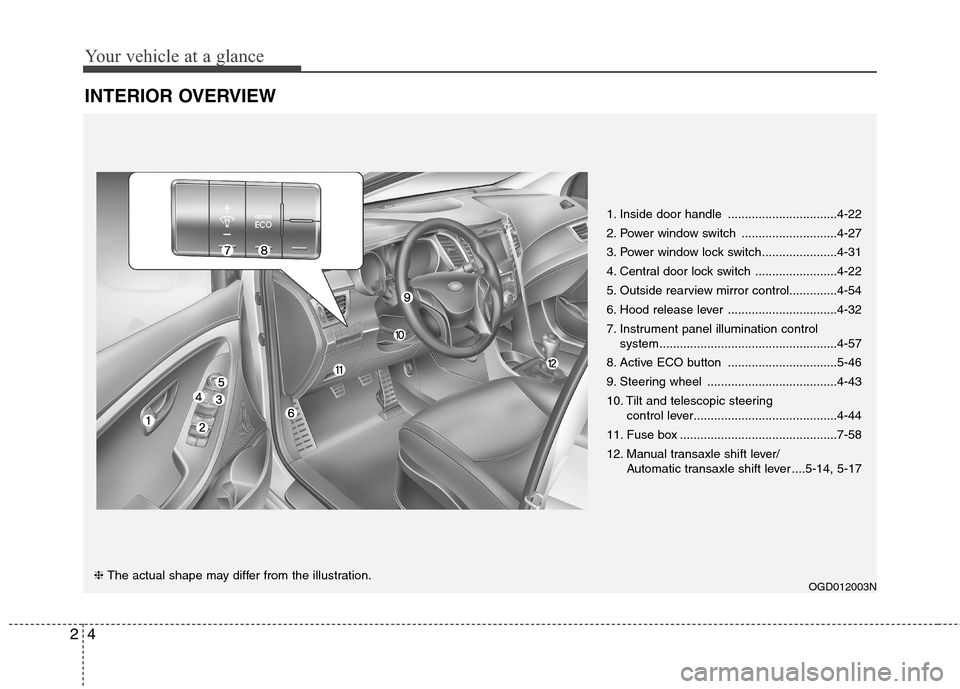

INTERIOR OVERVIEW
1. Inside door handle ................................4-22
2. Power window switch ............................4-27
3. Power window lock switch......................4-31
4. Central door lock switch ........................4-22
5. Outside rearview mirror control..............4-54
6. Hood release lever ................................4-32
7. Instrument panel illumination control
system....................................................4-57
8. Active ECO button ................................5-46
9. Steering wheel ......................................4-43
10. Tilt and telescopic steering
control lever..........................................4-44
11. Fuse box ..............................................7-58
12. Manual transaxle shift lever/
Automatic transaxle shift lever ....5-14, 5-17
OGD012003N❈ The actual shape may differ from the illustration.

25
Your vehicle at a glance

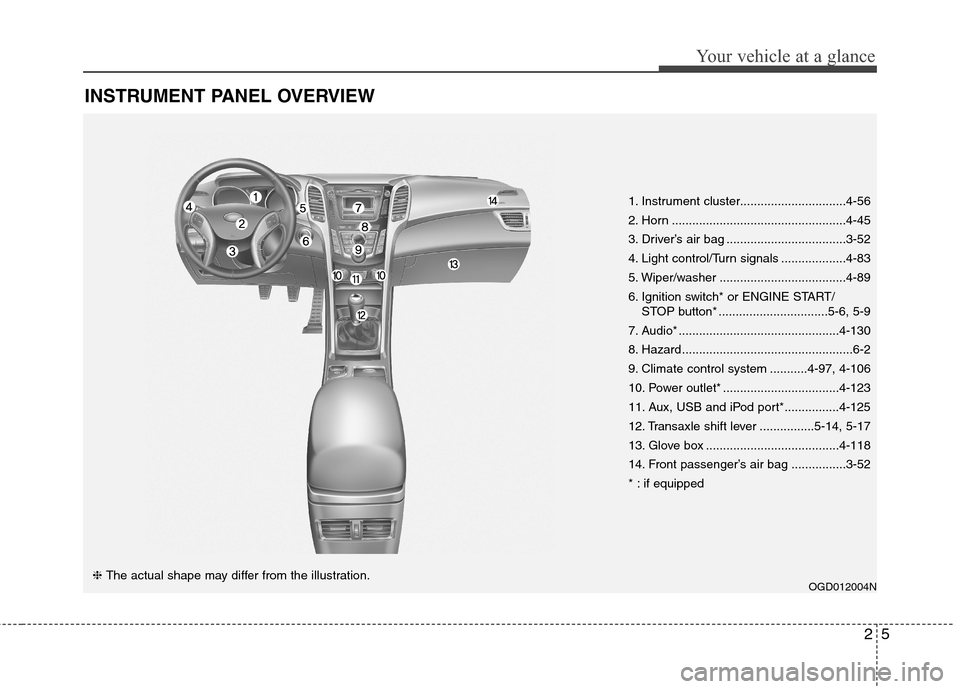

INSTRUMENT PANEL OVERVIEW
OGD012004N❈ The actual shape may differ from the illustration.1. Instrument cluster...............................4-56
2. Horn ...................................................4-45
3. Driver’s air bag ...................................3-52
4. Light control/Turn signals ...................4-83
5. Wiper/washer .....................................4-89
6. Ignition switch* or ENGINE START/
STOP button* ................................5-6, 5-9
7. Audio* ...............................................4-130
8. Hazard..................................................6-2
9. Climate control system ...........4-97, 4-106
10. Power outlet* ..................................4-123
11. Aux, USB and iPod port*................4-125
12. Transaxle shift lever ................5-14, 5-17
13. Glove box .......................................4-118
14. Front passenger’s air bag ................3-52
* : if equipped

Your vehicle at a glance
6 2

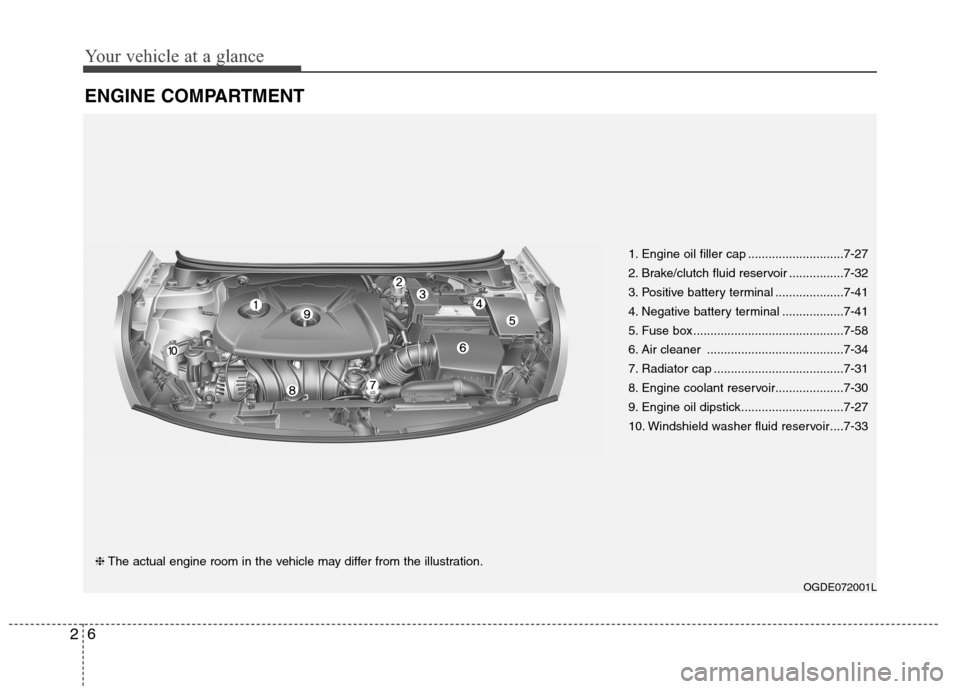

ENGINE COMPARTMENT
OGDE072001L
❈The actual engine room in the vehicle may differ from the illustration.1. Engine oil filler cap ............................7-27
2. Brake/clutch fluid reservoir ................7-32
3. Positive battery terminal ....................7-41
4. Negative battery terminal ..................7-41
5. Fuse box ............................................7-58
6. Air cleaner ........................................7-34
7. Radiator cap ......................................7-31
8. Engine coolant reservoir....................7-30
9. Engine oil dipstick..............................7-27
10. Windshield washer fluid reservoir ....7-33

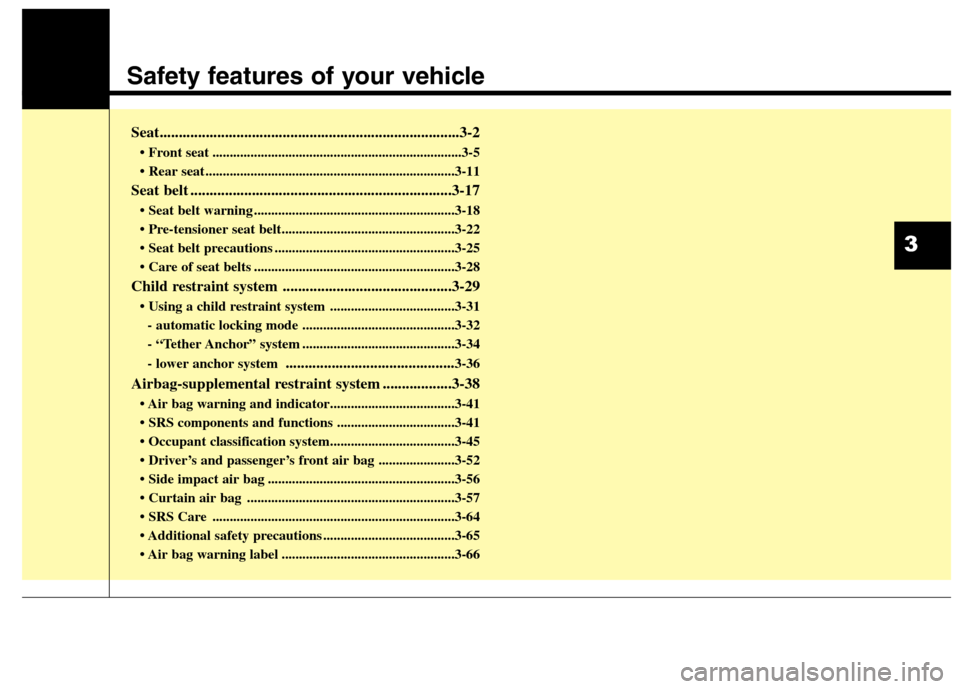

Safety features of your vehicle
