Hyundai Elantra GT 2013 Owner's Manual

Maintenance
70 7

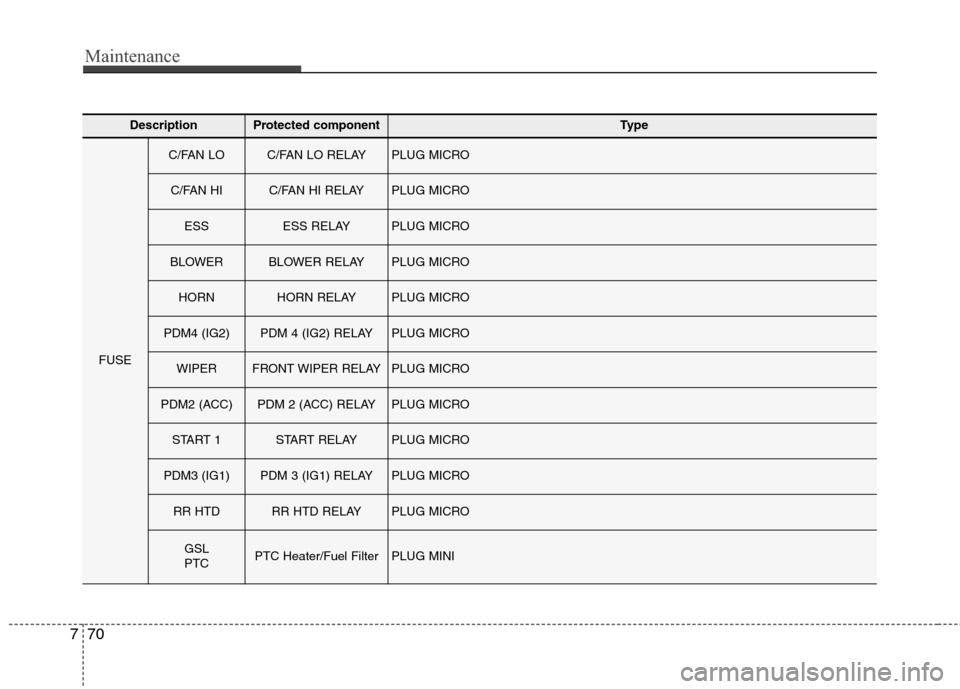

DescriptionProtected componentType
FUSE
C/FAN LOC/FAN LO RELAY PLUG MICRO
C/FAN HIC/FAN HI RELAY PLUG MICRO
ESSESS RELAY PLUG MICRO
BLOWERBLOWER RELAY PLUG MICRO
HORNHORN RELAY PLUG MICRO
PDM4 (IG2)PDM 4 (IG2) RELAY PLUG MICRO
WIPERFRONT WIPER RELAY PLUG MICRO
PDM2 (ACC)PDM 2 (ACC) RELAY PLUG MICRO
START 1START RELAY PLUG MICRO
PDM3 (IG1)PDM 3 (IG1) RELAY PLUG MICRO
RR HTDRR HTD RELAY PLUG MICRO
GSL
PTCPTC Heater/Fuel FilterPLUG MINI

771
Maintenance

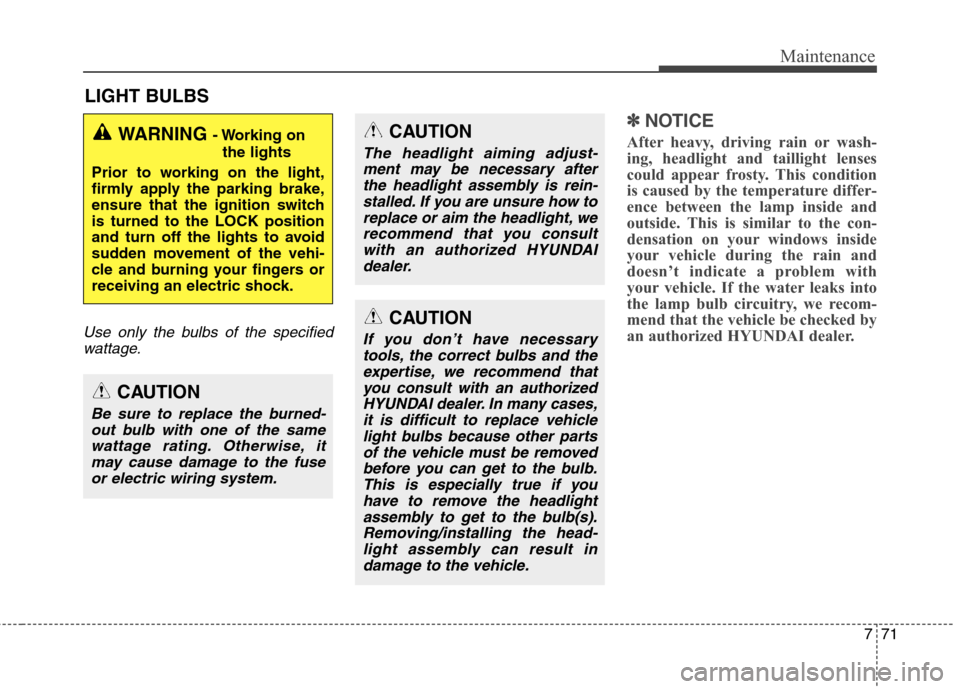

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽ ✽
NOTICE
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, we recom-
mend that the vehicle be checked by
an authorized HYUNDAI dealer.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
The headlight aiming adjust-
ment may be necessary after
the headlight assembly is rein-
stalled. If you are unsure how to
replace or aim the headlight, we
recommend that you consult
with an authorized HYUNDAI
dealer.
CAUTION
If you don’t have necessary
tools, the correct bulbs and the
expertise, we recommend that
you consult with an authorized
HYUNDAI dealer. In many cases,
it is difficult to replace vehicle
light bulbs because other parts
of the vehicle must be removed
before you can get to the bulb.
This is especially true if you
have to remove the headlight
assembly to get to the bulb(s).
Removing/installing the head-
light assembly can result in
damage to the vehicle.

Maintenance
72 7

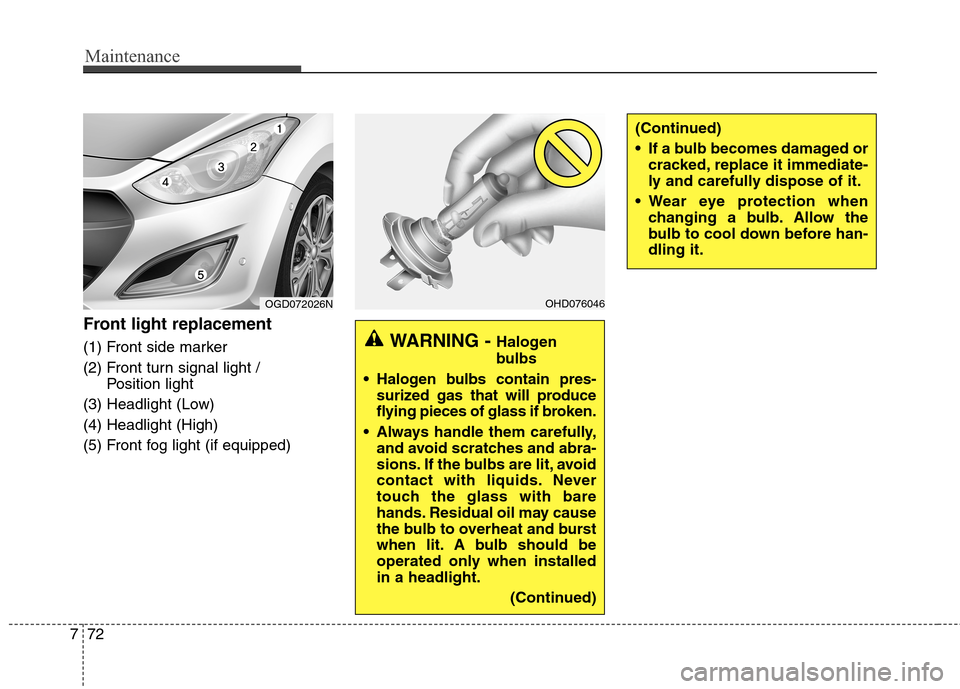

Front light replacement
(1) Front side marker
(2) Front turn signal light /
Position light
(3) Headlight (Low)
(4) Headlight (High)
(5) Front fog light (if equipped)
(Continued)
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING - Halogen
bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if broken.
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlight.
(Continued)
OHD076046OGD072026N

773
Maintenance
Replace front lamps
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Loosen the assembly retaining
screws and nuts. If you can reach
the bulb without removing the
headlight assembly, you do not
need to do step 3, 4 and 5.4. Pull out the both side of the front
bumper and then pull out the front
bumper.
5. Remove the headlight assembly
from the body of the vehicle.
6. Disconnect the power connec-
tor(s) from the back of the head-
light assembly.Headlight bulb (high)
Follow the steps 1 to 6 from the pre-
vious page.
7. Remove the headlight bulb cover
by turning it counterclockwise.
8. Disconnect the headlight bulb
socket-connector.
9. Unsnap the headlight bulb retain-
ing wire by depressing the end
and pushing it upward.
10. Remove the bulb from the head-
light assembly.
11. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
OGDE071052OGD071044
H H H H
i i i i
g g g g
h h h h
L
L L L
o o o o
w w w w
OGDE071050
OGDE071051

Maintenance
74 7
12. Connect the headlight bulb sock-
et-connector.
13. Install the headlight bulb cover by
turning it clockwise.Headlight (Low)
Follow the steps 1 to 6 from the pre-
vious page.
7. Remove the cover by turning it
counterclockwise.
8. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
9. Pull the bulb out of the socket.
10. Insert a new bulb into the socket.
11. Install the socket in the assembly
by aligning the tabs on the sock-
et with the slots in the assembly.
Push the socket into the assem-
bly and turn the socket clockwise.
12. Install the headlight bulb cover by
turning it clockwise.
Front turn signal bulb /
Position light
Follow the steps 1 to 6 from the pre-
vious page.
7. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
8. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
9. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
OGD071045

775
Maintenance
10. Install the socket in the assembly
by aligning the tabs on the sock-
et with the slots in the assembly.
Push the socket into the assem-
bly and turn the socket clockwise.
11. Reinstall the light assembly to
the body of the vehicle.

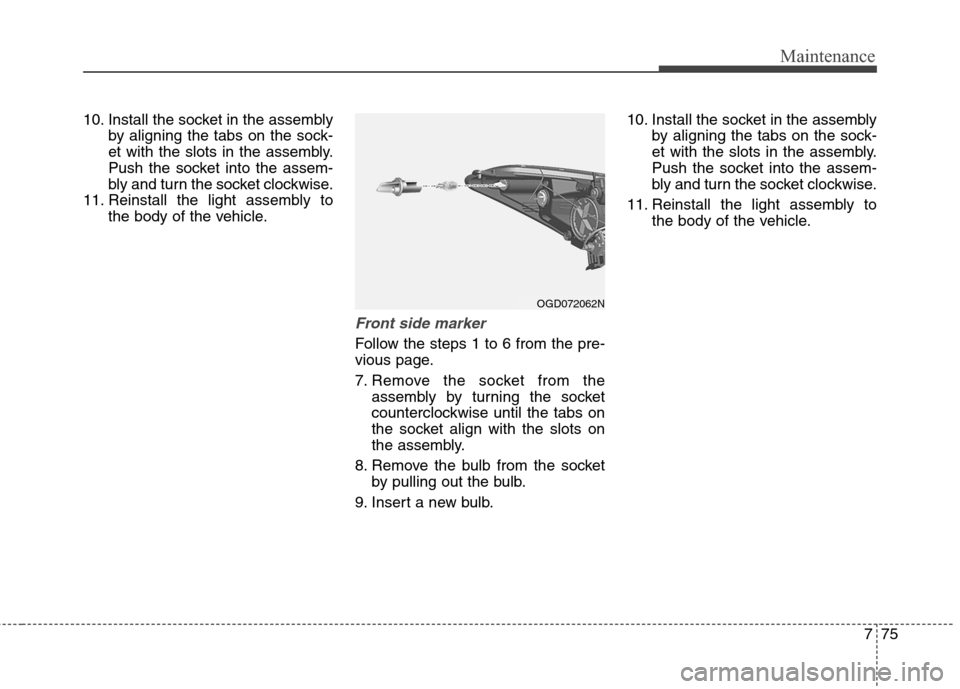

Front side marker
Follow the steps 1 to 6 from the pre-
vious page.
7. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
8. Remove the bulb from the socket
by pulling out the bulb.
9. Insert a new bulb.10. Install the socket in the assembly
by aligning the tabs on the sock-
et with the slots in the assembly.
Push the socket into the assem-
bly and turn the socket clockwise.
11. Reinstall the light assembly to
the body of the vehicle.
OGD072062N

Maintenance
76 7

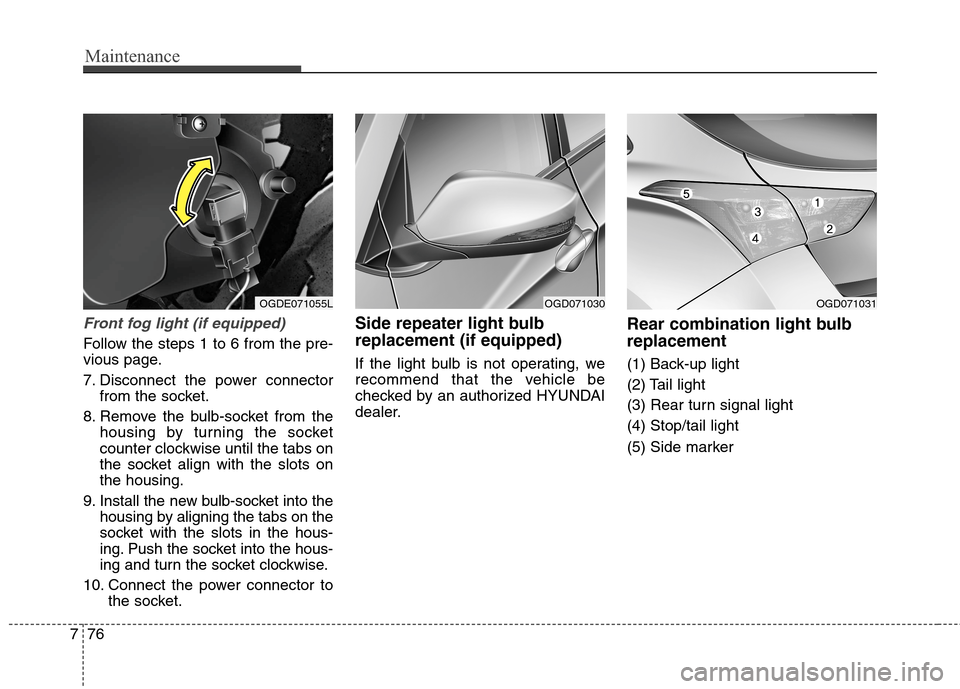

Front fog light (if equipped)
Follow the steps 1 to 6 from the pre-
vious page.
7. Disconnect the power connector
from the socket.
8. Remove the bulb-socket from the
housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
9. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the hous-
ing. Push the socket into the hous-
ing and turn the socket clockwise.
10. Connect the power connector to
the socket.
Side repeater light bulb
replacement (if equipped)
If the light bulb is not operating, we
recommend that the vehicle be
checked by an authorized HYUNDAI
dealer.
Rear combination light bulb
replacement
(1) Back-up light
(2) Tail light
(3) Rear turn signal light
(4) Stop/tail light
(5) Side marker
OGDE071055LOGD071031OGD071030

777
Maintenance

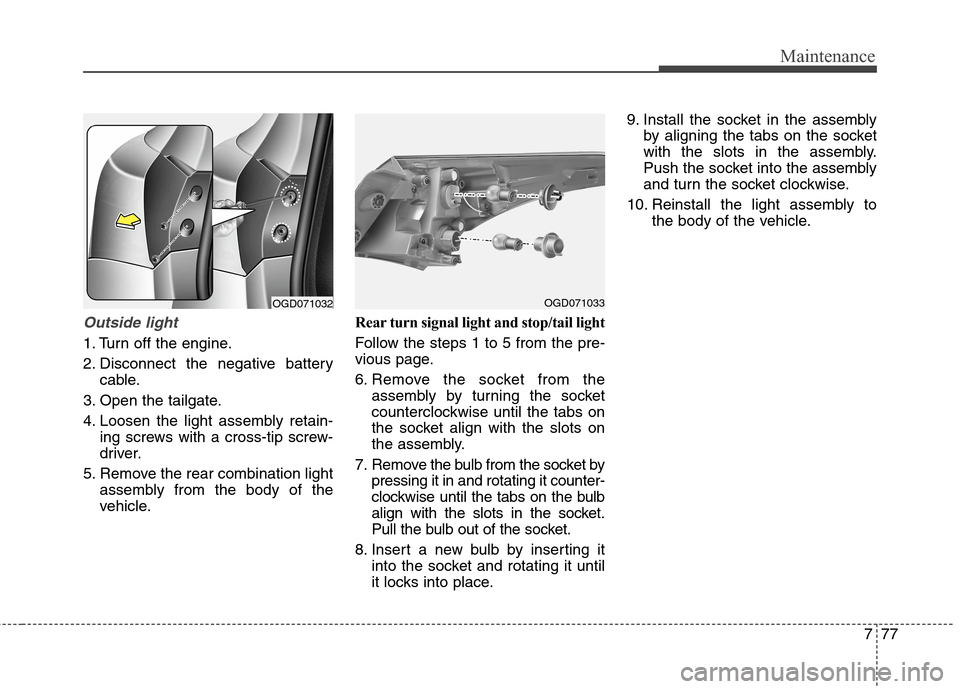

Outside light
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Open the tailgate.
4. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver.
5. Remove the rear combination light
assembly from the body of the
vehicle.Rear turn signal light and stop/tail light
Follow the steps 1 to 5 from the pre-
vious page.
6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
8. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Reinstall the light assembly to
the body of the vehicle.
OGD071032OGD071033

Maintenance
78 7
Rear side marker
Follow the steps 1 to 5 from the pre-
vious page.
6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket
by pulling out the bulb.
8. Insert a new bulb.9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Reinstall the light assembly to

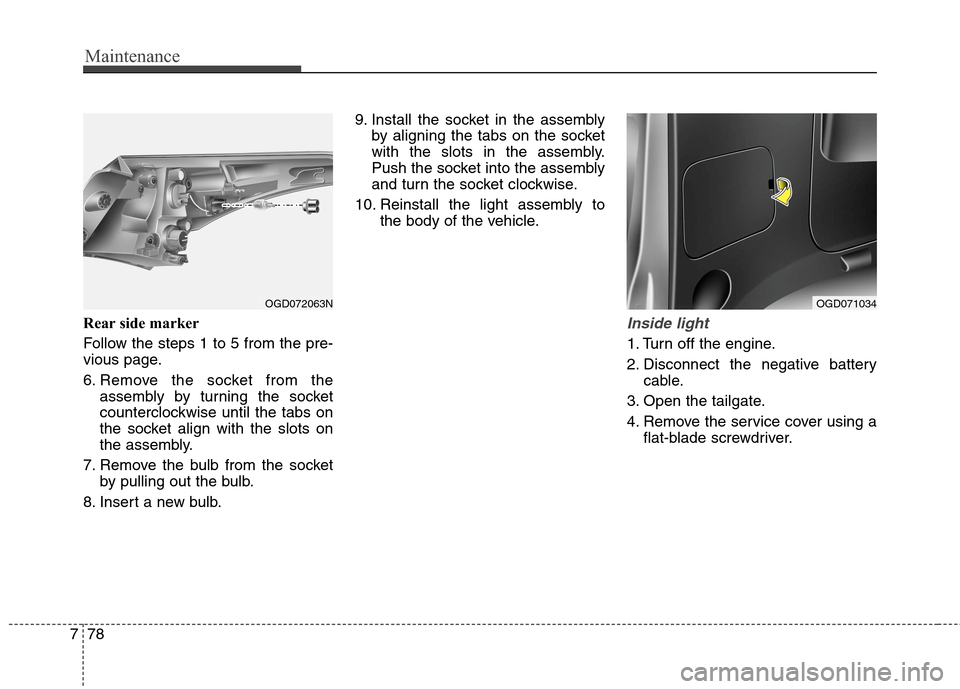

the body of the vehicle.Inside light
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Open the tailgate.
4. Remove the service cover using a
flat-blade screwdriver.
OGD072063NOGD071034

779
Maintenance
Tail light
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the service cover by putting
it into the service hole.

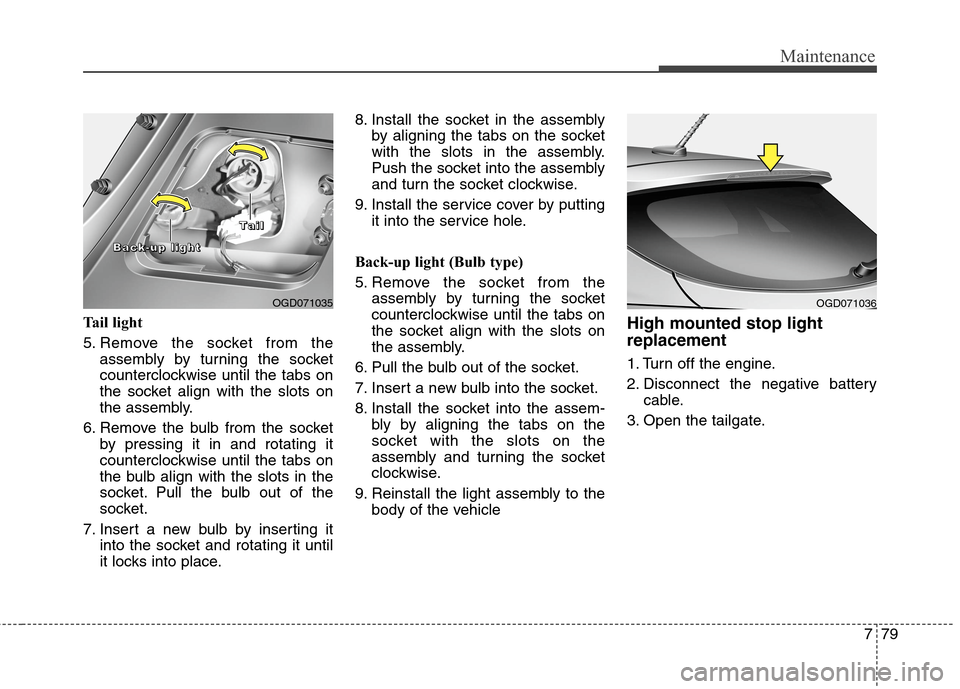

Back-up light (Bulb type)
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Pull the bulb out of the socket.
7. Insert a new bulb into the socket.
8. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
9. Reinstall the light assembly to the
body of the vehicleHigh mounted stop light
replacement
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Open the tailgate.
OGD071035
B B B B
a a a a
c c c c
k k k k
- - - -
u u u u
p p p p

l l l l
i i i i
g g g g
h h h h
t t t t
T
T T T
a a a a
i i i i
l l l l
OGD071036
