35
Safety features of your vehicle
Front seat
Manual adjustment
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment
lever up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and rear-
ward without using the lever. If the
seat moves, it is not locked properly.Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)Seat cushion height (for driver’s seat)
(if equipped)
To change the height of the seat
cushion, push the lever upwards or
downwards.
• To lower the seat cushion, push the
lever down several times.
To raise the seat cushion, pull the
lever up several times.
OGD031002OGD031003OGD031004

Safety features of your vehicle
6 3
Automatic adjustment
(for driver’s seat) (if equipped)
The driver’s seat can be adjusted by
using the control knob located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so as to easily control the
steering wheel, pedals and switches
on the instrument panel.
Forward and backward
1. Push the control switch forward or
backward to move the seat to the
desired position.
2. Release the switch once the seat
reaches the desired position.
WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should never
be left unattended in the car.
CAUTION
The power seat is driven by an
electric motor. Stop operating
once the adjustment is com-
pleted. Excessive operation
may damage the electrical
equipment.
When in operation, the power
seat consumes a large amount
of electrical power. To prevent
unnecessary charging system
drain, don’t adjust the power
seat longer than necessary
while the engine is not running.
Do not operate two or more
power seat control knobs at the
same time. Doing so may result
in power seat motor or electri-
cal component malfunction.
OGD031007

Safety features of your vehicle
20 3
Height adjustment (Front)
You can adjust the height of the shoul-
der belt anchor to one of 4 positions
for maximum comfort and safety.
The shoulder portion should be
adjusted so that it lies across your
chest and midway over your shoulder
nearest the door and not your neck.
The height of the adjusting seat belt
should not be too near your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
WARNING
Verify the shoulder belt
anchor is locked into position
at the appropriate height.
Never position the shoulder
belt across your neck or face.
Improperly positioned seat
belts can cause serious
injuries in an accident.
Failure to replace seat belts
after an accident could leave
you with damaged seat belts
that will not provide protec-
tion in the event of another
collision leading to personal
injury or death. Replace your
seat belts after being in an
accident as soon as possible.
OHD036019
Front seat
B200A02NF
WARNING
You should place the lap belt
portion as low as possible and
snugly across your hips, not on
your waist. If the lap belt is locat-
ed too high on your waist, it may
increase the chance of injury in
the event of a collision. Both
arms should not be under or
over the belt. Rather, one should
be over and the other under, as
shown in the illustration.
Never wear the seat belt under
the arm nearest the door.

Features of your vehicle
48 4
Inside rearview mirror
Adjust the rearview mirror so that the
center view through the rear window
is seen. Make this adjustment before
you start driving.
Day/night rearview mirror
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
the vehicles behind you during night
driving.
Remember that you may lose some
rearview clarity in the night position.Blue Link
®center
For the details, refer to the Blue Link®
Owner’s Guide, navigation manual or
audio manual. The audio manual is in
this section.
MIRRORS
WARNING - Rear visibility
Do not place objects in the rear
seat or cargo area which inter-
fere with your vision through
the rear window.
OMD040031 DayNight
WARNING
Do not modify the inside mirror
or install an aftermarket mirror.
Doing so may result in injury
during an accident.
OFS042222N

793
Maintenance
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the
engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer. Avoid driving with a extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle
Dismantlers: Perchlorate containing
materials, such as air bag inflators,
seatbelt pretensioners and keyless
remote entry batteries, must be dis-
posed of according to Title 22
California Code of Regulations
Section 67384.10 (a).
CALIFORNIA PERCHLO-
RATE NOTICE

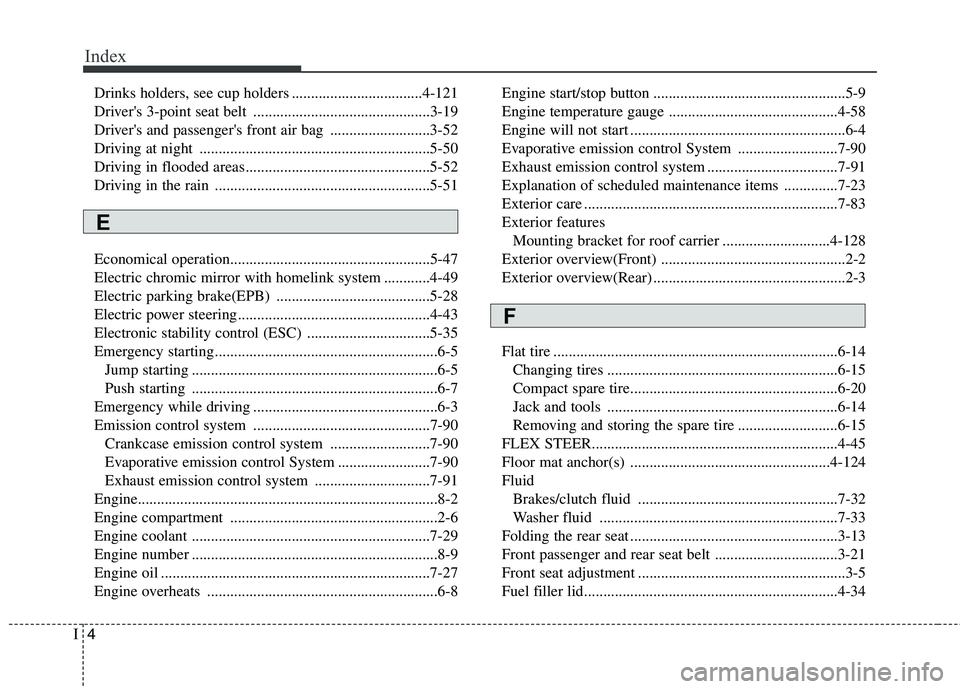

Index
4I
Drinks holders, see cup holders ..................................4-121
Driver's 3-point seat belt ..............................................3-19
Driver's and passenger's front air bag ..........................3-52
Driving at night ............................................................5-50
Driving in flooded areas................................................5-52
Driving in the rain ........................................................5-51
Economical operation....................................................5-47
Electric chromic mirror with homelink system ............4-49
Electric parking brake(EPB) ........................................5-28
Electric power steering..................................................4-43
Electronic stability control (ESC) ................................5-35
Emergency starting..........................................................6-5
Jump starting ................................................................6-5
Push starting ................................................................6-7
Emergency while driving ................................................6-3
Emission control system ..............................................7-90
Crankcase emission control system ..........................7-90
Evaporative emission control System ........................7-90
Exhaust emission control system ..............................7-91
Engine..............................................................................8-2
Engine compartment ......................................................2-6
Engine coolant ..............................................................7-29
Engine number ................................................................8-9
Engine oil ......................................................................7-27
Engine overheats ............................................................6-8Engine start/stop button ..................................................5-9
Engine temperature gauge ............................................4-58
Engine will not start ........................................................6-4
Evaporative emission control System ..........................7-90
Exhaust emission control system ..................................7-91
Explanation of scheduled maintenance items ..............7-23
Exterior care ..................................................................7-83
Exterior features
Mounting bracket for roof carrier ............................4-128
Exterior overview(Front) ................................................2-2
Exterior overview(Rear) ..................................................2-3
Flat tire ..........................................................................6-14
Changing tires ............................................................6-15
Compact spare tire......................................................6-20
Jack and tools ............................................................6-14
Removing and storing the spare tire ..........................6-15
FLEX STEER................................................................4-45
Floor mat anchor(s) ....................................................4-124
Fluid
Brakes/clutch fluid ....................................................7-32
Washer fluid ..............................................................7-33
Folding the rear seat ......................................................3-13
Front passenger and rear seat belt ................................3-21
Front seat adjustment ......................................................3-5
Fuel filler lid..................................................................4-34
F
E

I7
Index
Day/night rearview mirror ..........................................4-48
Electric chromic mirror with homelink system ........4-49
Inside rearview mirror ................................................4-48
Outside rearview mirror ............................................4-53
Mounting bracket for roof carrier ..............................4-128
Occupant classification system ....................................3-45
Odometer ......................................................................4-60
Oil (Engine) ..................................................................7-27
Outside rearview mirror ................................................4-53
Outside temperature ......................................................4-60
Overheats ........................................................................6-8
Owner maintenance ........................................................7-6
Panorama sunroof..........................................................4-38
Parking brake ................................................................7-33
Parking brake - Hand type ............................................5-26
Power brakes ................................................................5-24
Power outlet ................................................................4-123
Power window lock button............................................4-31
Pre-tensioner seat belt ..................................................3-22
Push starting ....................................................................6-7Rear seat ........................................................................3-11
Rearview camera ..........................................................4-82
Recommended cold tire inflation pressures ..................7-44
Recommended lubricants and capacities ........................8-5
Recommended SAE viscosity number ........................8-7
Refrigerant label ..............................................................8-9
Remote keyless entry ....................................................4-14
Replacement light bulb ................................................7-71
Reporting safety defects ................................................8-12
Road warning ..................................................................6-2
Rocking the vehicle ......................................................5-49
Roof antenna ..............................................................4-130
Scheduled maintenance service ......................................7-8
Maintenance under severe usage conditions ..............7-21
Normal maintenance schedule ....................................7-9
Seat belt precautions ....................................................3-25
Seat belt warning ..........................................................3-18
Seat belts ......................................................................3-17
Hight adjustment ........................................................3-20
Pre-tensioner seat belt ................................................3-22
Seat belt - Driver's 3-point system ............................3-19
Seat belt precautions ..................................................3-25
Seat belt warning ........................................................3-18
O
P
R
S

Index
8I
Seat belts - Front passenger and rear seat ..................3-21
Seat warmer ....................................................................3-9
Seatback pocket ............................................................3-10
Seating capacity ............................................................5-58
Seats ................................................................................3-2
Folding the rear seat ..................................................3-13
Front seat adjustment ..................................................3-5
Headrest(front) ............................................................3-8
Headrest(rear) ............................................................3-11
Rear seat ....................................................................3-11
Seat warmer ..................................................................3-9
Seatback pocket ..........................................................3-10
Side impact air bag........................................................3-56
Sliding armrest ............................................................4-117
Smart key ........................................................................4-7
Smooth cornering ..........................................................5-50
Snow tires ......................................................................5-54
Spare tire
Compact spare tire......................................................6-20
Compact spare tire replacement ................................7-49
Removing and storing the spare tire ..........................6-15
Special driving conditions ............................................5-49
Driving at night ..........................................................5-50
Driving in flooded areas ............................................5-52
Driving in the rain ......................................................5-51
Hazardous driving conditions ....................................5-49
Highway driving ........................................................5-52
Rocking the vehicle ....................................................5-49Smooth cornering ......................................................5-50
Speedometer ..................................................................4-57
Sports mode ..................................................................5-20
SRS components and functions ....................................3-41
Starting difficulties, see engine will not start ................6-4
Steering wheel ..............................................................4-43
Electric power steering ..............................................4-43
FLEX STEER ............................................................4-45
Horn ............................................................................4-45
Tilt steering ................................................................4-44
Steering wheel audio control ......................................4-131
Steps For Determining Correct Load Limit ..................5-59
Storage compartment ..................................................4-117
Center console storage ............................................4-117
Cool box ..................................................................4-118
Glove box ................................................................4-118
Luggage net ..............................................................4-120
Sliding armrest ........................................................4-117
Sunglass holder ........................................................4-119
Sunglass holder ..........................................................4-119
Sunroof, see panorama sunroof ....................................4-38
Sunvisor ......................................................................4-122
