Hyundai Elantra GT 2017 Owner's Manual

Features of your vehicle
64
4

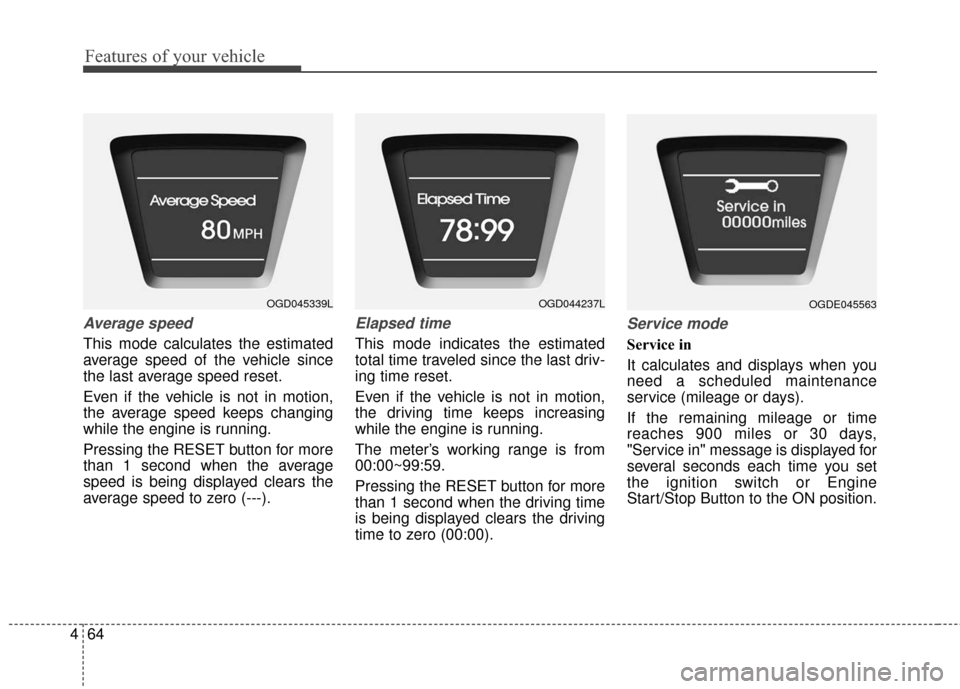

Average speed
This mode calculates the estimated
average speed of the vehicle since
the last average speed reset.
Even if the vehicle is not in motion,
the average speed keeps changing
while the engine is running.
Pressing the RESET button for more
than 1 second when the average
speed is being displayed clears the
average speed to zero (---).
Elapsed time
This mode indicates the estimated
total time traveled since the last driv-
ing time reset.
Even if the vehicle is not in motion,
the driving time keeps increasing
while the engine is running.
The meter’s working range is from
00:00~99:59.
Pressing the RESET button for more
than 1 second when the driving time
is being displayed clears the driving
time to zero (00:00).
Service mode
Service in
It calculates and displays when you
need a scheduled maintenance
service (mileage or days).
If the remaining mileage or time
reaches 900 miles or 30 days,
"Service in" message is displayed for
several seconds each time you set
the ignition switch or Engine
Start/Stop Button to the ON position.
OGD045339LOGD044237LOGDE045563

465
Features of your vehicle

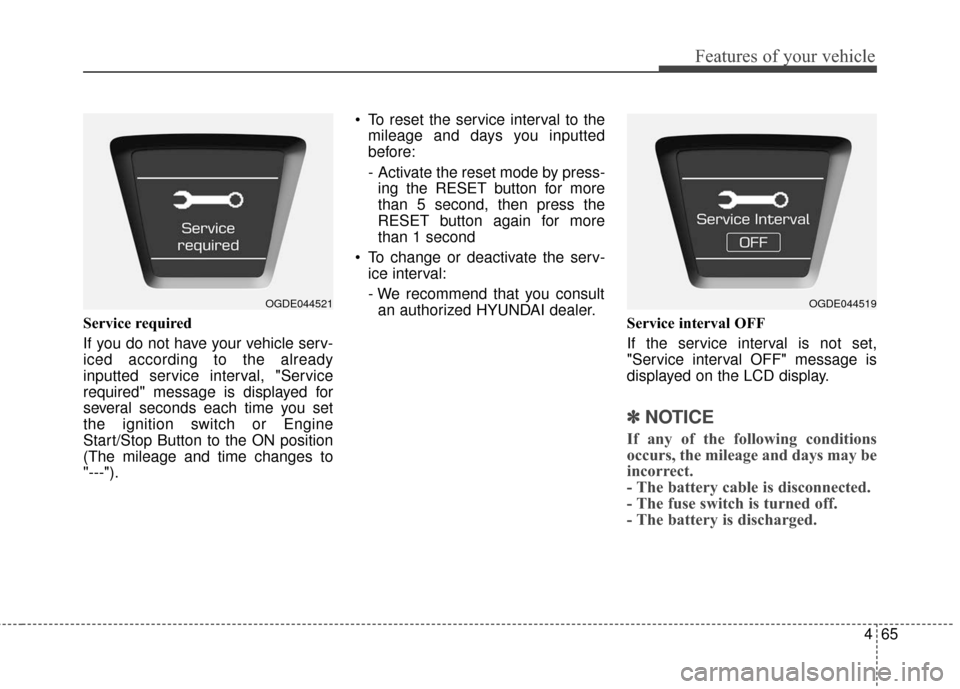

Service required
If you do not have your vehicle serv-
iced according to the already
inputted service interval, "Service
required" message is displayed for
several seconds each time you set
the ignition switch or Engine
Start/Stop Button to the ON position
(The mileage and time changes to
"---"). To reset the service interval to the
mileage and days you inputted
before:
- Activate the reset mode by press-ing the RESET button for more
than 5 second, then press the
RESET button again for more
than 1 second
To change or deactivate the serv- ice interval:
- We recommend that you consultan authorized HYUNDAI dealer. Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽ ✽NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
OGDE044521OGDE044519

Features of your vehicle
66
4

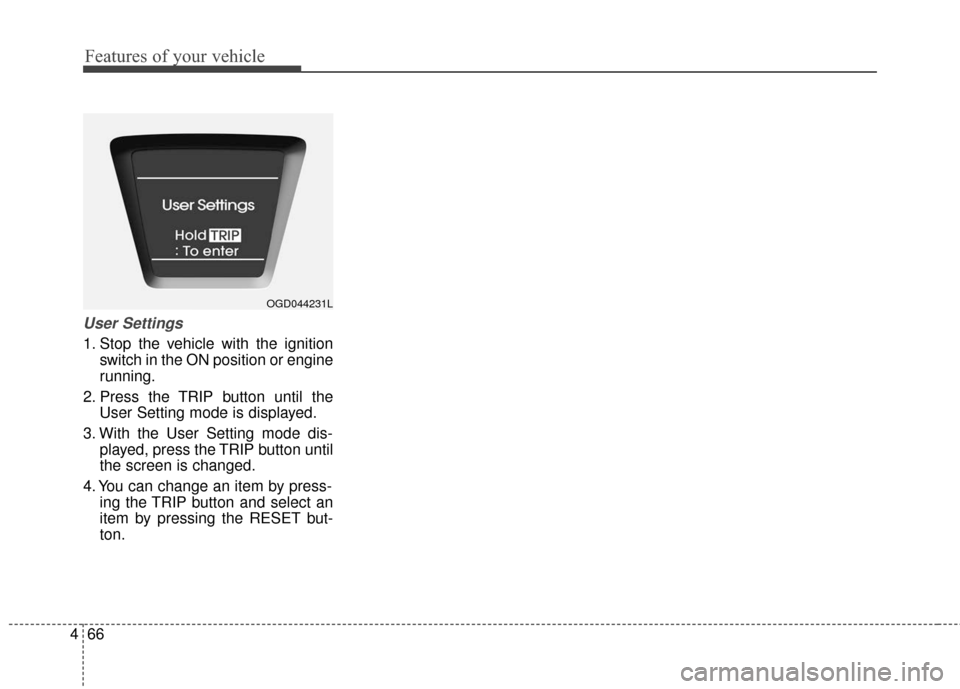

User Settings
1. Stop the vehicle with the ignition
switch in the ON position or engine
running.
2. Press the TRIP button until the User Setting mode is displayed.
3. With the User Setting mode dis- played, press the TRIP button until
the screen is changed.
4. You can change an item by press- ing the TRIP button and select an
item by pressing the RESET but-
ton.
OGD044231L

467
Features of your vehicle
ItemsExplanation

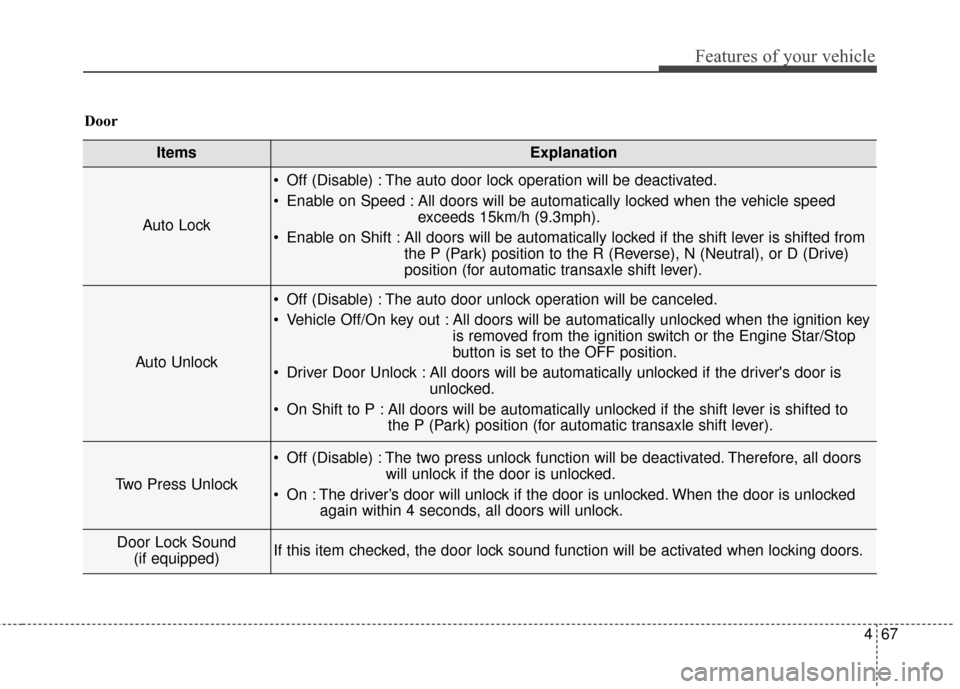

Auto Lock
Off (Disable) : The auto door lock operation will be deactivated.
Enable on Speed : All doors will be automatically locked when the vehicle speedexceeds 15km/h (9.3mph).
Enable on Shift : All doors will be automatically locked if the shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive)
position (for automatic transaxle shift lever).
Auto Unlock
Off (Disable) : The auto door unlock operation will be canceled.
Vehicle Off/On key out : All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Star/Stop
button is set to the OFF position.
Driver Door Unlock : All doors will be automatically unlocked if the driver's door is unlocked.
On Shift to P : All doors will be automatically unlocked if the shift lever is shifted to the P (Park) position (for automatic transaxle shift lever).
Two Press Unlock
Off (Disable) : The two press unlock function will be deactivated. Therefore, all doorswill unlock if the door is unlocked.
On : The driver’s door will unlock if the door is unlocked. When the door is unlocked again within 4 seconds, all doors will unlock.
Door Lock Sound(if equipped)If this item checked, the door lock sound function will be activated when locking doors.
Door

Features of your vehicle
68
4

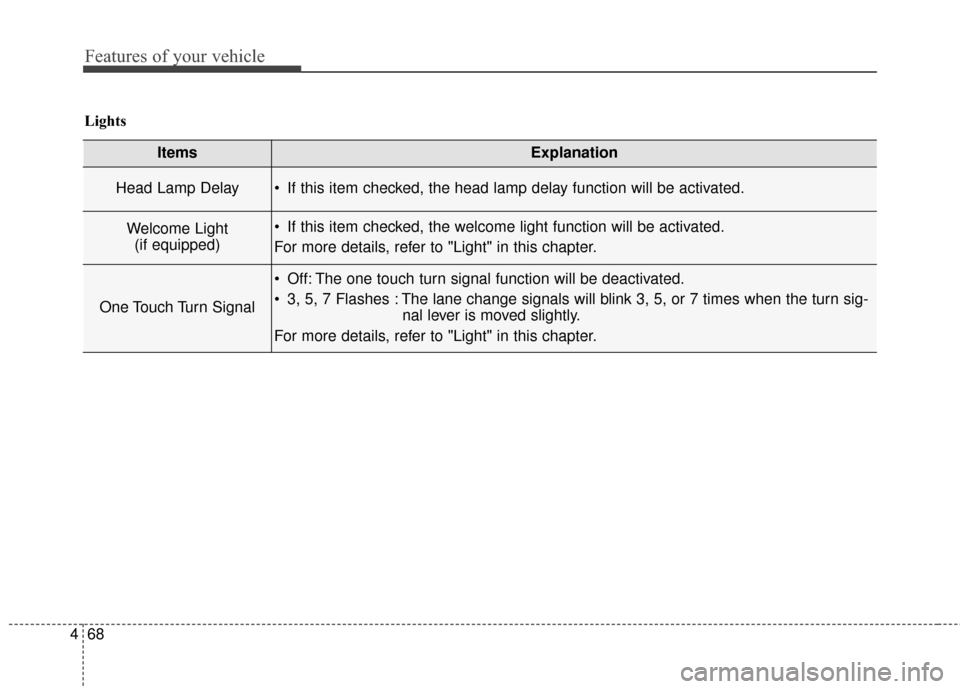

ItemsExplanation
Head Lamp Delay If this item checked, the head lamp delay function will be activated.
Welcome Light
(if equipped) If this item checked, the welcome light function will be activated.
For more details, refer to "Light" in this chapter.
One Touch Turn Signal
Off: The one touch turn signal function will be deactivated.
3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn sig- nal lever is moved slightly.
For more details, refer to "Light" in this chapter.
Lights

469
Features of your vehicle
ItemsExplanation

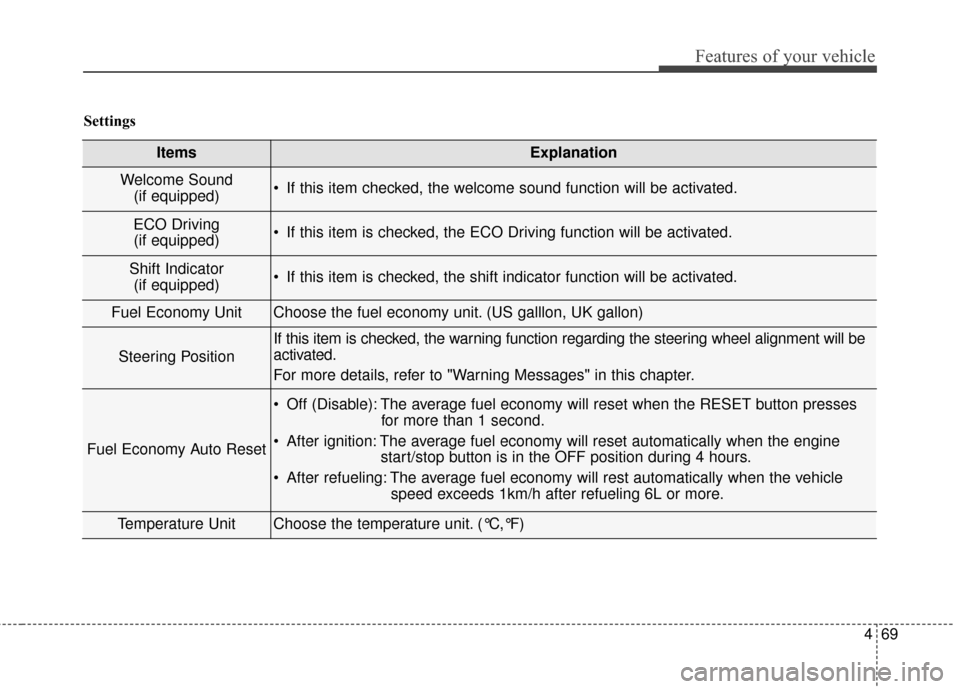

Welcome Sound(if equipped) If this item checked, the welcome sound function will be activated.
ECO Driving (if equipped) If this item is checked, the ECO Driving function will be activated.
Shift Indicator (if equipped) If this item is checked, the shift indicator function will be activated.
Fuel Economy UnitChoose the fuel economy unit. (US galllon, UK gallon)
Steering Position
If this item is checked, the warning function regarding the steering wheel alignment will be
activated.
For more details, refer to "Warning Messages" in this chapter.
Fuel Economy Auto Reset
Off (Disable): The average fuel economy will reset when the RESET button presses for more than 1 second.
After ignition: The average fuel economy will reset automatically when the engine start/stop button is in the OFF position during 4 hours.
After refueling: The average fuel economy will rest automatically when the vehicle speed exceeds 1km/h after refueling 6L or more.
Temperature UnitChoose the temperature unit. (°C,°F)
Settings

Features of your vehicle
70
4
ItemsExplanation

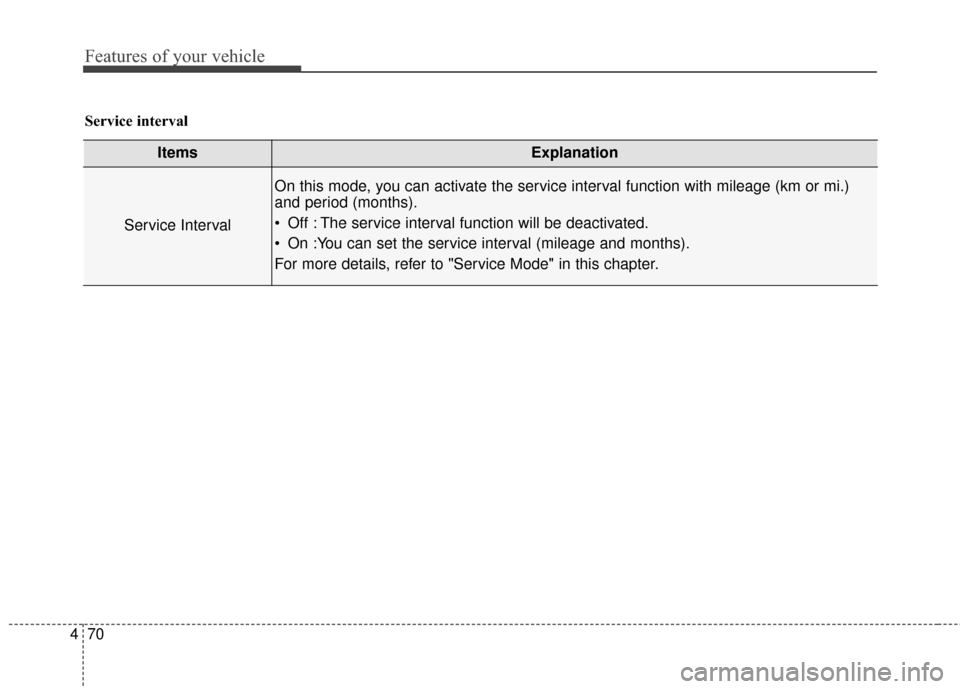

Service Interval
On this mode, you can activate the service interval function with mileage (km or mi.)
and period (months).
Off : The service interval function will be deactivated.
On :You can set the service interval (mileage and months).
For more details, refer to "Service Mode" in this chapter.
Service interval

471
Features of your vehicle

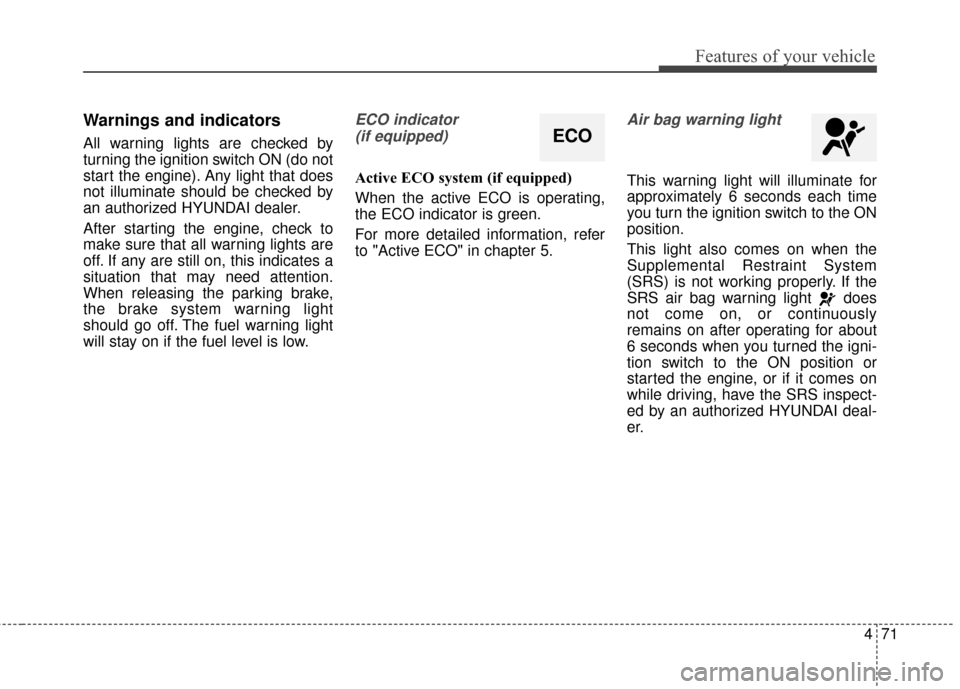

Warnings and indicators
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an authorized HYUNDAI dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that may need attention.
When releasing the parking brake,
the brake system warning light
should go off. The fuel warning light
will stay on if the fuel level is low.
ECO indicator (if equipped)
Active ECO system (if equipped)
When the active ECO is operating,
the ECO indicator is green.
For more detailed information, refer
to "Active ECO" in chapter 5.
Air bag warning light
This warning light will illuminate for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
This light also comes on when the
Supplemental Restraint System
(SRS) is not working properly. If the
SRS air bag warning light does
not come on, or continuously
remains on after operating for about
6 seconds when you turned the igni-
tion switch to the ON position or
started the engine, or if it comes on
while driving, have the SRS inspect-
ed by an authorized HYUNDAI deal-
er.
ECO

Features of your vehicle
72
4

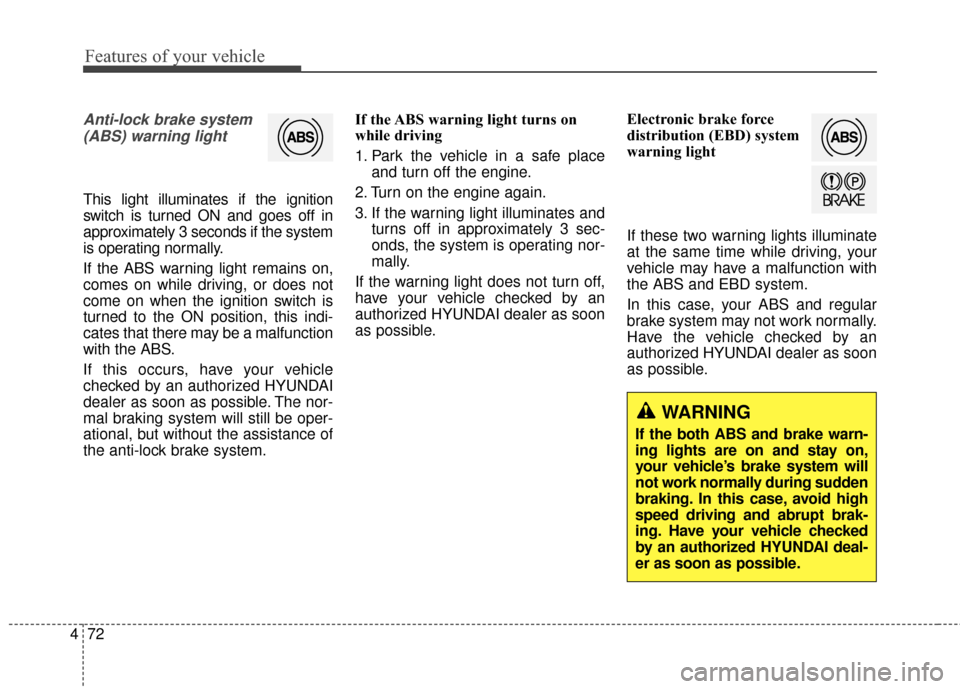

Anti-lock brake system
(ABS) warning light
This light illuminates if the ignition
switch is turned ON and goes off in
approximately 3 seconds if the system
is operating normally.
If the ABS warning light remains on,
comes on while driving, or does not
come on when the ignition switch is
turned to the ON position, this indi-
cates that there may be a malfunction
with the ABS.
If this occurs, have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible. The nor-
mal braking system will still be oper-
ational, but without the assistance of
the anti-lock brake system. If the ABS warning light turns on
while driving
1. Park the vehicle in a safe place
and turn off the engine.
2. Turn on the engine again.
3. If the warning light illuminates and turns off in approximately 3 sec-
onds, the system is operating nor-
mally.
If the warning light does not turn off,
have your vehicle checked by an
authorized HYUNDAI dealer as soon
as possible. Electronic brake force
distribution (EBD) system
warning light
If these two warning lights illuminate
at the same time while driving, your
vehicle may have a malfunction with
the ABS and EBD system.
In this case, your ABS and regular
brake system may not work normally.
Have the vehicle checked by an
authorized HYUNDAI dealer as soon
as possible.
WARNING
If the both ABS and brake warn-
ing lights are on and stay on,
your vehicle’s brake system will
not work normally during sudden
braking. In this case, avoid high
speed driving and abrupt brak-
ing. Have your vehicle checked
by an authorized HYUNDAI deal-
er as soon as possible.

473
Features of your vehicle
✽

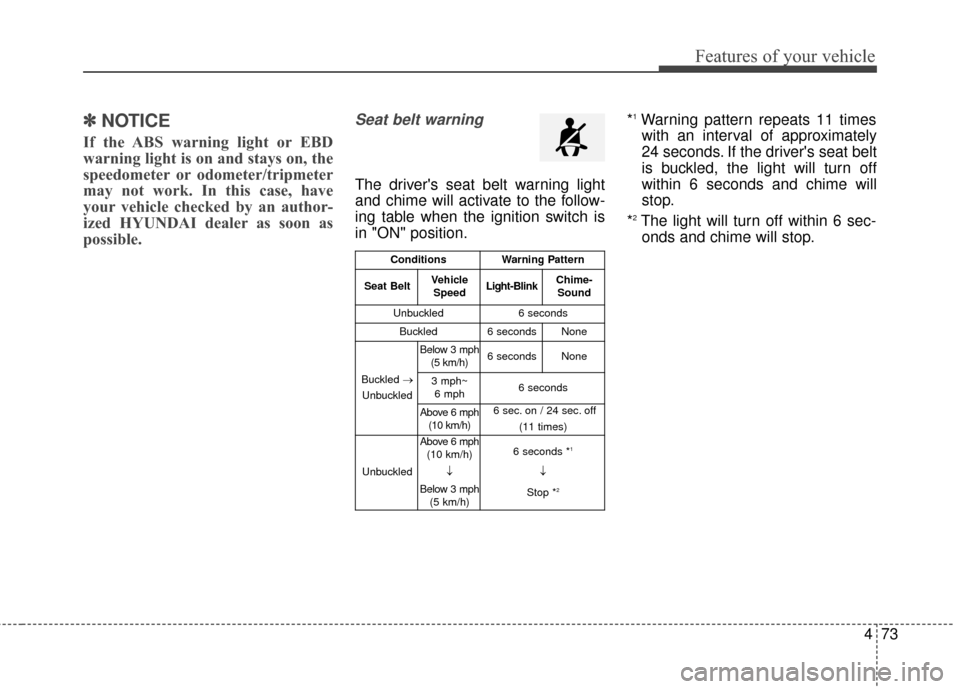

✽NOTICE
If the ABS warning light or EBD
warning light is on and stays on, the
speedometer or odometer/tripmeter
may not work. In this case, have
your vehicle checked by an author-
ized HYUNDAI dealer as soon as
possible.
Seat belt warning
The driver's seat belt warning light
and chime will activate to the follow-
ing table when the ignition switch is
in "ON" position. *
1Warning pattern repeats 11 times
with an interval of approximately
24 seconds. If the driver's seat belt
is buckled, the light will turn off
within 6 seconds and chime will
stop.
*
2The light will turn off within 6 sec- onds and chime will stop.
ConditionsWarning Pattern
Seat BeltVehicle
SpeedLight-BlinkChime-Sound
Unbuckled6 seconds
Buckled6 secondsNone
Buckled →
Unbuckled
Below 3 mph (5 km/h)6 secondsNone
3 mph~6 mph6 seconds
Above 6 mph (10 km/h)6 sec. on / 24 sec. off
(11 times)
Unbuckled
Above 6 mph(10 km/h)
↓
Below 3 mph (5 km/h)6 seconds *1
↓
Stop *
2
