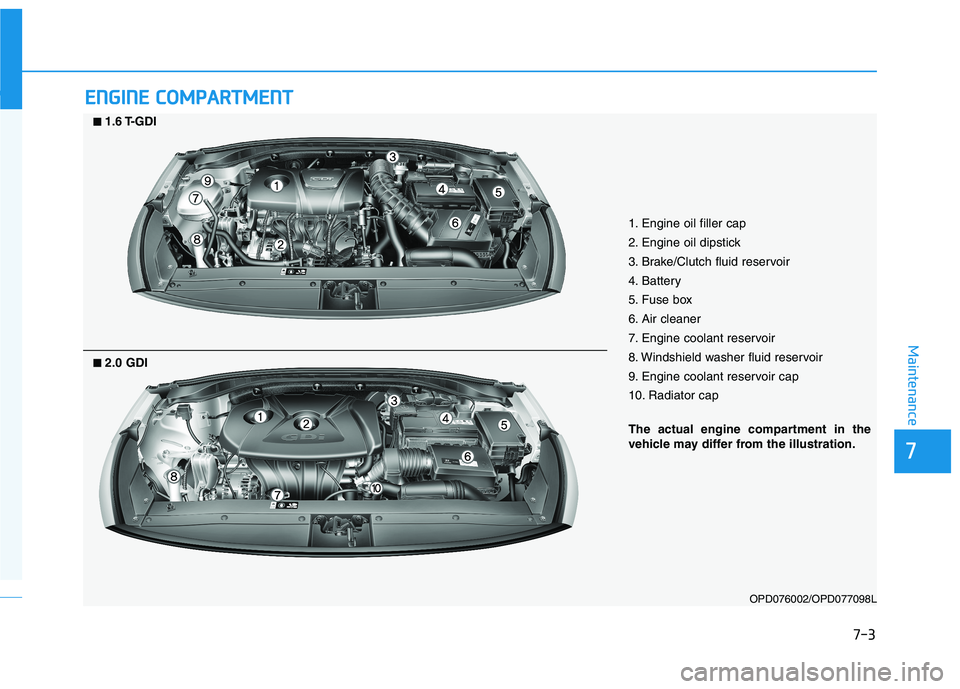

EENN GGIINN EE CC OO MM PPAA RRTTMM EENN TT
1. Engine oil filler cap ...........................7-18
2. Engine oil dipstick .............................7-18
3. Brake/Clutch fluid reservoir...............7-24
4. Battery ..............................................7-32
5. Fuse box ...........................................7-54
6. Air cleaner.........................................7-26
7. Engine coolant reservoir ...................7-20
8. Windshield washer fluid reservoir .....7-25
9. Engine coolant reservoir cap ............7-22
10. Radiator cap ...................................7-22
OPD076002/OPD077098L
■■1.6 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
■
■
2.0 GDI

7-3
7
Maintenance
EENN GGIINN EE CC OO MM PPAA RRTTMM EENN TT
OPD076002/OPD077098L
■■
2.0 GDI
■■1.6 T-GDI
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake/Clutch fluid reservoir
4. Battery
5. Fuse box
6. Air cleaner
7. Engine coolant reservoir
8. Windshield washer fluid reservoir
9. Engine coolant reservoir cap
10. Radiator cap
The actual engine compartment in the
vehicle may differ from the illustration.

7-18
MaintenanceE
E NN GGIINN EE OO IILL
Checking the Engine Oil Level
1. Follow all of the oil manufacturer’s
precautions.
2. Be sure the vehicle is on the level ground in P (Park) with the park-
ing brake set. If possible, block the
wheels.
3. Turn the engine on and allow the engine to reach normal operating
temperature.
4. Turn the engine off and wait about five minutes for the oil to return tothe oil pan.
5. Pull the dipstick out, wipe it clean, and re-insert it fully. 6. Pull the dipstick out again and
check the level. The level should
be between F and L.
7. If it is near or at L, add enough oilto bring the level to F.
Use only the specified engine oil.
(refer to "Recommended Lubricants
and Capacities" in chapter 8).
OPD076008
OPD077007L
■ 1.6 T-GDI
■2.0 GDIOPD078067
