6-25
What to do in an emergency
6
Starter won't function
Engine turns over but
will not start Engine misfires
Engine overheats Engine stops while
driving Fuel consumption is
excessive
Brake pedal is spongy
Braking power is insufficient
Steering wheel is heavy
Steering wheel shakesSteering wheel pulls to
one side while drivingVehicle pulls to one side
while braking
Tire wear is abnormalCharge warning light\
comes on while drivingWipers, horn or lights
won't funciton
Battery discharge is
excessive
Ignition circuit faulty
Ignition coil or condensor faulty
Distributor faulty
Alternator belt loose
Check fuses, bulbs or wiring
Brake dragging
Shift lever not positioned in "P" or "N" range
Frequent driving in lower gear
Air intrusion into brake lines
Brake fluid insufficient
Brake disc and pads wet
Brake pad wearWheel alignment incorrectWheel balance incorrect
Tire pressure incorrect (too low or high)
Tire size incorrectO
O OO
O
OOOO O OO O O O O O
OOOO
OOO O
O O O
OO O O O O
O

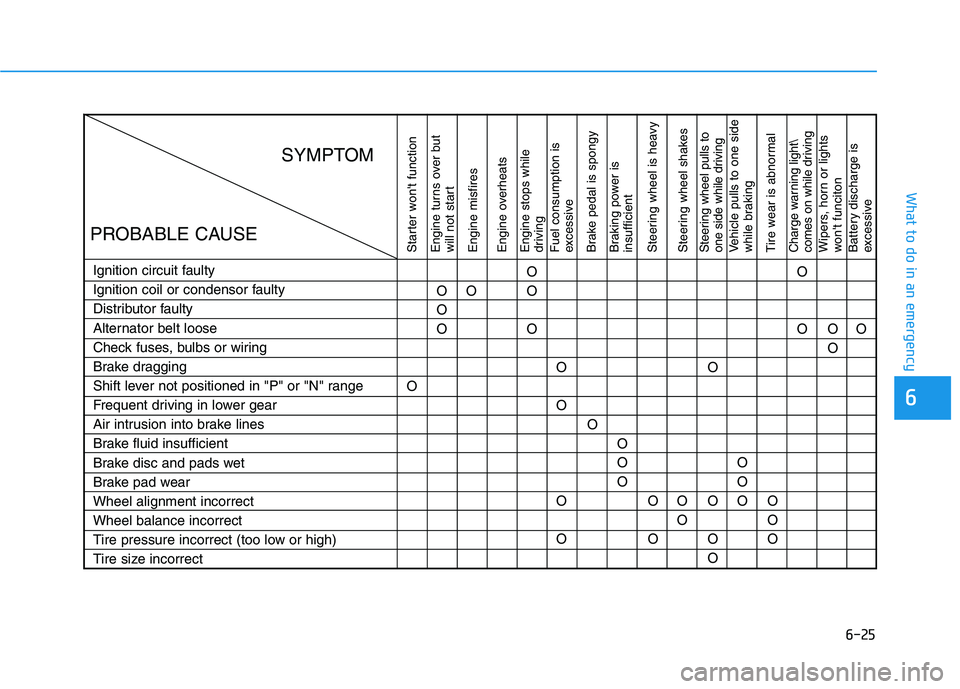

SYMPTOM
PROBABLE CAUSE

7
Maintenance
7

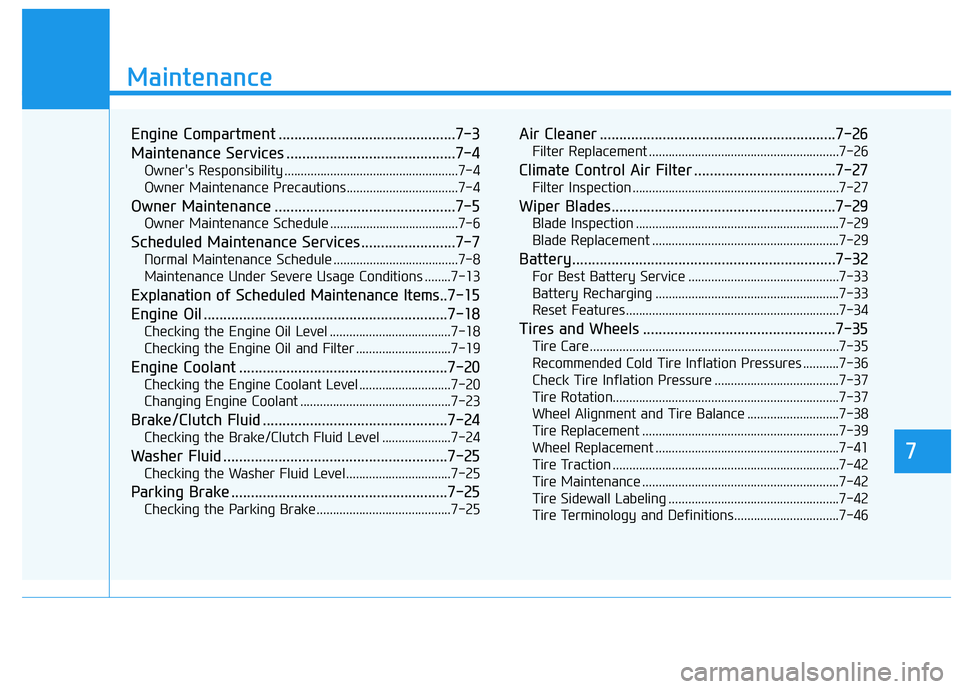

Maintenance
Engine Compartment .............................................7-3
Maintenance Services ...........................................7-4Owner's Responsibility .....................................................7-4
Owner Maintenance Precautions..................................7-4
Owner Maintenance ..............................................7-5 Owner Maintenance Schedule .......................................7-6
Scheduled Maintenance Services........................7-7 Normal Maintenance Schedule ......................................7-8
Maintenance Under Severe Usage Conditions ........7-13
Explanation of Scheduled Maintenance Items..7-15
Engine Oil ..............................................................7-18 Checking the Engine Oil Level .....................................7-18
Checking the Engine Oil and Filter .............................7-19
Engine Coolant .....................................................7-20 Checking the Engine Coolant Level ............................7-20
Changing Engine Coolant ..............................................7-23
Brake/Clutch Fluid ...............................................7-24 Checking the Brake/Clutch Fluid Level .....................7-24
Washer Fluid .........................................................7-25 Checking the Washer Fluid Level................................7-25
Parking Brake .......................................................7-25 Checking the Parking Brake .........................................7-25 Air Cleaner ............................................................7-26
Filter Replacement ..........................................................7-26
Climate Control Air Filter ....................................7-27 Filter Inspection ...............................................................7-27
Wiper Blades.........................................................7-29 Blade Inspection ..............................................................7-29
Blade Replacement .........................................................7-29
Battery...................................................................7-32 For Best Battery Service ..............................................7-33
Battery Recharging ........................................................7-33
Reset Features.................................................................7-34
Tires and Wheels .................................................7-35 Tire Care ............................................................................7-35
Recommended Cold Tire Inflation Pressures ...........7-36
Check Tire Inflation Pressure ......................................7-37
Tire Rotation.....................................................................7-37
Wheel Alignment and Tire Balance ............................7-38
Tire Replacement ............................................................7-39
Wheel Replacement ........................................................7-41
Tire Traction .....................................................................7-42
Tire Maintenance ............................................................7-42
Tire Sidewall Labeling ....................................................7-42
Tire Terminology and Definitions................................7-46
7

7-37
7
Maintenance
Check Tire Inflation Pressure
Check your tires, including the spare
tire, once a month or more.
How to check
Use a good quality tire pressure
gauge to check tire pressure. You
can not tell if your tires are properly
inflated simply by looking at them.
Radial tires may look properly inflat-
ed when they are under-inflated.
Remove the valve cap from the tire
valve stem. Press the tire gauge firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflationpressure matches the recommendedpressure on the tire label located on
the driver's side center pillar or in this
manual. No further adjustment is
necessary. If the pressure is low, add
air until you reach the recommended
pressure. Make sure to put the valve
caps back on the valve stems.
Without the valve cap, dirt or mois-
ture could get into the valve core and
cause air leakage. If a valve cap is
missing, install a new one as soon as
possible.If you overfill the tire, release air bypushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
sure to put the valve caps back on
the valve stems. Without the valve
cap, dirt or moisture could get into
the valve core and cause air leakage.
If a valve cap is missing, install a new
one as soon as possible.
A cold tire means the vehicle has
been sitting for 3 hours and driven forless than 1.6 km (1 mile) in that 3
hour period.
Allow the tire to cool before measur-
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.
Tire Rotation
To equalize tread wear, HYUNDAI recommends that the tires be rotatedaccording to the maintenance sched-
ule or sooner if irregular wear devel-
ops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of the tire.
Replace the tire if you find any of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness (proper torque is11~13 kgf·m [79~94 lbf·ft]).

7-38
Maintenance
Disc brake pads should be inspected
for wear whenever tires are rotated.Information
Tires that are asymmetrical or direc-
tional can only be installed on the
wheel in one direction. The outside
and inside of an asymmetrical tire is
not easily distinguishable. Pay careful
attention to the markings on the side-
walls of the tires, noting the "outside"
marking and also the rotating direc-
tion before installing them on the
vehicle.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may needto be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
Improper wheel weights can dam-
age your vehicle’s aluminum
wheels. Use only approved wheelweights.
NOTICE
i
Do not use the compact spare
tire for tire rotation.
Do not mix bias ply and radial
ply tires under any circum-
stances. This may cause
unusual handling characteris-
tics that may cause loss of
vehicle control resulting in anaccident.
WARNING
ODH073802
■ Without a spare tire

7-42
Maintenance
Tire Traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should bereplaced when the tread depth is at
least 1.6 mm (2/32 inch). To reduce
the possibility of losing control, slow
down whenever there is rain, snow orice on the road.
Tire Maintenance
In addition to proper inflation, correct wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check thewheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removedfrom the wheel.
Tire Sidewall Labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. TheTIN can be used to identify the tire incase of a recall.
1. Manufacturer or brand name
Manufacturer or brand name is
shown.
2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following
explains what the letters and num-
bers in the tire size designationmean.
OLMB073028
1
1
2
34
5,6
7

I-13
Tachometer ......................................................................3-49
Tailgate ............................................................................3-42
Emergency tailgate safety release ..............................3-43
Theft-alarm system .........................................................3-19
Tilt steering/Telescope steering ......................................3-20
Tire pressure monitoring system (TPMS) ........................6-8
Tire rotation ....................................................................7-37
Tire specification and pressure label ..............................8-12
Tires and wheels .............................................................7-35 All season tires ...........................................................7-49
Check tire inflation pressure ......................................7-37
Compact spare tire replacement .................................7-40
Low aspect ratio tires .................................................7-50
Radial-ply tires ...........................................................7-49
Recommended cold tire inflation pressures ...............7-36
Snow tires ...................................................................7-49
Summer tires ..............................................................7-49
Tire care ......................................................................7-35
Tire maintenance ........................................................7-42
Tire replacement .........................................................7-39
Tire rotation ................................................................7-37
Tire sidewall labeling .................................................7-42
Tire terminology and definitions ................................7-46
Tire traction ................................................................7-42
Wheel alignment and tire balance ..............................7-38
Wheel replacement .....................................................7-41 Towing ............................................................................6-20
Emergency towing......................................................6-22
Removable towing hook ............................................6-21
Tie-down hook............................................................6-23
Trip computer..................................................................3-79 Accumulated Info display ..........................................3-81
Average fuel economy................................................3-80
Digital speedometer....................................................3-82
Driving Info display ...................................................3-81
Instant fuel economy ..................................................3-80
Turn signals.....................................................................3-88
User settings mode..........................................................3-75
Vanity mirror lamp..........................................................3-91
Vehicle break-in process ...................................................F-9
Vehicle certification label ...............................................8-11
Vehicle data collection and event data recorders ...........F-10
Vehicle identification number (VIN) ..............................8-11
Vehicle load limit ..........................................................5-122 Tire loading information label..................................5-123
Vehicle modification .........................................................F-9
Vehicle stability management (VSM).............................5-52
Vehicle weight and luggage volume .................................8-7
I
Index
T
U
V

I-14
Warning and indicator lights...........................................3-54
Air bag warning light .................................................3-54
Anti-lock Brake System (ABS) warning light ...........3-55
AUTO HOLD indicator light .....................................3-60
Charging system warning light ..................................3-57
Cruise indicator light ..................................................3-64
Cruise SET indicator light..........................................3-64
ECO mode indicator light ..........................................3-64
Electric power steering (EPS) warning light .............3-56
Electronic brake force warning light..........................3-56
Electronic parking brake (EPB) warning light...........3-60
Electronic stability control (ESC) indicator light ......3-61
Electronic stability control (ESC) OFF indicator light .........................................................................3-61
Engine oil pressure warning light ..............................3-58
Forward Collision-Avoidance Assist (FCA) Warning light ...........................................................3-65
High beam indicator light ..........................................3-63
Icy road warning light ................................................3-64
Immobilizer indicator light ........................................3-61
Lane keeping assist system (LKA) warning light......3-65
LED headlamp warning light .....................................3-63
Light ON indicator light .............................................3-63
Low fuel level warning light ......................................3-58
Low tire pressure warning light .................................3-59
Malfunction indicator lamp (MIL) .............................3-57 Master warning light ..................................................3-59
Parking brake & brake fluid warning light ................3-54
Seat belt warning light ...............................................3-54
Smart high beam indicator light .................................3-63
SPORT mode indicator light ......................................3-64
Turn signal indicator light ..........................................3-62
Washer fluid warning light .........................................3-59
Warning light ..................................................................3-54
Washer fluid ....................................................................7-25
Welcome system .............................................................3-92
Headlamp and parking lamp ......................................3-92
Interior lamp ...............................................................3-92
Wheel alignment and tire balance ..................................7-38
Wheel replacement .........................................................7-41
Windows .........................................................................3-32 Auto down window ....................................................3-34
Auto up/down window ...............................................3-34
Automatic reverse ......................................................3-34
Power windows ..........................................................3-33
Power window lock switch ........................................3-35
Resetting the windows ...............................................3-34
Window opening and closing .....................................3-33
Windshield defrosting and defogging ...........................3-117
Windshield washers ........................................................3-94
Windshield wipers...........................................................3-93
Index
W
