EXTERIOR OVERVIEW

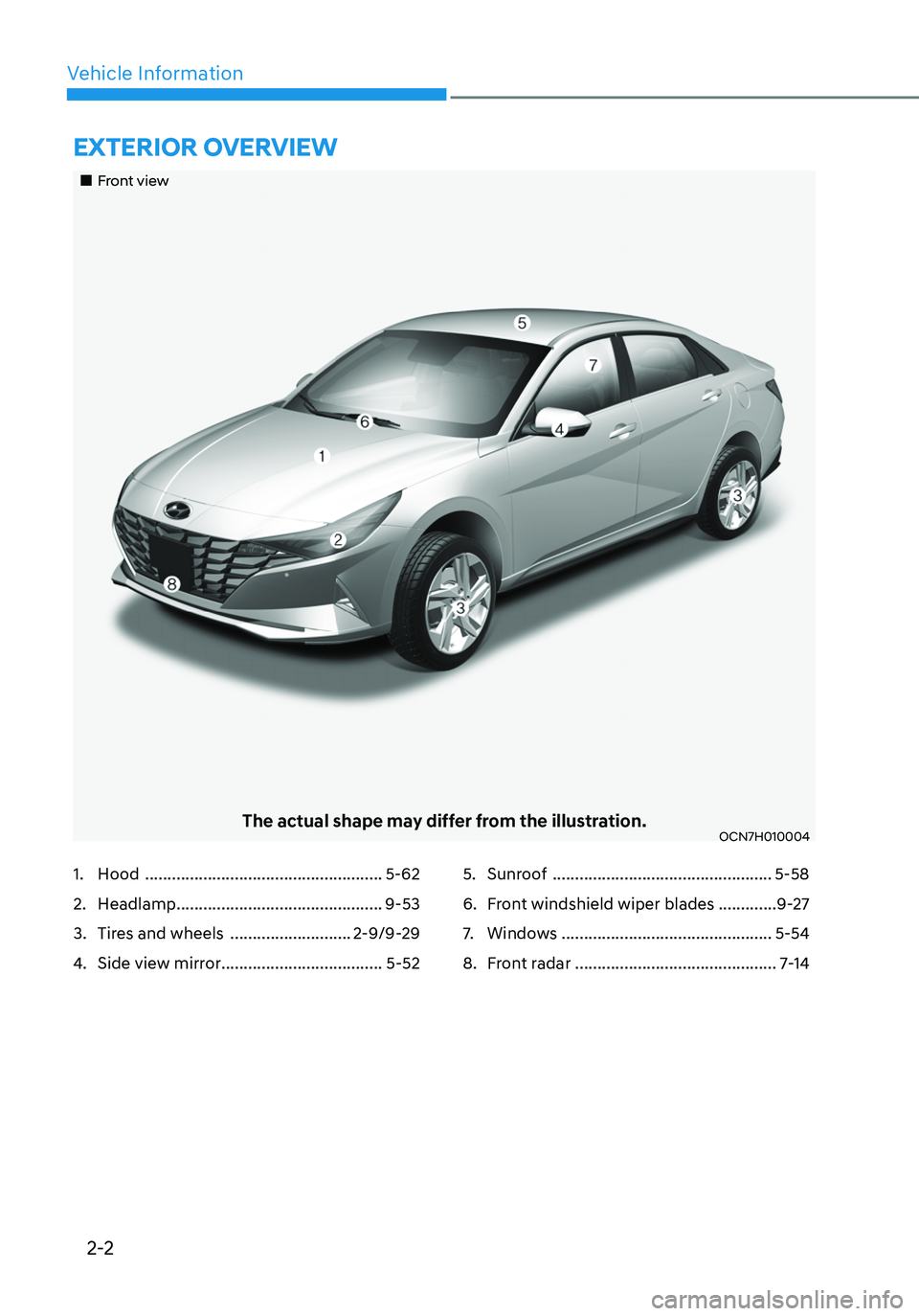

„„Front view
The actual shape may differ from the illustration.OCN7H010004
1. Hood .....................................................5-62
2. Headlamp ..............................................9-53
3. Tires and wheels ...........................2-9/9-29
4. Side view mirror ....................................5-52
5. Sunroof .................................................5-58
6. Front windshield wiper blades .............9-27
7. Windows ...............................................5-54
8. Front radar .............................................7-14

2-3
02
9. Door ........................................................5-31
10. Fuel filler door .......................................5-69
11. Rear combination lamp........................9-56
12. Trunk ......................................................5-64
13. Defroster / Glass antenna ........5-100/5-110
14. High mounted stop lamp .....................9-59
15. Antenna ................................................5-110
16. Rear view camera .................................7-99

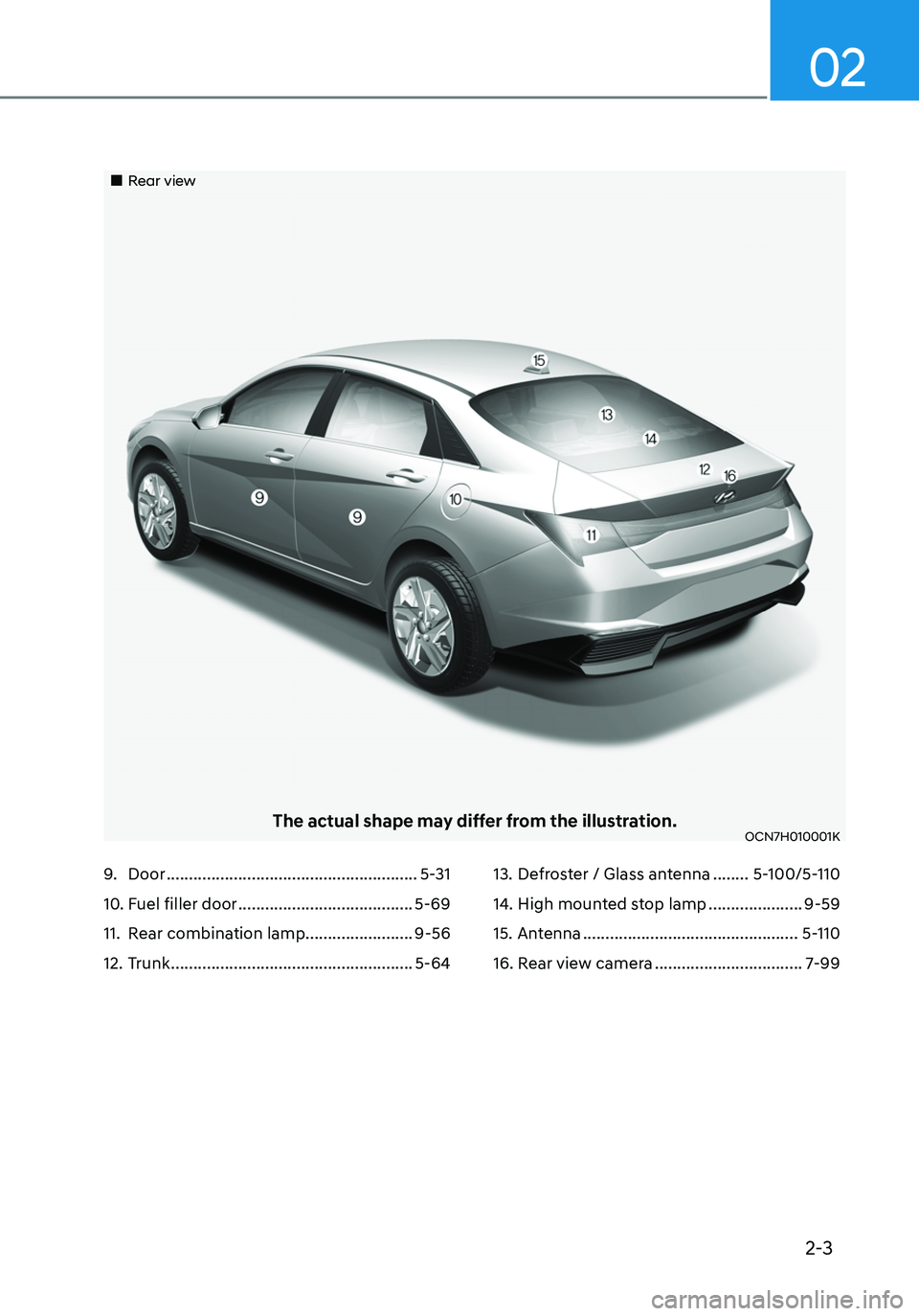

„„Rear view
The actual shape may differ from the illustration.OCN7H010001K

2-4
Vehicle Information
The actual shape may differ from the illustration.OCN7H010003N
1. Inside door handle ................................5-33
2. Seat position memory system .............5-38
3. Side view mirror control switch ...........5-53
4. Central door lock switch ......................5-33
5. Power window switches ......................5-54
6. Power window lock button ...................5-57
7. Steering wheel tilt/telescopic lever ....5-42
8. Steering wheel .......................................5-41
9. Instrument panel illumination control
switch
......................................................4-5
10. 12V battery reset button .........................8-4
11. Lane Safety button ................................7-31
12. ESC OFF button ....................................6-33
13. Fuel filler door release lever .................6-33
14. Trunk release lever ................................5-64
15. Hood release lever ................................5-62
16. Light control/ Turn signals ....................5-72
17. Seat adjusting switch .............................3-3
18. Wiper/Washer switch ...........................5-83

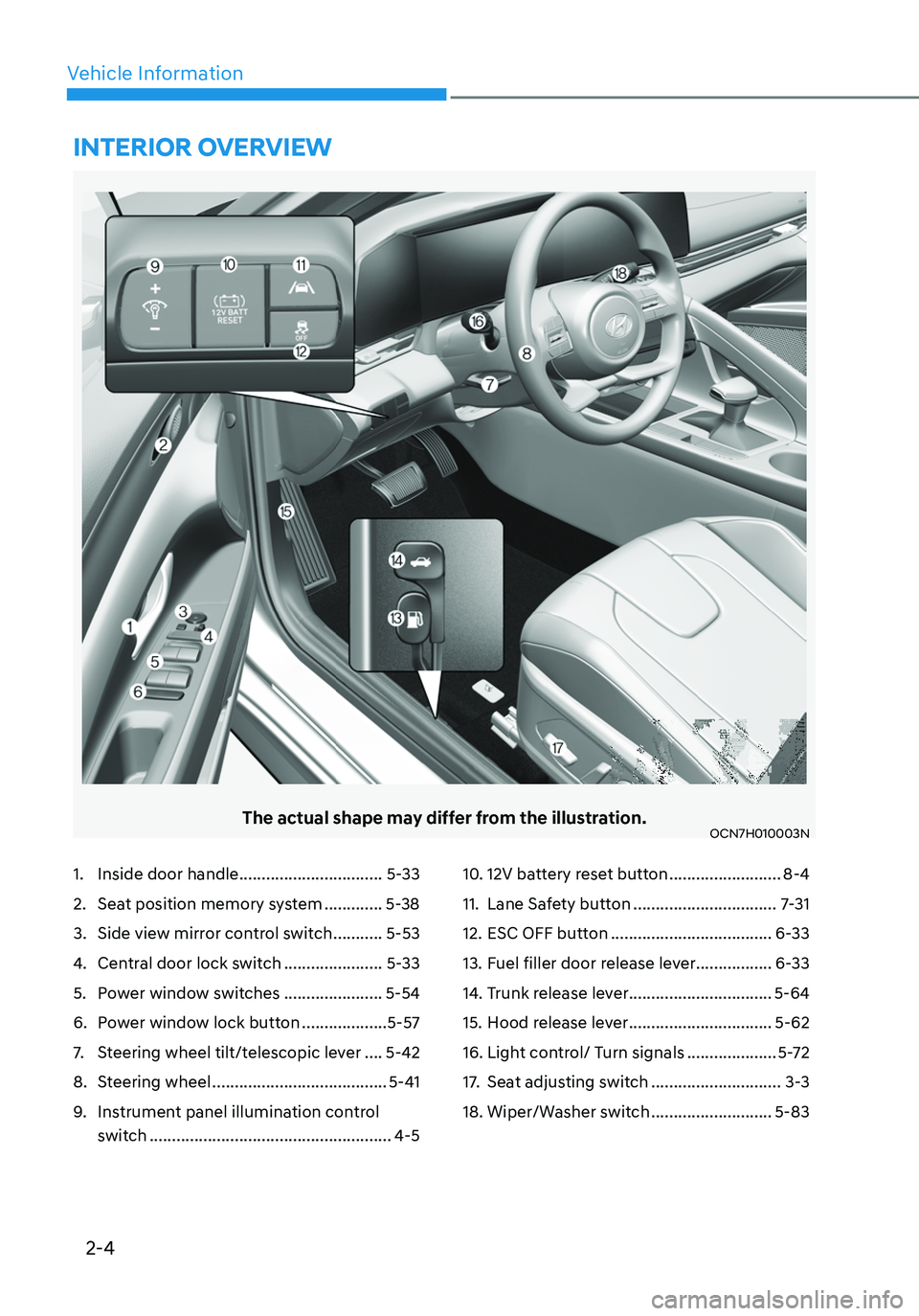

INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.OCN7010004N

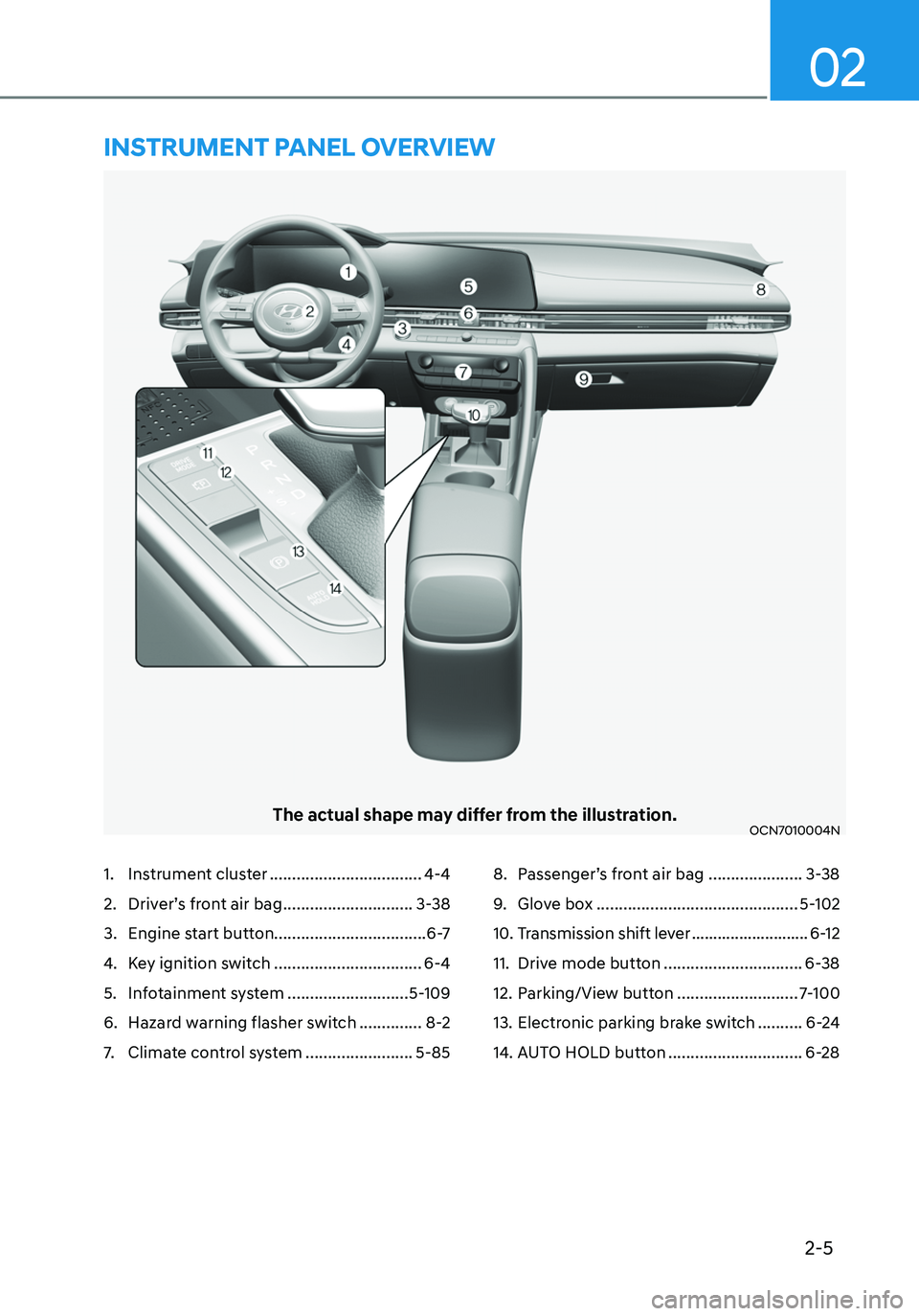

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ..................................4-4
2. Driver’s front air bag .............................3-38
3. Engine start button.................................. 6-7
4. Key ignition switch .................................6-4
5. Infotainment system ...........................5-109
6. Hazard warning flasher switch ..............8-2
7. Climate control system ........................5-85
8. Passenger’s front air bag .....................3-38
9. Glove box .............................................5-102
10. Transmission shift lever ...........................6-12
11. Drive mode button ...............................6-38
12. Parking/View button ...........................7-100
13. Electronic parking brake switch ..........6-24
14. AUTO HOLD button ..............................6-28

2-6
Vehicle Information
„„Gasoline 1.6 GDi HEV
The actual engine room in the vehicle may differ from the illustration.OCN7H090001

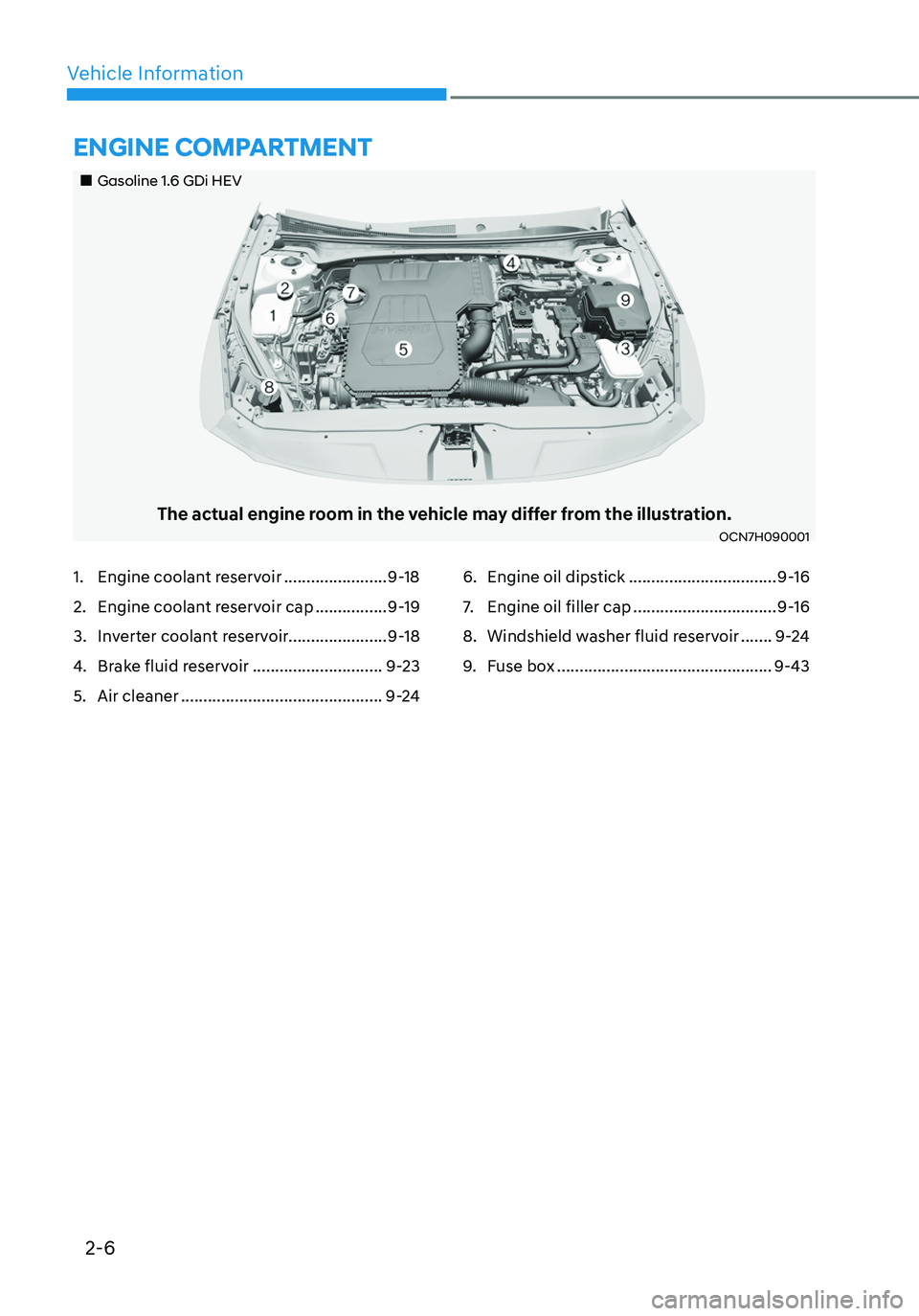

ENGINE COMPARTMENT
1. Engine coolant reservoir .......................9-18
2. Engine coolant reservoir cap ................9-19
3. Inverter coolant reservoir......................9-18
4. Brake fluid reservoir .............................9-23
5. Air cleaner .............................................9-24
6. Engine oil dipstick .................................9-16
7. Engine oil filler cap ................................9-16
8. Windshield washer fluid reservoir .......9-24
9. Fuse box ................................................9-43

02
2-7

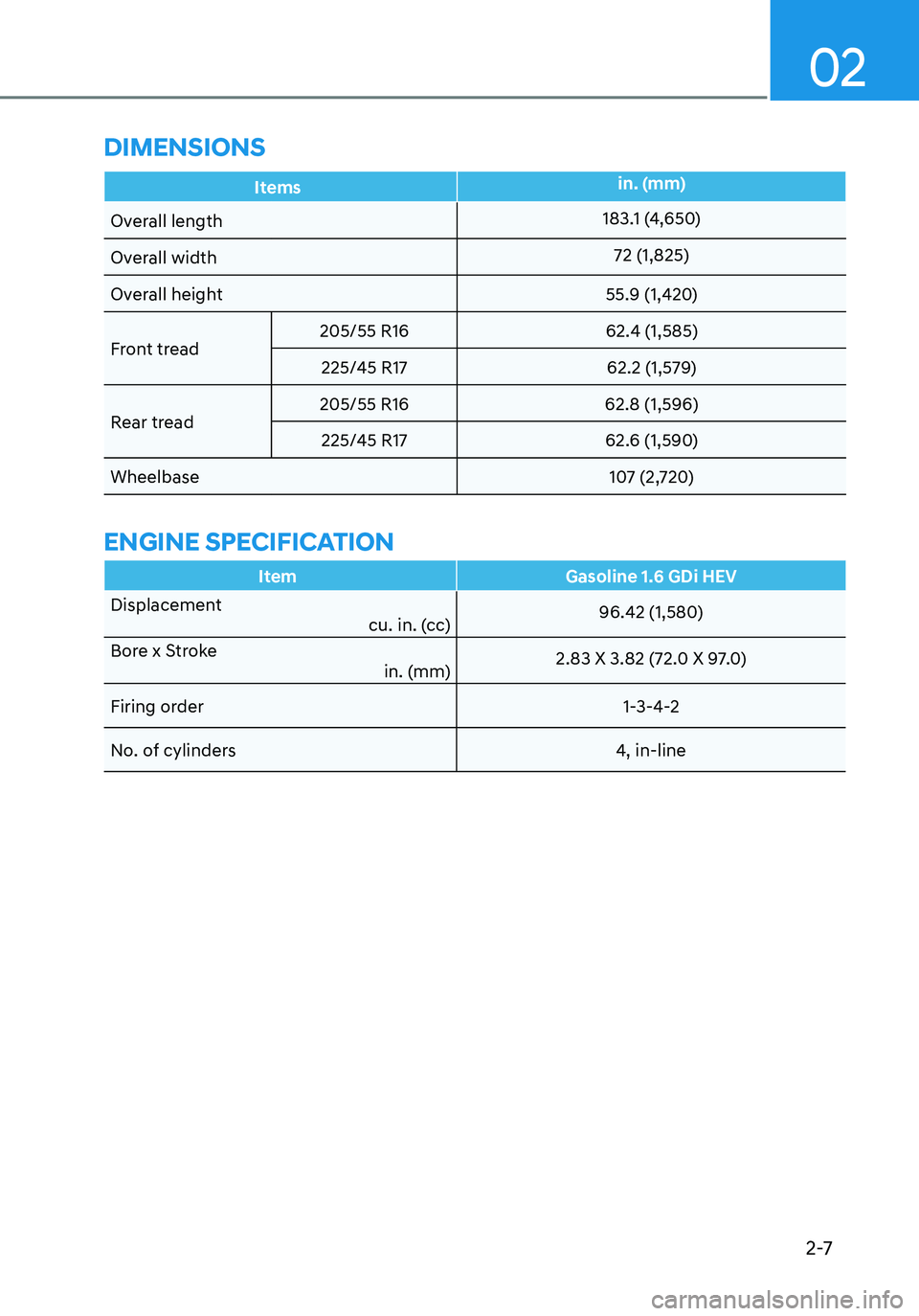

DIMENSIONS
Itemsin. (mm)
Overall length 183.1 (4,650)
Overall width 72 (1,825)
Overall height 55.9 (1,420)
Front tread 205/55 R16
62.4 (1,585)
225/45 R17 62.2 (1,579)
Rear tread 205/55 R16
62.8 (1,596)
225/45 R17 62.6 (1,590)
Wheelbase 107 (2,720)
ENGINE SPECIFICATION
ItemGasoline 1.6 GDi HEV
Displacement cu. in. (cc) 96.42 (1,580)
Bore x Stroke in. (mm)2.83 X 3.82 (72.0 X 97.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information
2-8

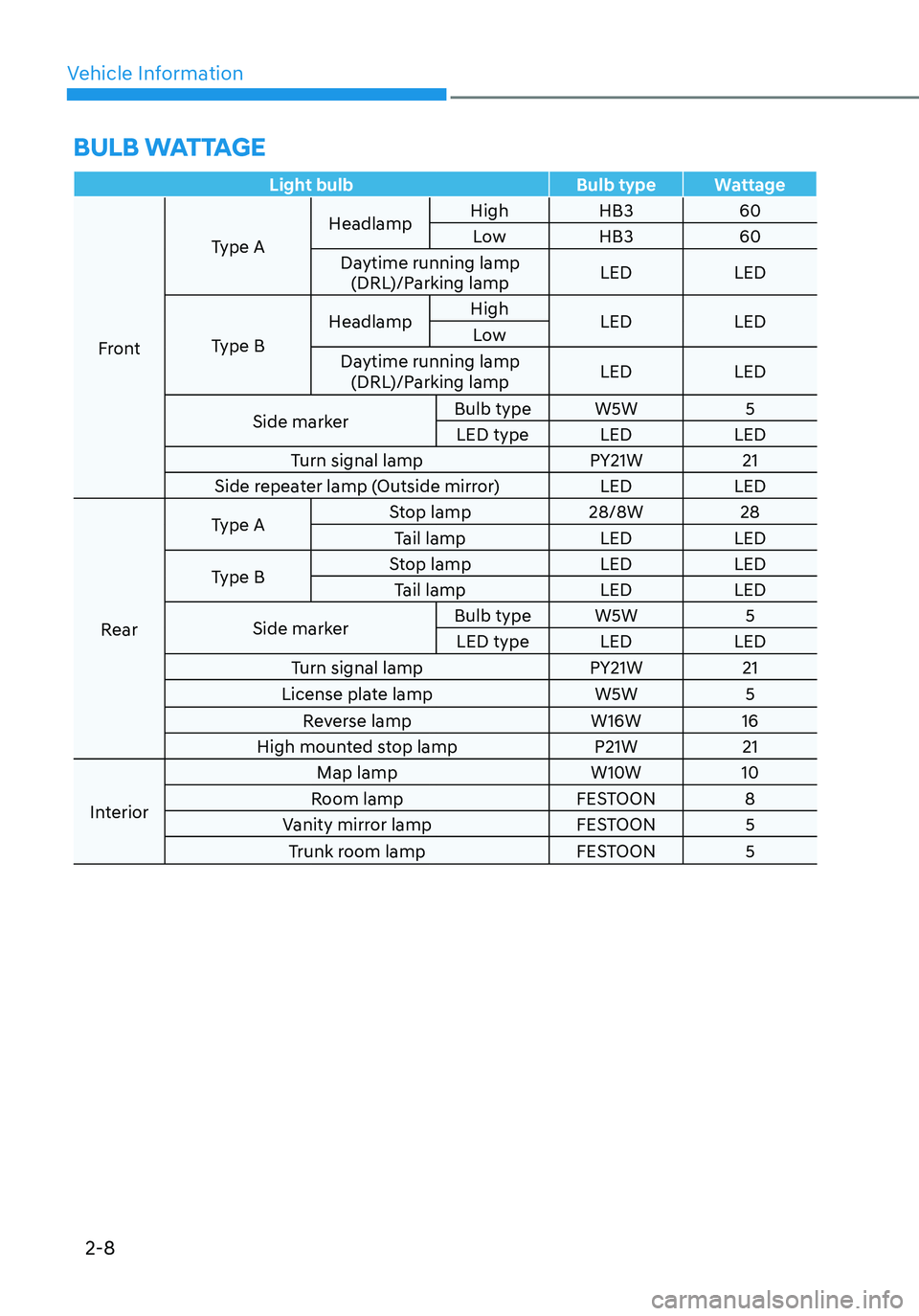

BULB WATTAGE
Light bulbBulb typeWattage
Front Type A
Headlamp
High
HB3 60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED
LED
Type B Headlamp
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED
LED
Side marker Bulb type
W5W 5
LED type LEDLED
Turn signal lamp PY21W21
Side repeater lamp (Outside mirror) LEDLED
Rear Type A
Stop lamp
28/8W28
Tail lamp LEDLED
Type B Stop lamp
LEDLED
Tail lamp LEDLED
Side marker Bulb type
W5W 5
LED type LEDLED
Turn signal lamp PY21W21
License plate lamp W5W5
Reverse lamp W16W16
High mounted stop lamp P21W21
Interior Map lamp
W10W10
Room lamp FESTOON8
Vanity mirror lamp FESTOON5
Trunk room lamp FESTOON5

02
2-9
TIRES AND WHEELS
ItemTire SizeWheel Size Inflation pressure psi (kPa)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire 205/55 R16
6.5Jx16 33 (230) 33 (230)
11~13
(79~94, 107~127)
225/45 R17
7.0Jx17 33 (230) 32 (220)
Compact
spare tire T125/80 D15
4Tx1560 (420) 60 (420)
NOTICE
• It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-10

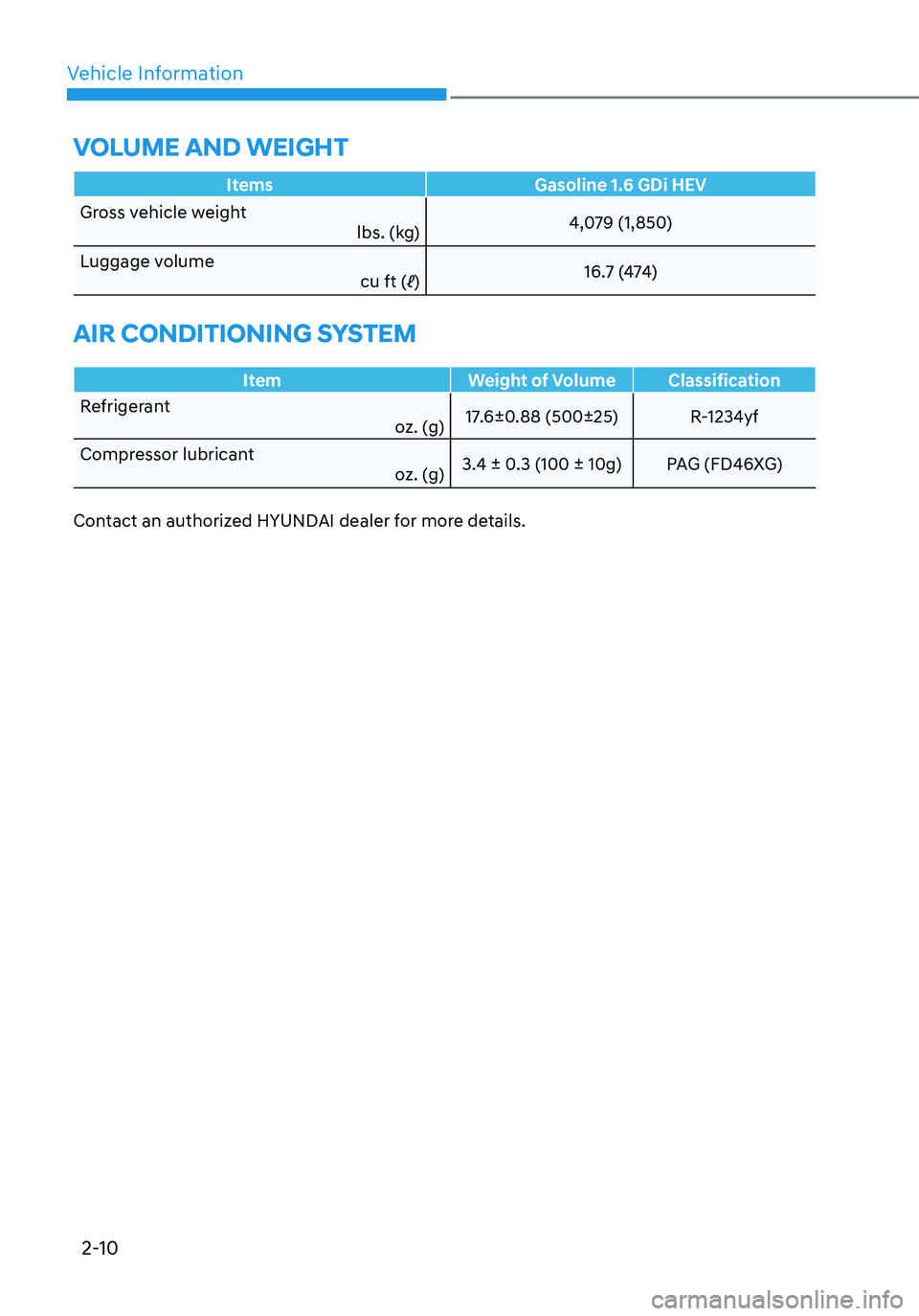

VOLUME AND WEIGHT
ItemsGasoline 1.6 GDi HEV
Gross vehicle weight lbs. (kg)4,079 (1,850)
Luggage volume cu ft (ℓ)16.7 (474)
AIR CONDITIONING SYSTEM
Item
Weight of VolumeClassification
Refrigerant oz. (g)17.6±0.88 (500±25)
R-1234yf
Compressor lubricant oz. (g)3.4 ± 0.3 (100 ± 10g)
PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-11

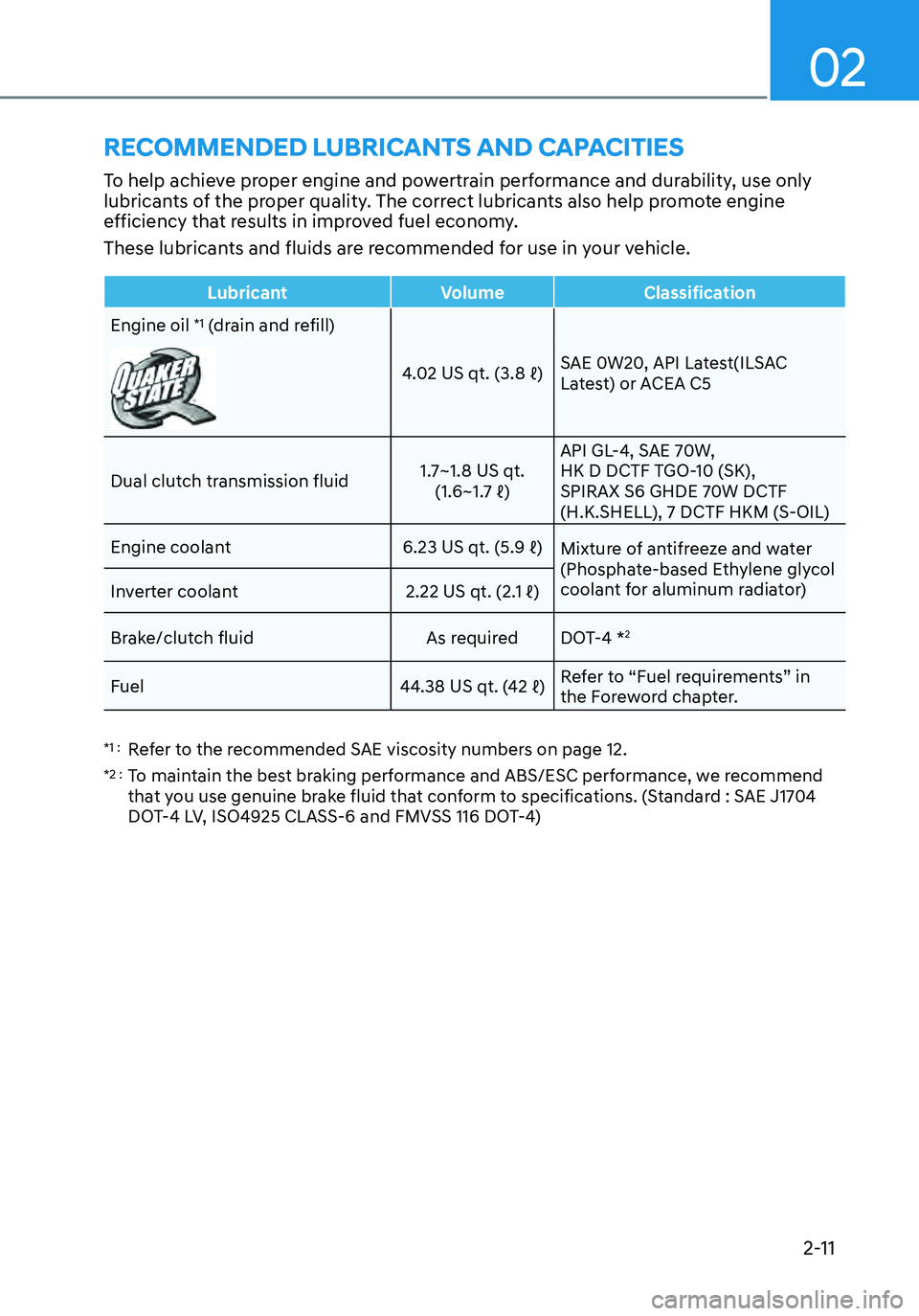

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 (drain and refill)
4.02 US qt. (3.8 ℓ)SAE 0W20, API Latest(ILSAC
Latest) or ACEA C5
Dual clutch transmission fluid1.7~1.8 US qt.(1.6~1.7 ℓ)
API GL-4, SAE 70W,
HK D DCTF TGO-10 (SK),
SPIRAX S6 GHDE 70W DCTF
(H.K.SHELL), 7 DCTF HKM (S-OIL)
Engine coolant
6.23 US qt. (5.9 ℓ)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter coolant
2.22 US qt. (2.1 ℓ)
Brake/clutch fluid As required DOT-4 *2
Fuel
44.38 US qt. (42 ℓ)Refer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)
