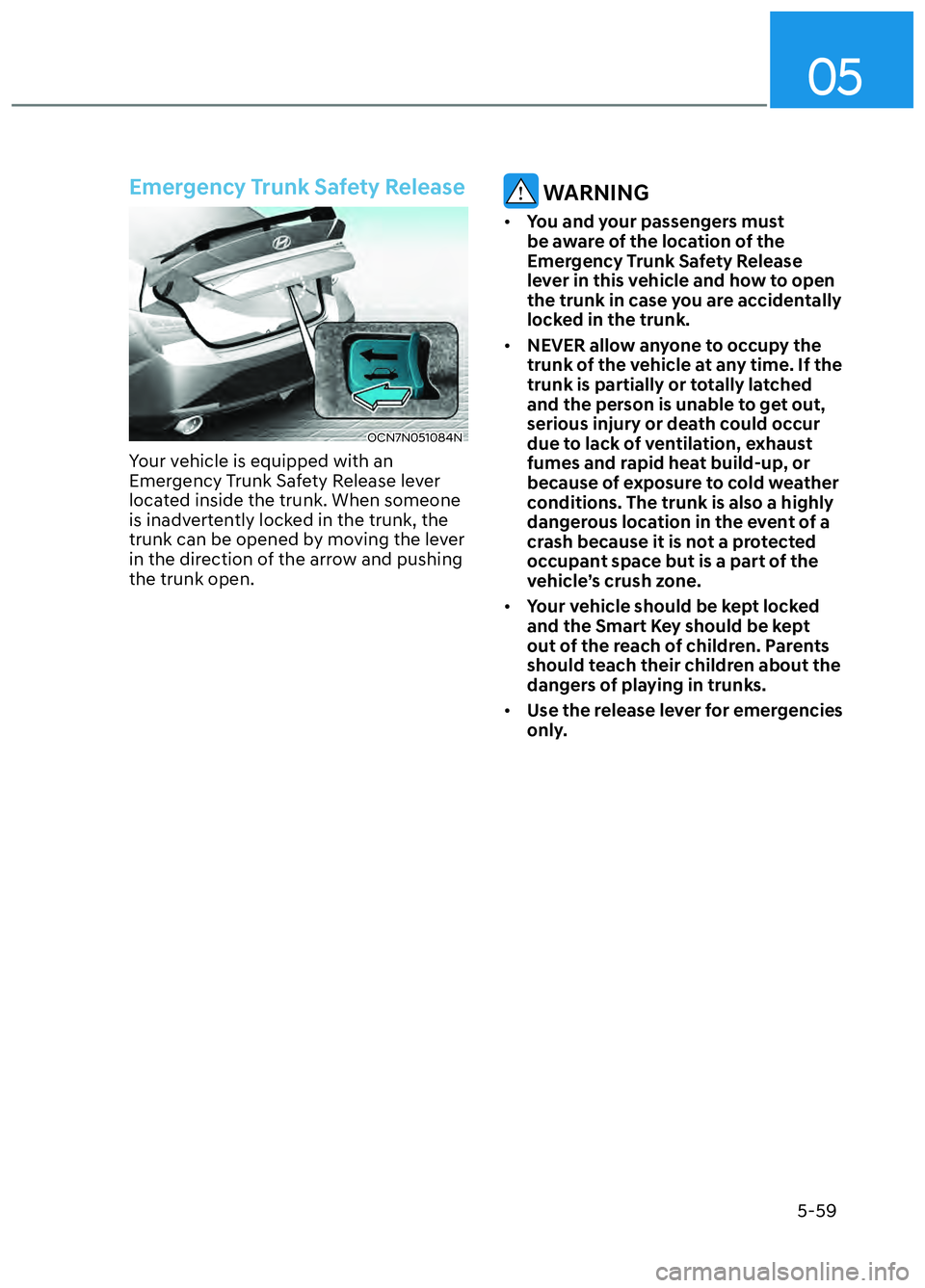

Page 181 of 506

HYUNDAI ELANTRA N 2022  Owners Manual 05
5-59
Emergency Trunk Safety Release
OCN7N051084NOCN7N051084N
Your vehicle is equipped with an
Emergency Trunk Safety Release lever
located inside the trunk. When someone
is inadvertently locked

Page 182 of 506

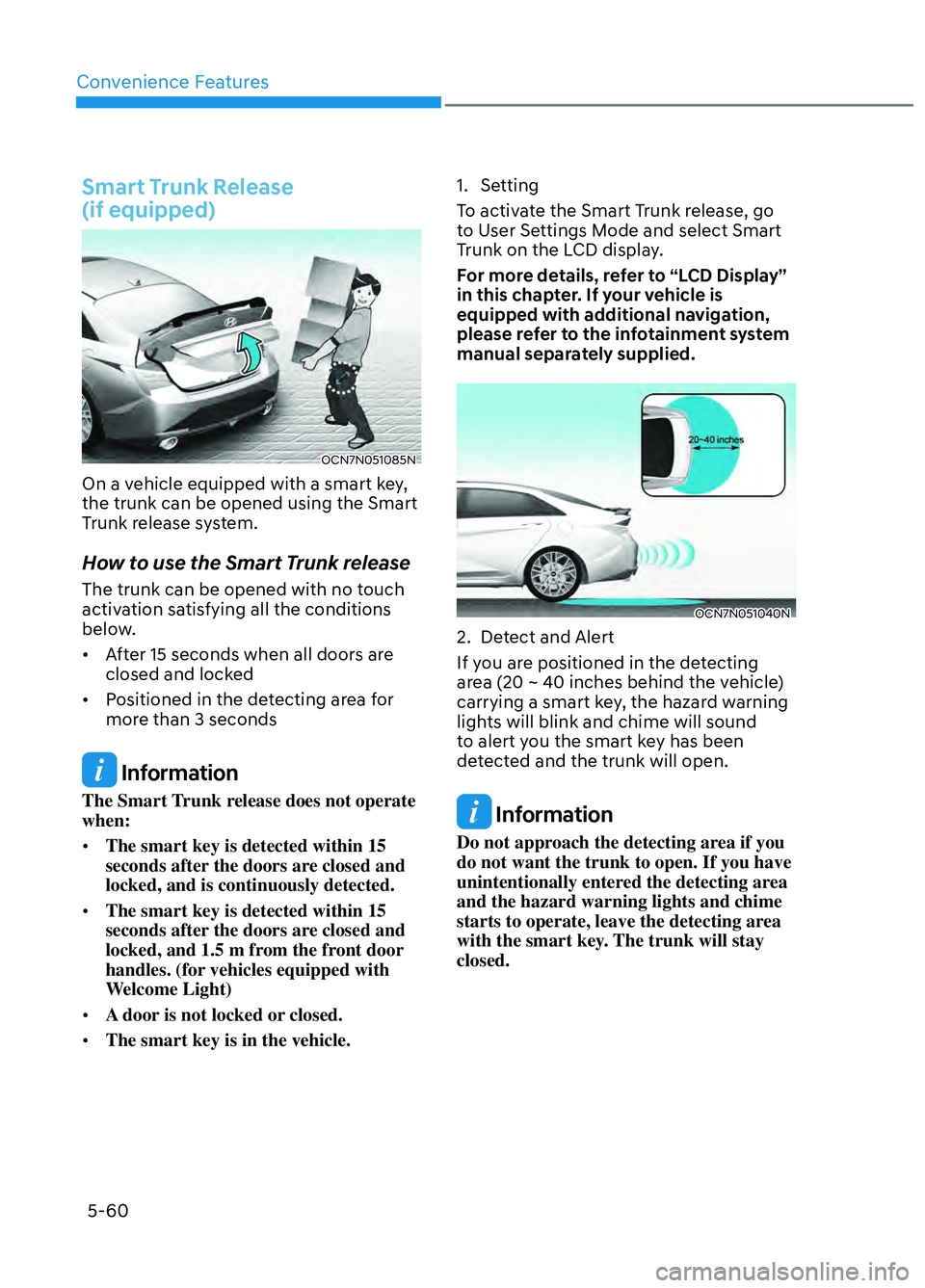

HYUNDAI ELANTRA N 2022  Owners Manual Convenience Features5-60
Smart Trunk Release
(if equipped)
OCN7N051085NOCN7N051085N
On a vehicle equipped with a smart key,
the trunk can be opened using the Smart
Trunk release system.
How to use

Page 183 of 506

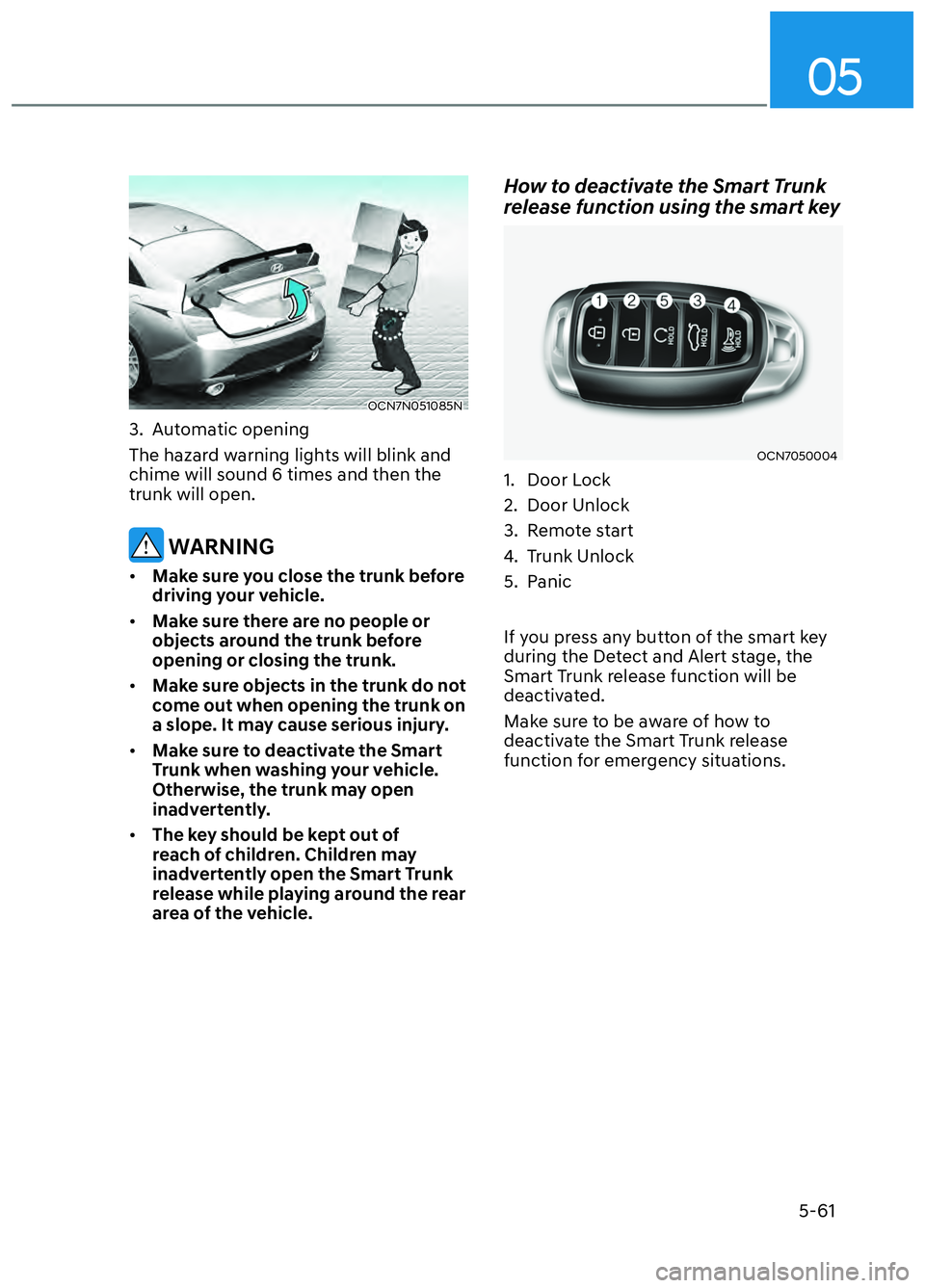

HYUNDAI ELANTRA N 2022  Owners Manual 05
5-61
OCN7N051085NOCN7N051085N
3. Automatic opening
The hazard warning lights will blink and
chime will sound 6 times and then the
trunk will open.
 WARNING
• Make sure you close the trunk befor

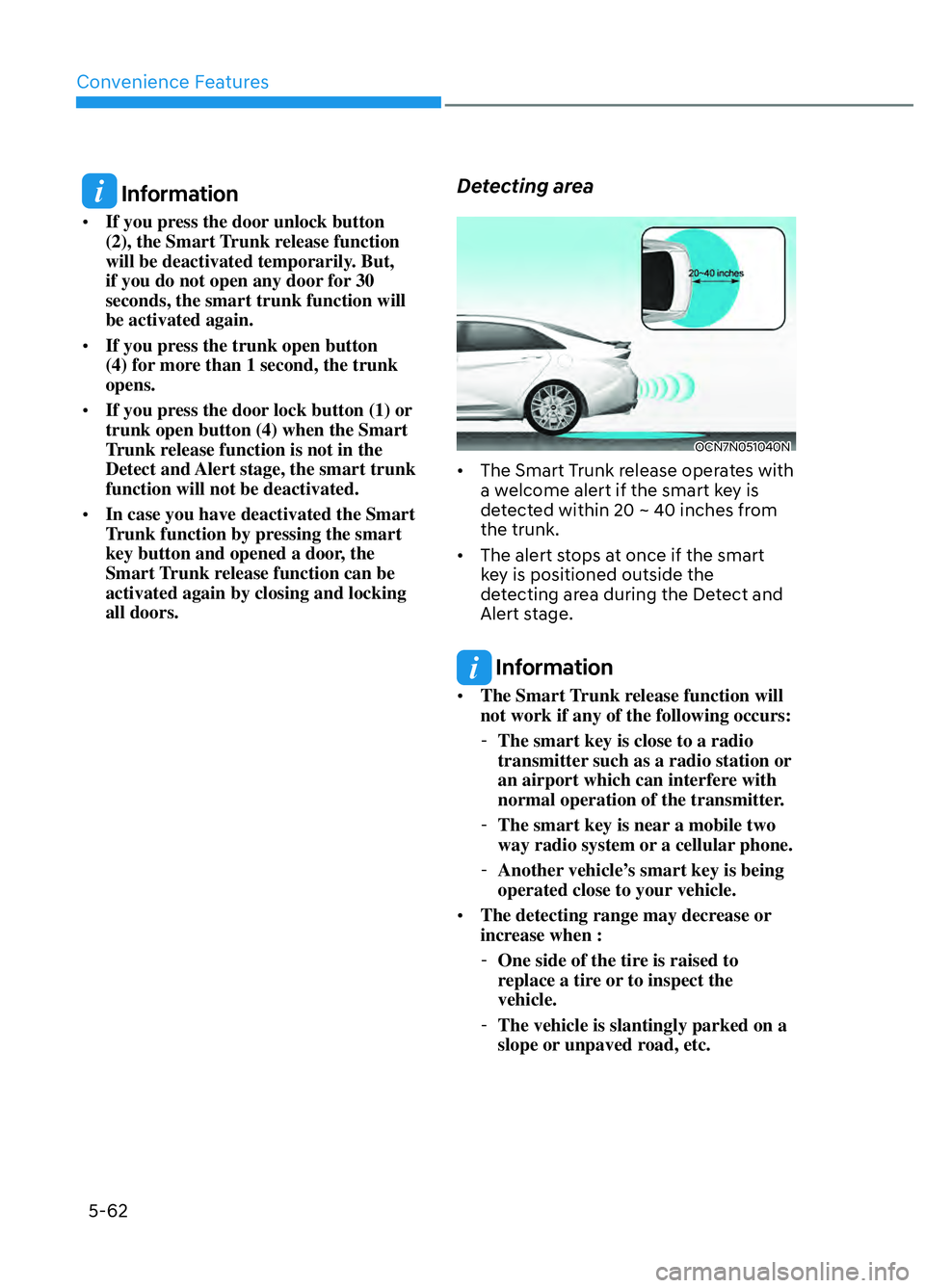

Page 184 of 506

HYUNDAI ELANTRA N 2022  Owners Manual Convenience Features5-62
 Information
•  If you press the door unlock button
(2), the Smart Trunk release function
will be deactivated temporarily. But,
if you do not open any door for 30
second

Page 185 of 506

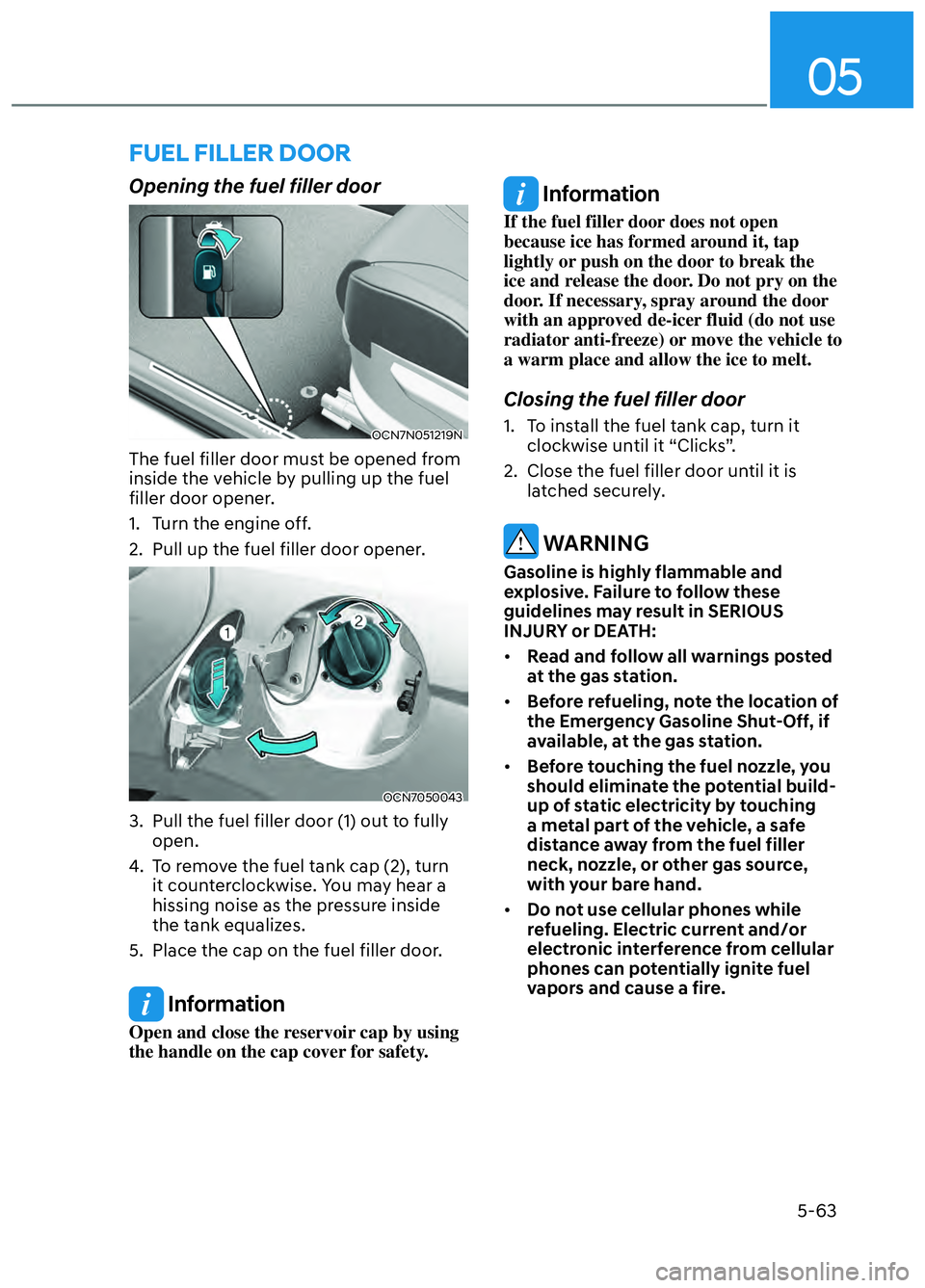

HYUNDAI ELANTRA N 2022  Owners Manual 05
5-63
 FUEL FILLER DOOR
 Opening the fuel filler door
OCN7N051219NOCN7N051219N
The fuel filler door must be opened from
inside the vehicle by pulling up the fuel
filler door opener.
1.  Turn the e

Page 186 of 506

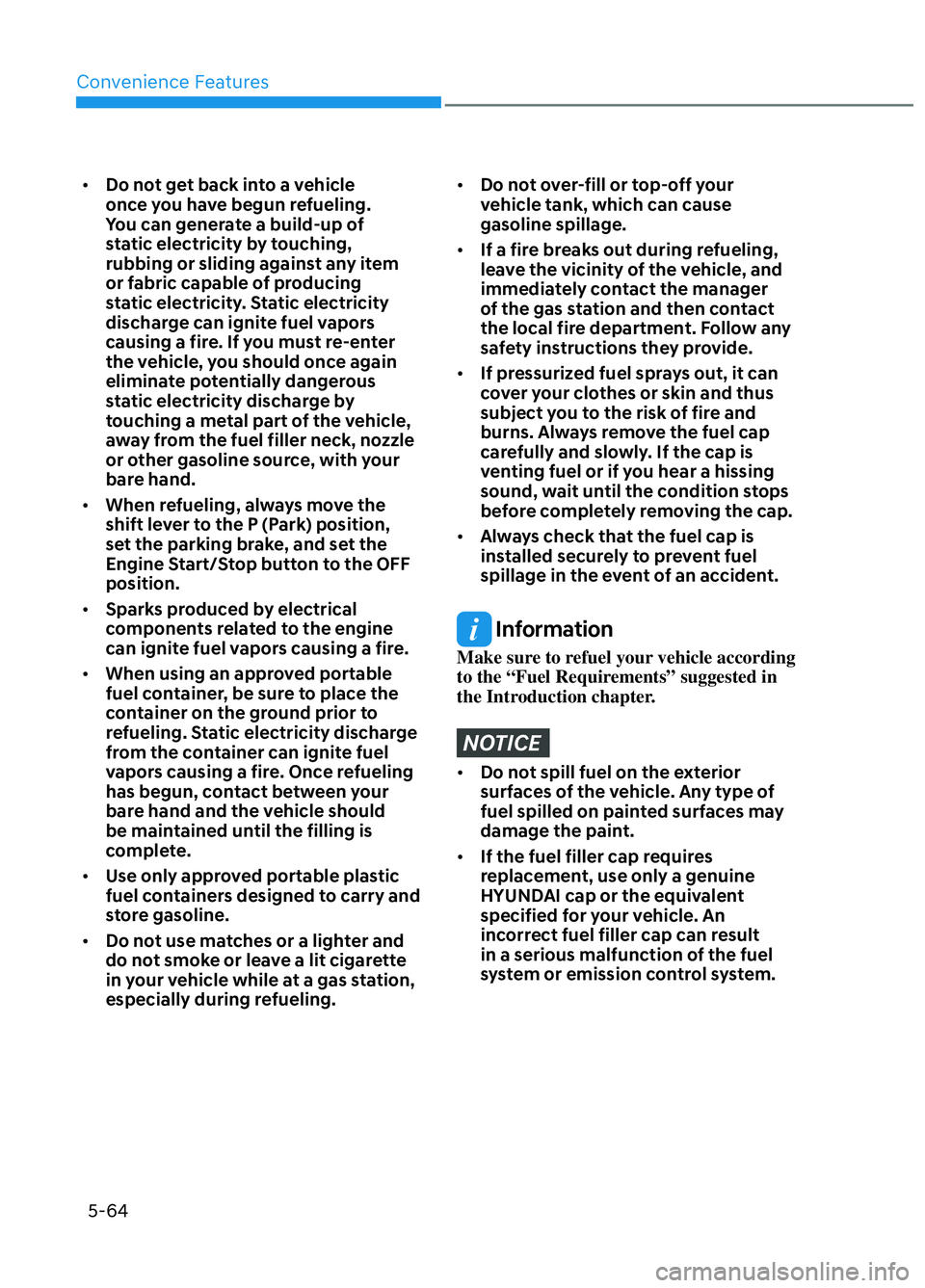

HYUNDAI ELANTRA N 2022  Owners Manual Convenience Features5-64
•  Do not get back into a vehicle
once you have begun refueling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or f

Page 187 of 506

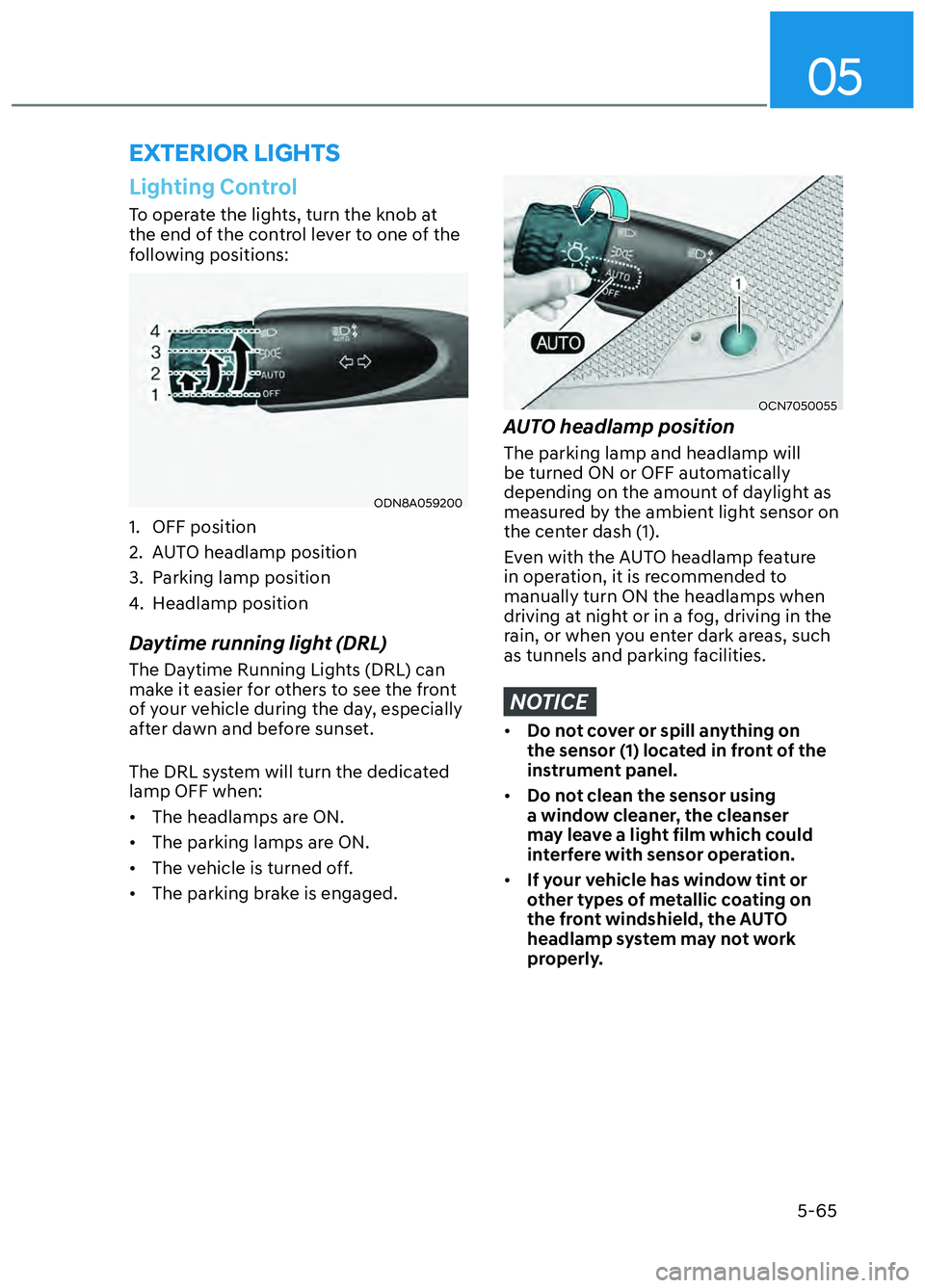

HYUNDAI ELANTRA N 2022  Owners Manual 05
5-65
EXTERIOR LIGHTS
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
ODN8A059200ODN8A059200
1. OFF position
2.  AUTO headl

Page 188 of 506

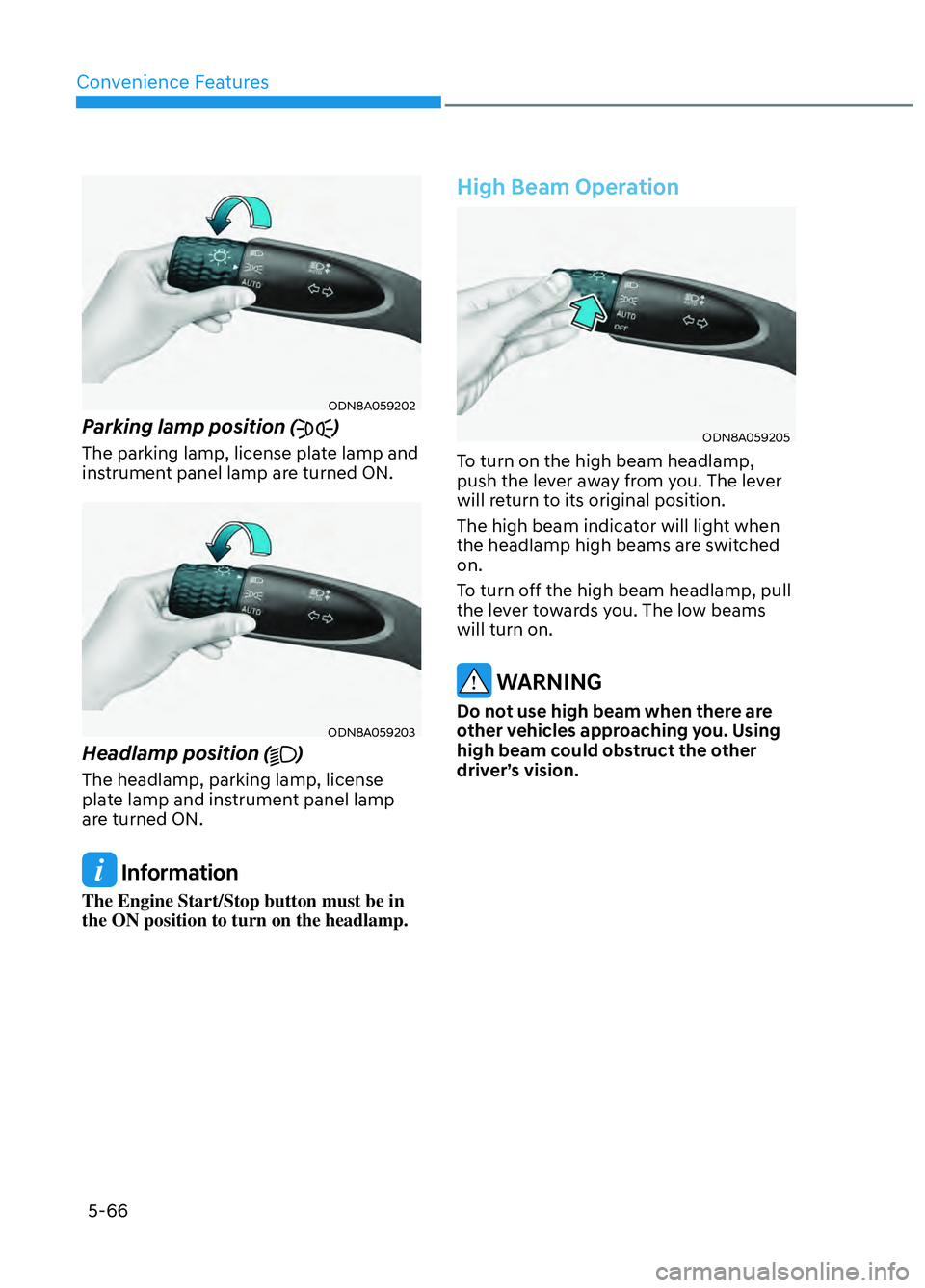

HYUNDAI ELANTRA N 2022  Owners Manual Convenience Features5-66
ODN8A059202ODN8A059202
Parking lamp position ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
ODN8A059203ODN8A059203
Headlamp position ()
The

Page 189 of 506

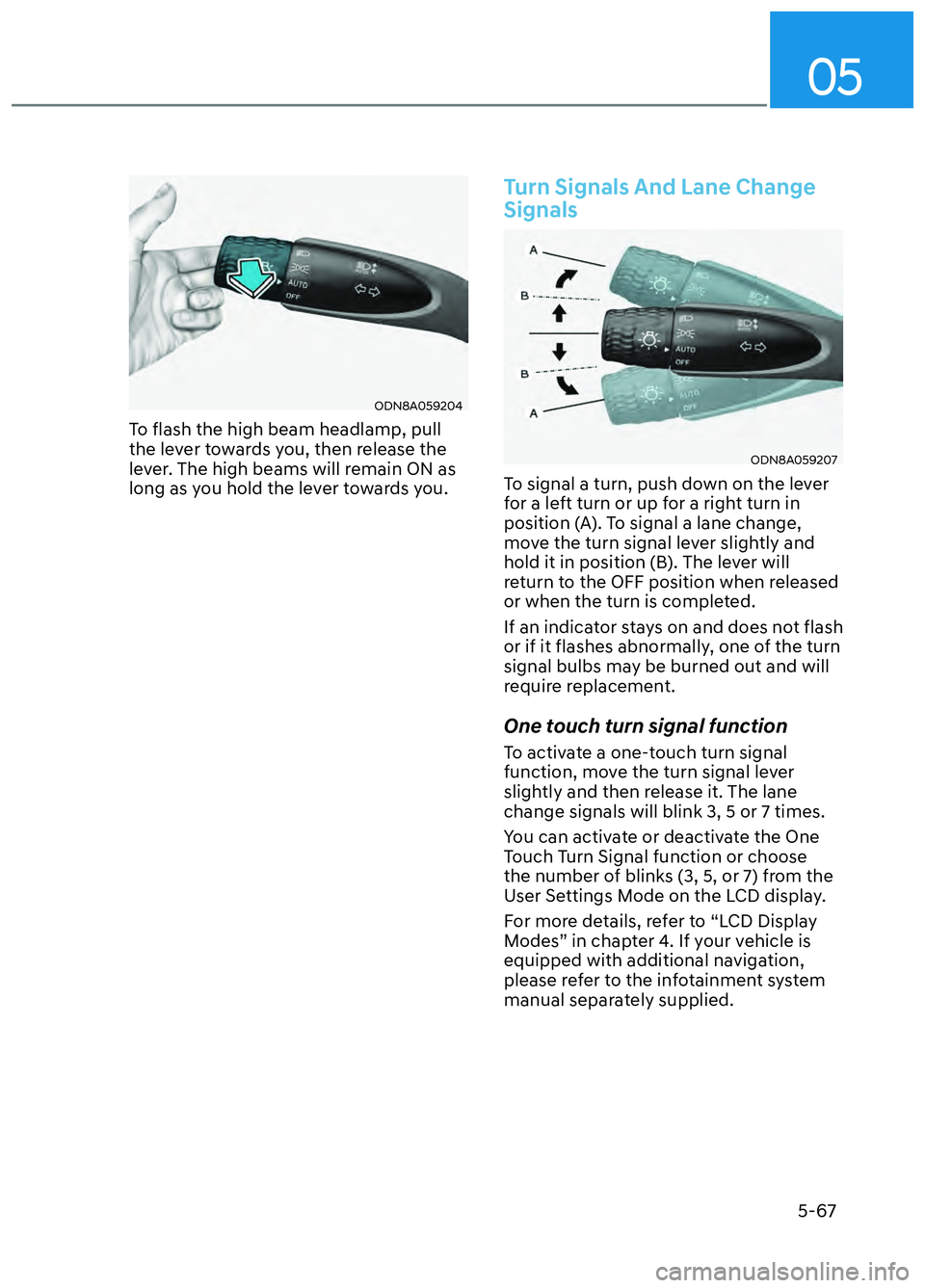

HYUNDAI ELANTRA N 2022  Owners Manual 05
5-67
ODN8A059204ODN8A059204
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
 Turn Si

Page 190 of 506

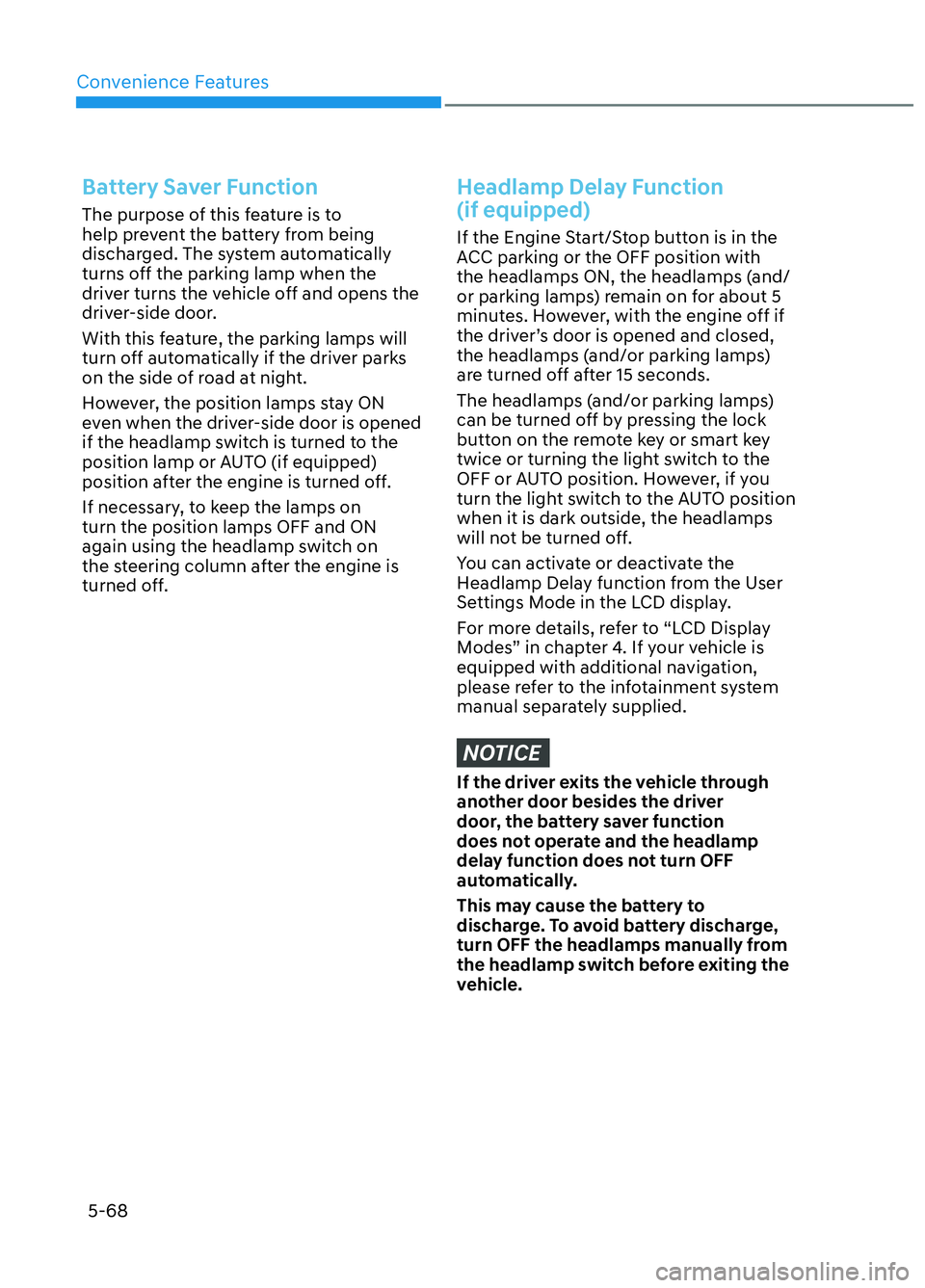

HYUNDAI ELANTRA N 2022  Owners Manual Convenience Features5-68
Battery Saver Function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
drive
