Items
in. (mm)
Overall length 184
.05 (4,675)
Overall width 71.85 (1,825)
Overall height 55.71 (1,415)
Front tread 245/35 ZR19 62.36 (1,584)
Rear tread 245/35 ZR19 62.17 (1,579)
Wheelbase 107.09 (2,720)
ENGINE SPECIFICATION
Item2.0 T-GDi
Displacement cu. in. (
cc) 121.9 (1,998)
Bore x Stroke in. (mm)3.39 X 3.39 (86.0 X 86.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

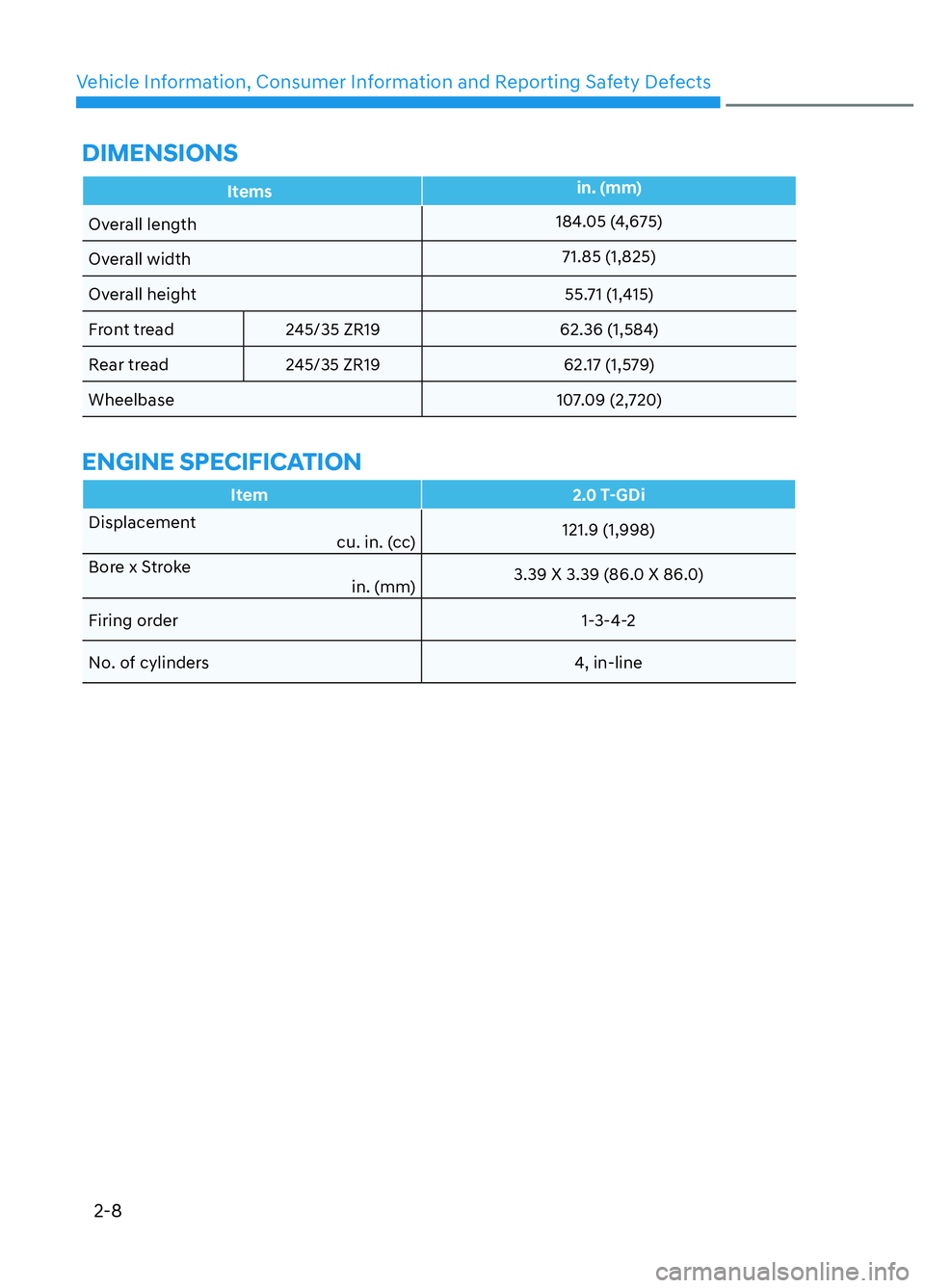

DIMENSIONS
CN7 N HMA 2.indd 2-8 2021-09-14  9:30:01

02
2-9

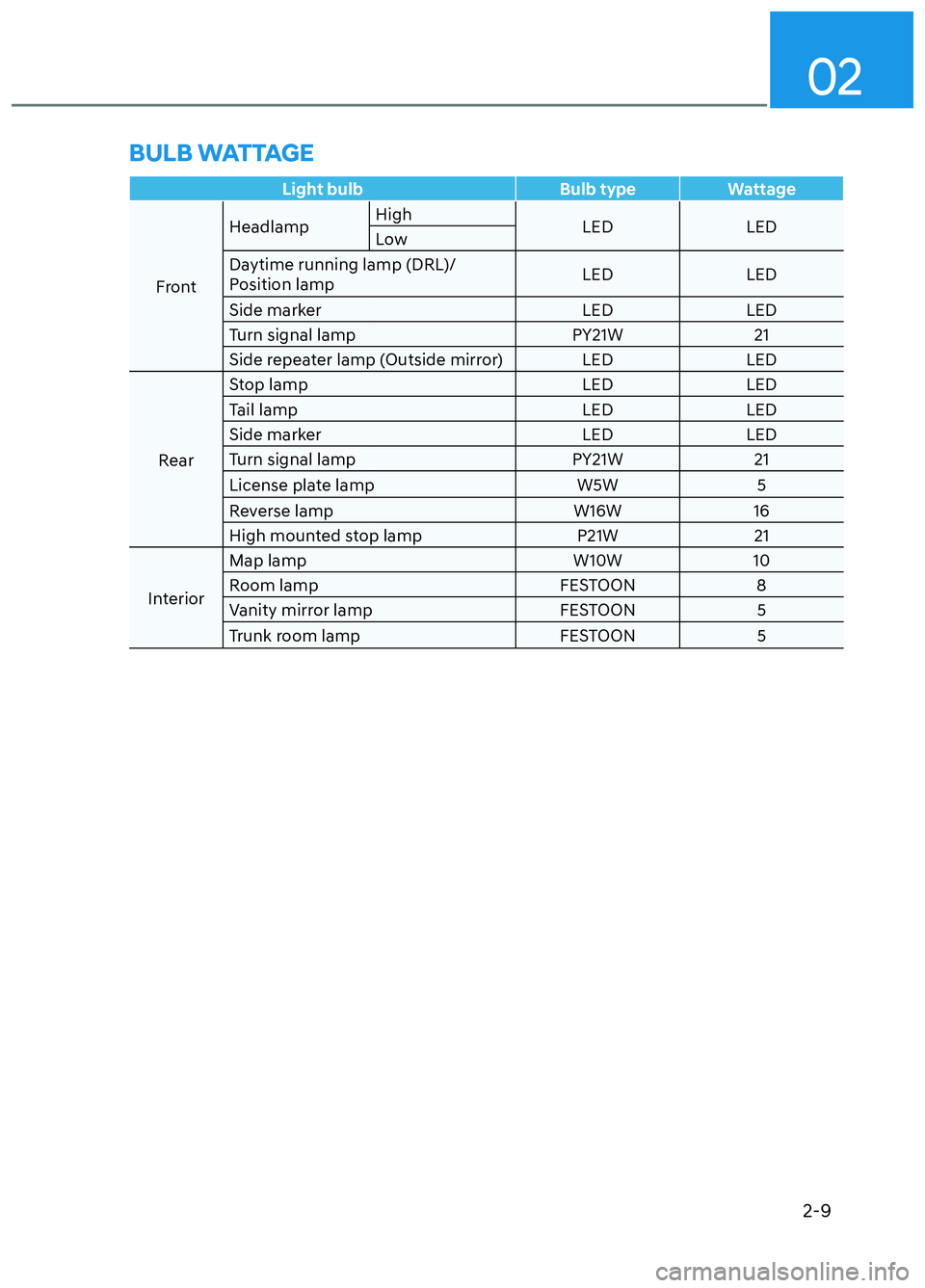

BULB WATTAGE
Light bulbBulb typeWattage
Front H
eadlamp
High
LED LED
Low
Daytime running lamp (DRL)/
Position lamp LED LED
Side marker LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
Rear Stop lamp LED LED
Tail lamp LED LED
Side marker LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5
Reverse lamp W16W 16
High mounted stop lamp P21W 21
Interior Map lamp W10W 10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5
CN7 N HMA 2.indd 2-9
2021-09-14  9:30:01

Vehicle Information, Consumer Information and Reporting Safety Defects2-10
TIRES AND WHEELS
Items Transmission Tire size Wheel size Inflation pressure psi (kPa)
Wheel nut
torque lbf·ft
(kgf·m, N·m,)
Normal Load (less
than 100mph or 160km/h) High-speed driving
(over 100mph or 160km/h) *
1
Track driving *
2
Front Rear Front Rear Front Rear
Full size tire MT/DCT 2
45/
35 ZR19 8.0Jx19 35
(240) 33
(230) 41
(280) 39
(270) 37
(250) 37
(250) 79-94
(11-13, 107-127)
MT : Manual Transmission
DCT : Dual Clutch Transmission*1 :
Must drive only where the speed is legal
*2 :
Refers to the recommended inflation pressure for the hot tire condition (state when the tire temperature is increased). Limited
number of passengers is 2 with no luggage. After the track driving is complete, change to the appropriate tire inflation
recommended for the normal road driving condition.NOTICE• Ambient temperature affects the tire pressure (about 1psi (7kPa)) for every 12°F (7°C) change). If colder temperatures
are anticipated, it is permissible to increase cold tire inflation pressure by up to 3psi (20kPa) over the specification. If
extreme temperature changes are expected, be sure to check and adjust tire pressure accordingly.
• Tire inflation pressure decreases with higher elevation, and increases with lower elevation (about 2.4psi (10kPa)
for every mile (or kilometer) elevation change). Be sure to check and adjust tire pressure accordingly when driving
through changing elevations.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and tread pattern supplied with the vehicle.
If not, it can damage the related parts or make it work irregularly.
CN7 N HMA 2.indd 2-10 2021-09-14  9:30:01

02
2-11

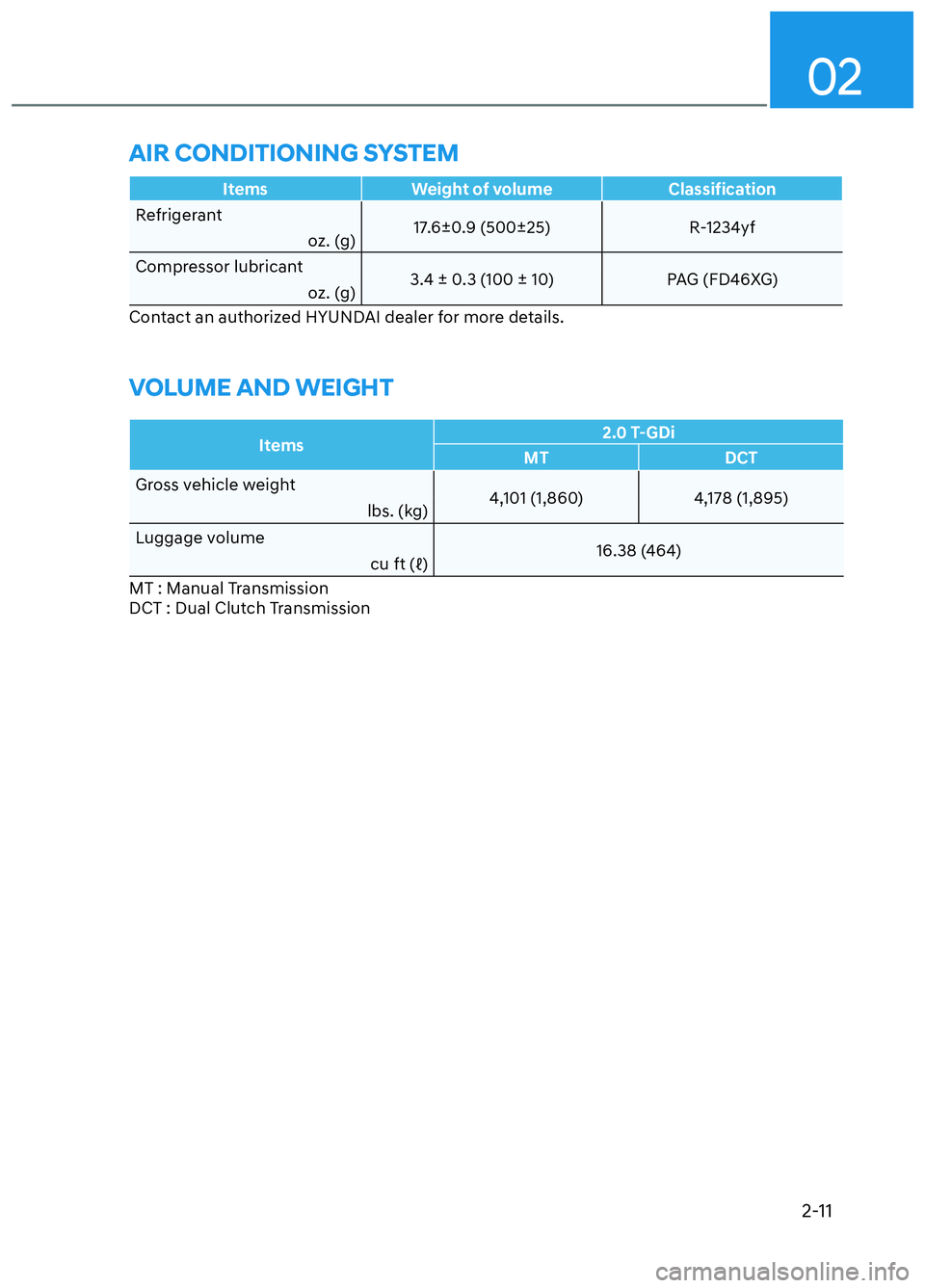

AIR CONDITIONING SYSTEM
ItemsWeight of volume Classification
Refrigerant 17
.6±0.9 (500±25)R-1234yf
oz. (g)
Compressor lubricant 3.4 ± 0.3 (100 ± 10)PAG (FD46XG)
oz. (g)
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
Items 2.0 T-GDi
MT DCT
Gross vehicle weight 4
,101 (1,860)4,178 (1,895)
lbs. (kg)
Luggage volume 16.38 (464)
cu ft (ℓ)
MT : Manual Transmission
DCT : Dual Clutch Transmission
CN7 N HMA 2.indd 2-11 2021-09-14  9:30:01

Vehicle Information, Consumer Information and Reporting Safety Defects2-12

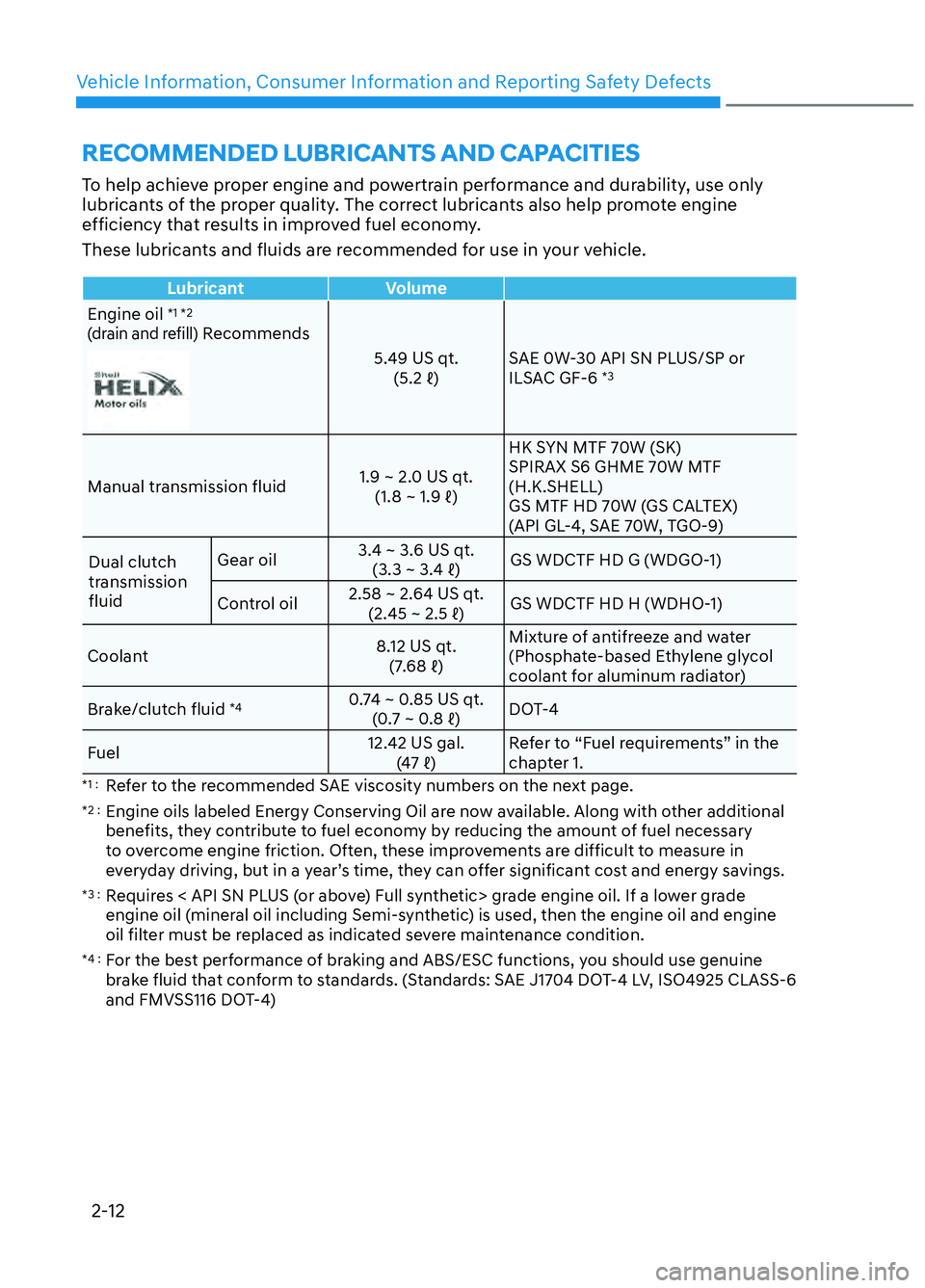

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume
Engine oil
*1 *2
(drain and refill) Recommends 5.49 US qt. (5.2 ℓ) SAE 0W-30 API SN PLUS/SP or
ILSAC GF-6
*3
Manual transmission fluid
1.9 ~ 2.0 US qt.
(1.8 ~ 1.9 ℓ) HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W, TGO-9)
Dual clutch
transmission
fluid Gear oil
3.4 ~ 3.6 US qt.
(3.3 ~ 3.4 ℓ) GS WDCTF HD G (WDGO-1)
Control oil 2.58 ~ 2.64 US qt.
(2.45 ~ 2.5 ℓ) GS WDCTF HD H (WDHO-1)
Coolant 8.12 US qt.
(7.68 ℓ) Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Brake/clutch fluid
*40.74 ~ 0.85 US qt. (0.7 ~ 0.8 ℓ) DOT-4
Fuel 12.42 US gal.
(47 ℓ) Refer to “Fuel requirements” in the
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional
benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*4 : For the best performance of braking and ABS/ESC functions, you should use genuine
brake fluid that conform to standards. (Standards: SAE J1704 DOT-4 LV, ISO4925 CLASS-6
and FMVSS116 DOT-4)
CN7 N HMA 2.indd 2-12
2021-09-14  9:30:01

02
2-13

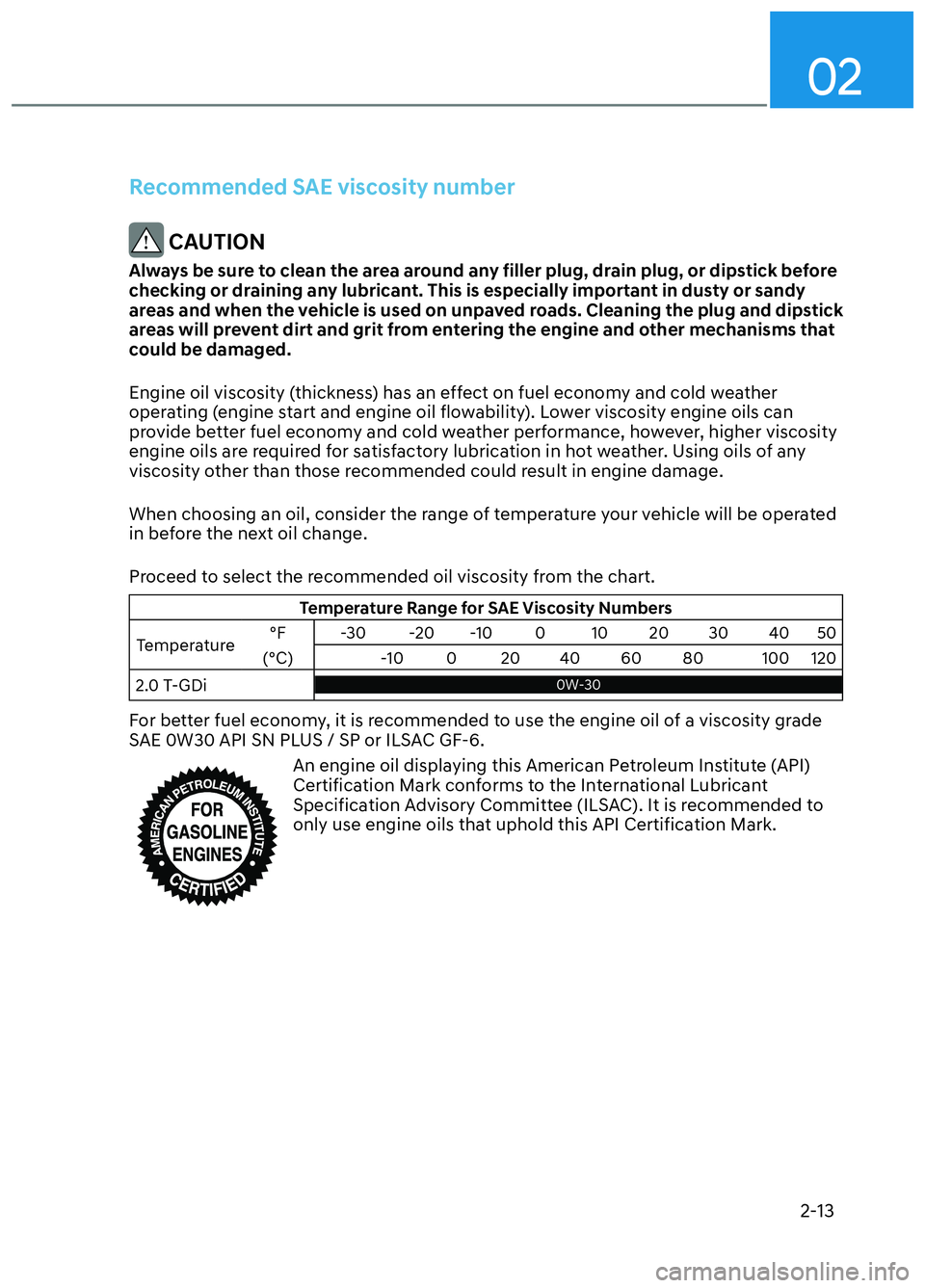

Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °F -30 -20 -10 0 10 20 30 40 50
(°C) -10 0 20 40 60 80 100 120
2.0 T-GDi
0W-30 0W-30
For better fuel economy, it is recommended to use the engine oil of a viscosity grade
SAE 0W30 API SN PLUS / SP or ILSAC GF-6.
An engine oil displaying this American Petroleum Institute (API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to
only use engine oils that uphold this API Certification Mark.
CN7 N HMA 2.indd 2-13 2021-09-14  9:30:01

Vehicle Information, Consumer Information and Reporting Safety Defects2-14

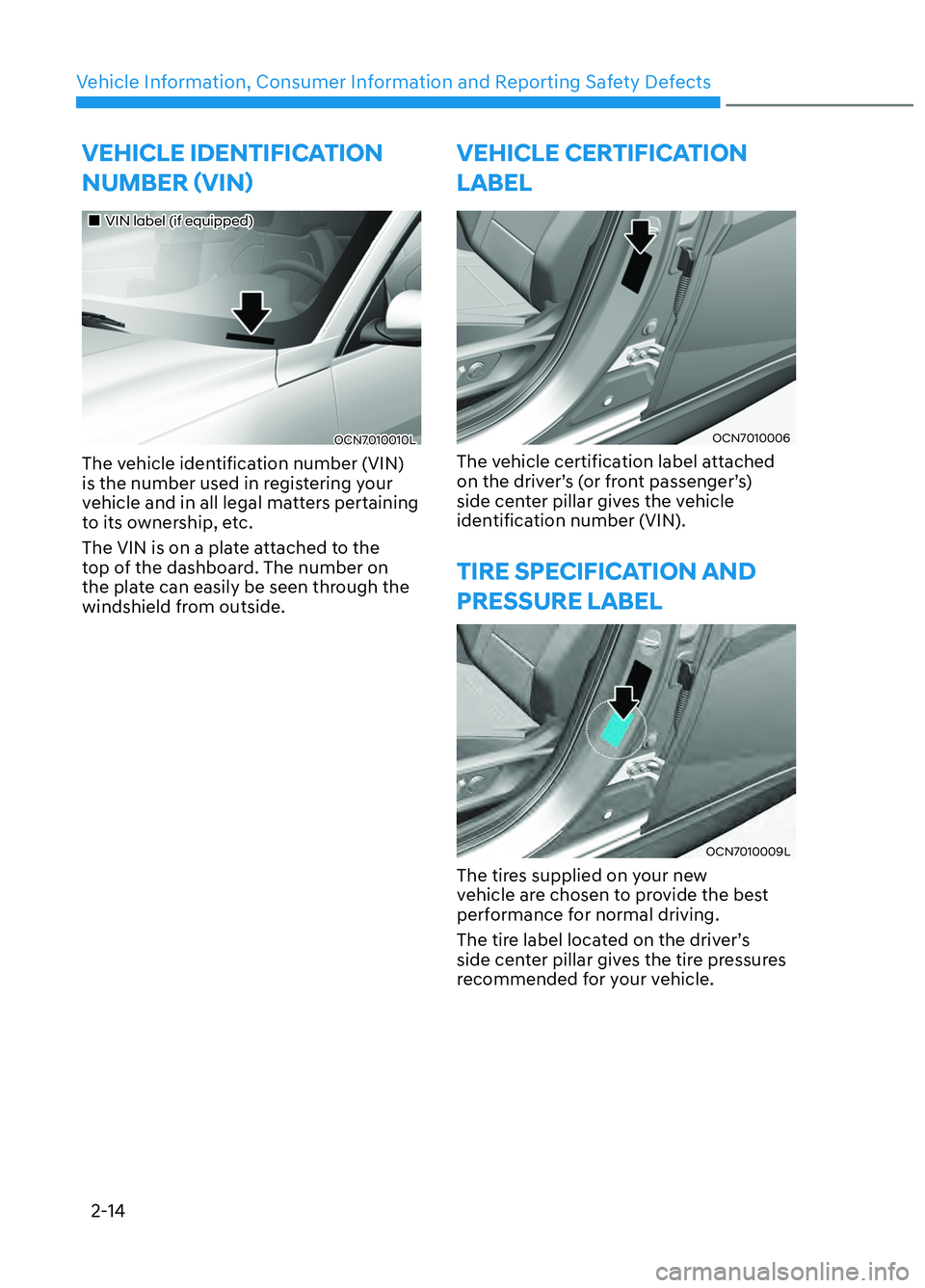

VEHICLE CERTIFICATION
LABEL
VIN label (if equipped)VIN label (if equipped)
OCN7010010LOCN7010010L
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The VIN is on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VEHICLE IDENTIFICATION
NUMBER (VIN)
OCN7010006OCN7010006
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OCN7010009LOCN7010009L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
CN7 N HMA 2.indd 2-14 2021-09-14  9:30:01

02
2-15
OPDEN087012 OPDEN087012

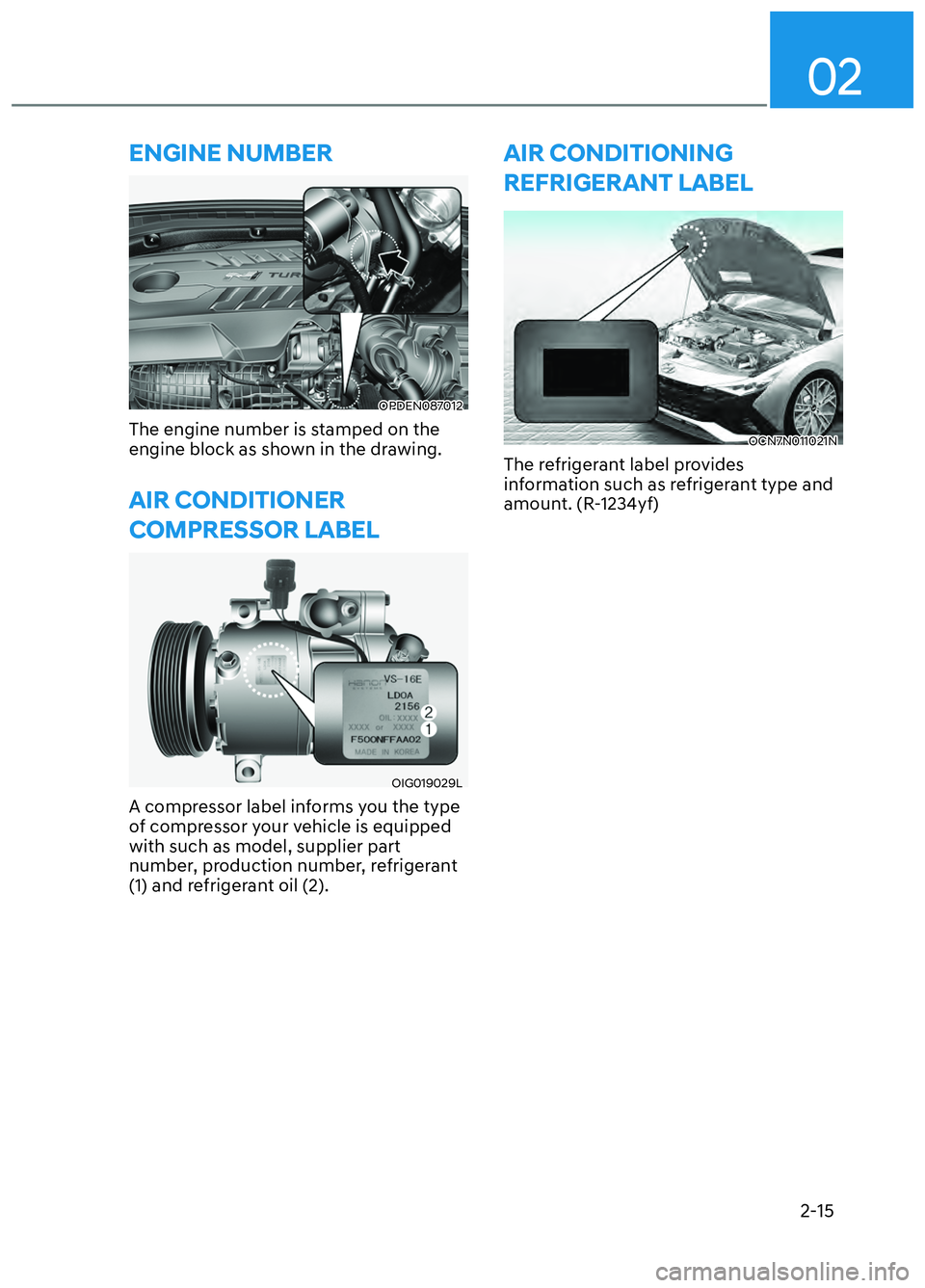

The engine number is stamped on the
engine block as shown in the drawing.
AIR CONDITIONER
COMPRESSOR LABEL
OIG019029LOIG019029L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
ENGINE NUMBERAIR CONDITIONING
REFRIGERANT LABEL
OCN7N011021NOCN7N011021N
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)
CN7 N HMA 2.indd 2-15 2021-09-14  9:30:02

Vehicle Information, Consumer Information and Reporting Safety Defects2-16
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
`

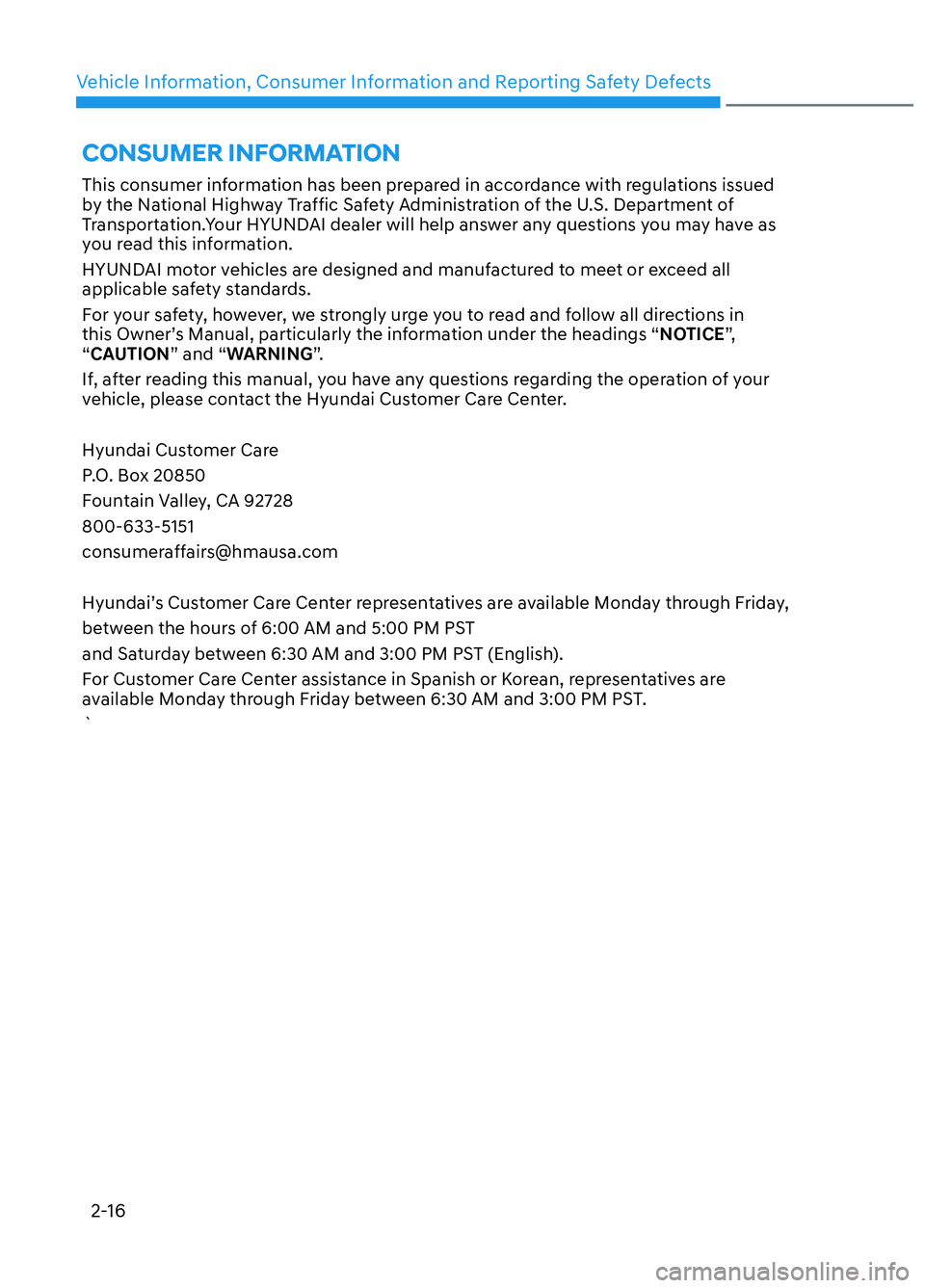

CONSUMER INFORMATION
CN7 N HMA 2.indd 2-16 2021-09-14  9:30:02

02
2-17
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.

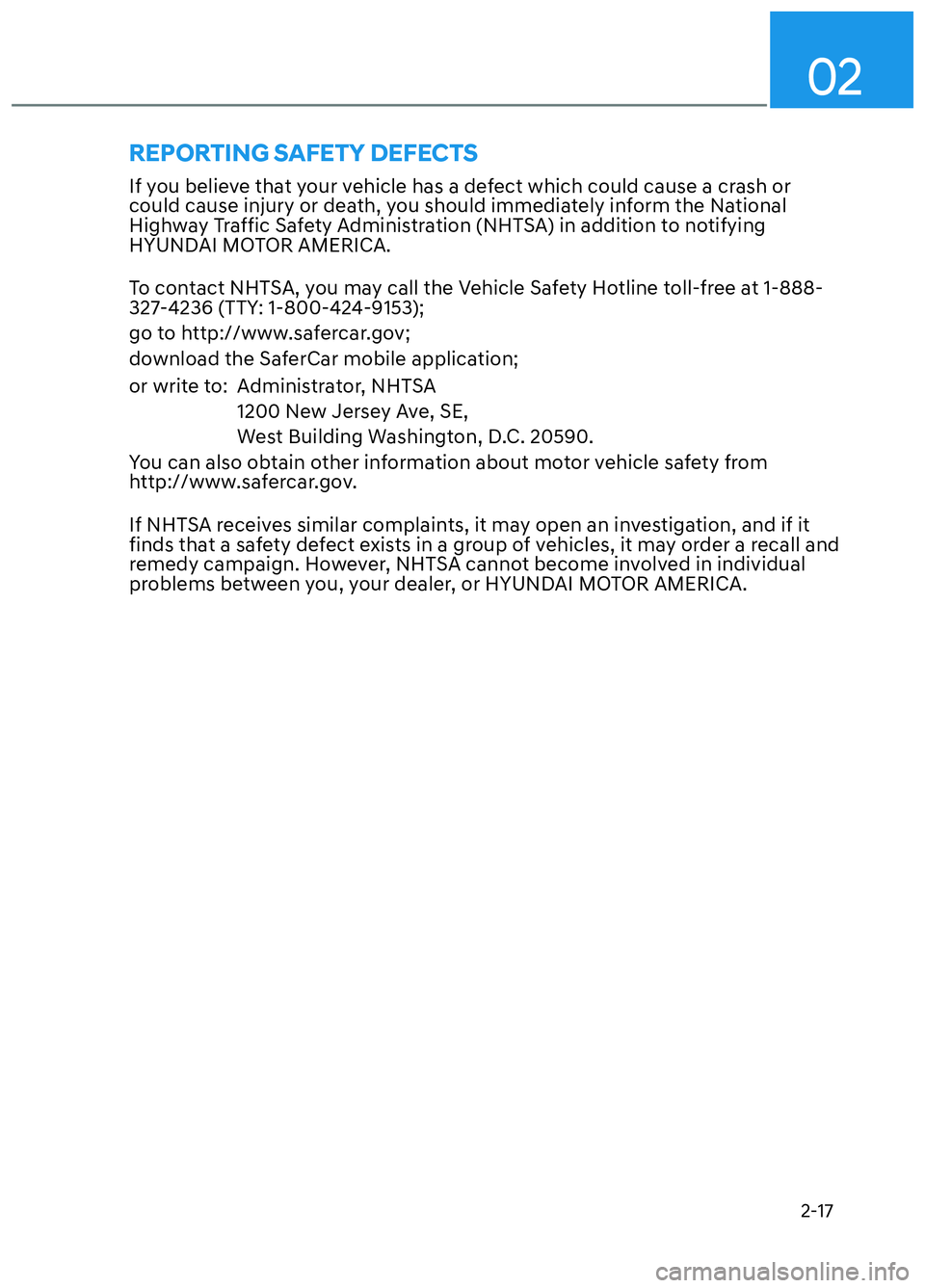

REPORTING SAFETY DEFECTS
