HYUNDAI ELANTRA N 2022 Owners Manual

07
7-57

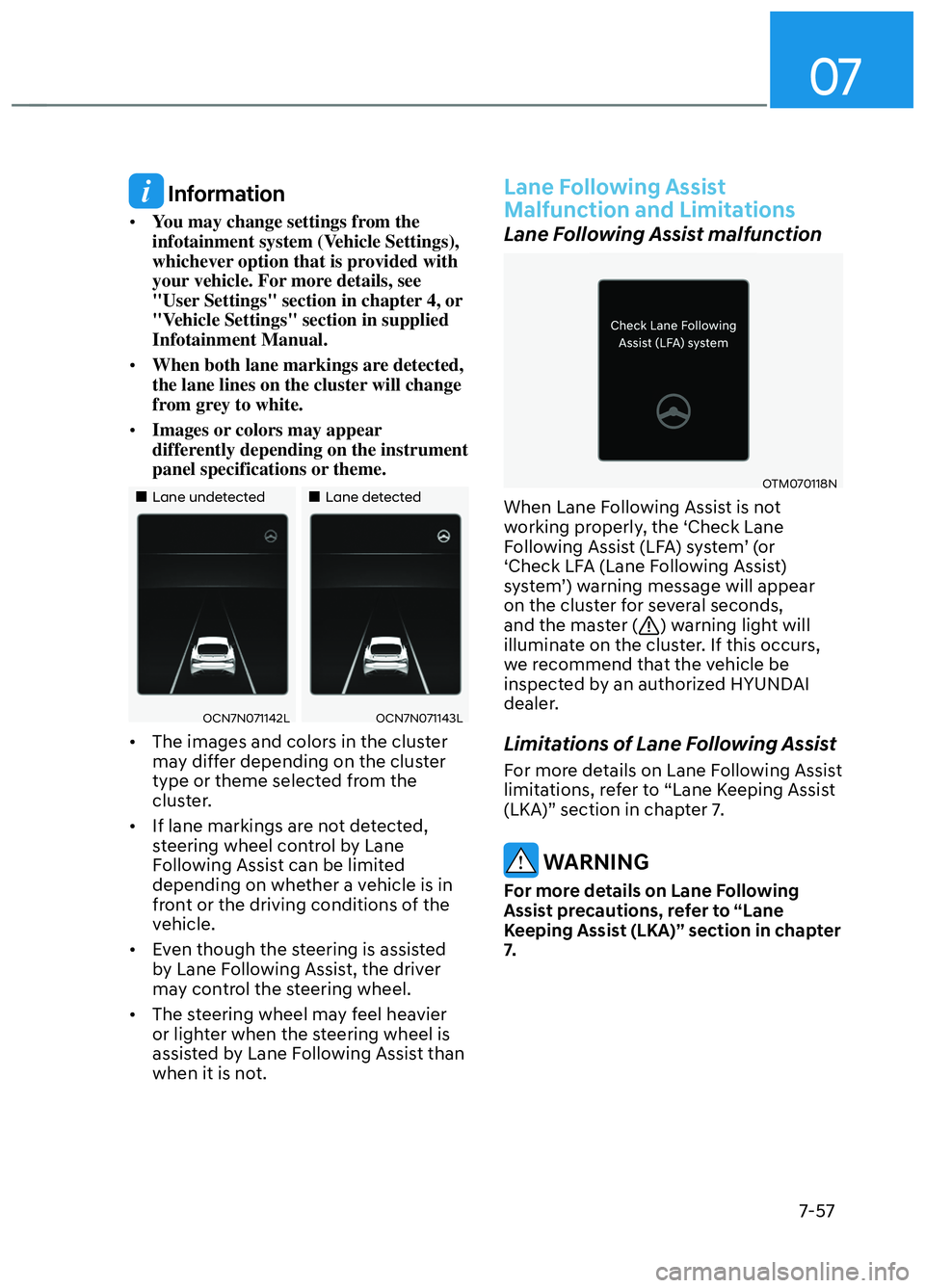

Information
• You may change settings from the
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied
Infotainment Manual.
• When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.
• Images or colors may appear
differently depending on the instrument
panel specifications or theme.
Lane undetectedLane undetectedLane detectedLane detected
OCN7N071142LOCN7N071142LOCN7N071143LOCN7N071143L
• The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the
cluster.
• If lane markings are not detected, steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.
• Even though the steering is assisted by Lane Following Assist, the driver
may control the steering wheel.
• The steering wheel may feel heavier or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
OTM070118NOTM070118N
When Lane Following Assist is not
working properly, the ‘Check Lane
Following Assist (LFA) system’ (or
‘Check LFA (Lane Following Assist)
system’) warning message will appear
on the cluster for several seconds,
and the master (
) warning light will
illuminate on the cluster. If this occurs,
we recommend that the vehicle be
inspected by an authorized HYUNDAI
dealer.
Limitations of Lane Following Assist
For more details on Lane Following Assist
limitations, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.
WARNING
For more details on Lane Following
Assist precautions, refer to “Lane
Keeping Assist (LKA)” section in chapter
7.
CN7 N HMA 7.indd 7-57 2021-09-14  9:44:56

Driver Assistance System7-58

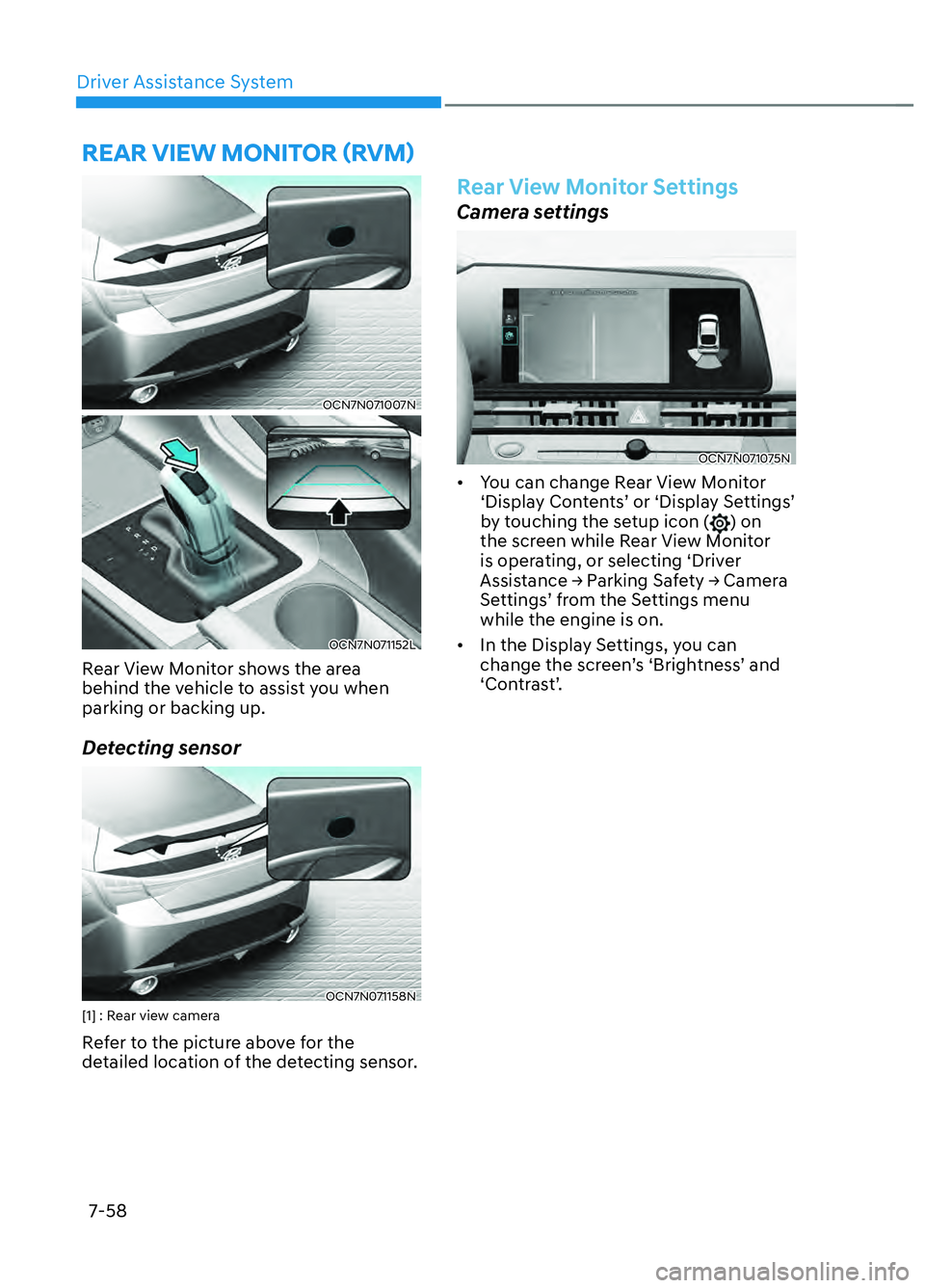

REAR VIEW MONITOR (RVM)
OCN7N071007N OCN7N071007N
OCN7N071152L OCN7N071152L
Rear View Monitor shows the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OCN7N071158NOCN7N071158N[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
Rear View Monitor Settings
Camera settings
OCN7N071075NOCN7N071075N
• You can change Rear View Monitor
‘Display Contents’ or ‘Display Settings’
by touching the setup icon (
) on
the screen while Rear View Monitor
is operating, or selecting ‘Driver
Assistance → Parking Safety → Camera
Settings’ from the Settings menu
while the engine is on.
• In the Display Settings, you can change the screen’s ‘Brightness’ and
‘Contrast’.
CN7 N HMA 7.indd 7-58 2021-09-14  9:44:56

07
7-59

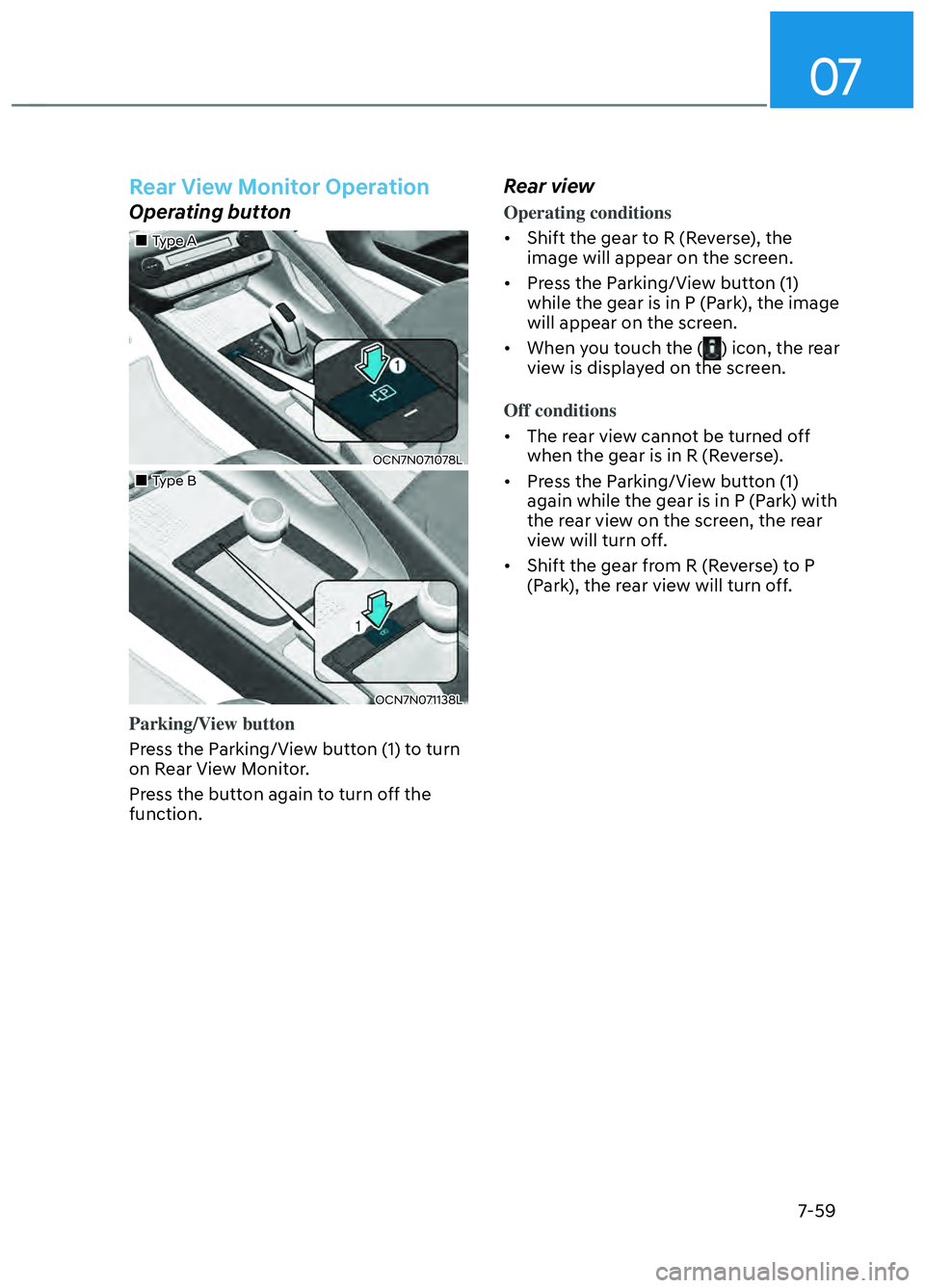

Rear View Monitor Operation
Operating button
Type AType A
OCN7N071078L OCN7N071078L
Type BType B
OCN7N071138L OCN7N071138L
Parking/View button
Press the Parking/View button (1) to turn
on R
ear View Monitor.
Press the button again to turn off the
function.
Rear view
Operating conditions
• Shift the gear to R (Reverse), the image will appear on the scr
een.
• Press the Parking/View button (1) while the gear is in P (Park), the image
will appear on the screen.
• When you touch the (
) icon, the rear
view is displayed on the screen.
Off conditions
• The rear view cannot be turned off when the gear is in R (R
everse).
• Press the Parking/View button (1) again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.
• Shift the gear from R (Reverse) to P (Park), the rear view will turn off.
CN7 N HMA 7.indd 7-59 2021-09-14  9:44:58

Driver Assistance System7-60

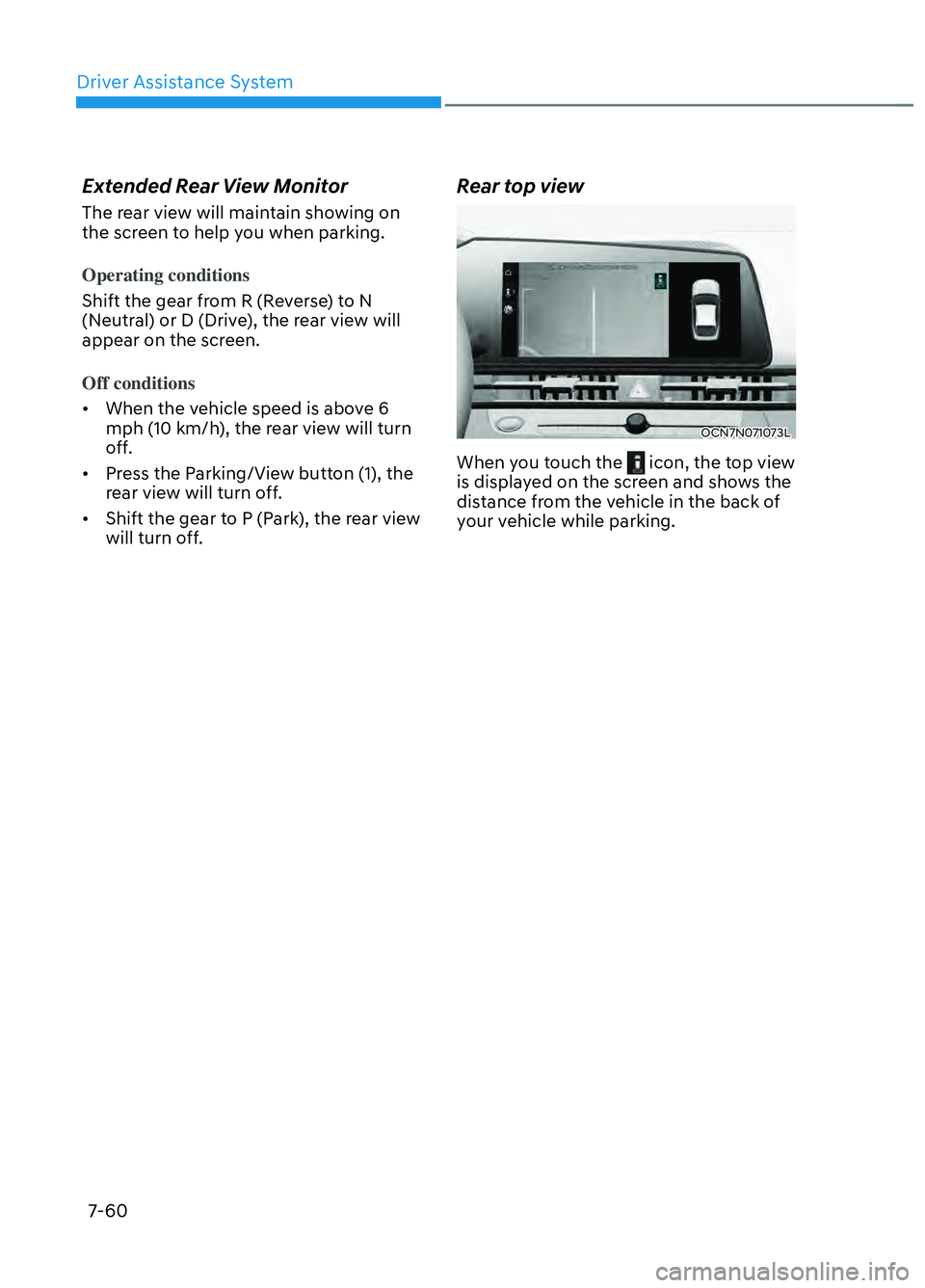

Extended Rear View Monitor
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(N
eutral) or D (Drive), the rear view will
appear on the screen.
Off conditions
• When the vehicle speed is above 6 mph (10 km/h
), the rear view will turn
off.
• Press the Parking/View button (1), the rear view will turn off.
• Shift the gear to P (Park), the rear view will turn off.
Rear top view
OCN7N071073L OCN7N071073L
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
CN7 N HMA 7.indd 7-60 2021-09-14  9:44:59

07
7-61

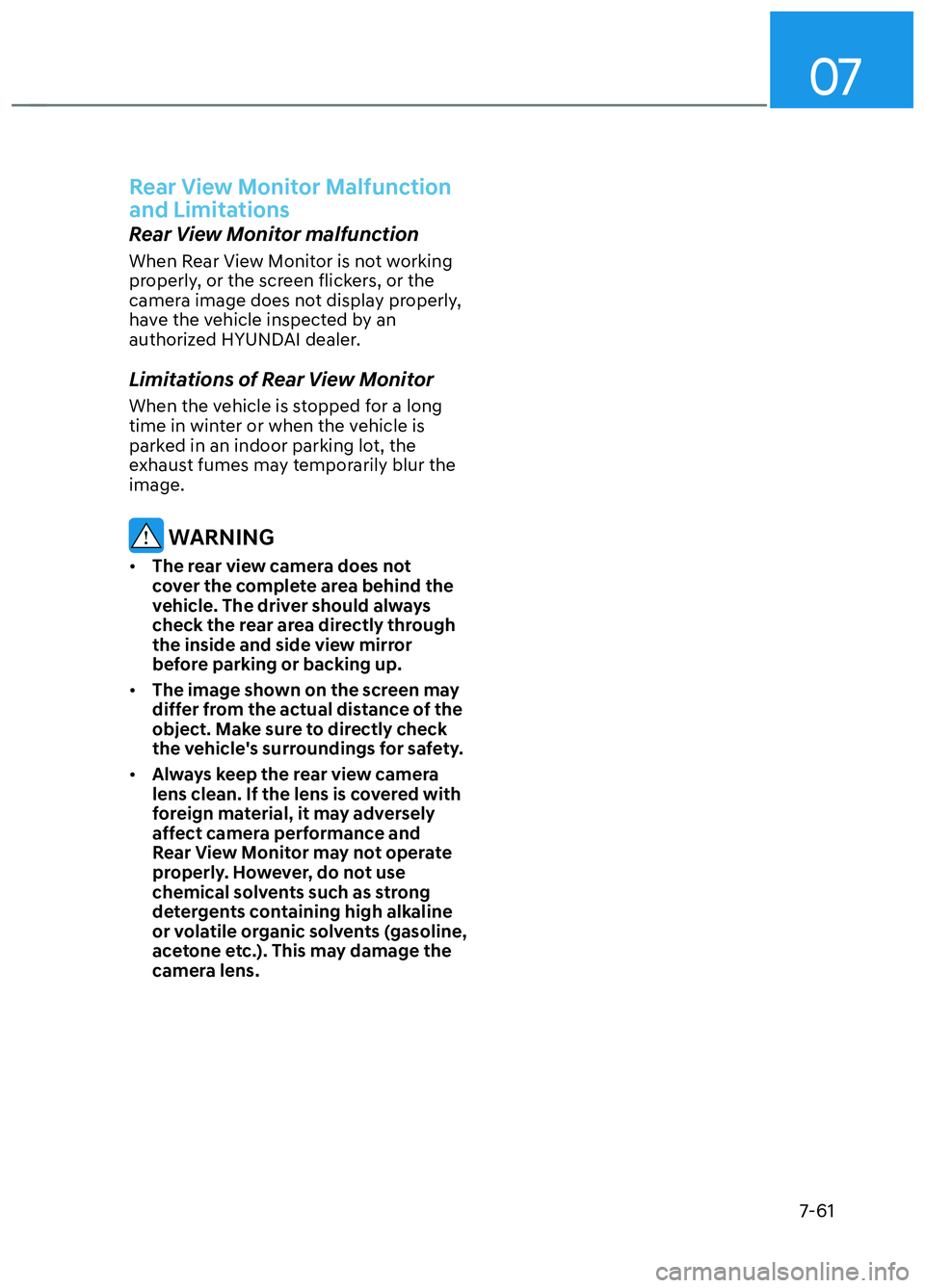

Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING
• The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.
• The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
• Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.
CN7 N HMA 7.indd 7-61 2021-09-14  9:44:59

Driver Assistance System7-62

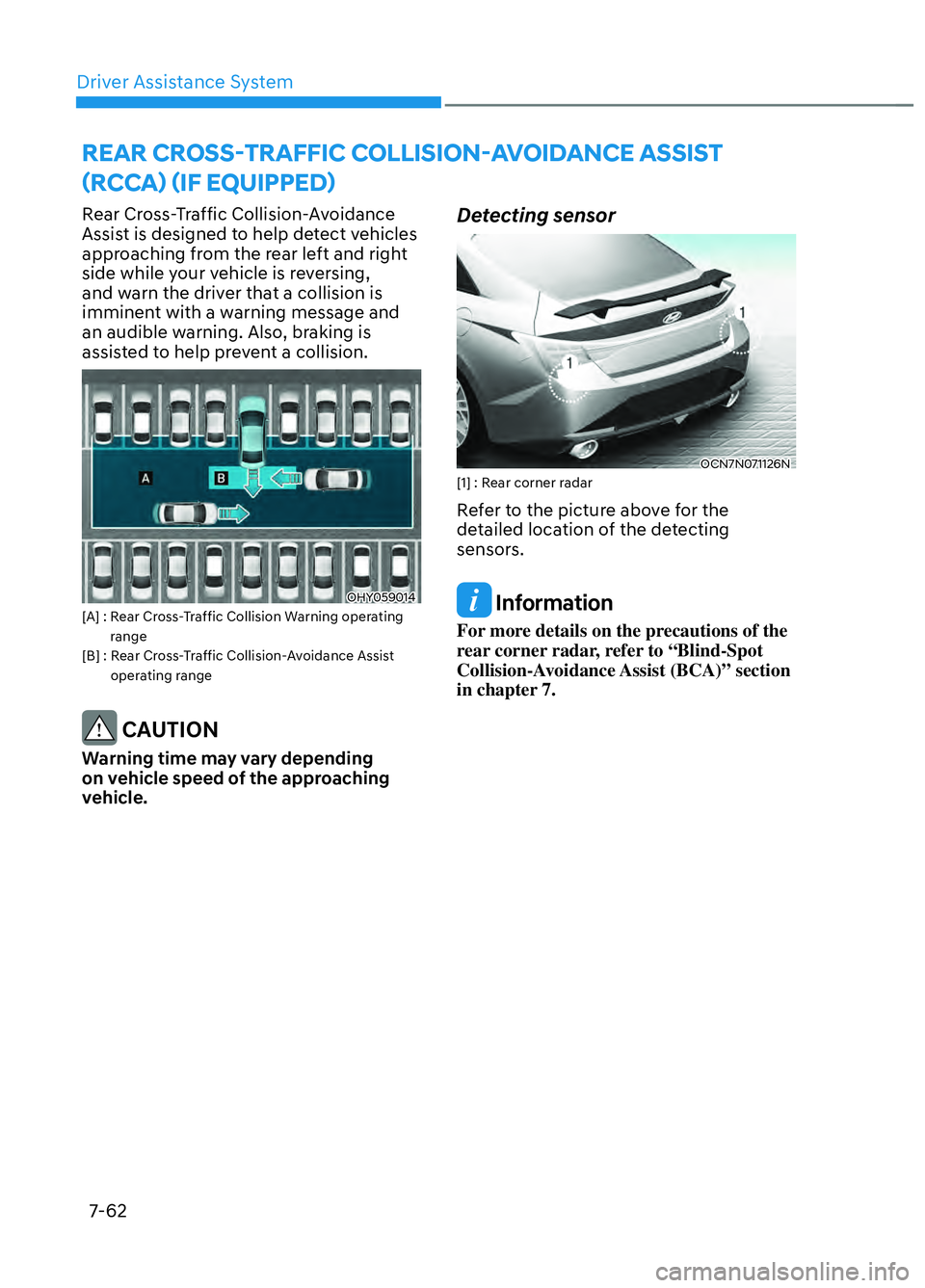

REAR CROSS-TRAFFIC COLLISION-AVOIDANCE ASSIST
(RCCA) (IF EQUIPPED)
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the rear left and right
side while your vehicle is reversing,
and warn the driver that a collision is
imminent with a warning message and
an audible warning. Also, braking is
assisted to help prevent a collision.
OHY059014 OHY059014 [A] : Rear Cross-Traffic Collision Warning operating range
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
CAUTION
Warning time may vary depending
on vehicle speed of the approaching
vehicle.
Detecting sensor
OCN7N071126N OCN7N071126N [1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
CN7 N HMA 7.indd 7-62 2021-09-14  9:44:59

07
7-63
Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting features
OCN7N071107NOCN7N071107N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assis
tance → Parking Safety → Rear Cross-
Traffic Safety’ from the Settings menu
to turn on Rear Cross-Traffic Collision-
Avoidance Assist and deselect to turn off
the function.
WARNING
When the engine is restarted, Rear
Cross-Traffic Collision-Avoidance Assist
will always turn on. However, if ‘Off’ is
selected after the engine is restarted,
the driver should always be aware of
the surroundings and drive safely.
Information
Settings for Rear Cross-Traffic Collision-
Avoidance Assist include Rear Cross-
Traffic Collision Warning and Rear Cross-
Traffic Collision-Avoidance Assist.
OCN7N071091LOCN7N071091L
Warning Timing
With the engine on, select ‘Driver
Assis
tance → Warning Timing’ from the
Settings menu to change the initial
warning activation time for Rear Cross-
Traffic Collision-Avoidance Assist.
When the vehicle is first delivered,
Warning Timing is set to ‘Standard’. If you
change the Warning Timing, the Warning
Timing of other Driver Assistance
systems may change.
CN7 N HMA 7.indd 7-63 2021-09-14  9:45:00

Driver Assistance System7-64
OCN7N071092LOCN7N071092L

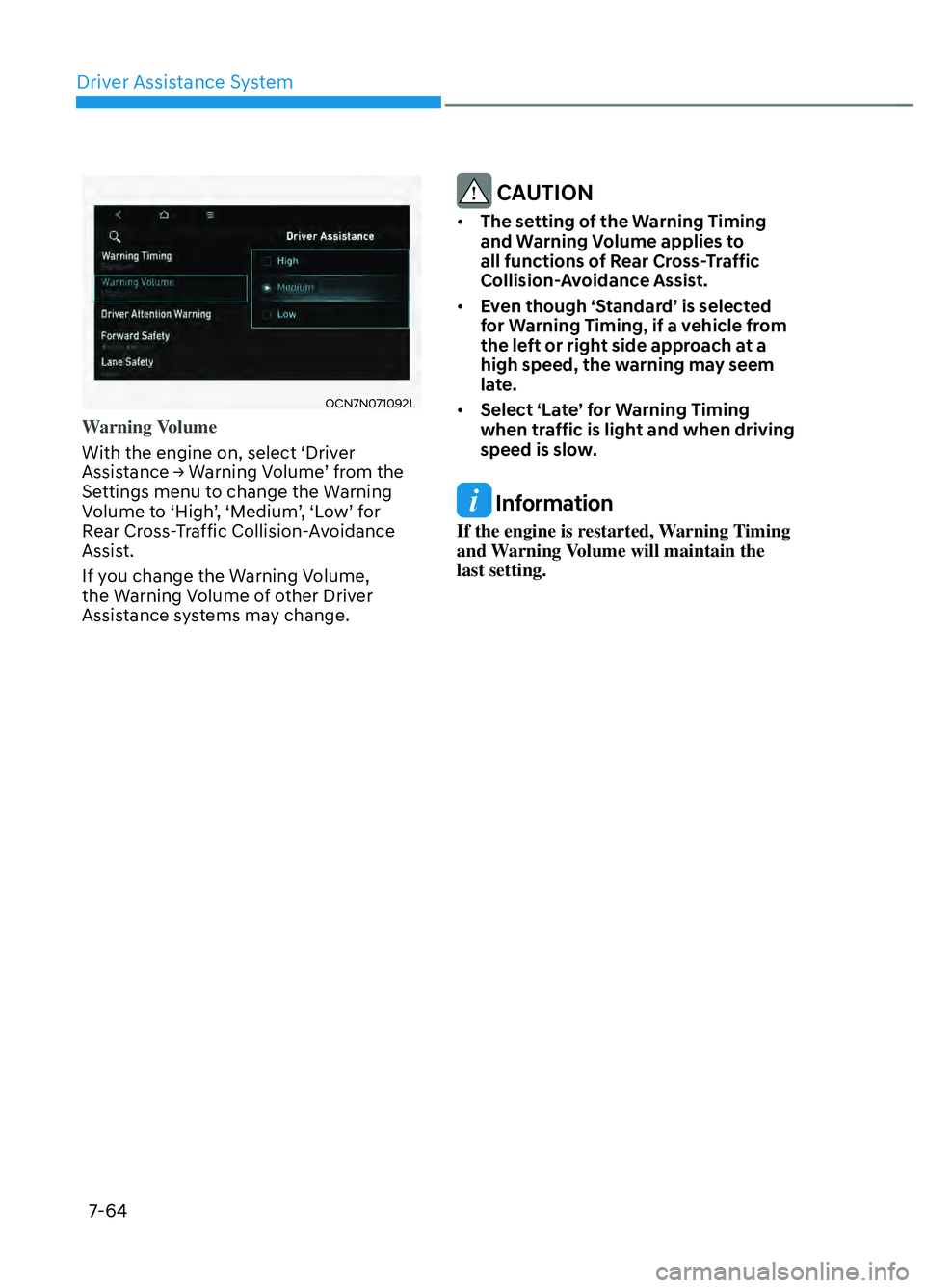

Warning Volume
With the engine on, select ‘Driver
Assis
tance → Warning Volume’ from the
Settings menu to change the Warning
Volume to ‘High’, ‘Medium’, ‘Low’ for
Rear Cross-Traffic Collision-Avoidance
Assist.
If you change the Warning Volume,
the Warning Volume of other Driver
Assistance systems may change.
CAUTION
• The setting of the Warning Timing
and Warning Volume applies to
all functions of Rear Cross-Traffic
Collision-Avoidance Assist.
• Even though ‘Standard’ is selected
for Warning Timing, if a vehicle from
the left or right side approach at a
high speed, the warning may seem
late.
• Select ‘Late’ for Warning Timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning Timing
and Warning Volume will maintain the
last setting.
CN7 N HMA 7.indd 7-64 2021-09-14  9:45:00

07
7-65

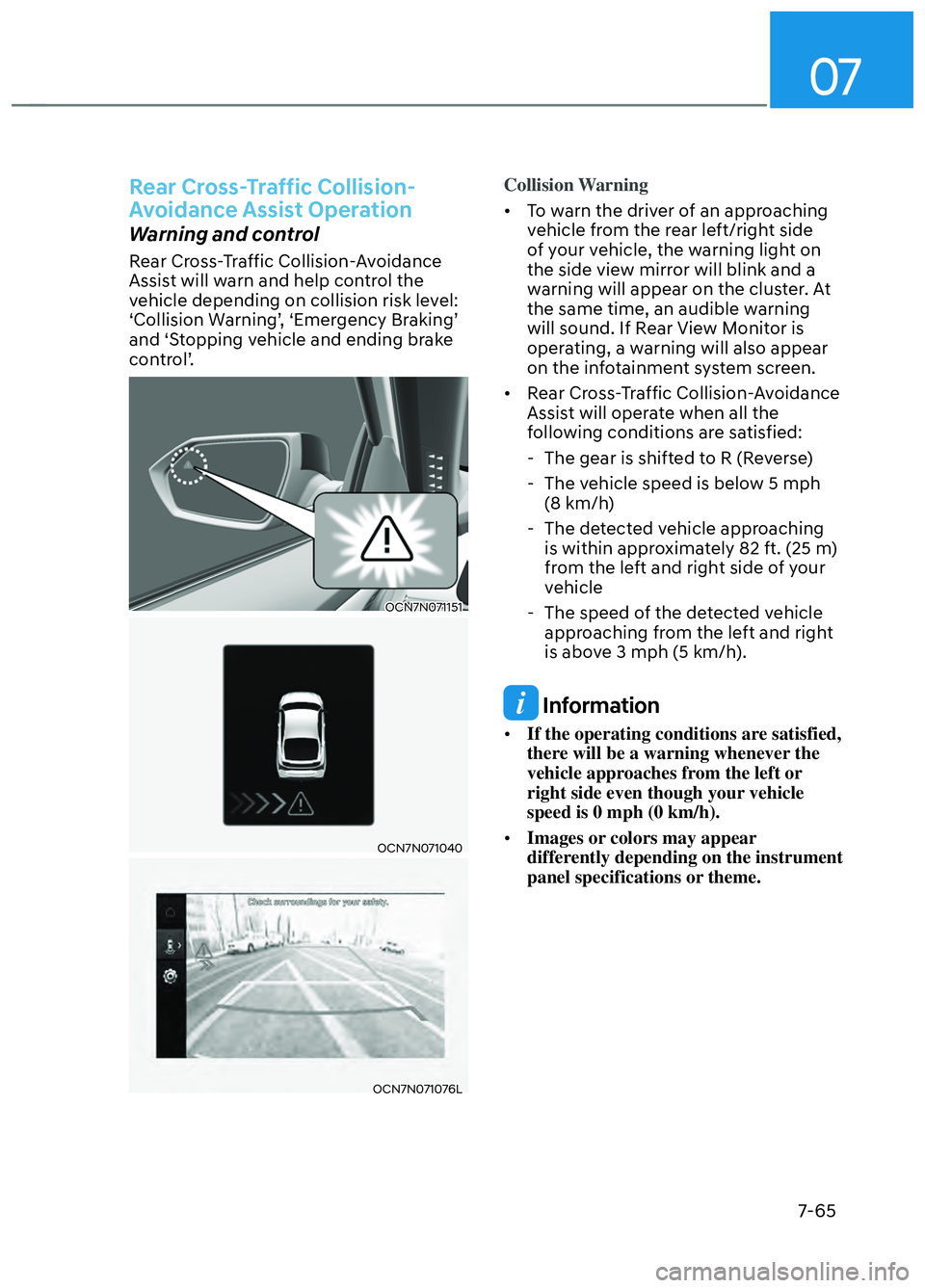

Rear Cross-Traffic Collision-
Avoidance Assist Operation
Warning and control
Rear Cross-Traffic Collision-Avoidance
Assist will warn and help control the
vehicle depending on collision risk level:
‘Collision Warning’, ‘Emergency Braking’
and ‘Stopping vehicle and ending brake
control’.
OCN7N071151OCN7N071151
OCN7N071040 OCN7N071040
OCN7N071076LOCN7N071076L
Collision Warning
• To warn the driver of an approaching v
ehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and a
warning will appear on the cluster. At
the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.
• Rear Cross-Traffic Collision-Avoidance Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The detected vehicle approaching is within approximately 82 ft. (25 m)
from the left and right side of your
vehicle
- The speed of the detected vehicle approaching from the left and right
is above 3 mph (5 km/h).
Information
• If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or
right side even though your vehicle
speed is 0 mph (0 km/h).
• Images or colors may appear
differently depending on the instrument
panel specifications or theme.
CN7 N HMA 7.indd 7-65 2021-09-14  9:45:01

Driver Assistance System7-66
OCN7N071151OCN7N071151
OCN7N071108LOCN7N071108L
OCN7N071076LOCN7N071076L

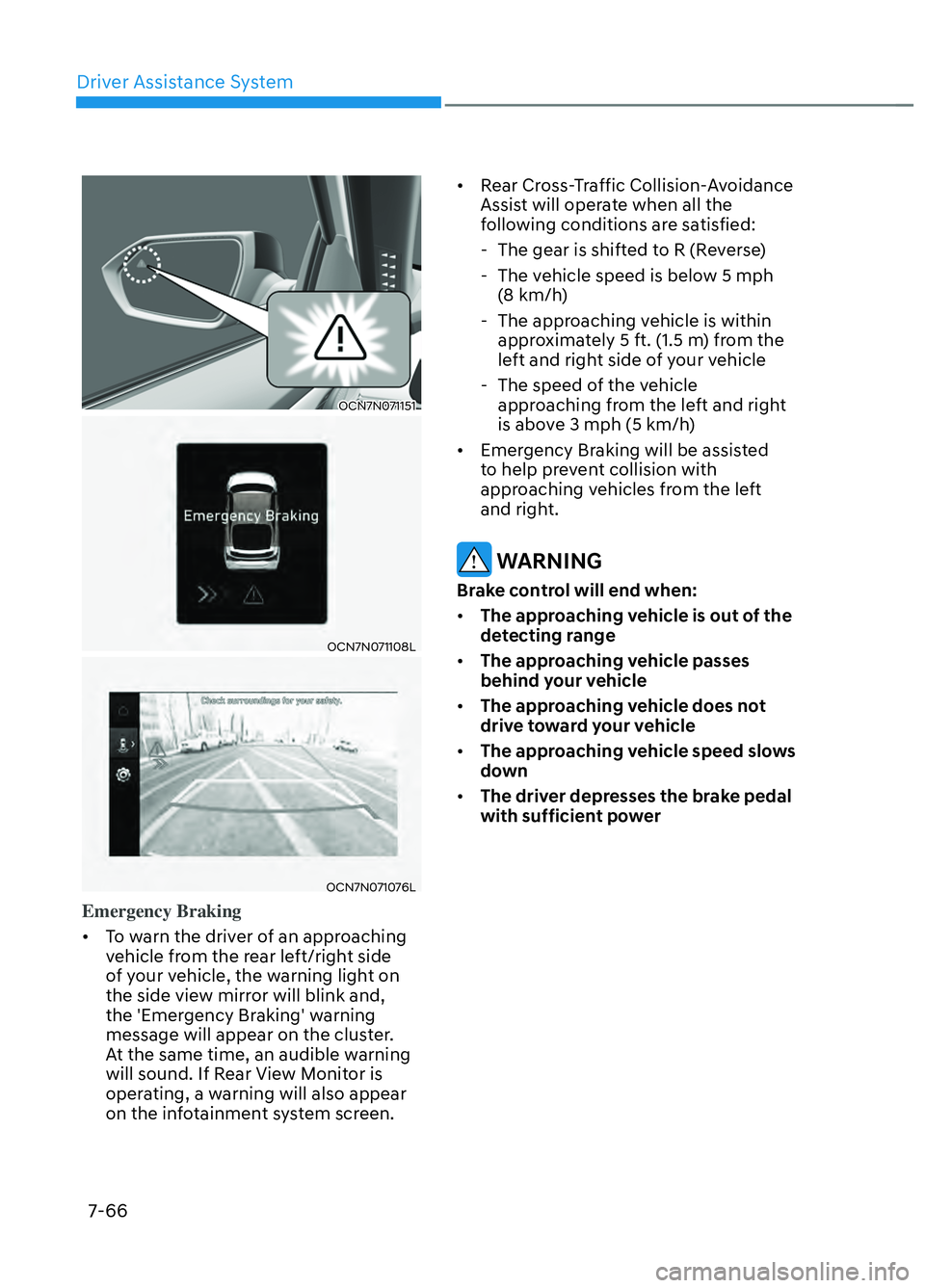

Emergency Braking
• To warn the driver of an approaching v
ehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen. • Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
• Emergency Braking will be assisted to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
• The approaching vehicle is out of the
detecting range
• The approaching vehicle passes
behind your vehicle
• The approaching vehicle does not
drive toward your vehicle
• The approaching vehicle speed slows
down
• The driver depresses the brake pedal
with sufficient power
CN7 N HMA 7.indd 7-66 2021-09-14  9:45:03
