HYUNDAI ELANTRA N 2022 Owners Manual

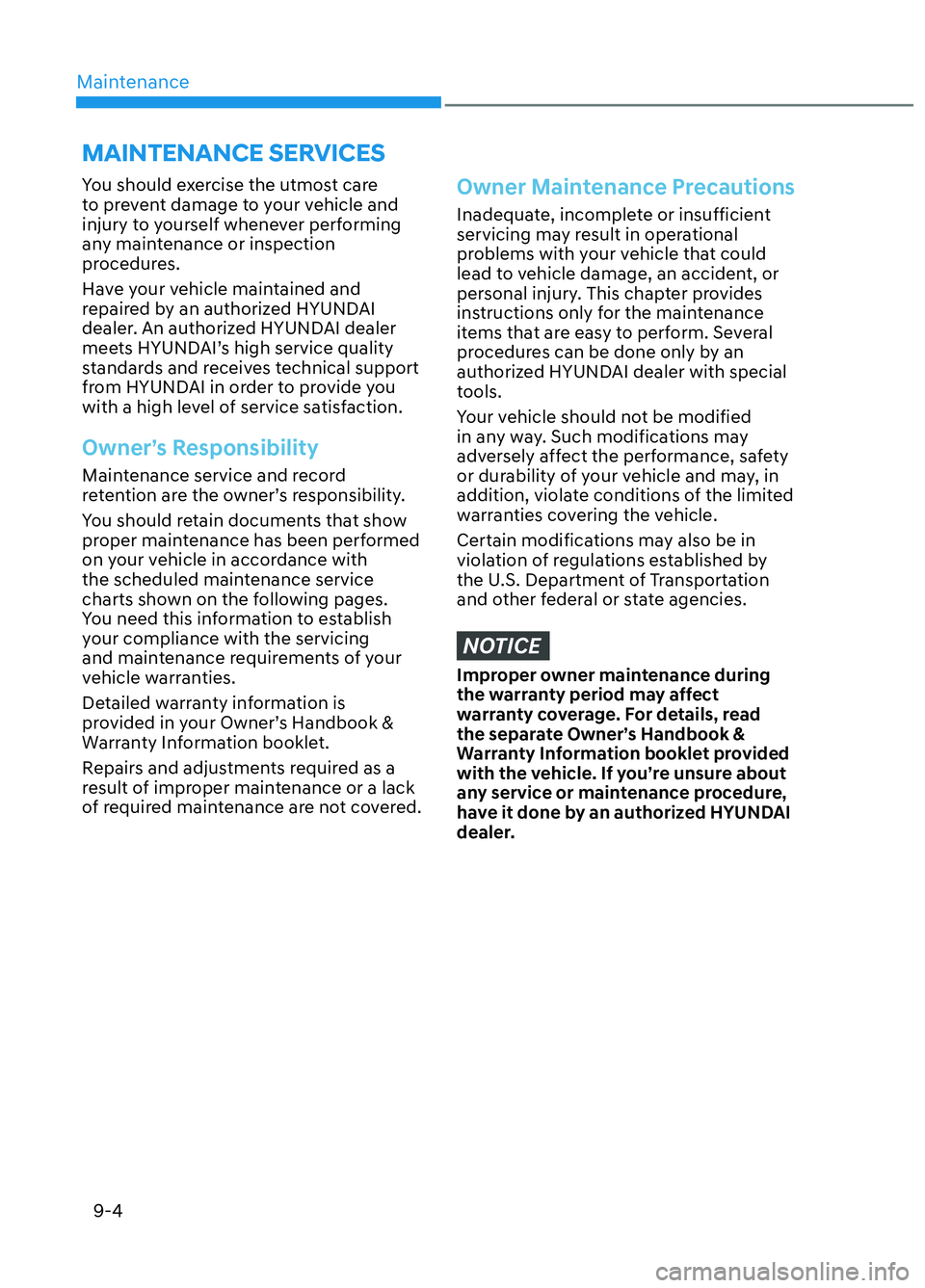

Maintenance9-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
Have your vehicle maintained and
repaired by an authorized HYUNDAI
dealer. An authorized HYUNDAI dealer
meets HYUNDAI’s high service quality
standards and receives technical support
from HYUNDAI in order to provide you
with a high level of service satisfaction.
Owner’s Responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner Maintenance Precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform. Several
procedures can be done only by an
authorized HYUNDAI dealer with special
tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
Certain modifications may also be in
violation of regulations established by
the U.S. Department of Transportation
and other federal or state agencies.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read
the separate Owner’s Handbook &
Warranty Information booklet provided
with the vehicle. If you’re unsure about
any service or maintenance procedure,
have it done by an authorized HYUNDAI
dealer.
MAINTENANCE SERVICES
CN7 N HMA 9.indd 9-4 2021-09-08  9:30:13

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:
• Park your vehicle on level ground,
move the shift lever into the P (Park)
position, set the Engine Start/Stop
button to the OFF position.
• Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.
• If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.
• Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When you stop for fuel:
• Check the coolant level in the engine
coolant reservoir.
• Check the windshield washer fluid level.
• Check the for low or under-inflated tires.
WARNING
Be careful when checking your engine
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE
CN7 N HMA 9.indd 9-5 2021-09-08  9:30:13

Maintenance9-6
While operating your vehicle:
• Note any changes in the sound of the exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• If any slipping or changes in the operation of your transmission occurs,
check the transmission fluid level.
• Check the dual clutch transmission P (Park) function.
• Check the parking brake.
• Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after
use is normal).
• Check the manual transmission operation, including clutch operation.
At least monthly:
• Check coolant level in the engine coolant reservoir.
• Check the operation of all exterior lights, including the brake lights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year:
(for example, every Spring and
Autumn)
• Check radiator, heater and air conditioning hoses for leaks or
damage.
• Check windshield washer spray and wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.
• Check headlamp alignment.
• Check muffler, exhaust pipes, shields and clamps.
• Check the seat belts for wear and function.
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood hinges.
• Lubricate door and hood locks and latches.
• Lubricate door rubber weather strips.
• Lubricate door checker.
• Check the air conditioning system.
• Inspect and lubricate dual clutch transmission linkage and controls.
• Clean the battery and terminals.
• Check the brake fluid level.
CN7 N HMA 9.indd 9-6 2021-09-08  9:30:14

09
9-7

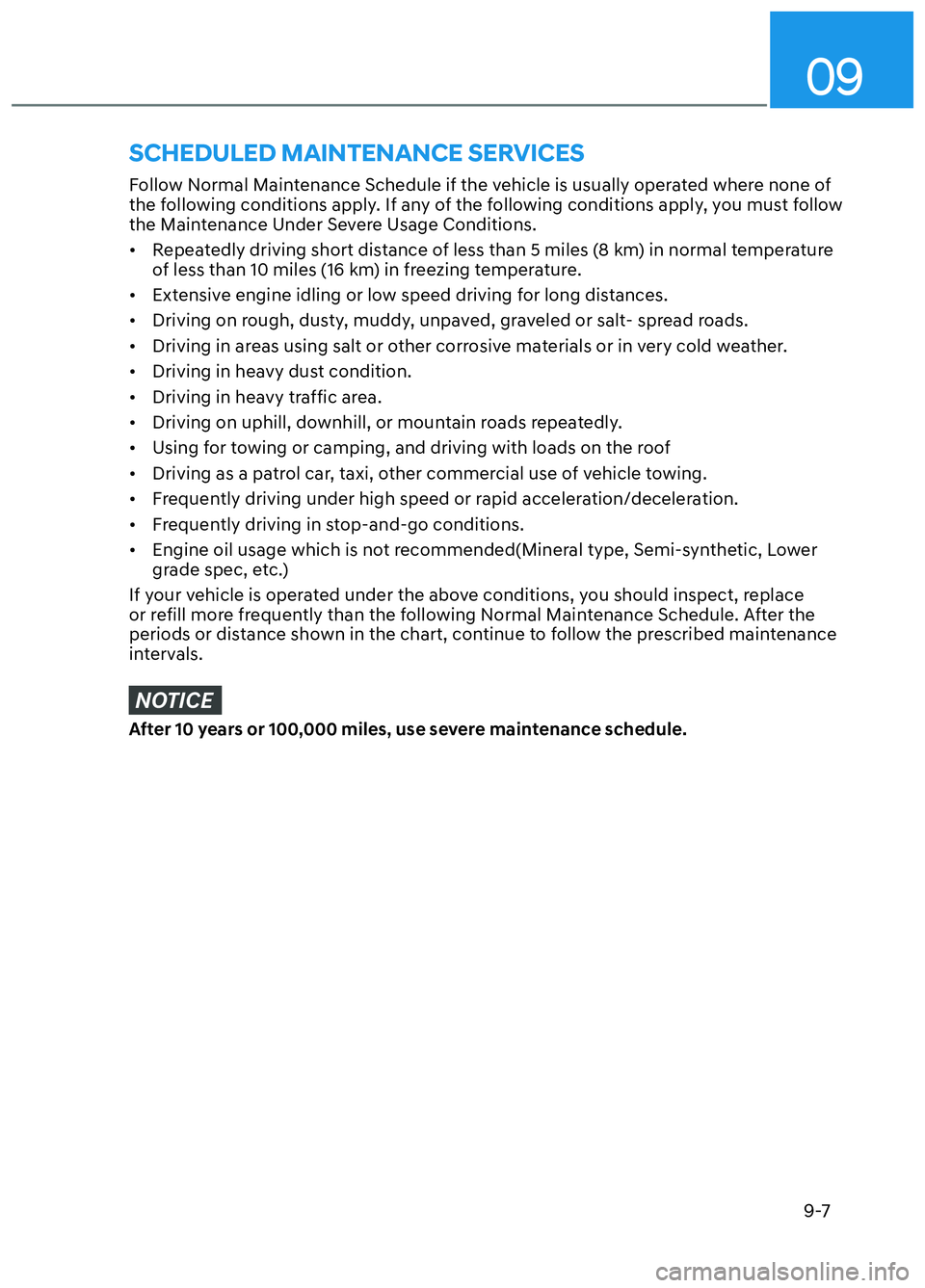

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.
• Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature of less than 10 miles (16 km) in freezing temperature.
• Extensive engine idling or low speed driving for long distances.
• Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.
• Driving in areas using salt or other corrosive materials or in very cold weather.
• Driving in heavy dust condition.
• Driving in heavy traffic area.
• Driving on uphill, downhill, or mountain roads repeatedly.
• Using for towing or camping, and driving with loads on the roof
• Driving as a patrol car, taxi, other commercial use of vehicle towing.
• Frequently driving under high speed or rapid acceleration/deceleration.
• Frequently driving in stop-and-go conditions.
• Engine oil usage which is not recommended(Mineral type, Semi-synthetic, Lower grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
NOTICE
After 10 years or 100,000 miles, use severe maintenance schedule.
SCHEDULED MAINTENANCE SERVICES
CN7 N HMA 9.indd 9-7 2021-09-08  9:30:14

Maintenance9-8
Information
• As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.
• The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification.
• The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition.
Also, check the amount of engine oil regularly as this system assumes that the engi
ne oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Engine Oil Change Reminder, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.
CN7 N HMA 9.indd 9-8 2021-09-08  9:30:14

09
9-9

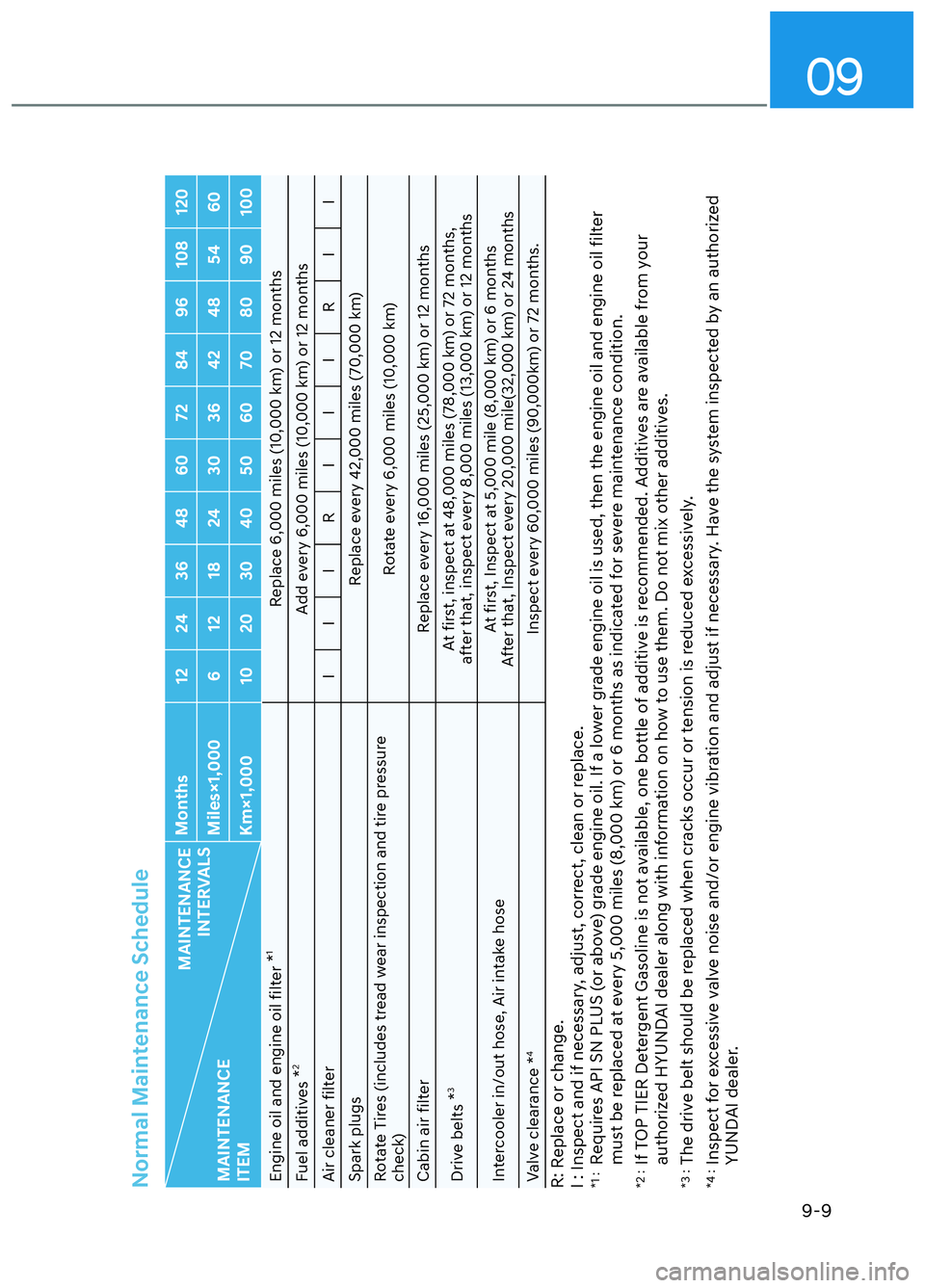

Normal Maintenance Schedule
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Engine oil and engine oil filter
*
1
Replace 6,000 miles (10,000 km) or 12 months
Fuel additives *
2
Add every 6,000 miles (10,000 km) or 12 months
Air cleaner filter I I I R I I I R I I
Spark plugs Replace every 42,000 miles (70,000 km)
Rotate Tires (includes tread wear inspection and tire pressure
check) Rotate every 6,000 miles (10,000 km)
Cabin air filter Replace every 16,000 miles (25,000 km) or 12 months
Drive belts *
3
At first, inspect at 48,000 miles (78,000 km) or 72 months,
after that, inspect every 8,000 miles (13,000 km) or 12 months
Intercooler in/out hose, Air intake hose At first, Inspect at 5,000 mile (8,000 km) or 6 months
After that, Inspect every 20,000 mile(32,000 km) or 24 months
Valve clearance *
4
Inspect every 60,000 miles (90,000km) or 72 months.
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter
must be replaced at every 5,000 miles (8,000 km) or 6 months as indicated for severe maintenance condition.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*3 :
The drive belt should be replaced when cracks occur or tension is reduced excessively.
*4 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have the system inspected by an authorized
YUNDAI dealer.
CN7 N HMA 9.indd 9-9 2021-09-08  9:30:14

Maintenance9-10
Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vacuum hose
IIIIIIIIII
Engine coolant At first, replace at 120,000 miles (200,000 km) or 10 years
after that, replace every 24,000 miles (30,000 km) or 24 months
Battery condition IIIIIIIIII
Brake lines, hoses and connections IIIIIIIIII
Disc brakes and pads IIIIIIIIII
Steering gear rack, linkage and boots / lower arm ball joint,
upper arm ball joint IIIIIIIIII
Drive axle shafts and boots IIIII
Suspension mounting bolts IIIIIIIIII
Air conditioner refrigerant IIIIIIIIII
Air conditioner compressor IIIIIIIIII
Exhaust pipe and muffler IIIIIIIIII
Manual transmission fluid (if equipped)
*1
No Check, No Service required
Dual clutch transmission fluid (if equipped)
*1
II
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Manual transmission fluid/Dual clutch transmission fluid should be changed anytime they have been submerged in water.
CN7 N HMA 9.indd 9-10 2021-09-08  9:30:14

09
9-11

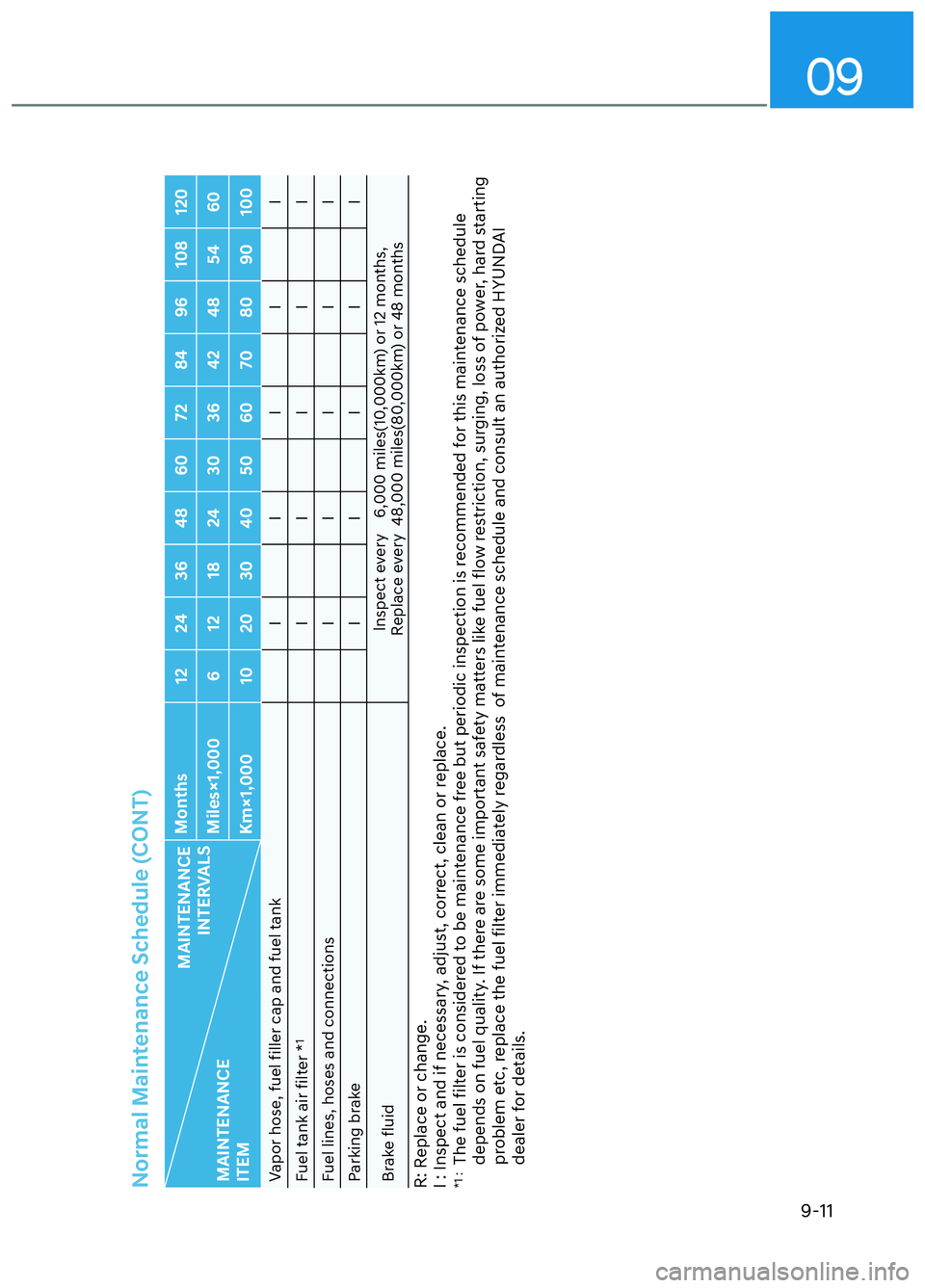

Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months
12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vapor hose, fuel filler cap and fuel tank IIIII
Fuel tank air filter *
1
IIIII
Fuel lines, hoses and connections I I I I I
Parking brake I I I I I
Brake fluid lnspect every 6,000 miles(10,000km) or 12 months,
Replace every 48,000 miles(80,000km) or 48 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting
problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI
dealer for details.
CN7 N HMA 9.indd 9-11 2021-09-08  9:30:15

Maintenance9-12

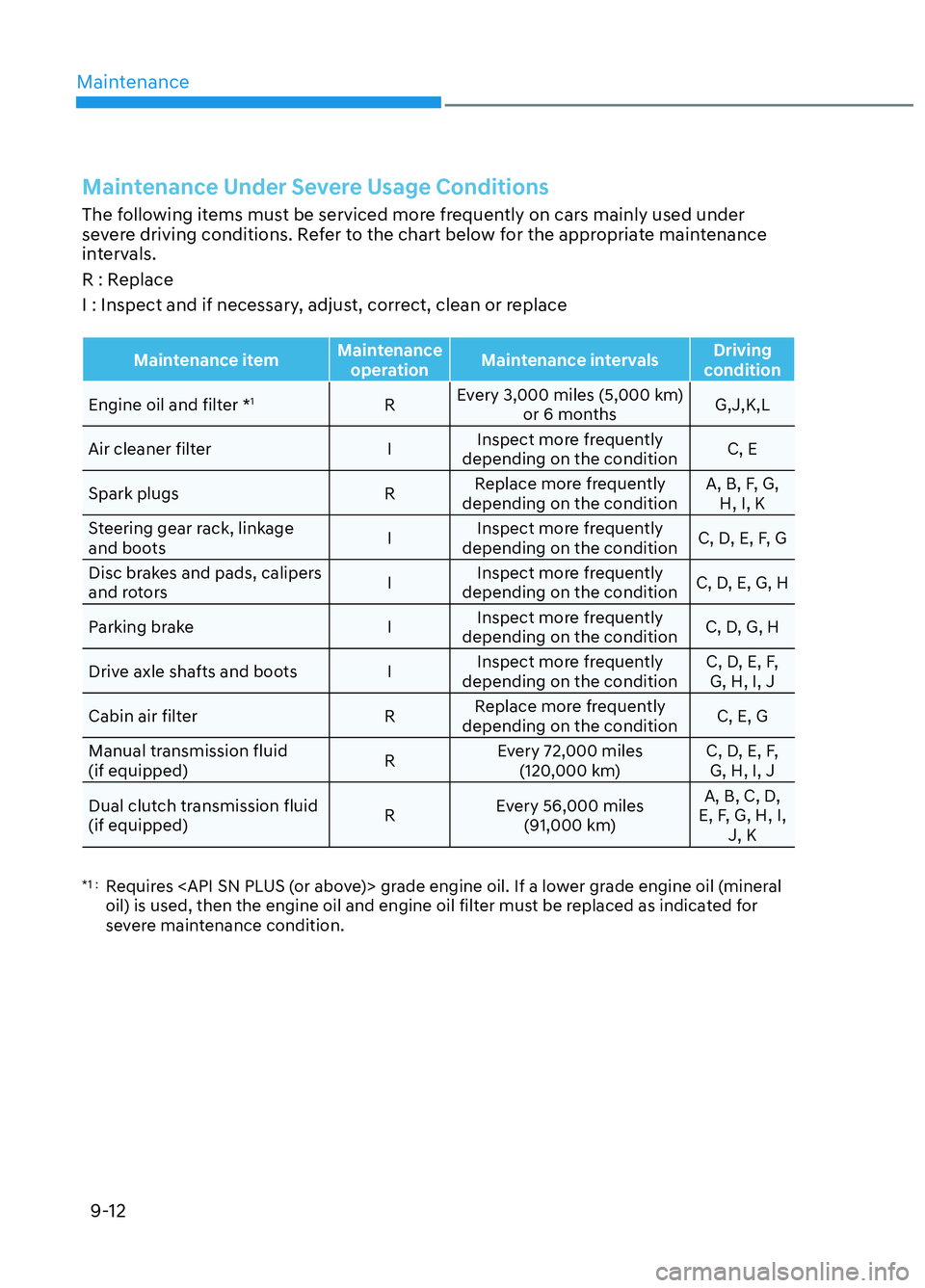

Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance item Maintenance
operation Maintenance intervals Driving
condition
Engine oil and filter *
1R Every 3,000 miles (5,000 km)
or 6 months G,J,K,L
Air cleaner filter I Inspect more frequently
depending on the condition C, E
Spark plugs R Replace more frequently
depending on the condition A, B, F, G,
H, I, K
Steering gear rack, linkage
and boots IInspect more frequently
depending on the condition C, D, E, F, G
Disc brakes and pads, calipers
and rotors IInspect more frequently
depending on the condition C, D, E, G, H
Parking brake I Inspect more frequently
depending on the condition C, D, G, H
Drive axle shafts and boots I Inspect more frequently
depending on the condition C, D, E, F,
G, H, I, J
Cabin air filter R Replace more frequently
depending on the condition C, E, G
Manual transmission fluid
(if equipped) REvery 72,000 miles
(120,000 km) C, D, E, F,
G, H, I, J
Dual clutch transmission fluid
(if equipped) REvery 56,000 miles
(91,000 km) A, B, C, D,
E, F, G, H, I, J, K
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
CN7 N HMA 9.indd 9-12 2021-09-08  9:30:15

09
9-13

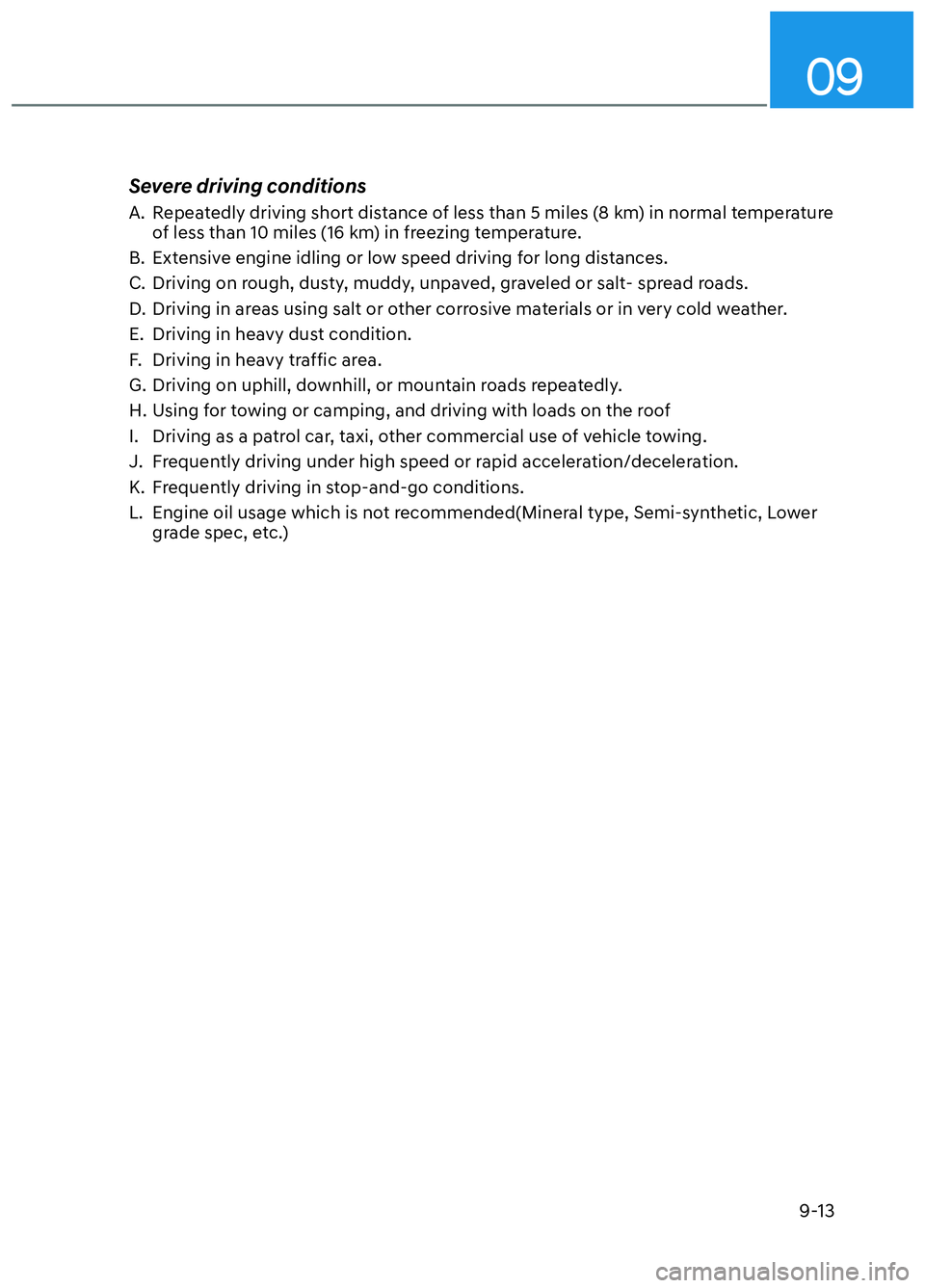

Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature of less than 10 miles (16 km) in freezing temperature.
B. Extensive engine idling or low speed driving for long distances.
C. Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.
D. Driving in areas using salt or other corrosive materials or in very cold weather.
E. Driving in heavy dust condition.
F. Driving in heavy traffic area.
G. Driving on uphill, downhill, or mountain roads repeatedly.
H. Using for towing or camping, and driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use of vehicle towing.
J. Frequently driving under high speed or rapid acceleration/deceleration.
K. Frequently driving in stop-and-go conditions.
L. Engine oil usage which is not recommended(Mineral type, Semi-synthetic, Lower grade spec, etc.)
CN7 N HMA 9.indd 9-13 2021-09-08  9:30:15
