HYUNDAI ELANTRA SEL 2021 Owners Manual

Driver assistance system
7-68
OCN7070105N

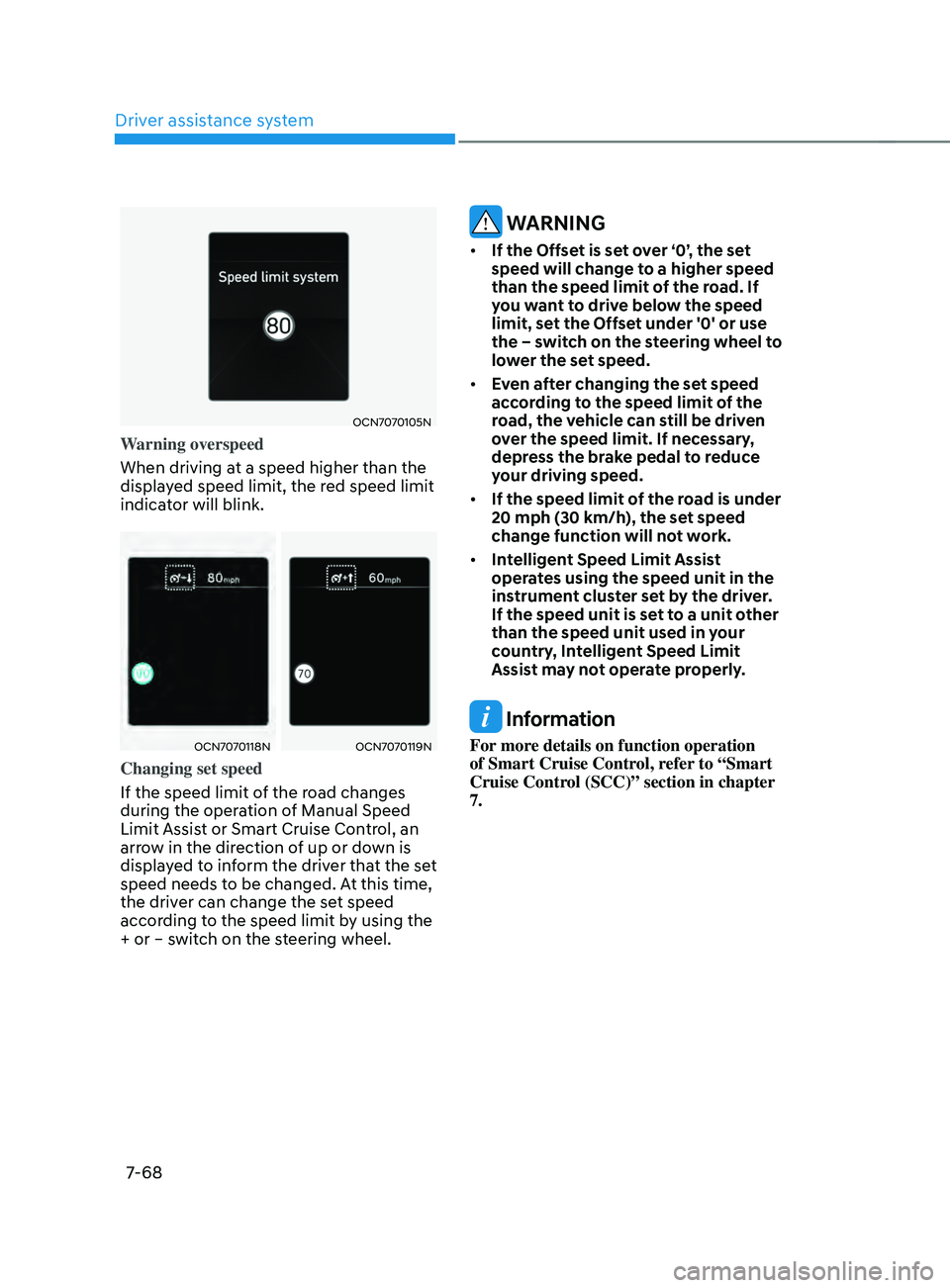

Warning overspeed
When driving at a speed higher than the
displayed speed limit, the red speed limit
indicator will blink.
OCN7070118NOCN7070119N
Changing set speed
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control, an
arrow in the direction of up or down is
displayed to inform the driver that the set
speed needs to be changed. At this time,
the driver can change the set speed
according to the speed limit by using the
+ or – switch on the steering wheel.
WARNING
• If the Offset is set over ‘0’, the set
speed will change to a higher speed
than the speed limit of the road. If
you want to drive below the speed
limit, set the Offset under '0' or use
the – switch on the steering wheel to
lower the set speed.
• Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.
• If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.
• Intelligent Speed Limit Assist
operates using the speed unit in the
instrument cluster set by the driver.
If the speed unit is set to a unit other
than the speed unit used in your
country, Intelligent Speed Limit
Assist may not operate properly.
Information
For more details on function operation
of Smart Cruise Control, refer to “Smart
Cruise Control (SCC)” section in chapter
7.

07
7-69

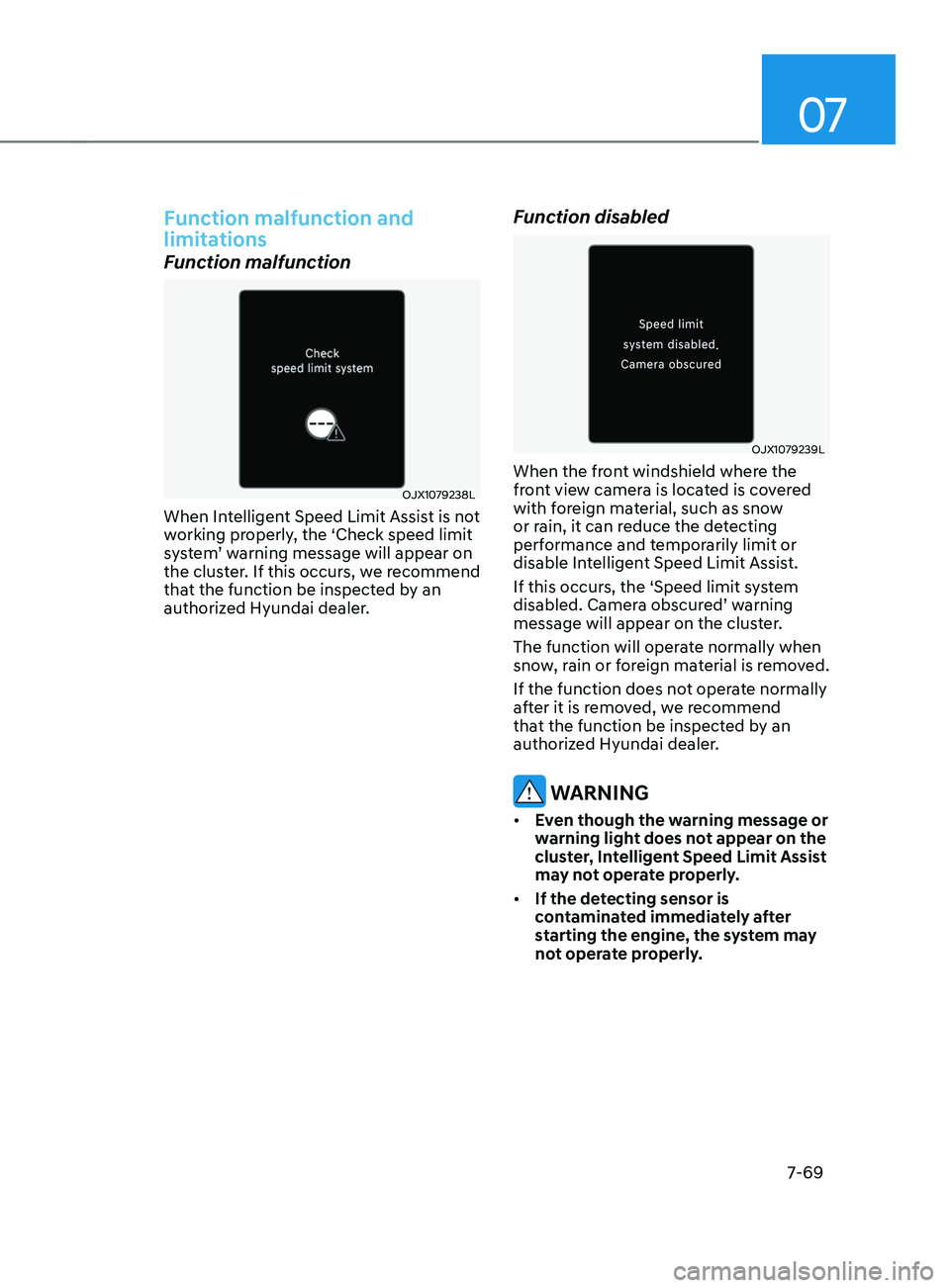

Function malfunction and
limitations
Function malfunction
OJX1079238L
When Intelligent Speed Limit Assist is not
working properly, the ‘Check speed limit
system’
w
arning
message will appear on the clust

er. If this occurs, we recommend
that the function be inspected by an
authorized Hyundai dealer.
Function disabled
OJX1079239L
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow
or rain, it can reduce the detecting
performance and temporarily limit or
disable Intelligent Speed Limit Assist.
If this occurs, the ‘Speed limit system
disabled.
Camer

a
obscur
ed’
w
arning
message will appear on the clust

er.
The function will operate normally when
snow, rain or foreign material is removed.
If the function does not operate normally
after it is removed, we recommend
that the function be inspected by an
authorized Hyundai dealer.
WARNING
• Even though the warning message or
warning light does not appear on the
cluster, Intelligent Speed Limit Assist
may not operate properly.
• If the detecting sensor is
contaminated immediately after
starting the engine, the system may
not operate properly.

Driver assistance system
7-7 0

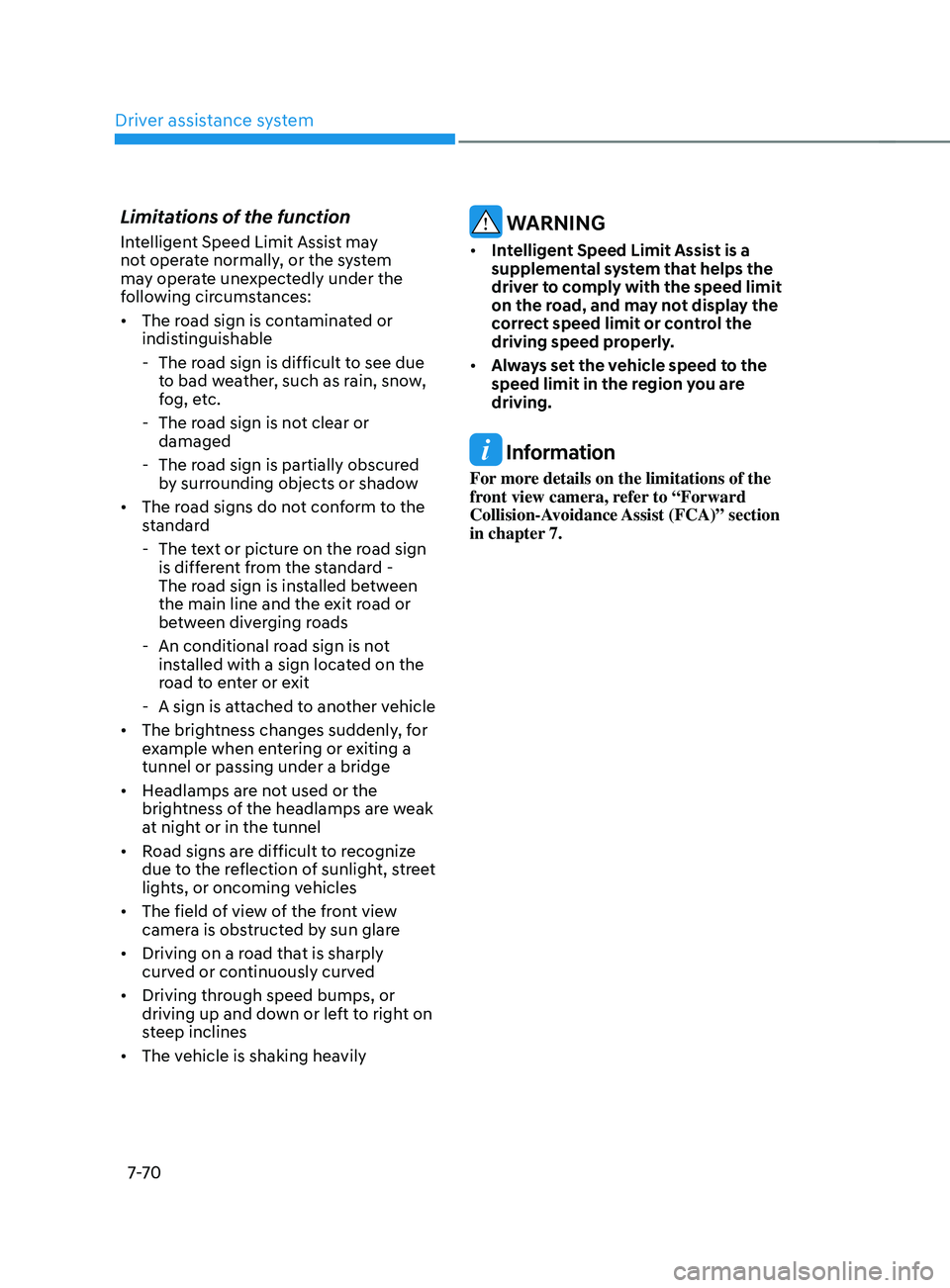

Limitations of the function
Intelligent Speed Limit Assist may
not operate normally, or the system
may operate unexpectedly under the
following circumstances:
• The road sign is contaminated or
indistinguishable
- The road sign is difficult t

o see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is no

t clear or
damaged
- The road sign is partially obscur

ed
by surrounding objects or shadow
• The road signs do not conform to the
standard
- The te

xt or picture on the road sign
is different from the standard -
The road sign is installed between
the main line and the exit road or
between diverging roads
- An conditional road sign is no

t
installed with a sign located on the
road to enter or exit
- A sign is attached t

o another vehicle
• The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge
• Headlamps are not used or the
brightness of the headlamps are weak
at night or in the tunnel
• Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles
• The field of view of the front view
camera is obstructed by sun glare
• Driving on a road that is sharply
curved or continuously curved
• Driving through speed bumps, or
driving up and down or left to right on
steep inclines
• The vehicle is shaking heavily WARNING
• Intelligent Speed Limit Assist is a
supplemental system that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.
• Always set the vehicle speed to the
speed limit in the region you are
driving.
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.

07
7-7 1

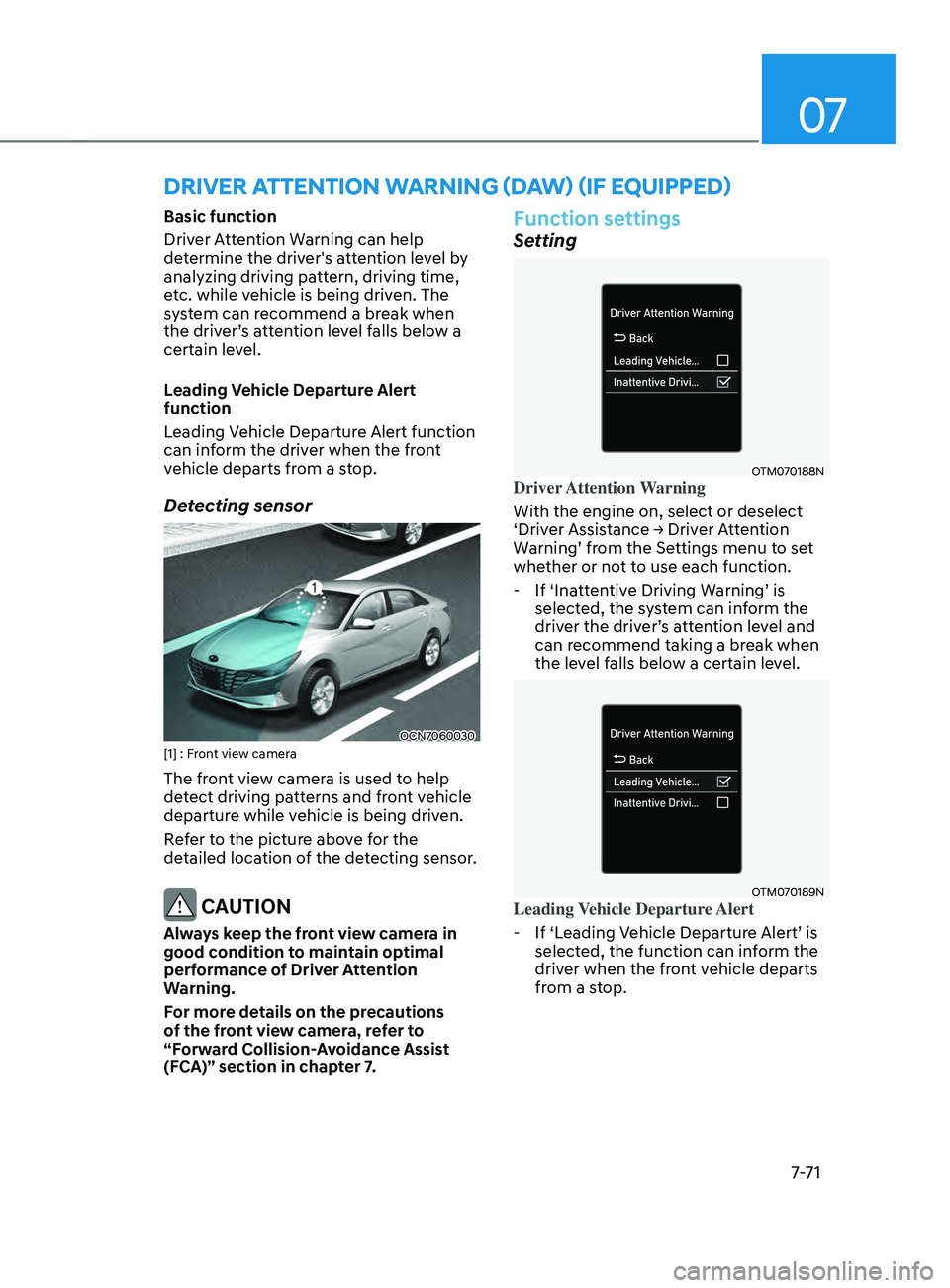

Basic function
Driver Attention Warning can help
determine the driver's attention level by
analyzing driving pattern, driving time,
etc. while vehicle is being driven. The
system can recommend a break when
the
driv
er’s
a
ttention
le
vel
f
alls
belo
w
a certain lev

el.
Leading Vehicle Departure Alert
function
Leading Vehicle Departure Alert function
can inform the driver when the front
vehicle departs from a stop.
Detecting sensor
OCN7060030[1] : Front view camera
The front view camera is used to help
detect driving patterns and front vehicle
departure while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Function settings
Setting
OTM070188NDriver Attention Warning
With the engine on, select or deselect
‘Driver
Assis

tance
→ Driv
er
A
ttention
Warning’ fr

om
the Se
ttings
menu t
o
se
t
whether or no

t to use each function.
-If ‘Ina

ttentive
Driving W
arning’
is selected, the s

ystem can inform the
driver
the driv

er’s
a
ttention
le
vel
and can recommend taking a br

eak when
the level falls below a certain level.
OTM070189NLeading Vehicle Departure Alert
- If ‘L

eading
V
ehicle
Departur
e
Alert’ is selected, the function can in

form the
driver when the front vehicle departs
from a stop.
driver attention warning (d aw) (iF e quipped)

Driver assistance system
7-7 2

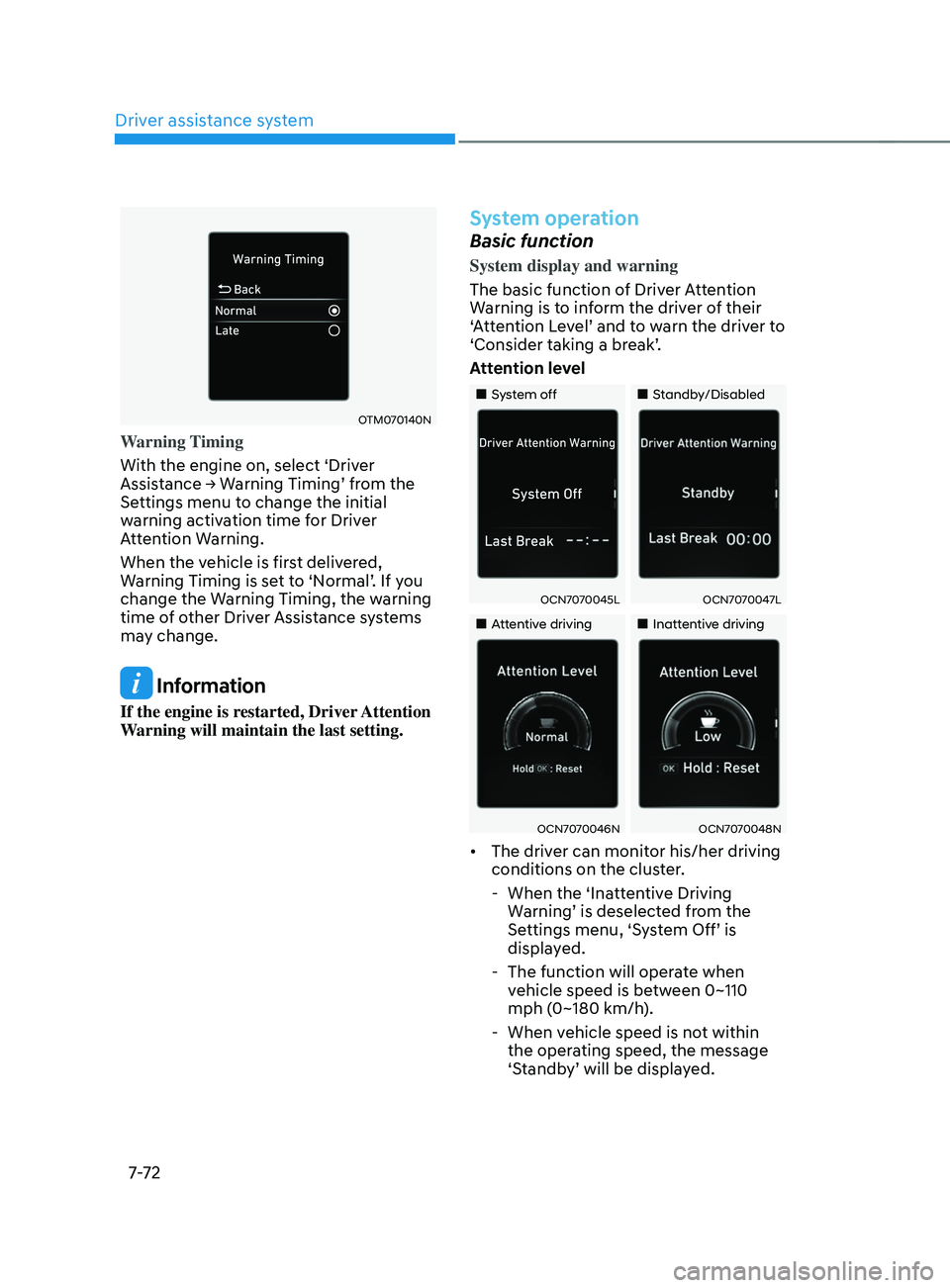

OTM070140N
Warning Timing
With the engine on, select ‘Driver
Assistance
→ W
arning
Timing’ fr
om
the Settings menu t

o change the initial
warning activation time for Driver
Attention Warning.
When the vehicle is first delivered,
Warning
Timing is se

t
t
o
‘N
ormal’.
If y
ou
change the Warning Timing, the w

arning
time of other Driver Assistance systems
may change.
Information
If the engine is restarted, Driver Attention
Warning will maintain the last setting.
System operation
Basic function
System display and warning
The basic function of Driver Attention
Warning is to inform the driver of their
‘Attention
L

evel’
and t
o
w
arn
the driv
er
t
o
‘Consider taking a br

eak’.
Attention level
„„System off „„Standby/Disabled
OCN7070045LOCN7070047L
„„Attentive driving„„Inattentive driving
OCN7070046NOCN7070048N
• The driver can monitor his/her driving
conditions on the cluster.
- When the ‘Inatt

entive Driving
Warning’
is deselect

ed
fr
om
the Settings menu, ‘S

ystem
Off’ is display

ed.
- The function will opera

te when
vehicle speed is between 0~110
mph (0~180 km/h).
- When vehicle speed is no

t within
the operating speed, the message
‘Standby’
will be displa

yed.

07
7-7 3

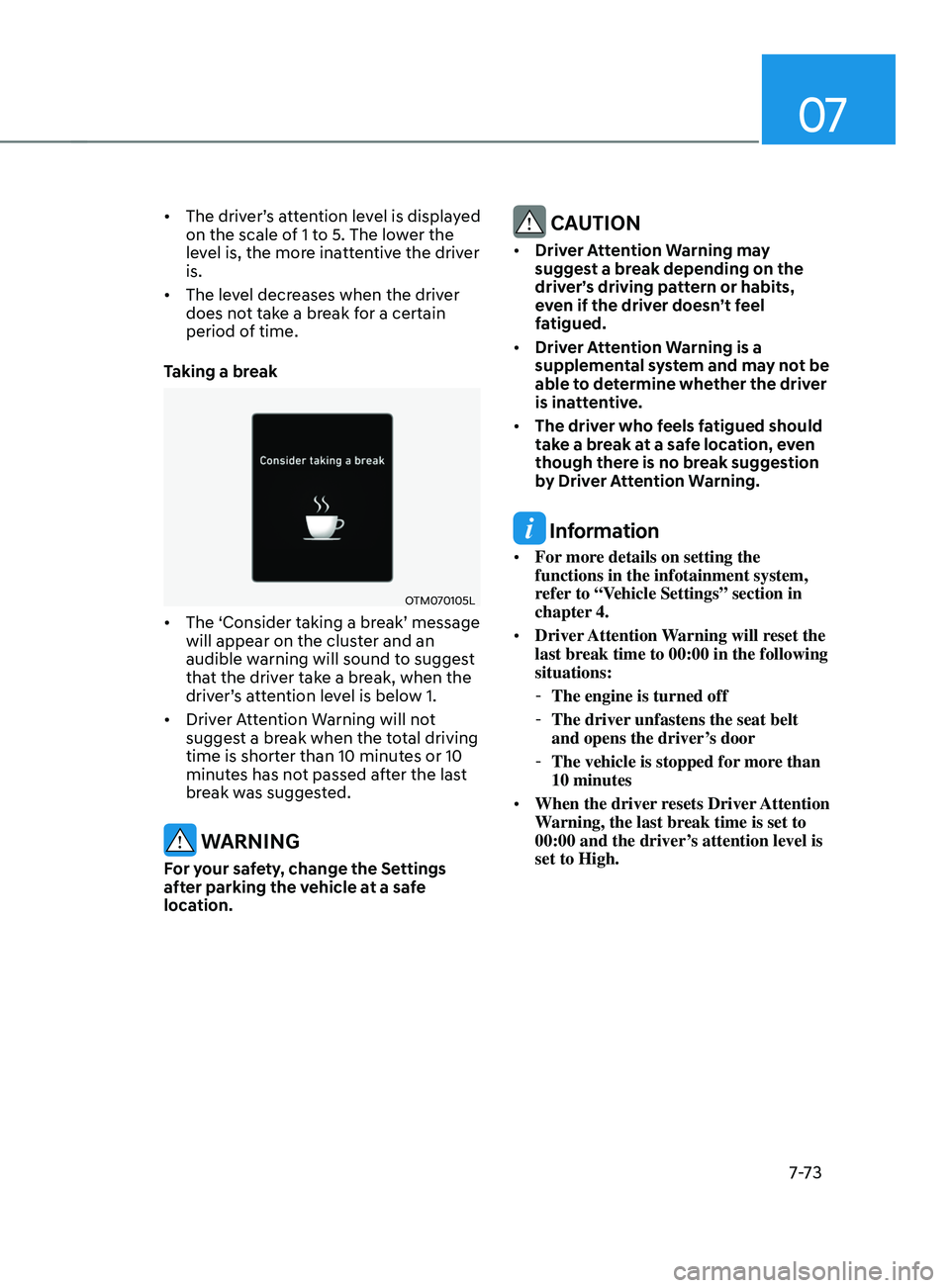

• The driver’s attention lev el is display ed on the scale of 1 t
o 5. The lower the
level is, the more inattentive the driver
is.
• The level decreases when the driver
does not take a break for a certain
period of time.
Taking a break
OTM070105L
• The ‘Consider taking a br eak’ message will appear on the clust
er and an
audible warning will sound to suggest
that the driver take a break, when the
driver’s
a

ttention
le
vel
is belo
w
1.
• Driver A

ttention Warning will not
suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
CAUTION
• Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel
fatigued.
• Driver Attention Warning is a
supplemental system and may not be
able to determine whether the driver
is inattentive.
• The driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information
• For more details on setting the
functions in the infotainment system,
refer to “Vehicle Settings” section in
chapter 4.
• Driver Attention Warning will reset the
last break time to 00:00 in the following
situations:
-The engine is turned off
-The driver unfastens the seat belt
and opens the driver

’s door
-The vehicle is stopped for mor

e than
10 minutes
• When the driver resets Driver Attention
Warning, the last break time is set to
00:00 and the driver’s attention level is
set to High.

Driver assistance system
7-74

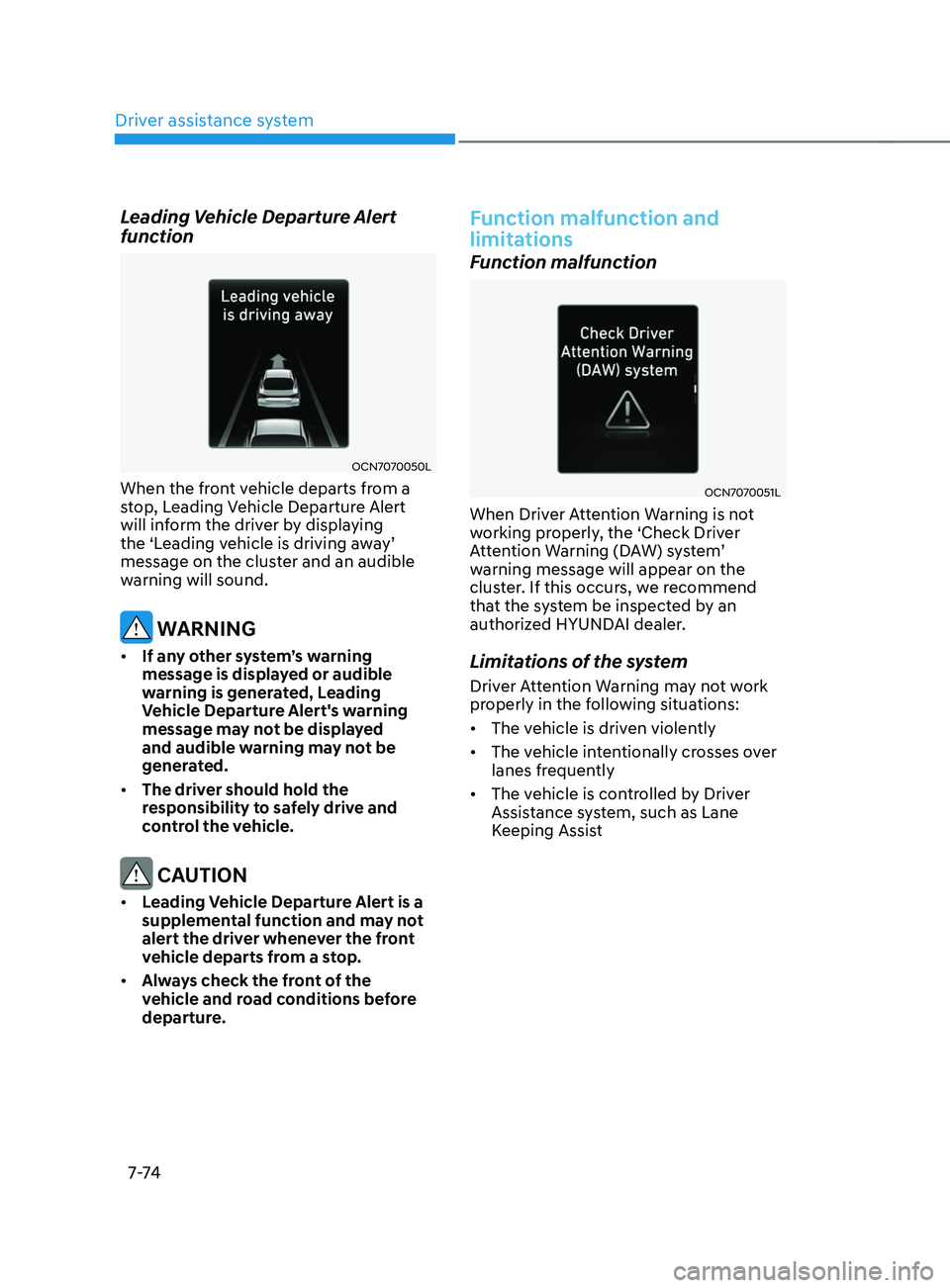

Leading Vehicle Departure Alert
function
OCN7070050L
When the front vehicle departs from a
stop, Leading Vehicle Departure Alert
will inform the driver by displaying
the
‘L
eading
v
ehicle
is driving a
way’
message on the clust

er and an audible
warning will sound.
WARNING
• If any other system’s warning
message is displayed or audible
warning is generated, Leading
Vehicle Departure Alert's warning
message may not be displayed
and audible warning may not be
generated.
• The driver should hold the
responsibility to safely drive and
control the vehicle.
CAUTION
• Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.
• Always check the front of the
vehicle and road conditions before
departure.
Function malfunction and
limitations
Function malfunction
OCN7070051L
When Driver Attention Warning is not
working properly, the ‘Check Driver
Attention
W

arning
(D
AW)
s
ystem’
warning message will appear on the
clus

ter. If this occurs, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
Limitations of the system
Driver Attention Warning may not work
properly in the following situations:
• The vehicle is driven violently
• The vehicle intentionally crosses over
lanes frequently
• The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist

07
7-7 5

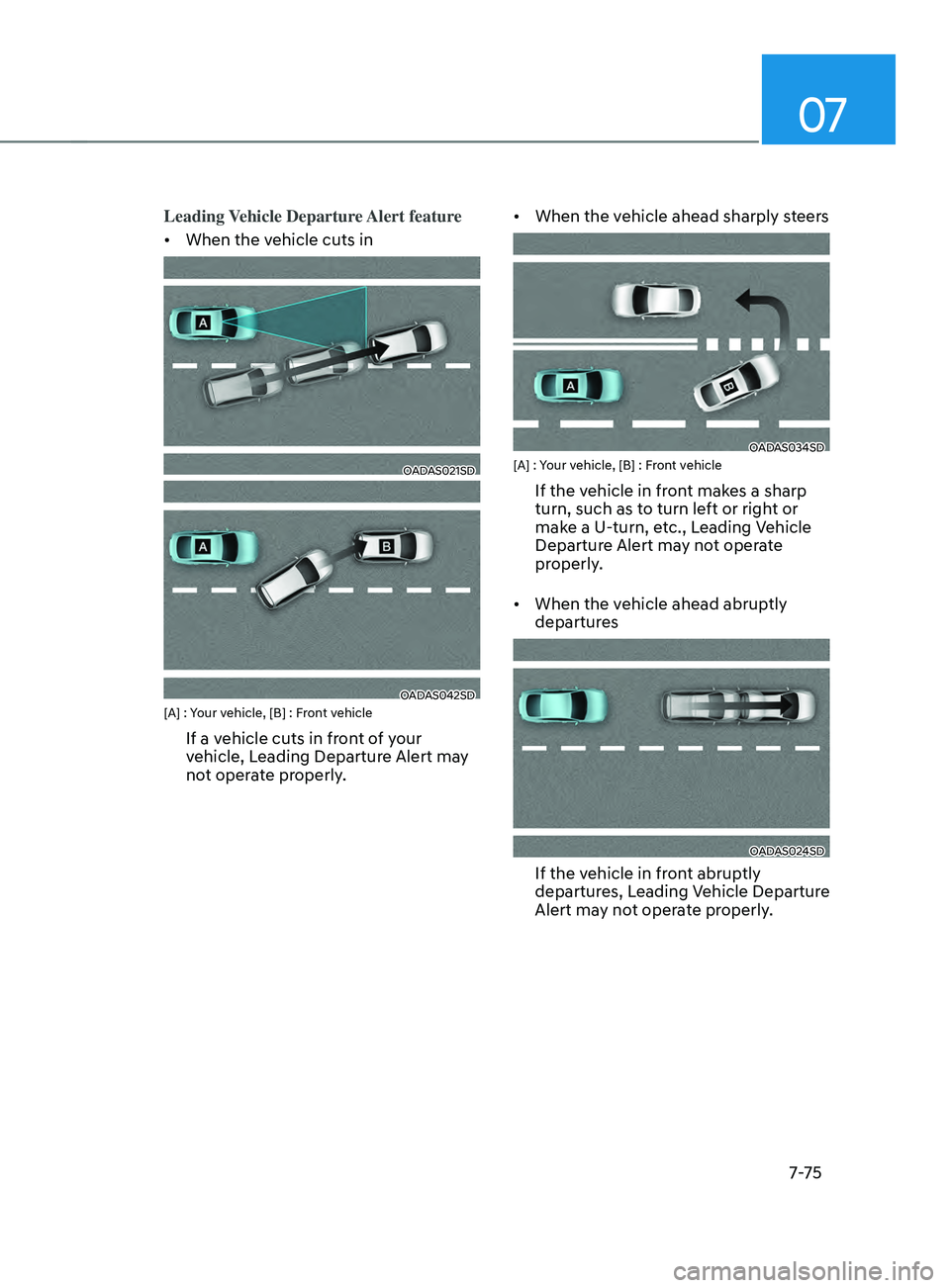

Leading Vehicle Departure Alert feature
• When the vehicle cuts in
OADAS021SD
OADAS042SD[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly. •
When the vehicle ahead sharply steers
OADAS034SD[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
properly.
• When the vehicle ahead abruptly
departures
OADAS024SD
If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.

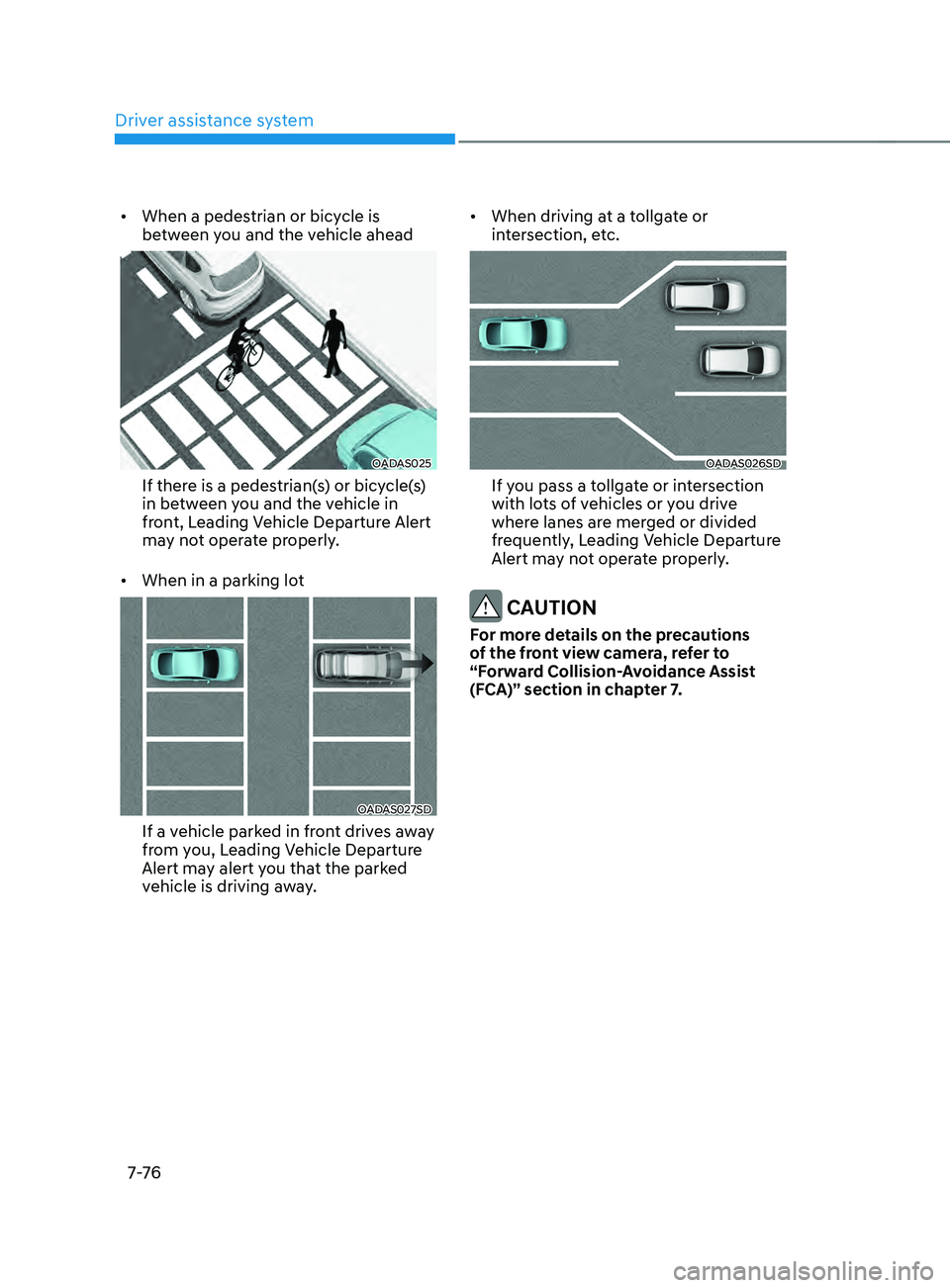

Driver assistance system
7-76
• When a pedestrian or bicycle is
between you and the vehicle ahead
OADAS025
If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.
• When in a parking lot
OADAS027SD
If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away. •
When driving at a tollgate or
intersection, etc.
OADAS026SD
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.

07
7-7 7

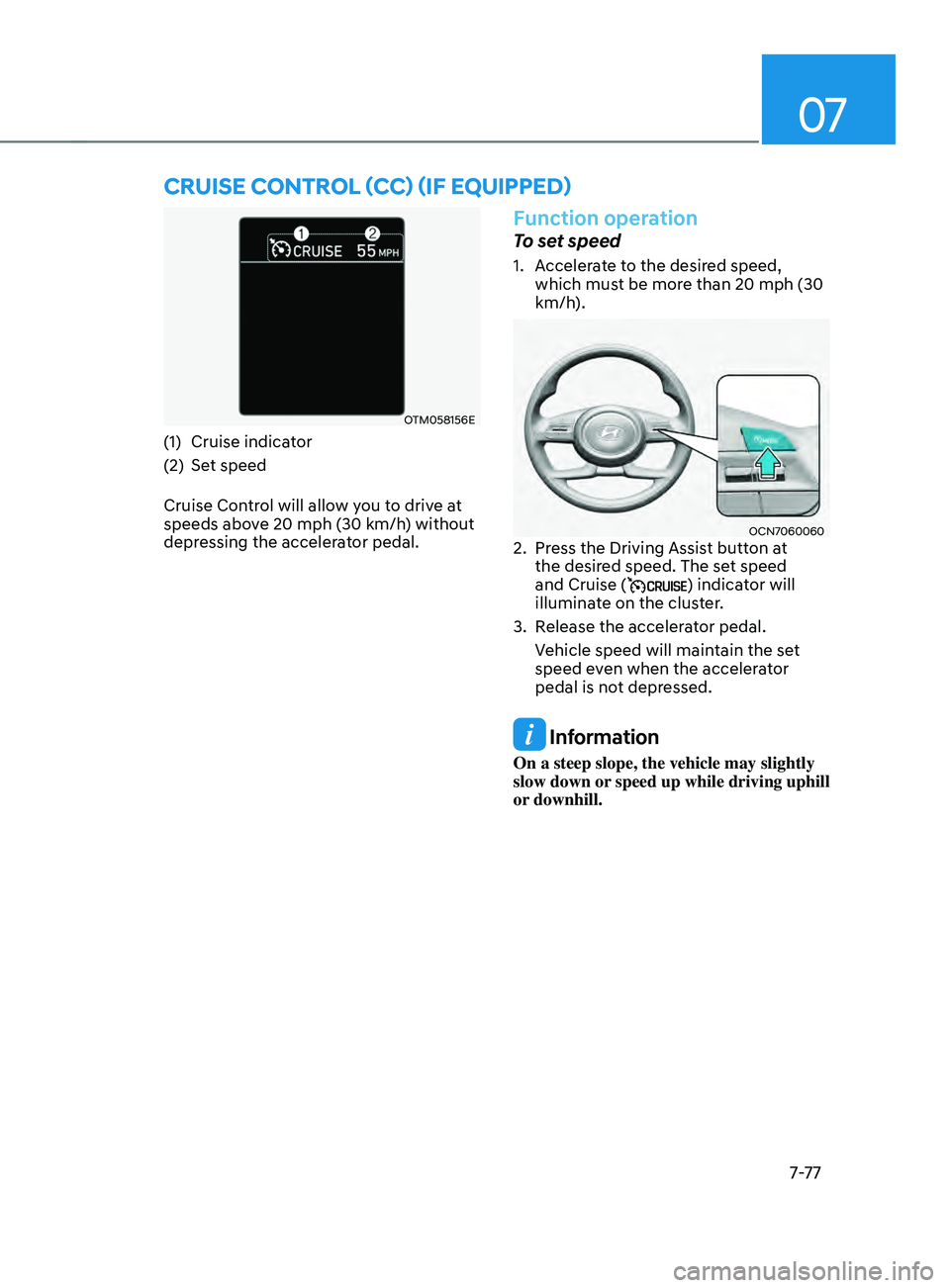

OTM058156E
(1) Cruise indicator
(2)
Set speed
Cruise Con

trol will allow you to drive at
speeds above 20 mph (30 km/h) without
depressing the accelerator pedal.
Function operation
To set speed
1. Accelerate to the desired speed,
which mus t be more than 20 mph (30
km/h).
OCN70600602. Press the Driving Assist button at
the desir ed speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3.
Release the acceler

ator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving uphill
or downhill.
Cruise Control (CC) (iF equipped)
