Features of your vehicle

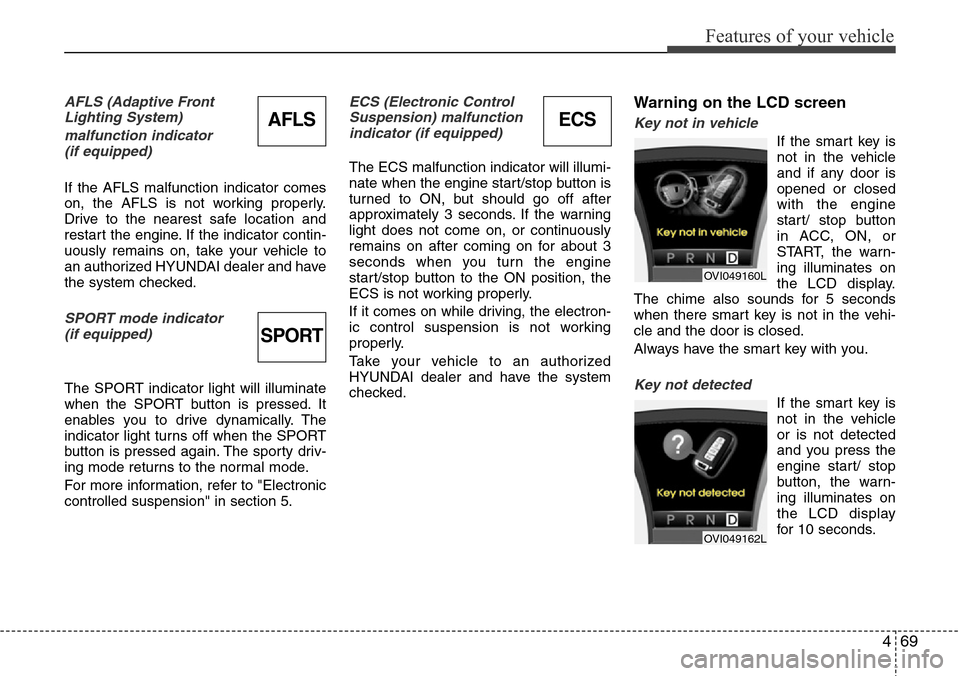

AFLS (Adaptive Front
Lighting System)
malfunction indicator
(if equipped)
If the AFLS malfunction indicator comes
on, the AFLS is not working properly.
Drive to the nearest safe location and
restart the engine. If the indicator contin-
uously remains on, take your vehicle to
an authorized HYUNDAI dealer and have
the system checked.
SPORT mode indicator
(if equipped)
The SPORT indicator light will illuminate
when the SPORT button is pressed. It
enables you to drive dynamically. The
indicator light turns off when the SPORT
button is pressed again. The sporty driv-
ing mode returns to the normal mode.
For more information, refer to "Electronic
controlled suspension" in section 5.
ECS (Electronic Control
Suspension) malfunction
indicator (if equipped)
The ECS malfunction indicator will illumi-
nate when the engine start/stop button is
turned to ON, but should go off after
approximately 3 seconds. If the warning
light does not come on, or continuously
remains on after coming on for about 3
seconds when you turn the engine
start/stop button to the ON position, the
ECS is not working properly.
If it comes on while driving, the electron-
ic control suspension is not working
properly.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked.
Warning on the LCD screen
Key not in vehicle
If the smart key is
not in the vehicle
and if any door is
opened or closed
with the engine
start/ stop button
in ACC, ON, or
START, the warn-
ing illuminates on
the LCD display.
The chime also sounds for 5 seconds
when there smart key is not in the vehi-
cle and the door is closed.
Always have the smart key with you.
Key not detected
If the smart key is
not in the vehicle
or is not detected
and you press the
engine start/ stop
button, the warn-
ing illuminates on
the LCD display
for 10 seconds.
OVI049160L
OVI049162L
ECSAFLS
SPORT

Features of your vehicle
70 4

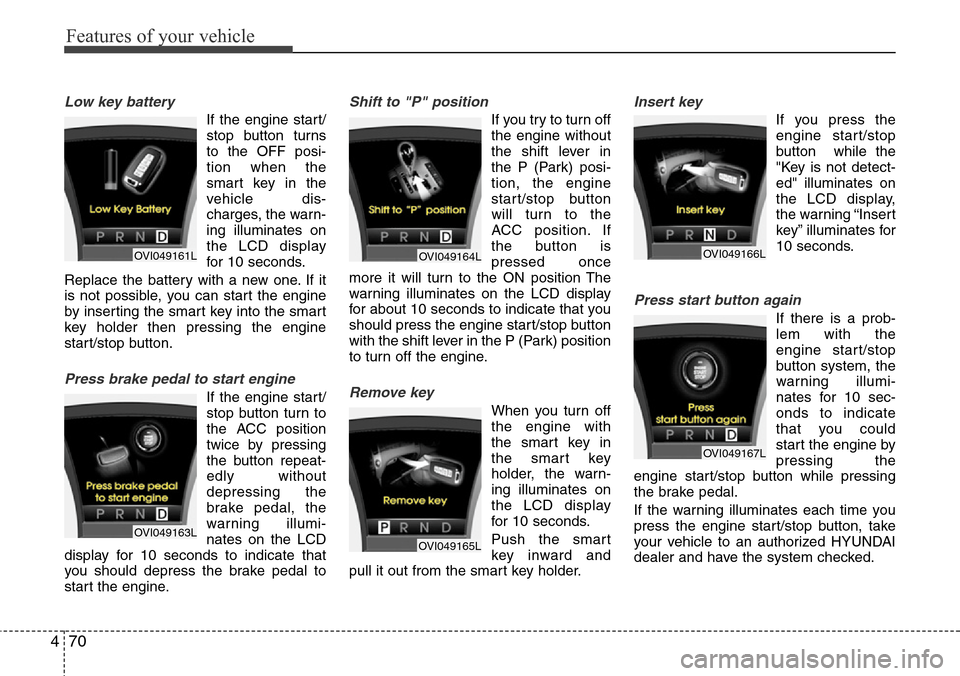

Low key battery
If the engine start/
stop button turns
to the OFF posi-
tion when the
smart key in the
vehicle dis-
charges, the warn-
ing illuminates on
the LCD display
for 10 seconds.
Replace the battery with a new one. If it
is not possible, you can start the engine
by inserting the smart key into the smart
key holder then pressing the engine
start/stop button.
Press brake pedal to start engine
If the engine start/
stop button turn to
the ACC position
twice by pressing
the button repeat-
edly without
depressing the
brake pedal, the
warning illumi-
nates on the LCD
display for 10 seconds to indicate that
you should depress the brake pedal to
start the engine.
Shift to "P" position
If you try to turn off
the engine without
the shift lever in
the P (Park) posi-
tion, the engine
start/stop button
will turn to the
ACC position. If
the button is
pressed once
more it will turn to the ON position The
warning illuminates on the LCD display
for about 10 seconds to indicate that you
should press the engine start/stop button
with the shift lever in the P (Park) position
to turn off the engine.
Remove key
When you turn off
the engine with
the smart key in
the smart key
holder, the warn-
ing illuminates on
the LCD display
for 10 seconds.
Push the smart
key inward and
pull it out from the smart key holder.
Insert key
If you press the
engine start/stop
button while the
"Key is not detect-
ed" illuminates on
the LCD display,
the warning “Insert
key” illuminates for
10 seconds.
Press start button again
If there is a prob-
lem with the
engine start/stop
button system, the
warning illumi-
nates for 10 sec-
onds to indicate
that you could
start the engine by
pressing the
engine start/stop button while pressing
the brake pedal.
If the warning illuminates each time you
press the engine start/stop button, take
your vehicle to an authorized HYUNDAI
dealer and have the system checked.
OVI049161L
OVI049163L
OVI049164L
OVI049165L
OVI049166L
OVI049167L

471
Features of your vehicle

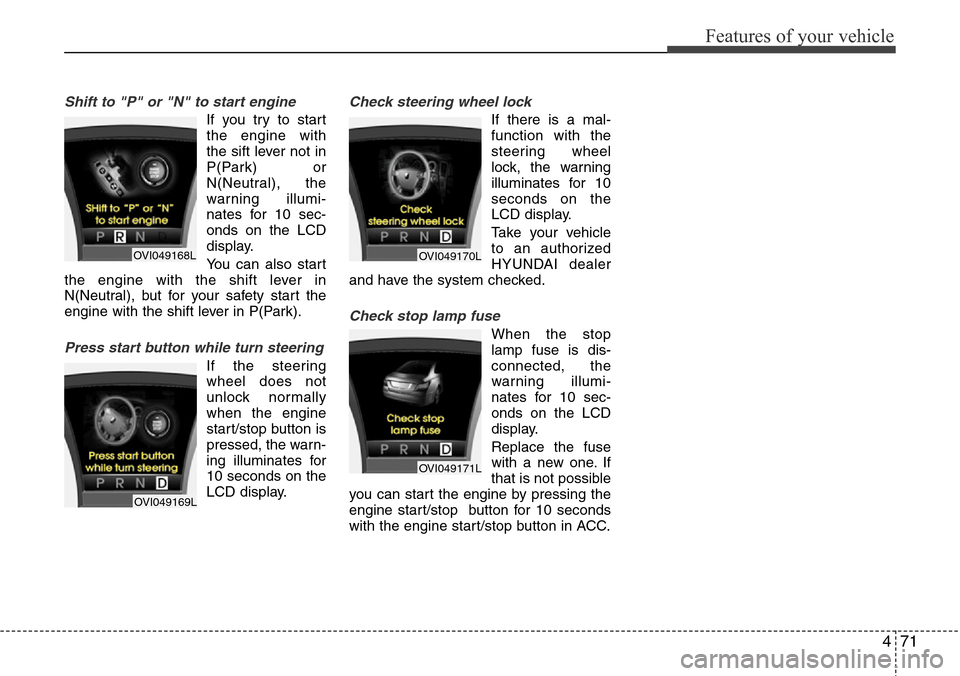

Shift to "P" or "N" to start engine
If you try to start
the engine with
the sift lever not in
P(Park) or
N(Neutral), the
warning illumi-
nates for 10 sec-
onds on the LCD
display.
You can also start
the engine with the shift lever in
N(Neutral), but for your safety start the
engine with the shift lever in P(Park).
Press start button while turn steering
If the steering
wheel does not
unlock normally
when the engine
start/stop button is
pressed, the warn-
ing illuminates for
10 seconds on the
LCD display.
Check steering wheel lock
If there is a mal-
function with the
steering wheel
lock, the warning
illuminates for 10
seconds on the
LCD display.
Take your vehicle
to an authorized
HYUNDAI dealer
and have the system checked.
Check stop lamp fuse
When the stop
lamp fuse is dis-
connected, the
warning illumi-
nates for 10 sec-
onds on the LCD
display.
Replace the fuse
with a new one. If
that is not possible
you can start the engine by pressing the
engine start/stop button for 10 seconds
with the engine start/stop button in ACC.
OVI049168L
OVI049169L
OVI049170L
OVI049171L

Features of your vehicle
72 4

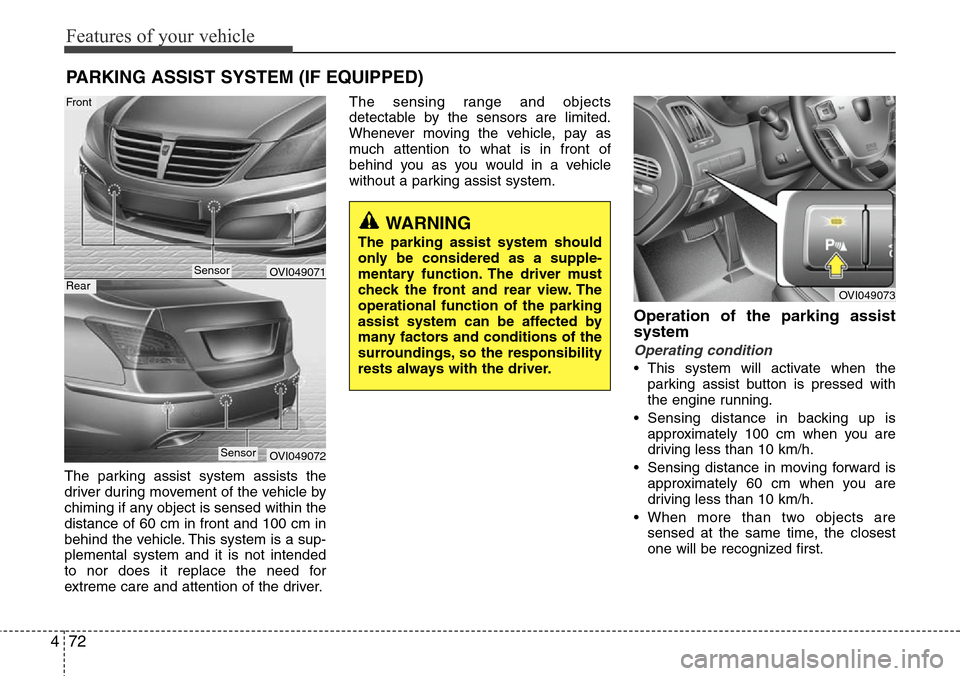

The parking assist system assists the
driver during movement of the vehicle by
chiming if any object is sensed within the
distance of 60 cm in front and 100 cm in
behind the vehicle. This system is a sup-
plemental system and it is not intended
to nor does it replace the need for
extreme care and attention of the driver.The sensing range and objects
detectable by the sensors are limited.
Whenever moving the vehicle, pay as
much attention to what is in front of
behind you as you would in a vehicle
without a parking assist system.
Operation of the parking assist
system
Operating condition
• This system will activate when the
parking assist button is pressed with
the engine running.
• Sensing distance in backing up is
approximately 100 cm when you are
driving less than 10 km/h.
• Sensing distance in moving forward is
approximately 60 cm when you are
driving less than 10 km/h.
• When more than two objects are
sensed at the same time, the closest
one will be recognized first.
PARKING ASSIST SYSTEM (IF EQUIPPED)
OVI049071
OVI049072
WARNING
The parking assist system should
only be considered as a supple-
mentary function. The driver must
check the front and rear view. The
operational function of the parking
assist system can be affected by
many factors and conditions of the
surroundings, so the responsibility
rests always with the driver.
OVI049073
Sensor
Front
Rear
Sensor

473
Features of your vehicle

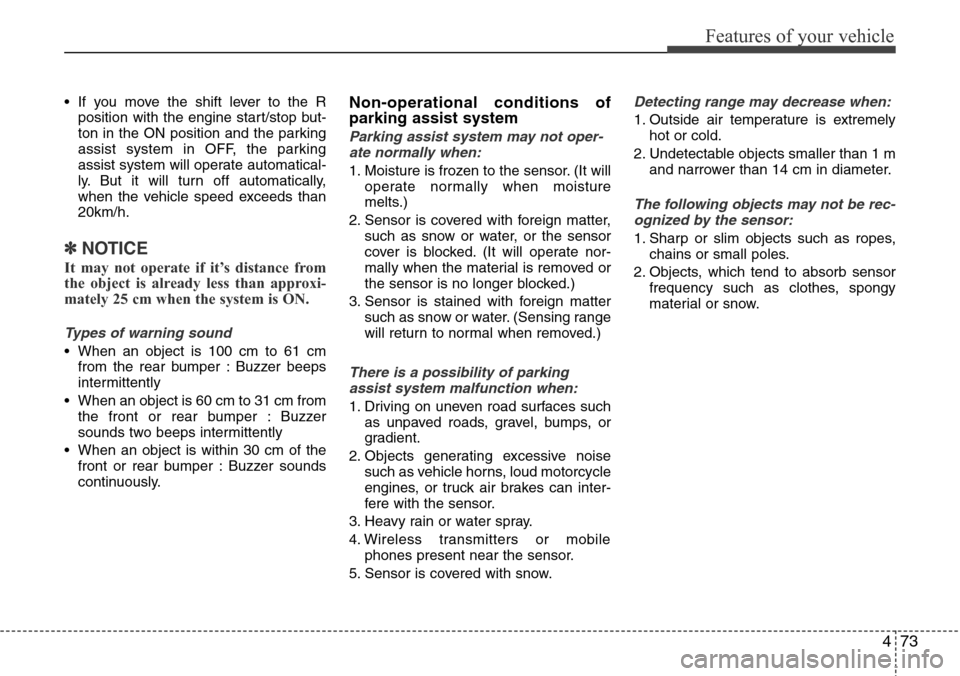

• If you move the shift lever to the R
position with the engine start/stop but-
ton in the ON position and the parking
assist system in OFF, the parking
assist system will operate automatical-
ly. But it will turn off automatically,
when the vehicle speed exceeds than
20km/h.
✽NOTICE
It may not operate if it’s distance from
the object is already less than approxi-
mately 25 cm when the system is ON.
Types of warning sound
• When an object is 100 cm to 61 cm
from the rear bumper : Buzzer beeps
intermittently
• When an object is 60 cm to 31 cm from
the front or rear bumper : Buzzer
sounds two beeps intermittently
• When an object is within 30 cm of the
front or rear bumper : Buzzer sounds
continuously.
Non-operational conditions of
parking assist system
Parking assist system may not oper-
ate normally when:
1. Moisture is frozen to the sensor. (It will
operate normally when moisture
melts.)
2. Sensor is covered with foreign matter,
such as snow or water, or the sensor
cover is blocked. (It will operate nor-
mally when the material is removed or
the sensor is no longer blocked.)
3. Sensor is stained with foreign matter
such as snow or water. (Sensing range
will return to normal when removed.)
There is a possibility of parking
assist system malfunction when:
1. Driving on uneven road surfaces such
as unpaved roads, gravel, bumps, or
gradient.
2. Objects generating excessive noise
such as vehicle horns, loud motorcycle
engines, or truck air brakes can inter-
fere with the sensor.
3. Heavy rain or water spray.
4. Wireless transmitters or mobile
phones present near the sensor.
5. Sensor is covered with snow.
Detecting range may decrease when:
1. Outside air temperature is extremely
hot or cold.
2. Undetectable objects smaller than 1 m
and narrower than 14 cm in diameter.
The following objects may not be rec-
ognized by the sensor:
1. Sharp or slim objects such as ropes,
chains or small poles.
2. Objects, which tend to absorb sensor
frequency such as clothes, spongy
material or snow.

Features of your vehicle
74 4

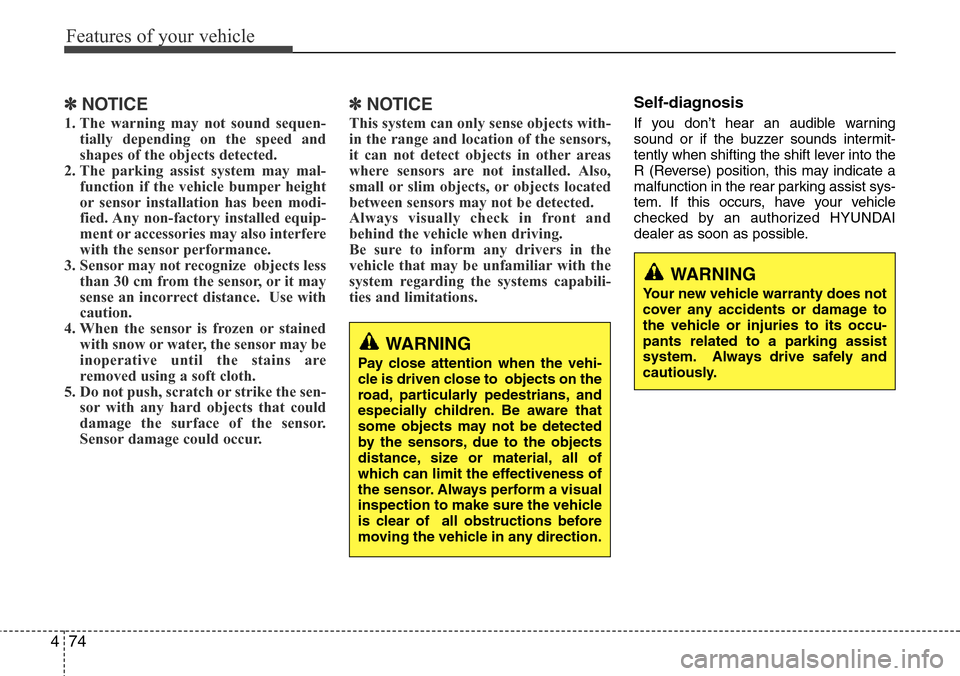

✽NOTICE
1. The warning may not sound sequen-
tially depending on the speed and
shapes of the objects detected.
2. The parking assist system may mal-
function if the vehicle bumper height
or sensor installation has been modi-
fied. Any non-factory installed equip-
ment or accessories may also interfere
with the sensor performance.
3. Sensor may not recognize objects less
than 30 cm from the sensor, or it may
sense an incorrect distance. Use with
caution.
4. When the sensor is frozen or stained
with snow or water, the sensor may be
inoperative until the stains are
removed using a soft cloth.
5. Do not push, scratch or strike the sen-
sor with any hard objects that could
damage the surface of the sensor.
Sensor damage could occur.
✽NOTICE
This system can only sense objects with-
in the range and location of the sensors,
it can not detect objects in other areas
where sensors are not installed. Also,
small or slim objects, or objects located
between sensors may not be detected.
Always visually check in front and
behind the vehicle when driving.
Be sure to inform any drivers in the
vehicle that may be unfamiliar with the
system regarding the systems capabili-
ties and limitations.
Self-diagnosis
If you don’t hear an audible warning
sound or if the buzzer sounds intermit-
tently when shifting the shift lever into the
R (Reverse) position, this may indicate a
malfunction in the rear parking assist sys-
tem. If this occurs, have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visual
inspection to make sure the vehicle
is clear of all obstructions before
moving the vehicle in any direction.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants related to a parking assist
system. Always drive safely and
cautiously.

475
Features of your vehicle

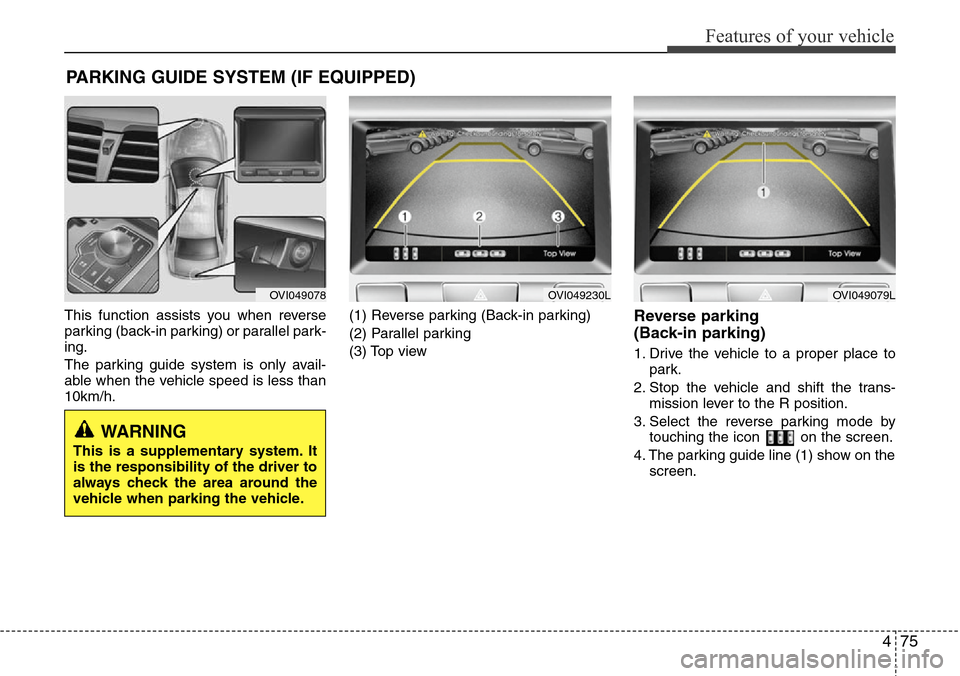

This function assists you when reverse
parking (back-in parking) or parallel park-
ing.
The parking guide system is only avail-
able when the vehicle speed is less than
10km/h.(1) Reverse parking (Back-in parking)
(2) Parallel parking
(3) Top viewReverse parking
(Back-in parking)
1. Drive the vehicle to a proper place to
park.
2. Stop the vehicle and shift the trans-
mission lever to the R position.
3. Select the reverse parking mode by
touching the icon on the screen.
4. The parking guide line (1) show on the
screen.
PARKING GUIDE SYSTEM (IF EQUIPPED)
WARNING
This is a supplementary system. It
is the responsibility of the driver to
always check the area around the
vehicle when parking the vehicle.
OVI049078OVI049230LOVI049079L

Features of your vehicle
76 4

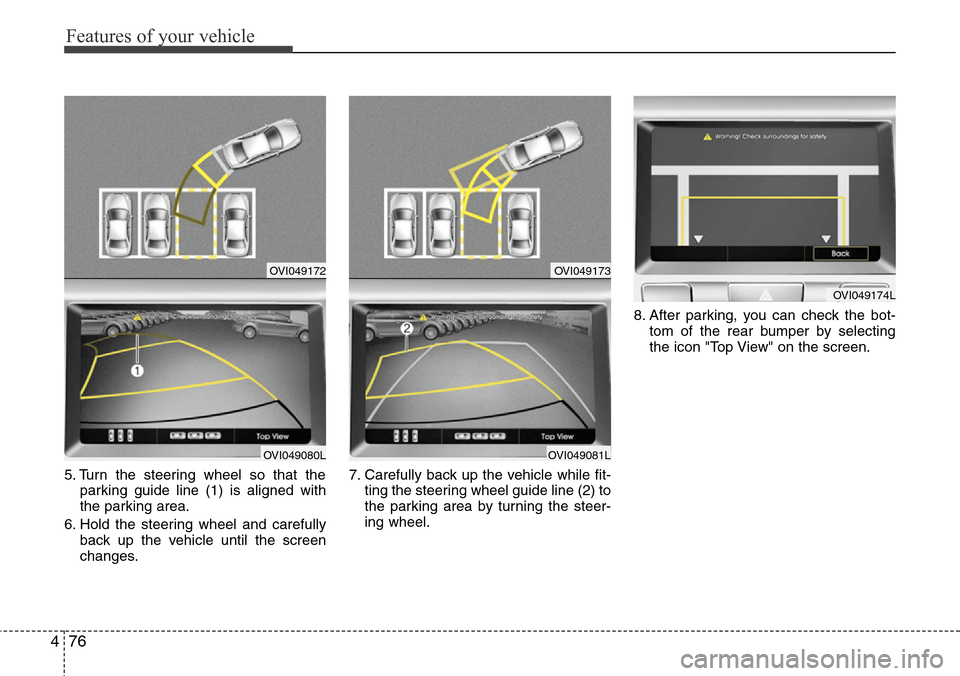

5. Turn the steering wheel so that the
parking guide line (1) is aligned with
the parking area.
6. Hold the steering wheel and carefully
back up the vehicle until the screen
changes.7. Carefully back up the vehicle while fit-
ting the steering wheel guide line (2) to
the parking area by turning the steer-
ing wheel.8. After parking, you can check the bot-
tom of the rear bumper by selecting
the icon "Top View" on the screen.
OVI049172
OVI049080L
OVI049173
OVI049081L
OVI049174L

477
Features of your vehicle
Parallel parking
1. Stop the vehicle at a distance of
approximately 1 meter (3 feet) parallel
to the parked vehicle (1) that is in front
of the desired parking space. Make
sure that the front of the parked vehi-
cle (1) is parallel to your rear wheel.
2. Stop the vehicle and shift the trans-
mission lever to the R position.
3. Select the parallel parking mode by
touching the icon on the

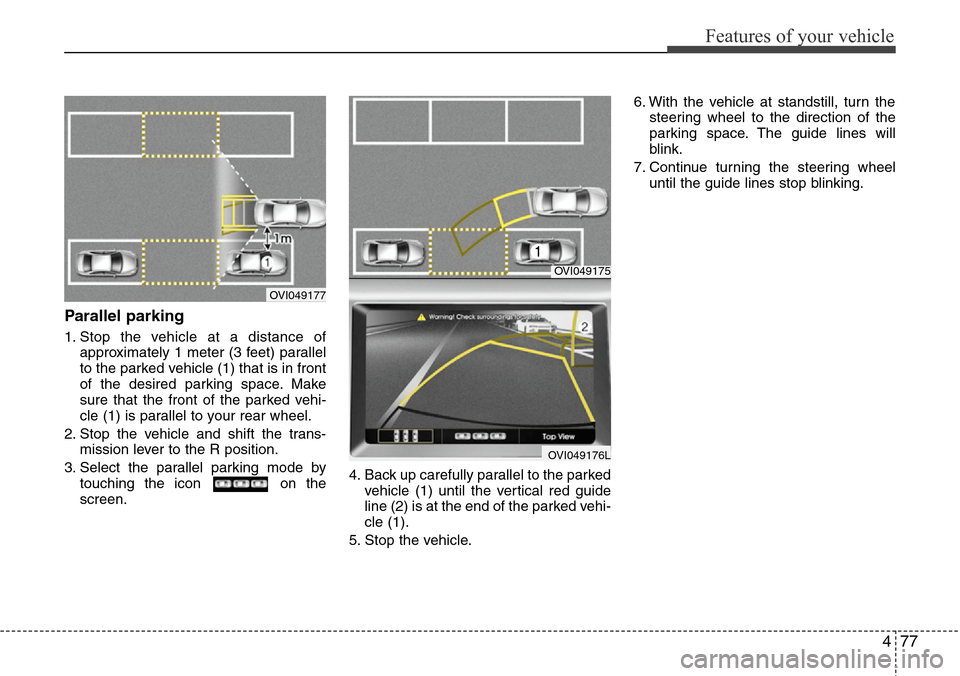

screen.4. Back up carefully parallel to the parked
vehicle (1) until the vertical red guide
line (2) is at the end of the parked vehi-
cle (1).
5. Stop the vehicle.6. With the vehicle at standstill, turn the
steering wheel to the direction of the
parking space. The guide lines will
blink.
7. Continue turning the steering wheel
until the guide lines stop blinking.
OVI049175
OVI049176L
OVI049177

Features of your vehicle
78 4

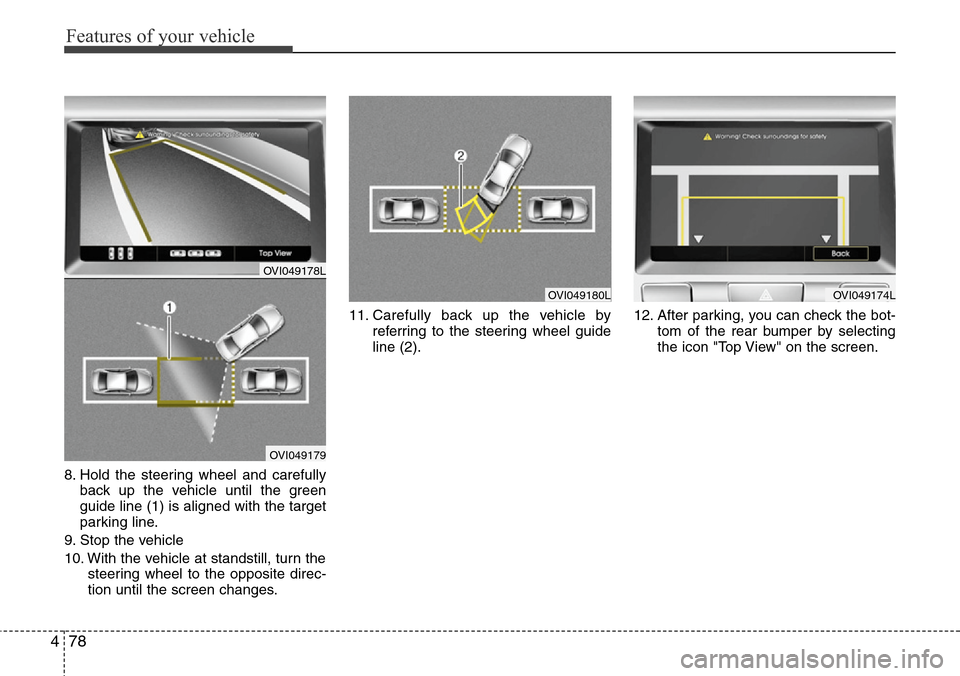

8. Hold the steering wheel and carefully
back up the vehicle until the green
guide line (1) is aligned with the target
parking line.
9. Stop the vehicle
10. With the vehicle at standstill, turn the
steering wheel to the opposite direc-
tion until the screen changes.11. Carefully back up the vehicle by
referring to the steering wheel guide
line (2).12. After parking, you can check the bot-
tom of the rear bumper by selecting
the icon "Top View" on the screen.
OVI049180LOVI049174L
OVI049178L
OVI049179
