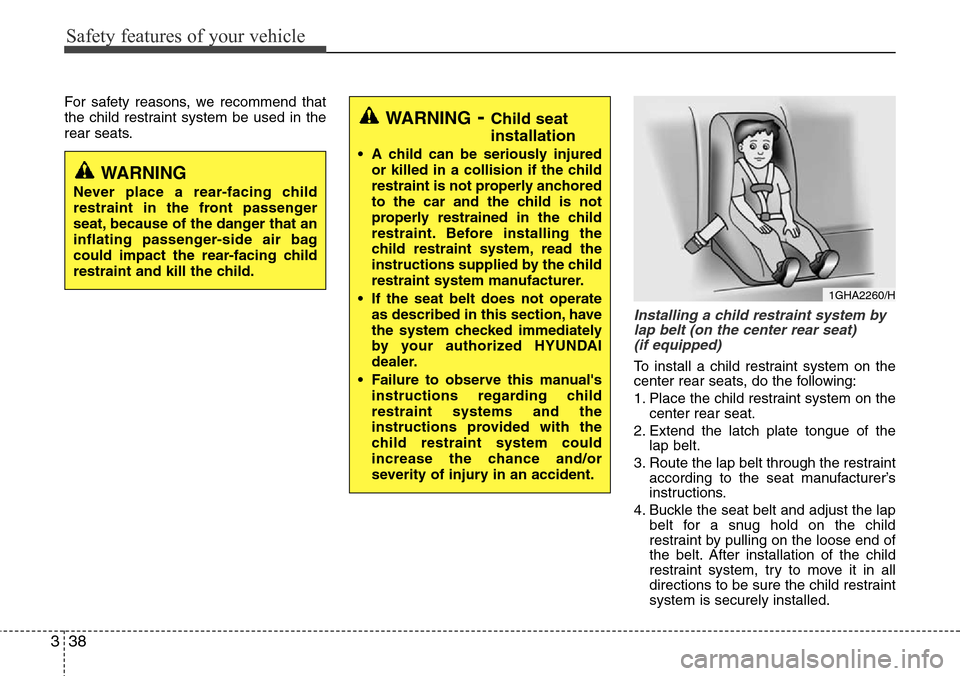

Safety features of your vehicle
38 3
For safety reasons, we recommend that
the child restraint system be used in the
rear seats.
Installing a child restraint system by
lap belt (on the center rear seat)
(if equipped)
To install a child restraint system on the
center rear seats, do the following:
1. Place the child restraint system on the
center rear seat.
2. Extend the latch plate tongue of the
lap belt.
3. Route the lap belt through the restraint
according to the seat manufacturer’s
instructions.
4. Buckle the seat belt and adjust the lap
belt for a snug hold on the child
restraint by pulling on the loose end of
the belt. After installation of the child
restraint system, try to move it in all
directions to be sure the child restraint
system is securely installed.
WARNING- Child seat
installation
• A child can be seriously injured
or killed in a collision if the child
restraint is not properly anchored
to the car and the child is not
properly restrained in the child
restraint. Before installing the
child restraint system, read the
instructions supplied by the child
restraint system manufacturer.
• If the seat belt does not operate
as described in this section, have
the system checked immediately
by your authorized HYUNDAI
dealer.
• Failure to observe this manual's
instructions regarding child
restraint systems and the
instructions provided with the
child restraint system could
increase the chance and/or
severity of injury in an accident.
1GHA2260/H
WARNING
Never place a rear-facing child
restraint in the front passenger
seat, because of the danger that an
inflating passenger-side air bag
could impact the rear-facing child
restraint and kill the child.

349

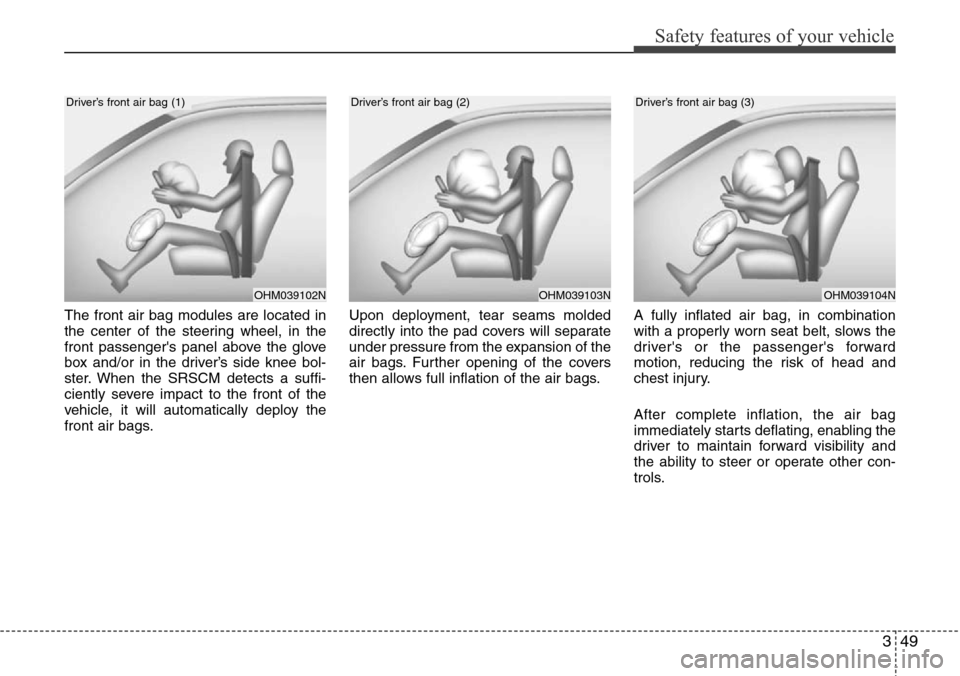

Safety features of your vehicle
The front air bag modules are located in
the center of the steering wheel, in the
front passenger's panel above the glove
box and/or in the driver’s side knee bol-
ster. When the SRSCM detects a suffi-
ciently severe impact to the front of the
vehicle, it will automatically deploy the
front air bags.Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of the
air bags. Further opening of the covers
then allows full inflation of the air bags.A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver's or the passenger's forward
motion, reducing the risk of head and
chest injury.
After complete inflation, the air bag
immediately starts deflating, enabling the
driver to maintain forward visibility and
the ability to steer or operate other con-
trols.
OHM039102N
Driver’s front air bag (1)
OHM039103NOHM039104N
Driver’s front air bag (2)Driver’s front air bag (3)

753
Maintenance

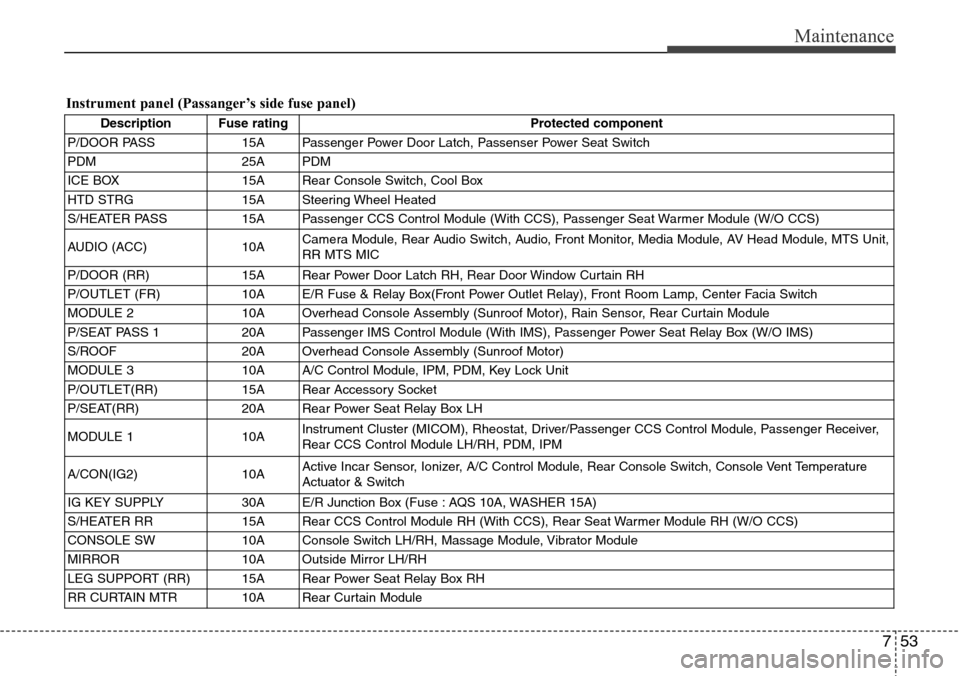

Instrument panel (Passanger’s side fuse panel)
Description Fuse rating Protected component
P/DOOR PASS 15A Passenger Power Door Latch, Passenser Power Seat Switch
PDM 25A PDM
ICE BOX 15A Rear Console Switch, Cool Box
HTD STRG 15A Steering Wheel Heated
S/HEATER PASS 15A Passenger CCS Control Module (With CCS), Passenger Seat Warmer Module (W/O CCS)
AUDIO (ACC) 10ACamera Module, Rear Audio Switch, Audio, Front Monitor, Media Module, AV Head Module, MTS Unit,
RR MTS MIC
P/DOOR (RR) 15A Rear Power Door Latch RH, Rear Door Window Curtain RH
P/OUTLET (FR) 10A E/R Fuse & Relay Box(Front Power Outlet Relay), Front Room Lamp, Center Facia Switch
MODULE 2 10A Overhead Console Assembly (Sunroof Motor), Rain Sensor, Rear Curtain Module
P/SEAT PASS 1 20A Passenger IMS Control Module (With IMS), Passenger Power Seat Relay Box (W/O IMS)
S/ROOF 20A Overhead Console Assembly (Sunroof Motor)
MODULE 3 10A A/C Control Module, IPM, PDM, Key Lock Unit
P/OUTLET(RR) 15A Rear Accessory Socket
P/SEAT(RR) 20A Rear Power Seat Relay Box LH
MODULE 1 10AInstrument Cluster (MICOM), Rheostat, Driver/Passenger CCS Control Module, Passenger Receiver,
Rear CCS Control Module LH/RH, PDM, IPM
A/CON(IG2) 10AActive Incar Sensor, Ionizer, A/C Control Module, Rear Console Switch, Console Vent Temperature
Actuator & Switch
IG KEY SUPPLY 30A E/R Junction Box (Fuse : AQS 10A, WASHER 15A)
S/HEATER RR 15A Rear CCS Control Module RH (With CCS), Rear Seat Warmer Module RH (W/O CCS)
CONSOLE SW 10A Console Switch LH/RH, Massage Module, Vibrator Module
MIRROR 10A Outside Mirror LH/RH
LEG SUPPORT (RR) 15A Rear Power Seat Relay Box RH
RR CURTAIN MTR 10A Rear Curtain Module
