Features of your vehicle
• For maximum defrosting, set the tem-
perature control to the extreme
right/hot position and the fan speed
control to the highest speed.
• If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice
from the windshield, rear window, out-
side rear view mirrors, and all side win-
dows.
• Clear all snow and ice from the hood
and air inlet in the cowl grill to improve
heater and defroster efficiency and to
reduce the probability of fogging up the
inside of the windshield.

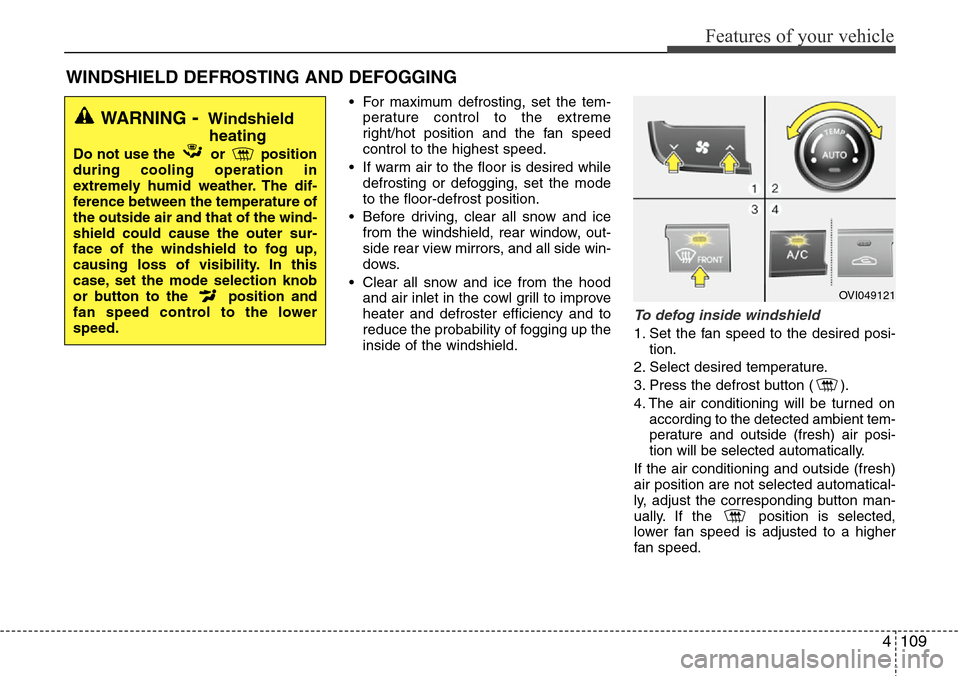

To defog inside windshield
1. Set the fan speed to the desired posi-
tion.
2. Select desired temperature.
3. Press the defrost button ( ).
4. The air conditioning will be turned on
according to the detected ambient tem-
perature and outside (fresh) air posi-
tion will be selected automatically.
If the air conditioning and outside (fresh)
air position are not selected automatical-
ly, adjust the corresponding button man-
ually. If the position is selected,
lower fan speed is adjusted to a higher
fan speed.
WINDSHIELD DEFROSTING AND DEFOGGING
WARNING- Windshield
heating
Do not use the or position
during cooling operation in
extremely humid weather. The dif-
ference between the temperature of
the outside air and that of the wind-
shield could cause the outer sur-
face of the windshield to fog up,
causing loss of visibility. In this
case, set the mode selection knob
or button to the position and
fan speed control to the lower
speed.
OVI049121

Features of your vehicle
110 4

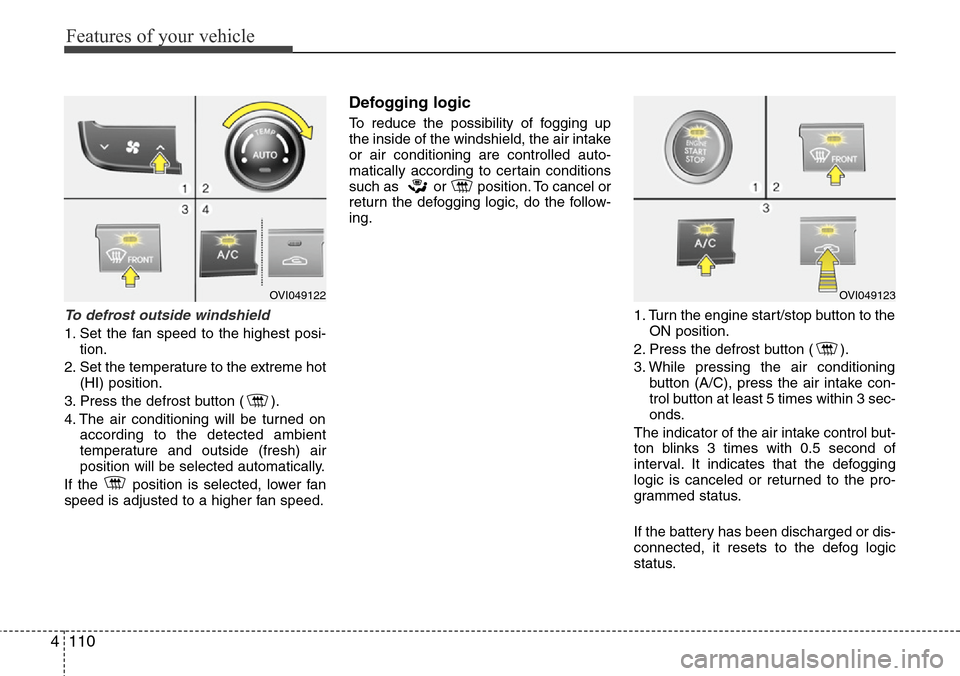

To defrost outside windshield
1. Set the fan speed to the highest posi-
tion.
2. Set the temperature to the extreme hot
(HI) position.
3. Press the defrost button ( ).
4. The air conditioning will be turned on
according to the detected ambient
temperature and outside (fresh) air
position will be selected automatically.
If the position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging logic
To reduce the possibility of fogging up
the inside of the windshield, the air intake
or air conditioning are controlled auto-
matically according to certain conditions
such as or position. To cancel or
return the defogging logic, do the follow-
ing.
1. Turn the engine start/stop button to the
ON position.
2. Press the defrost button ( ).
3. While pressing the air conditioning
button (A/C), press the air intake con-
trol button at least 5 times within 3 sec-
onds.
The indicator of the air intake control but-
ton blinks 3 times with 0.5 second of
interval. It indicates that the defogging
logic is canceled or returned to the pro-
grammed status.
If the battery has been discharged or dis-
connected, it resets to the defog logic
status.
OVI049122OVI049123

4111
Features of your vehicle

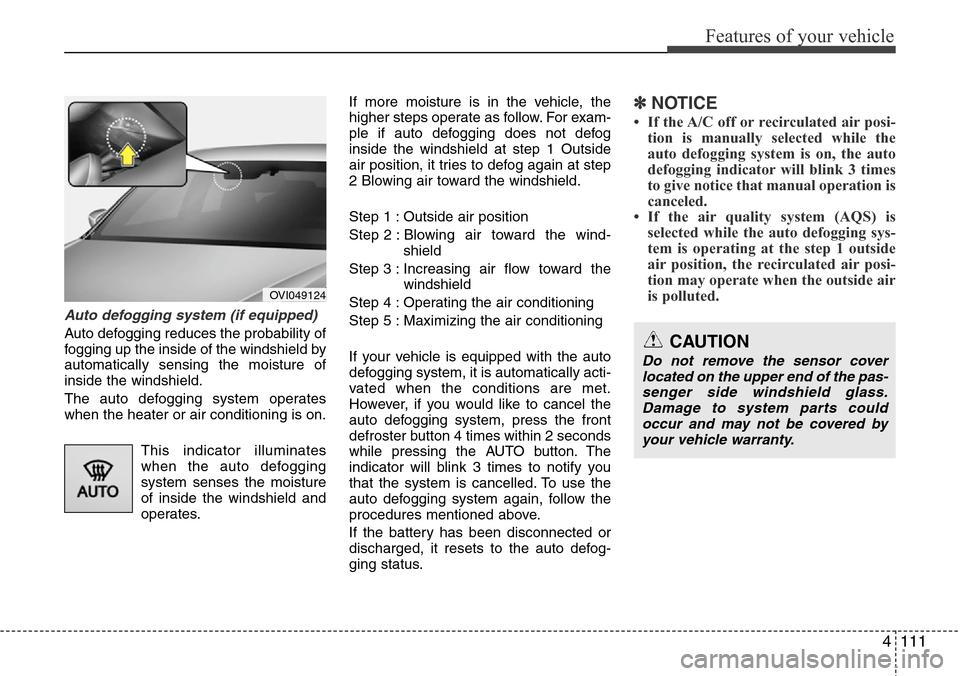

Auto defogging system (if equipped)
Auto defogging reduces the probability of
fogging up the inside of the windshield by
automatically sensing the moisture of
inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
This indicator illuminates
when the auto defogging
system senses the moisture
of inside the windshield and
operates.If more moisture is in the vehicle, the
higher steps operate as follow. For exam-
ple if auto defogging does not defog
inside the windshield at step 1 Outside
air position, it tries to defog again at step
2 Blowing air toward the windshield.
Step 1 : Outside air position
Step 2 : Blowing air toward the wind-
shield
Step 3 : Increasing air flow toward the
windshield
Step 4 : Operating the air conditioning
Step 5 : Maximizing the air conditioning
If your vehicle is equipped with the auto
defogging system, it is automatically acti-
vated when the conditions are met.
However, if you would like to cancel the
auto defogging system, press the front
defroster button 4 times within 2 seconds
while pressing the AUTO button. The
indicator will blink 3 times to notify you
that the system is cancelled. To use the
auto defogging system again, follow the
procedures mentioned above.
If the battery has been disconnected or
discharged, it resets to the auto defog-
ging status.
✽NOTICE
• If the A/C off or recirculated air posi-
tion is manually selected while the
auto defogging system is on, the auto
defogging indicator will blink 3 times
to give notice that manual operation is
canceled.
• If the air quality system (AQS) is
selected while the auto defogging sys-
tem is operating at the step 1 outside
air position, the recirculated air posi-
tion may operate when the outside air
is polluted.
OVI049124
CAUTION
Do not remove the sensor cover
located on the upper end of the pas-
senger side windshield glass.
Damage to system parts could
occur and may not be covered by
your vehicle warranty.

Features of your vehicle
112 4

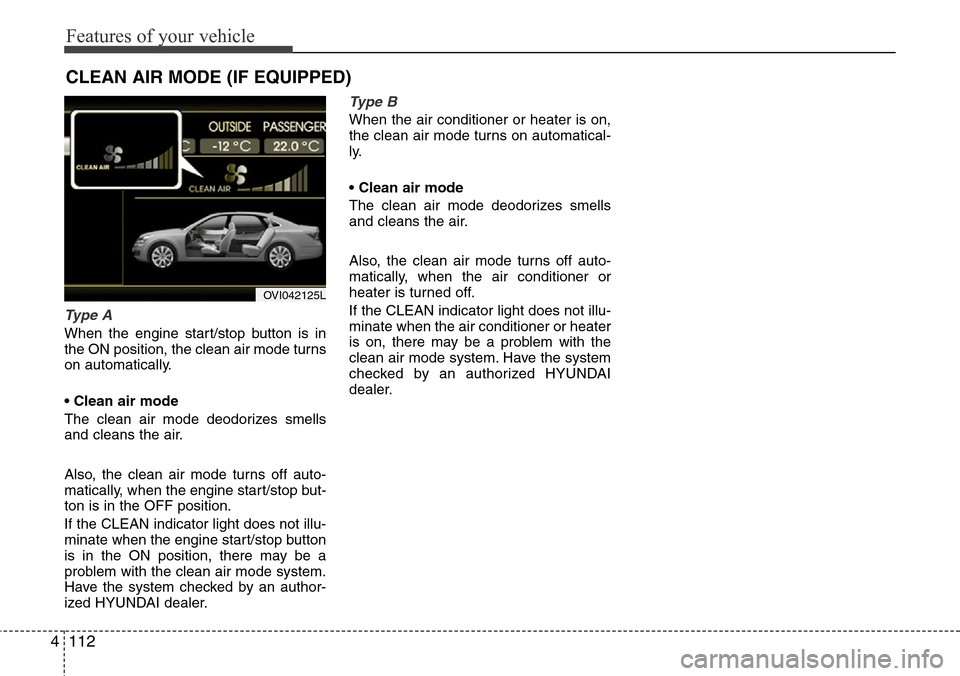

Type A
When the engine start/stop button is in
the ON position, the clean air mode turns
on automatically.
• Clean air mode
The clean air mode deodorizes smells
and cleans the air.
Also, the clean air mode turns off auto-
matically, when the engine start/stop but-
ton is in the OFF position.
If the CLEAN indicator light does not illu-
minate when the engine start/stop button
is in the ON position, there may be a
problem with the clean air mode system.
Have the system checked by an author-
ized HYUNDAI dealer.
Type B
When the air conditioner or heater is on,
the clean air mode turns on automatical-
ly.
• Clean air mode
The clean air mode deodorizes smells
and cleans the air.
Also, the clean air mode turns off auto-
matically, when the air conditioner or
heater is turned off.
If the CLEAN indicator light does not illu-
minate when the air conditioner or heater
is on, there may be a problem with the
clean air mode system. Have the system
checked by an authorized HYUNDAI
dealer.
CLEAN AIR MODE (IF EQUIPPED)
OVI042125L

4113
Features of your vehicle

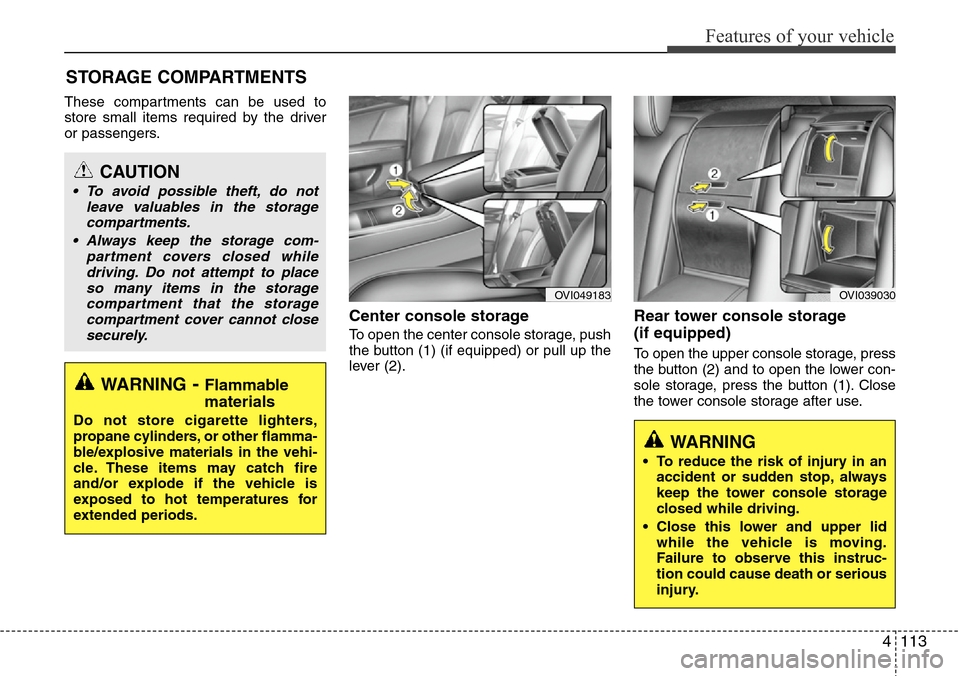

These compartments can be used to
store small items required by the driver
or passengers.
Center console storage
To open the center console storage, push
the button (1) (if equipped) or pull up the
lever (2).
Rear tower console storage
(if equipped)
To open the upper console storage, press
the button (2) and to open the lower con-
sole storage, press the button (1). Close
the tower console storage after use.
STORAGE COMPARTMENTS
WARNING- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING
• To reduce the risk of injury in an
accident or sudden stop, always
keep the tower console storage
closed while driving.
• Close this lower and upper lid
while the vehicle is moving.
Failure to observe this instruc-
tion could cause death or serious
injury.
CAUTION
• To avoid possible theft, do not
leave valuables in the storage
compartments.
• Always keep the storage com-
partment covers closed while
driving. Do not attempt to place
so many items in the storage
compartment that the storage
compartment cover cannot close
securely.
OVI049183OVI039030

Features of your vehicle
114 4

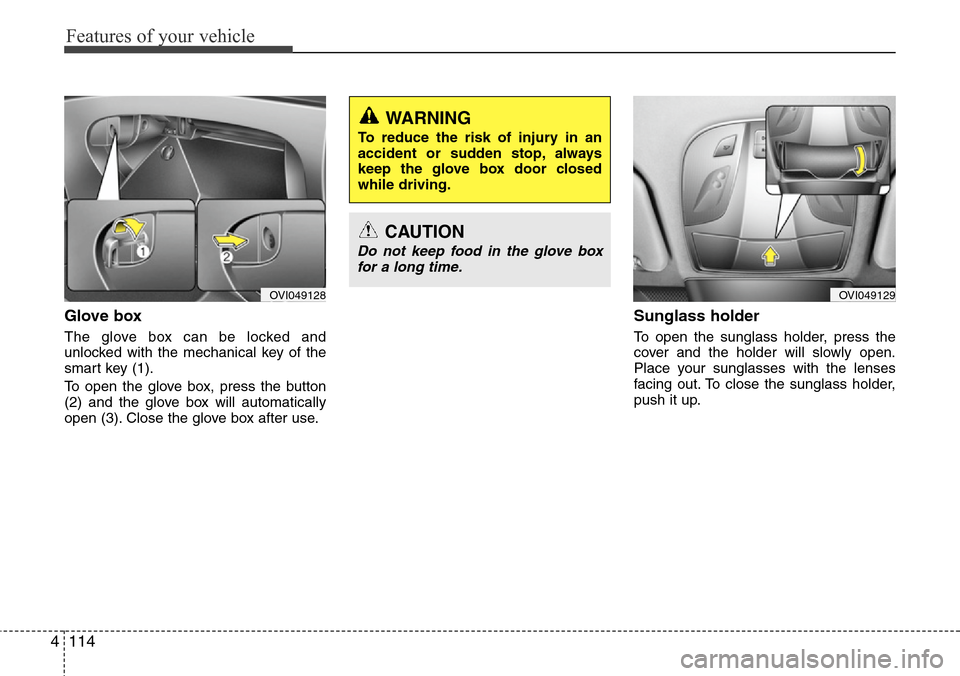

Glove box
The glove box can be locked and
unlocked with the mechanical key of the
smart key (1).
To open the glove box, press the button
(2) and the glove box will automatically
open (3). Close the glove box after use.
Sunglass holder
To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses with the lenses
facing out. To close the sunglass holder,
push it up.
OVI049129OVI049128
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
CAUTION
Do not keep food in the glove box
for a long time.

4115
Features of your vehicle

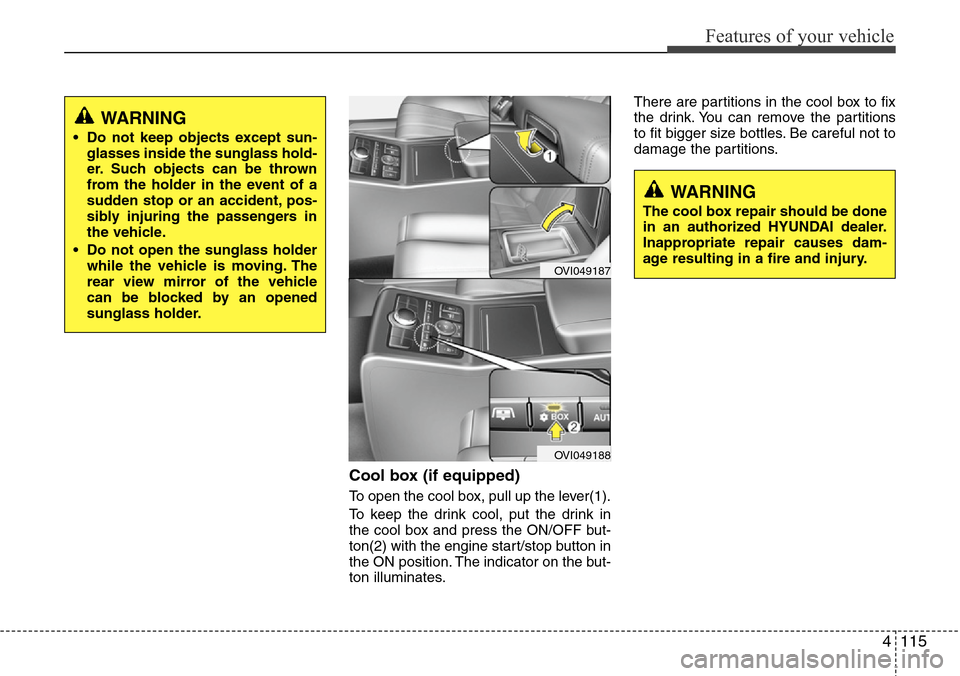

Cool box (if equipped)
To open the cool box, pull up the lever(1).
To keep the drink cool, put the drink in
the cool box and press the ON/OFF but-
ton(2) with the engine start/stop button in
the ON position. The indicator on the but-
ton illuminates.There are partitions in the cool box to fix
the drink. You can remove the partitions
to fit bigger size bottles. Be careful not to
damage the partitions.
WARNING
• Do not keep objects except sun-
glasses inside the sunglass hold-
er. Such objects can be thrown
from the holder in the event of a
sudden stop or an accident, pos-
sibly injuring the passengers in
the vehicle.
• Do not open the sunglass holder
while the vehicle is moving. The
rear view mirror of the vehicle
can be blocked by an opened
sunglass holder.
WARNING
The cool box repair should be done
in an authorized HYUNDAI dealer.
Inappropriate repair causes dam-
age resulting in a fire and injury.
OVI049187
OVI049188

Features of your vehicle
116 4
OVI049189
OVI049190

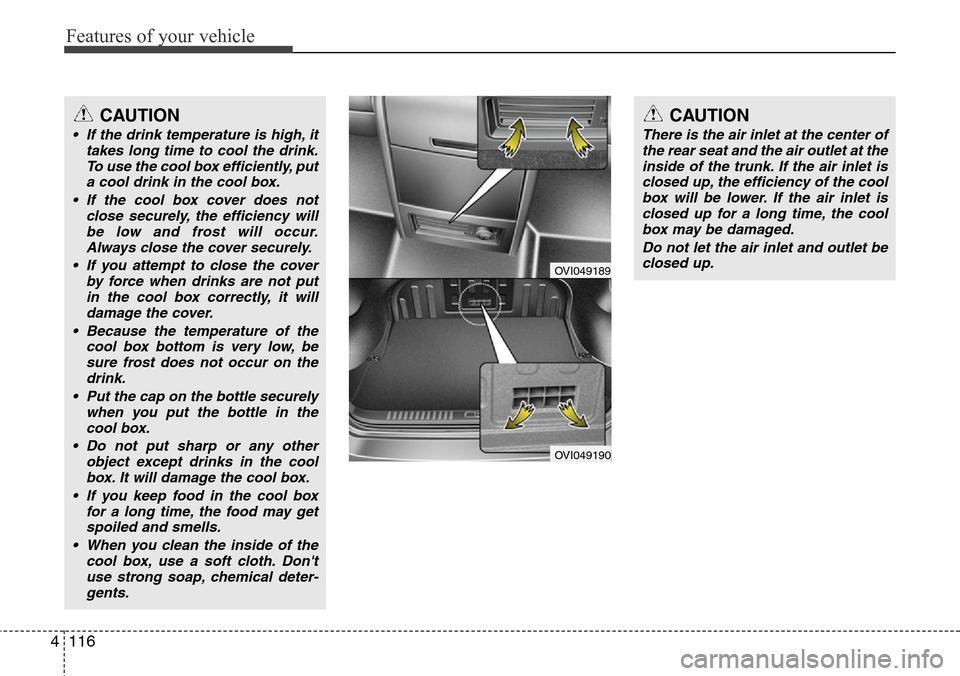

CAUTION
There is the air inlet at the center of
the rear seat and the air outlet at the
inside of the trunk. If the air inlet is
closed up, the efficiency of the cool
box will be lower. If the air inlet is
closed up for a long time, the cool
box may be damaged.
Do not let the air inlet and outlet be
closed up.
CAUTION
• If the drink temperature is high, it
takes long time to cool the drink.
To use the cool box efficiently, put
a cool drink in the cool box.
• If the cool box cover does not
close securely, the efficiency will
be low and frost will occur.
Always close the cover securely.
• If you attempt to close the cover
by force when drinks are not put
in the cool box correctly, it will
damage the cover.
• Because the temperature of the
cool box bottom is very low, be
sure frost does not occur on the
drink.
• Put the cap on the bottle securely
when you put the bottle in the
cool box.
• Do not put sharp or any other
object except drinks in the cool
box. It will damage the cool box.
• If you keep food in the cool box
for a long time, the food may get
spoiled and smells.
• When you clean the inside of the
cool box, use a soft cloth. Don't
use strong soap, chemical deter-
gents.

4117
Features of your vehicle

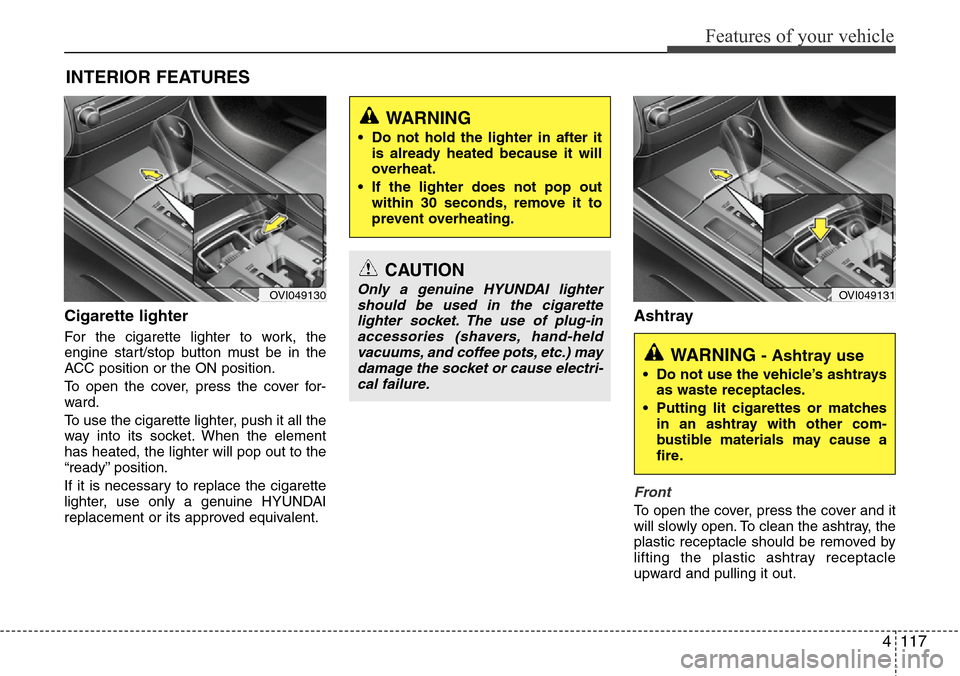

Cigarette lighter
For the cigarette lighter to work, the
engine start/stop button must be in the
ACC position or the ON position.
To open the cover, press the cover for-
ward.
To use the cigarette lighter, push it all the
way into its socket. When the element
has heated, the lighter will pop out to the
“ready” position.
If it is necessary to replace the cigarette
lighter, use only a genuine HYUNDAI
replacement or its approved equivalent.
Ashtray
Front
To open the cover, press the cover and it
will slowly open. To clean the ashtray, the
plastic receptacle should be removed by
lifting the plastic ashtray receptacle
upward and pulling it out.
INTERIOR FEATURES
CAUTION
Only a genuine HYUNDAI lighter
should be used in the cigarette
lighter socket. The use of plug-in
accessories (shavers, hand-held
vacuums, and coffee pots, etc.) may
damage the socket or cause electri-
cal failure.
WARNING
• Do not hold the lighter in after it
is already heated because it will
overheat.
• If the lighter does not pop out
within 30 seconds, remove it to
prevent overheating.
OVI049130
WARNING - Ashtray use
• Do not use the vehicle’s ashtrays
as waste receptacles.
• Putting lit cigarettes or matches
in an ashtray with other com-
bustible materials may cause a
fire.
OVI049131

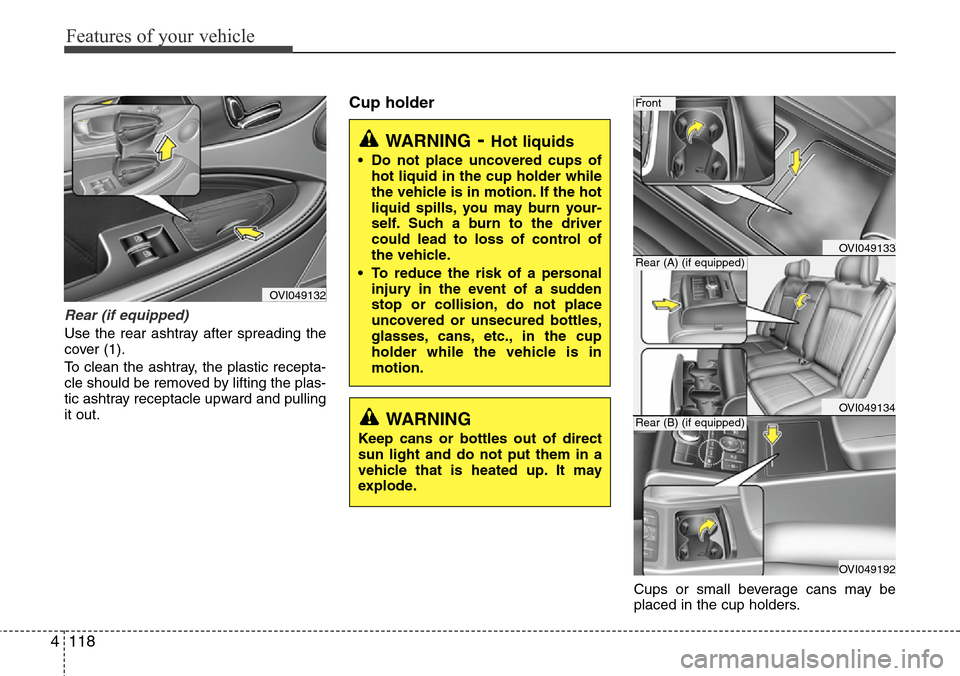

Features of your vehicle
118 4
Rear (if equipped)
Use the rear ashtray after spreading the
cover (1).
To clean the ashtray, the plastic recepta-
cle should be removed by lifting the plas-
tic ashtray receptacle upward and pulling
it out.
Cup holder
Cups or small beverage cans may be
placed in the cup holders.
OVI049132
WARNING- Hot liquids
• Do not place uncovered cups of
hot liquid in the cup holder while
the vehicle is in motion. If the hot
liquid spills, you may burn your-
self. Such a burn to the driver
could lead to loss of control of
the vehicle.
• To reduce the risk of a personal
injury in the event of a sudden
stop or collision, do not place
uncovered or unsecured bottles,
glasses, cans, etc., in the cup
holder while the vehicle is in
motion.
OVI049133
OVI049134
OVI049192
Front
Rear (A) (if equipped)
Rear (B) (if equipped)WARNING
Keep cans or bottles out of direct
sun light and do not put them in a
vehicle that is heated up. It may
explode.
