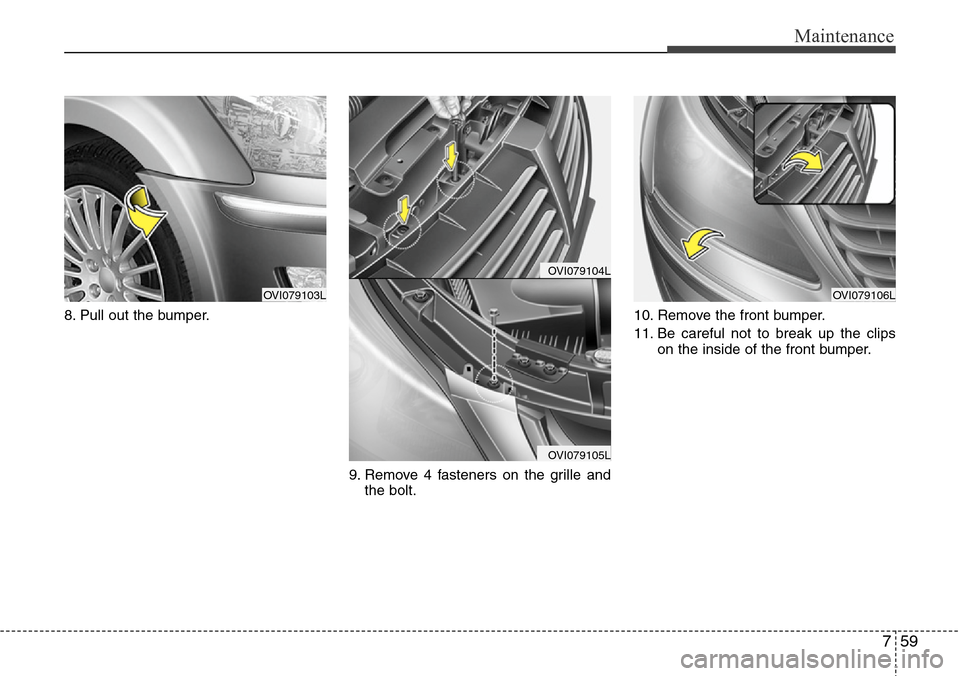

8. Pull out the bumper.
9. Remove 4 fasteners on the grille and
the bolt.10. Remove the front bumper.
11. Be careful not to break up the clips
on the inside of the front bumper.
OVI079103LOVI079106L
OVI079104L
OVI079105L

Maintenance
60 7

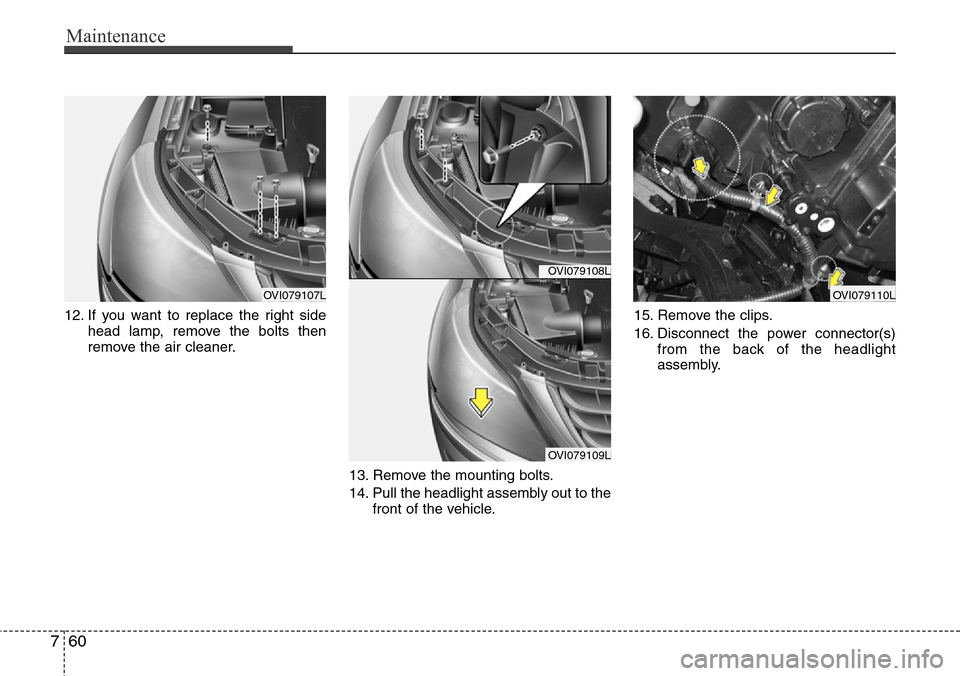

12. If you want to replace the right side
head lamp, remove the bolts then
remove the air cleaner.
13. Remove the mounting bolts.
14. Pull the headlight assembly out to the
front of the vehicle.15. Remove the clips.
16. Disconnect the power connector(s)
from the back of the headlight
assembly.
OVI079107L
OVI079108L
OVI079109L
OVI079110L

761
Maintenance
Headlight (HID/LED type) bulb
replacement
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
✽NOTICE
HID/LED lamps have superior per-
formance vs. halogen bulbs. HID/LED
lamps are estimated by the manufactur-
er to last twice as long or longer than
halogen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in the
life of the vehicle. Cycling the head-
lamps on and off more than typical use
will shorten HID/LED lamps life. HID/
LED lamps do not fail in the same man-
ner as halogen incandescent lamps. If a
headlamp goes out after a period of
operation but will immediately relight
when the headlamp switch is cycled it is
likely the HID/LED lamp needs to be
replaced. HID/LED lighting compo-
nents are more complex than conven-
tional halogen bulbs thus have higher
replacement cost.
Headlight bulb (High)
OHD076046
WARNING- Halogen bulbs
• Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
• Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touch
the glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated only
when installed in a headlight.
(Continued)
WARNING -
HID/LED Headlight low
beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb/
LED) due to electric shock danger.
If the low beam (XENON bulb/LED)
is not working, have your vehicle
checked by an authorized HYUNDAI
dealer.

Maintenance
62 7

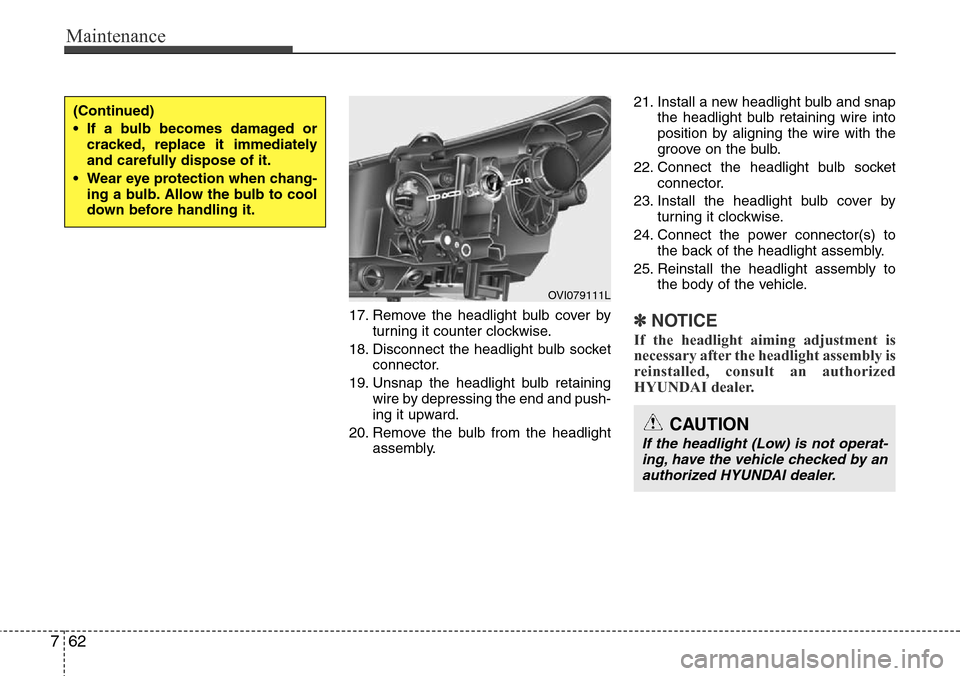

17. Remove the headlight bulb cover by
turning it counter clockwise.
18. Disconnect the headlight bulb socket
connector.
19. Unsnap the headlight bulb retaining
wire by depressing the end and push-
ing it upward.
20. Remove the bulb from the headlight
assembly.21. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
22. Connect the headlight bulb socket
connector.
23. Install the headlight bulb cover by
turning it clockwise.
24. Connect the power connector(s) to
the back of the headlight assembly.
25. Reinstall the headlight assembly to
the body of the vehicle.✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.
OVI079111L
(Continued)
• If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
• Wear eye protection when chang-
ing a bulb. Allow the bulb to cool
down before handling it.
CAUTION
If the headlight (Low) is not operat-
ing, have the vehicle checked by an
authorized HYUNDAI dealer.

763
Maintenance
Traffic Change (For Europe)
The low beam light distribution is asym-
metric.
If you go abroad to a country with oppo-
site traffic direction, this asymmetric part
will dazzle oncoming car driver. To pre-
vent dazzle, ECE regulation demand
several technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). This headlamps are designed
not to dazzle opposite drivers. So, you
need not change your headlamps in a
country with opposite traffic direction.

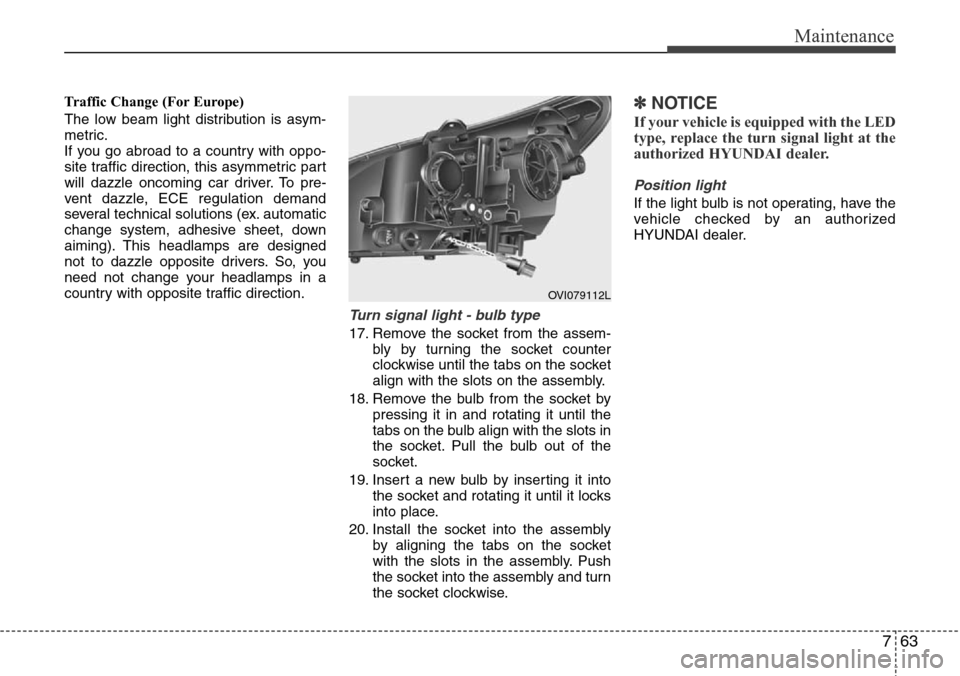

Turn signal light - bulb type
17. Remove the socket from the assem-
bly by turning the socket counter
clockwise until the tabs on the socket
align with the slots on the assembly.
18. Remove the bulb from the socket by
pressing it in and rotating it until the
tabs on the bulb align with the slots in
the socket. Pull the bulb out of the
socket.
19. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
20. Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly. Push
the socket into the assembly and turn
the socket clockwise.
✽NOTICE
If your vehicle is equipped with the LED
type, replace the turn signal light at the
authorized HYUNDAI dealer.
Position light
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
OVI079112L

Maintenance
64 7

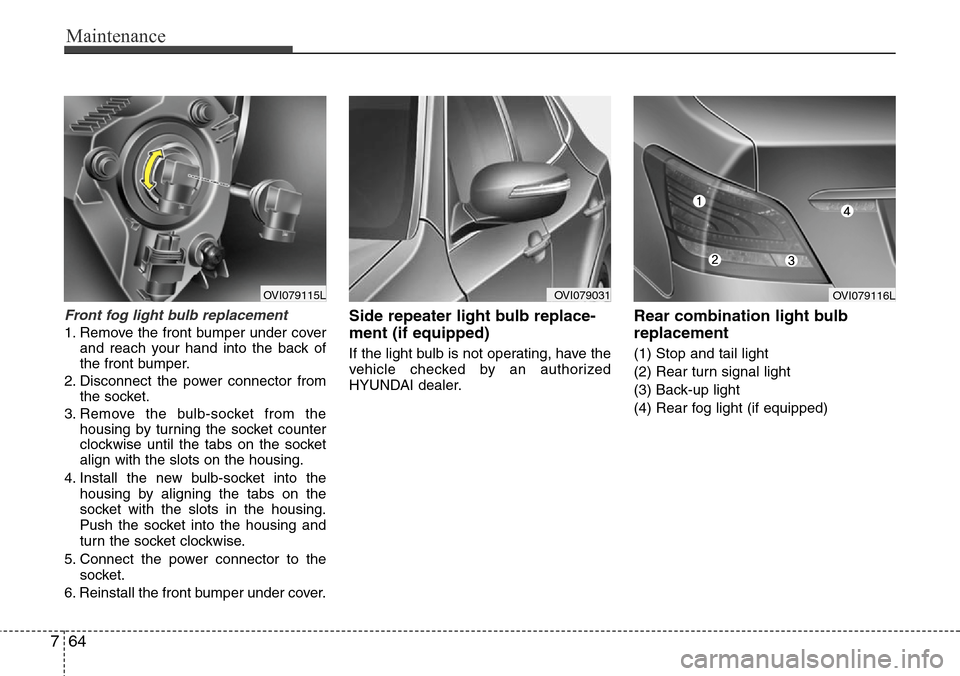

Front fog light bulb replacement
1. Remove the front bumper under cover
and reach your hand into the back of
the front bumper.
2. Disconnect the power connector from
the socket.
3. Remove the bulb-socket from the
housing by turning the socket counter
clockwise until the tabs on the socket
align with the slots on the housing.
4. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
5. Connect the power connector to the
socket.
6. Reinstall the front bumper under cover.
Side repeater light bulb replace-
ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
(4) Rear fog light (if equipped)
OVI079116LOVI079115LOVI079031

765
Maintenance

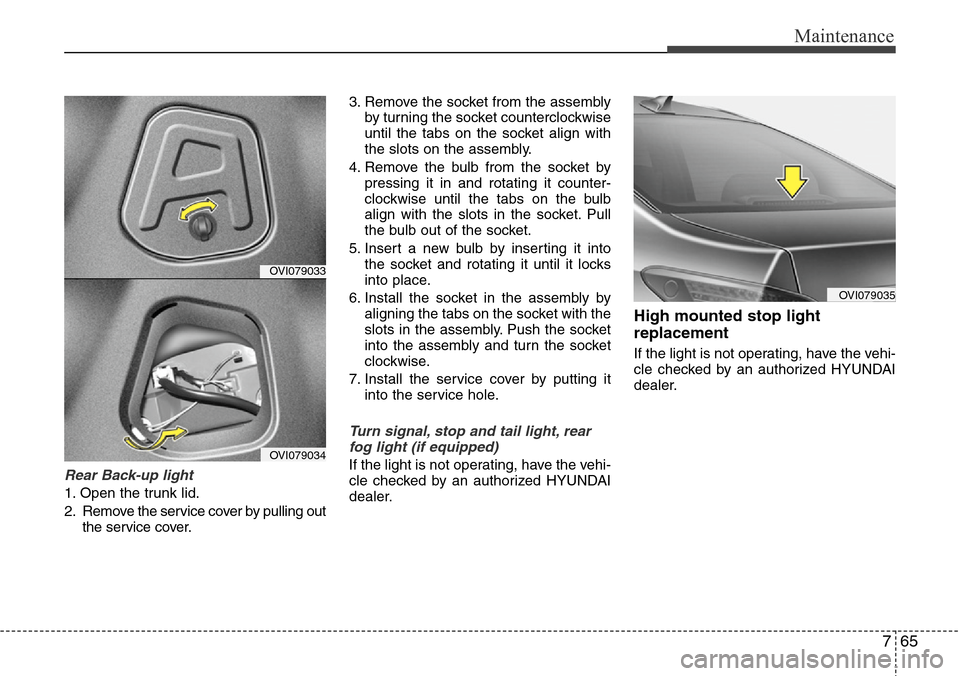

Rear Back-up light
1. Open the trunk lid.
2. Remove the service cover by pulling out
the service cover.3. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
4. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it
into the service hole.
Turn signal, stop and tail light, rear
fog light (if equipped)
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.
High mounted stop light
replacement
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.
OVI079035
OVI079033
OVI079034

Maintenance
66 7
License plate light bulb replace-
ment
If the light is not operating, have the vehi-
cle checked by an authorized HYUNDAI
dealer.

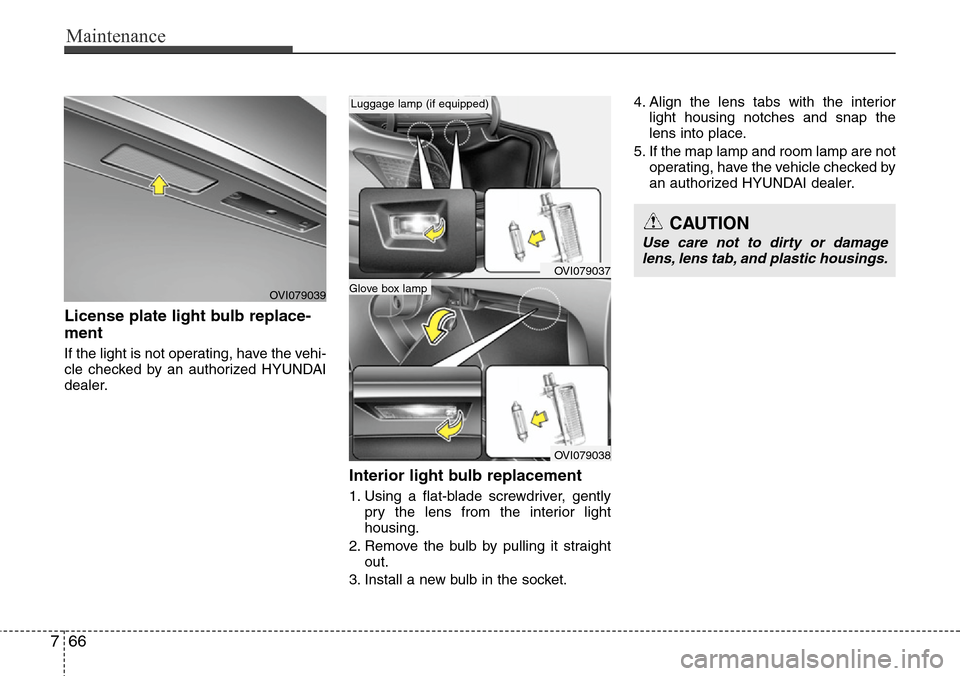

Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb in the socket.4. Align the lens tabs with the interior
light housing notches and snap the
lens into place.
5. If the map lamp and room lamp are not
operating, have the vehicle checked by
an authorized HYUNDAI dealer.
OVI079037
OVI079038
Glove box lamp
Luggage lamp (if equipped)
CAUTION
Use care not to dirty or damage
lens, lens tab, and plastic housings.
OVI079039

767
Maintenance
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.After washing, rinse the vehicle thor-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
APPEARANCE CARE
CAUTION
• Do not use strong soap, chemical
detergents or hot water, and do
not wash the vehicle in direct
sunlight or when the body of the
vehicle is warm.
• Be careful when washing the side
windows of your vehicle.
Especially, with high-pressure
water, water may leak through the
windows and wet the interior.
• To prevent damage to the plastic
parts and lamps, do not clean
with chemical solvents or strong
detergents.
WARNING - Wet brakes
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.
CAUTION
• Water washing in the engine com-
partment including high pressure
water washing may cause the fail-
ure of electrical circuits or engine
and related part located in the
engine compartment.
• Never allow water or other liquids
to come in contact with electri-
cal/electronic components and
air duct inside the vehicle as this
may damage them.
OJB037800

Maintenance
68 7

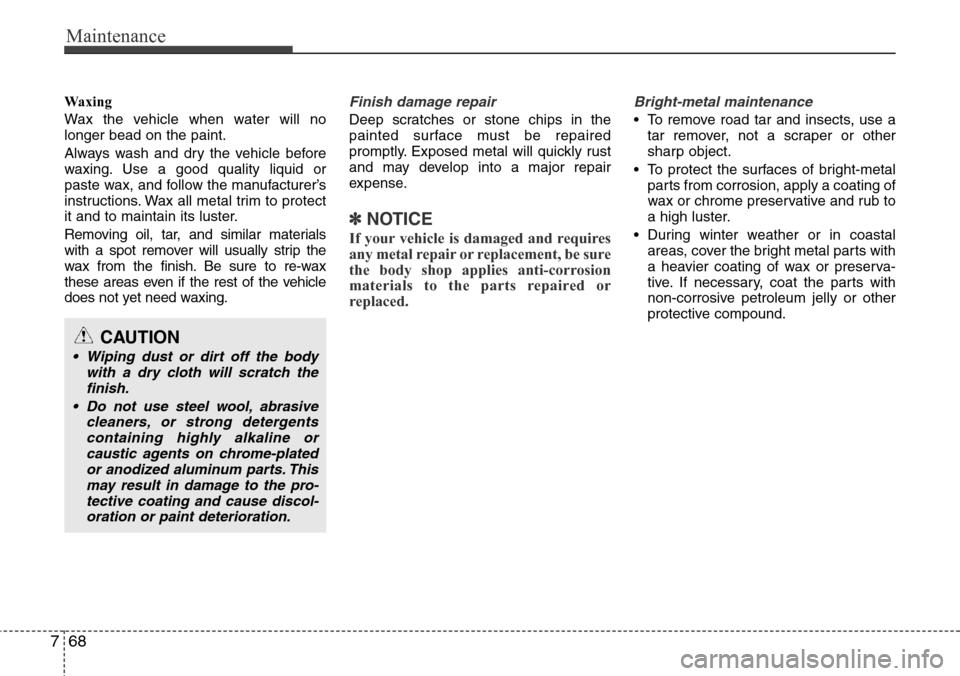

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufacturer’s
instructions. Wax all metal trim to protect
it and to maintain its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly rust
and may develop into a major repair
expense.
✽NOTICE
If your vehicle is damaged and requires
any metal repair or replacement, be sure
the body shop applies anti-corrosion
materials to the parts repaired or
replaced.
Bright-metal maintenance
• To remove road tar and insects, use a
tar remover, not a scraper or other
sharp object.
• To protect the surfaces of bright-metal
parts from corrosion, apply a coating of
wax or chrome preservative and rub to
a high luster.
• During winter weather or in coastal
areas, cover the bright metal parts with
a heavier coating of wax or preserva-
tive. If necessary, coat the parts with
non-corrosive petroleum jelly or other
protective compound.
CAUTION
• Wiping dust or dirt off the body
with a dry cloth will scratch the
finish.
• Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may result in damage to the pro-
tective coating and cause discol-
oration or paint deterioration.
