1-14
Using the System for the First Time
Turning the System On/Off
Turning the System On
Press the engine start button. If the brakes
are not pressed, then the ACC and system
will turn on. If the brakes are pressed, then
the IGN and system will turn on and the
ignition will start. In both instances, the fol-
lowing safety warning will be displayed.
Once the system is turned on, then the
booting process will start. No operations
are supported while the system is booting.
Some time may be required until all fea-
tures are ready for use.
CAUTION
!Ÿ The safety warning page is displayed
every time the ignition is turned on. As
these matters are related to safety, closely
read and comply with the safety warnings.
Turning the System Off
Press the engine start button again or
press and hold the power key on the head
unit to turn the audio system off.
i Information
!Ÿ If the system is turned off while the
Handsfree is being used, then the call will
automatically switch back to the mobile
phone.
CAUTION
!Ÿ Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. Adjust the volume to a suitable level
before turning off the device.
Using the System for the First Time
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 33 of 261
Using the System for the First Time
Component Names and Functions l 1-15
Resetting the System
This feature is used to reset the system in
the occurrence of an unforeseen error or
problem.
Press and hold the RESET key (about 1
second).
(The use of a clip or pin is recommended
when resetting the system.)
i Information
!Ÿ Upon resetting the system, saved data and
settings information (radio frequencies,
volume and display settings and more) will
be restored back to the default factory state.
Such are not indications of malfunctions.
Battery Warning Message
Use the system only when the engine is
running. If the system is turned on with the
engine off, then the following warning will
be displayed.
This message will automatically disappear
once the engine is turned on.
i Information
!Ÿ Using the system for prolonged periods
of time without the engine running may
result in battery discharge.
Auto Video Lock
When using the DVD, VCD, or another
video mode while driving, the display will
be turned off for safety. A related message
screen is also displayed.
< While In USB Video Mode >
Even if the screen is turned off, the media
sound will continue to be played. The
screen will automatically turn back on once
the gear is set to P or the parking brake is
turned On.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 34 of 261
1-16
Using the System for the First Time
HOME Screen
Press the HOME key to display the System
Home screen.
Turn the controller left/right to select the
desired mode.
While in the Home screen, press the
key to enter Sound Settings and
the
key to enter Display Settings.
Icon Description
Navigation
FM
AM
XM
DISC
Jukebox USB
Icon Description iPod
AUX
Bluetooth Audio PHONE
INFO/Setup Blue Link
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 35 of 261
Using the System for the First Time
Component Names and Functions l 1-17
Status Icons
Various system status icons, including Navigation, AV, and
Bluetooth
®, are displayed at the bottom of the screen.
No NameDescription
ò
Displayed when the Navigation voice guidance has been set to mute.
óDisplayed when AV mode has been set to mute.
ô
Displayed when a Bluetooth® phone has been connected.
Displayed upon downloading contacts from the Bluetooth® phone.
õ
Displayed when the user is on a Bluetooth® call.
Displayed when the user is on a Blue Link call.
Displayed when the microphone has been turned off during a call.
öDisplays the Blue Link phone sensitivity.
÷Displayed when data within the disc, Jukebox, or USB is currently be-
ing read.
ø
Displayed when the rear system is turned on (Optional)
Displayed when the rear system is turned off (Optional)
Displayed when the rear system is turned on but locked (Optional)
Displayed when the rear system is turned off and locked(Optional)
ùDisplayed when a le is being copied into the Jukebox.
ò ÷ ó ø ô ù õ ö
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 36 of 261
![Hyundai Equus 2016 Digital Navigation System 1-18
Using the System for the First Time
Languages
After a system rebooting, select the
Language button in the safety warning
screen.
\
This option is used to change the language
of the system dis](/img/35/14637/w960_14637-35.png "Hyundai Equus 2016 Digital Navigation System 1-18
Using the System for the First Time
Languages
After a system rebooting, select the
Language button in the safety warning
screen.
\
This option is used to change the language
of the system dis")
1-18
Using the System for the First Time
Languages
After a system rebooting, select the
Language button in the safety warning
screen.
\
This option is used to change the language
of the system display. It is possible to set to
English, French, Spanish and Korean.
i Information
!Ÿ Voice Recognition will not be supported
if the system language is changed to
Korean.
Adjusting the Volume
Adjusting the Radio/Media Volume
While playing the radio/media Ü
Turn the knob left/right to adjust the
volume.
Adjusting the Voice Guidance
Volum e
During voice guidance Ü
Turn the
knob left/right to adjust the guidance
volume.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 37 of 261
Using the System for the First Time
Component Names and Functions l 1-19
Adjusting the Call Volume
While on a call Ü
Turn the knob left/
right to adjust the call volume.

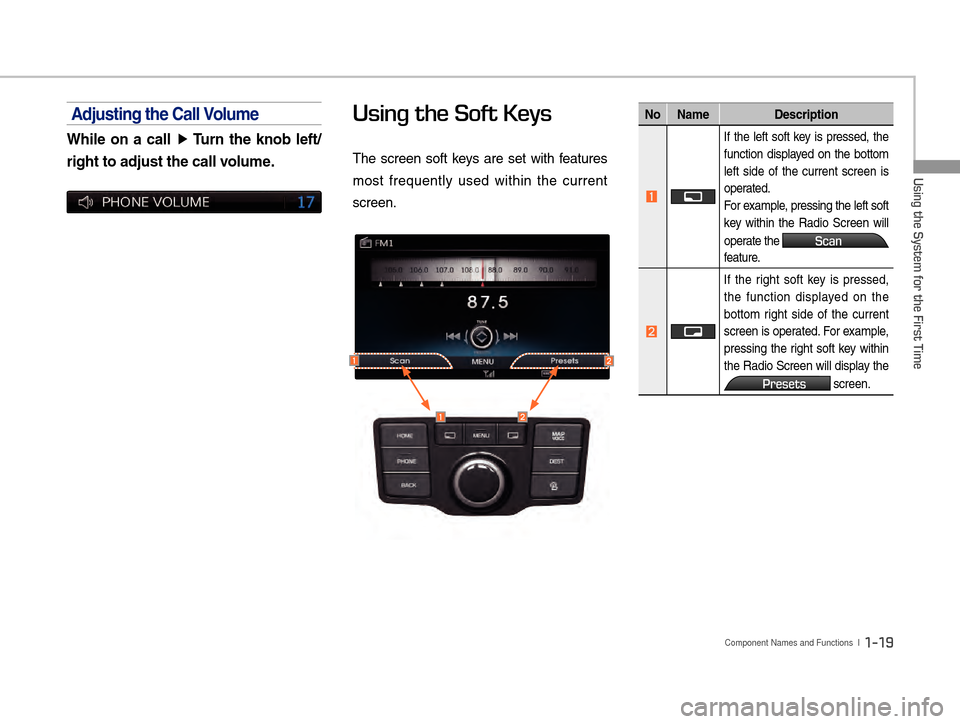

Using the Soft Keys
