Table of Contents
8
Bluetooth Audio
About Using Bluetooth Audio 2-94
Starting Mode 2-94
Playing Bluetooth Audio 2-95
Selecting Bluetooth Audio
2-95
Auto Playlist
Auto Playlist 2-96
Exiting Auto Playlist 2-96
3. Navigation
Before Use
Before Use 3-2
Safety Cautions 3-2
About the Map 3-3
About Map Scale 3-3
Actual distance
3-3
About Map Icons
3-3
About Map DB
3-3
About Map Updates
3-3
About Voice Guidance 3-4
Guidance When using Other Modes 3-4
Starting Navigation
Basic Mode Screen 3-5
Starting Navigation 3-7
Displaying the Current Position 3-7
Changing the Map Mode
3-8
POI
3-8
Add to My Places
3-9
Searching Destinations
Searching Destinations 3-10
Quick Menu 3-11
Favorites
3-11
Address Search
3-12
POI Search
3-12
Previous Destinations
3-14
Previous Start Position
3-14
Previous Searches
3-15
Emergency
3-15
My Places
3-15
Intersection
3-16
Coordinates
3-16
Exit/Entrance
3-17
Previous Map
3-17
Set as Destination 3-18
Simulation
3-19
Add Waypoint
3-19
Route Options
3-20
Cancel Route
3-20
Route Guidance
3-21
Route Menus
Route Menu 3-24
Canceling the Route 3-25
Route Overview
3-25
Route Option
3-26
Edit Waypoint
2-27
Destination Info
3-27
Route Info
3-28
Avoid Area
3-28
Navigation Settings
NAVI Setup 3-30
Main 3-31
Display
3-31
Route Search
3-32
Guidance
3-32
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E

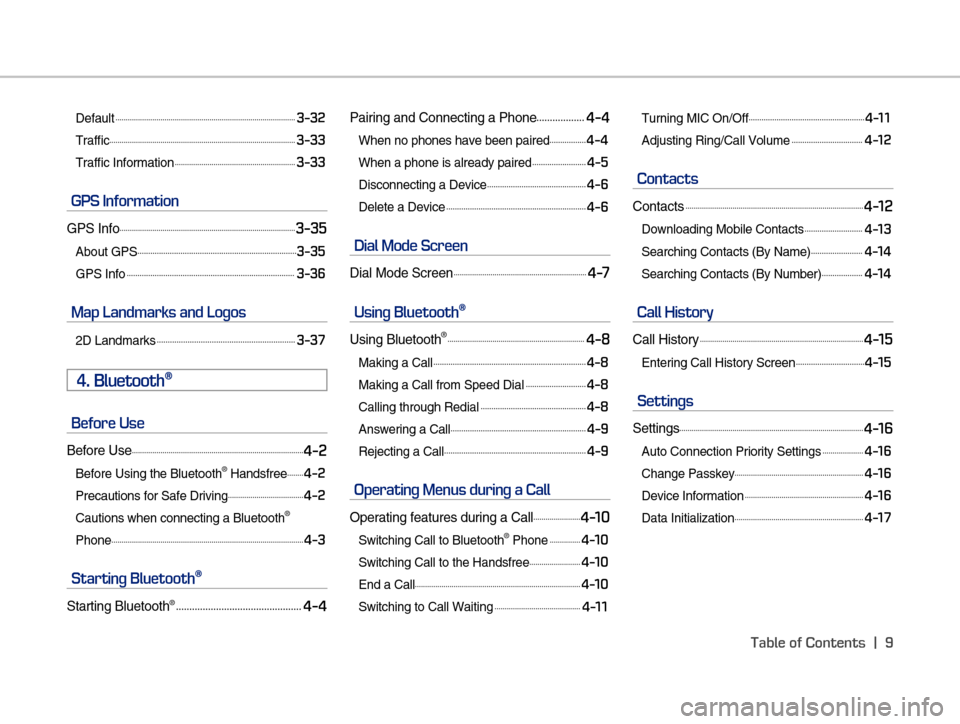

Page 11 of 261
Table of Contents ㅣ 9
Default 3-32
Traffic
3-33
Traffic Information
3-33
GPS Information
GPS Info 3-35
About GPS 3-35
GPS Info
3-36
Map Landmarks and Logos
2D Landmarks 3-37
4. Bluetooth®
Before Use
Before Use 4-2
Before Using the Bluetooth® Handsfree 4-2
Precautions for Safe Driving
4-2
Cautions when connecting a Bluetooth
®
Phone 4-3
Starting Bluetooth®
Starting Bluetooth® 4-4
Pairing and Connecting a Phone 4-4
When no phones have been paired 4-4
When a phone is already paired
4-5
Disconnecting a Device
4-6
Delete a Device
4-6
Dial Mode Screen
Dial Mode Screen 4-7
Using Bluetooth®
Using Bluetooth® 4-8
Making a Call 4-8
Making a Call from Speed Dial
4-8
Calling through Redial
4-8
Answering a Call
4-9
Rejecting a Call
4-9
Operating Menus during a Call
Operating features during a Call 4-10
Switching Call to Bluetooth® Phone 4-10
Switching Call to the Handsfree
4-10
End a Call
4-10
Switching to Call Waiting
4-11
Turning MIC On/Off 4-11
Adjusting Ring/Call Volume
4-12
Contacts
Contacts 4-12
Downloading Mobile Contacts 4-13
Searching Contacts (By Name)
4-14
Searching Contacts (By Number)
4-14
Call History
Call History 4-15
Entering Call History Screen 4-15
Settings
Settings 4-16
Auto Connection Priority Settings 4-16
Change Passkey
4-16
Device Information
4-16
Data Initialization
4-17
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 13 of 261
Table of Contents ㅣ 11
Treble/Middle/Bass 6-14
Surround
6-15
Auto Volume Control (AVC)
6-15
Volume Ratio
6-15
Default Sound
6-16
Display Settings
LCD Brightness 6-16
Illumination
6-16
Ratio
6-17
Rear Display Off (Optional)
6-17
Default Display
6-18
Adjusting Screen
6-18
Camera
About the Front View Camera (Optional) 6-19
PGS (Optional) 6-20
Changing Rear View Angle 6-20
About AVM (Optional) 6-21
Operating the Front AVM 6-21
Operating the Rear AVM
6-22
AVM Settings
6-23
7. Blue Link
Blue Link
Blue Link 7-2
Starting Mode 7-2
Blue Link Safety and Security Service
7-2
Stolen Vehicle Recovery
7-3
Location Information Service
7- 4
Car Management Information
7-5
Blue Link System Information
7-7
8. Appendix
Product Specification
Product Specification 8-2
DOLBY 8-2
DTS
8-2
AV/Navigation Product Specifications
8-2
DVD Language Code
DVD Language Code 8-4
Before thinking there is a product
defect
Before thinking there is a product defect 8-5
Before thinking there is a product
malfunction
Before thinking the product has
malfunctioned
8-6
Troubleshooting
Troubleshooting 8-7
FAQ
FAQ 8-10
About Pairing Mobile Phones 8-10
About Making/Answering Phone Calls
8-11
About Bluetooth
®/Head Unit Use
Environment
8-11
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 14 of 261
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth®
The Bluetooth® word mark and logos are registered trade-
marks owned by Bluetooth SIG, Inc. and any use of such
marks is under license.
A Bluetooth
® enabled cell phone is required to use Bluetooth®
wireless technology. Bluetooth
® phone compatibility can be
checked by visiting www.hyundaiusa.com and under the
SERVICE & PARTS – BLUETOOTH COMPATIBILITY menu.
HD RadioTM
HD Radio Technology manufactured under license from
iBiquity Digital Corporation. U.S. and Foreign Patents. HD
Radio™ and the HD, HD Radio, and “Arc” logos are propri-
etary trademarks of iBiquity Digital Corp.
Gracenote®
Gracenote®, Gracenote logo and logotype, and the “Powered
by
Gracenote” logo are either a registered trademark or a trade-
mark of Gracenote, Inc. in the United States and/or other
countries.
Music recognition technology and related data are provided
by
Gracenote
® “Portions of the content is copyright © Gracenote
or
its providers”
ABOUT DivX VIDEO
DivX® is a digital video format created by DivX, LLC, a sub-
sidiary of Rovi Corporation. This is an official DivX Certified
®
device that plays DivX video. Visit divx.com for more informa-
tion and software tools to convert your files into DivX videos.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 22 of 261
1-4
Key Product Features
This device is an all-in-one Driver Information System equipped with a multifunctional DVD player, Navigation, Bluetooth® Handsfree, Blue
Link and various other features. The WIDE VGA LCD provides a high quality resolution to both driver and passengers while the po werful and
rich sound system adds to driving enjoyment.
Display Wide TFT-LCD Display Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.
AV Support for various Media
Formats
!Ÿ Support for various media formats, including HD Radio, XM Radio, Audio/MP3/Video CD, DVD, AUX.
!Ÿ Supports USB, iPod, and Bluetooth Audio Streaming modes.
Jukebox Supports copy and play of music, video, image stored within USB into Jukebox (internal memory) mode (Max.
30GB).
Gracenote When playing music, automatically receives detailed music information, such as song name, artist, album, and
genre and displays on the screen. (Audio CD, USB, Jukebox modes supported)
Navigation Voice Guidance
!Ÿ Voice route guidance to safely and conveniently reach set destinations.
!Ÿ Various map scales that enables drivers to accurately view map and surrounding areas.
Traf c Information
!Ÿ Displays traf c congestion information on the map.
!Ÿ Provides route guidance optimized according to traf c conditions.
Etc Bluetooth
® Handsfree
Convenient use of Bluetooth® Handsfree by using buttons within the steering remote controller.
Front Central Controller 8-directional jog-dial controllers for convenient control and access to various system features.
XM Data Provides Weather, Traf c, Sports, Stock related information.
Blue Link Provides Downloaded POI, ECO Driving, Gas Station, Location sharing and various other features.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 24 of 261
1-6
Component Names and Functions
Head Unit
No NameDetails
ø FM/AM
!Ÿ Operates FM/AM mode.
!Ÿ Each time the key is pressed, mode is changed in
order of FM1 ª
FM2 ª
AM.
ù SAT
!Ÿ Operates XM Radio mode.
!Ÿ Each time the key is pressed, mode is changed in
order of XM1 ª
XM2 ª
XM3.
ú MEDIA
!Ÿ Operates DISC ª
Jukebox ª
USB/iPod ª
AUX ª
Bluetooth Audio modes.
!Ÿ If the media is not connected or a disc is not inserted,
corresponding modes will be disabled.
No Name Details
û TUNE/FILE
!Ÿ In FM/AM mode, turn to change broadcast frequen-
cies.
!Ÿ In DISC, Jukebox, USB, and iPod modes, turn to
search tracks/channels/files. When the desired
channel or le name is displayed, press to operate
the corresponding track/channel/ le.
ü Reset Resets and restar ts the system
ø ù ú
û
ü
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 25 of 261
Component Names and Functions
Component Names and Functions l 1-7
Front Central Controller
No NameDetails
ò Left Soft Key K
e
y synchronized with the button shown on the bottom
left side of the screen.
ó MENU Displays the MENU popup screen.
ô Right Soft
Key K
ey synchronized with the button shown on the bottom
right side of the screen.
õ HOME Displays the HOME screen.
ö PHONE Displays the Bluetooth
® Handsfree screen.
÷ BACK Displays the pre
vious screen.
No Name Details
ø Controller All desired functions can be oper
ated b
y turning or
pushing/pressing the 8-directional controller.
!Ÿ Turning:Moves the focus, or zoom in/out the naviga-
tion map.
!Ÿ Pushing to the 8-directions:Moves the focus or the
navigation map.
!Ÿ Pressing:Starts the focused feature.
ù MAP
VOICEDisplays the map for the current position.
ú DEST Displays the Destination setup men
u.
û
(Blue Link) Displays the Blue Link screen.
ò
÷
ó
ø
ô ù õ
ú ö
û
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 27 of 261
Component Names and Functions
Component Names and Functions l 1-9
No NameDetails
ö SAT Each time the ke
y is pressed, mode is changed in order
of XM1 ª
XM2 ª
XM3.
÷ MEDIA
!Ÿ Each time the key is pressed, the mode is changed
in order of DISC ª
Jukebox ª
USB/iPod ª
AUX ª
Bluetooth Audio modes
!Ÿ If the media is not connected or a disc is not inserted,
corresponding modes will be disabled
ø POWER Tur
ns the radio/media On/Off
ù CH In FM/AM mode , changes to the pre
vious/next preset
ú VOLUME Adjusts the volume
Rear Controller
(Optional)
ò
÷ ó
ø ô
ù õ
ú
ö
No Name Details
ò FM Each time the k
e
y is pressed, the mode is changed in
order of FM1 ª
FM2 ª
FM1
ó AM Operates AM mode
ô MUTE Mutes sound
õ SEEK When pressed shor
tly (under 0.8 seconds)
!Ÿ In FM/AM mode, searches broadcast frequencies
!Ÿ In DVDP CD/MP3/DVD and Jukebox/USB/iPod-
modes, changes the track, le or chapter
When pressed and held (over 0.8 seconds)
!Ÿ In FM/AM mode, automatically searches broadcast-
frequencies. Once released, searches and begins-
playing the next broadcast frequency
!Ÿ In DVDP CD/MP3/DVD and Jukebox/USB/iPod
modes, rewinds or fast forwards the track or le
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 30 of 261
1-12
Component Names and Functions
Steering Remote Controller
No NameDetails
ò MODE When pressed shor
tl
y. (under 0.8 seconds)
!Ÿ Turns AV mode on or changes the AV mode!Ÿ Each time this key is pressed, the mode is changed in order
of FM1
ª
FM2 ª
AM ª
XM1 ª
XM2 ª
XM3 ª
DISC ª
Jukebox ª
USB/iPod ª
AUX ª
BT Audio ª
FM1.
When pressed and held. (over 0.8 seconds)
!Ÿ Turns AV mode off.
ó Voice
Recognition When pressed shor
tl
y. (under 0.8 seconds)!Ÿ Activates voice recognition
When pressed and held. (over 0.8 seconds)
!Ÿ Ends voice recognition
ô Call When pressed shor
tl
y (Under 0.8 seconds)!Ÿ Displays Bluetooth®
phone screen
When pressed and held (Under 0.8 seconds)
!Ÿ Makes call to most recently dialed number
õ End Ends phone call
No Name Details
ö MUTE
!Ÿ Mutes sound!Ÿ During Bluetooth call, turns MIC On/Off
÷ VOL +
/
-Controls the volume
ø SEEK UP/
DO WN When pressed shor
tly. (under 0.8 seconds)
!Ÿ In FM/AM mode, searches broadcast frequencies
saved to Presets
!Ÿ In DVDP CD/MP3/DVD and Jukebox/USB/iPOD,
changes the track, le or chapter
When pressed shortly. (under 0.8 seconds)
!Ÿ In FM/AM mode, automaticall searches broadcast
freqencies and channels
!Ÿ In DVDP CD/MP3/DVD adn Jukebox/USB/iPod, re-
winds or fast forwards the track of le
ó ô
õ
ö
ò ÷
÷
ø
ø
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 34 of 261
1-16
Using the System for the First Time
HOME Screen
Press the HOME key to display the System
Home screen.
Turn the controller left/right to select the
desired mode.
While in the Home screen, press the
key to enter Sound Settings and
the
key to enter Display Settings.
Icon Description
Navigation
FM
AM
XM
DISC
Jukebox USB
Icon Description iPod
AUX
Bluetooth Audio PHONE
INFO/Setup Blue Link
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
