OWNER'S MANUAL
DIGITAL NAVIGATION SYSTEM
3NEF03
DIGITAL NAVIGATION SYSTEM
ㅣ
OWNER'S MANUAL
미국_영어
) @ 7 * @ŠÙ < 6 4 " @ / > $ 0 7 & 3 J O E E
) @ 7 * @ŠÙ < 6 4 " @ / > $ 0 7 & 3 J O E E ß
1
Page 12 of 261
Table of Contents
10
5. Voice Recognition
Using Voice Recognition
Using Voice Recognition 5-2
Creating a suitable cabin environment 5-2
Starting Voice Recognition 5-3
Starting Voice Recognition 5-3
Skipping Prompt Messages
5-4
Re-starting Voice Recognition
5-4
Ending Voice Recognition
5-4
Adjusting Voice Recognition Volume
5-4
Illustration on Using Voice Recognition 5-5
Voice Command List
Voice Command List 5-6
Help Command List 5-6
Audio System Command List 5-7
FM/AM Radio 5-7
XM Radio
5-8
CD (Audio Type)
5-8
CD (MP3 Type)
5-9
DVD
5-9
VCD (Video CD)
5-9
USB Audio 5-10
USB Video
5-10
USB Image
5-11
iPod
5-11
Jukebox Audio
5-12
Jukebox Video
5-12
Jukebox Image
5-13
Others
5-13
Phone Command List 5-13
Navigation Command List 5-14
Destination 5-14
Map
5-15
POI Category List 5-16
6. INFO/Setup
Starting Mode
Starting Mode 6-2
XM Data
XM Data 6-2
Climate
Climate 6-6
Vehicle Height (Optional)
Vehicle Height(Optional) 6-8
Driving Mode (Optional)
Driving Mode (Optional) 6-9
System Settings
Voice Recognition Settings 6-9
Clock Settings
6-10
Power Off Settings (Default Image)
6-11
Locking the Rear System
6-11
Turn Rear Climate System Off
6-12
Language
6-12
Keyboard
6-12
Interactive Guide
6-13
Help
6-13
System Update
6-13
Sound Settings
Fader/Balance 6-14
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 13 of 261
Table of Contents ㅣ 11
Treble/Middle/Bass 6-14
Surround
6-15
Auto Volume Control (AVC)
6-15
Volume Ratio
6-15
Default Sound
6-16
Display Settings
LCD Brightness 6-16
Illumination
6-16
Ratio
6-17
Rear Display Off (Optional)
6-17
Default Display
6-18
Adjusting Screen
6-18
Camera
About the Front View Camera (Optional) 6-19
PGS (Optional) 6-20
Changing Rear View Angle 6-20
About AVM (Optional) 6-21
Operating the Front AVM 6-21
Operating the Rear AVM
6-22
AVM Settings
6-23
7. Blue Link
Blue Link
Blue Link 7-2
Starting Mode 7-2
Blue Link Safety and Security Service
7-2
Stolen Vehicle Recovery
7-3
Location Information Service
7- 4
Car Management Information
7-5
Blue Link System Information
7-7
8. Appendix
Product Specification
Product Specification 8-2
DOLBY 8-2
DTS
8-2
AV/Navigation Product Specifications
8-2
DVD Language Code
DVD Language Code 8-4
Before thinking there is a product
defect
Before thinking there is a product defect 8-5
Before thinking there is a product
malfunction
Before thinking the product has
malfunctioned
8-6
Troubleshooting
Troubleshooting 8-7
FAQ
FAQ 8-10
About Pairing Mobile Phones 8-10
About Making/Answering Phone Calls
8-11
About Bluetooth
®/Head Unit Use
Environment
8-11
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 22 of 261
1-4
Key Product Features
This device is an all-in-one Driver Information System equipped with a multifunctional DVD player, Navigation, Bluetooth® Handsfree, Blue
Link and various other features. The WIDE VGA LCD provides a high quality resolution to both driver and passengers while the po werful and
rich sound system adds to driving enjoyment.
Display Wide TFT-LCD Display Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.
AV Support for various Media
Formats
!Ÿ Support for various media formats, including HD Radio, XM Radio, Audio/MP3/Video CD, DVD, AUX.
!Ÿ Supports USB, iPod, and Bluetooth Audio Streaming modes.
Jukebox Supports copy and play of music, video, image stored within USB into Jukebox (internal memory) mode (Max.
30GB).
Gracenote When playing music, automatically receives detailed music information, such as song name, artist, album, and
genre and displays on the screen. (Audio CD, USB, Jukebox modes supported)
Navigation Voice Guidance
!Ÿ Voice route guidance to safely and conveniently reach set destinations.
!Ÿ Various map scales that enables drivers to accurately view map and surrounding areas.
Traf c Information
!Ÿ Displays traf c congestion information on the map.
!Ÿ Provides route guidance optimized according to traf c conditions.
Etc Bluetooth
® Handsfree
Convenient use of Bluetooth® Handsfree by using buttons within the steering remote controller.
Front Central Controller 8-directional jog-dial controllers for convenient control and access to various system features.
XM Data Provides Weather, Traf c, Sports, Stock related information.
Blue Link Provides Downloaded POI, ECO Driving, Gas Station, Location sharing and various other features.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 34 of 261
1-16
Using the System for the First Time
HOME Screen
Press the HOME key to display the System
Home screen.
Turn the controller left/right to select the
desired mode.
While in the Home screen, press the
key to enter Sound Settings and
the
key to enter Display Settings.
Icon Description
Navigation
FM
AM
XM
DISC
Jukebox USB
Icon Description iPod
AUX
Bluetooth Audio PHONE
INFO/Setup Blue Link
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 35 of 261
Using the System for the First Time
Component Names and Functions l 1-17
Status Icons
Various system status icons, including Navigation, AV, and
Bluetooth
®, are displayed at the bottom of the screen.
No NameDescription
ò
Displayed when the Navigation voice guidance has been set to mute.
óDisplayed when AV mode has been set to mute.
ô
Displayed when a Bluetooth® phone has been connected.
Displayed upon downloading contacts from the Bluetooth® phone.
õ
Displayed when the user is on a Bluetooth® call.
Displayed when the user is on a Blue Link call.
Displayed when the microphone has been turned off during a call.
öDisplays the Blue Link phone sensitivity.
÷Displayed when data within the disc, Jukebox, or USB is currently be-
ing read.
ø
Displayed when the rear system is turned on (Optional)
Displayed when the rear system is turned off (Optional)
Displayed when the rear system is turned on but locked (Optional)
Displayed when the rear system is turned off and locked(Optional)
ùDisplayed when a le is being copied into the Jukebox.
ò ÷ ó ø ô ù õ ö
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 137 of 261
Navigation l 3-3
Navigation
About the Map
Some roads, site names, facility informa-
tion and fare rates may have changed after
map data development and may differ with
actual road conditions.
About Map Scale
If ‘300ft’ is displayed on the left side of
the map, this represents a map scale of
1/10,000.
Actual distance
Level mi/ftkm/m
1 150 ft 50 m
2 300 ft 100 m
3 700 ft 200 m
4 0.25 mi 400 m
5 0.5 mi 800 m
6 1 mi 1.6 km
7 2 mi 3.2 km
8 4 mi 6.4 km
9 8 mi 12 km
10 16 mi 25 km
11 32 mi 50 km
12 64 mi 100 km
13 130 mi 200 km
14 250 mi 400 km
i Information
!Ÿ Turn the controller left to scale in, and turn
the controller right to scale out.
!Ÿ The scales in which traffic information are
provided from 150ft~4mi. (Differentiated
by color within scale bar)
About Map Icons
Icons displayed on the map may be differ-
ent with actual conditions. Also, display of
multiple icons may be displayed under one
mark.
About Map DB
Unlicensed copying of the map in any
form, in full or in part, is strictly prohibited.
About Map Updates
1. Download the update file from
http://www.mapnsoft.com to your com-
puter then unzip it.
2. Move the update files to the root of your USB.
3. To learn more, refer to the ‘System Update’ section of this user’s manual.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 141 of 261
Navigation l 3-7
Navigation

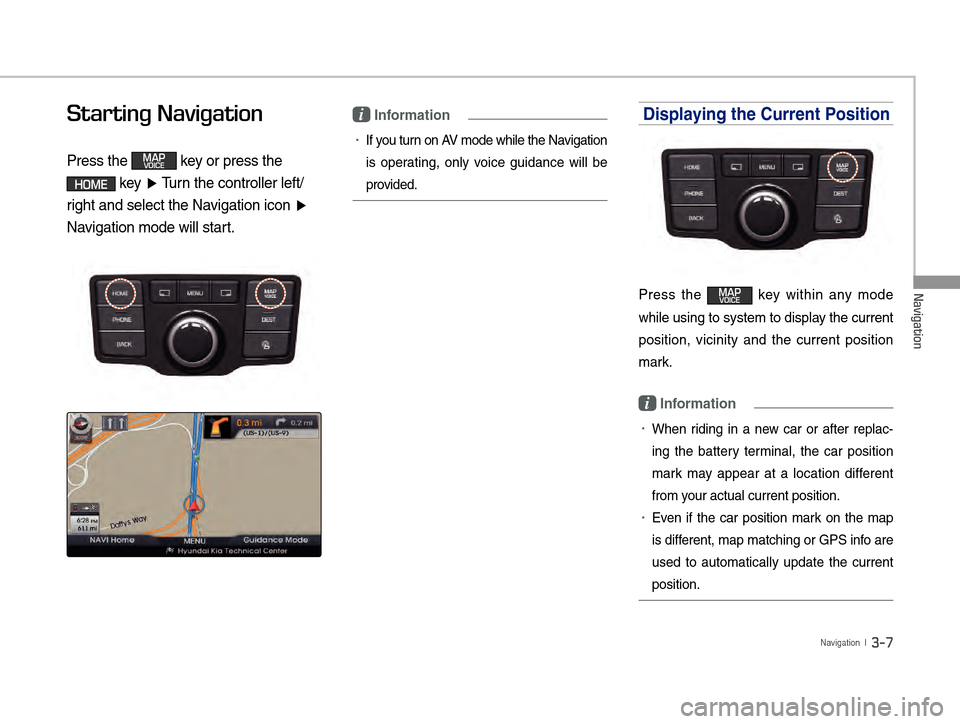

Starting Navigation
