catalytic converter Hyundai Equus 2016 Owner's Manual

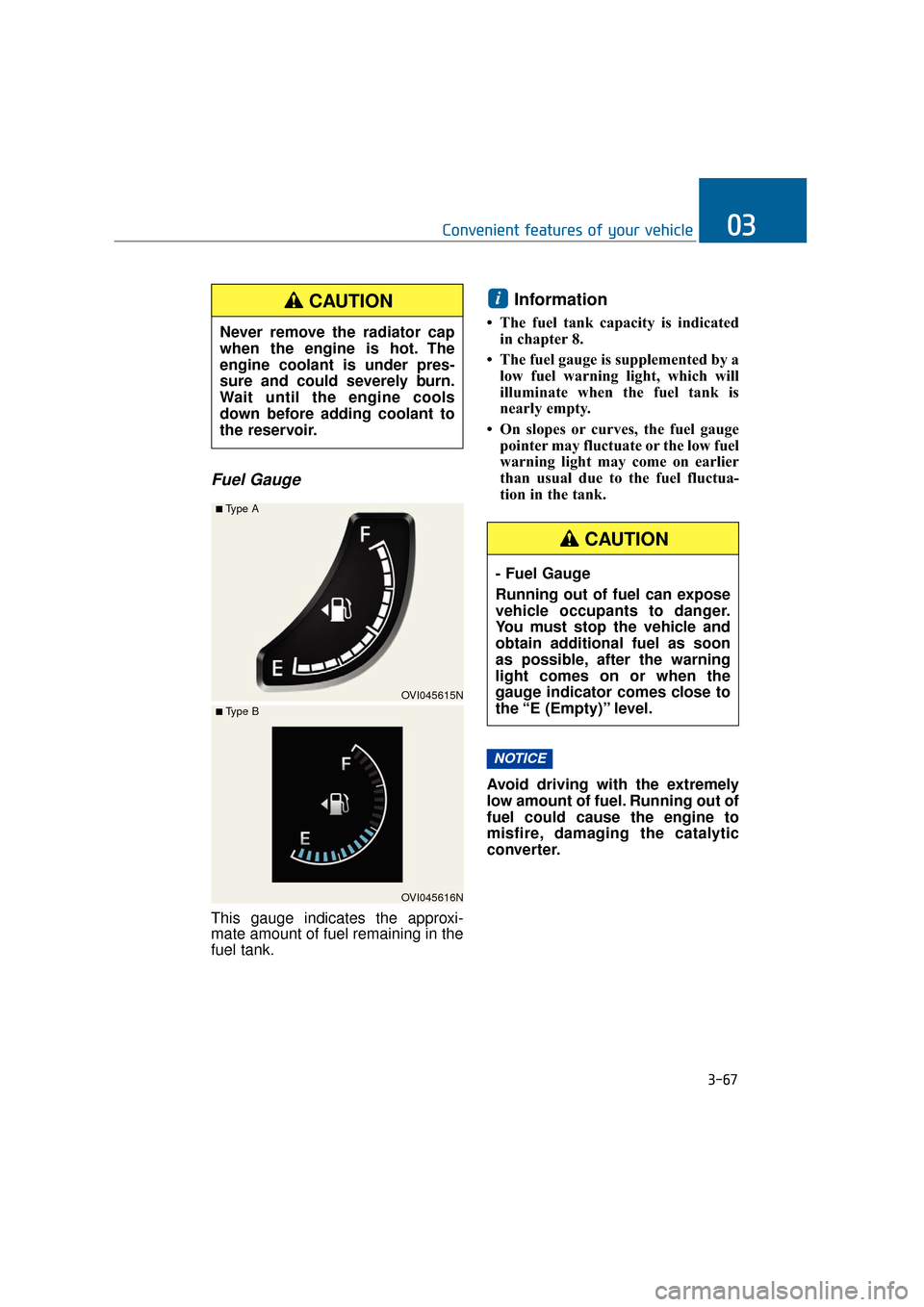

Fuel Gauge
This gauge indicates the approxi-
mate amount of fuel remaining in the
fuel tank.
Information
• The fuel tank capacity is indicatedin chapter 8.
• The fuel gauge is supplemented by a low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
• On slopes or curves, the fuel gauge pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the fuel fluctua-
tion in the tank.
Avoid driving with the extremely
low amount of fuel. Running out of
fuel could cause the engine to
misfire, damaging the catalytic
converter.
NOTICE
i
3-67
Convenient features of your vehicle03
Never remove the radiator cap
when the engine is hot. The
engine coolant is under pres-
sure and could severely burn.
Wait until the engine cools
down before adding coolant to
the reservoir.
CAUTION
OVI045615N
■Type A
OVI045616N
■ Type B
- Fuel Gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop the vehicle and
obtain additional fuel as soon
as possible, after the warning
light comes on or when the
gauge indicator comes close to
the “E (Empty)” level.
CAUTION

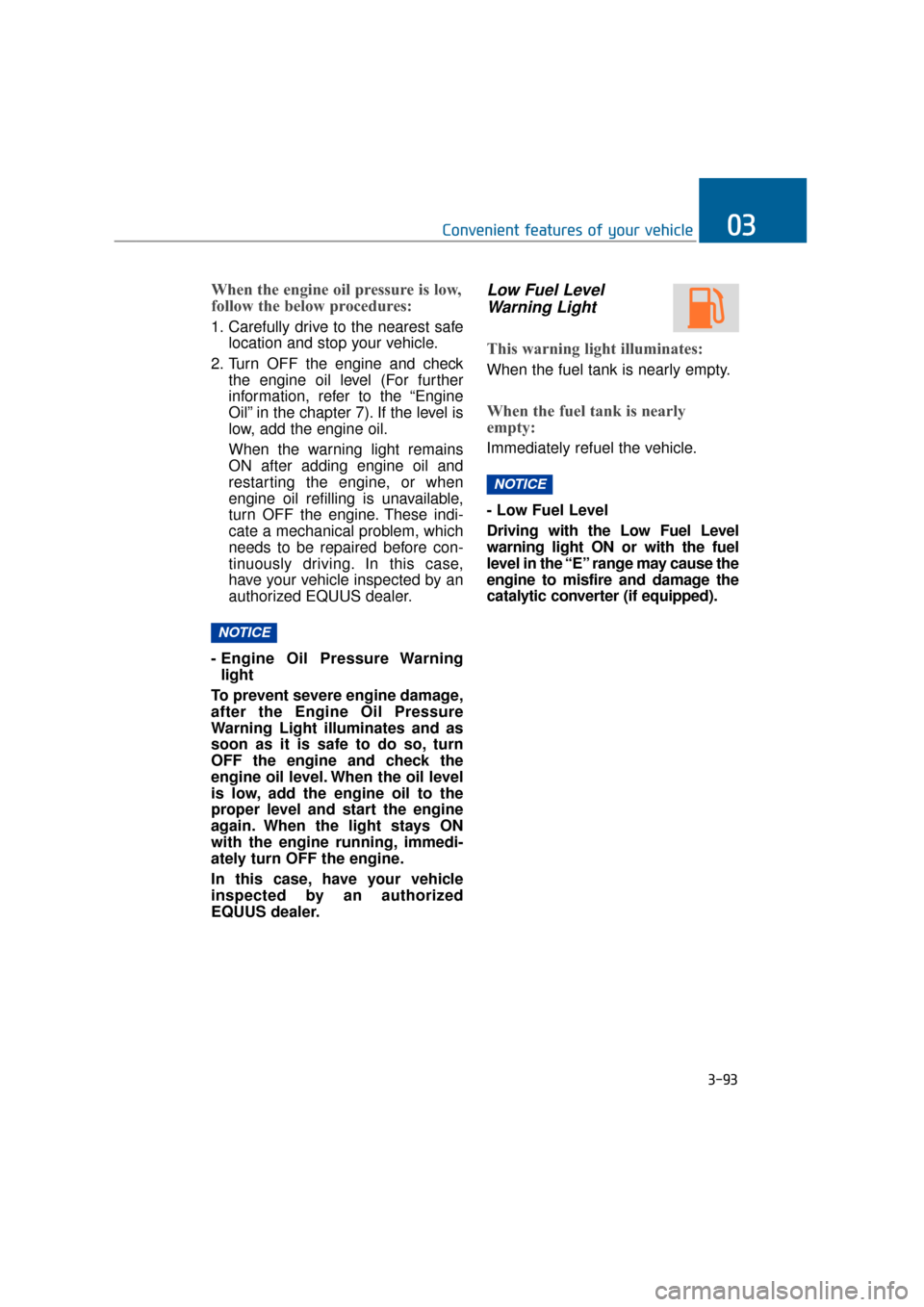

When the engine oil pressure is low,
follow the below procedures:
1. Carefully drive to the nearest safelocation and stop your vehicle.
2. Turn OFF the engine and check the engine oil level (For further
information, refer to the “Engine
Oil” in the chapter 7). If the level is
low, add the engine oil.
When the warning light remains
ON after adding engine oil and
restarting the engine, or when
engine oil refilling is unavailable,
turn OFF the engine. These indi-
cate a mechanical problem, which
needs to be repaired before con-
tinuously driving. In this case,
have your vehicle inspected by an
authorized EQUUS dealer.
- Engine Oil Pressure Warning light
To prevent severe engine damage,
after the Engine Oil Pressure
Warning Light illuminates and as
soon as it is safe to do so, turn
OFF the engine and check the
engine oil level. When the oil level
is low, add the engine oil to the
proper level and start the engine
again. When the light stays ON
with the engine running, immedi-
ately turn OFF the engine.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
Low Fuel Level Warning Light
This warning light illuminates:
When the fuel tank is nearly empty.
When the fuel tank is nearly
empty:
Immediately refuel the vehicle.
- Low Fuel Level
Driving with the Low Fuel Level
warning light ON or with the fuel
level in the “E” range may cause the
engine to misfire and damage the
catalytic converter (if equipped).
NOTICE
NOTICE
3-93
Convenient features of your vehicle03

7-91
Maintenance07

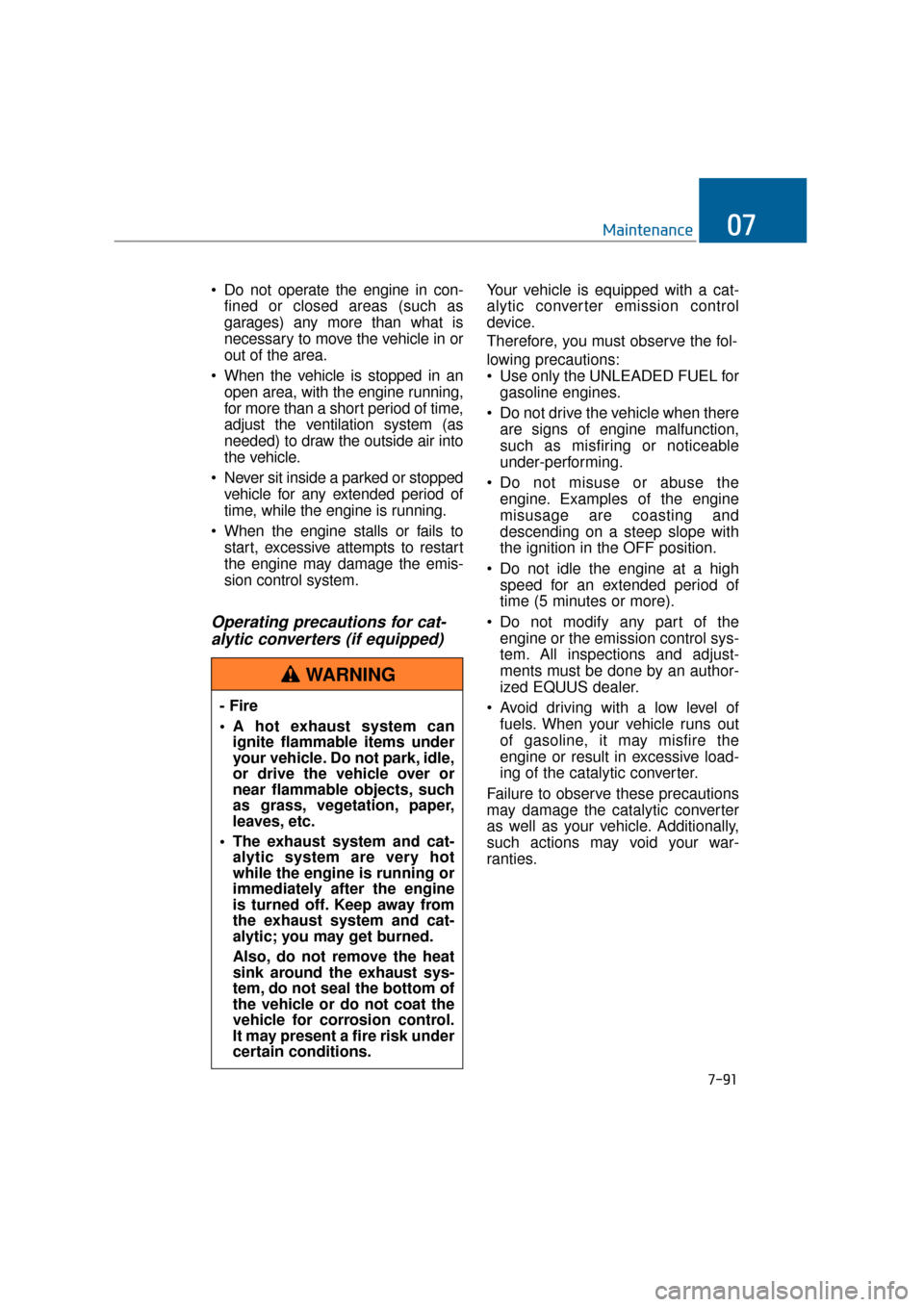

Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area, with the engine running,
for more than a short period of time,
adjust the ventilation system (as
needed) to draw the outside air into
the vehicle.
Never sit inside a parked or stopped vehicle for any extended period of
time, while the engine is running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may damage the emis-
sion control system.
Operating precautions for cat-alytic converters (if equipped)
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, you must observe the fol-
lowing precautions:
Use only the UNLEADED FUEL for
gasoline engines.
Do not drive the vehicle when there are signs of engine malfunction,
such as misfiring or noticeable
under-performing.
Do not misuse or abuse the engine. Examples of the engine
misusage are coasting and
descending on a steep slope with
the ignition in the OFF position.
Do not idle the engine at a high speed for an extended period of
time (5 minutes or more).
Do not modify any part of the engine or the emission control sys-
tem. All inspections and adjust-
ments must be done by an author-
ized EQUUS dealer.
Avoid driving with a low level of fuels. When your vehicle runs out
of gasoline, it may misfire the
engine or result in excessive load-
ing of the catalytic converter.
Failure to observe these precautions
may damage the catalytic converter
as well as your vehicle. Additionally,
such actions may void your war-
ranties.
- Fire
A hot exhaust system can
ignite flammable items under
your vehicle. Do not park, idle,
or drive the vehicle over or
near flammable objects, such
as grass, vegetation, paper,
leaves, etc.
The exhaust system and cat- alytic system are very hot
while the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic; you may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING
