Hyundai Genesis 2012 Owners Manual

Features of your vehicle
18 4

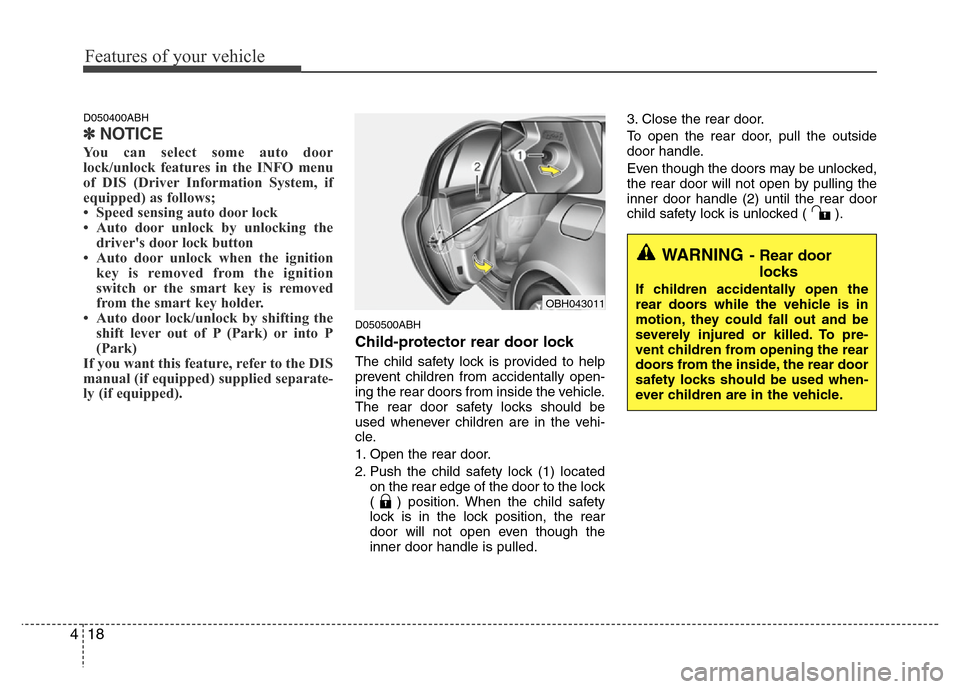

D050400ABH
✽NOTICE
You can select some auto door
lock/unlock features in the INFO menu
of DIS (Driver Information System, if
equipped) as follows;
• Speed sensing auto door lock
• Auto door unlock by unlocking the
driver's door lock button
• Auto door unlock when the ignition
key is removed from the ignition
switch or the smart key is removed
from the smart key holder.
• Auto door lock/unlock by shifting the
shift lever out of P (Park) or into P
(Park)
If you want this feature, refer to the DIS
manual (if equipped) supplied separate-
ly (if equipped).
D050500ABH
Child-protector rear door lock
The child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Push the child safety lock (1) located
on the rear edge of the door to the lock
( ) position. When the child safety
lock is in the lock position, the rear
door will not open even though the
inner door handle is pulled.3. Close the rear door.
To open the rear door, pull the outside
door handle.
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle (2) until the rear door
child safety lock is unlocked ( ).
WARNING- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.OBH043011

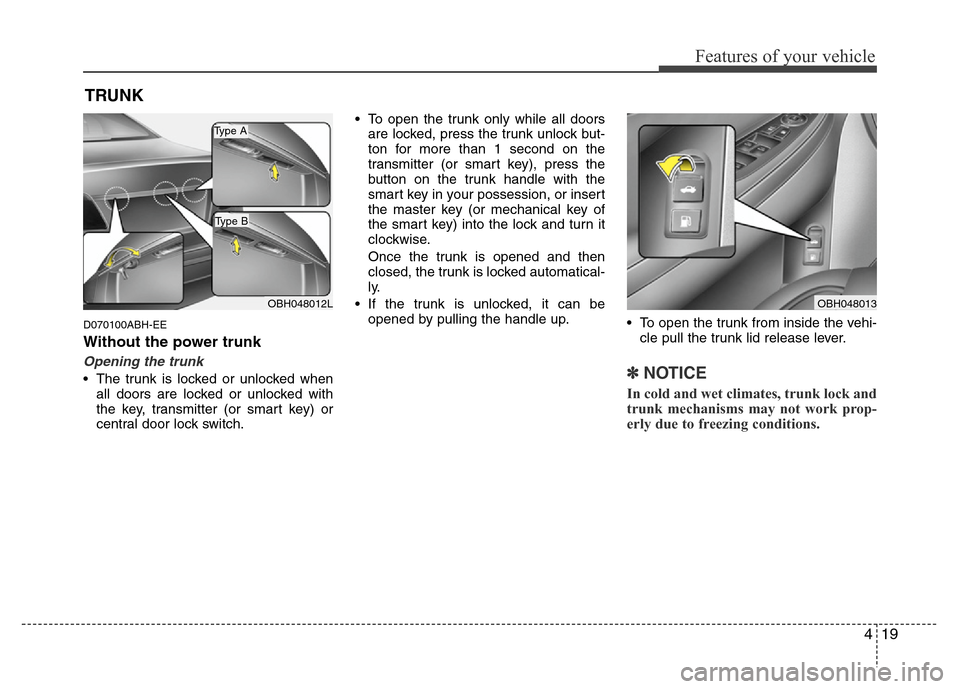

419
Features of your vehicle
D070100ABH-EE
Without the power trunk
Opening the trunk
• The trunk is locked or unlocked when
all doors are locked or unlocked with
the key, transmitter (or smart key) or
central door lock switch.• To open the trunk only while all doors
are locked, press the trunk unlock but-
ton for more than 1 second on the
transmitter (or smart key), press the
button on the trunk handle with the
smart key in your possession, or insert
the master key (or mechanical key of
the smart key) into the lock and turn it
clockwise.
Once the trunk is opened and then
closed, the trunk is locked automatical-
ly.
• If the trunk is unlocked, it can be
opened by pulling the handle up.
• To open the trunk from inside the vehi-
cle pull the trunk lid release lever.✽NOTICE
In cold and wet climates, trunk lock and
trunk mechanisms may not work prop-
erly due to freezing conditions.
TRUNK
OBH048013OBH048012L
Type B
Type A

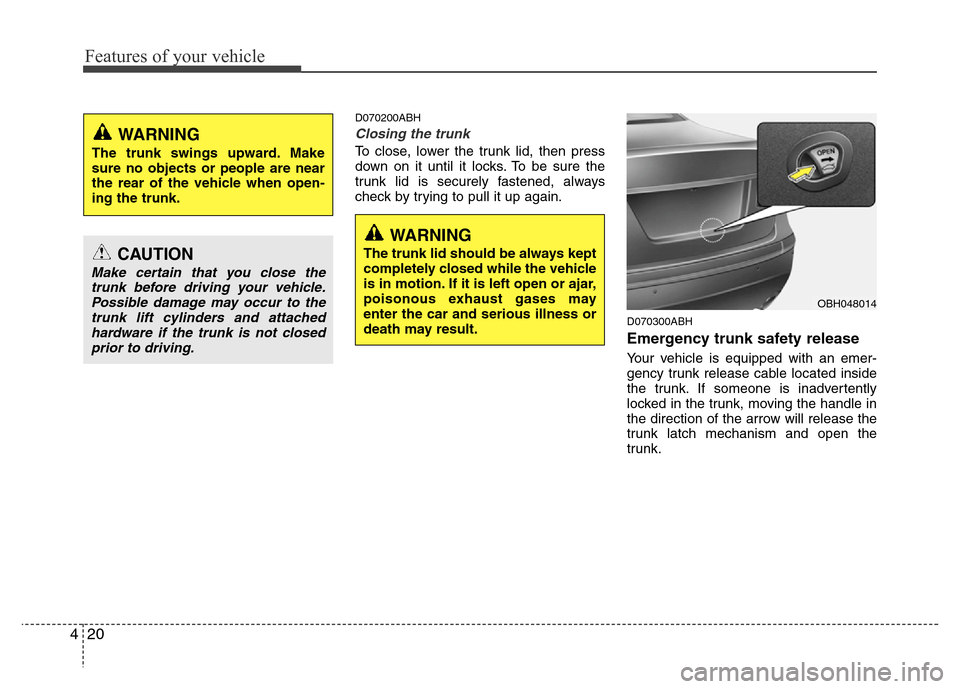

Features of your vehicle
20 4
D070200ABH
Closing the trunk
To close, lower the trunk lid, then press
down on it until it locks. To be sure the
trunk lid is securely fastened, always
check by trying to pull it up again.
D070300ABH
Emergency trunk safety release
Your vehicle is equipped with an emer-
gency trunk release cable located inside
the trunk. If someone is inadvertently
locked in the trunk, moving the handle in
the direction of the arrow will release the
trunk latch mechanism and open the
trunk.
OBH048014
CAUTION
Make certain that you close the
trunk before driving your vehicle.
Possible damage may occur to the
trunk lift cylinders and attached
hardware if the trunk is not closed
prior to driving.
WARNING
The trunk swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the trunk.
WARNING
The trunk lid should be always kept
completely closed while the vehicle
is in motion. If it is left open or ajar,
poisonous exhaust gases may
enter the car and serious illness or
death may result.

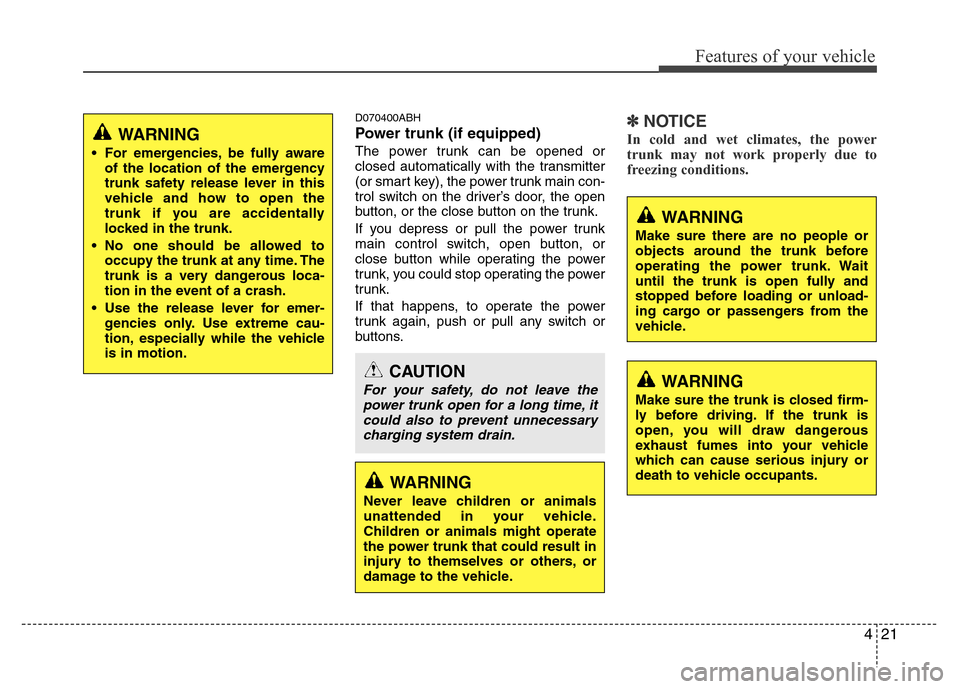

421
Features of your vehicle
D070400ABH
Power trunk (if equipped)
The power trunk can be opened or
closed automatically with the transmitter
(or smart key), the power trunk main con-
trol switch on the driver’s door, the open
button, or the close button on the trunk.
If you depress or pull the power trunk
main control switch, open button, or
close button while operating the power
trunk, you could stop operating the power
trunk.
If that happens, to operate the power
trunk again, push or pull any switch or
buttons.
✽NOTICE
In cold and wet climates, the power
trunk may not work properly due to
freezing conditions.WARNING
• For emergencies, be fully aware
of the location of the emergency
trunk safety release lever in this
vehicle and how to open the
trunk if you are accidentally
locked in the trunk.
• No one should be allowed to
occupy the trunk at any time. The
trunk is a very dangerous loca-
tion in the event of a crash.
• Use the release lever for emer-
gencies only. Use extreme cau-
tion, especially while the vehicle
is in motion.
CAUTION
For your safety, do not leave the
power trunk open for a long time, it
could also to prevent unnecessary
charging system drain.
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power trunk that could result in
injury to themselves or others, or
damage to the vehicle.
WARNING
Make sure there are no people or
objects around the trunk before
operating the power trunk. Wait
until the trunk is open fully and
stopped before loading or unload-
ing cargo or passengers from the
vehicle.
WARNING
Make sure the trunk is closed firm-
ly before driving. If the trunk is
open, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury or
death to vehicle occupants.

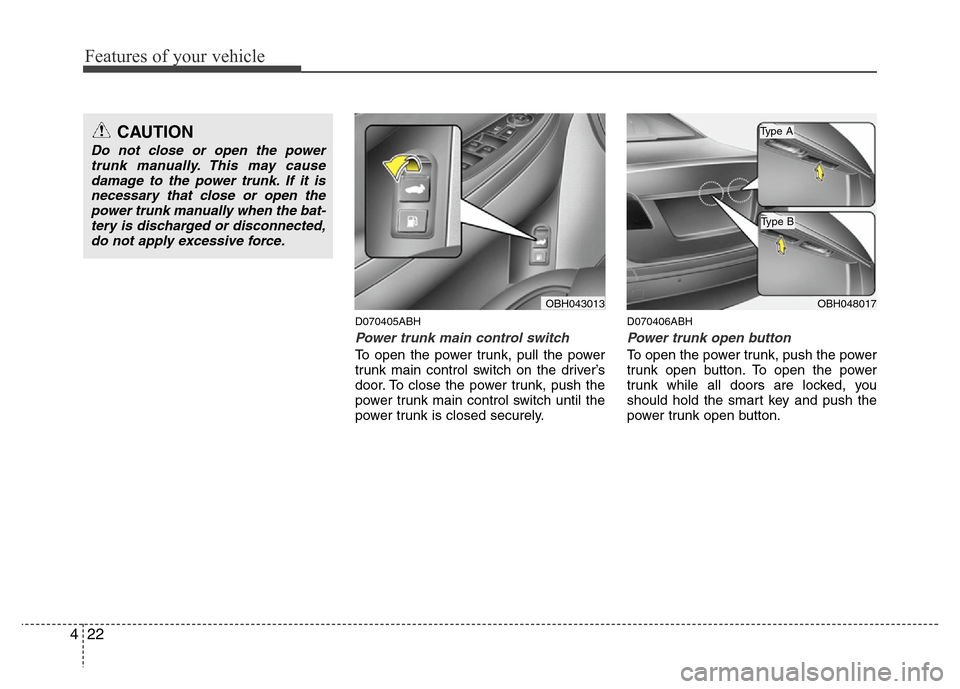

Features of your vehicle
22 4
D070405ABH
Power trunk main control switch
To open the power trunk, pull the power
trunk main control switch on the driver’s
door. To close the power trunk, push the
power trunk main control switch until the
power trunk is closed securely.
D070406ABH
Power trunk open button
To open the power trunk, push the power
trunk open button. To open the power
trunk while all doors are locked, you
should hold the smart key and push the
power trunk open button.
OBH043013OBH048017
CAUTION
Do not close or open the power
trunk manually. This may cause
damage to the power trunk. If it is
necessary that close or open the
power trunk manually when the bat-
tery is discharged or disconnected,
do not apply excessive force.
Type B
Type A

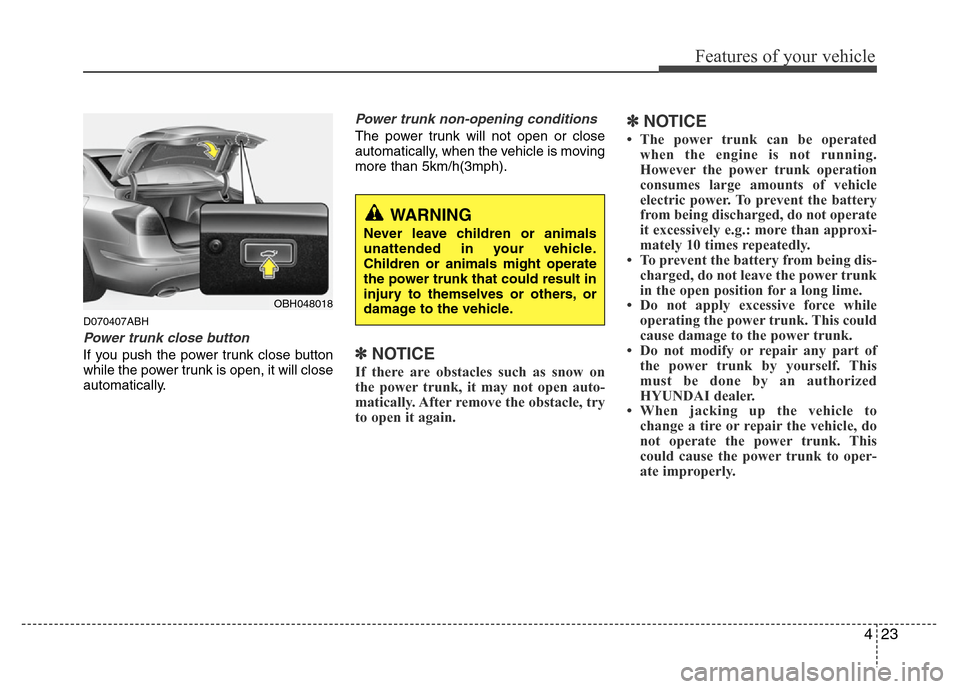

423
Features of your vehicle
D070407ABH
Power trunk close button
If you push the power trunk close button
while the power trunk is open, it will close
automatically.
Power trunk non-opening conditions
The power trunk will not open or close
automatically, when the vehicle is moving
more than 5km/h(3mph).
✽NOTICE
If there are obstacles such as snow on
the power trunk, it may not open auto-
matically. After remove the obstacle, try
to open it again.
✽NOTICE
• The power trunk can be operated
when the engine is not running.
However the power trunk operation
consumes large amounts of vehicle
electric power. To prevent the battery
from being discharged, do not operate
it excessively e.g.: more than approxi-
mately 10 times repeatedly.
• To prevent the battery from being dis-
charged, do not leave the power trunk
in the open position for a long lime.
• Do not apply excessive force while
operating the power trunk. This could
cause damage to the power trunk.
• Do not modify or repair any part of
the power trunk by yourself. This
must be done by an authorized
HYUNDAI dealer.
• When jacking up the vehicle to
change a tire or repair the vehicle, do
not operate the power trunk. This
could cause the power trunk to oper-
ate improperly.
OBH048018
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power trunk that could result in
injury to themselves or others, or
damage to the vehicle.

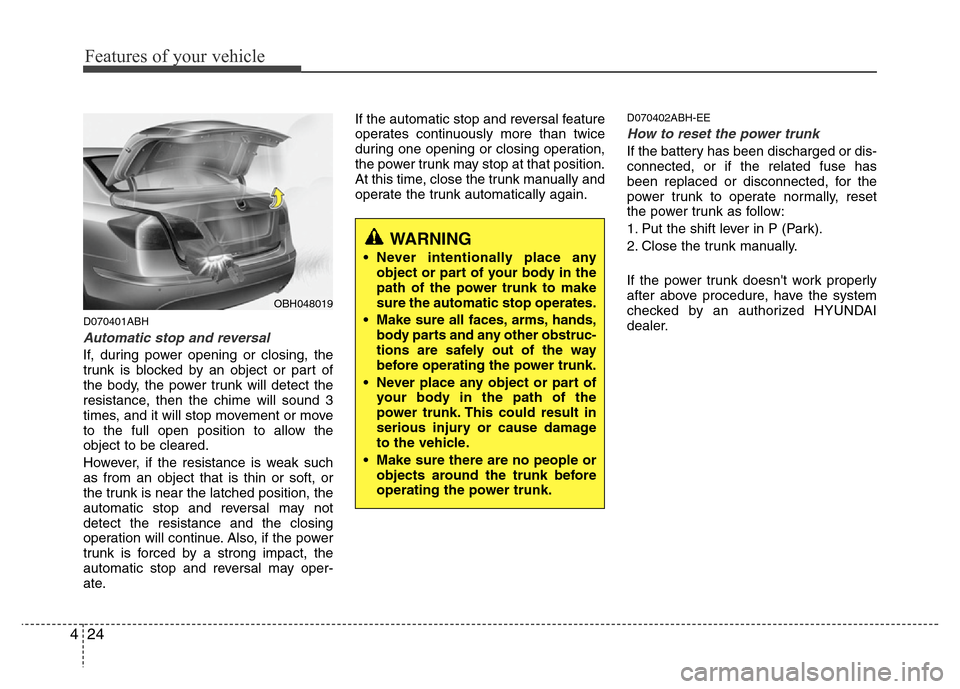

Features of your vehicle
24 4
D070401ABH
Automatic stop and reversal
If, during power opening or closing, the
trunk is blocked by an object or part of
the body, the power trunk will detect the
resistance, then the chime will sound 3
times, and it will stop movement or move
to the full open position to allow the
object to be cleared.
However, if the resistance is weak such
as from an object that is thin or soft, or
the trunk is near the latched position, the
automatic stop and reversal may not
detect the resistance and the closing
operation will continue. Also, if the power
trunk is forced by a strong impact, the
automatic stop and reversal may oper-
ate.If the automatic stop and reversal feature
operates continuously more than twice
during one opening or closing operation,
the power trunk may stop at that position.
At this time, close the trunk manually and
operate the trunk automatically again.
D070402ABH-EE
How to reset the power trunk
If the battery has been discharged or dis-
connected, or if the related fuse has
been replaced or disconnected, for the
power trunk to operate normally, reset
the power trunk as follow:
1. Put the shift lever in P (Park).
2. Close the trunk manually.
If the power trunk doesn't work properly
after above procedure, have the system
checked by an authorized HYUNDAI
dealer.
OBH048019
WARNING
• Never intentionally place any
object or part of your body in the
path of the power trunk to make
sure the automatic stop operates.
• Make sure all faces, arms, hands,
body parts and any other obstruc-
tions are safely out of the way
before operating the power trunk.
• Never place any object or part of
your body in the path of the
power trunk. This could result in
serious injury or cause damage
to the vehicle.
• Make sure there are no people or
objects around the trunk before
operating the power trunk.

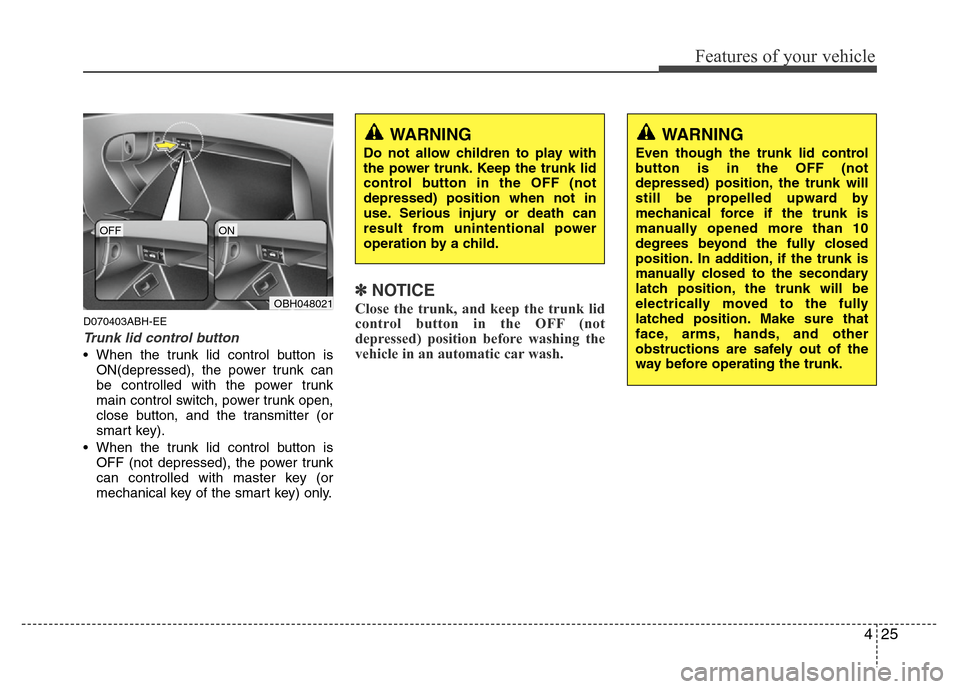

425
Features of your vehicle
D070403ABH-EE
Trunk lid control button
• When the trunk lid control button is
ON(depressed), the power trunk can
be controlled with the power trunk
main control switch, power trunk open,
close button, and the transmitter (or
smart key).
• When the trunk lid control button is
OFF (not depressed), the power trunk
can controlled with master key (or
mechanical key of the smart key) only.
✽NOTICE
Close the trunk, and keep the trunk lid
control button in the OFF (not
depressed) position before washing the
vehicle in an automatic car wash.OBH048021
OFFON
WARNING
Do not allow children to play with
the power trunk. Keep the trunk lid
control button in the OFF (not
depressed) position when not in
use. Serious injury or death can
result from unintentional power
operation by a child.
WARNING
Even though the trunk lid control
button is in the OFF (not
depressed) position, the trunk will
still be propelled upward by
mechanical force if the trunk is
manually opened more than 10
degrees beyond the fully closed
position. In addition, if the trunk is
manually closed to the secondary
latch position, the trunk will be
electrically moved to the fully
latched position. Make sure that
face, arms, hands, and other
obstructions are safely out of the
way before operating the trunk.

Features of your vehicle
26 4
D070500ABH

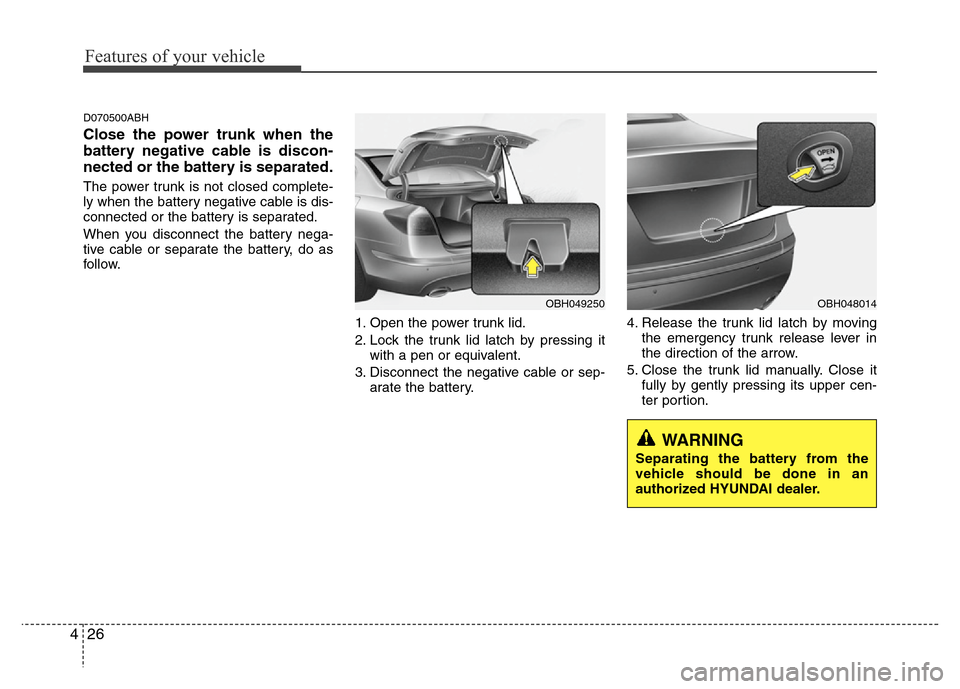

Close the power trunk when the
battery negative cable is discon-
nected or the battery is separated.
The power trunk is not closed complete-
ly when the battery negative cable is dis-
connected or the battery is separated.
When you disconnect the battery nega-
tive cable or separate the battery, do as
follow.
1. Open the power trunk lid.
2. Lock the trunk lid latch by pressing it
with a pen or equivalent.
3. Disconnect the negative cable or sep-
arate the battery.4. Release the trunk lid latch by moving
the emergency trunk release lever in
the direction of the arrow.
5. Close the trunk lid manually. Close it
fully by gently pressing its upper cen-
ter portion.
OBH049250OBH048014
WARNING
Separating the battery from the
vehicle should be done in an
authorized HYUNDAI dealer.

427
Features of your vehicle
D080000AEN

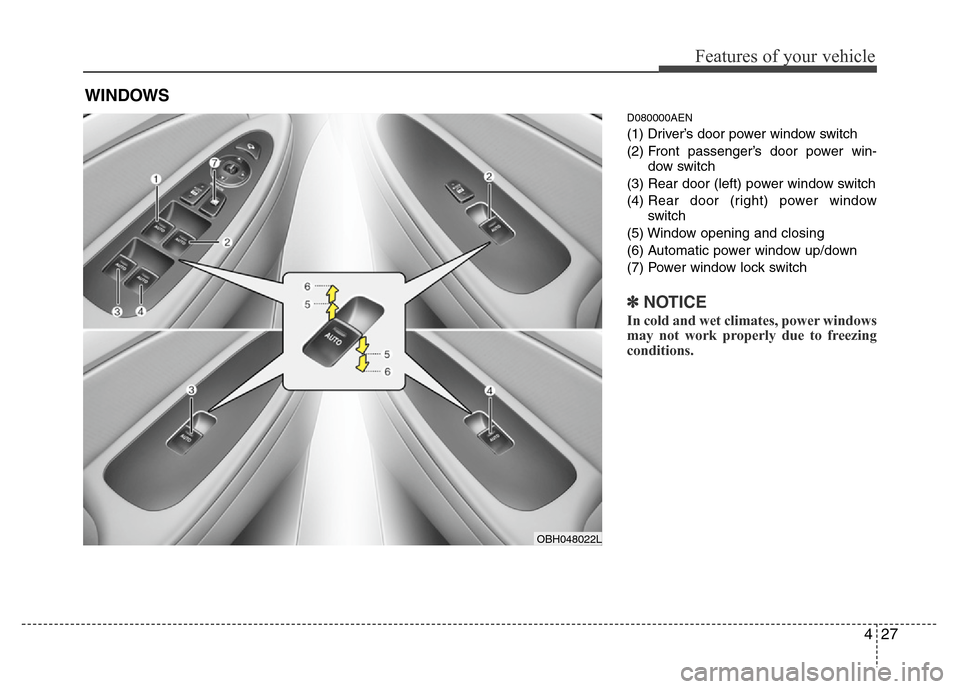

(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock switch
✽NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
WINDOWS
OBH048022L
