563

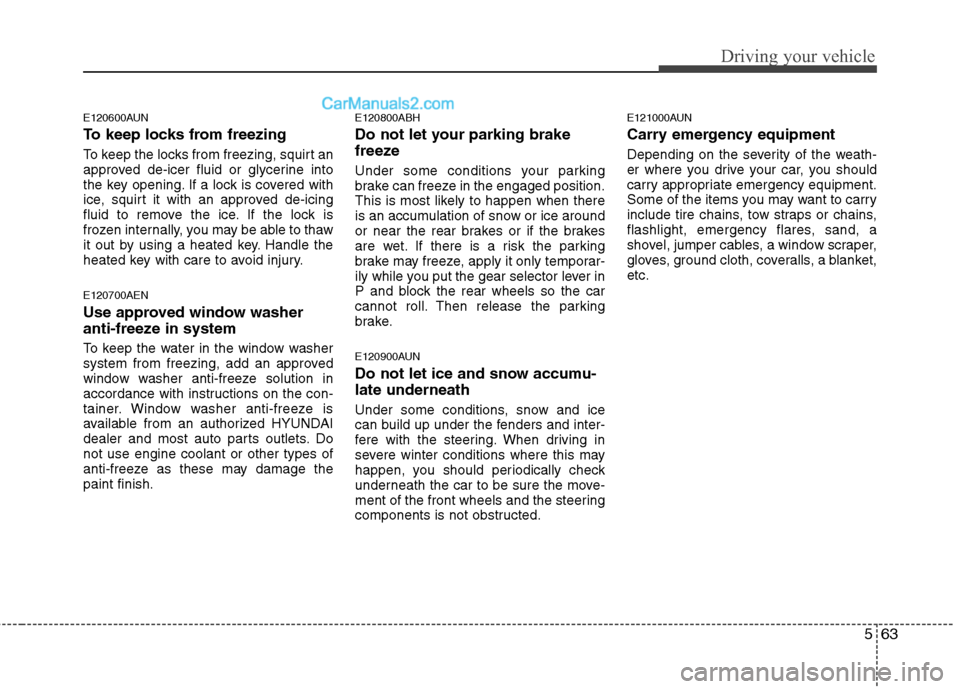

Driving your vehicle
E120600AUN
To keep locks from freezing
To keep the locks from freezing, squirt an
approved de-icer fluid or glycerine into
the key opening. If a lock is covered with
ice, squirt it with an approved de-icing
fluid to remove the ice. If the lock is
frozen internally, you may be able to thaw
it out by using a heated key. Handle the
heated key with care to avoid injury.
E120700AEN
Use approved window washer
anti-freeze in system
To keep the water in the window washer
system from freezing, add an approved
window washer anti-freeze solution in
accordance with instructions on the con-
tainer. Window washer anti-freeze is
available from an authorized HYUNDAI
dealer and most auto parts outlets. Do
not use engine coolant or other types of
anti-freeze as these may damage the
paint finish.
E120800ABH
Do not let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when there
is an accumulation of snow or ice around
or near the rear brakes or if the brakes
are wet. If there is a risk the parking
brake may freeze, apply it only temporar-
ily while you put the gear selector lever in
P and block the rear wheels so the car
cannot roll. Then release the parking
brake.
E120900AUN
Do not let ice and snow accumu-
late underneath
Under some conditions, snow and ice
can build up under the fenders and inter-
fere with the steering. When driving in
severe winter conditions where this may
happen, you should periodically check
underneath the car to be sure the move-
ment of the front wheels and the steering
components is not obstructed.
E121000AUN
Carry emergency equipment
Depending on the severity of the weath-
er where you drive your car, you should
carry appropriate emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains,
flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.

729
Maintenance

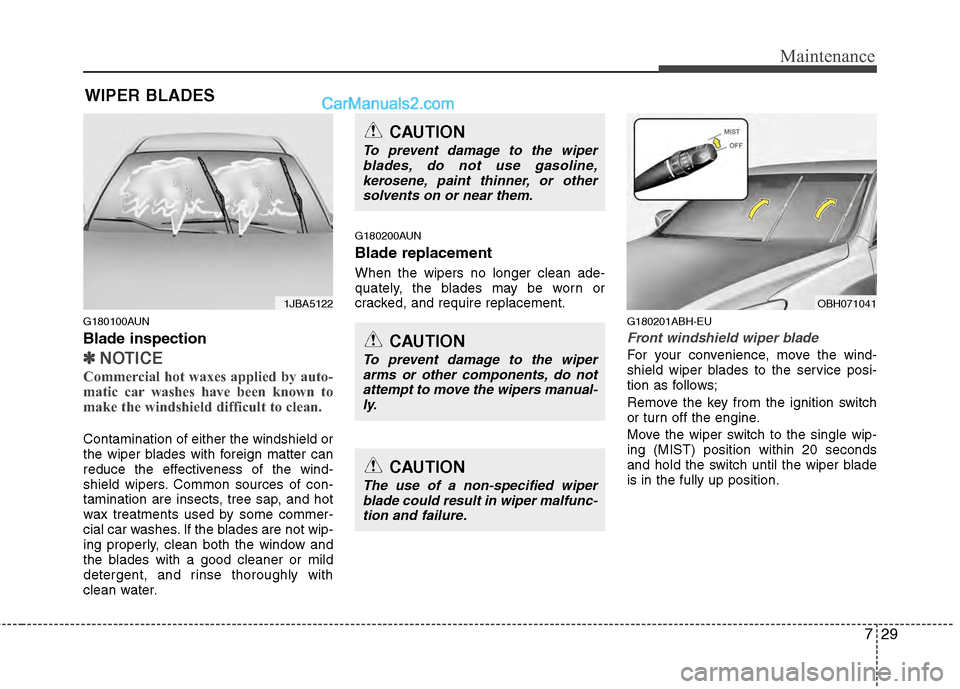

WIPER BLADES
G180100AUN
Blade inspection
✽
✽NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the wind-
shield wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.
G180200AUN
Blade replacement
When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
G180201ABH-EU
Front windshield wiper blade
For your convenience, move the wind-
shield wiper blades to the service posi-
tion as follows;
Remove the key from the ignition switch
or turn off the engine.
Move the wiper switch to the single wip-
ing (MIST) position within 20 seconds
and hold the switch until the wiper blade
is in the fully up position.
1JBA5122
CAUTION
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.
CAUTION
To prevent damage to the wiperarms or other components, do notattempt to move the wipers manual- ly.
CAUTION
The use of a non-specified wiperblade could result in wiper malfunc-tion and failure.
OBH071041

Maintenance
54
7
Instrument panel (Driver’s side fuse panel)
Description Fuse rating Protected component
P/WDW(LH) 30A Driver Power Window Module, Rear Power Window Module LH
P/WDW(RH) 30A Passenger Power Window Module, Rear Power Window Module RH
MODULE 2 10AConsole Switch LH/RH, ECS Control Module, Steering Angle Sensor, Key Lock Module,Tire Pressure
Monitoring Module
CURISE SW 10AMultifunction Switch, Crash Pad Switch, A/C Control Module, Instrument Cluster, Rear Seat Warmer
Module LH, Driver Seat Warmer Module Rear Seat Warmer Module RH, Passenger Seat Warmer
Module, Passenger CCS Control Module, Driver CCS Control Module, Generator
START 10A Transmission Range Switch
PDM 2 10A Fob Holder, Start Stop Button Switch
CLUSTER 10A Instrument Cluster (IND.)
A/CON(IG1) 10A A/C Control Module
KEY ILLUMINATION 10A Start Stop Button Switch, Door Warning Switch, Fob Holder, Key Solenoid
IG KEY SUPPLY 30AE/R Junction Box Fuse (INHIBITOR SW 15A, ECU-2 10A, EHPS 10A, CRUISE 10A, TCU 15A,
ESP 10A,STOP LP 10A, AFLS 10A)
INTELLIGENT
A/PEDAL 10A Intelligent Accel Pedal Unit
DR LOCK DRV 10A Driver Door Module
STOP LP 10A Stop Lamp Switch
A/BAG IND 10A Instrument Cluster (Air Bag IND.)
AFLS 10AAuto Head Lamp Leveling Device Sensor, Adaptive Front Lighting Module, Head Lamp LH, Head
Lamp RH
PDM 1 10A PDM
SECURITY LP 10A Data Link Connector, Auto Light Sensor & Security Indicator, Rear Door Module LH/RH,Shift Lock

Maintenance
56
7
Description Fuse rating Protected component
CURTAIN (RR) 10A Rear Curtain Module
MIRROR 10A Driver Door Module, Passenger Door Module
IG KEY SUPPLY 30A E/R Junction Box Fuse (AQS 10A, WASHER 15A)
SUNROOF 20A Overhead Console Lamp
CONSOLE SW 10A Console Switch LH/RH, Piezo Buzzer
A/CON(IG2) 10A Active Incar Sensor, A/C Control Module
P/SEAT PASS 20A Passenger Power Seat Relay Box
S/HEATER RR 20A Rear Seat Warmer Module LH/RH, Rear Power Seat Control Switch
MODULE 1 10A Instrument Cluster, Rheostat, Driver CCS Control Module, Passenger CCS Control Module, PDM, IPM
MODULE 3 10A Electro Chromic Mirror, Overhead Console Lamp, Rain Sensor, Rear Curtain Module, Camera Module
S/HEATER PASS 20A Passenger CCS Control Module, Passenger Seat Warmer Module
DR LOCK PASS 15A Passenger Door Module
P/SEAT RR 20A Rear Power Seat Relay Box, Rear Slide Limit Switch LH
HTD STRG 15A Steering Wheel Heater
P/OUTLET RR 15A Rear Accessory Socket
P/OUTLET FRT 10A ACC Socket Relay
MODULE 2 10A A/C Control Module, IPM, PDM, Key Lock Module
PDM 25A PDM
AUDIO 10A Audio, Camera Module, Rear Audio Switch, Front Monitor, Media Module, AV Head Module
Instrument panel (Passanger’s side fuse panel)

Maintenance
78
7
CALIFORNIA PERCHLORATE NOTICE
G280000AEN
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners
and keyless remote entry batteries, must
be disposed of according to Title 22
California Code of Regulations Section
67384.10 (a).

Index
2I
Air bag - advanced supplemental restraint system ······ 3-35Air bag warning label ··················\
··················\
············ 3-60
Curtain air bag ··················\
··················\
··················\
····· 3-52
Driver's and passenger's front air bag ··················\
····· 3-46
Occupant classification system ··················\
··············· 3-41
Side impact air bag ··················\
··················\
················ 3-50
SRS components and functions ··················\
··············· 3-38
Air cleaner ··················\
··················\
··················\
············· 7-24
Appearance care ··················\
··················\
··················\
···· 7-69
Audio system ··················\
··················\
··················\
······· 4-115 Antenna ················\
··················\
··················\
··············· 4-115
Bluetooth
®Wireless Technology phone operation ····4-151
HD RadioTM··················\
··················\
··················\
··········4-147
PA710BH ·················\
··················\
··················\
············ 4-120
PA760BH ·················\
··················\
··················\
············ 4-133
Steering wheel audio control ··················\
················· 4-115
Automatic climate control system ··················\
············· 4-89 Air conditioning ··················\
··················\
··················\
·· 4-96
Automatic heating and air conditioning ··················\
·· 4-90
Manual heating and air conditioning ··················\
······ 4-91
Rear vent ··················\
··················\
··················\
··········· 4-100
Automatic transmission ··················\
··················\
··········· 5-11 Ignition key interlock system ··················\
··················\
5-15
Shift lock system ··················\
··················\
··················\
· 5-14
Sports mode ··················\
··················\
··················\
········· 5-14 Battery ················\
··················\
··················\
··················\
··· 7-32
Before driving ··················\
··················\
··················\
·········· 5-3
Binding arbitration ··················\
··················\
··················\
· 8-10
Brake fluid ··················\
··················\
··················\
············· 7-21
Brake system ··················\
··················\
··················\
········· 5-18
Anti-lock brake system (ABS) ··················\
················ 5-28
Auto hold ··················\
··················\
··················\
···············5-25
Electric parking brake (EPB) ··················\
··················\
··5-20
Electronic stability control (ESC) ··················\
··········· 5-30
Parking brake ··················\
··················\
··················\
······· 5-19
Power brakes ··················\
··················\
··················\
······· 5-18
Bulb wattage ··················\
··················\
··················\
············ 8-2
California perchlorate notice ··················\
··················\
··· 7-78
Child restraint system ··················\
··················\
·············· 3-27 Placing a passenger seat belt into the auto lock mode ·················\
··················\
··················\
··················\
· 3-29
Securing a child restraint seat with tether anchor system ·················\
··················\
··················\
················· 3-31
Securing a child restraint seat with child seat lower anchor system ··················\
··················\
··················\
···· 3-33
Climate control air filter ··················\
··················\
·········· 7-27
Consumer information ··················\
··················\
··············· 8-9
Cruise control system ··················\
··················\
·············· 5-36
AB
C

Index
4I
Indicator symbols on the instrument cluster ················· 1-7
Instrument cluster ··················\
··················\
··················\
·· 4-48Engine temperature gauge ··················\
··················\
····· 4-51
Fuel gauge ··················\
··················\
··················\
··········· 4-52
Instrument panel illumination ··················\
················· 4-50
Speedometer ···············\
··················\
··················\
··········· 4-50
Tachometer ················\
··················\
··················\
············ 4-50
Trip computer ··················\
··················\
··················\
······ 4-52
Warning and indicators ··················\
··················\
·········· 4-57
Warning on the LCD screen ··················\
··················\
·· 4-68
Instrument panel overview ··················\
··················\
········ 2-3
Interior features ··················\
··················\
··················\
··· 4-106 Ashtray ················\
··················\
··················\
················ 4-106
AUX, USB and iPod
®port ·················\
··················\
··· 4-113
Bluetooth®Wireless Technology hands-free ··········· 4-114
Cigarette lighter ··················\
··················\
··················\
· 4-106
Clothes hanger ··················\
··················\
··················\
··· 4-111
Cup holder ··················\
··················\
··················\
········· 4-107
Digital clock ··················\
··················\
··················\
······ 4-109
DIS(Driver Information System) ··················\
·········· 4-114
Floor mat anchor(s) ··················\
··················\
···············4-111
Luggage net (holder) ··················\
··················\
··········· 4-112
Navigation system ··················\
··················\
··············· 4-113
Outside thermometer ··················\
··················\
··········· 4-110
Power outlet ··················\
··················\
··················\
······· 4-108
Rear curtain ··················\
··················\
··················\
······· 4-112
Sunvisor ·················\
··················\
··················\
·············· 4-107 Interior light ··················\
··················\
··················\
··········· 4-85
Interior overview ··················\
··················\
··················\
····· 2-2
Key ··················\
··················\
··················\
··················\
········· 5-5
Ignition switch position ··················\
··················\
··········· 5-5
Starting the engine ··················\
··················\
··················\
· 5-6
Keys ··················\
··················\
··················\
··················\
······· 4-3
Lane departure warning system (LDWS) ··················\
····5-51
Light bulbs ··················\
··················\
··················\
············· 7-60 Headlight, position light, turn signal light, side marker light and front fog light bulb replacement ············· 7-60
High mounted stop light replacement ··················\
····· 7-63
Interior light bulb replacement ··················\
················ 7-68
License plate light bulb replacement ··················\
······ 7-67
Door courtesy lamp bulb replacement ··················\
···· 7-68
Rear combination light bulb replacement ················· 7-62
Side repeater light bulb replacement ··················\
······· 7-62
Lighting ················\
··················\
··················\
··················\
· 4-77 AFLS(Adaptive Front Lighting System) ··················\
4-81
Battery saver function ··················\
··················\
··········· 4-77
Headlight escort function ··················\
··················\
········4-77
L
K

I5
Index
Maintenance services ··················\
··················\
················· 7-5
Mirrors ················\
··················\
··················\
··················\
··· 4-39Electric chromic mirror (ECM) with compass and HomeLink® system ··················\
··················\
············ 4-39
Inside rearview mirror ··················\
··················\
··········· 4-39
Outside rearview mirror ··················\
··················\
········ 4-45
Owner maintenance ··················\
··················\
··················\
· 7-6
Parking assist system ··················\
··················\
··············· 4-72
Power steering fluid ··················\
··················\
················· 7-22
Rear view camera ··················\
··················\
··················\
·· 4-76
Recommended lubricants and capacities ··················\
····· 8-4
Remote keyless entry ··················\
··················\
··············· 4-11
Reporting safety defects ··················\
··················\
············ 8-9
Road warning ··················\
··················\
··················\
··········· 6-2 Scheduled maintenance service ··················\
··················\
· 7-8
Normal maintenance schedule ··················\
··················\
7-9
Maintenance under severe usage conditions ············· 7-12
Seat belts ··················\
··················\
··················\
················ 3-16 Pre-tensioner seat belt ··················\
··················\
··········· 3-21
Seat belt - Driver's 3-point system with emergency locking retractor ··················\
········· 3-18
Seat belts - Front passenger and rear seat 3-point system with combination locking retractor ·· 3-20
Seat warmer ··················\
··················\
··················\
······3-8, 3-14
Seats ·················\
··················\
··················\
··················\
········ 3-2 Armrest ················\
··················\
··················\
··················\
3-13
Smart cruise control system··················\
··················\
·······5-40
Smart key ··················\
··················\
··················\
················· 4-6
Special driving conditions ··················\
··················\
······· 5-56 Driving at night ··················\
··················\
··················\
··· 5-57
Driving in flooded areas ··················\
··················\
········ 5-58
Driving in the rain ··················\
··················\
················· 5-58
Hazardous driving conditions ··················\
··················\
5-56
Highway driving ··················\
··················\
··················\
·· 5-59
Rocking the vehicle ··················\
··················\
··············· 5-56
Smooth cornering ··················\
··················\
··················\
5-57
Steering wheel ··················\
··················\
··················\
······· 4-37 Horn ·················\
··················\
··················\
··················\
···· 4-38
Power steering ··················\
··················\
··················\
····· 4-37
Tilt steering ··················\
··················\
··················\
·········· 4-37
MS
O
P
R
