Hyundai Genesis 2014 Owner's Guide

2-13
Safety system of your vehicle
2

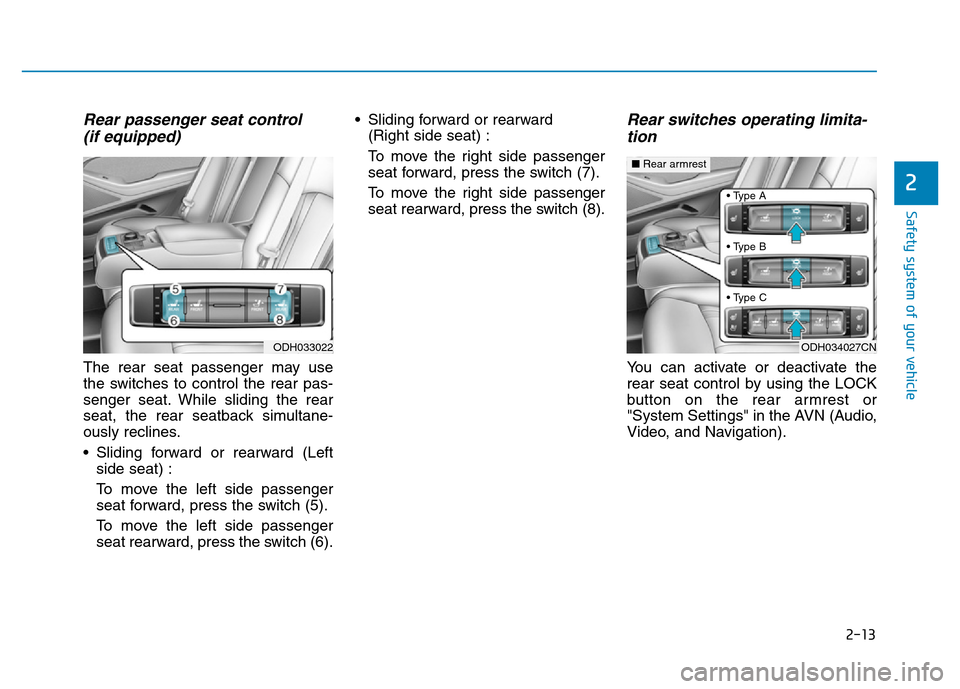

Rear passenger seat control
(if equipped)
The rear seat passenger may use
the switches to control the rear pas-
senger seat. While sliding the rear
seat, the rear seatback simultane-
ously reclines.
• Sliding forward or rearward (Left
side seat) :
To move the left side passenger
seat forward, press the switch (5).
To move the left side passenger
seat rearward, press the switch (6).• Sliding forward or rearward
(Right side seat) :
To move the right side passenger
seat forward, press the switch (7).
To move the right side passenger
seat rearward, press the switch (8).
Rear switches operating limita-
tion
You can activate or deactivate the
rear seat control by using the LOCK
button on the rear armrest or
"System Settings" in the AVN (Audio,
Video, and Navigation).
ODH034027CN • Type A
• Type B
• Type CODH033022
■Rear armrest

2-14
Safety system of your vehicle

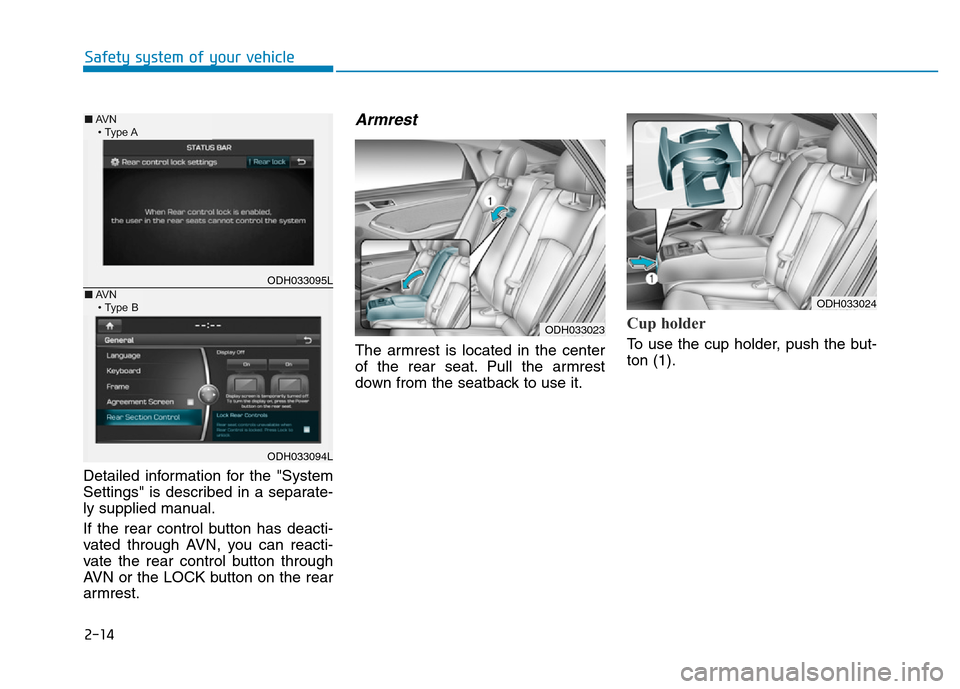

Detailed information for the "System
Settings" is described in a separate-
ly supplied manual.
If the rear control button has deacti-
vated through AVN, you can reacti-
vate the rear control button through
AVN or the LOCK button on the rear
armrest.
Armrest
The armrest is located in the center
of the rear seat. Pull the armrest
down from the seatback to use it.
Cup holder
To use the cup holder, push the but-
ton (1).
ODH033095L
ODH033094L
■AV N
• Type A
■AV N
• Type B
ODH033023
ODH033024

2-15
Safety system of your vehicle
2

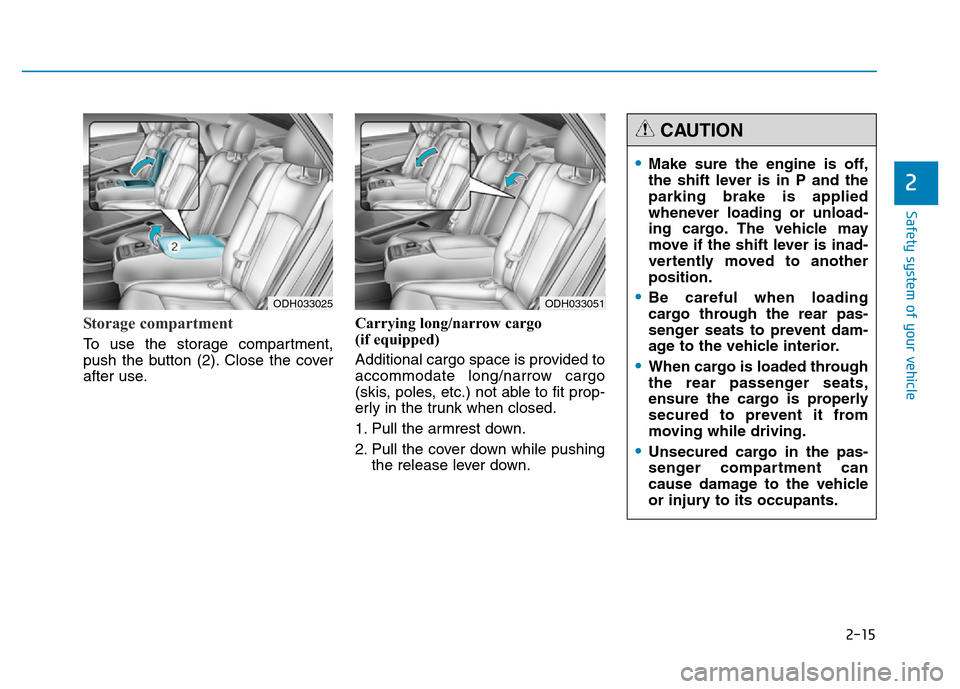

Storage compartment
To use the storage compartment,
push the button (2). Close the cover
after use.Carrying long/narrow cargo
(if equipped)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the trunk when closed.
1. Pull the armrest down.
2. Pull the cover down while pushing
the release lever down.
ODH033051ODH033025
•Make sure the engine is off,
the shift lever is in P and the
parking brake is applied
whenever loading or unload-
ing cargo. The vehicle may
move if the shift lever is inad-
vertently moved to another
position.
•Be careful when loading
cargo through the rear pas-
senger seats to prevent dam-
age to the vehicle interior.
•When cargo is loaded through
the rear passenger seats,
ensure the cargo is properly
secured to prevent it from
moving while driving.
•Unsecured cargo in the pas-
senger compartment can
cause damage to the vehicle
or injury to its occupants.
CAUTION

2-16

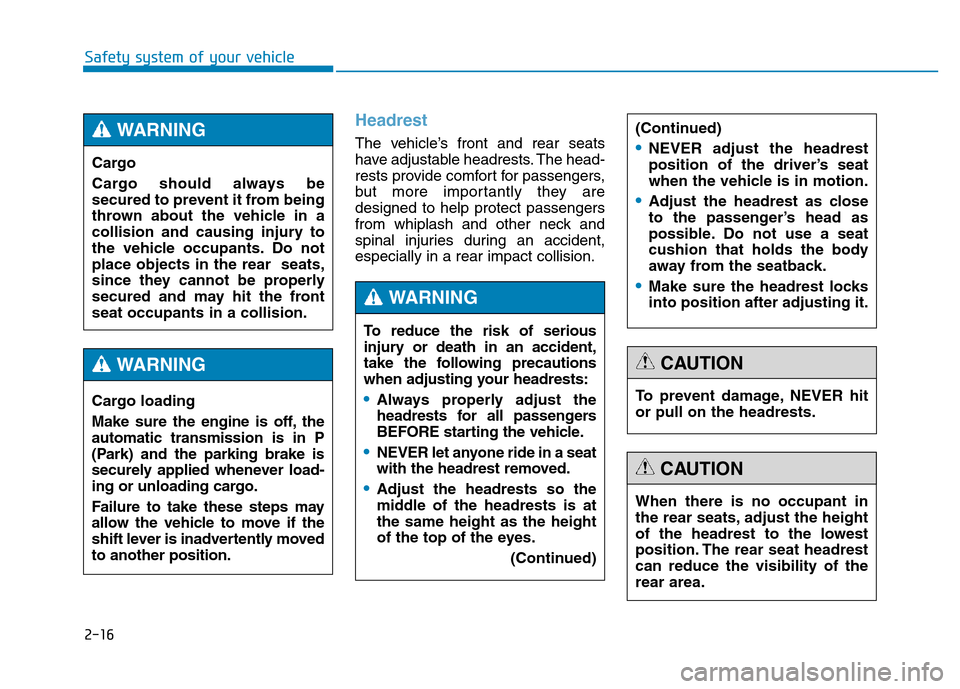

Headrest
The vehicle’s front and rear seats
have adjustable headrests. The head-
rests provide comfort for passengers,
but more importantly they are
designed to help protect passengers
from whiplash and other neck and
spinal injuries during an accident,
especially in a rear impact collision.
Safety system of your vehicle
To reduce the risk of serious
injury or death in an accident,
take the following precautions
when adjusting your headrests:
•Always properly adjust the
headrests for all passengers
BEFORE starting the vehicle.
•NEVER let anyone ride in a seat
with the headrest removed.
•Adjust the headrests so the
middle of the headrests is at
the same height as the height
of the top of the eyes.
(Continued)
WARNING
(Continued)
•NEVER adjust the headrest
position of the driver’s seat
when the vehicle is in motion.
•Adjust the headrest as close
to the passenger’s head as
possible. Do not use a seat
cushion that holds the body
away from the seatback.
•Make sure the headrest locks
into position after adjusting it.
To prevent damage, NEVER hit
or pull on the headrests.
CAUTION
When there is no occupant in
the rear seats, adjust the height
of the headrest to the lowest
position. The rear seat headrest
can reduce the visibility of the
rear area.
CAUTION
Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects in the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.
WARNING
Cargo loading
Make sure the engine is off, the
automatic transmission is in P
(Park) and the parking brake is
securely applied whenever load-
ing or unloading cargo.
Failure to take these steps may
allow the vehicle to move if the
shift lever is inadvertently moved
to another position.
WARNING

2-17
Safety system of your vehicle
2
Front seat headrests
The driver’s and front passenger’s
seats are equipped with adjustable
headrests for the passengers safety
and comfort.
Forward and rearward adjustment
The headrest may be adjusted for-
ward to 3 different positions by
pulling the headrest forward to the
desired detent. To adjust the head-
rest to it’s furthest rearwards posi-
tion, pull it fully forward to the farthest
position and release it.
Adjusting the height up and down
To raise the headrest:
1. Pull it up to the desired position (1).
To lower the headrest:
1. Push and hold the release button
(2) on the headrest support.
2. Lower the headrest to the desired
position (3).
ODH033105L
ODH033009ODH033010

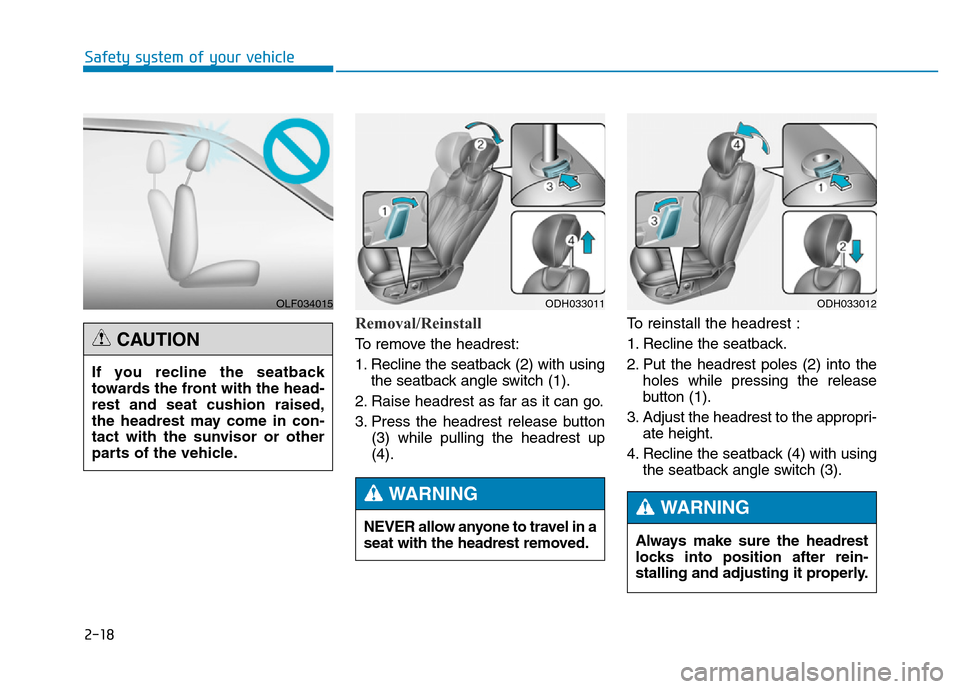

2-18
Safety system of your vehicle
Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with using
the seatback angle switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button
(3) while pulling the headrest up
(4).To reinstall the headrest :
1. Recline the seatback.
2. Put the headrest poles (2) into the
holes while pressing the release
button (1).
3. Adjust the headrest to the appropri-
ate height.
4. Recline the seatback (4) with using
the seatback angle switch (3).
NEVER allow anyone to travel in a
seat with the headrest removed.
WARNING
ODH033011ODH033012
Always make sure the headrest
locks into position after rein-
stalling and adjusting it properly.
WARNING
OLF034015
If you recline the seatback
towards the front with the head-
rest and seat cushion raised,
the headrest may come in con-
tact with the sunvisor or other
parts of the vehicle.
CAUTION

2-19
Safety system of your vehicle
2

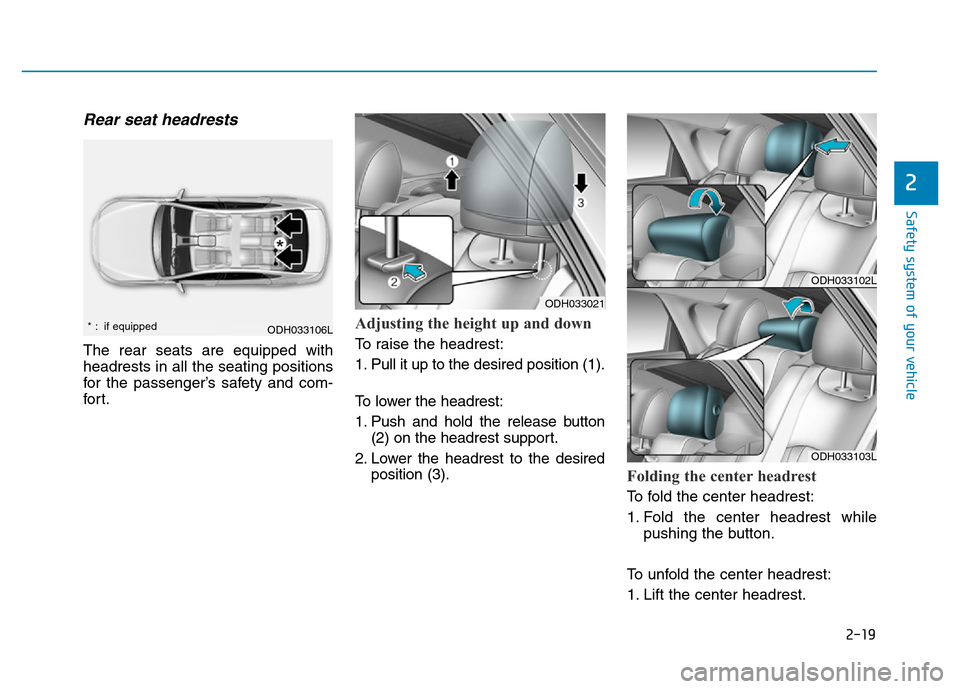

Rear seat headrests
The rear seats are equipped with
headrests in all the seating positions
for the passenger’s safety and com-
for t.
Adjusting the height up and down
To raise the headrest:
1. Pull it up to the desired position (1).
To lower the headrest:
1. Push and hold the release button
(2) on the headrest support.
2. Lower the headrest to the desired
position (3).
Folding the center headrest
To fold the center headrest:
1. Fold the center headrest while
pushing the button.
To unfold the center headrest:
1. Lift the center headrest.
ODH033021
ODH033102L
ODH033103L
ODH033106L* : if equipped
*

2-20
Safety system of your vehicle

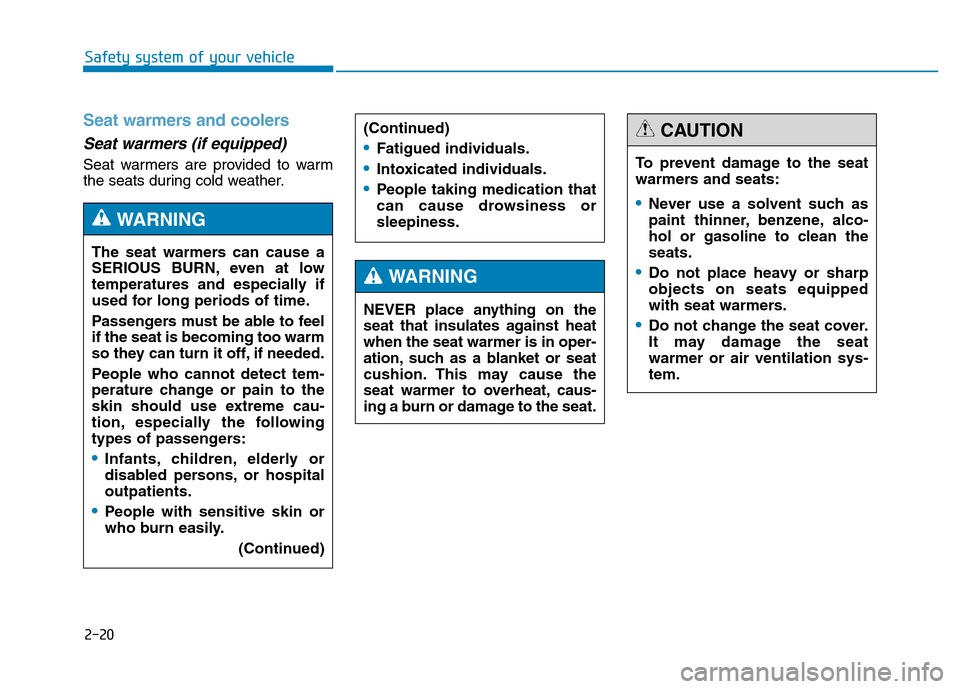

Seat warmers and coolers
Seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time.
Passengers must be able to feel
if the seat is becoming too warm
so they can turn it off, if needed.
People who cannot detect tem-
perature change or pain to the
skin should use extreme cau-
tion, especially the following
types of passengers:
•Infants, children, elderly or
disabled persons, or hospital
outpatients.
•People with sensitive skin or
who burn easily.
(Continued)
(Continued)
•Fatigued individuals.
•Intoxicated individuals.
•People taking medication that
can cause drowsiness or
sleepiness.
WARNING
NEVER place anything on the
seat that insulates against heat
when the seat warmer is in oper-
ation, such as a blanket or seat
cushion. This may cause the
seat warmer to overheat, caus-
ing a burn or damage to the seat.
WARNING
To prevent damage to the seat
warmers and seats:
•Never use a solvent such as
paint thinner, benzene, alco-
hol or gasoline to clean the
seats.
•Do not place heavy or sharp
objects on seats equipped
with seat warmers.
•Do not change the seat cover.
It may damage the seat
warmer or air ventilation sys-
tem.
CAUTION

2-21
Safety system of your vehicle
2

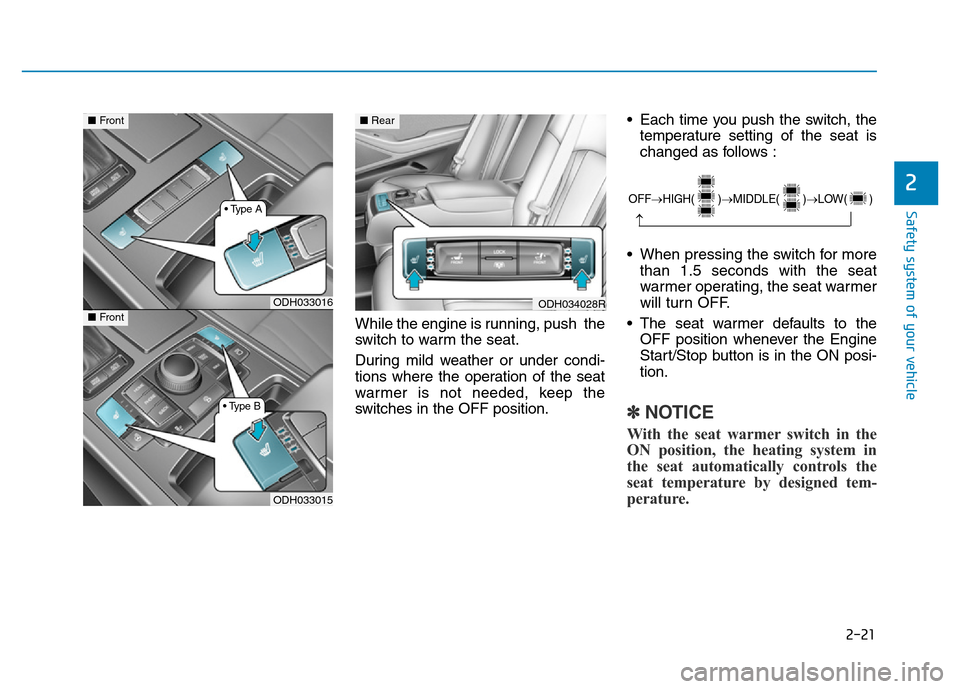

While the engine is running, push the
switch to warm the seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.• Each time you push the switch, the
temperature setting of the seat is
changed as follows :
• When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
• The seat warmer defaults to the
OFF position whenever the Engine
Start/Stop button is in the ON posi-
tion.
✽NOTICE
With the seat warmer switch in the
ON position, the heating system in
the seat automatically controls the
seat temperature by designed tem-
perature.
OFF→HIGH( )→MIDDLE( )→LOW( )
→
ODH034028RODH033016
ODH033015
■Front■Rear
■Front
• Type A
• Type B

2-22
Safety system of your vehicle

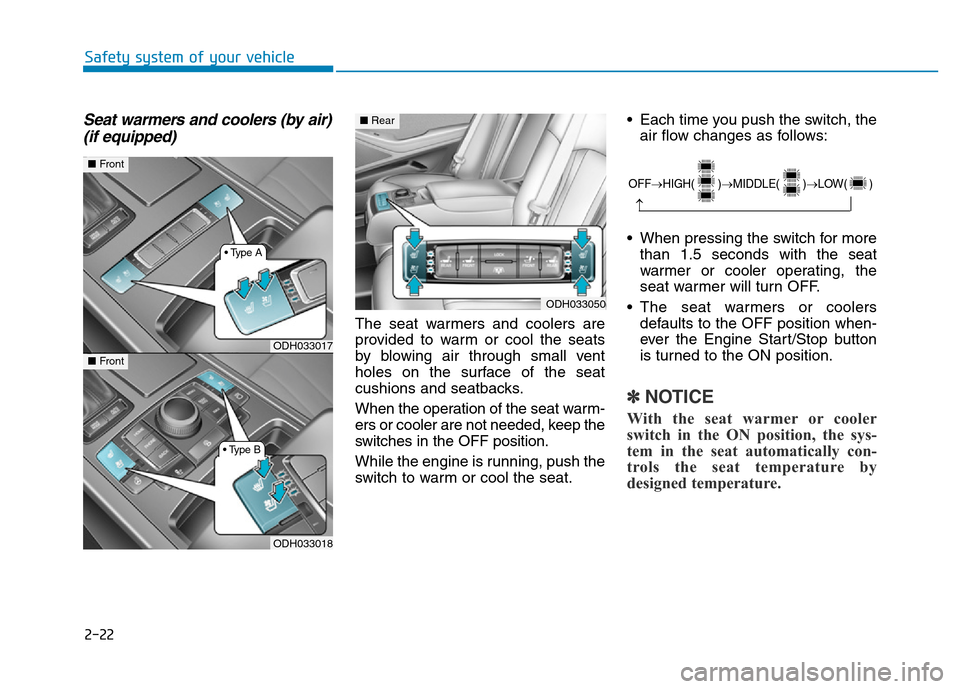

Seat warmers and coolers (by air)
(if equipped)
The seat warmers and coolers are
provided to warm or cool the seats
by blowing air through small vent
holes on the surface of the seat
cushions and seatbacks.
When the operation of the seat warm-
ers or cooler are not needed, keep the
switches in the OFF position.
While the engine is running, push the
switch to warm or cool the seat.• Each time you push the switch, the
air flow changes as follows:
• When pressing the switch for more
than 1.5 seconds with the seat
warmer or cooler operating, the
seat warmer will turn OFF.
• The seat warmers or coolers
defaults to the OFF position when-
ever the Engine Start/Stop button
is turned to the ON position.
✽NOTICE
With the seat warmer or cooler
switch in the ON position, the sys-
tem in the seat automatically con-
trols the seat temperature by
designed temperature.
OFF→HIGH( )→MIDDLE( )→LOW( )
→
ODH033050
ODH033017
ODH033018
■Front
■Rear
■Front
• Type A
• Type B
