Hyundai Genesis 2015 Owner's Manual

3-77
Convenient features of your vehicle
3

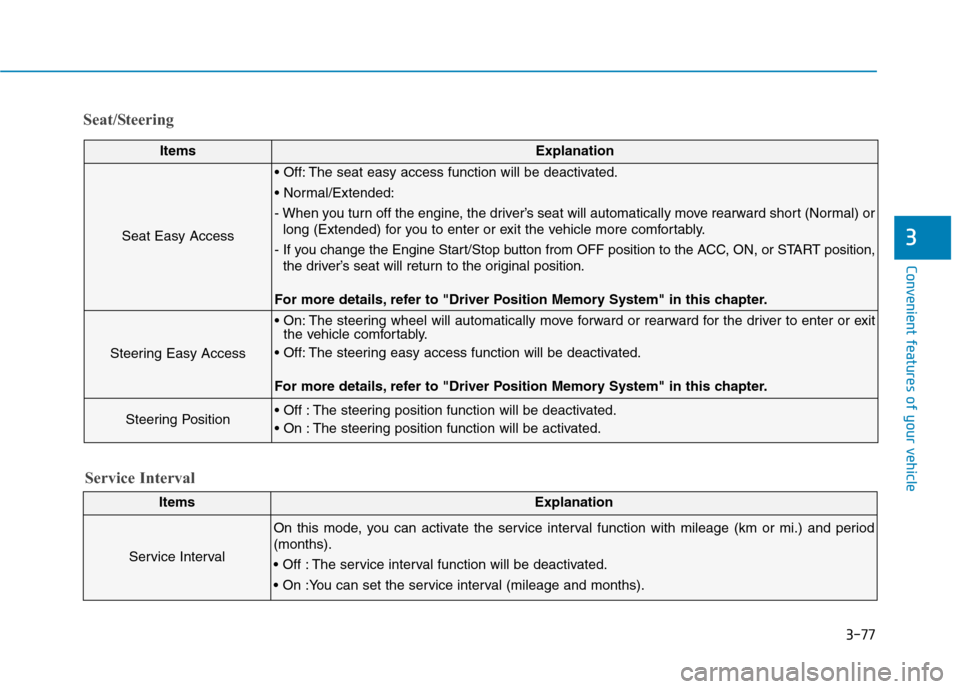

Seat/Steering
ItemsExplanation
Seat Easy Access
The seat easy access function will be deactivated.

- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START position,
the driver’s seat will return to the original position.
For more details, refer to "Driver Position Memory System" in this chapter.
Steering Easy Access
The steering wheel will automatically move forward or rearward for the driver to enter or exit
the vehicle comfortably.
The steering easy access function will be deactivated.
For more details, refer to "Driver Position Memory System" in this chapter.
Steering Position The steering position function will be deactivated.
The steering position function will be activated.
ItemsExplanation
Service Interval
On this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
The service interval function will be deactivated.

Service Interval

3-78
Convenient features of your vehicle
Other Features
ItemsExplanation
Fuel Economy Auto Reset

The average fuel economy will not reset automatically whenever refueling.

The average fuel economy will reset automatically when refueling.
For more details, refer to "Trip Computer" in this chapter.
Traffic Information The traffic information will not be displayed on the LCD display.
The LCD display will show traffic information.
Wiper/Lights Display The wiper/lights information will not be displayed on the LCD display.
The LCD display will shortly show the selected wiper/lights information.
Fuel Economy UnitChoose the fuel economy unit. (US gallon, UK gallon)
Temperature UnitChoose the temperature unit. (°C,°F)
Tire Pressure UnitChoose the tire pressure unit. (psi, kPa, Bar)

3-79
Convenient features of your vehicle
3

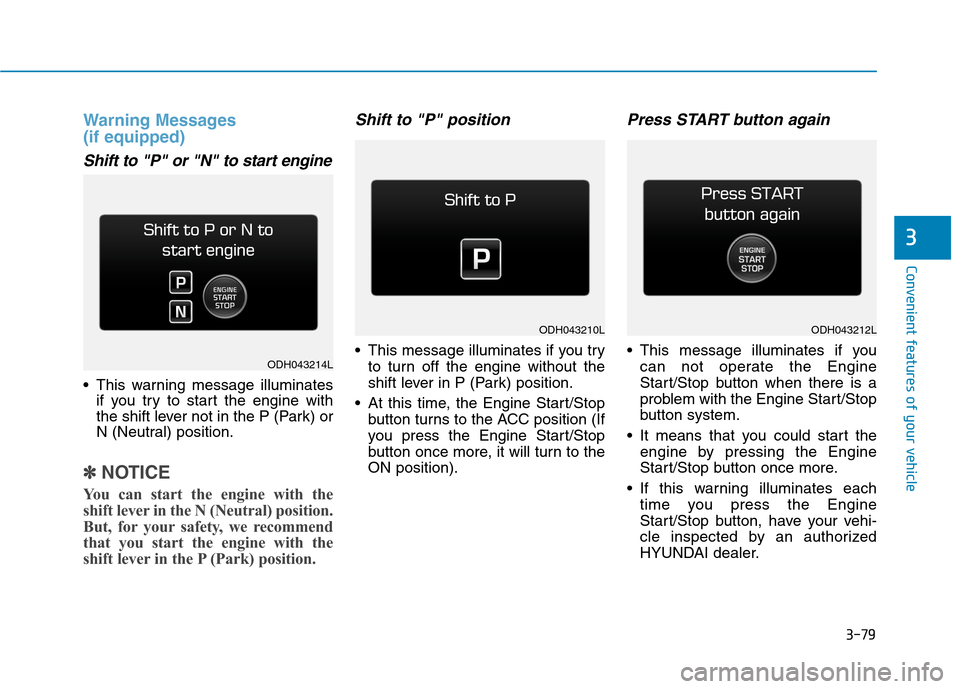

Warning Messages
(if equipped)
Shift to "P" or "N" to start engine
This warning message illuminates
if you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽ ✽
NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
Shift to "P" position
This message illuminates if you try
to turn off the engine without the
shift lever in P (Park) position.
At this time, the Engine Start/Stop
button turns to the ACC position (If
you press the Engine Start/Stop
button once more, it will turn to the
ON position).
Press START button again
This message illuminates if you
can not operate the Engine
Start/Stop button when there is a
problem with the Engine Start/Stop
button system.
It means that you could start the
engine by pressing the Engine
Start/Stop button once more.
If this warning illuminates each
time you press the Engine
Start/Stop button, have your vehi-
cle inspected by an authorized
HYUNDAI dealer.
ODH043210L
ODH043214L
ODH043212L

3-80
Convenient features of your vehicle

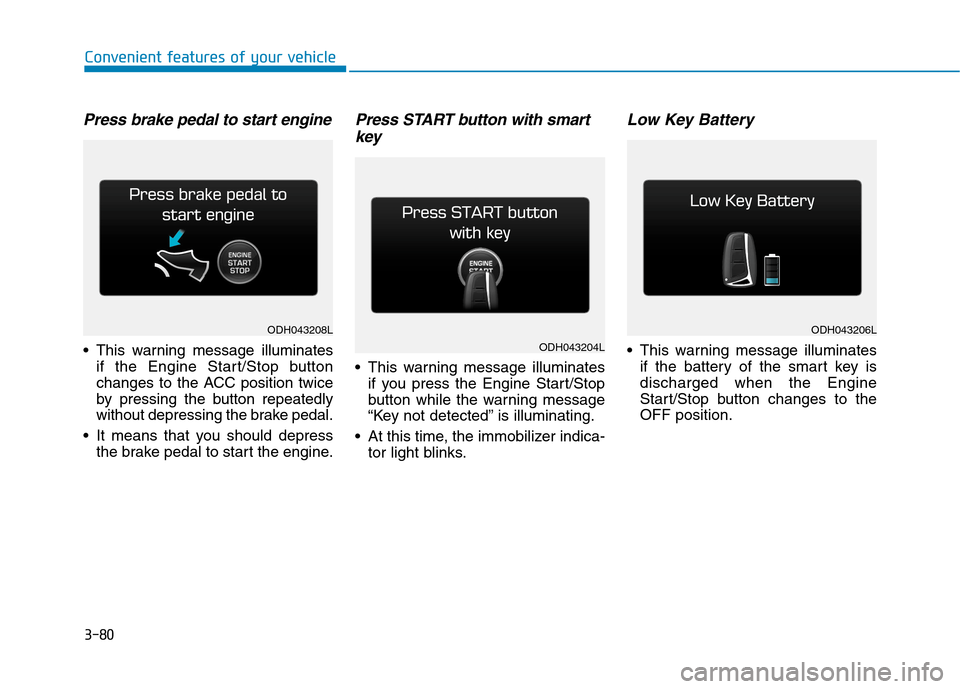

Press brake pedal to start engine
This warning message illuminates
if the Engine Start/Stop button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
It means that you should depress
the brake pedal to start the engine.
Press START button with smart
key
This warning message illuminates
if you press the Engine Start/Stop
button while the warning message
“Key not detected” is illuminating.
At this time, the immobilizer indica-
tor light blinks.
Low Key Battery
This warning message illuminates
if the battery of the smart key is
discharged when the Engine
Start/Stop button changes to the
OFF position.
ODH043208L
ODH043204L
ODH043206L

3-81
Convenient features of your vehicle
3

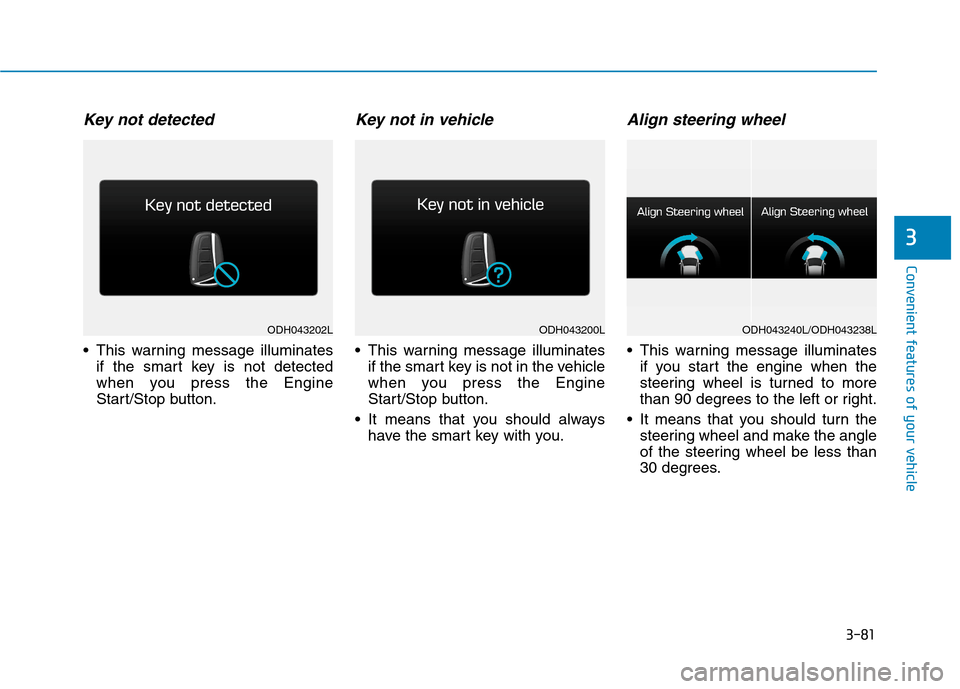

Key not detected
This warning message illuminates
if the smart key is not detected
when you press the Engine
Start/Stop button.
Key not in vehicle
This warning message illuminates
if the smart key is not in the vehicle
when you press the Engine
Start/Stop button.
It means that you should always
have the smart key with you.
Align steering wheel
This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the
steering wheel and make the angle
of the steering wheel be less than
30 degrees.
ODH043200LODH043202LODH043240L/ODH043238L

3-82
Convenient features of your vehicle

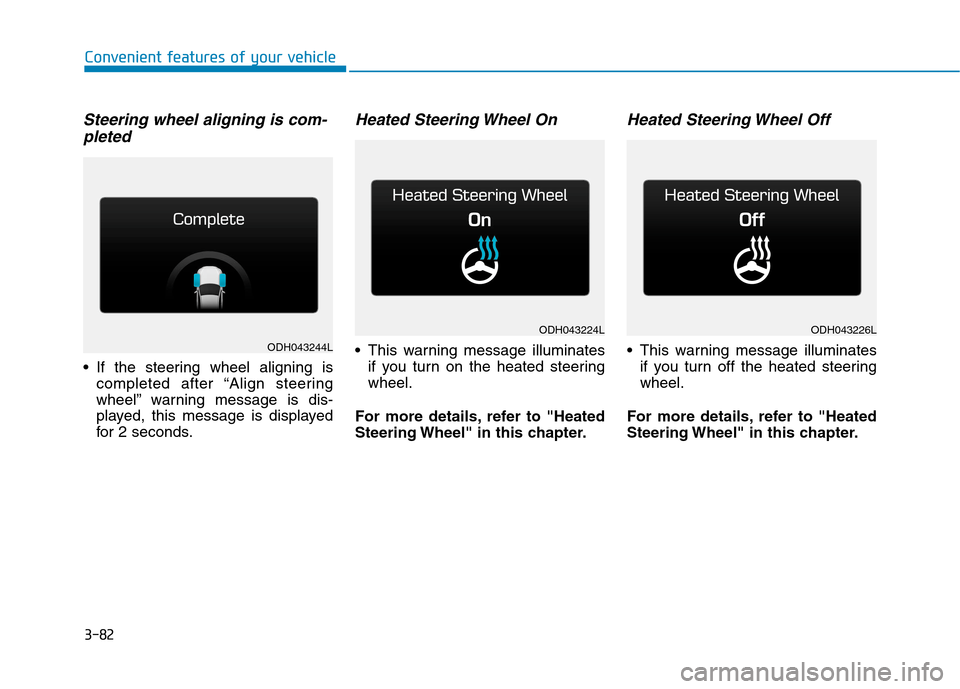

Steering wheel aligning is com-
pleted
If the steering wheel aligning is
completed after “Align steering
wheel” warning message is dis-
played, this message is displayed
for 2 seconds.
Heated Steering Wheel On
This warning message illuminates
if you turn on the heated steering
wheel.
For more details, refer to "Heated
Steering Wheel" in this chapter.
Heated Steering Wheel Off
This warning message illuminates
if you turn off the heated steering
wheel.
For more details, refer to "Heated
Steering Wheel" in this chapter.ODH043244L
ODH043224LODH043226L

3-83
Convenient features of your vehicle
3
Door / Hood / Trunk Open
It means that any door, hood, or
trunk is open.
Sunroof Open
This warning message illuminates
if you turn off the engine when the
sunroof is open.
Window Open
This warning message illuminates
if you turn off the engine when any
window is open.
ODH043218ODH043220LODH043222L

3-84
Convenient features of your vehicle

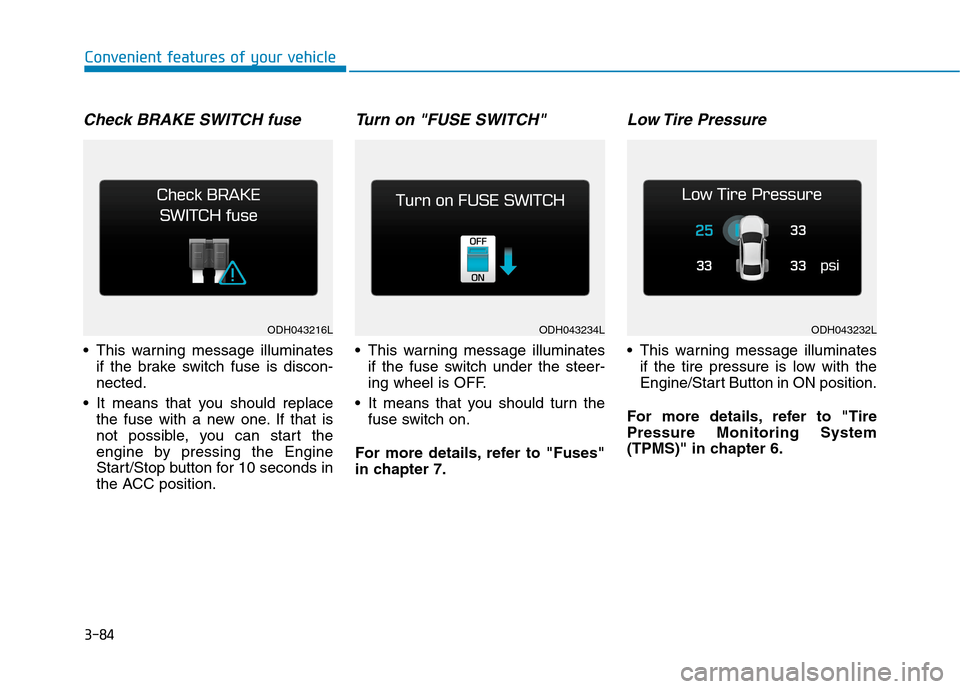

Check BRAKE SWITCH fuse
This warning message illuminates
if the brake switch fuse is discon-
nected.
It means that you should replace
the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop button for 10 seconds in
the ACC position.
Turn on "FUSE SWITCH"
This warning message illuminates
if the fuse switch under the steer-
ing wheel is OFF.
It means that you should turn the
fuse switch on.
For more details, refer to "Fuses"
in chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine/Start Button in ON position.
For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
ODH043216LODH043234LODH043232L

3-85
Convenient features of your vehicle
3

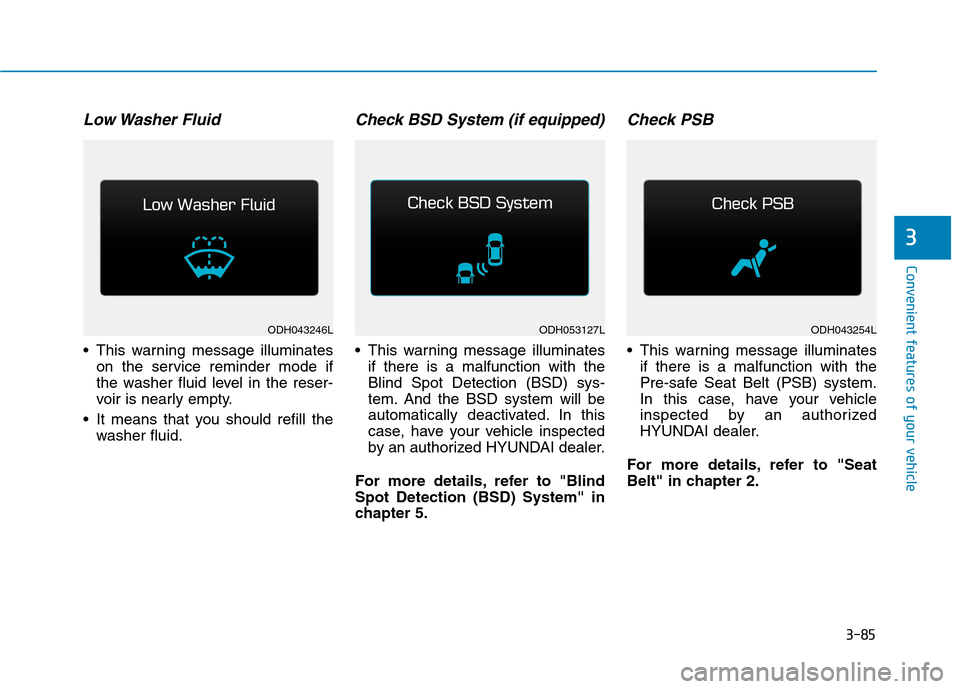

Low Washer Fluid
This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the
washer fluid.
Check BSD System (if equipped)
This warning message illuminates
if there is a malfunction with the
Blind Spot Detection (BSD) sys-
tem. And the BSD system will be
automatically deactivated. In this
case, have your vehicle inspected
by an authorized HYUNDAI dealer.
For more details, refer to "Blind
Spot Detection (BSD) System" in
chapter 5.
Check PSB
This warning message illuminates
if there is a malfunction with the
Pre-safe Seat Belt (PSB) system.
In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
For more details, refer to "Seat
Belt" in chapter 2.
ODH043246LODH043254LODH053127L

3-86
Convenient features of your vehicle

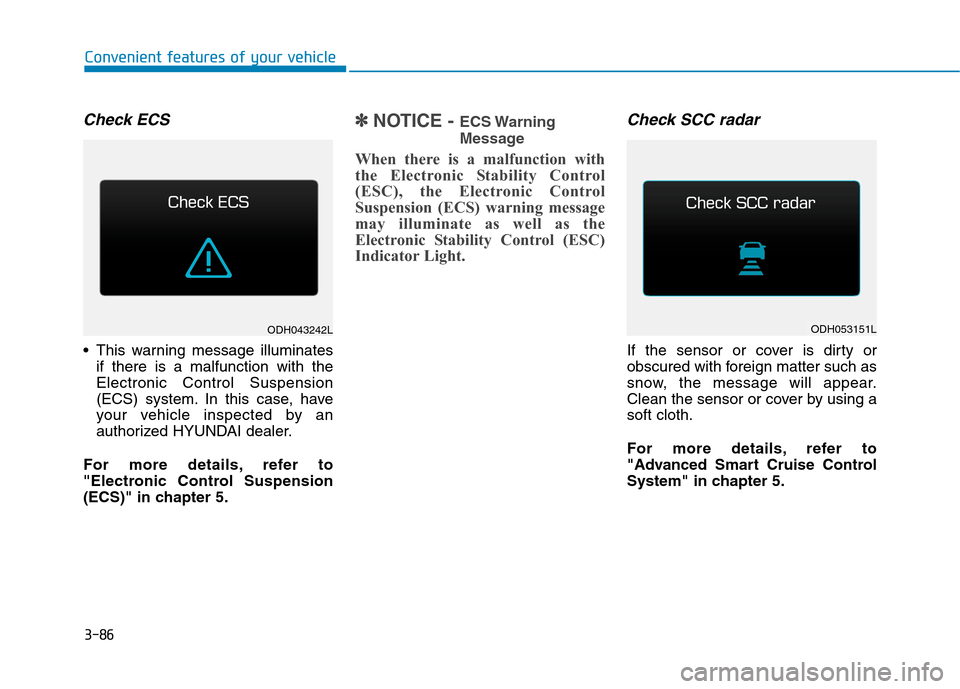

Check ECS
This warning message illuminates
if there is a malfunction with the
Electronic Control Suspension
(ECS) system. In this case, have
your vehicle inspected by an
authorized HYUNDAI dealer.
For more details, refer to
"Electronic Control Suspension
(ECS)" in chapter 5.
✽ ✽
NOTICE - ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Control
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.
Check SCC radar
If the sensor or cover is dirty or
obscured with foreign matter such as
snow, the message will appear.
Clean the sensor or cover by using a
soft cloth.
For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
ODH043242LODH053151L
