Blue link User’s Manual I 19
18 I Blue link User’s Manual
Features accessible via the
Genesis Intelligent a ssistant
app
On-Demand Diagnostics
This feature provides you with a timely in-vehicle diagnostic evaluation, adding
peace of mind to your drive.
How to Use On-Demand Diagnostics in your Vehicle
• access the feature from the Blue link Menu on your vehicle’s
touchscreen display.
• after the vehicle performs the diagnostic sweep, the system will notify
you if any conditions are found.
• y ou can view the details of any condition found immediately and even
schedule service with a press of a button.
Driving Information
Driving Information enhances your driving experience by readily summarizing
the data gathered from your most recent trip.
How to a ccess Driving Information in your Vehicle
• access the feature from the Blue link Menu on your vehicle’s
touchscreen display.
• Data available includes driving distance, driving time, engine idle time,
speed distributio and charts comparing your vehicle’s acceleration and
deceleration.
• all data is a running average and you can view changes during or after
your most recent trip.
a utomatic Diagnostic Trouble c ode notification
In the event a vehicle system or component malfunction occurs, a utomatic
Diagnostic Trouble c ode (DTc) notification correlates vehicle data and
diagnostics to better inform you of a possible vehicle condition. Using in-
vehicle display alerts, it will indicate the significance of the issue and provide
you with instructions, including appropriate next steps. In addition, this
information is also sent to your preferred Hyundai dealer in order to help with
the repair process.
•
In order to receive notifications, you must first log on to
www.MyHyundai.com, select the Blue link logo for your applicable
vehicle, then select notification s ettings, and set your notification
preference.
•
should a vehicle component malfunction, you will be
automatically notified by your selected methods.
• If needed, you will have the option to call for r oadside assistance and/
or schedule a Hyundai dealership service appointment.
s ervice link
service link allows you to schedule a Hyundai dealership service appointment.
In order to activate this feature, you must first log on to
www.MyHyundai.com and confirm your Preferred Hyundai Dealer.
• s elect My a ccount from the top menu on www.MyHyundai.com menu.
• View your current Preferred Dealer under “My Preferred Dealer”.
• If desired, select “ change Dealer” to the search for dealers in your area using
the Zip c ode/search functions.
• s elect the dealer by clicking the star next to the dealer name.
How to Use s ervice link in your Vehicle
• Press the Blue link button located on your rearview mirror.
• a t the prompt, say “s ervice link.”
• a trained specialist will offer to make a dealership service appointment.
The agent will ask for information needed in order to schedule the
appointment appropriately.
• y our Preferred Dealer will be notified or your appointment and may contact
you if needed.
•
a n email reminder with the appointment will also be sent to you.
Page 12 of 18

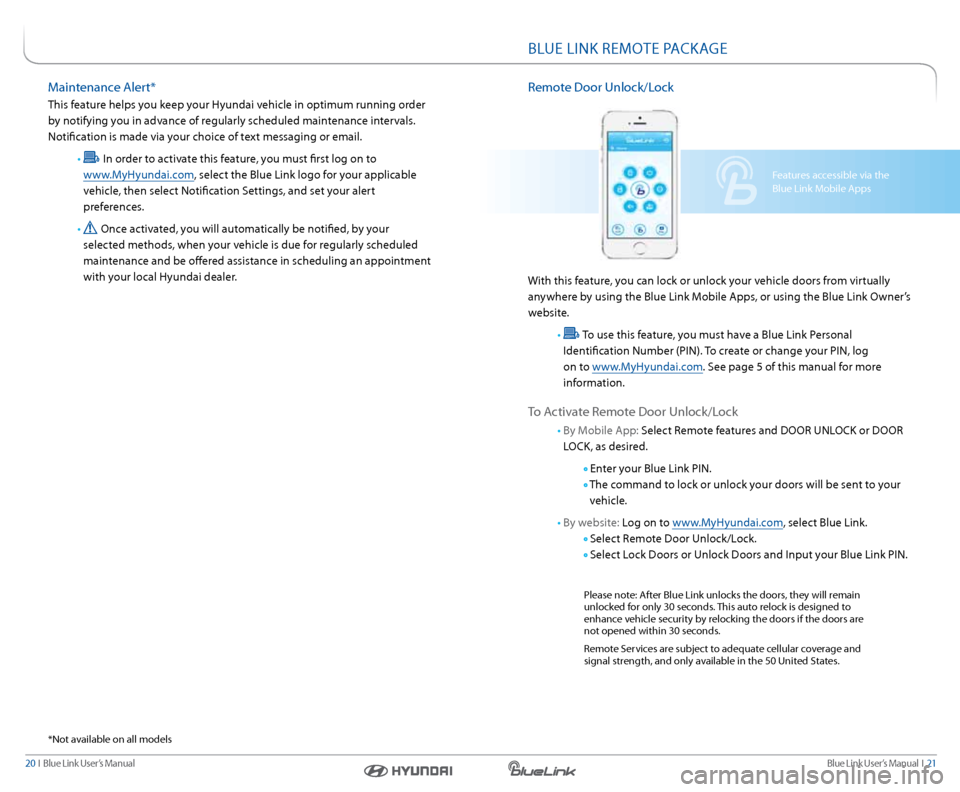

Blue link User’s Manual I 21
20 I Blue link User’s Manual
Features accessible via the
Blue link Mobile a pps
BlUe lInk reMOTe Packa Ge
remote Door Unlock/l ock
With this feature, you can lock or unlock your vehicle doors from virtually
anywhere by using the Blue link Mobile a pps, or using the Blue link Owner’s
website.
•
To use this feature, you must have a Blue link Personal
Identification number (PIn). To create or change your PIn, log
on to www.MyHyundai.com. s ee page 5 of this manual for more
information.
To a ctivate r emote Door Unlock/l ock
• By Mobile a pp: select r emote features and DOOr Unl Ock or DOOr
l Ock , as desired.
enter your Blue link PIn.
The command to lock or unlock your doors will be sent to your
vehicle.
• By website: l og on to www.MyHyundai.com, select Blue link.
s elect r emote Door Unlock/l ock.
s elect l ock Doors or Unlock Doors and Input your Blue link PIn.
Please note: a fter Blue link unlocks the doors, they will remain
unlocked for only 30 seconds. This auto relock is designed to
enhance vehicle security by relocking the doors if the doors are
not opened within 30 seconds.
r emote services are subject to adequate cellular coverage and
signal strength, and only available in the 50 United s tates.
Maintenance alert*
This feature helps you keep your Hyundai vehicle in optimum running order
by notifying you in advance of regularly scheduled maintenance intervals.
notification is made via your choice of text messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com, select the Blue link logo for your applicable
vehicle, then select notification s ettings, and set your alert
preferences.
•
Once activated, you will automatically be notified, by your
selected methods, when your vehicle is due for regularly scheduled
maintenance and be offered assistance in scheduling an appointment
with your local Hyundai dealer.
*not available on all models
Page 13 of 18

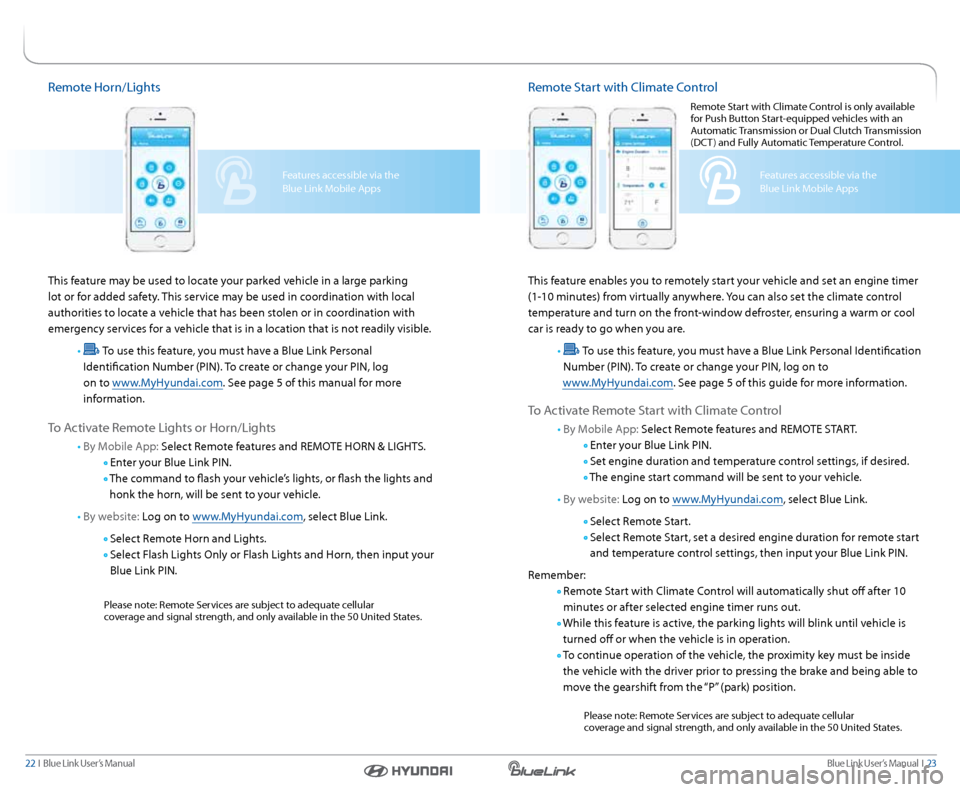

Blue link User’s Manual I 23
22 I Blue link User’s Manual
remote s tart with climate c ontrol
This feature enables you to remotely start your vehicle and set an engine timer
(1-10 minutes) from virtually anywhere. you can also set the climate control
temperature and turn on the front-window defroster, ensuring a warm or cool
car is ready to go when you are.
•
To use this feature, you must have a Blue link Personal Identification
number (PIn). To create or change your PIn, log on to
www.MyHyundai.com. s ee page 5 of this guide for more information.
To activate r emote start with climate c ontrol
• By Mobile a pp: select r emote features and reMOTe sT arT.
enter your Blue link PIn.
s et engine duration and temperature control settings, if desired.
The engine start command will be sent to your vehicle.
• By website: l og on to www.MyHyundai.com, select Blue link.
s elect r emote s tart.
s elect r emote s tart, set a desired engine duration for remote start
and temperature control settings, then input your Blue link PIn.
r emember:
r emote s tart with climate c ontrol will automatically shut off after 10
minutes or after selected engine timer runs out.
While this feature is active, the parking lights will blink until vehicle is
turned off or when the vehicle is in operation.
To continue operation of the vehicle, the proximity key must be inside
the vehicle with the driver prior to pressing the brake and being able to
move the gearshift from the “P” (park) position.
Please note: r emote services are subject to adequate cellular
coverage and signal strength, and only available in the 50 United s tates.
Features accessible via the
Blue link Mobile apps
r
emote s tart with climate c ontrol is only available
for Push Button s tart-equipped vehicles with an
a utomatic Transmission or Dual clutch Transmission
(Dc T ) and Fully a utomatic Temperature c ontrol.
remote Horn/lights
This feature may be used to locate your parked vehicle in a large parking
lot or for added safety. This service may be used in coordination with local
authorities to locate a vehicle that has been stolen or in coordination with
emergency services for a vehicle that is in a location that is not readily visible.
•
To use this feature, you must have a Blue link Personal
Identification number (PIn). To create or change your PIn, log
on to www.MyHyundai.com. s ee page 5 of this manual for more
information.
To a ctivate r emote lights or Horn/lights
• By Mobile a pp: select r emote features and reMOTe HOrn & lIGHT s.
enter your Blue link PIn.
The command to flash your vehicle’s lights, or flash the lights and
honk the horn, will be sent to your vehicle.
• By website: l og on to www.MyHyundai.com, select Blue link.
s elect r emote Horn and lights.
s elect Flash lights Only or Flash lights and Horn, then input your
Blue link PIn.
Please note: r emote services are subject to adequate cellular
coverage and signal strength, and only available in the 50 United s tates.
Features accessible via the
Blue link Mobile apps
Page 14 of 18

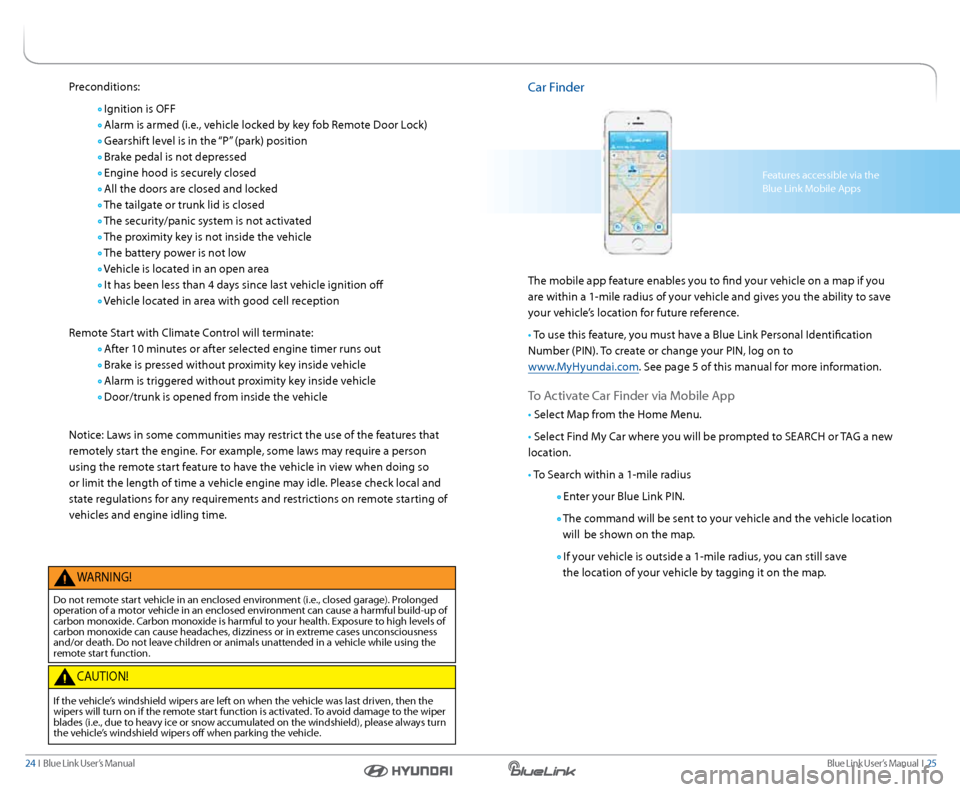

Blue link User’s Manual I 25
24 I Blue link User’s Manual
car Finder
The mobile app feature enables you to find your vehicle on a map if you
are within a 1-mile radius of your vehicle and gives you the ability to save
your vehicle’s location for future reference.
• To use this feature, you must have a Blue link Personal Identification
number (PIn). To create or change your PIn, log on to
www.MyHyundai.com. s ee page 5 of this manual for more information.
To activate c ar Finder via Mobile a pp
• select Map from the Home Menu.
• s elect Find My c ar where you will be prompted to searcH or T aG a new
location.
• To s earch within a 1-mile radius
enter your Blue link PIn.
The command will be sent to your vehicle and the vehicle location
will be shown on the map.
If your vehicle is outside a 1-mile radius, you can still save
the location of your vehicle by tagging it on the map.
Features accessible via the
Blue link Mobile a pps
Preconditions:
Ignition is OFF
a larm is armed (i.e., vehicle locked by key fob r emote Door lock)
Gearshift level is in the “P” (park) position
Brake pedal is not depressed
engine hood is securely closed
a ll the doors are closed and locked
The tailgate or trunk lid is closed
The security/panic system is not activated
The proximity key is not inside the vehicle
The battery power is not low
Vehicle is located in an open area
It has been less than 4 days since last vehicle ignition off
Vehicle located in area with good cell reception
r emote s tart with climate c ontrol will terminate:
a fter 10 minutes or after selected engine timer runs out
Brake is pressed without proximity key inside vehicle
a larm is triggered without proximity key inside vehicle
Door/trunk is opened from inside the vehicle
notice: laws in some communities may restrict the use of the features that
remotely start the engine. For example, some laws may require a person
using the remote start feature to have the vehicle in view when doing so
or limit the length of time a vehicle engine may idle. Please check local and
state regulations for any requirements and restrictions on remote starting of
vehicles and engine idling time.
W arnInG!
Do not remote start vehicle in an enclosed environment (i.e., closed garage). Prolonged
operation of a motor vehicle in an enclosed environment can cause a harmful build-up of
carbon monoxide. c arbon monoxide is harmful to your health. exposure to high levels of
carbon monoxide can cause headaches, dizziness or in extreme cases unconsciousness
and/or death. Do not leave children or animals unattended in a vehicle while using the
remote start function.
ca UTIOn!
If the vehicle’s windshield wipers are left on when the vehicle was last driven, then the
wipers will turn on if the remote start function is activated. To avoid damage to the wiper
blades (i.e., due to heavy ice or snow accumulated on the windshield), please always turn
the vehicle’s windshield wipers off when parking the vehicle.
Page 15 of 18
Blue link User’s Manual I 27
26 I Blue link User’s Manual
Vehicle Immobilization
In the event your vehicle is reported stolen to law enforcement authorities,
they may elect to utilize this feature to completely turn off the engine once
the vehicle has been stopped using vehicle slowdown. This will prevent the
vehicle from being restarted until law enforcement has arrived on
the scene.
• To inform Hyundai of the theft of your Hyundai vehicle, call
855-2- Bluelink (855-225-8354).
• a live operator will work with law enforcement in initiating vehicle
immobilization and assist in the vehicle’s recovery.
Panic notification
This feature will notify any pre-selected persons if your vehicle’s remote panic
button is engaged, via your choice of text messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com and set your preferences as outlined on page 4
of this manual.
•
all individuals designated by you will be notified of your vehicle’s
precise location should the panic button be activated.
Please note: notifications are subject to adequate cellular coverage
and signal strength, and only available in the 50 United s tates.
alarm notification
In the event your vehicle’s alarm is activated, this feature will automatically
notify any pre-selected persons via your choice of text messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com and set your preferences as outlined
on page 4 of this guide.
•
y our pre-selected contacts will be notified if your vehicle’s
alarm is activated.
Please note: notifications are subject to adequate cellular coverage
and signal strength, and only available in the 50 United s tates.
stolen Vehicle recovery
In the event your vehicle is reported stolen to law enforcement authorities,
the Blue link c ustomer care center can use the GPs system to help pinpoint
the exact location of the vehicle and assist in its recovery.
l og on to www.MyHyundai.com, select the Blue link logo for your
applicable vehicle, then select notification s ettings and set your alert
preferences.
• To inform Hyundai of the theft of your Hyundai vehicle, call
855-2- Bluelink (855-225-8354).
• a live operator will come online to assist you.
• y ou will be asked to verify your name, phone numbers, and Hyundai
PIn and provide verification that a police report has been filed,
including the case number.
• The agent will initiate a stolen vehicle recovery signal to pin point
the vehicle’s location and will coordinate with law enforcement in its
recovery.
Once the stolen vehicle recovery routine has been started, the owner will not
have access to Blue link services or be provided vehicle status or location,
due to personal safety issues. a t the conclusion of the recovery process, Blue
link will contact the owner and inform them of the vehicle’s disposition.
s tolen Vehicle slowdown
In the event your vehicle is reported stolen to law enforcement authorities,
they may elect to utilize this feature to gradually reduce engine power,
thereby slowing the vehicle’s speed and eventually bringing it to a complete stop.
• To inform Hyundai of the theft of your Hyundai vehicle,
call 855-2- Bluelink (855-225-8354).
• a live operator will work with law enforcement in initiating vehicle
slowdown and assist in the vehicle’s recovery.
Page 16 of 18
Blue link User’s Manual I 29
28 I Blue link User’s Manual
speed a lert
Ideal for parents of younger drivers, this feature allows you to pre-set a speed
limit for your Hyundai vehicle. should the speed limit be exceeded, you will
be notified in-vehicle and via your choice of text messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com.
s elect the Blue link logo for your applicable vehicle
s elect speed a lert
Turn on speed a lert and set a speed limit
•
Once activated, you will automatically receive an alert should your
vehicle exceed the pre-designated speed limits.
Please note: notifications are subject to adequate cellular coverage
and signal strength, and only available in the 50 United s tates.
curfew a lert
This feature allows you to pre-set acceptable time intervals for when your
Hyundai vehicle can and cannot be driven. should these be exceeded, you
will be notified in-vechiel and via your choice of text messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com.
s elect the Blue link logo for your applicable vehicle
s elect c urfew a lert
Turn on c urfew alert and set c urfew days and times
•
Once activated, you will automatically receive an alert should the
curfew limits be exceeded.
Please note: notifications are subject to adequate cellular coverage
and signal strength, and only available in the 50 United s tates.
Download the Vehicle safeguard alerts app to your vehicle to
activate the features and start receiving notifications.
Valet a lert
Whenever you leave your Hyundai vehicle with a valet and it travels farther
than your pre-selected distance boundary after activation, you will be
notified in-vehicle and via your choice of text message or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com.
s elect the Blue link logo for your applicable vehicle
s elect Geo-Fence & Valet a lert
s elect the Valet tab
Turn on Valet a lert and set a distance boundary
Once activated, you will automatically receive an alert should your vehicle
travel farther than your pre-selected distance boundary from the point of
activation.
Please note: Hyundai Blue link s ervices are subject to adequate cellular
coverage and signal strength, and only available in the 50 United s tates.
Geo-Fence
This feature allows you to designate the boundaries of areas in which
your vehicle may and may not be driven. should the vehicle cross these
boundaries, you will be notified in-vehicle and via your choice of text
messaging or email.
•
In order to activate this feature, you must first log on to
www.MyHyundai.com.
s elect the Blue link logo for your applicable vehicle
s elect Geo-Fence & Valet a lert
Turn on Geo-Fence and set driving boundaries
•
Once activated, you will automatically receive an alert should your
vehicle cross the boundaries of your designated areas.
Please note: notifications are subject to adequate cellular coverage
and signal strength, and only available in the 50 United s tates.
*Delayed availability
VeHIcle saFeGU arD aler Ts*
Page 17 of 18
Blue link User’s Manual I 31
30 I Blue link User’s Manual
nOTenOTes
Bl Ue lInk GUID ance PackaGe
Destination search Powered by Google
Blue link allows you to search and download location information for points of
interest, businesses, and specific addresses using Google’s search engine.
Using Destination s earch in your Vehicle
• Press the navigation s ervice button on your rearview mirror and state your
destination when prompted.
• If the voice search does not return the desired destination, you can also
use the keyboard to search again.
• When you route to a destination, the destination is saved in your POI
history.
Using Destination s earch on your Mobile a pp
• search for a point of interest using the search bar in the Home Menu.
• select your desired point of interest from the map or results list.
• you have the option to save and/or send the POI directly to your vehicle.
Using Destination s earch on your c omputer
• On www.MyHyundai.com, select the Blue link logo for your applicable
vehicle, select point of interest search and download the results to your
vehicle for navigation guidance to the destination.
QUIck TIP: you can access a point of interest sent to your vehicle or any POI you
have routed to, by navigating to the in-vehicle Blue link Menu and selecting the
s end-to- car with Google icon.
Page 18 of 18
Blue link User’s Manual I 33
32 I Blue link User’s Manual
alarm notification ........................................................................\
............................... 27
a ssurance c ar care In-Vehicle a pp ....................................................................... 13
a utomatic c ollision notification and a ssistance ............................................. 14
a utomatic Diagnostic Trouble c ode notification ............................................ 18
Blue link Features (Operation chart) ................................................................... 6
c ar Finder ........................................................................\
.......................................... 25
c urfew a lert ........................................................................\
.......................................... 29
Destination s earch Powered by Google ............................................................. 30
Driving Information ........................................................................\
............................ 19
enhanced r oadside assistance ........................................................................\
...... 16
Geo-Fence ........................................................................\
........................................... 28
In-Vehicle a pps ........................................................................\
.................................... 12
In-Vehicle Wi-Fi ........................................................................\
..................................... 12
Maintenance a lert ........................................................................\
.............................. 20
Monthly Vehicle Health r eport ........................................................................\
...... 17
On-Demand Diagnostics ........................................................................\
.................. 19
Panic notification ........................................................................\
................................ 27
r emote Door Unlock/l ock ........................................................................\
............... 21
r emote Horn/lights ........................................................................\
........................... 22
r emote s tart with climate c ontrol ....................................................................... 23
s ervice link ........................................................................\
.......................................... 18
sOs emergency a ssistance ........................................................................\
.............. 15
smart Phone Mobile a pplication ........................................................................\
.. 8
speed a lert ........................................................................\
.......................................... 29
s tolen Vehicle recovery ........................................................................\
.................... 26
s tolen Vehicle slowdown ........................................................................\
................. 26
Using Blue link in your c ar ........................................................................\
.............. 10
Using Blue link Online ........................................................................\
...................... 11
Valet a lert ........................................................................\
............................................. 28
Vehicle Immobilization ........................................................................\
...................... 27
InDeXnOTes
